steering wheel adjustment TOYOTA AURIS 2015 Owners Manual (in English)

160
Auris Touring Sports_EE (OM12G98E)

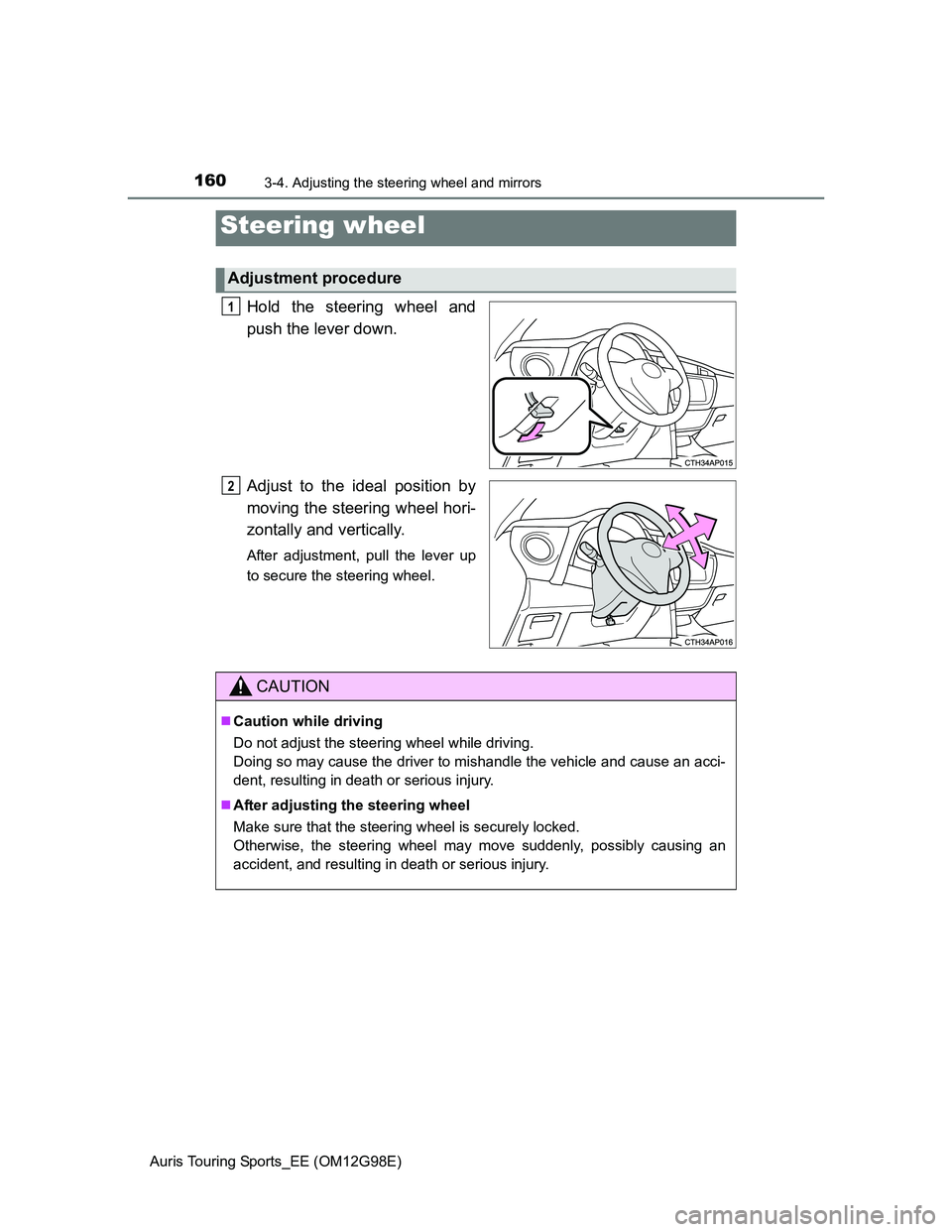

3-4. Adjusting the steering wheel and mirrors
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
Steering wheel
Adjustment procedure
1
2
CAUTION
Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.

1633-4. Adjusting the steering wheel and mirrors
Auris Touring Sports_EE (OM12G98E)
3
Operation of each component

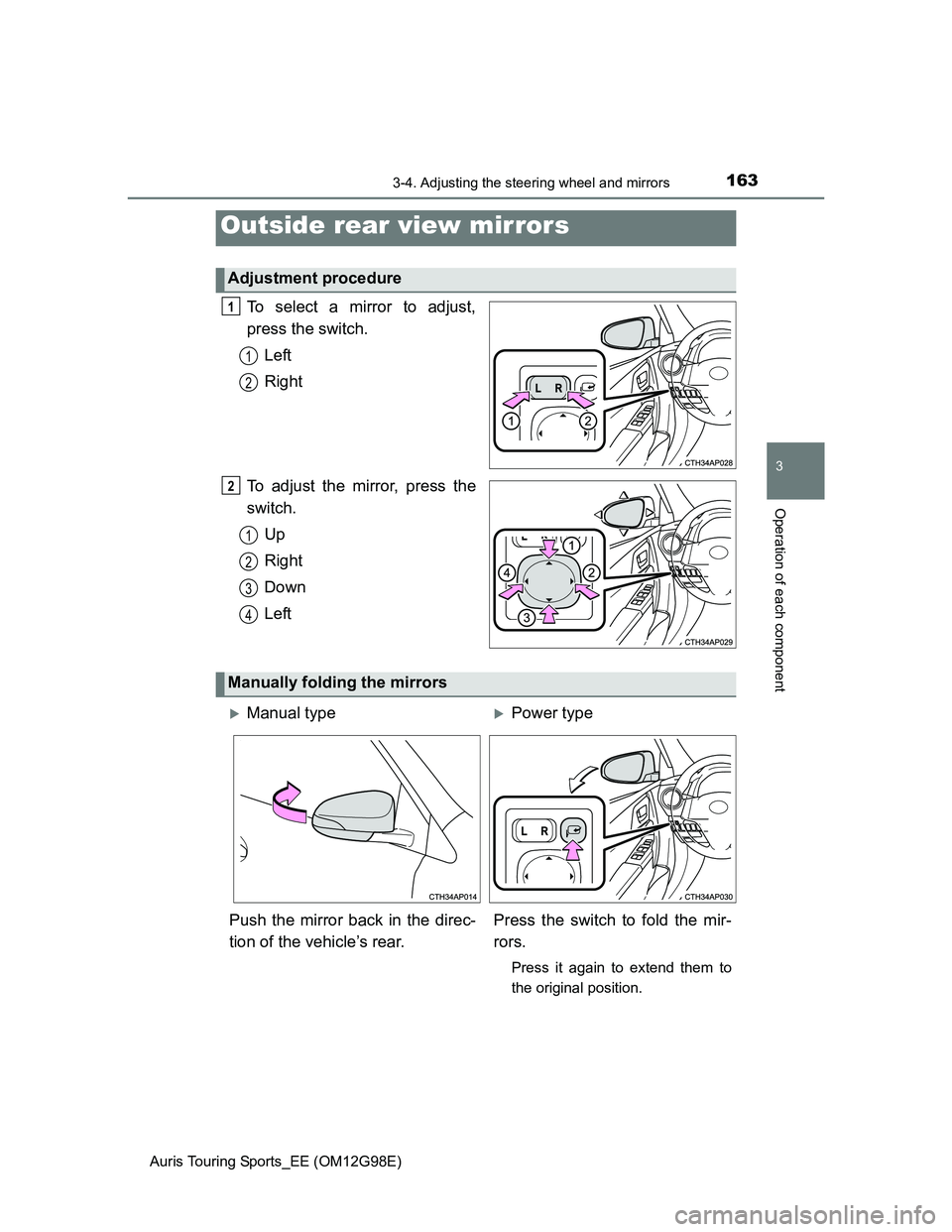

To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding the mirrors
Manual typePower type
Push the mirror back in the direc-
tion of the vehicle’s rear. Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.

1643-4. Adjusting the steering wheel and mirrors
Auris Touring Sports_EE (OM12G98E)

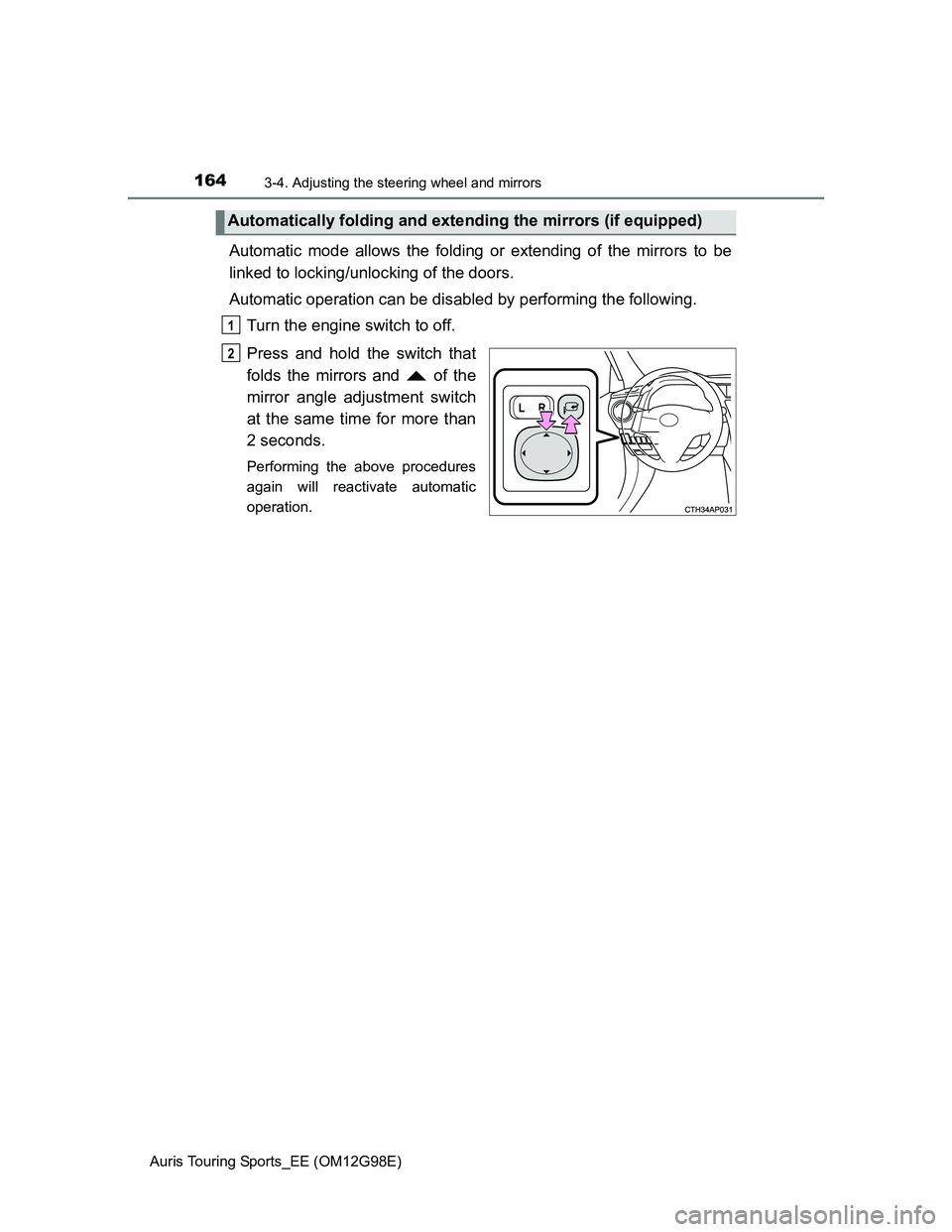

Automatic mode allows the folding or extending of the mirrors to be
linked to locking/unlocking of the doors.
Automatic operation can be disabled by performing the following.
Turn the engine switch to off.
Press and hold the switch that
folds the mirrors and of the
mirror angle adjustment switch
at the same time for more than
2 seconds.
Performing the above procedures
again will reactivate automatic
operation.
Automatically folding and extending the mirrors (if equipped)
1
2

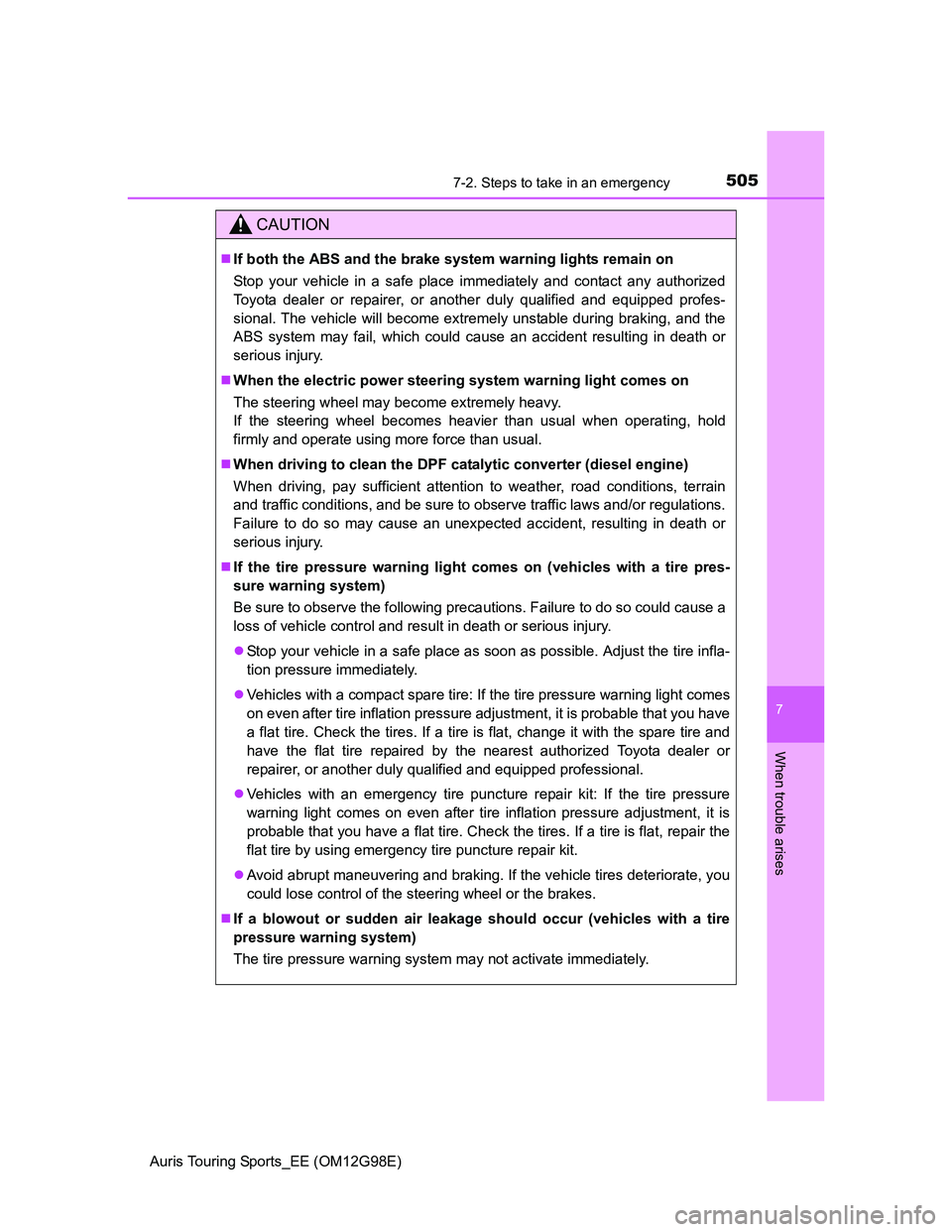

5057-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
CAUTION
If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
Vehicles with a compact spare tire: If the tire pressure warning light comes
on even after tire inflation pressure adjustment, it is probable that you have
a flat tire. Check the tires. If a tire is flat, change it with the spare tire and
have the flat tire repaired by the nearest authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.

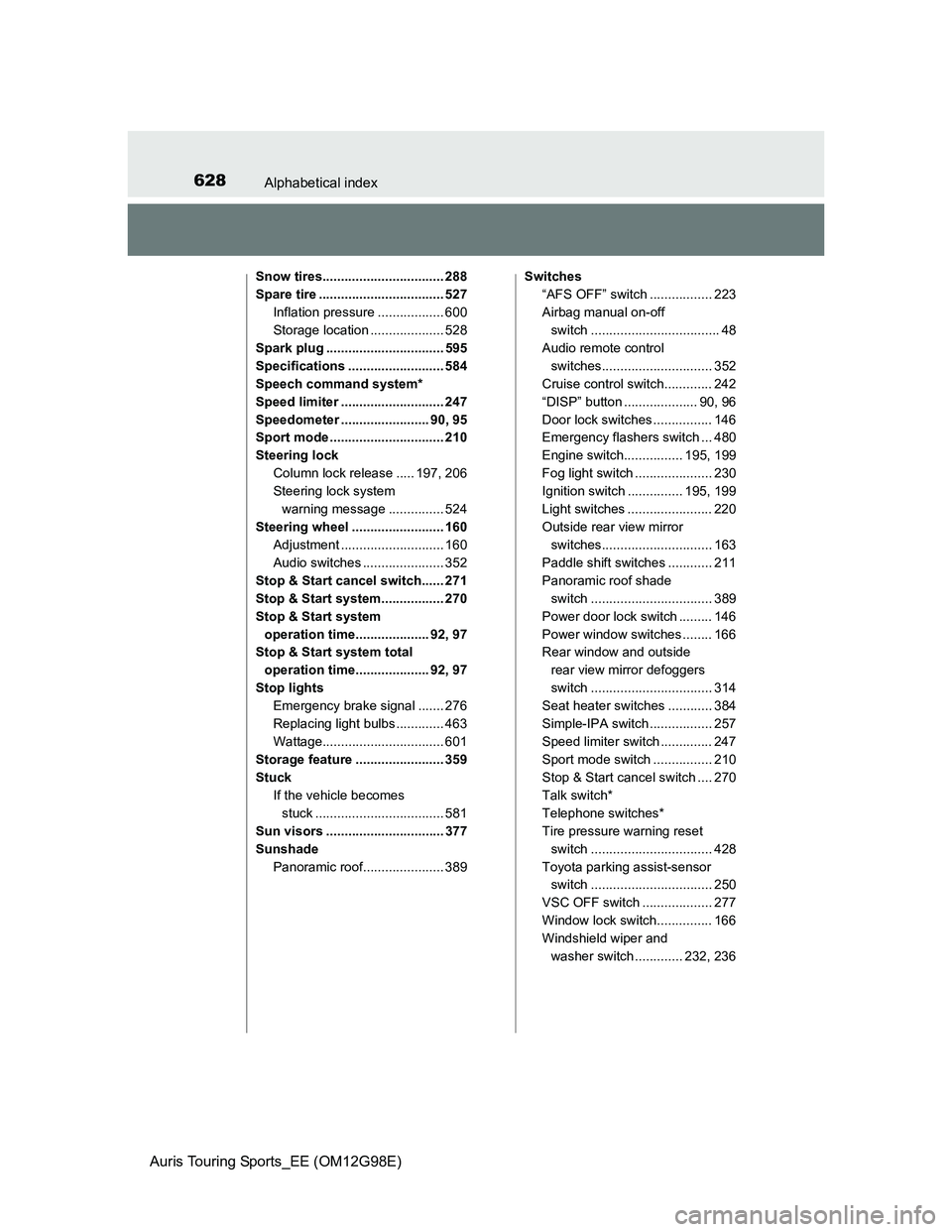

628Alphabetical index
Auris Touring Sports_EE (OM12G98E)
Snow tires................................. 288
Spare tire .................................. 527
Inflation pressure .................. 600
Storage location .................... 528
Spark plug ................................ 595
Specifications .......................... 584
Speech command system*
Speed limiter ............................ 247
Speedometer ........................ 90, 95
Sport mode ............................... 210
Steering lock
Column lock release ..... 197, 206
Steering lock system
warning message ............... 524
Steering wheel ......................... 160
Adjustment ............................ 160
Audio switches ...................... 352
Stop & Start cancel switch...... 271
Stop & Start system................. 270
Stop & Start system
operation time.................... 92, 97
Stop & Start system total
operation time.................... 92, 97
Stop lights
Emergency brake signal ....... 276
Replacing light bulbs ............. 463
Wattage................................. 601
Storage feature ........................ 359
Stuck
If the vehicle becomes
stuck ................................... 581
Sun visors ................................ 377
Sunshade
Panoramic roof...................... 389Switches
“AFS OFF” switch ................. 223
Airbag manual on-off
switch ................................... 48
Audio remote control
switches.............................. 352
Cruise control switch............. 242
“DISP” button .................... 90, 96
Door lock switches ................ 146
Emergency flashers switch ... 480
Engine switch................ 195, 199
Fog light switch ..................... 230
Ignition switch ............... 195, 199
Light switches ....................... 220
Outside rear view mirror
switches.............................. 163
Paddle shift switches ............ 211
Panoramic roof shade
switch ................................. 389
Power door lock switch ......... 146
Power window switches ........ 166
Rear window and outside
rear view mirror defoggers
switch ................................. 314
Seat heater switches ............ 384
Simple-IPA switch ................. 257
Speed limiter switch .............. 247
Sport mode switch ................ 210
Stop & Start cancel switch .... 270
Talk switch*
Telephone switches*
Tire pressure warning reset
switch ................................. 428
Toyota parking assist-sensor
switch ................................. 250
VSC OFF switch ................... 277
Window lock switch............... 166
Windshield wiper and
washer switch ............. 232, 236
