3034-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12M49E)
4
Driving
WARNING

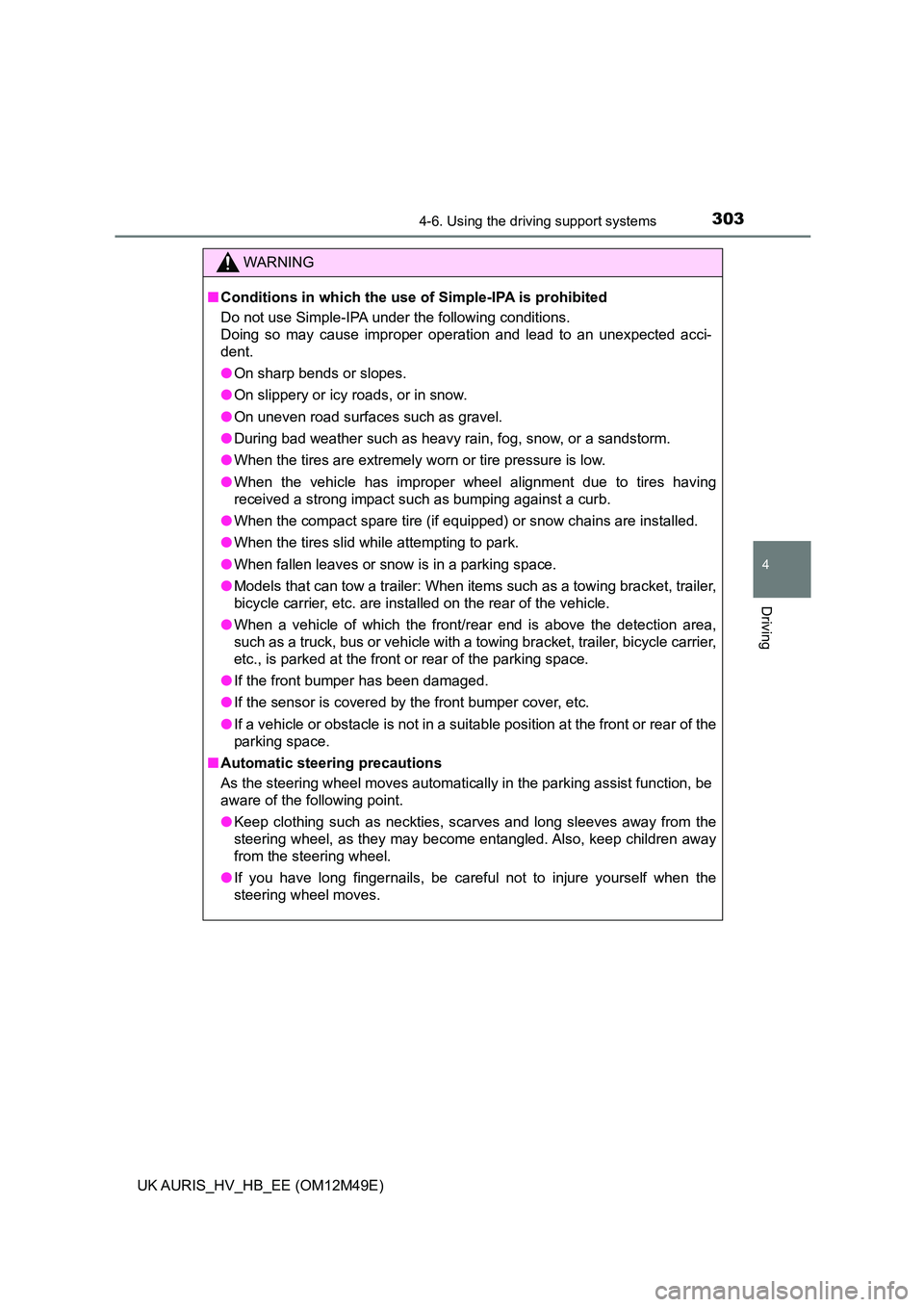

■Conditions in which the use of Simple-IPA is prohibited
Do not use Simple-IPA under the following conditions.
Doing so may cause improper operation and lead to an unexpected acci-
dent.
● On sharp bends or slopes.
● On slippery or icy roads, or in snow.
● On uneven road surfaces such as gravel.
● During bad weather such as heavy rain, fog, snow, or a sandstorm.
● When the tires are extremely worn or tire pressure is low.
● When the vehicle has improper wheel alignment due to tires having
received a strong impact such as bumping against a curb.
● When the compact spare tire (if equipped) or snow chains are installed.
● When the tires slid while attempting to park.
● When fallen leaves or snow is in a parking space.
● Models that can tow a trailer: When items such as a towing bracket, trailer,
bicycle carrier, etc. are installed on the rear of the vehicle.
● When a vehicle of which the front/rear end is above the detection area,
such as a truck, bus or vehicle with a towing bracket, trailer, bicycle carrier,
etc., is parked at the front or rear of the parking space.
● If the front bumper has been damaged.
● If the sensor is covered by the front bumper cover, etc.
● If a vehicle or obstacle is not in a suitable position at the front or rear of the
parking space.
■ Automatic steering precautions
As the steering wheel moves automatically in the parking assist function, be
aware of the following point.
● Keep clothing such as neckties, scarves and long sleeves away from the
steering wheel, as they may become entangled. Also, keep children away
from the steering wheel.
● If you have long fingernails, be careful not to injure yourself when the
steering wheel moves.

3044-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12M49E)
NOTICE

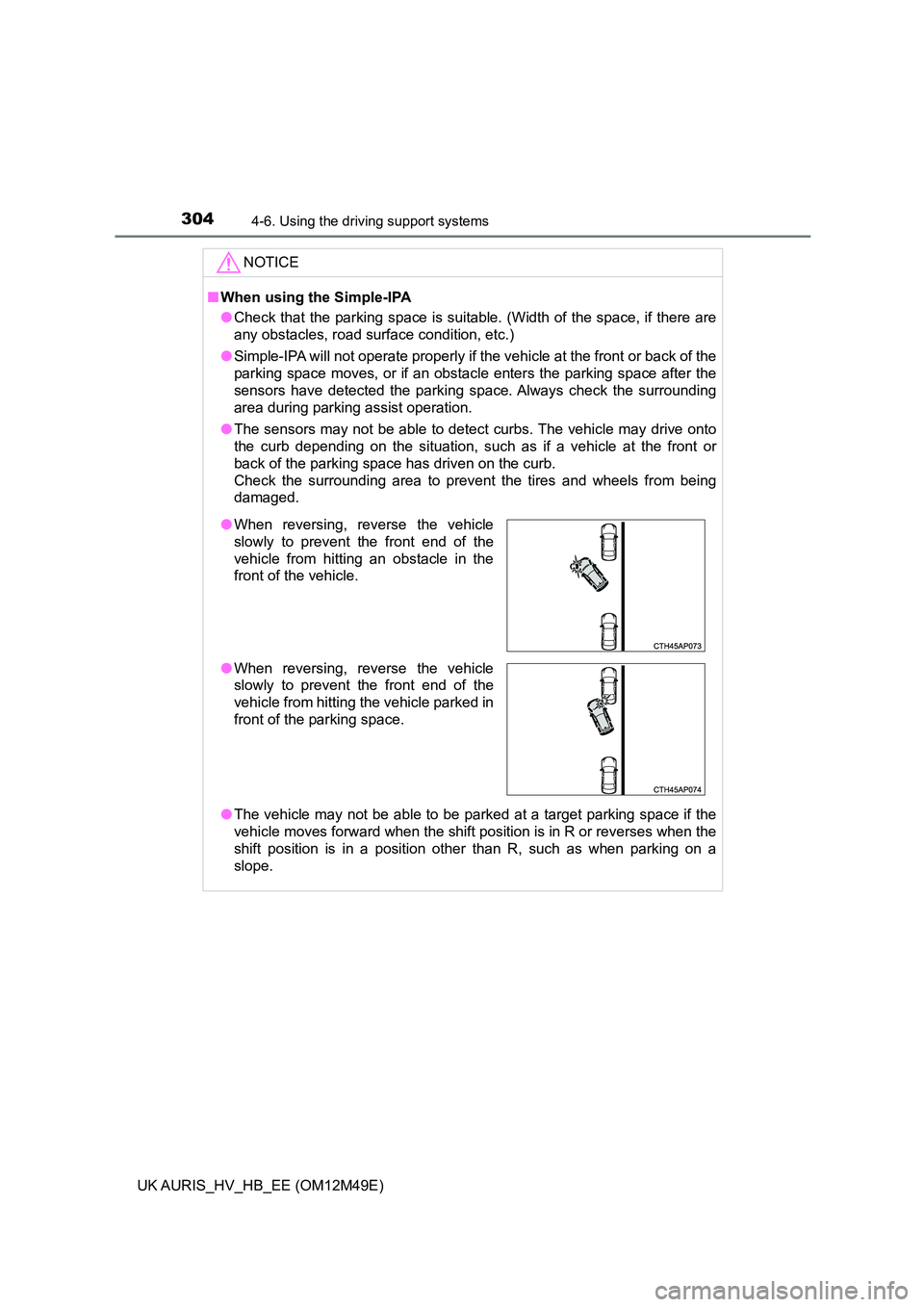

■When using the Simple-IPA
● Check that the parking space is suitable. (Width of the space, if there are
any obstacles, road surface condition, etc.)
● Simple-IPA will not operate properly if the vehicle at the front or back of the
parking space moves, or if an obstacle enters the parking space after the
sensors have detected the parking space. Always check the surrounding
area during parking assist operation.
● The sensors may not be able to detect curbs. The vehicle may drive onto
the curb depending on the situation, such as if a vehicle at the front or
back of the parking space has driven on the curb.
Check the surrounding area to prevent the tires and wheels from being
damaged.
● The vehicle may not be able to be parked at a target parking space if the
vehicle moves forward when the shift position is in R or reverses when the
shift position is in a position other than R, such as when parking on a
slope.
● When reversing, reverse the vehicle
slowly to prevent the front end of the
vehicle from hitting an obstacle in the
front of the vehicle.
● When reversing, reverse the vehicle
slowly to prevent the front end of the
vehicle from hitting the vehicle parked in
front of the parking space.

4147-1. Maintenance and care
UK AURIS_HV_HB_EE (OM12M49E)
WARNING

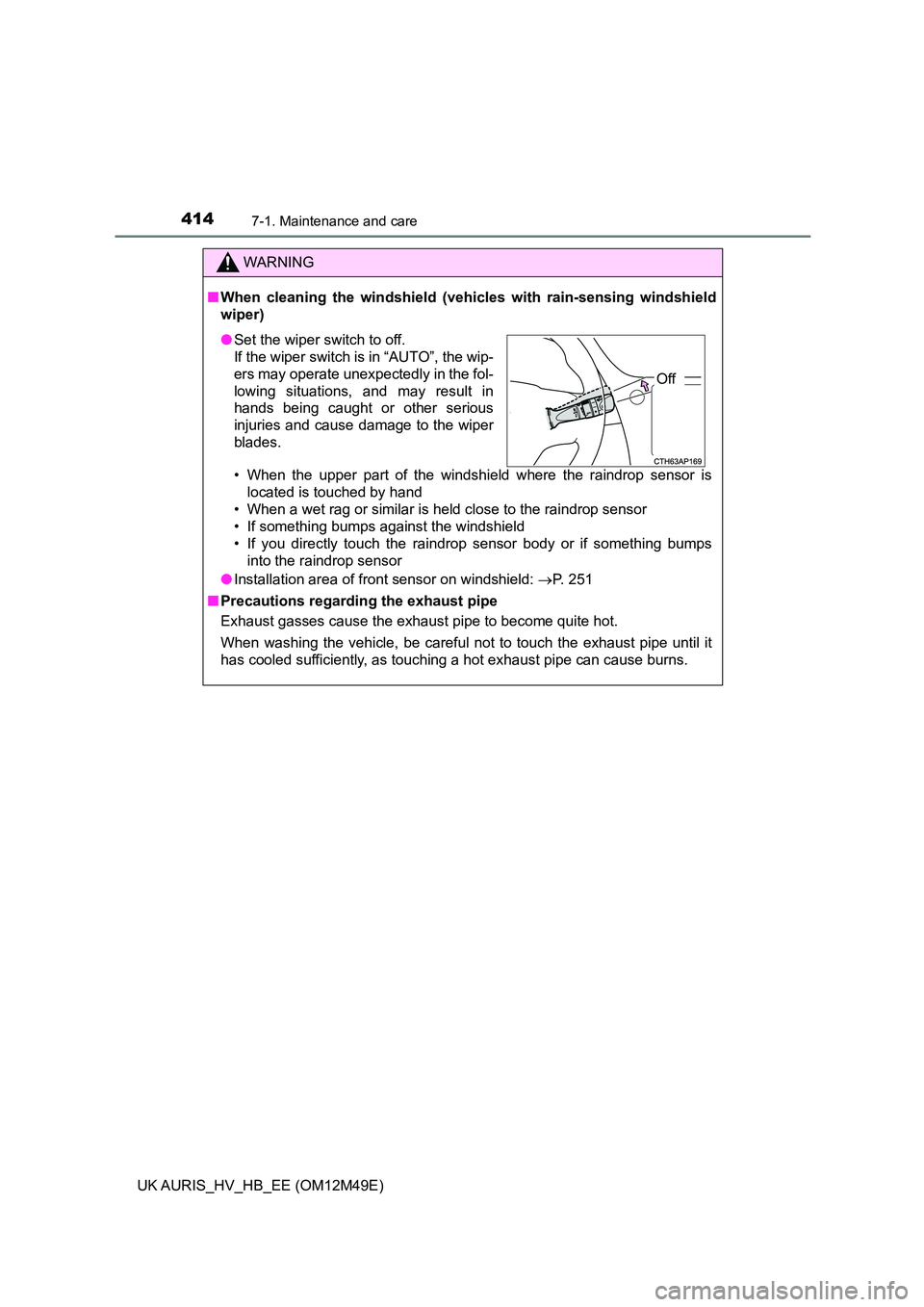

■When cleaning the windshield (vehicles with rain-sensing windshield
wiper)
• When the upper part of the windshield where the raindrop sensor is
located is touched by hand
• When a wet rag or similar is held close to the raindrop sensor
• If something bumps against the windshield
• If you directly touch the raindrop sensor body or if something bumps
into the raindrop sensor
● Installation area of front sensor on windshield: P. 251
■ Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the exhaust pipe until it
has cooled sufficiently, as touching a hot exhaust pipe can cause burns.
● Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in
hands being caught or other serious
injuries and cause damage to the wiper
blades.
Off

4938-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
(If equipped)

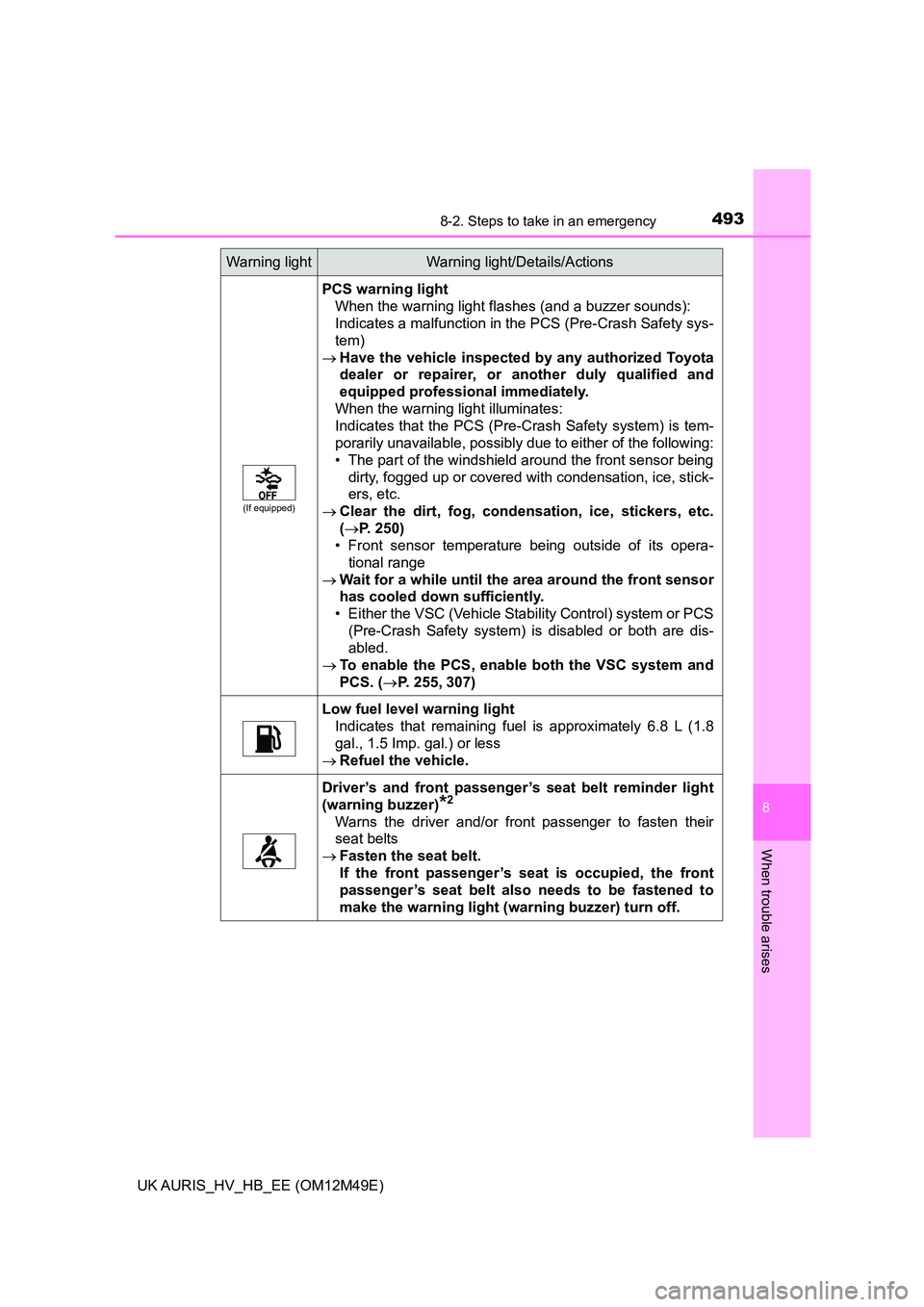

PCS warning light
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Crash Safety sys-
tem)
 Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
When the warning light illuminates:
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailable, possibly due to either of the following:
• The part of the windshield around the front sensor being
dirty, fogged up or covered with condensation, ice, stick-
ers, etc.
 Clear the dirt, fog, condensation, ice, stickers, etc.
( P. 250)
• Front sensor temperature being outside of its opera-
tional range
 Wait for a while until the area around the front sensor
has cooled down sufficiently.
• Either the VSC (Vehicle Stability Control) system or PCS
(Pre-Crash Safety system) is disabled or both are dis-
abled.
 To enable the PCS, enable both the VSC system and
PCS. ( P. 255, 307)
Low fuel level warning light
Indicates that remaining fuel is approximately 6.8 L (1.8
gal., 1.5 Imp. gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)*2
Warns the driver and/or front passenger to fasten their
seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also n eeds to be fastened to
make the warning light (warning buzzer) turn off.
Warning lightWarning light/Details/Actions

4958-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises

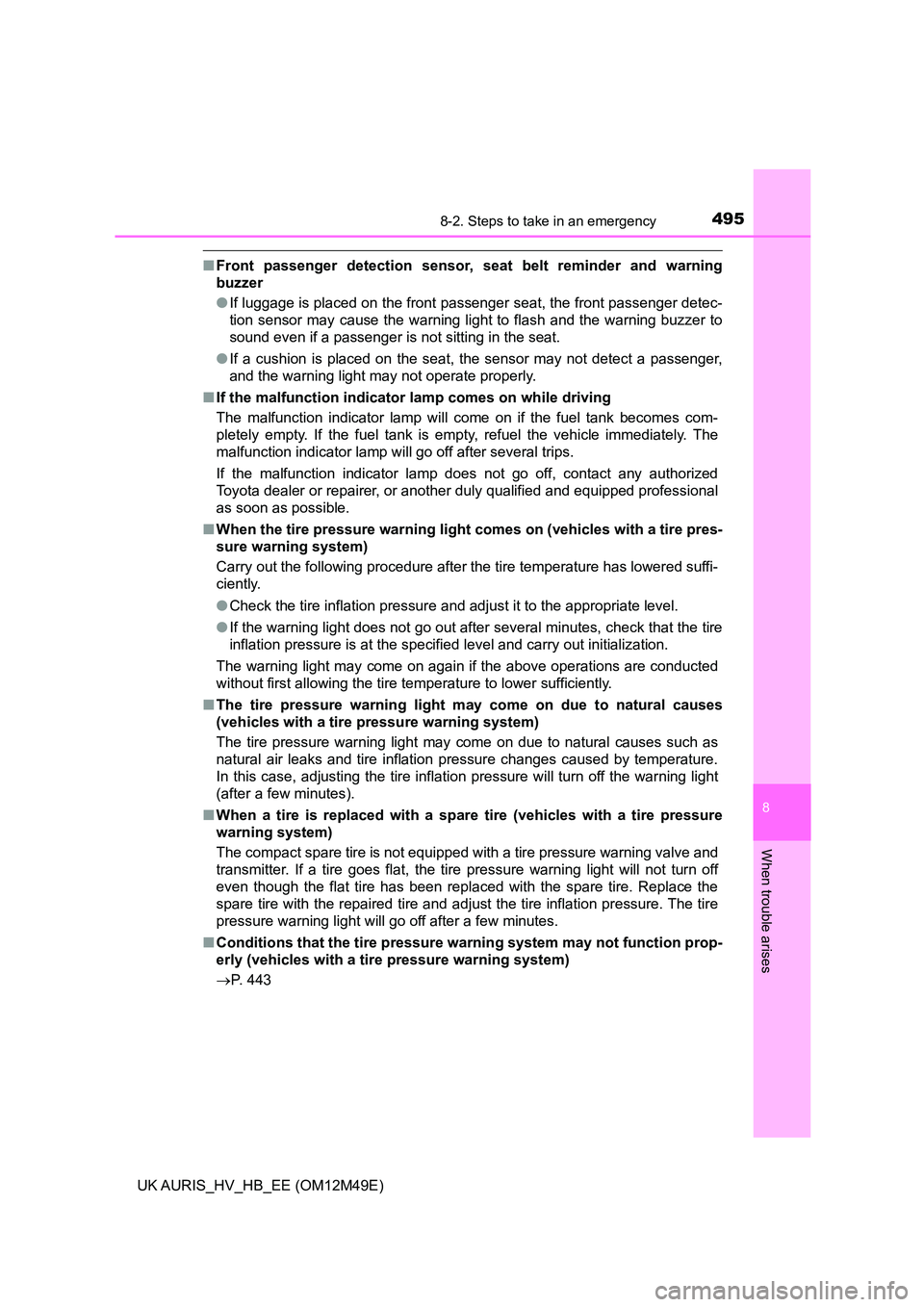

■Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■ When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust it to the appropriate level.
● If the warning light does not go out after several minutes, check that the tire
inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off
even though the flat tire has been replaced with the spare tire. Replace the
spare tire with the repaired tire and adjust the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.
■ Conditions that the tire pressure warning system may not function prop-
erly (vehicles with a tire pressure warning system)
 P. 443

5058-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises

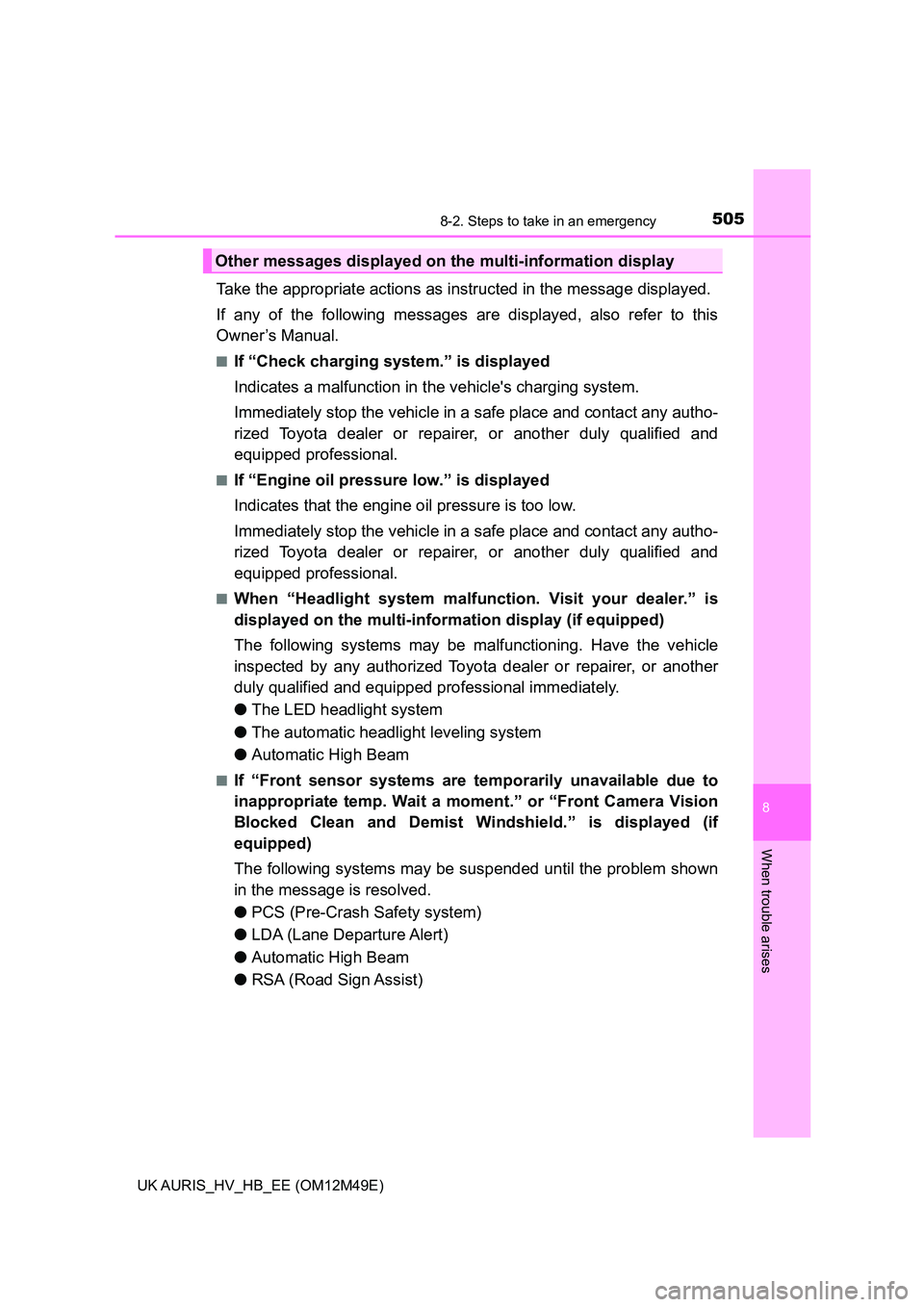

Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this
Owner’s Manual.
■If “Check charging system.” is displayed
Indicates a malfunction in t he vehicle's charging system.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■If “Engine oil pressure low.” is displayed
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■When “Headlight system malfunction. Visit your dealer.” is
displayed on the multi-information display (if equipped)
The following systems may be malfunctioning. Have the vehicle
inspected by any autho rized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
● The LED headlight system
● The automatic headlight leveling system
● Automatic High Beam
■If “Front sensor systems are temporarily unavailable due to
inappropriate temp. Wait a moment.” or “Front Camera Vision
Blocked Clean and Demist Wi ndshield.” is displayed (if
equipped)
The following systems may be suspended until the problem shown
in the message is resolved.
● PCS (Pre-Crash Safety system)
● LDA (Lane Departure Alert)
● Automatic High Beam
● RSA (Road Sign Assist)
Other messages displayed on the multi-information display

5699-2. Customization
UK AURIS_HV_HB_EE (OM12M49E)
9
Vehicle specifications

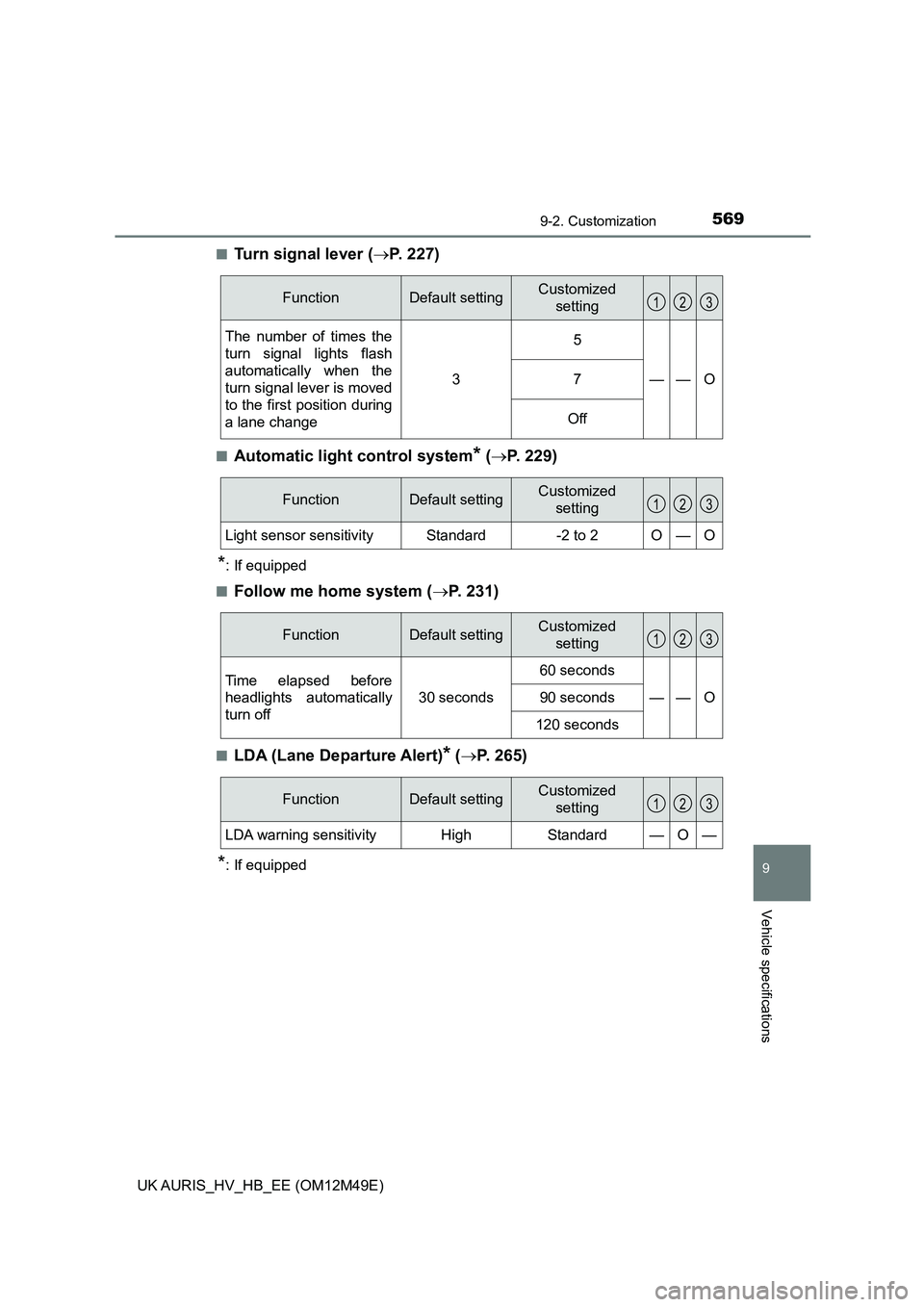

■Turn signal lever (P. 227)
■Automatic light control system* (P. 229)
*: If equipped
■Follow me home system (P. 231)
■LDA (Lane Departure Alert)* (P. 265)
*: If equipped
FunctionDefault settingCustomized
setting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
3
5
——O7
Off
123
FunctionDefault settingCustomized
setting
Light sensor sensitivityStandard-2 to 2O—O
123
FunctionDefault settingCustomized
setting
Time elapsed before
headlights automatically
turn off
30 seconds
60 seconds
——O90 seconds
120 seconds
123
FunctionDefault settingCustomized
setting
LDA warning sensitivityHighStandard—O—
123

5709-2. Customization
UK AURIS_HV_HB_EE (OM12M49E)

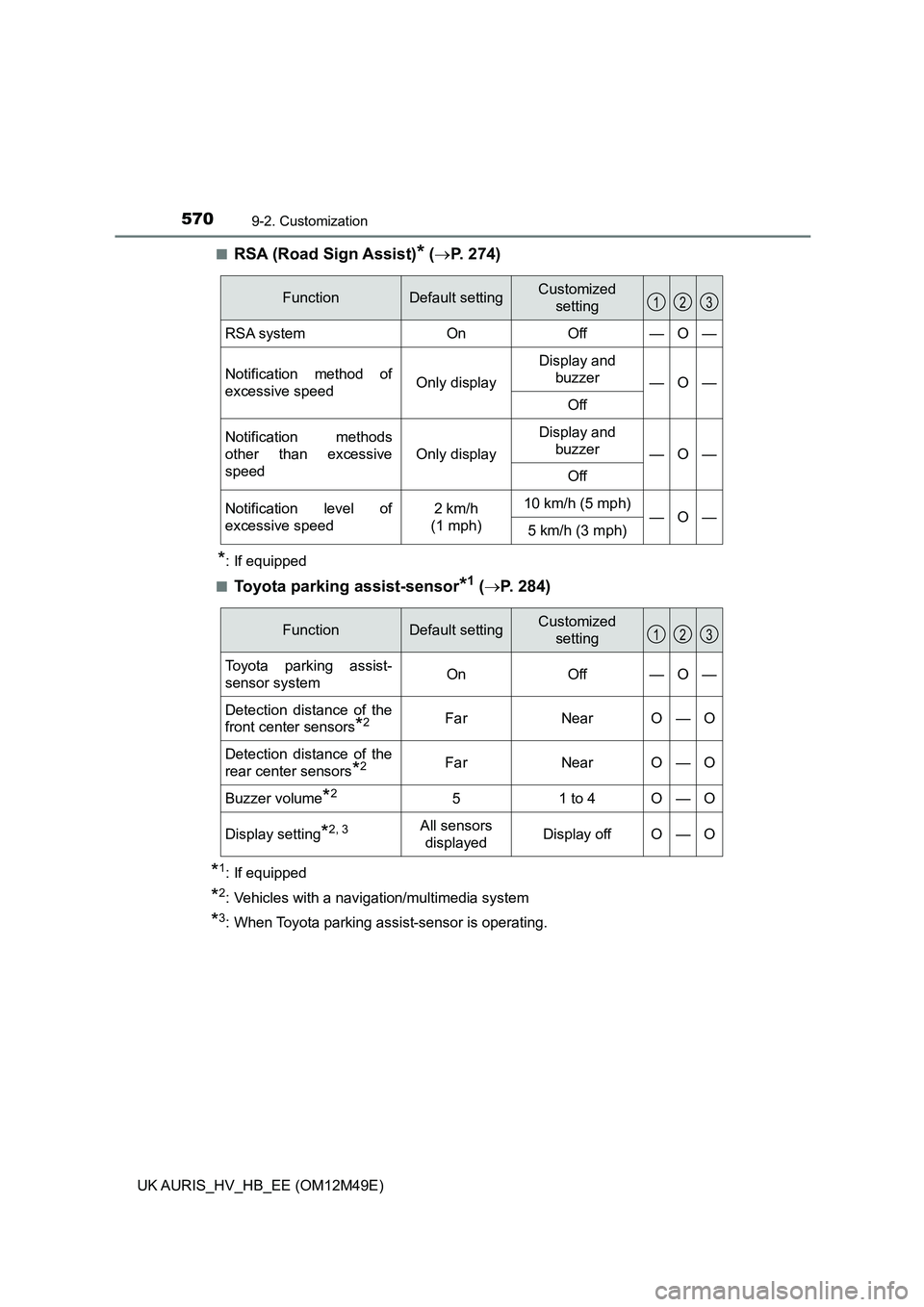

■RSA (Road Sign Assist)* (P. 274)
*: If equipped
■Toyota parking assist-sensor*1 (P. 284)
*1: If equipped
*2: Vehicles with a navigation/multimedia system
*3: When Toyota parking assist-sensor is operating.
FunctionDefault settingCustomized
setting
RSA systemOnOff—O—
Notification method of
excessive speed Only display
Display and
buzzer—O—
Off
Notification methods
other than excessive
speed
Only display
Display and
buzzer—O—
Off
Notification level of
excessive speed
2 km/h
(1 mph)
10 km/h (5 mph)—O—5 km/h (3 mph)
123
FunctionDefault settingCustomized
setting
Toyota parking assist-
sensor systemOnOff—O—
Detection distance of the
front center sensors*2FarNearO—O
Detection distance of the
rear center sensors*2FarNearO—O
Buzzer volume*251 to 4O—O
Display setting*2, 3All sensors
displayedDisplay offO—O
123

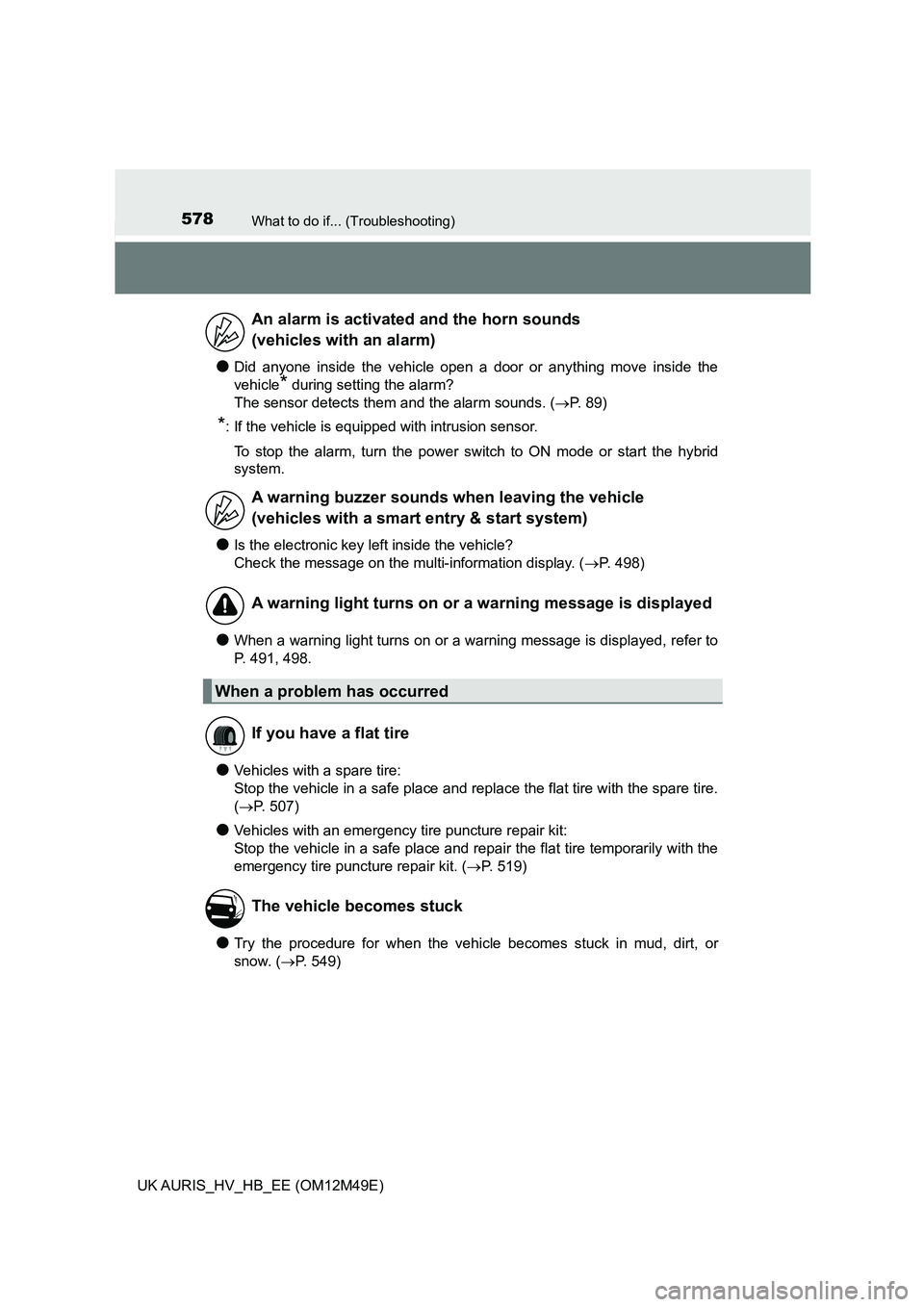

578What to do if... (Troubleshooting)
UK AURIS_HV_HB_EE (OM12M49E)
●Did anyone inside the vehicle open a door or anything move inside the
vehicle* during setting the alarm?
The sensor detects them and the alarm sounds. (P. 89)
*: If the vehicle is equipped with intrusion sensor.
To stop the alarm, turn the power switch to ON mode or start the hybrid
system.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. (P. 498)
●When a warning light turns on or a warning message is displayed, refer to
P. 491, 498.
●Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(P. 507)
●Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. (P. 519)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. (P. 549)
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds wh en leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

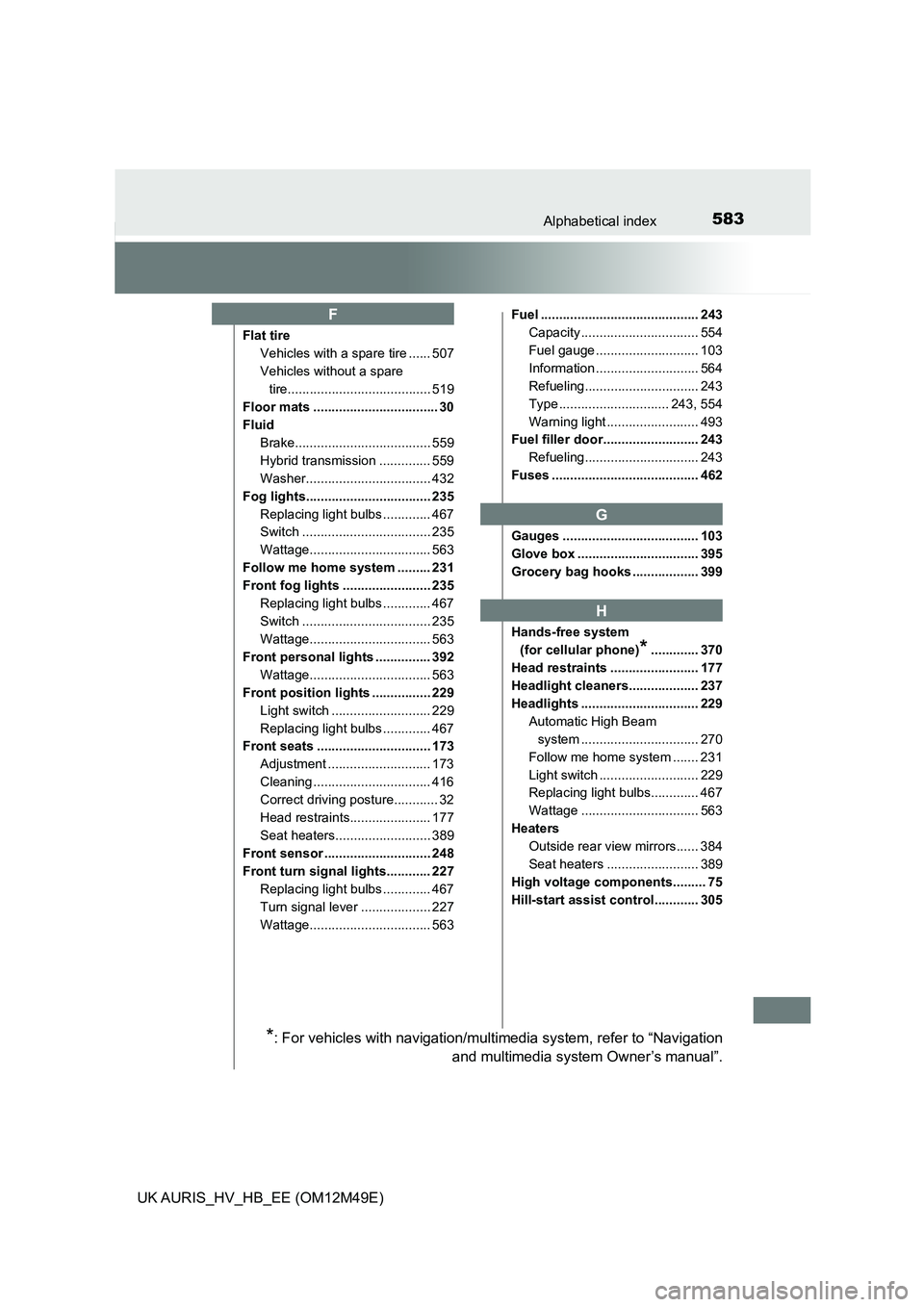

583Alphabetical index
UK AURIS_HV_HB_EE (OM12M49E)
Flat tire
Vehicles with a spare tire ...... 507
Vehicles without a spare
tire....................................... 519
Floor mats .................................. 30
Fluid
Brake..................................... 559
Hybrid transmission .............. 559
Washer.................................. 432
Fog lights.................................. 235
Replacing light bulbs ............. 467
Switch ................................... 235
Wattage................................. 563
Follow me home system ......... 231
Front fog lights ........................ 235
Replacing light bulbs ............. 467
Switch ................................... 235
Wattage................................. 563
Front personal lights ............... 392
Wattage................................. 563
Front position lights ................ 229
Light switch ........................... 229
Replacing light bulbs ............. 467
Front seats ............................... 173
Adjustment ............................ 173
Cleaning ................................ 416
Correct driving posture............ 32
Head restraints...................... 177
Seat heaters.......................... 389
Front sensor ............................. 248
Front turn signal lights............ 227
Replacing light bulbs ............. 467
Turn signal lever ................... 227
Wattage................................. 563
Fuel ........................................... 243
Capacity ................................ 554
Fuel gauge ............................ 103
Information ............................ 564
Refueling............................... 243
Type .............................. 243, 554
Warning light ......................... 493
Fuel filler door.......................... 243
Refueling............................... 243
Fuses ........................................ 462
Gauges ..................................... 103
Glove box ................................. 395
Grocery bag hooks .................. 399
Hands-free system
(for cellular phone)*............. 370
Head restraints ........................ 177
Headlight cleaners................... 237
Headlights ................................ 229
Automatic High Beam
system .......... ...................... 270
Follow me home system ....... 231
Light switch ........................... 229
Replacing light bulbs............. 467
Wattage ................................ 563
Heaters
Outside rear view mirrors...... 384
Seat heaters ......................... 389
High voltage components......... 75
Hill-start assist control............ 305
F
G
H
*: For vehicles with navigation/multimedia system, refer to “Navigation
and multimedia system Owner’s manual”.
