TOYOTA AURIS HYBRID 2011 Owners Manual

521
UK_AURIS_HV_EE

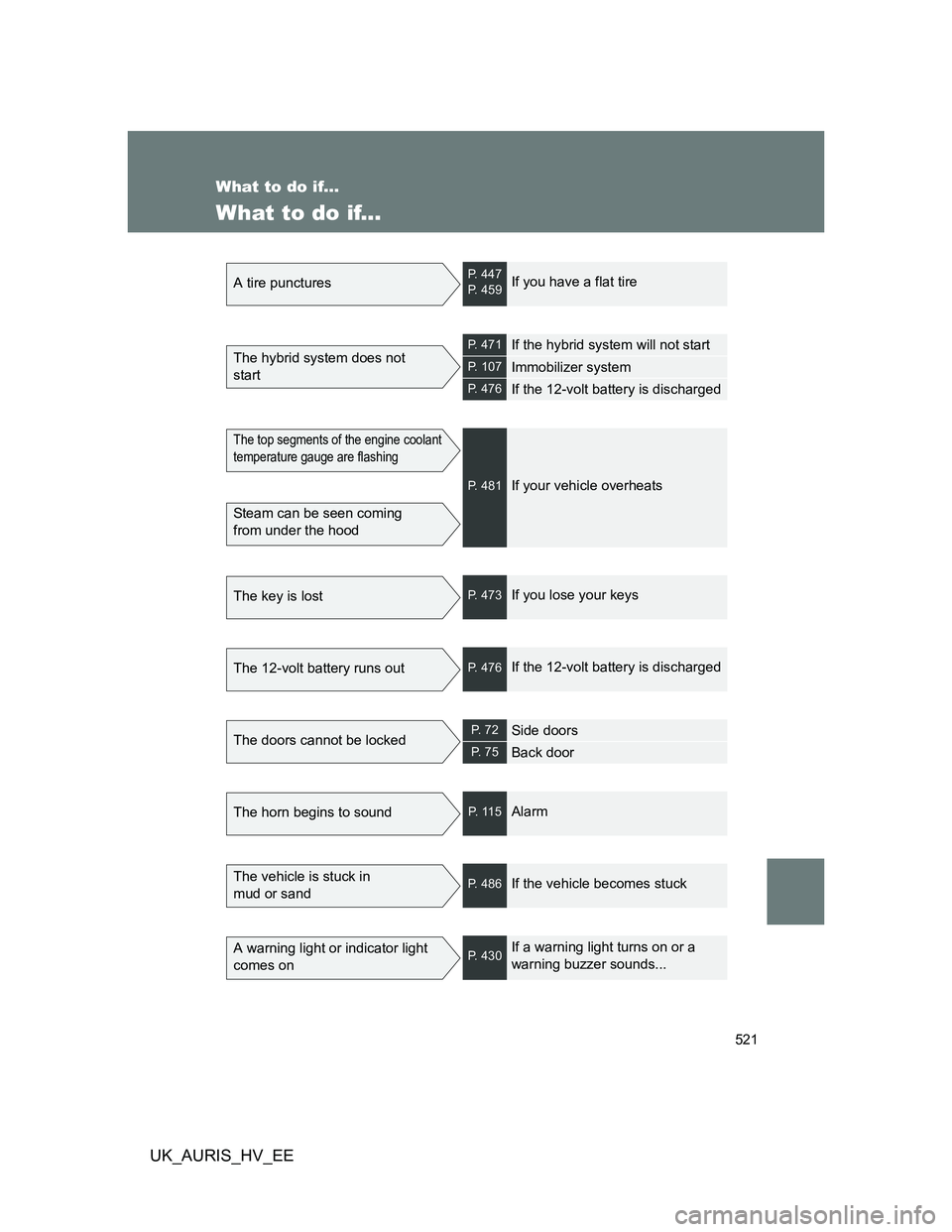

What to do if...
What to do if...
A tire puncturesP. 447
P. 459If you have a flat tire
The hybrid system does not
startP. 471If the hybrid system will not start
P. 107Immobilizer system
P. 476If the 12-volt battery is discharged
The top segments of the engine coolant
temperature gauge are flashing
Steam can be seen coming
from under the hood
P. 481If your vehicle overheats
The key is lostP. 473If you lose your keys
The 12-volt battery runs outP. 476If the 12-volt battery is discharged
The doors cannot be lockedP. 7 2Side doors
P. 7 5Back door
The horn begins to soundP. 1 1 5Alarm
The vehicle is stuck in
mud or sandP. 486If the vehicle becomes stuck
A warning light or indicator light
comes onP. 430If a warning light turns on or a
warning buzzer sounds...

522 What to do if...
UK_AURIS_HV_EE

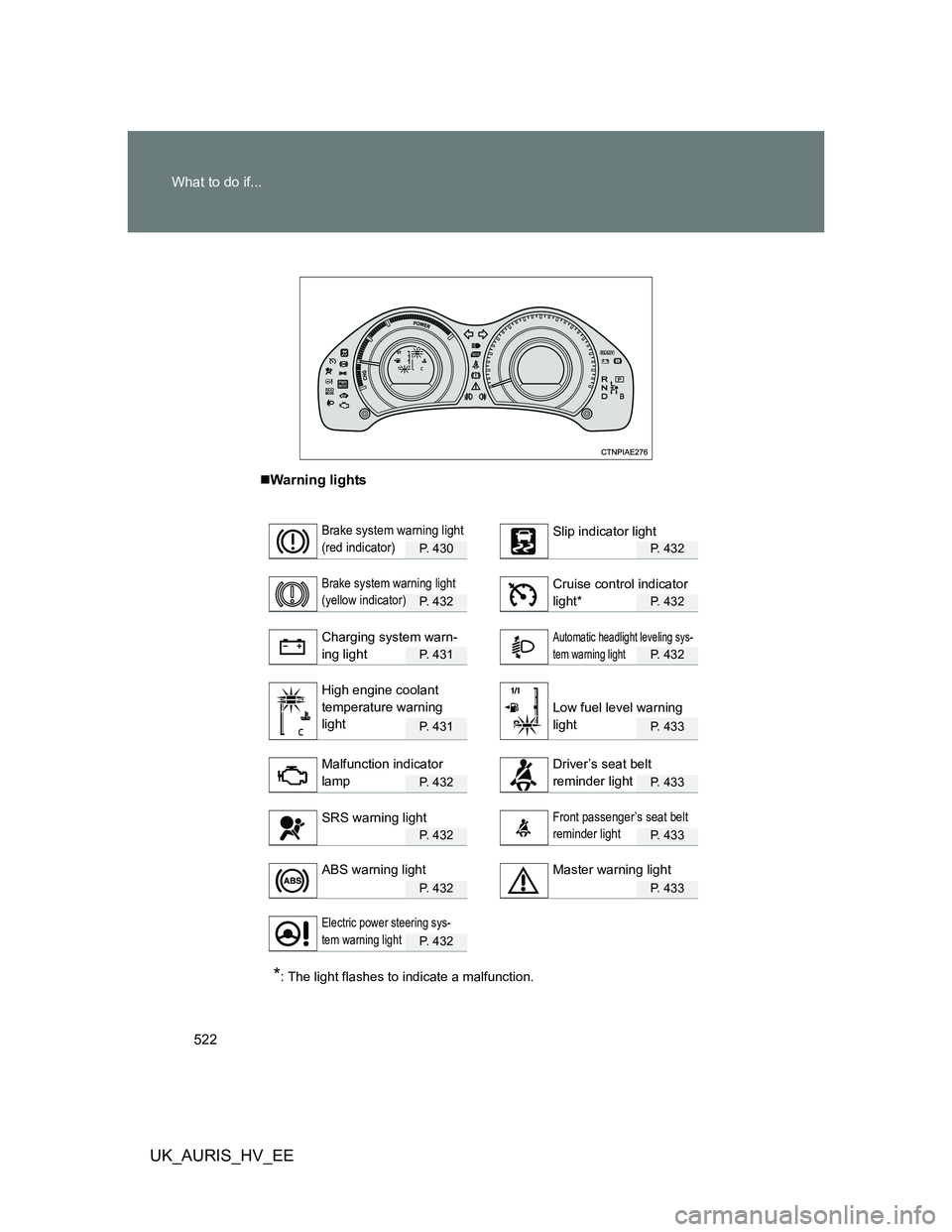

Warning lights
P. 4 3 0P. 432
P. 4 3 2P. 432
P. 4 3 1P. 432
P. 4 3 1P. 433
P. 4 3 2P. 433
P. 4 3 2P. 433
P. 4 3 2P. 433
P. 4 3 2
*: The light flashes to indicate a malfunction.
Brake system warning light
(red indicator)Slip indicator light
Brake system warning light
(yellow indicator)Cruise control indicator
light*
Charging system warn-
ing lightAutomatic headlight leveling sys-
tem warning light
High engine coolant
temperature warning
light
Low fuel level warning
light
Malfunction indicator
lampDriver’s seat belt
reminder light
SRS warning lightFront passenger’s seat belt
reminder light
ABS warning lightMaster warning light
Electric power steering sys-
tem warning light

523 What to do if...
UK_AURIS_HV_EE
A warning message is
displayedP. 436If a warning message is displayed

524
UK_AURIS_HV_EE

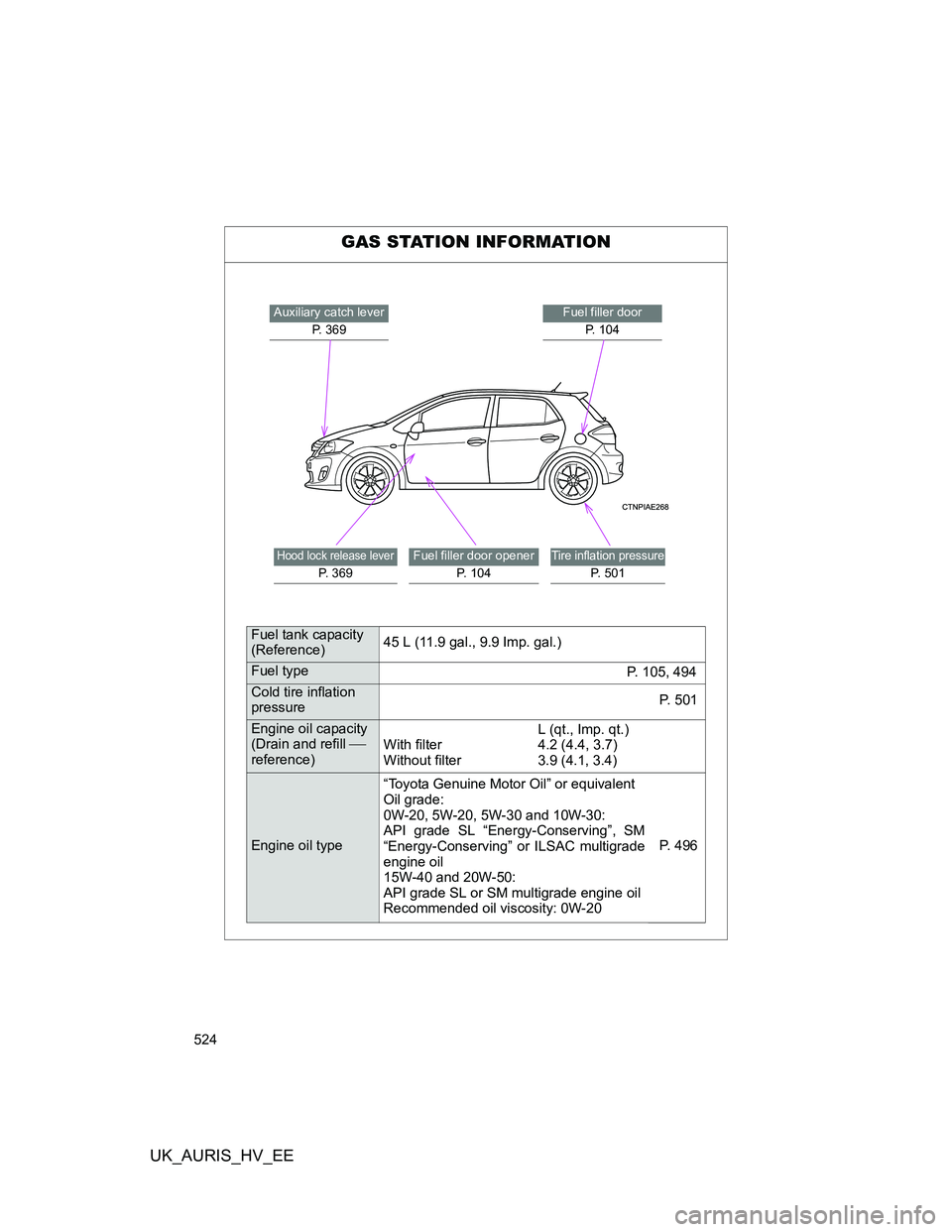

GAS STATION INFORMATION
Auxiliary catch lever
P. 369Fuel filler door
P. 104
Hood lock release lever
P. 3 6 9
Fuel filler door opener
P. 1 0 4Tire inflation pressure
P. 501
Fuel tank capacity
(Reference)45 L (11.9 gal., 9.9 Imp. gal.)
Fuel typeP. 105, 494
Cold tire inflation
pressureP. 5 0 1
Engine oil capacity
(Drain and refill
reference)
L (qt., Imp. qt.)
With filter 4.2 (4.4, 3.7)
Without filter 3.9 (4.1, 3.4)
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM
“Energy-Conserving” or ILSAC multigrade
engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Recommended oil viscosity: 0W-20
P. 4 9 6
