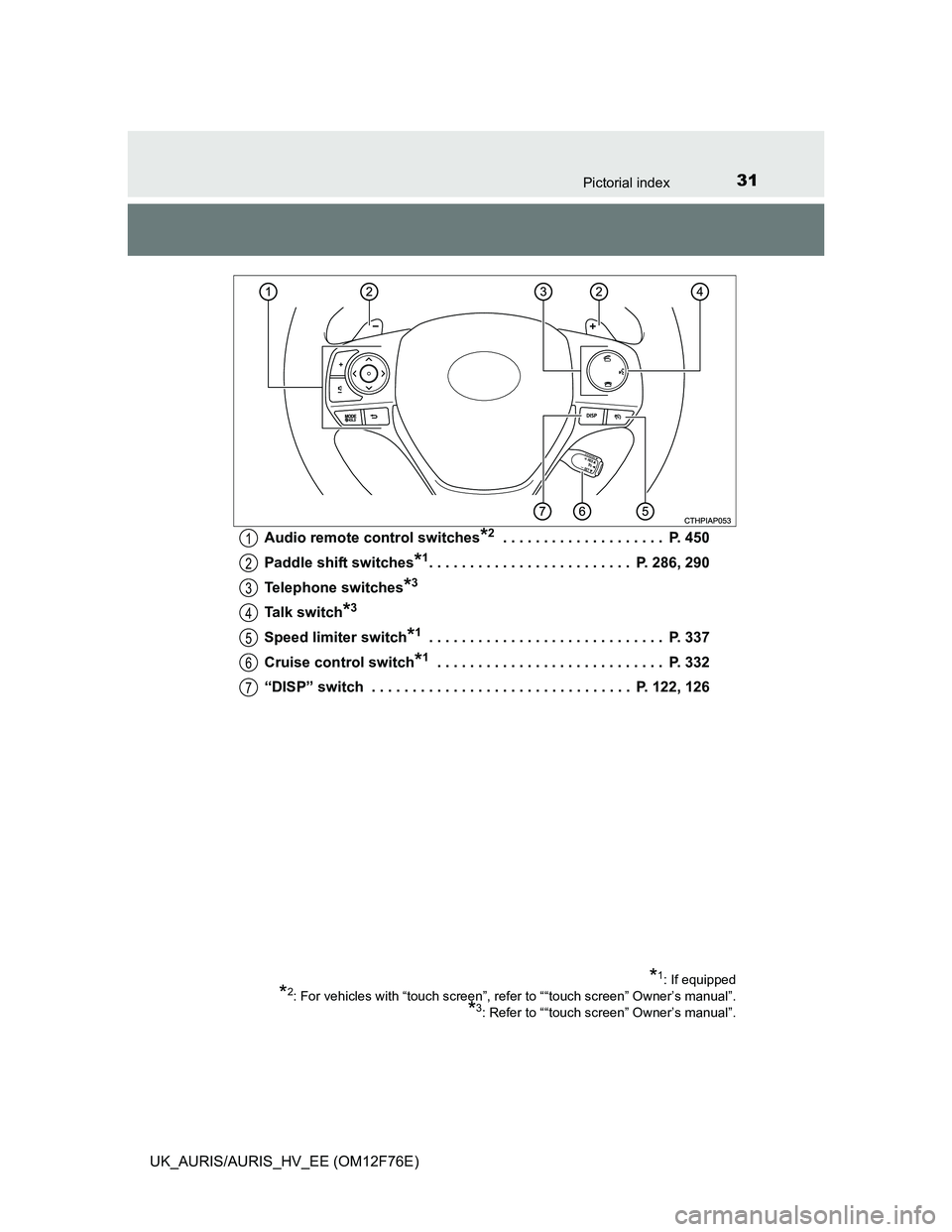

31Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)Audio remote control switches
*2 . . . . . . . . . . . . . . . . . . . . P. 450
Paddle shift switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . P. 286, 290
Telephone switches
*3
Talk switch*3
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Cruise control switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 332
“DISP” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122, 126
*1: If equipped
*2: For vehicles with “touch screen”, refer to ““touch screen” Owner’s manual”.
*3: Refer to ““touch screen” Owner’s manual”.
1
2
3
4
5
6
7

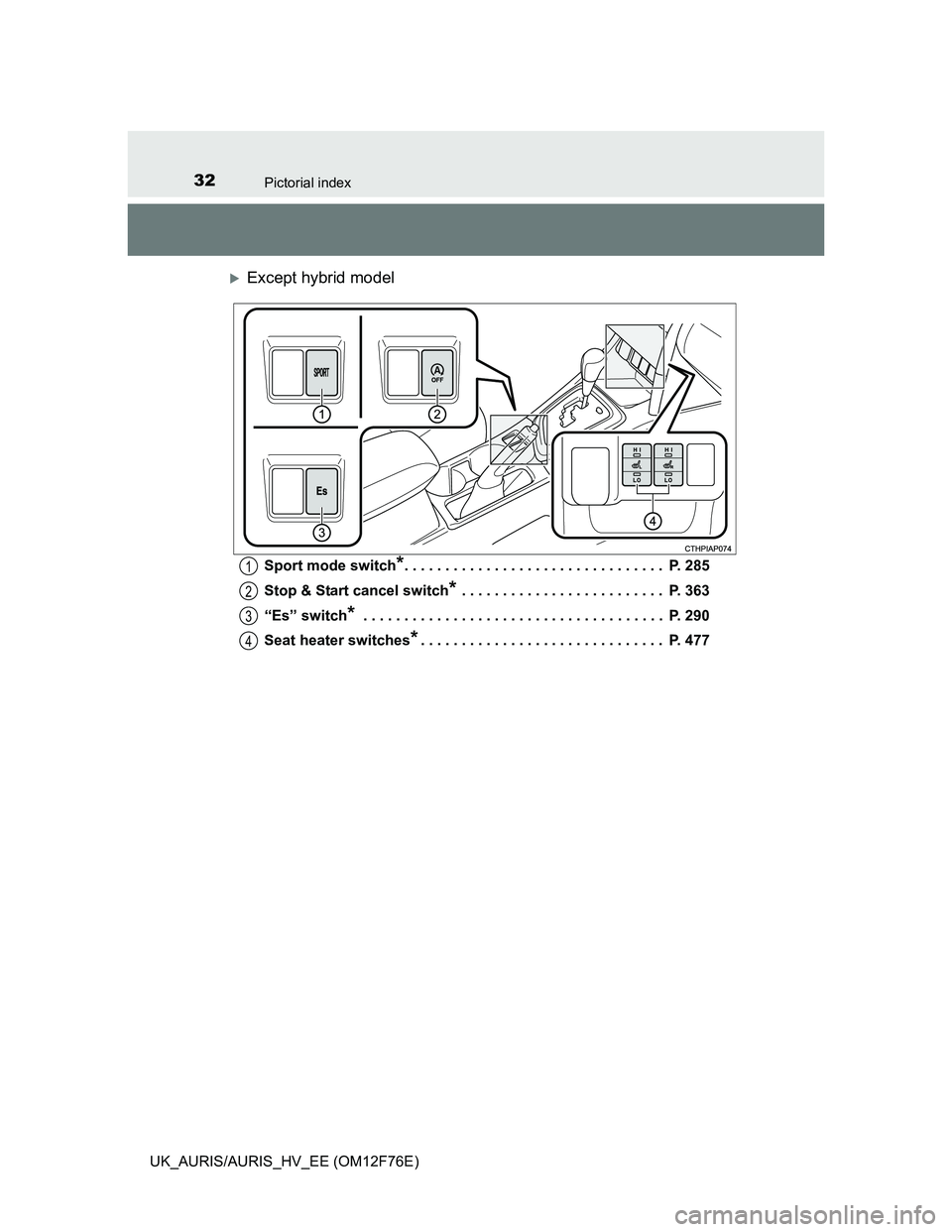

32Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Except hybrid model
Sport mode switch*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Stop & Start cancel switch
* . . . . . . . . . . . . . . . . . . . . . . . . . P. 363
“Es” switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Seat heater switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 477
1
2
3
4

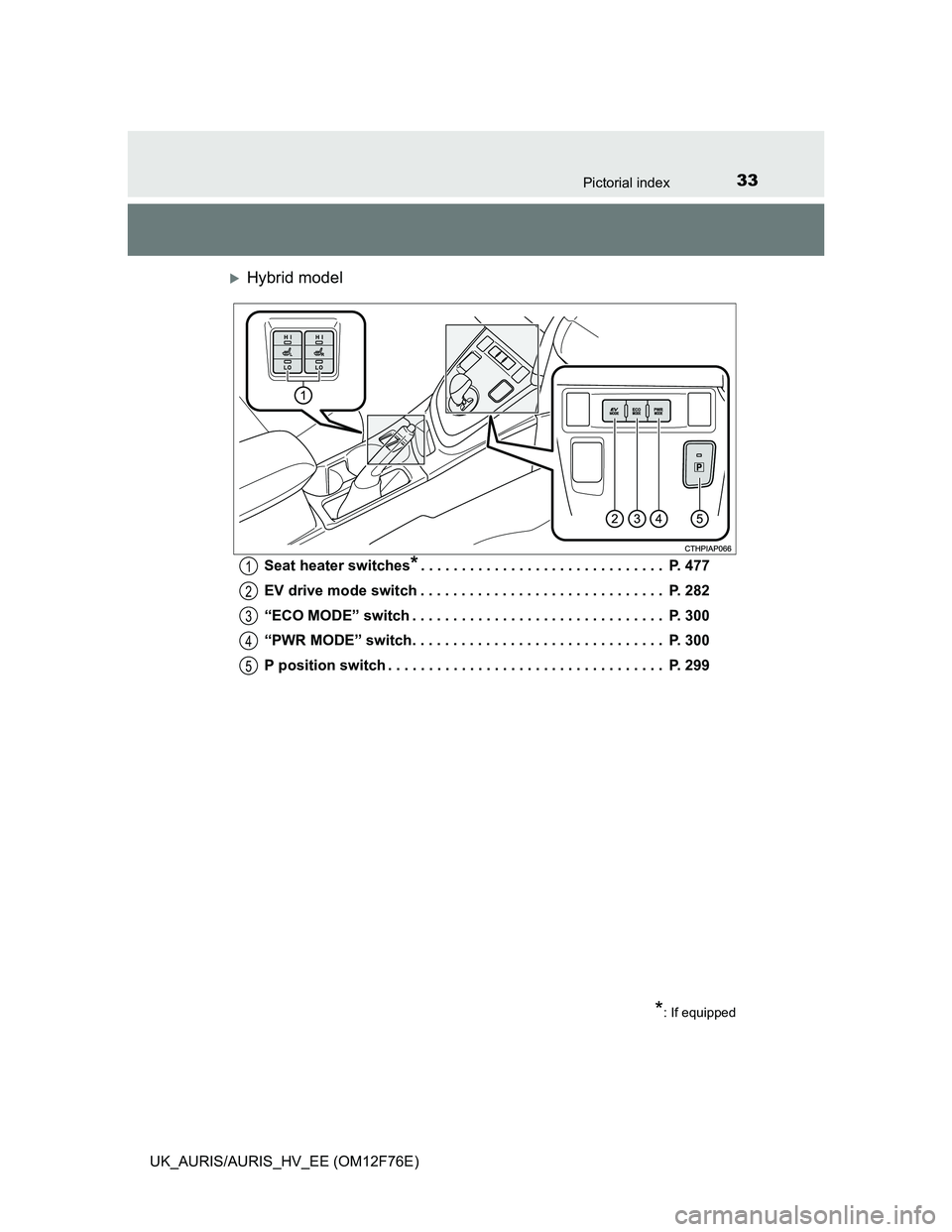

33Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Hybrid model
Seat heater switches*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 477
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 282
“ECO MODE” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 300
“PWR MODE” switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 300
P position switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 299
*: If equipped
1
2
3
4
5

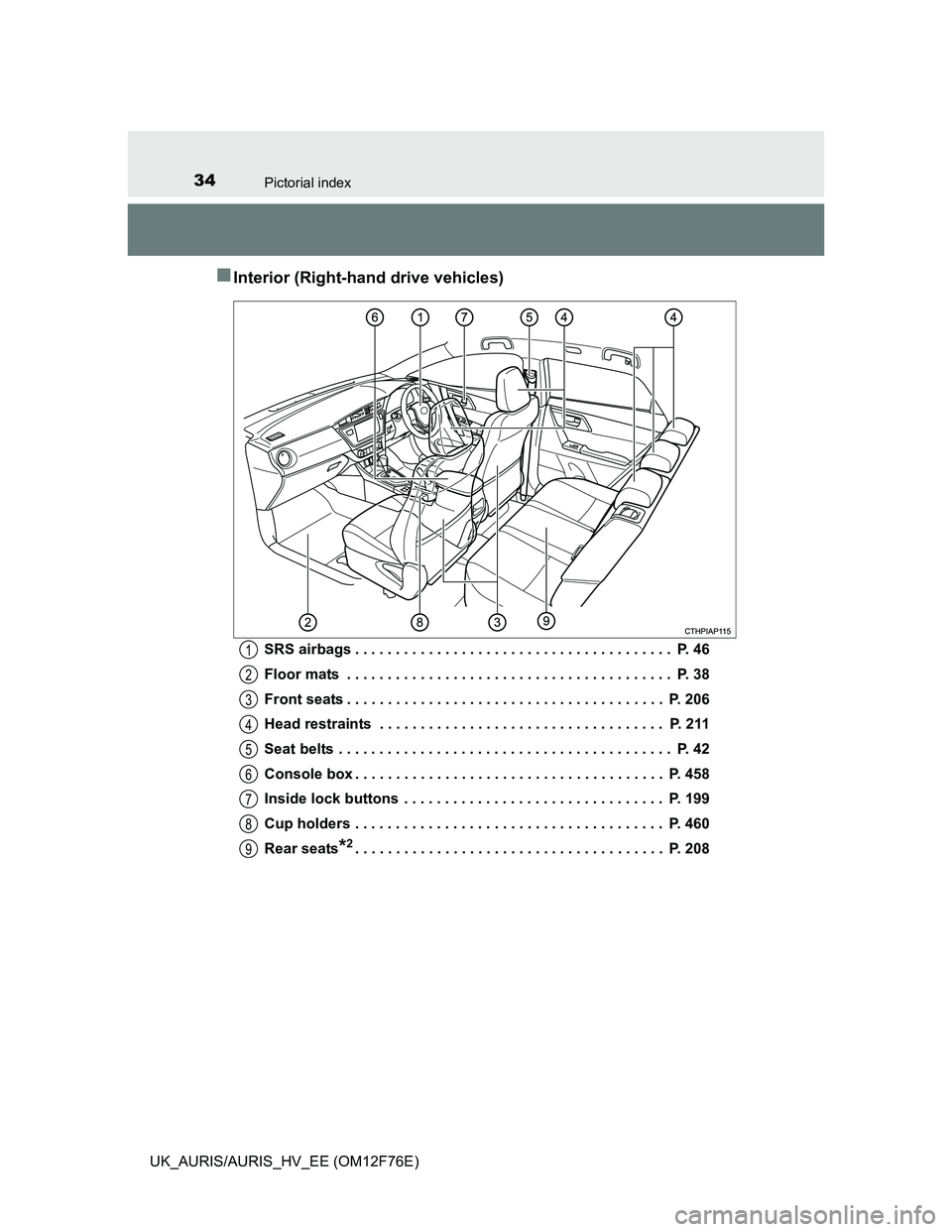

34Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 46
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
Rear seats
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
1
2
3
4
5
6
7
8
9

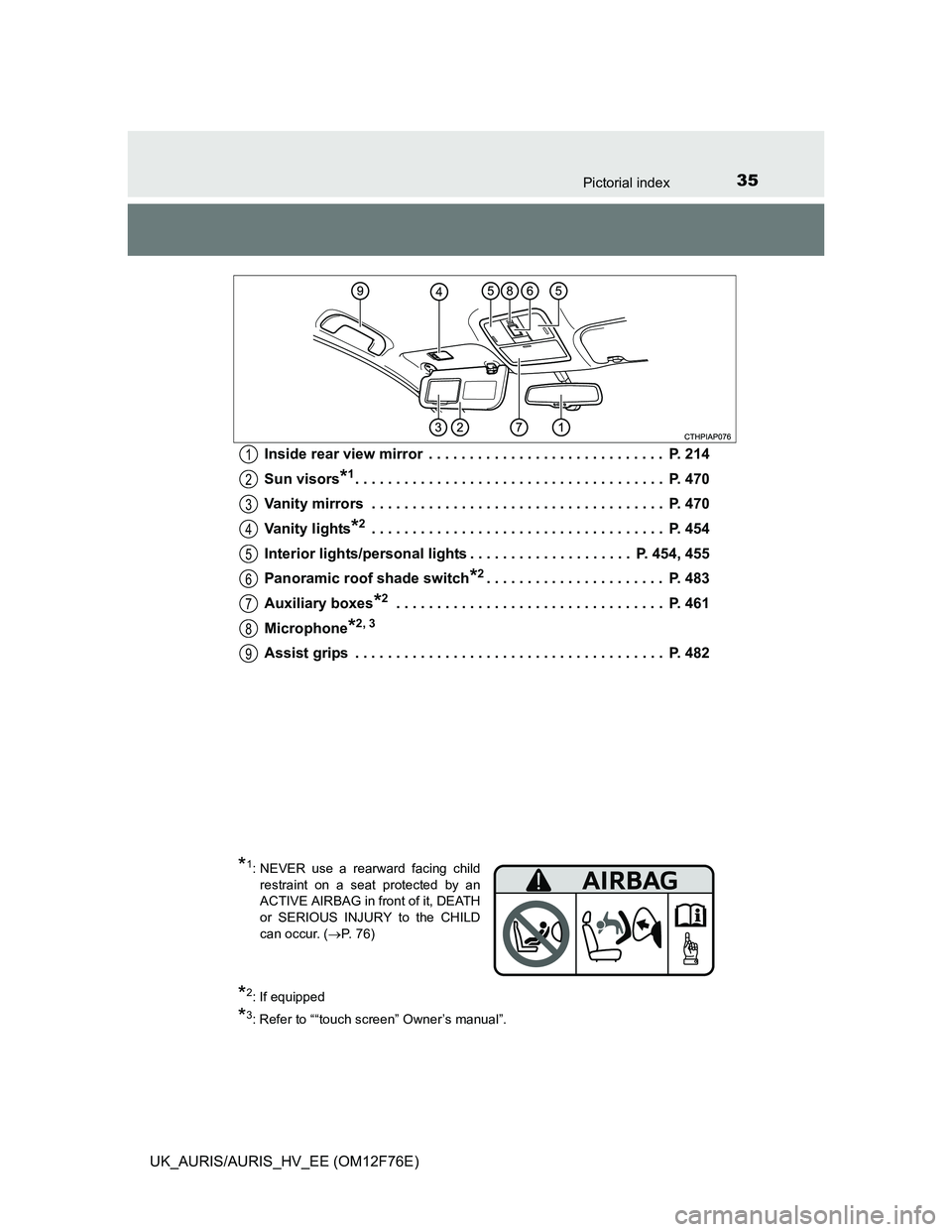

35Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Vanity lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 454, 455
Panoramic roof shade switch
*2. . . . . . . . . . . . . . . . . . . . . . P. 483
Auxiliary boxes
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Microphone
*2, 3
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
1
2
3
4
5
6
7
8
9
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. (P. 7 6 )
*2: If equipped
*3: Refer to ““touch screen” Owner’s manual”.

36Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)

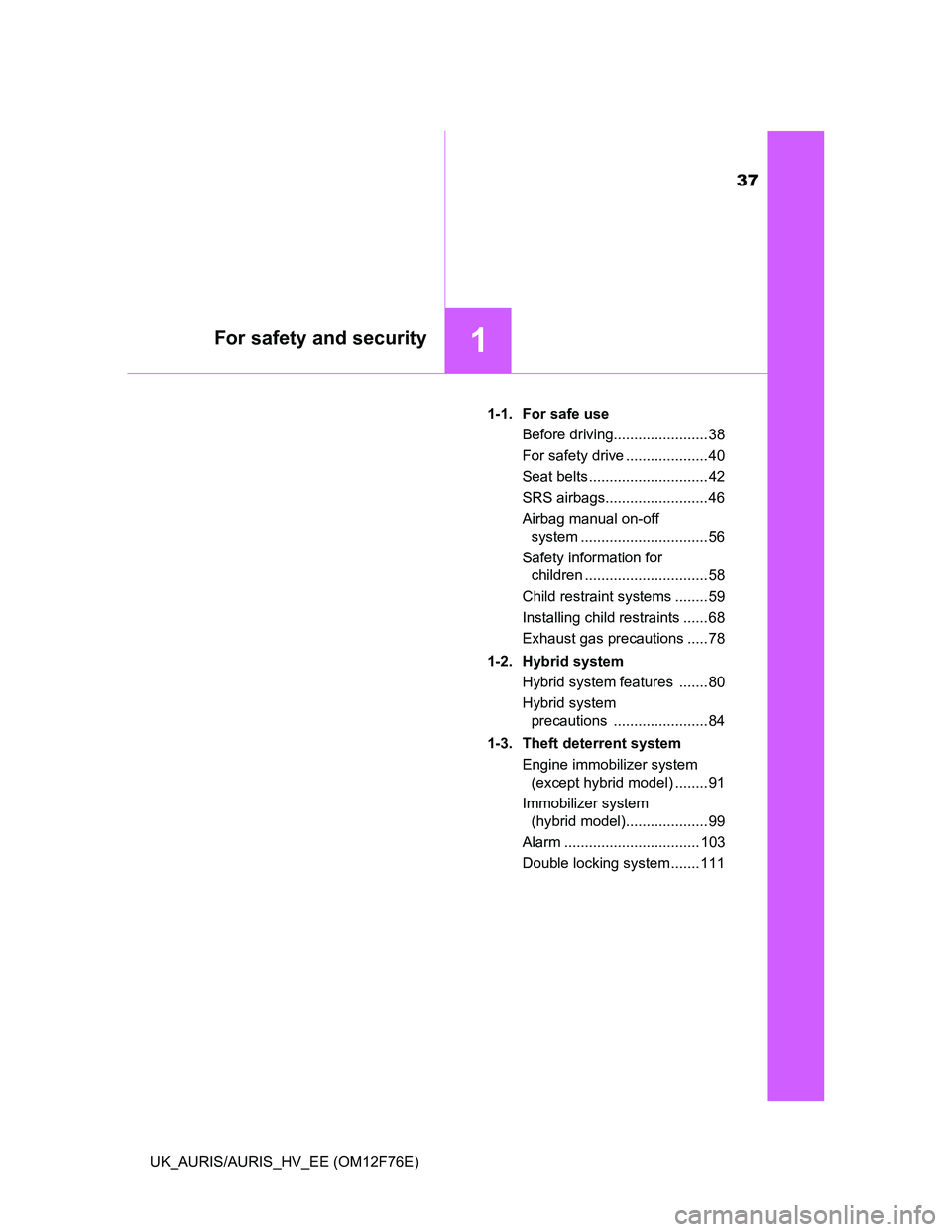

37
1For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)1-1. For safe use
Before driving....................... 38
For safety drive .................... 40
Seat belts ............................. 42
SRS airbags......................... 46
Airbag manual on-off
system ............................... 56
Safety information for
children .............................. 58
Child restraint systems ........ 59
Installing child restraints ...... 68
Exhaust gas precautions ..... 78
1-2. Hybrid system
Hybrid system features ....... 80
Hybrid system
precautions ....................... 84
1-3. Theft deterrent system
Engine immobilizer system
(except hybrid model) ........ 91
Immobilizer system
(hybrid model).................... 99
Alarm ................................. 103
Double locking system ....... 111

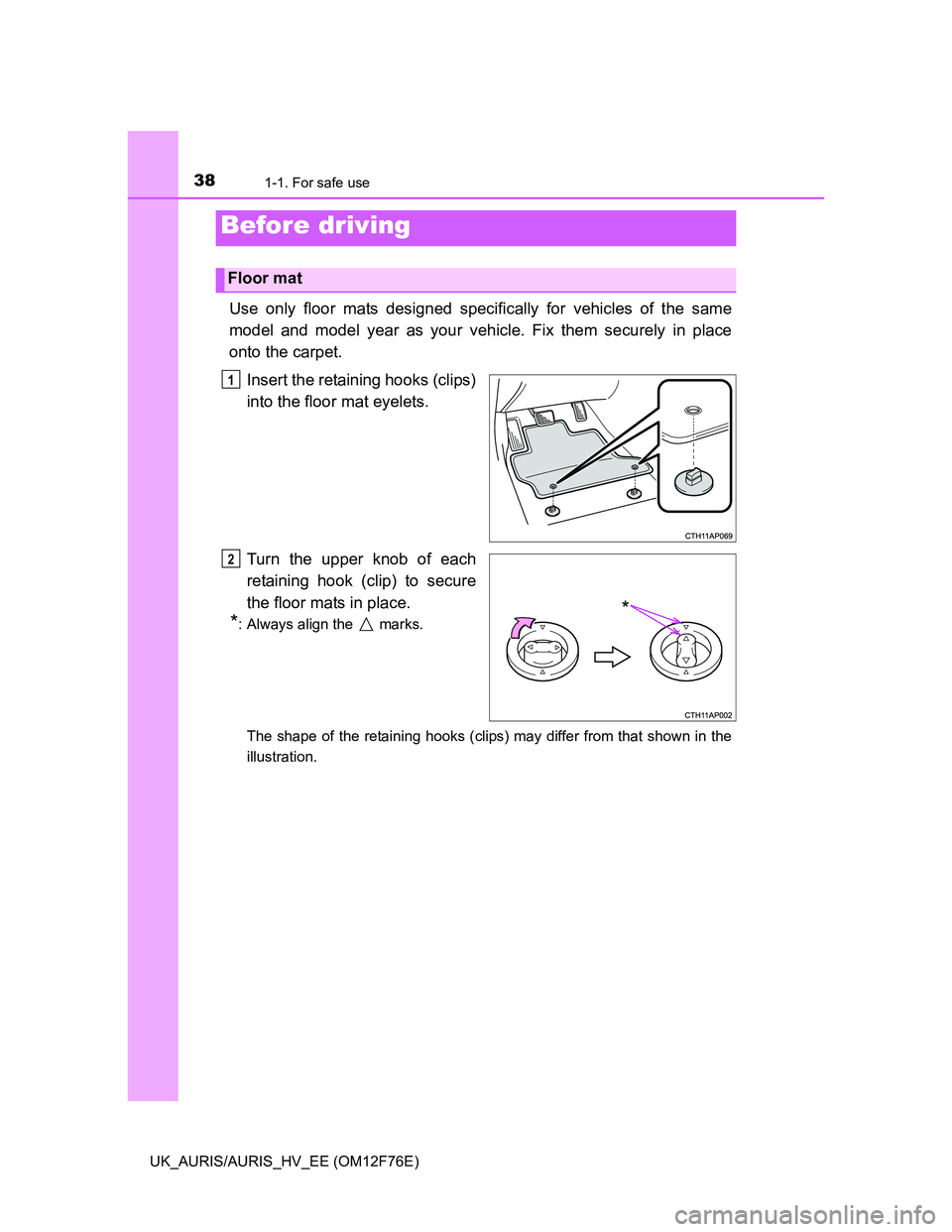

38
UK_AURIS/AURIS_HV_EE (OM12F76E)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2

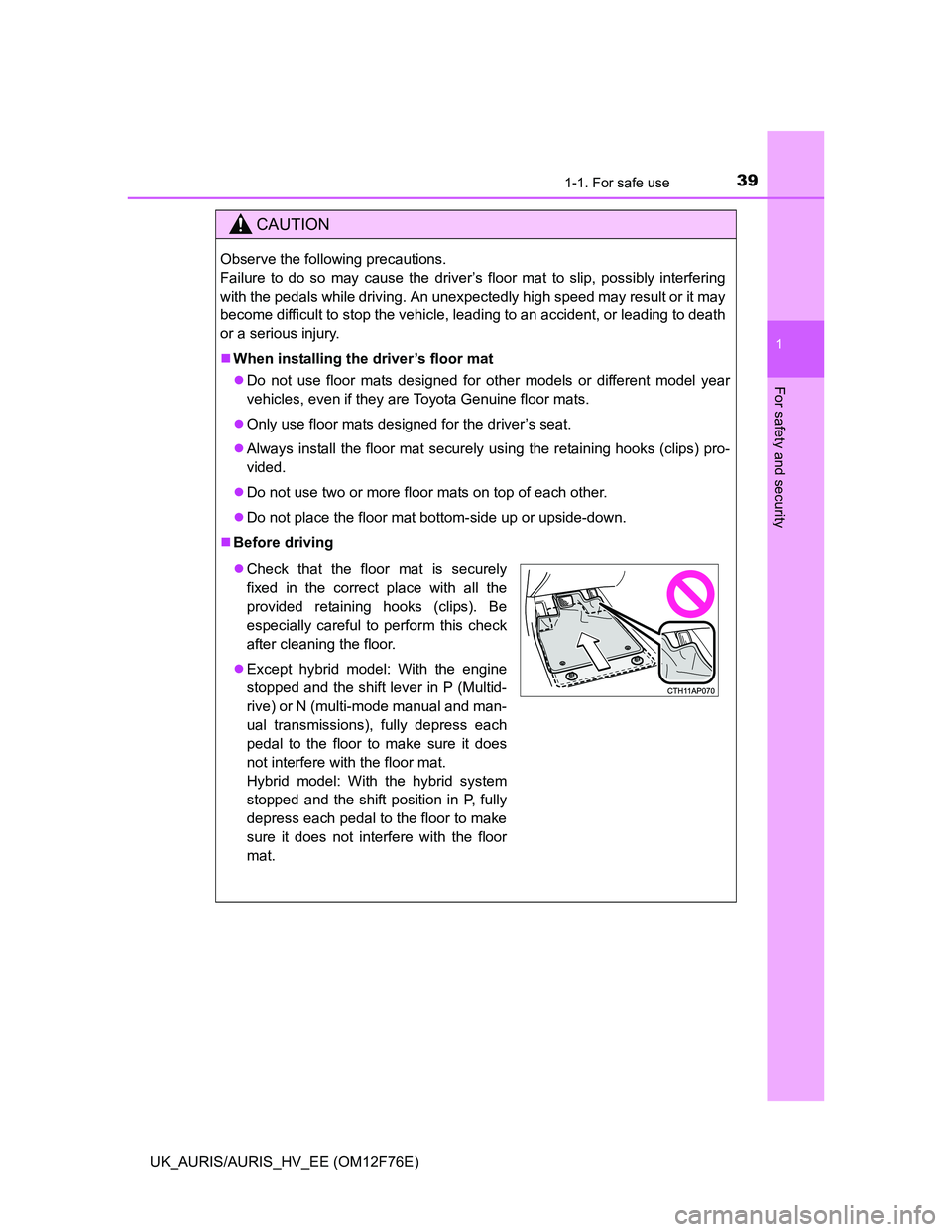

391-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to an accident, or leading to death
or a serious injury.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
Except hybrid model: With the engine
stopped and the shift lever in P (Multid-
rive) or N (multi-mode manual and man-
ual transmissions), fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.
Hybrid model: With the hybrid system
stopped and the shift position in P, fully
depress each pedal to the floor to make
sure it does not interfere with the floor
mat.

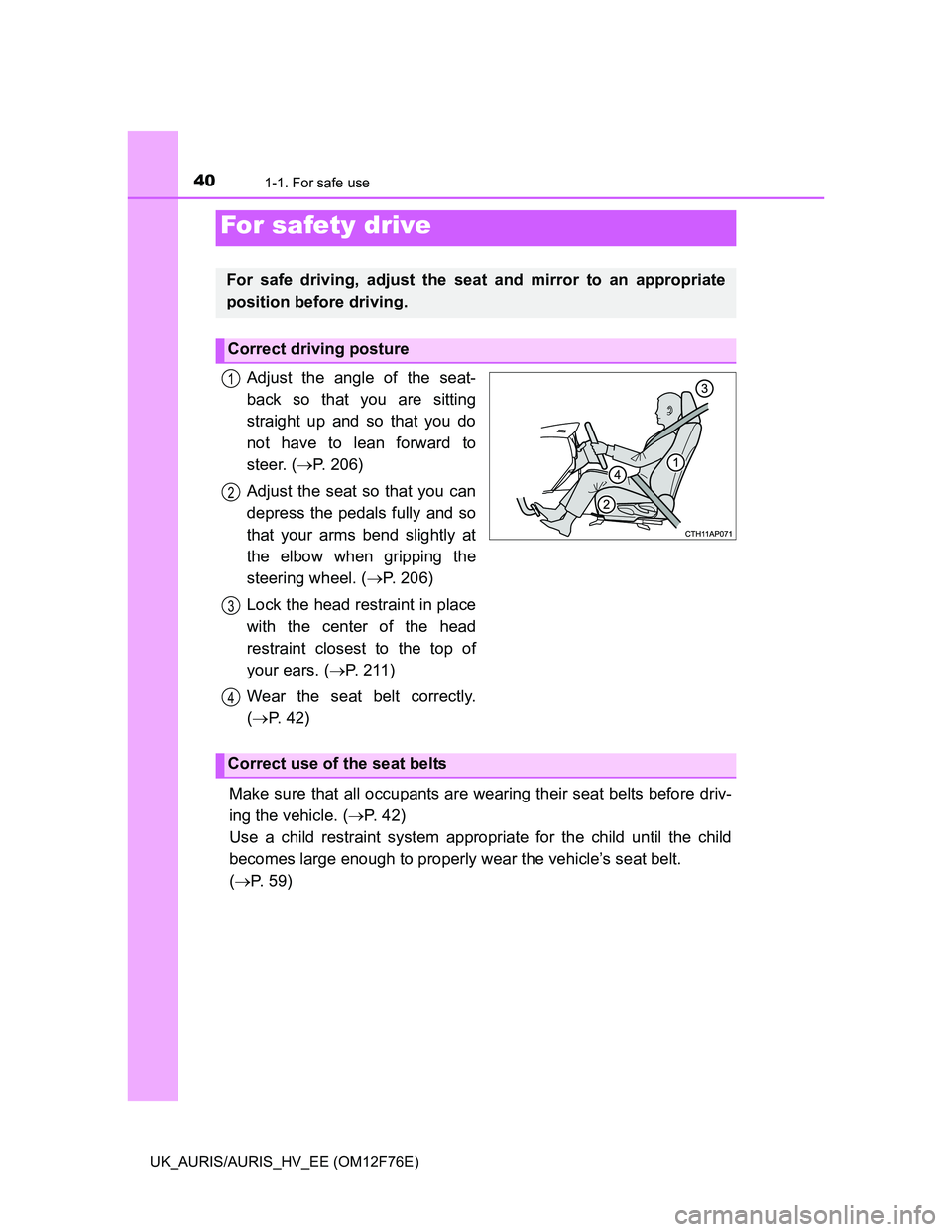

401-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12F76E)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 206)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 206)
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. (P. 211)
Wear the seat belt correctly.
(P. 42)
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 4 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 59)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts
