TOYOTA AURIS HYBRID 2013 Owners Manual

4715-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour*
*: e.g.1:00 to 1:29  1:00
1:30 to 1:59  2:00
The clock is displayed when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in ACCESSORY or IGNITION ON mode.
Hybrid model
The power switch is in ACCESSORY or ON mode.
When the 12-volt battery is disconnected
The time display will automatically be set to 1:00.

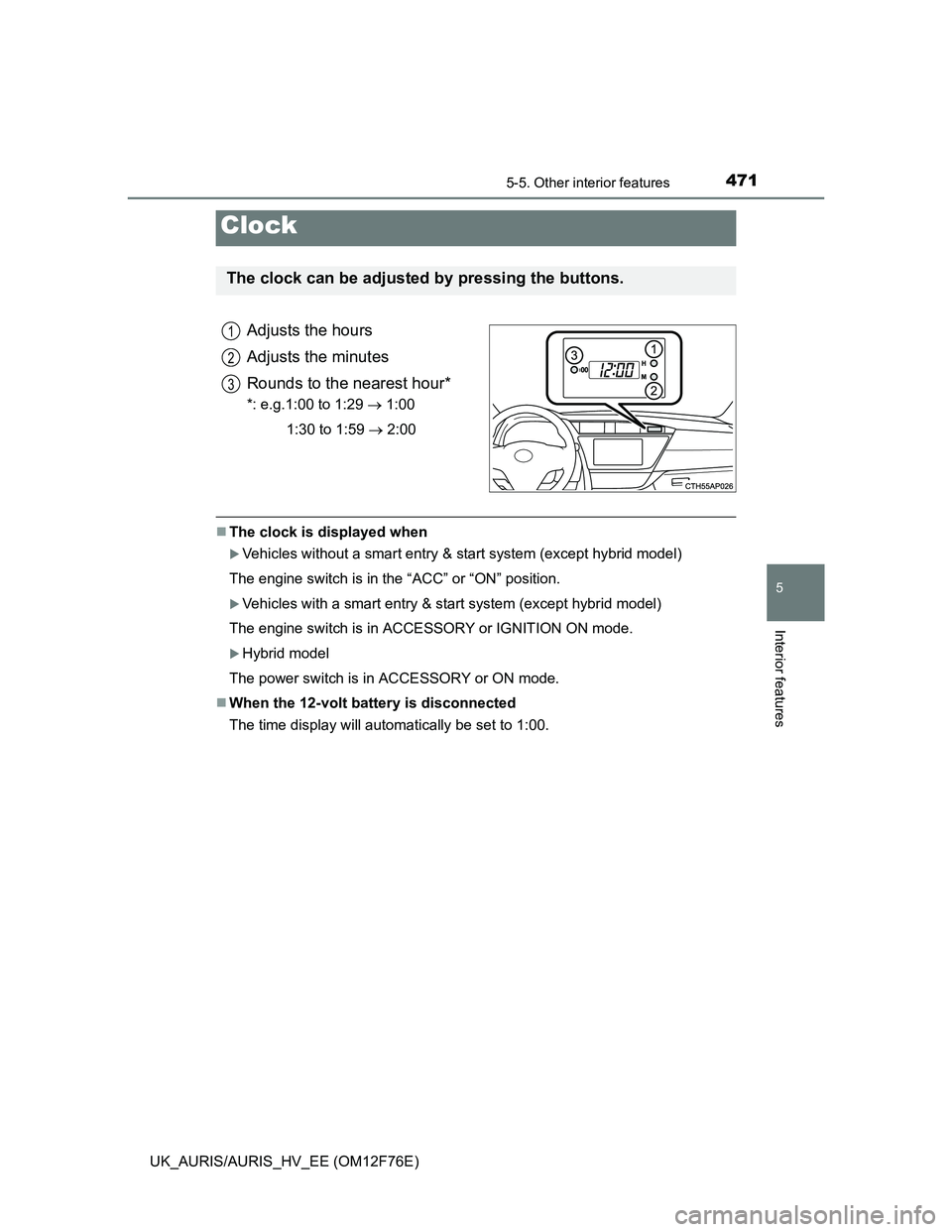

Clock
The clock can be adjusted by pressing the buttons.
1
2
3

4725-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)

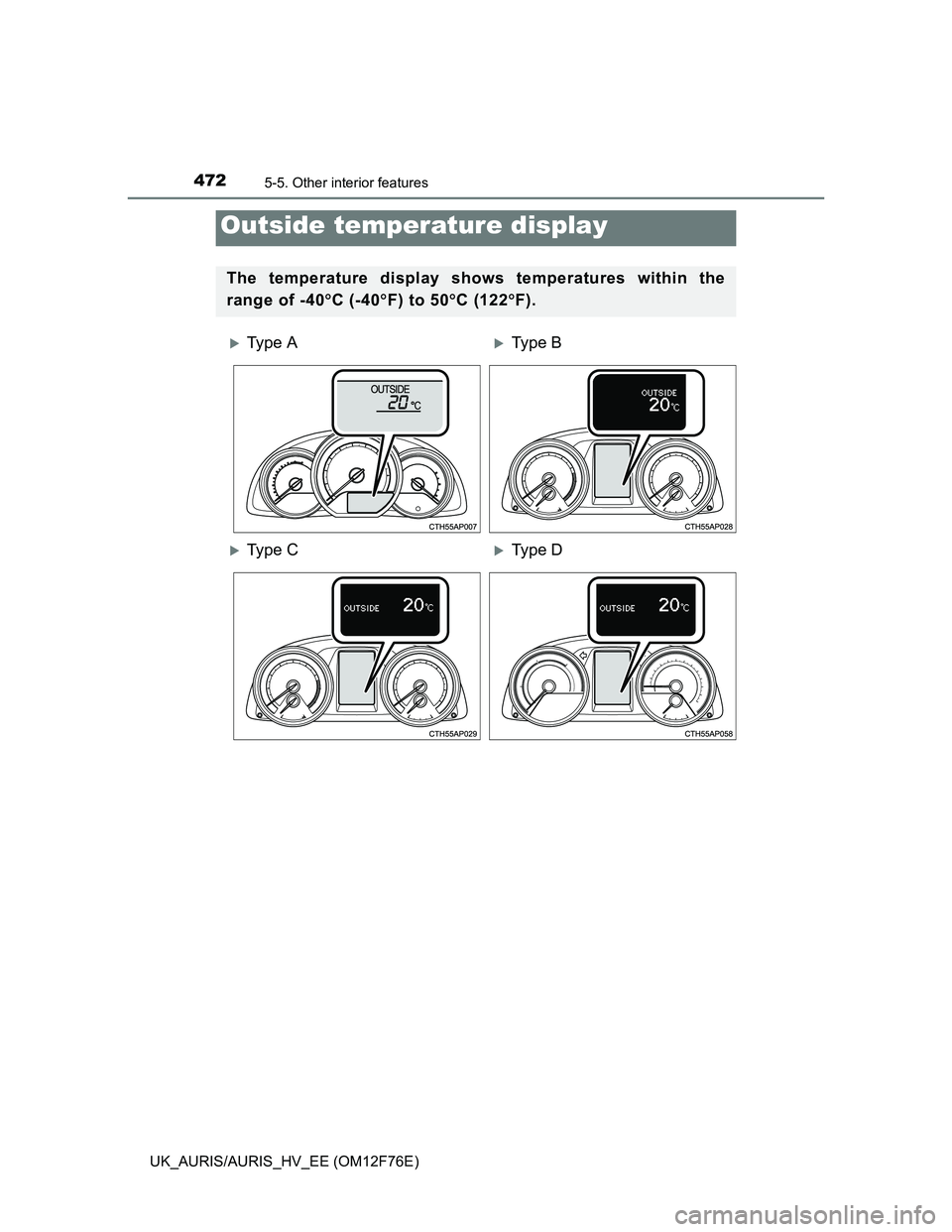

Outside temperature display
The temperature display shows temperatures within the
range of -40C (-40F) to 50C (122F).
Ty p e AType B
Ty p e CType D

4735-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features

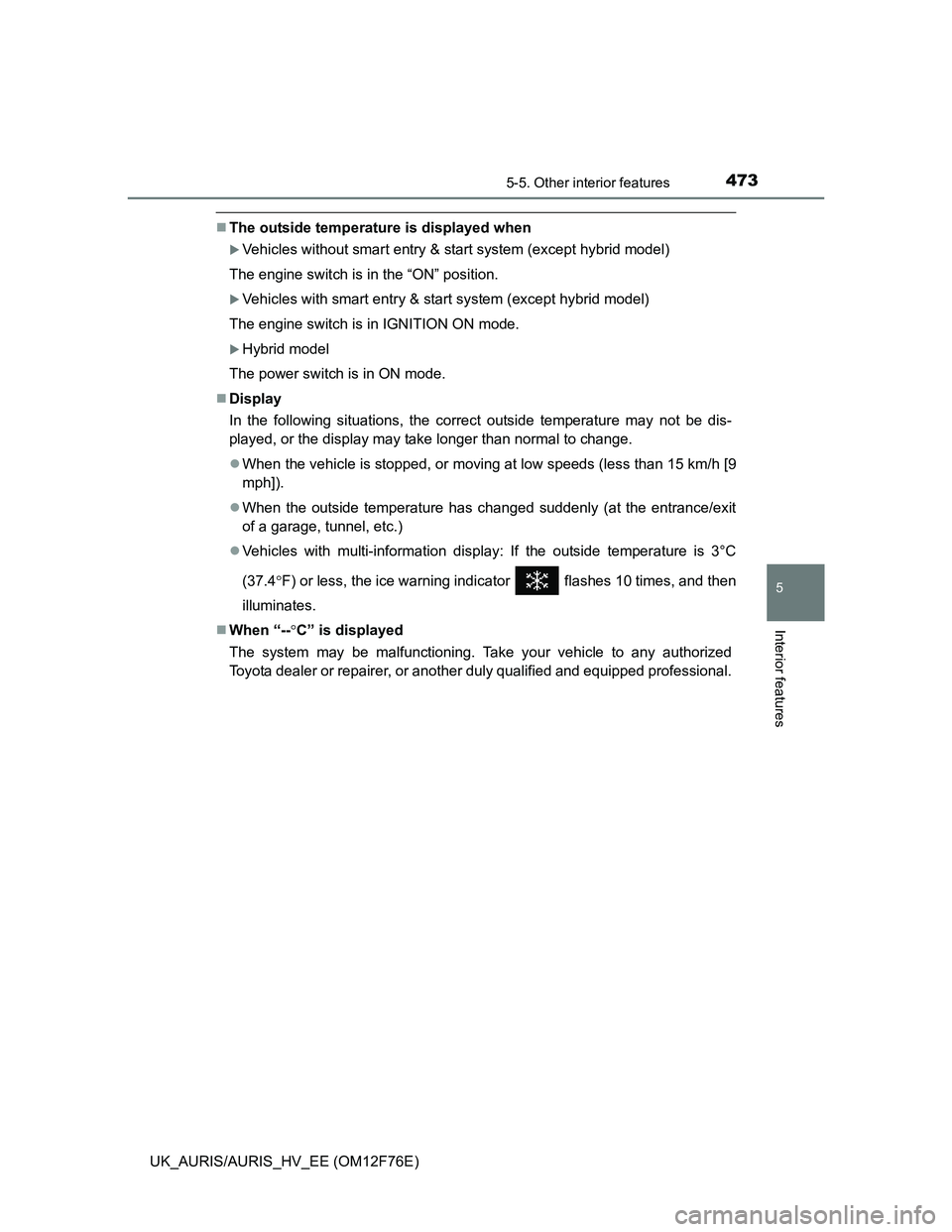

The outside temperature is displayed when
Vehicles without smart entry & start system (except hybrid model)
The engine switch is in the “ON” position.
Vehicles with smart entry & start system (except hybrid model)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode.
Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When the vehicle is stopped, or moving at low speeds (less than 15 km/h [9
mph]).
When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
Vehicles with multi-information display: If the outside temperature is 3°C
(37.4F) or less, the ice warning indicator flashes 10 times, and then
illuminates.
When “--C” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

4745-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)

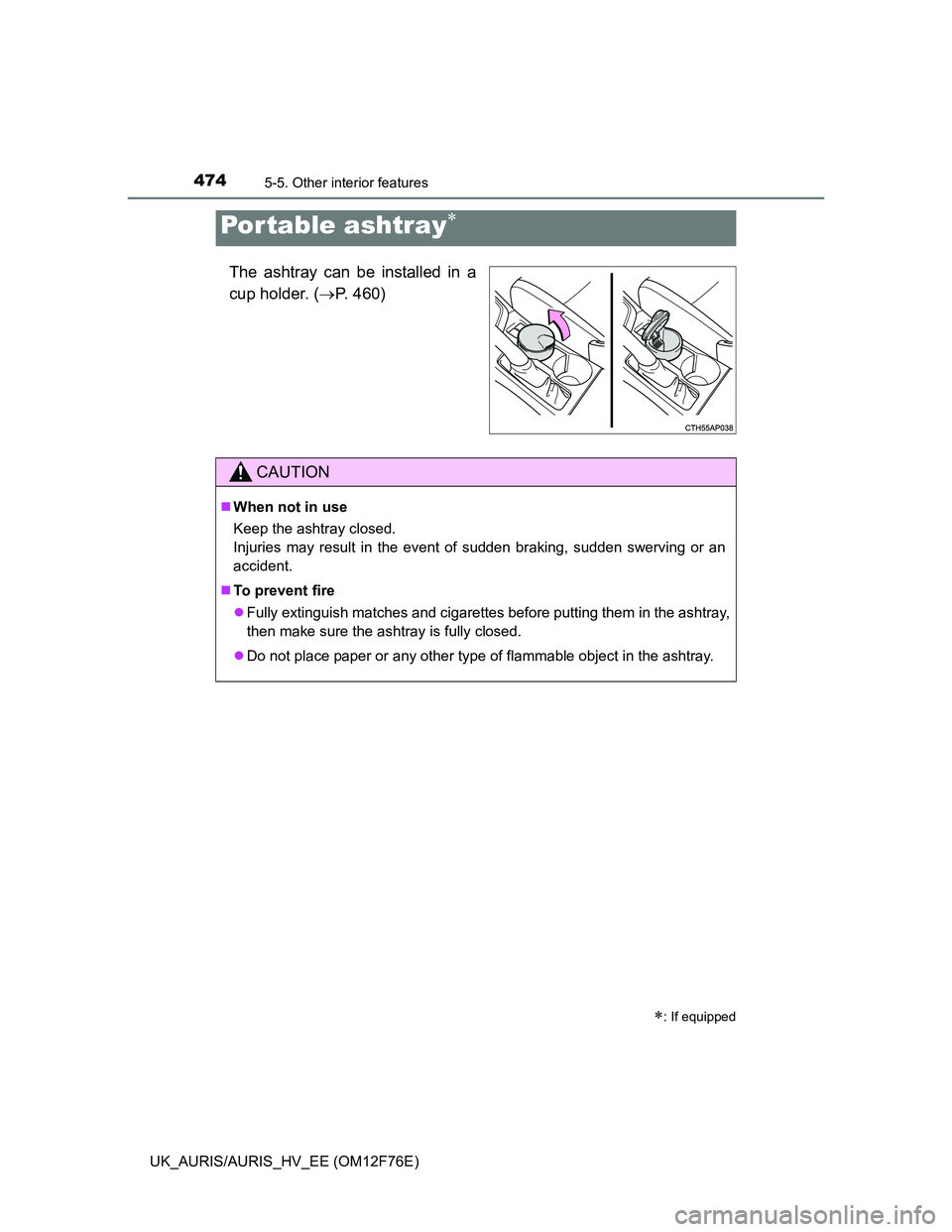

The ashtray can be installed in a
cup holder. (P. 460)
Por table ashtray
: If equipped
CAUTION
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
To prevent fire
Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
Do not place paper or any other type of flammable object in the ashtray.

4755-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features
Front
Except hybrid model
Open the lid.
Hybrid model
Open the lid.
Rear
Open the lid.

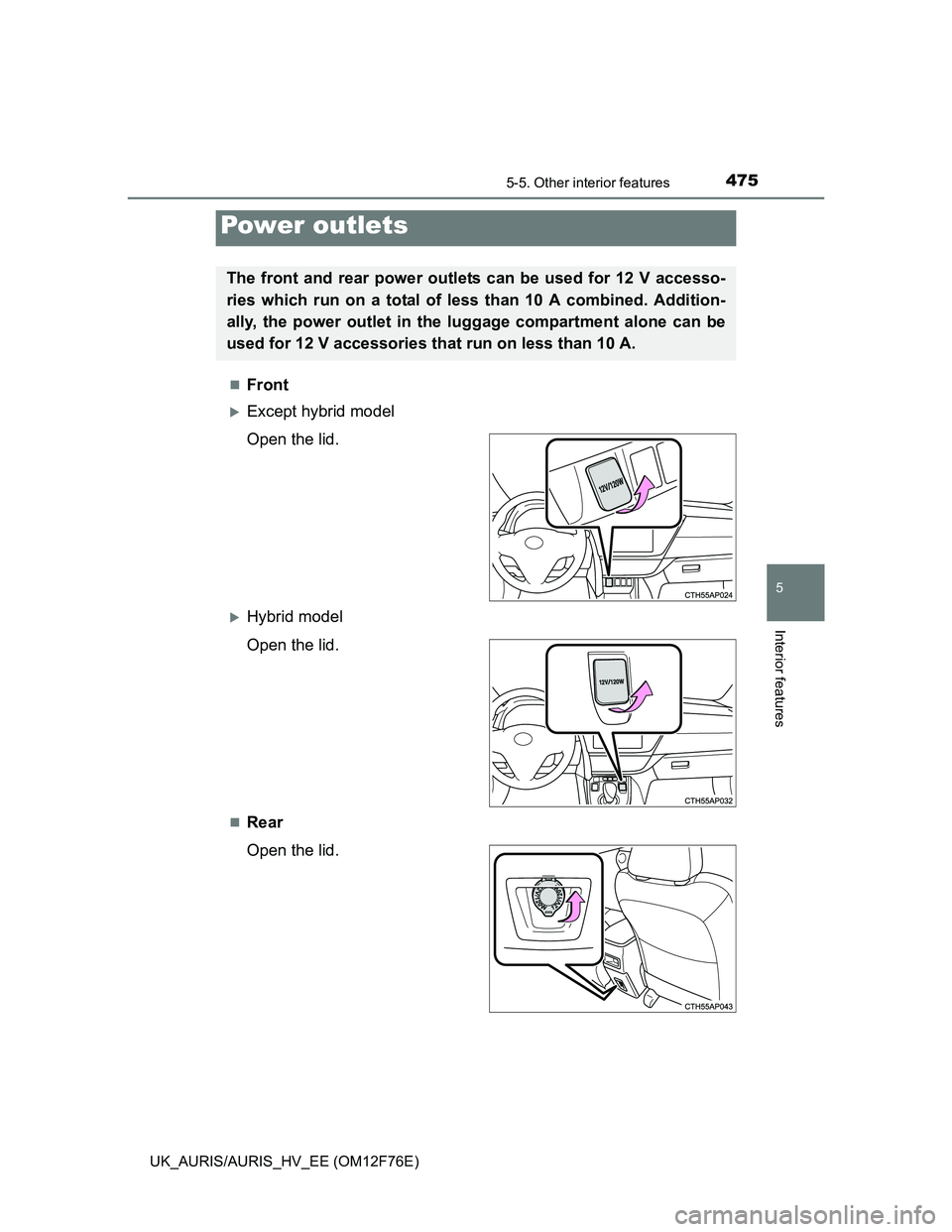

Power outlets
The front and rear power outlets can be used for 12 V accesso-
ries which run on a total of less than 10 A combined. Addition-
ally, the power outlet in the luggage compartment alone can be
used for 12 V accessories that run on less than 10 A.

4765-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)

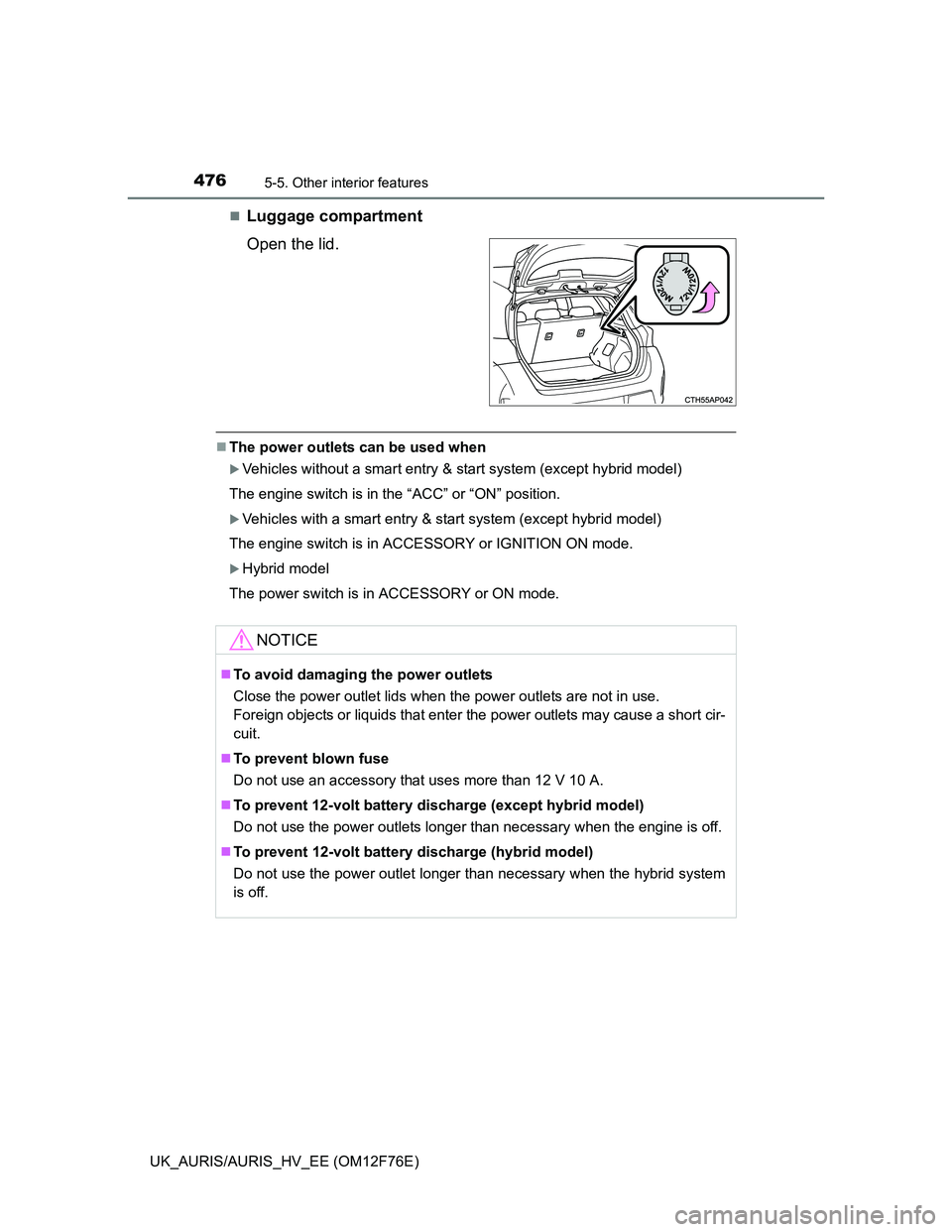

Luggage compartment
Open the lid.
The power outlets can be used when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in ACCESSORY or IGNITION ON mode.
Hybrid model
The power switch is in ACCESSORY or ON mode.
NOTICE
To avoid damaging the power outlets
Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short cir-
cuit.
To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
To prevent 12-volt battery discharge (except hybrid model)
Do not use the power outlets longer than necessary when the engine is off.
To prevent 12-volt battery discharge (hybrid model)
Do not use the power outlet longer than necessary when the hybrid system
is off.

4775-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features

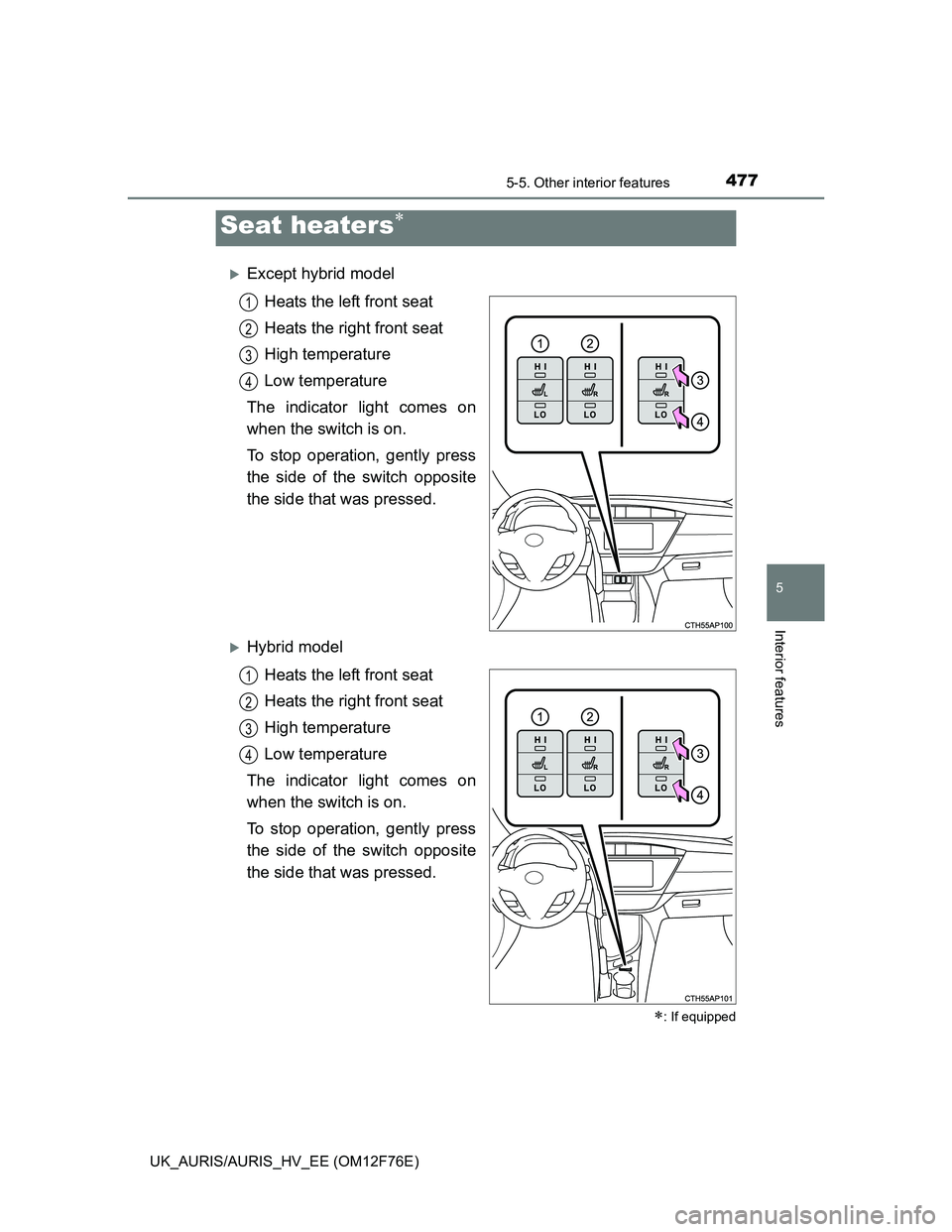

Except hybrid model
Heats the left front seat
Heats the right front seat
High temperature
Low temperature
The indicator light comes on
when the switch is on.
To stop operation, gently press
the side of the switch opposite
the side that was pressed.
Hybrid model
Heats the left front seat
Heats the right front seat
High temperature
Low temperature
The indicator light comes on
when the switch is on.
To stop operation, gently press
the side of the switch opposite
the side that was pressed.
Seat heaters
: If equipped
1
2
3
4
1
2
3
4

4785-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)

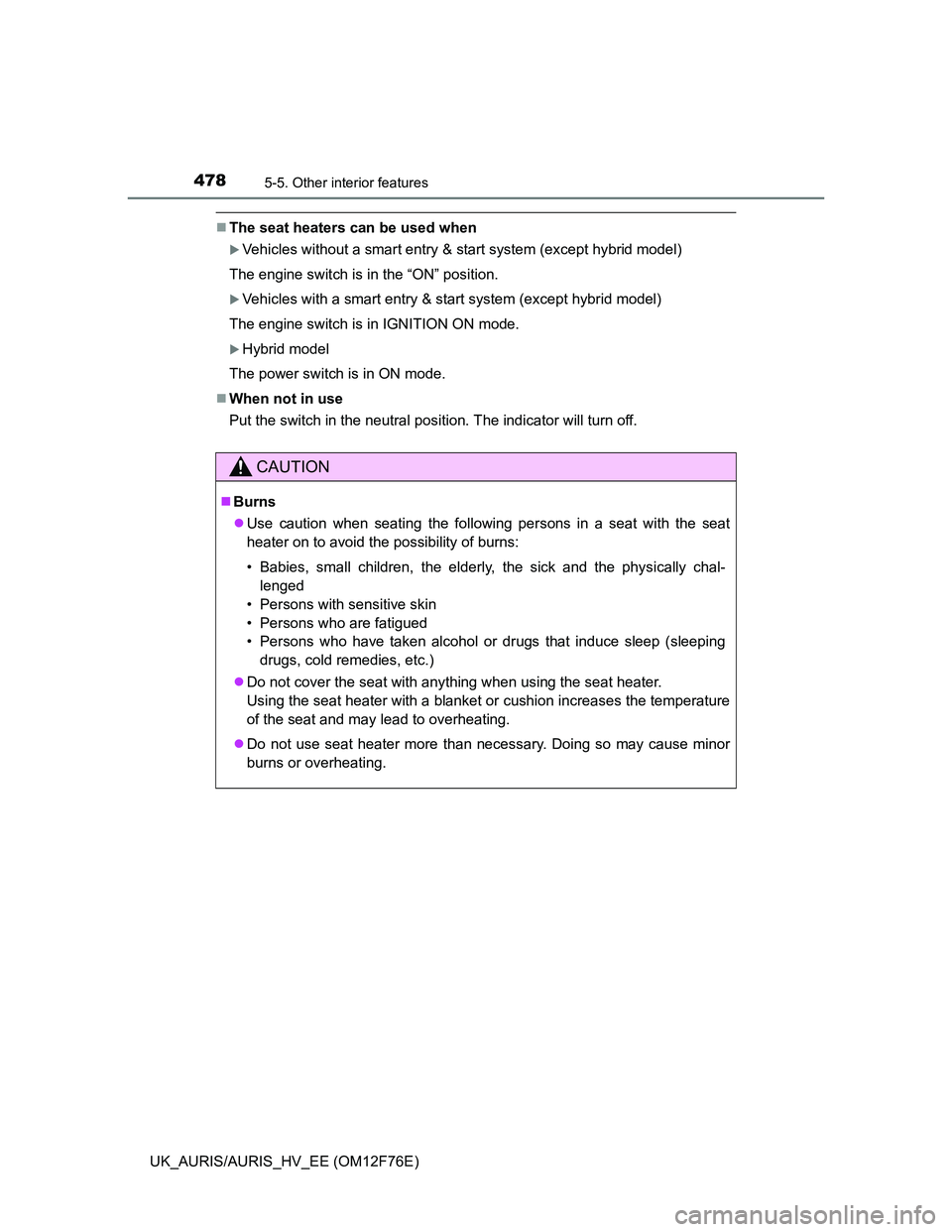

The seat heaters can be used when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode.
When not in use
Put the switch in the neutral position. The indicator will turn off.
CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use seat heater more than necessary. Doing so may cause minor
burns or overheating.

4795-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features

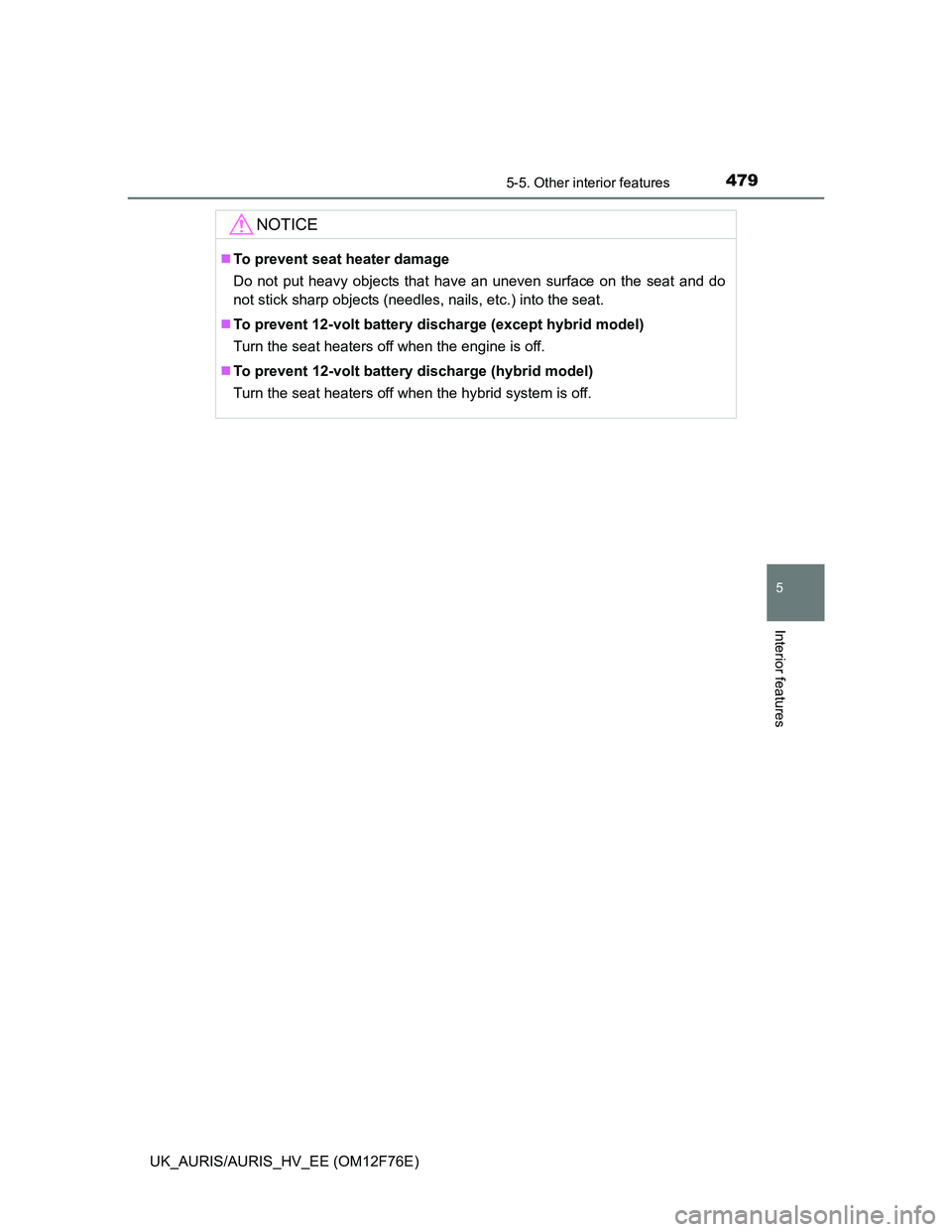

NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent 12-volt battery discharge (except hybrid model)
Turn the seat heaters off when the engine is off.
To prevent 12-volt battery discharge (hybrid model)
Turn the seat heaters off when the hybrid system is off.

4805-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)

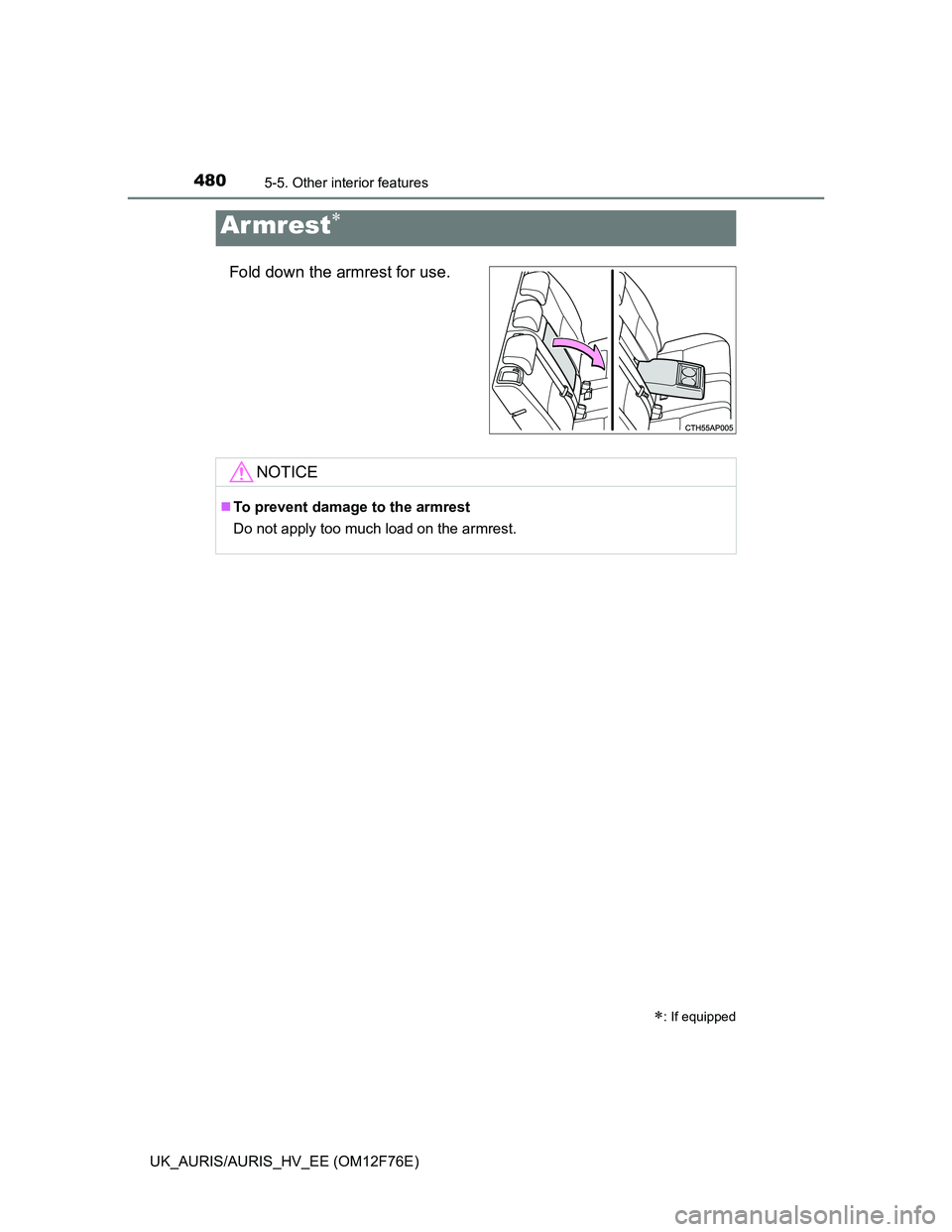

Fold down the armrest for use.
Ar mrest
: If equipped
NOTICE
To prevent damage to the armrest
Do not apply too much load on the armrest.
