TOYOTA AURIS HYBRID 2013 Owners Manual

5716-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
6
Maintenance and care

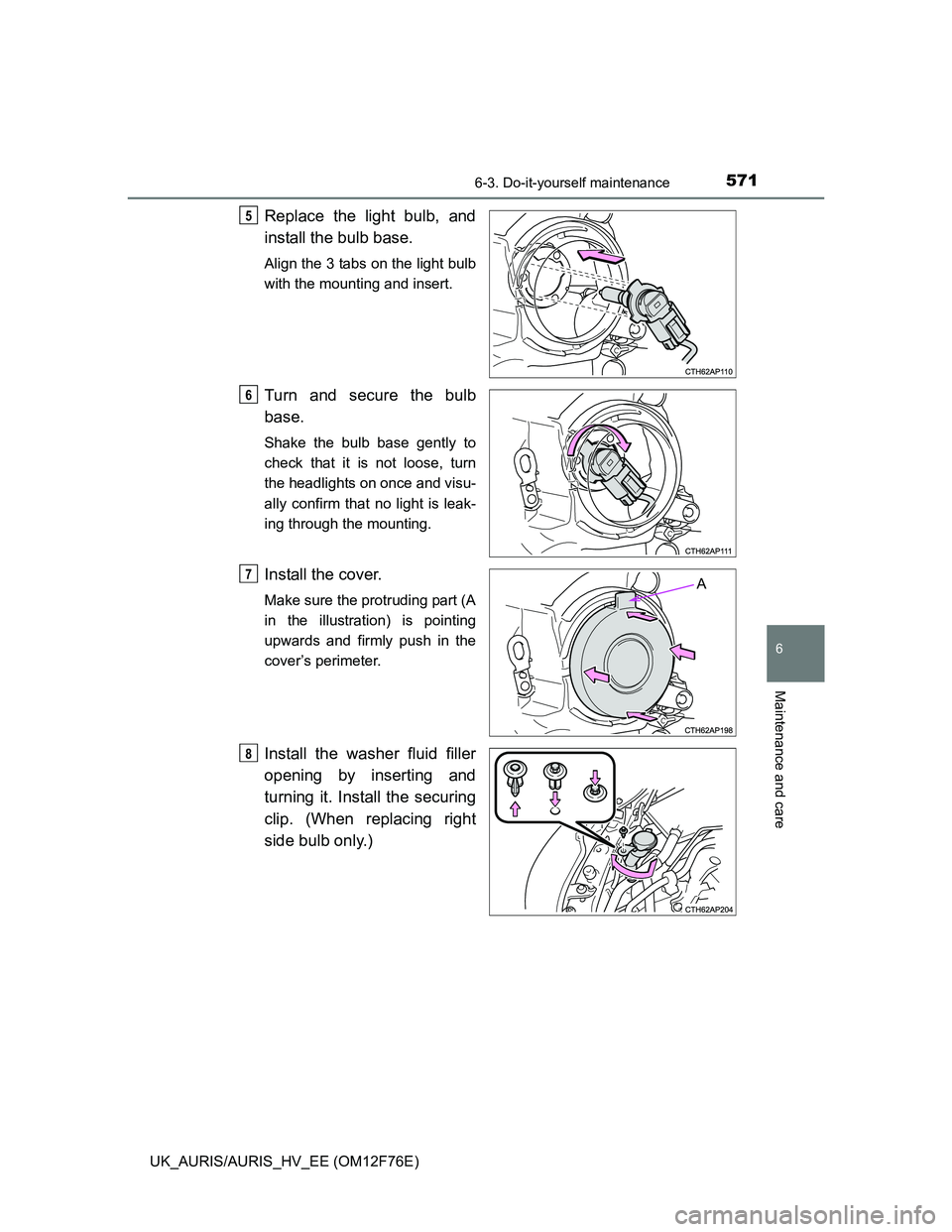

Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Install the cover.
Make sure the protruding part (A
in the illustration) is pointing
upwards and firmly push in the
cover’s perimeter.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
5
6
A7
8

5726-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)

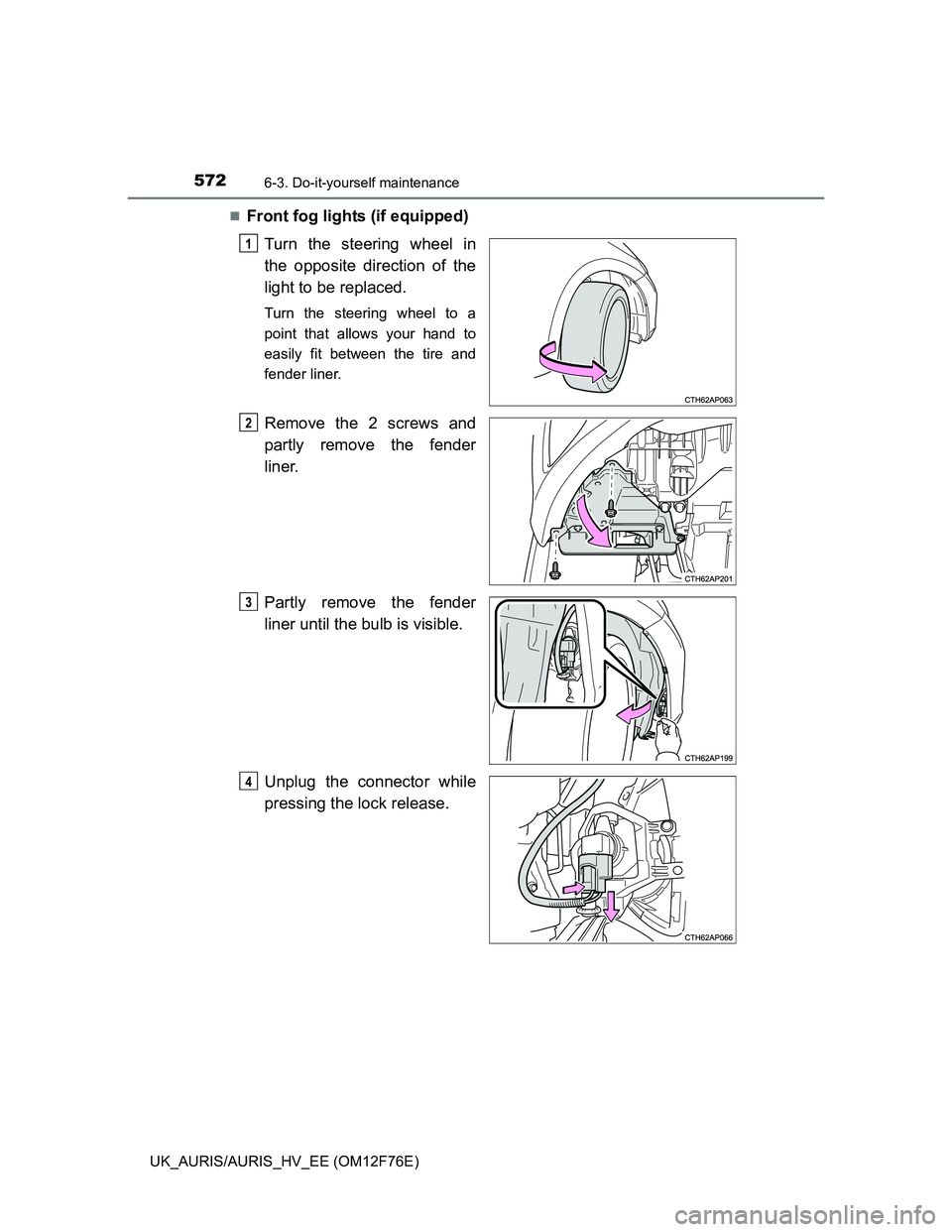

Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the 2 screws and
partly remove the fender
liner.
Partly remove the fender
liner until the bulb is visible.
Unplug the connector while
pressing the lock release.
1
2
3
4

5736-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
6
Maintenance and care

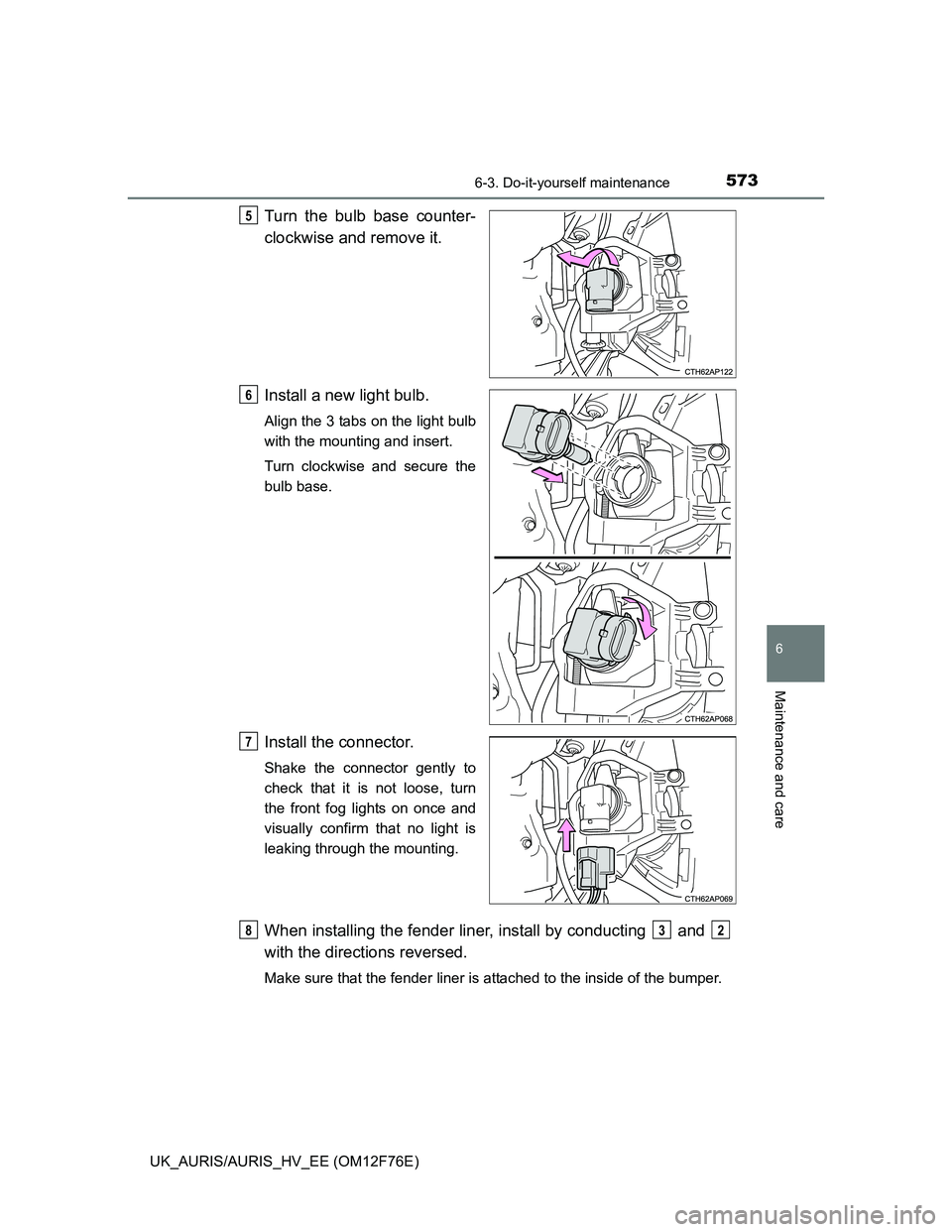

Turn the bulb base counter-
clockwise and remove it.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
5
6
7
832

5746-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)

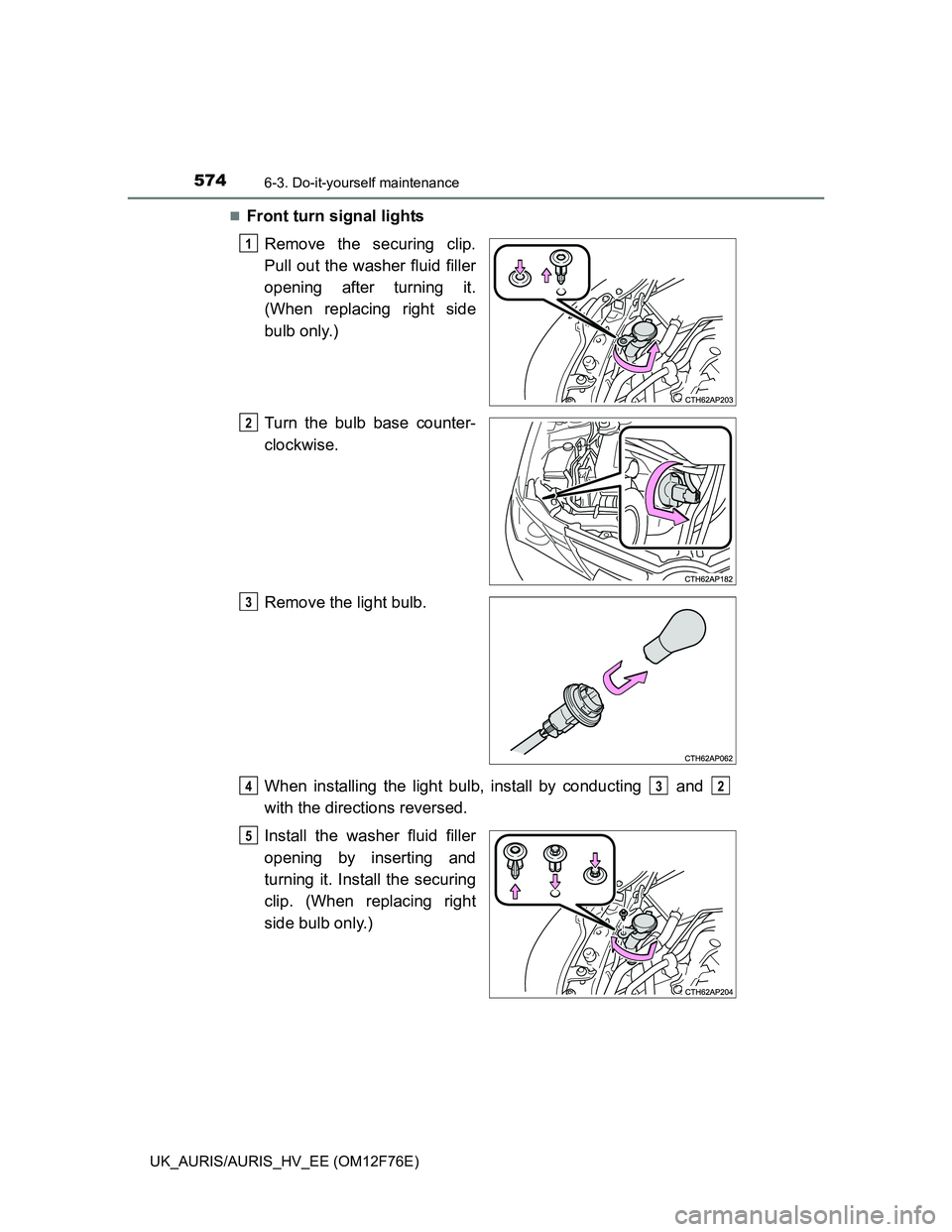

Front turn signal lights
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the light bulb, install by conducting and
with the directions reversed.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
1
2
3
432
5

5756-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
6
Maintenance and care

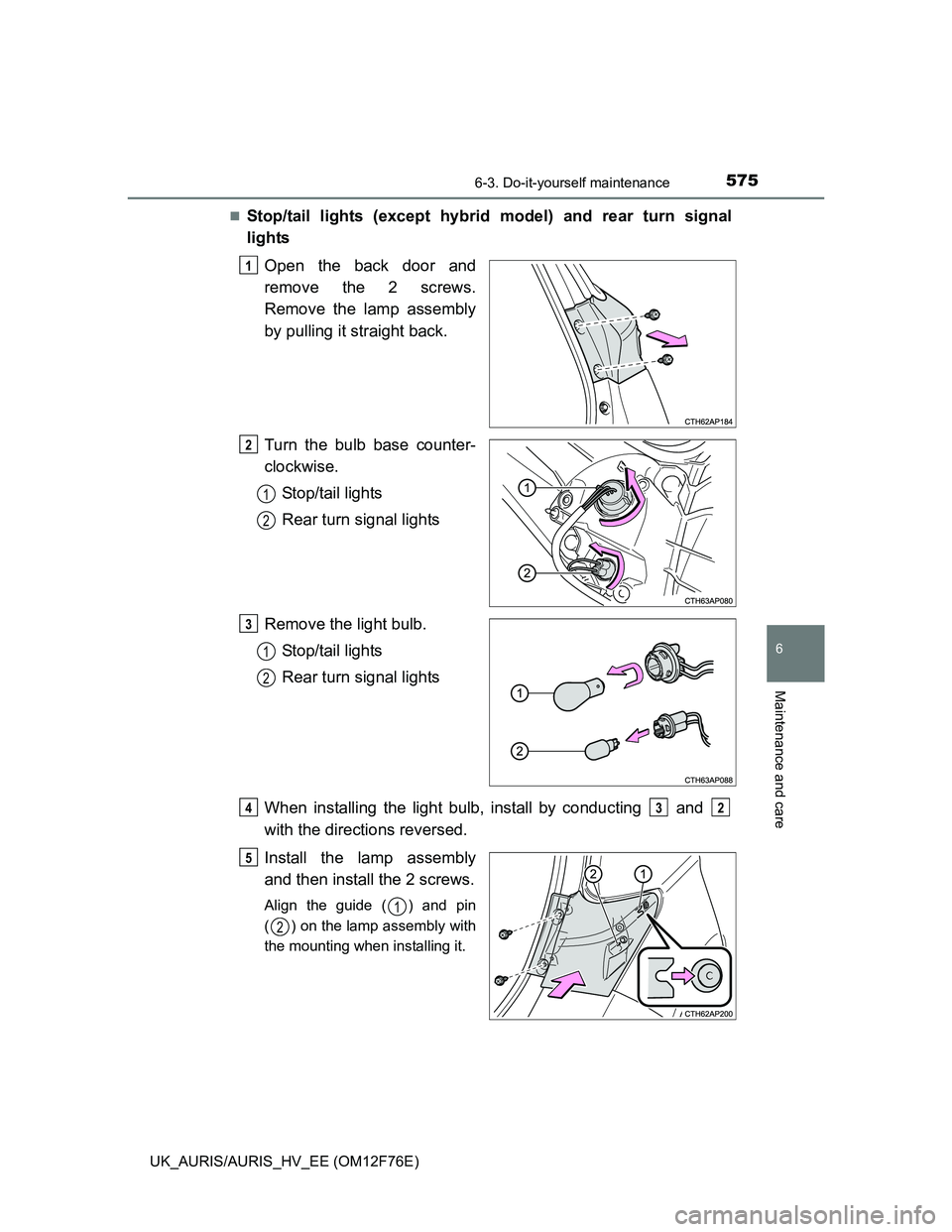

Stop/tail lights (except hybrid model) and rear turn signal
lights
Open the back door and
remove the 2 screws.
Remove the lamp assembly
by pulling it straight back.
Turn the bulb base counter-
clockwise.
Stop/tail lights
Rear turn signal lights
Remove the light bulb.
Stop/tail lights
Rear turn signal lights
When installing the light bulb, install by conducting and
with the directions reversed.
Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pin
( ) on the lamp assembly with
the mounting when installing it.
1
2
1
2
3
1
2
432
5
1
2

5766-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)

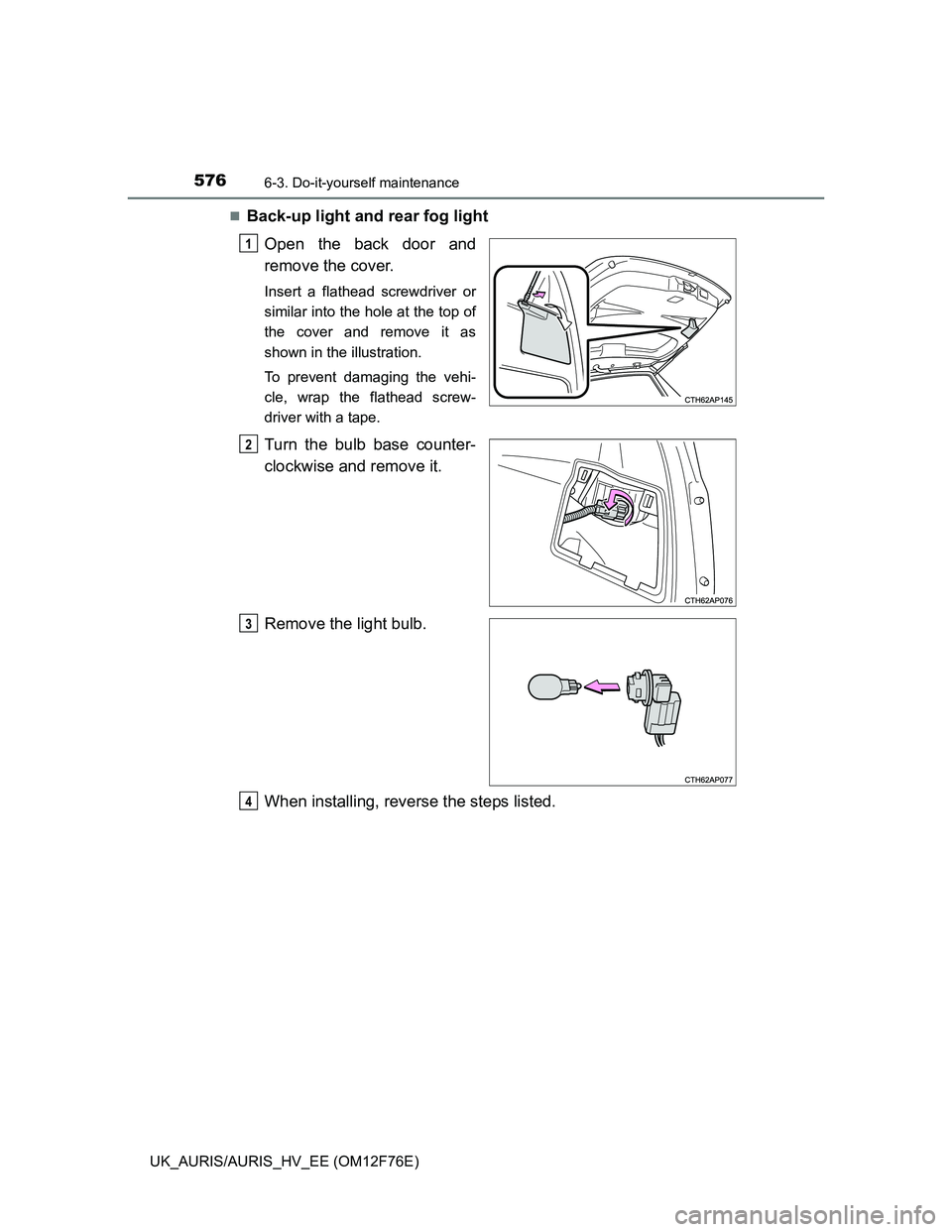

Back-up light and rear fog light
Open the back door and
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise and remove it.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5776-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
6
Maintenance and care

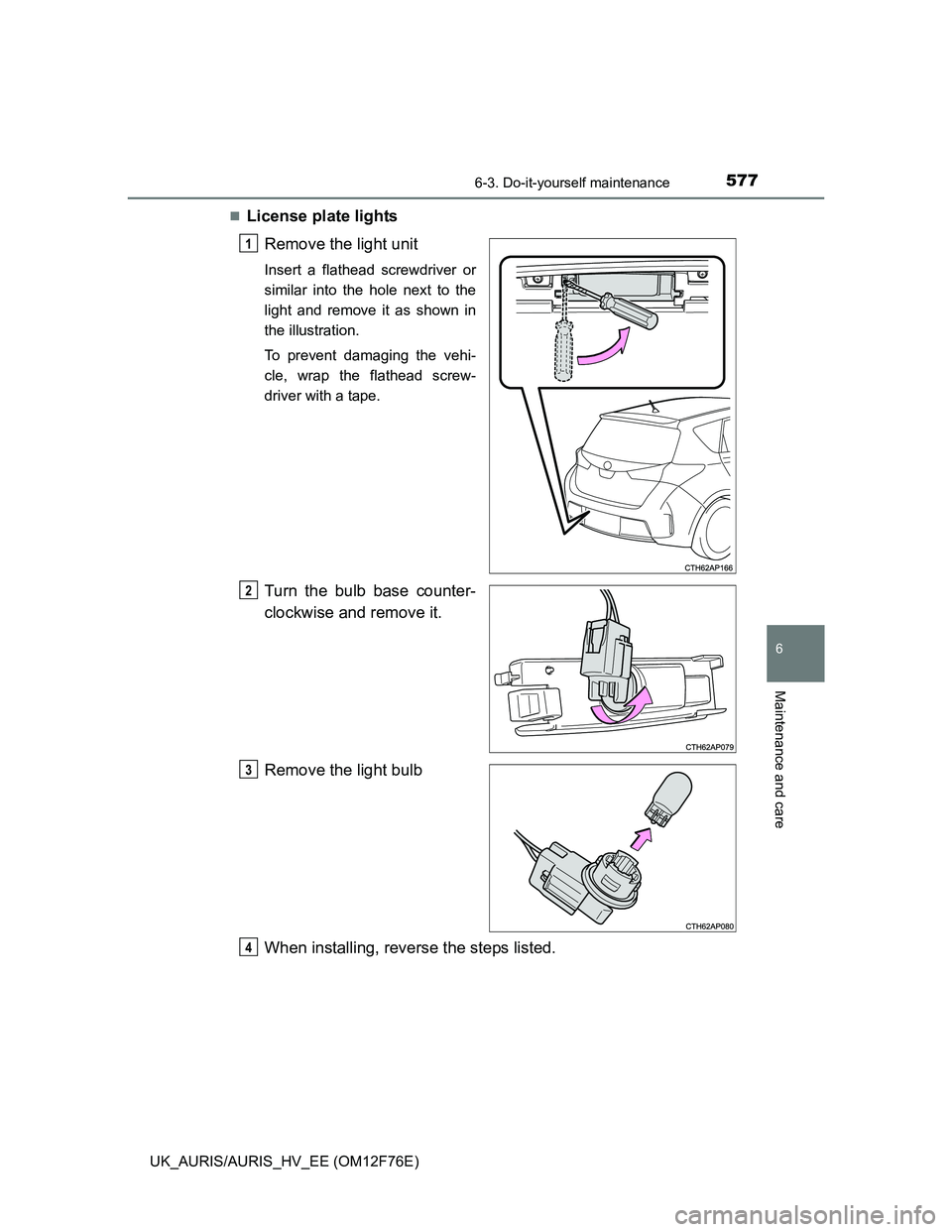

License plate lights
Remove the light unit
Insert a flathead screwdriver or
similar into the hole next to the
light and remove it as shown in
the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise and remove it.
Remove the light bulb
When installing, reverse the steps listed.
1
2
3
4

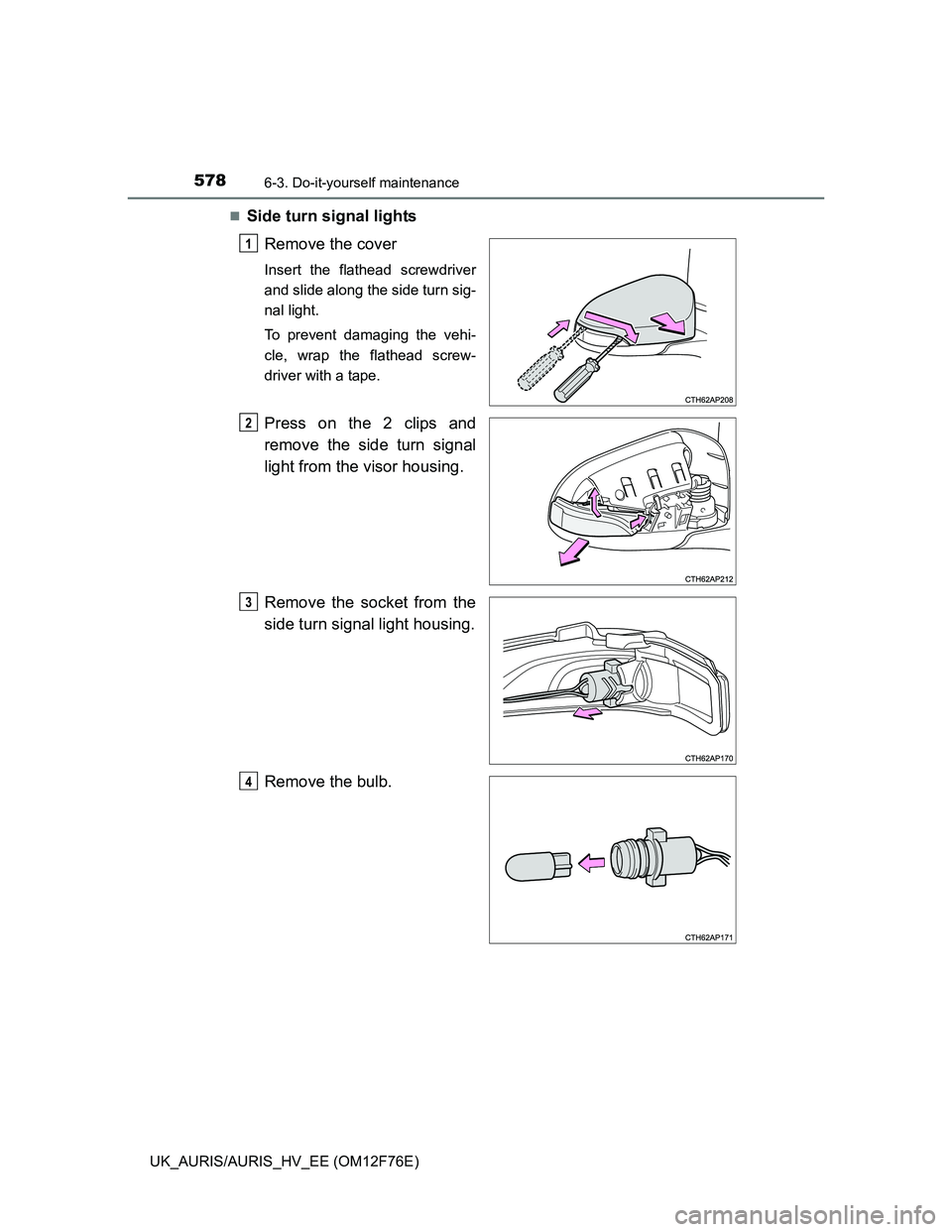

5786-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
Side turn signal lights
Remove the cover
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Press on the 2 clips and
remove the side turn signal
light from the visor housing.
Remove the socket from the
side turn signal light housing.
Remove the bulb.
1
2
3
4

5796-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
6
Maintenance and care

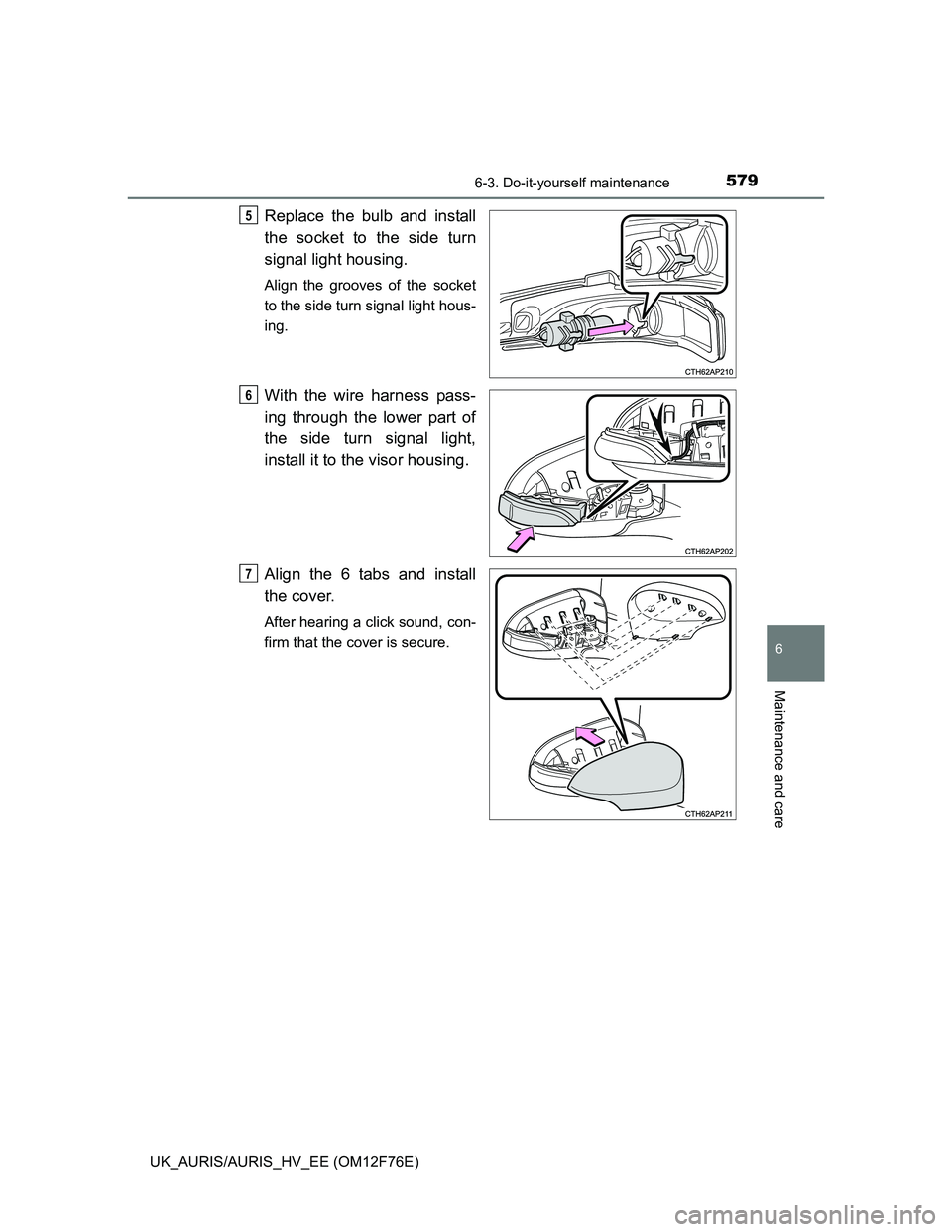

Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
5
6
7

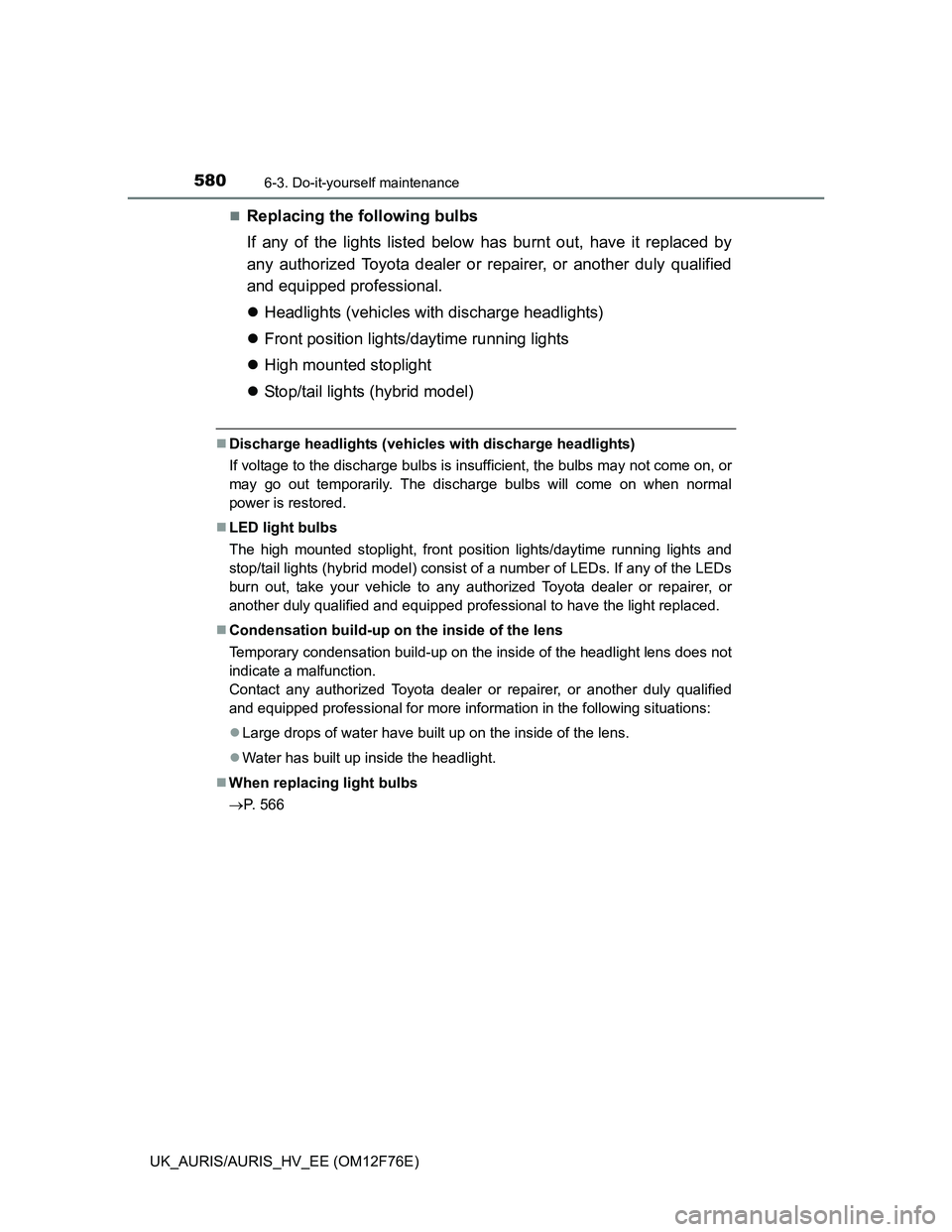

5806-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlights (vehicles with discharge headlights)
Front position lights/daytime running lights
High mounted stoplight
Stop/tail lights (hybrid model)
Discharge headlights (vehicles with discharge headlights)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The high mounted stoplight, front position lights/daytime running lights and
stop/tail lights (hybrid model) consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 566
