712
UK_AURIS/AURIS_HV_EE (OM12F76E)

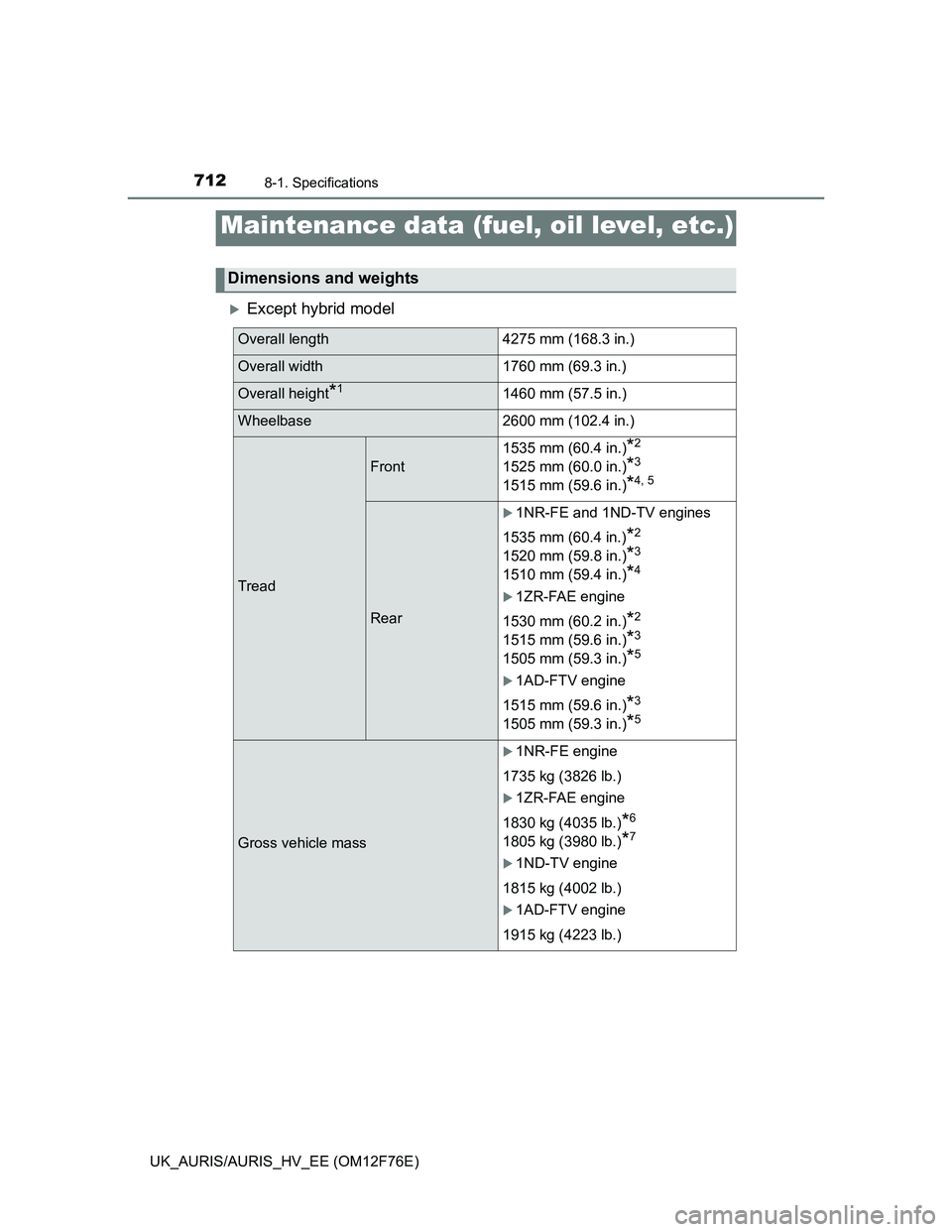

8-1. Specifications
Except hybrid model
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4275 mm (168.3 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11460 mm (57.5 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
Rear
1NR-FE and 1ND-TV engines
1535 mm (60.4 in.)
*2
1520 mm (59.8 in.)*3
1510 mm (59.4 in.)*4
1ZR-FAE engine
1530 mm (60.2 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*5
1AD-FTV engine
1515 mm (59.6 in.)
*3
1505 mm (59.3 in.)*5
Gross vehicle mass
1NR-FE engine
1735 kg (3826 lb.)
1ZR-FAE engine
1830 kg (4035 lb.)
*6
1805 kg (3980 lb.)*7
1ND-TV engine
1815 kg (4002 lb.)
1AD-FTV engine
1915 kg (4223 lb.)

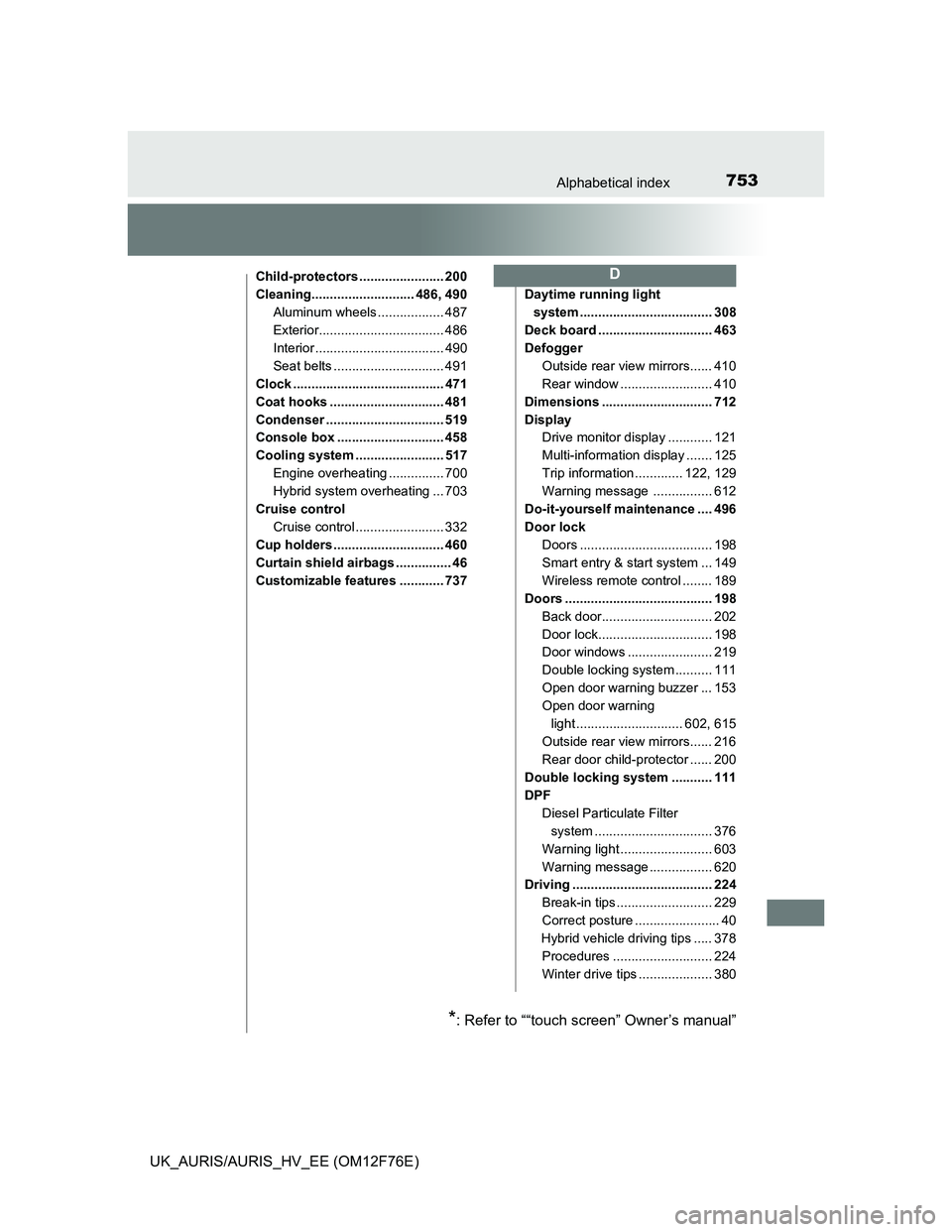

753Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Child-protectors ....................... 200
Cleaning............................ 486, 490
Aluminum wheels .................. 487
Exterior.................................. 486
Interior ................................... 490
Seat belts .............................. 491
Clock ......................................... 471
Coat hooks ............................... 481
Condenser ................................ 519
Console box ............................. 458
Cooling system ........................ 517
Engine overheating ............... 700
Hybrid system overheating ... 703
Cruise control
Cruise control ........................ 332
Cup holders .............................. 460
Curtain shield airbags ............... 46
Customizable features ............ 737Daytime running light
system .................................... 308
Deck board ............................... 463
Defogger
Outside rear view mirrors...... 410
Rear window ......................... 410
Dimensions .............................. 712
Display
Drive monitor display ............ 121
Multi-information display ....... 125
Trip information ............. 122, 129
Warning message ................ 612
Do-it-yourself maintenance .... 496
Door lock
Doors .................................... 198
Smart entry & start system ... 149
Wireless remote control ........ 189
Doors ........................................ 198
Back door.............................. 202
Door lock............................... 198
Door windows ....................... 219
Double locking system .......... 111
Open door warning buzzer ... 153
Open door warning
light ............................. 602, 615
Outside rear view mirrors...... 216
Rear door child-protector ...... 200
Double locking system ........... 111
DPF
Diesel Particulate Filter
system ................................ 376
Warning light ......................... 603
Warning message ................. 620
Driving ...................................... 224
Break-in tips .......................... 229
Correct posture ....................... 40
Hybrid vehicle driving tips ..... 378
Procedures ........................... 224
Winter drive tips .................... 380D
*: Refer to ““touch screen” Owner’s manual”
