2213-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding the mirrors
Manual typePower type (if equipped)
Push the mirror back in the direc-
tion of the vehicle’s rear. Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.

2223-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12G88E)
Automatic mode allows the folding or extending of the mirrors to be
linked to locking/unlocking of the doors.
Automatic operation can be disabled by performing the following.
Except hybrid model: Turn the
engine switch to off.
Hybrid model: Turn the power
switch to off.
Press and hold the switch that
folds the mirrors and of the
mirror angle adjustment switch at
the same time for more than 2
seconds.
Performing the above procedures
again will reactivate automatic
operation.
Automatically folding and extending the mirrors (if equipped)

2233-4. Adjusting the steering wheel and mirrors
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component

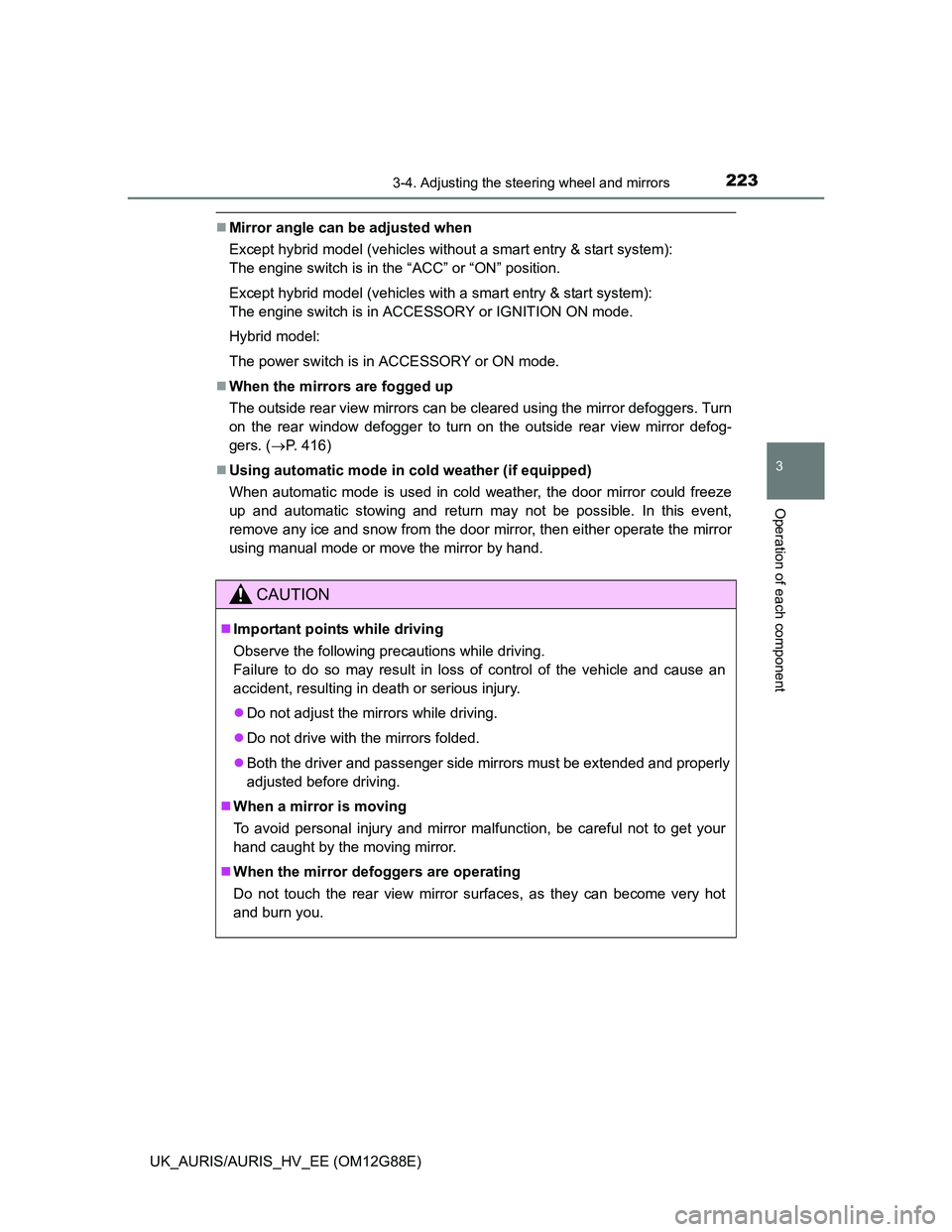

Mirror angle can be adjusted when
Except hybrid model (vehicles without a smart entry & start system):
The engine switch is in the “ACC” or “ON” position.
Except hybrid model (vehicles with a smart entry & start system):
The engine switch is in ACCESSORY or IGNITION ON mode.
Hybrid model:
The power switch is in ACCESSORY or ON mode.
When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. (P. 416)
Using automatic mode in cold weather (if equipped)
When automatic mode is used in cold weather, the door mirror could freeze
up and automatic stowing and return may not be possible. In this event,
remove any ice and snow from the door mirror, then either operate the mirror
using manual mode or move the mirror by hand.
CAUTION
Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

224
UK_AURIS/AURIS_HV_EE (OM12G88E)

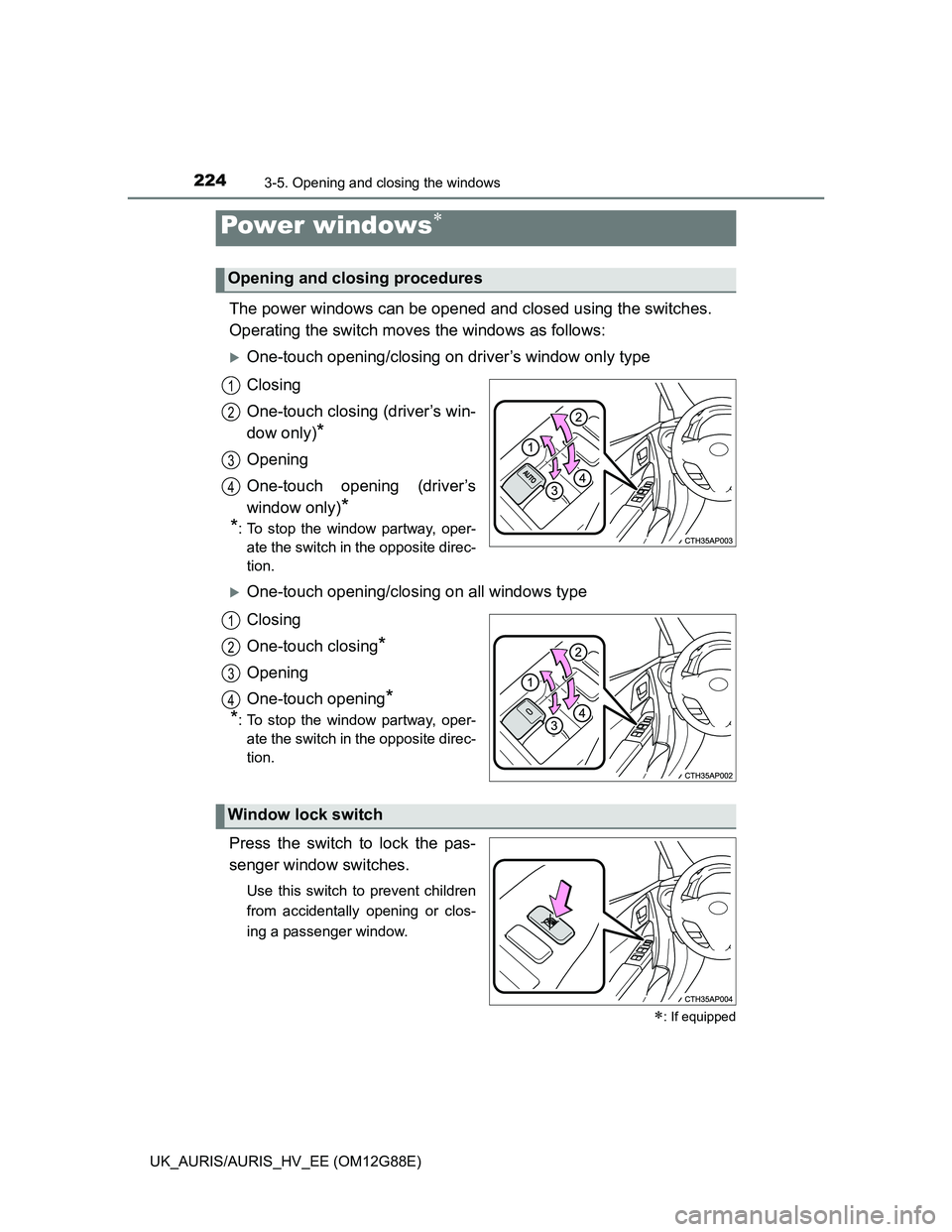

3-5. Opening and closing the windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
One-touch opening/closing on driver’s window only type
Closing
One-touch closing (driver’s win-
dow only)
*
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
One-touch opening/closing on all windows type
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch to lock the pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Power windows
: If equipped
Opening and closing procedures
1
2
3
4
1
2
3
4
Window lock switch

2253-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component

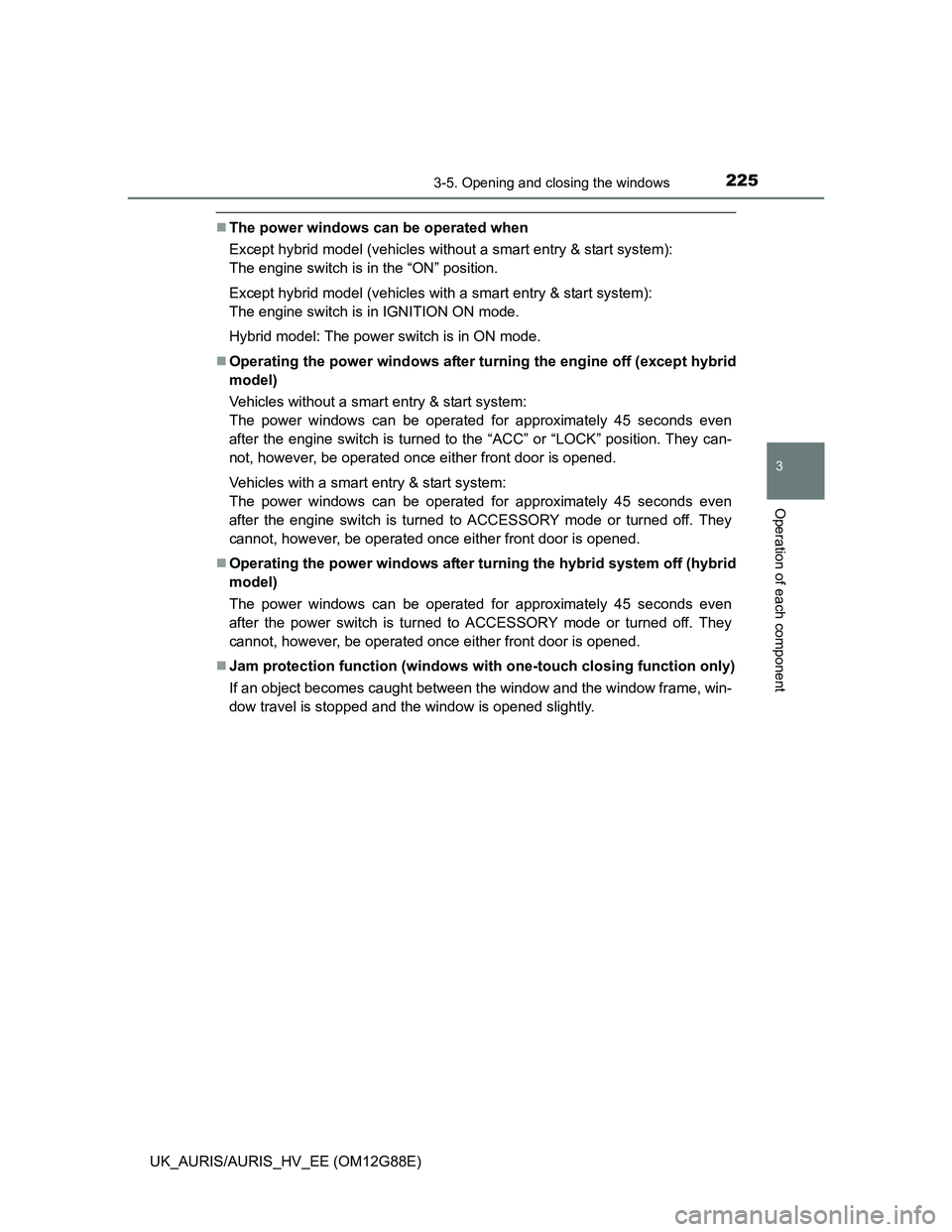

The power windows can be operated when
Except hybrid model (vehicles without a smart entry & start system):
The engine switch is in the “ON” position.
Except hybrid model (vehicles with a smart entry & start system):
The engine switch is in IGNITION ON mode.
Hybrid model: The power switch is in ON mode.
Operating the power windows after turning the engine off (except hybrid
model)
Vehicles without a smart entry & start system:
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
Vehicles with a smart entry & start system:
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
Operating the power windows after turning the hybrid system off (hybrid
model)
The power windows can be operated for approximately 45 seconds even
after the power switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
Jam protection function (windows with one-touch closing function only)
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.

2263-5. Opening and closing the windows

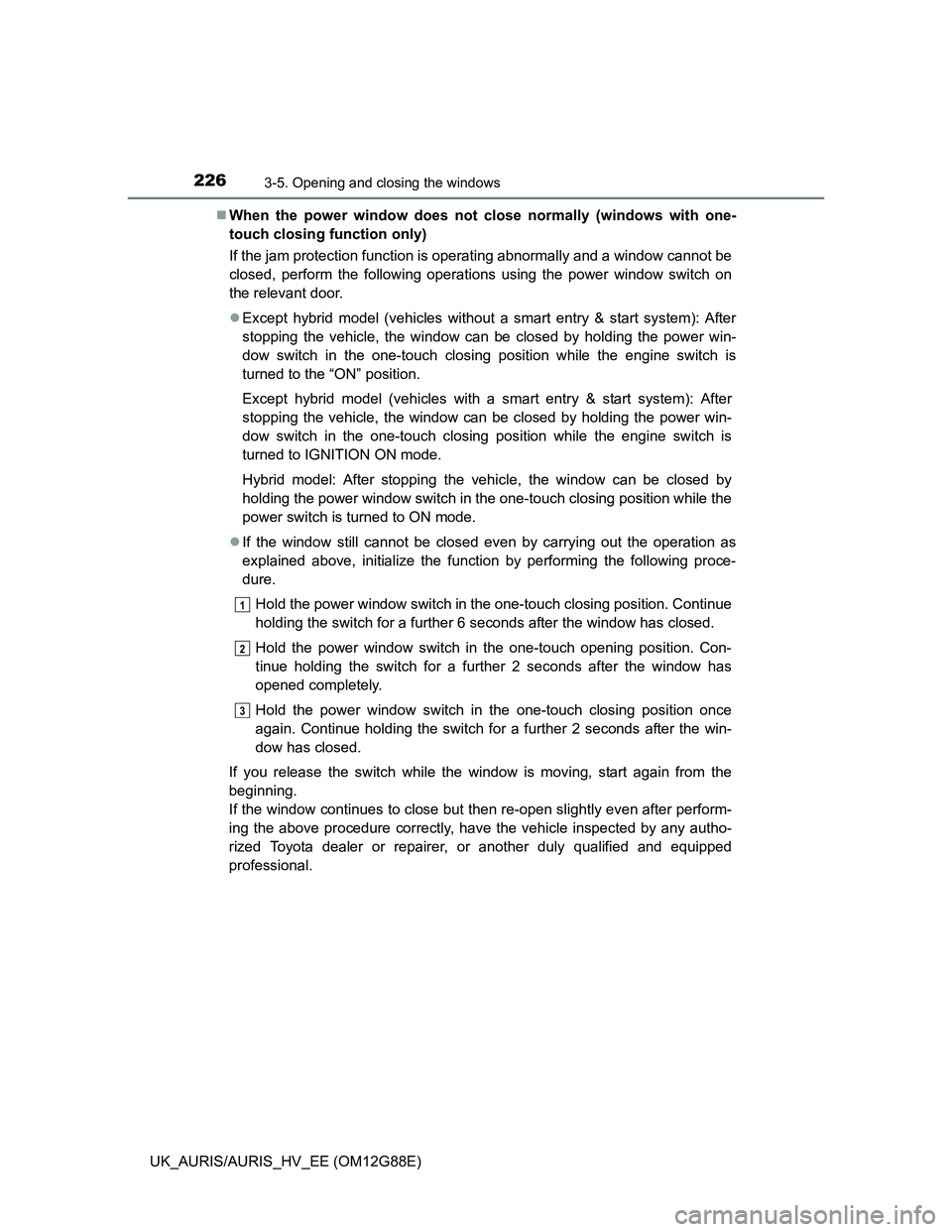

UK_AURIS/AURIS_HV_EE (OM12G88E)When the power window does not close normally (windows with one-
touch closing function only)
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the relevant door.
Except hybrid model (vehicles without a smart entry & start system): After
stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the engine switch is
turned to the “ON” position.
Except hybrid model (vehicles with a smart entry & start system): After
stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the engine switch is
turned to IGNITION ON mode.
Hybrid model: After stopping the vehicle, the window can be closed by
holding the power window switch in the one-touch closing position while the
power switch is turned to ON mode.
If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
1
2
3

2273-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component

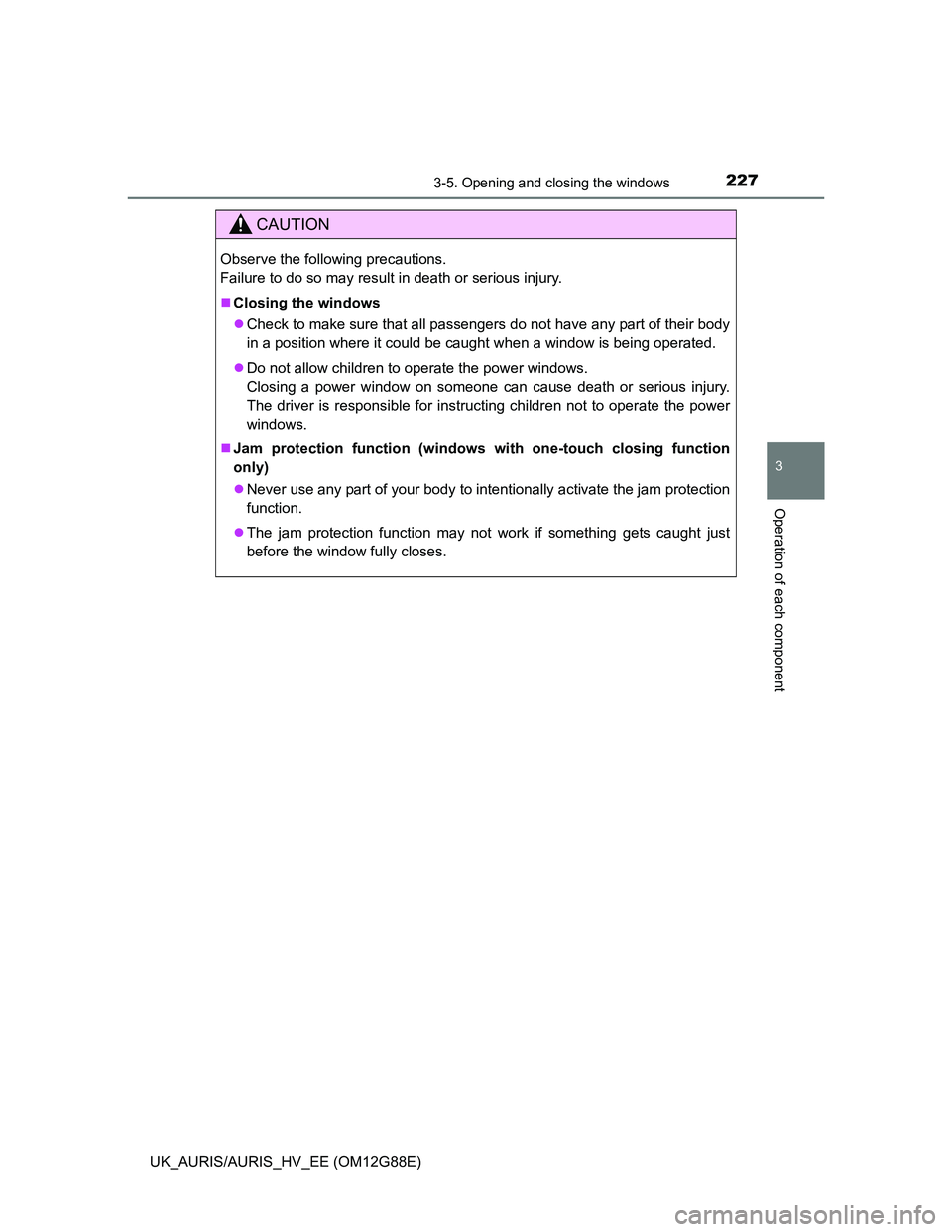

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Closing the windows
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
The driver is responsible for instructing children not to operate the power
windows.
Jam protection function (windows with one-touch closing function
only)
Never use any part of your body to intentionally activate the jam protection
function.
The jam protection function may not work if something gets caught just
before the window fully closes.

2283-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12G88E)

229

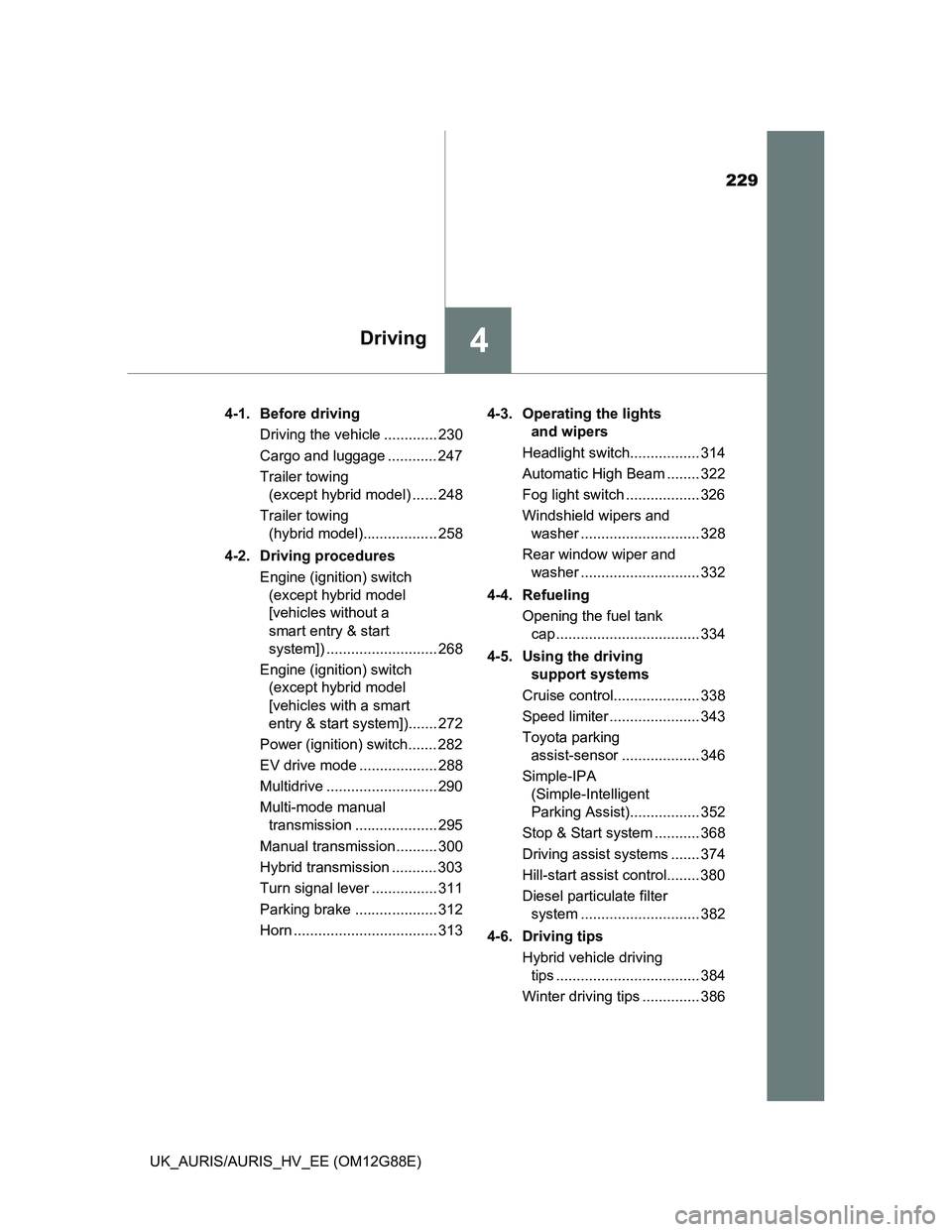

4Driving
UK_AURIS/AURIS_HV_EE (OM12G88E)4-1. Before driving
Driving the vehicle ............. 230
Cargo and luggage ............ 247
Trailer towing
(except hybrid model) ...... 248
Trailer towing
(hybrid model).................. 258
4-2. Driving procedures
Engine (ignition) switch
(except hybrid model
[vehicles without a
smart entry & start
system]) ........................... 268
Engine (ignition) switch
(except hybrid model
[vehicles with a smart
entry & start system])....... 272
Power (ignition) switch....... 282
EV drive mode ................... 288
Multidrive ........................... 290
Multi-mode manual
transmission .................... 295
Manual transmission.......... 300
Hybrid transmission ........... 303
Turn signal lever ................ 311
Parking brake .................... 312
Horn ................................... 3134-3. Operating the lights
and wipers
Headlight switch................. 314
Automatic High Beam ........ 322
Fog light switch .................. 326
Windshield wipers and
washer ............................. 328
Rear window wiper and
washer ............................. 332
4-4. Refueling
Opening the fuel tank
cap ................................... 334
4-5. Using the driving
support systems
Cruise control..................... 338
Speed limiter ...................... 343
Toyota parking
assist-sensor ................... 346
Simple-IPA
(Simple-Intelligent
Parking Assist)................. 352
Stop & Start system ........... 368
Driving assist systems ....... 374
Hill-start assist control........ 380
Diesel particulate filter
system ............................. 382
4-6. Driving tips
Hybrid vehicle driving
tips ................................... 384
Winter driving tips .............. 386

230
UK_AURIS/AURIS_HV_EE (OM12G88E)

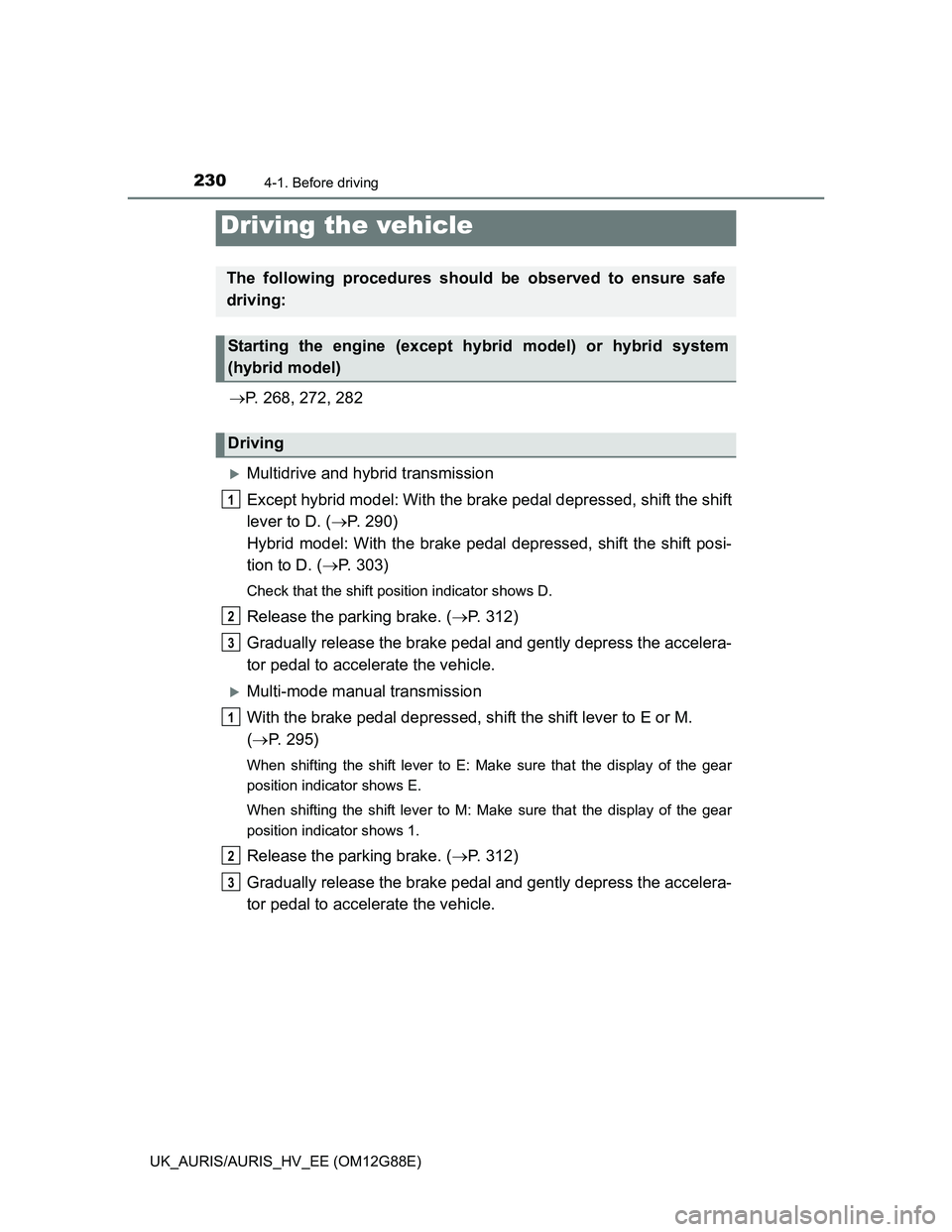

4-1. Before driving
P. 268, 272, 282
Multidrive and hybrid transmission
Except hybrid model: With the brake pedal depressed, shift the shift
lever to D. (P. 290)
Hybrid model: With the brake pedal depressed, shift the shift posi-
tion to D. (P. 303)
Check that the shift position indicator shows D.
Release the parking brake. (P. 312)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Multi-mode manual transmission
With the brake pedal depressed, shift the shift lever to E or M.
(P. 295)
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Release the parking brake. (P. 312)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the engine (except hybrid model) or hybrid system
(hybrid model)
Driving
1
2
3
1
2
3
