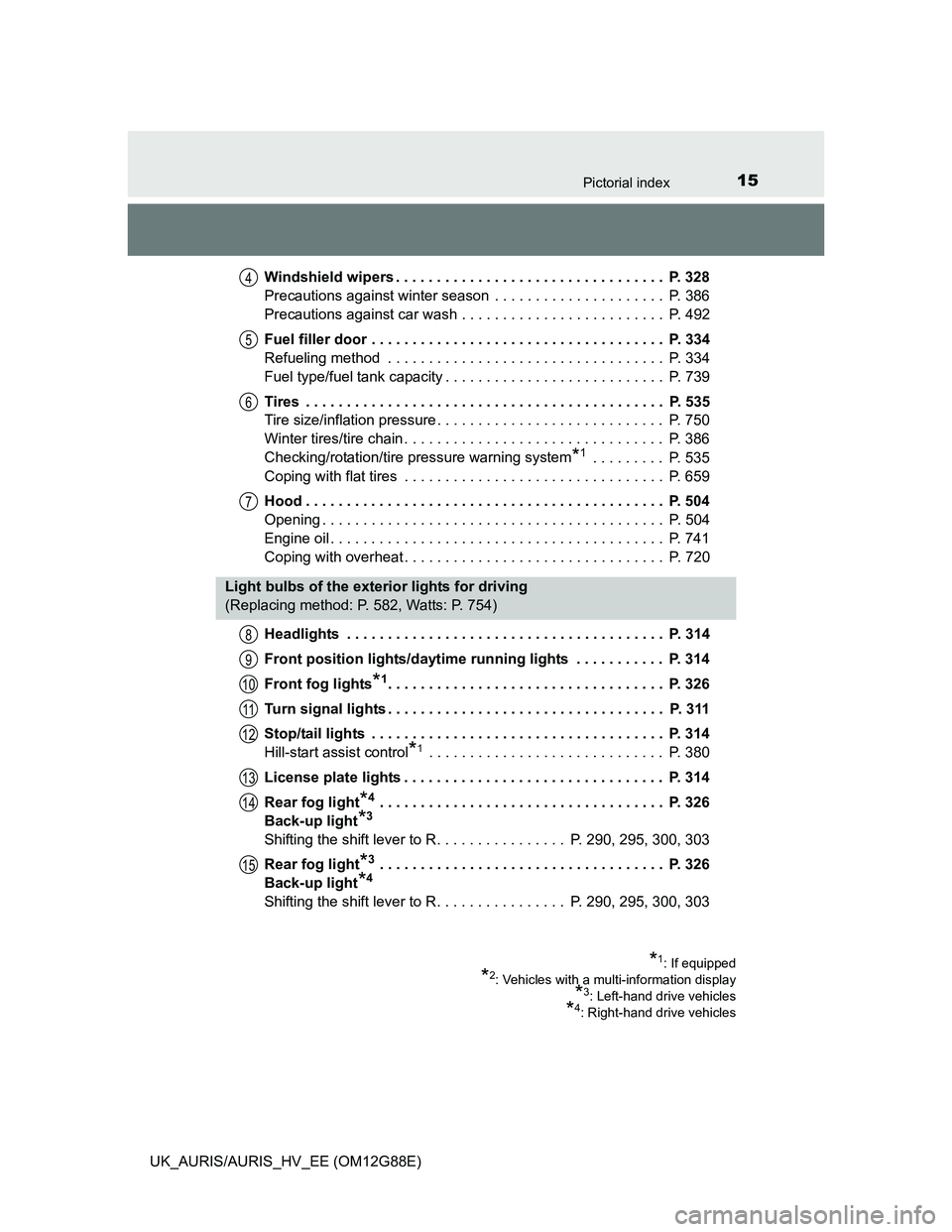

15Pictorial index
UK_AURIS/AURIS_HV_EE (OM12G88E)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 386
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 492
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 739
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 750
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 535
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 659
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 741
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 720
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Front position lights/daytime running lights . . . . . . . . . . . P. 314
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 311
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Hill-start assist control
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Rear fog light
*4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Back-up light
*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . P. 290, 295, 300, 303
Rear fog light
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Back-up light
*4
Shifting the shift lever to R. . . . . . . . . . . . . . . . P. 290, 295, 300, 303
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 582, Watts: P. 754)
*1: If equipped
*2: Vehicles with a multi-information display
*3: Left-hand drive vehicles
*4: Right-hand drive vehicles
8
9
10
11
12
13
14
15

3834-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12G88E)
4
Driving

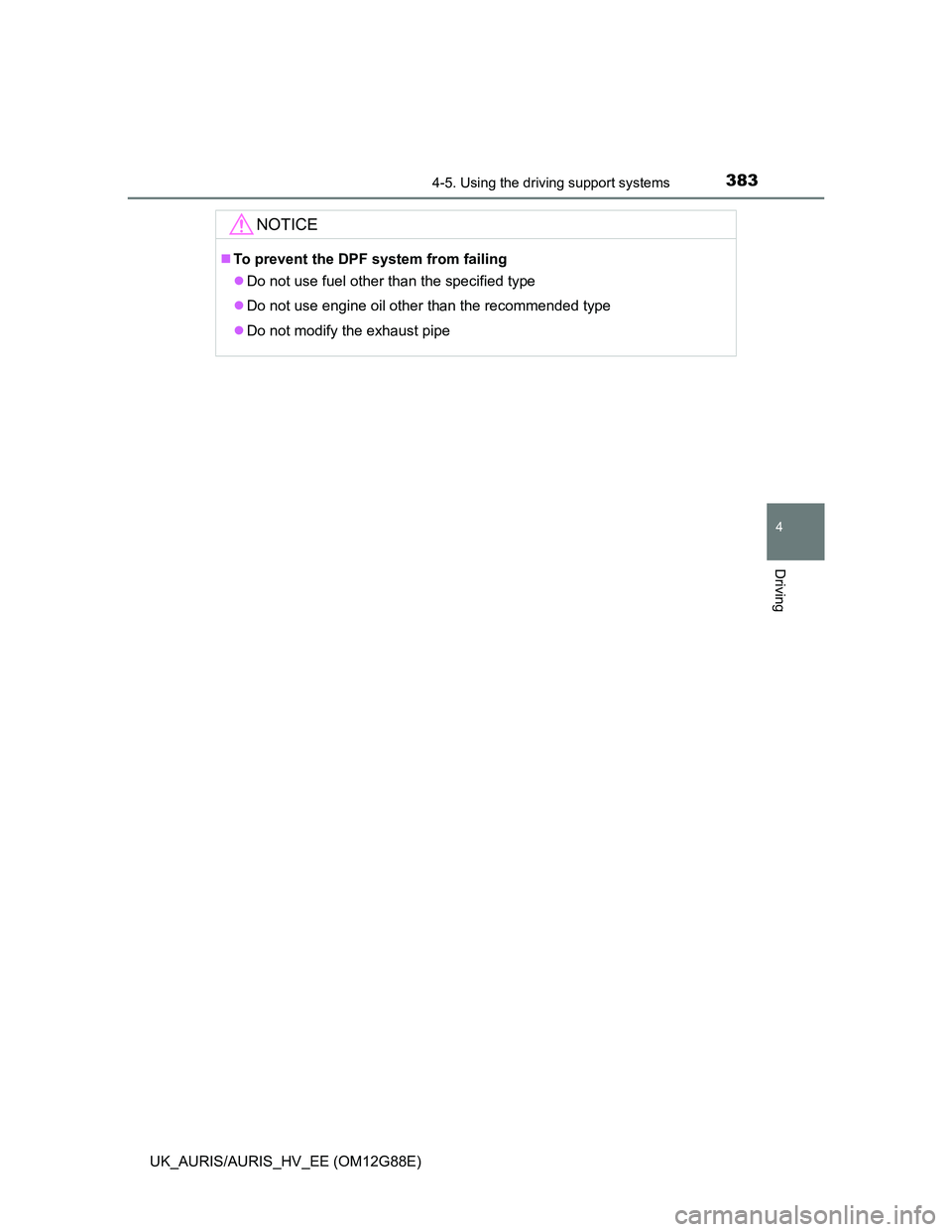

NOTICE
To prevent the DPF system from failing
Do not use fuel other than the specified type
Do not use engine oil other than the recommended type
Do not modify the exhaust pipe

5166-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

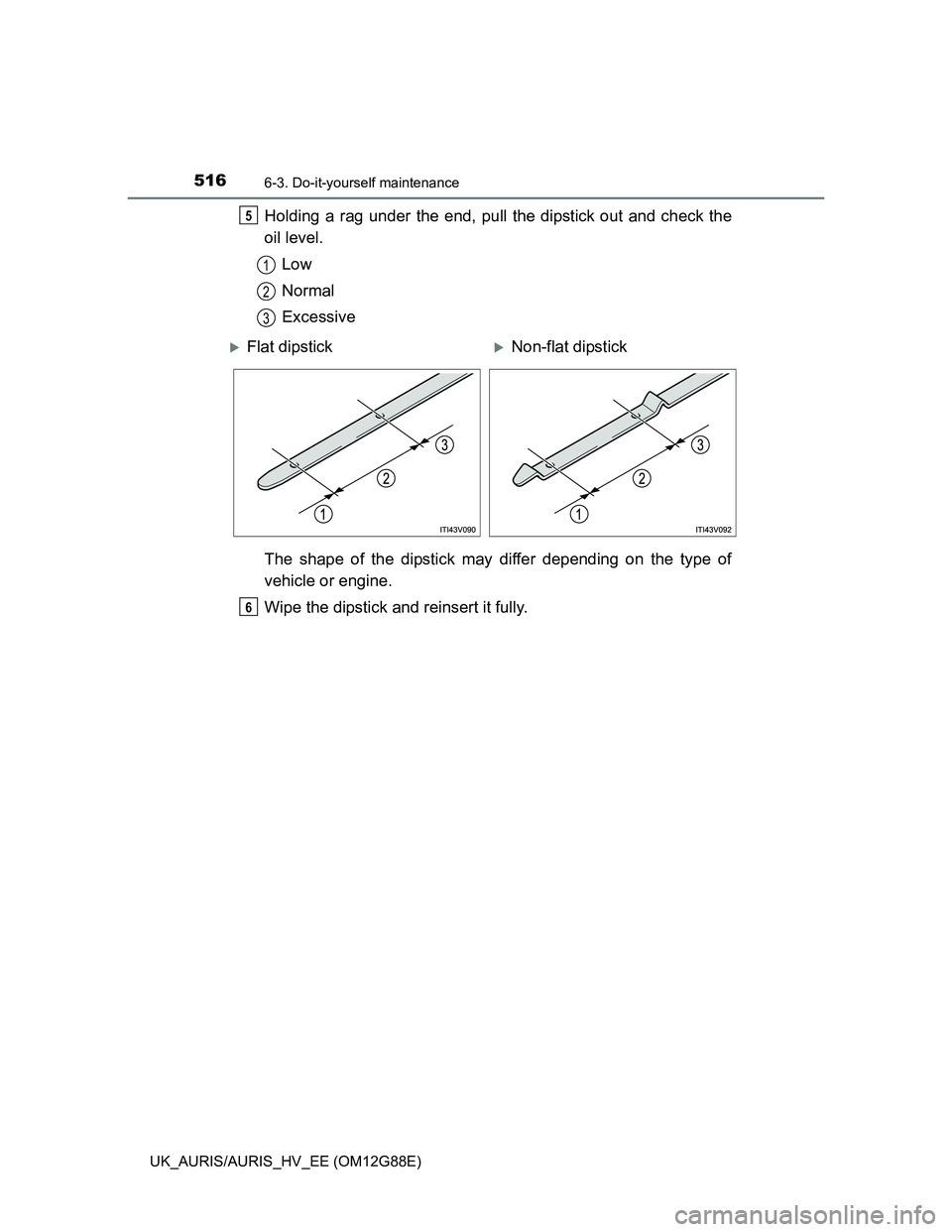

Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.5
1
2
3
Flat dipstickNon-flat dipstick
6

5176-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

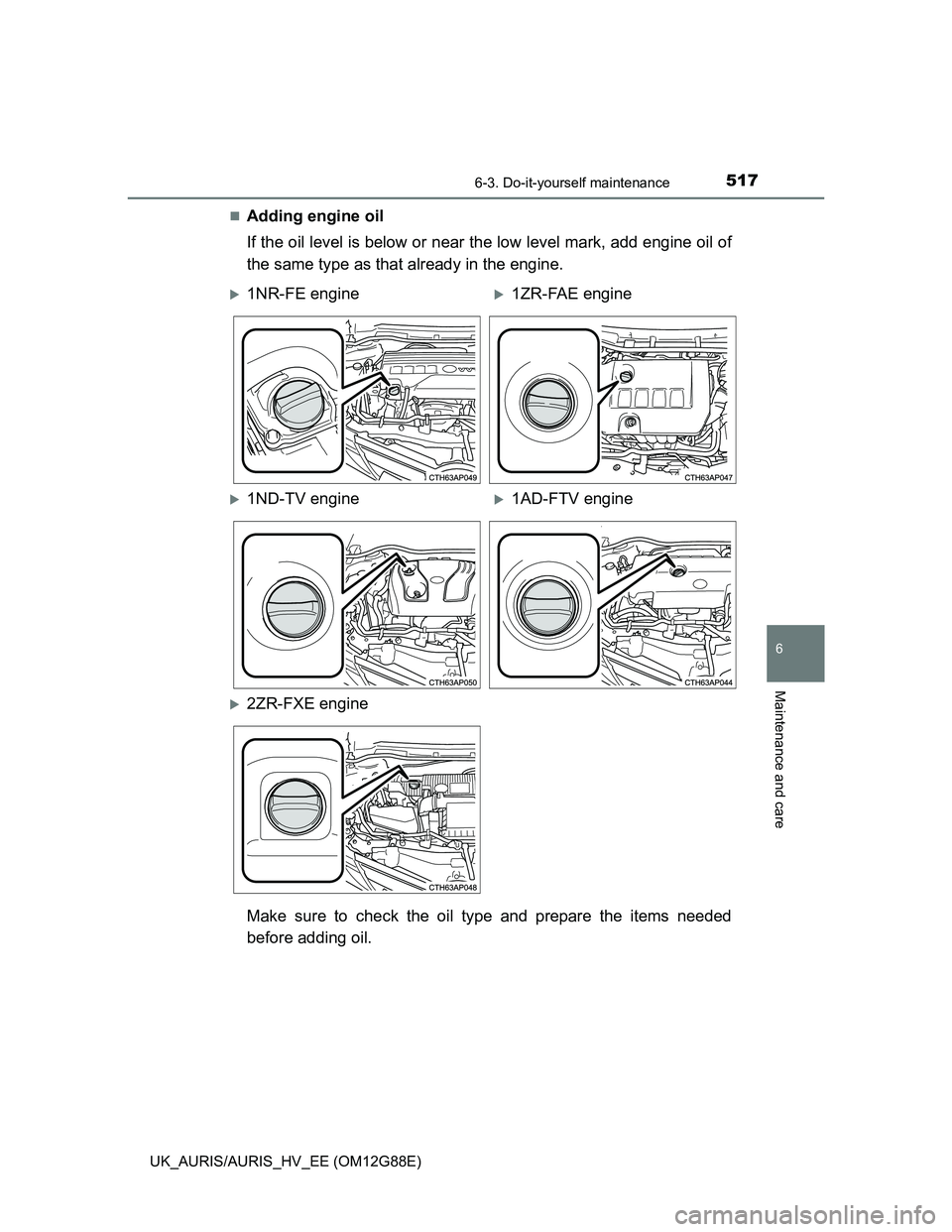

Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine
2ZR-FXE engine

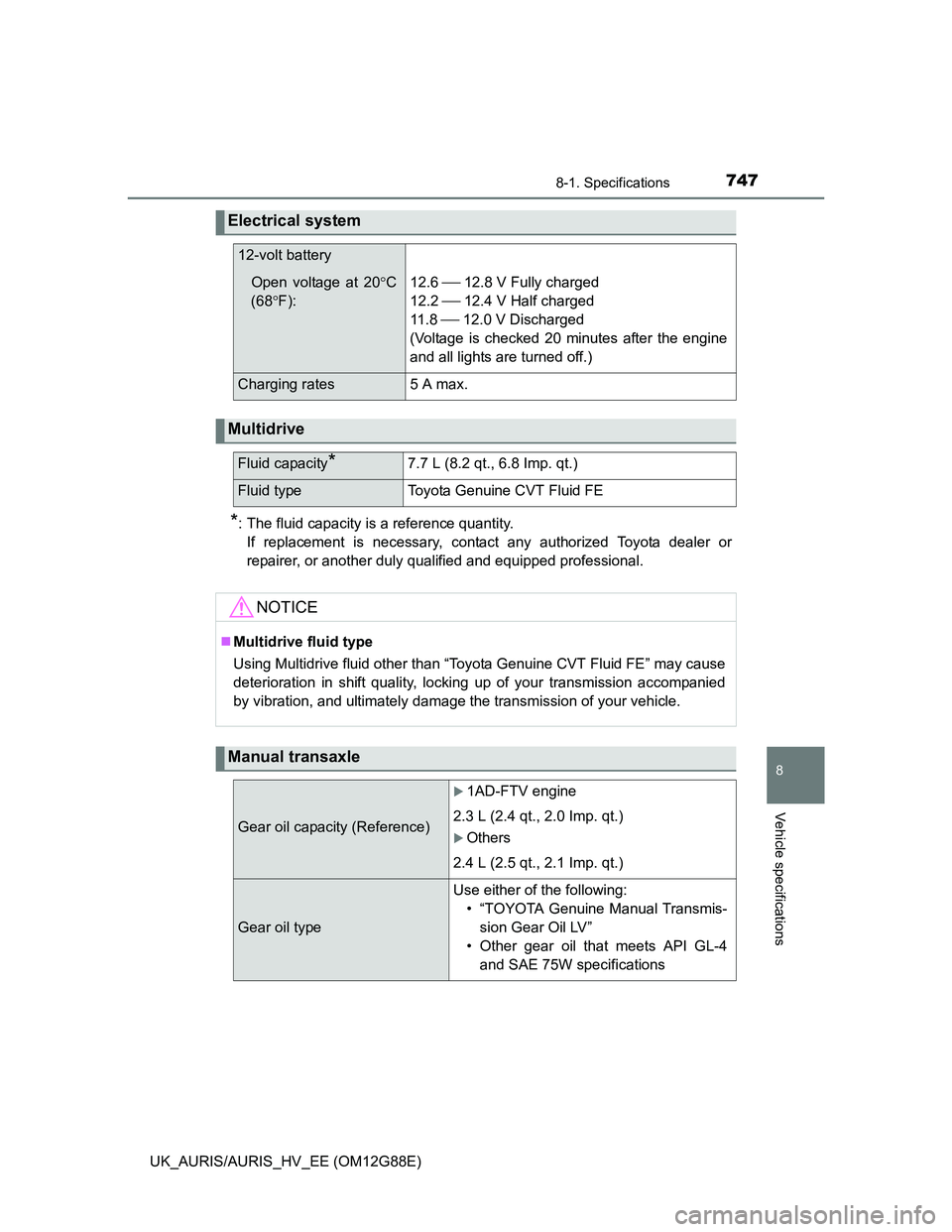

7478-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12G88E)
8
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Electrical system
12-volt battery
Open voltage at 20C
(68F):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Multidrive
Fluid capacity*7.7 L (8.2 qt., 6.8 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
Manual transaxle
Gear oil capacity (Reference)
1AD-FTV engine
2.3 L (2.4 qt., 2.0 Imp. qt.)
Others
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmis-
sion Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications

7488-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12G88E)
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

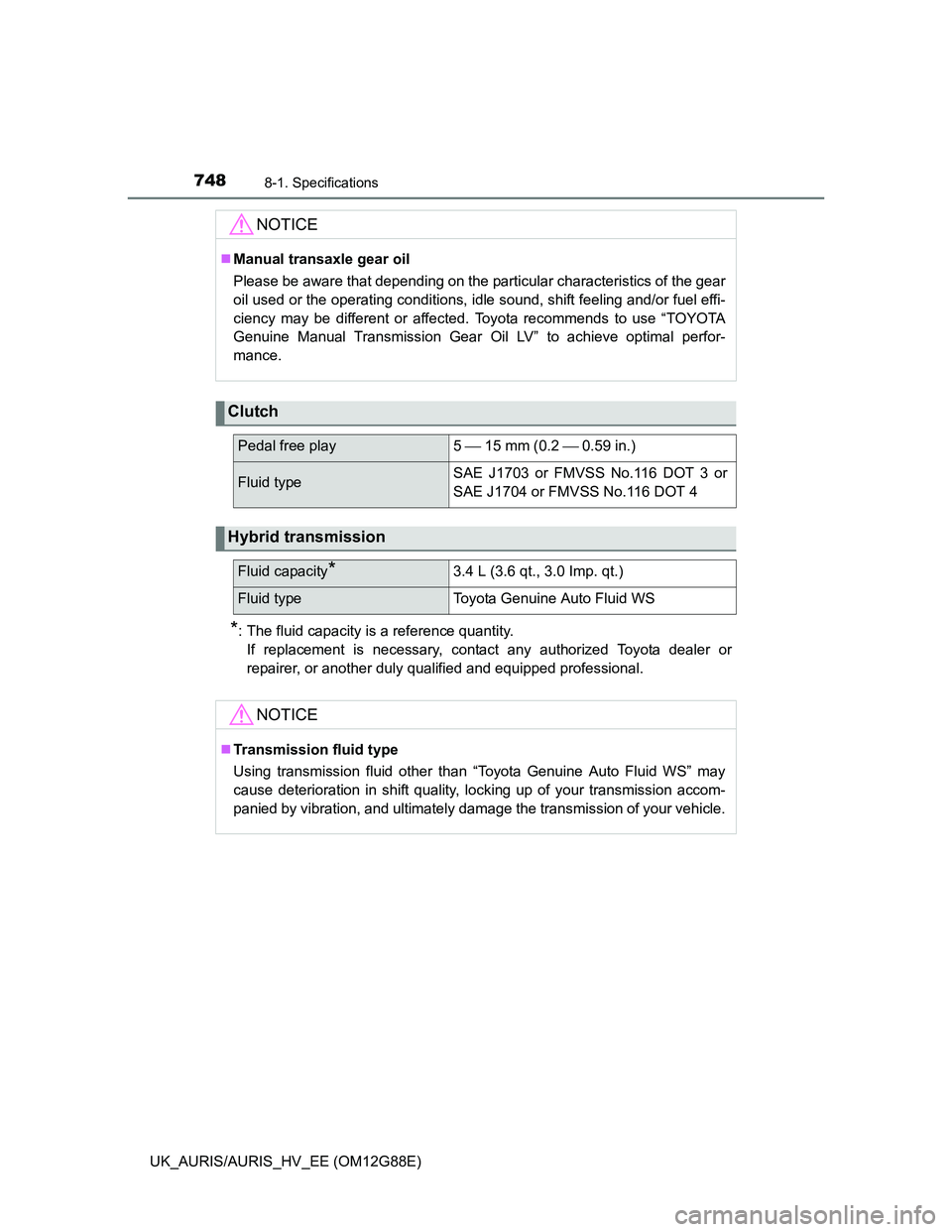

NOTICE
Manual transaxle gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play 5  15 mm (0.2  0.59 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Hybrid transmission
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp. qt.)
Fluid type Toyota Genuine Auto Fluid WS
NOTICE
Transmission fluid type
Using transmission fluid other than “Toyota Genuine Auto Fluid WS” may
cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately damage the transmission of your vehicle.

788
UK_AURIS/AURIS_HV_EE (OM12G88E)
GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 504 P. 336
Hood lock release
leverFuel filler
door openerTire inflation pressure
P. 504 P. 336 P. 750
Fuel tank capacity
(Reference)
Except hybrid model
50 L (13.2 gal., 11.0 Imp. gal.)
Hybrid model
45 L (11.9 gal., 9.9 Imp. gal.)
Fuel type P. 739
Cold tire inflation
pressureP. 750
Engine oil capacity
(Drain and refill —
reference)P. 741
Engine oil type“Toyota Genuine Motor Oil” or equivalent
P. 741
