sensor TOYOTA AURIS HYBRID 2014 Owners Manual

3
1
8 7
6
5
4
3
2
UK_AURIS/AURIS_HV_EE (OM12G88E)3-4. Adjusting the steering
wheel and mirrors
Steering wheel ...................218
Inside rear view mirror .......219
Outside rear view
mirrors .............................221
3-5. Opening and closing
the windows
Power windows ..................224
4-1. Before driving
Driving the vehicle .............230
Cargo and luggage ............247
Trailer towing
(except hybrid model) ......248
Trailer towing
(hybrid model)..................258
4-2. Driving procedures
Engine (ignition) switch
(except hybrid model
[vehicles without a smart
entry & start system]).......268
Engine (ignition) switch
(except hybrid model
[vehicles with a smart
entry & start system]).......272
Power (ignition) switch .......282
EV drive mode ...................288
Multidrive ...........................290
Multi-mode manual
transmission ....................295
Manual transmission ..........300Hybrid transmission........... 303
Turn signal lever................ 311
Parking brake .................... 312
Horn .................................. 313
4-3. Operating the lights and
wipers
Headlight switch ................ 314
Automatic High Beam ....... 322
Fog light switch ................. 326
Windshield wipers and
washer ............................ 328
Rear window wiper and
washer ............................ 332
4-4. Refueling
Opening the fuel tank
cap .................................. 334
4-5. Using the driving support
systems
Cruise control .................... 338
Speed limiter ..................... 343
Toyota parking
assist-sensor ................... 346
Simple-IPA
(Simple-Intelligent
Parking Assist) ................ 352
Stop & Start system .......... 368
Driving assist systems....... 374
Hill-start assist control ....... 380
Diesel particulate filter
system............................. 382
4-6. Driving tips
Hybrid vehicle driving
tips .................................. 384
Winter driving tips.............. 386
4Driving

20Pictorial index
UK_AURIS/AURIS_HV_EE (OM12G88E)

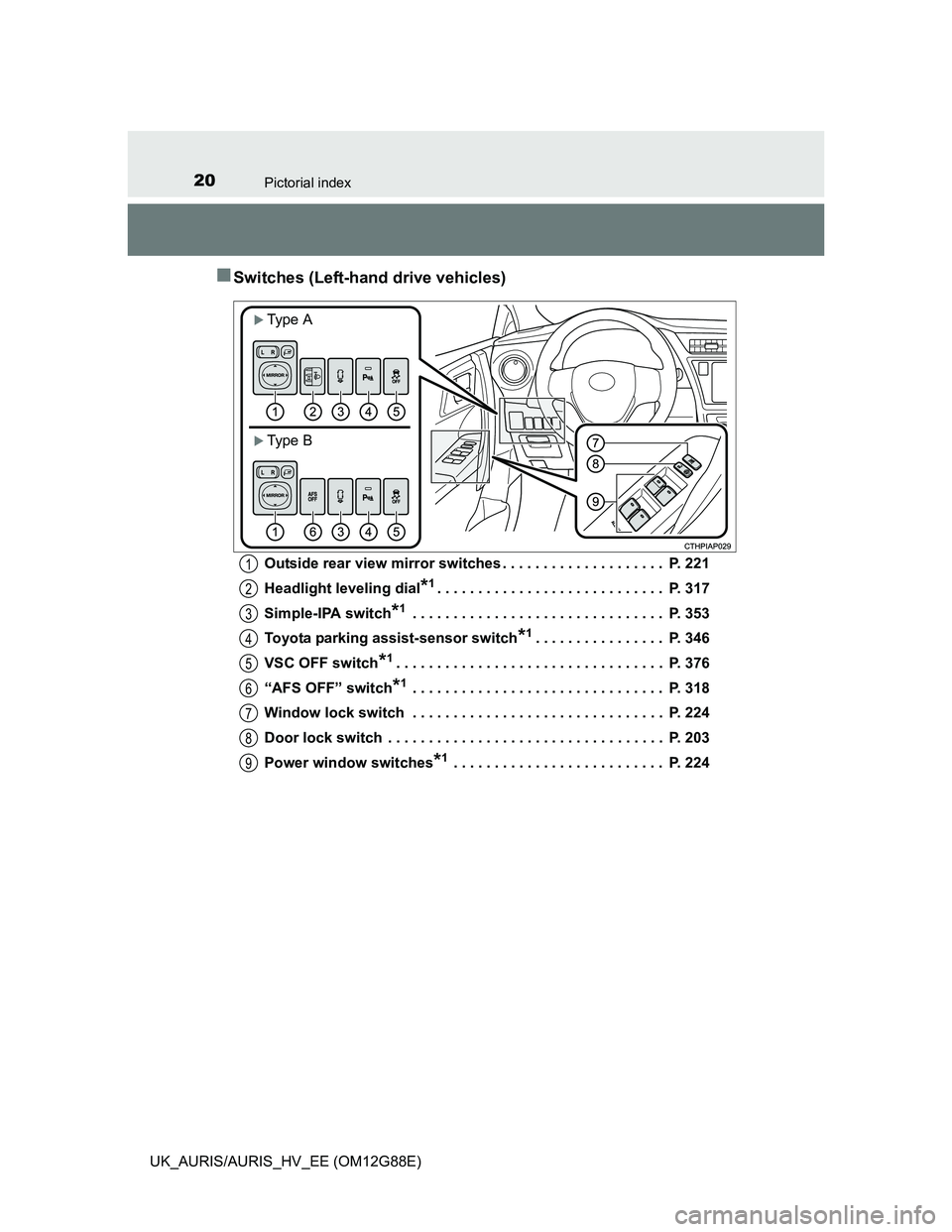

Switches (Left-hand drive vehicles)
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 221
Headlight leveling dial
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 317
Simple-IPA switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
Toyota parking assist-sensor switch
*1. . . . . . . . . . . . . . . . P. 346
VSC OFF switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
“AFS OFF” switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 203
Power window switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Type A
Type B
1
2
3
4
5
6
7
8
9

30Pictorial index
UK_AURIS/AURIS_HV_EE (OM12G88E)

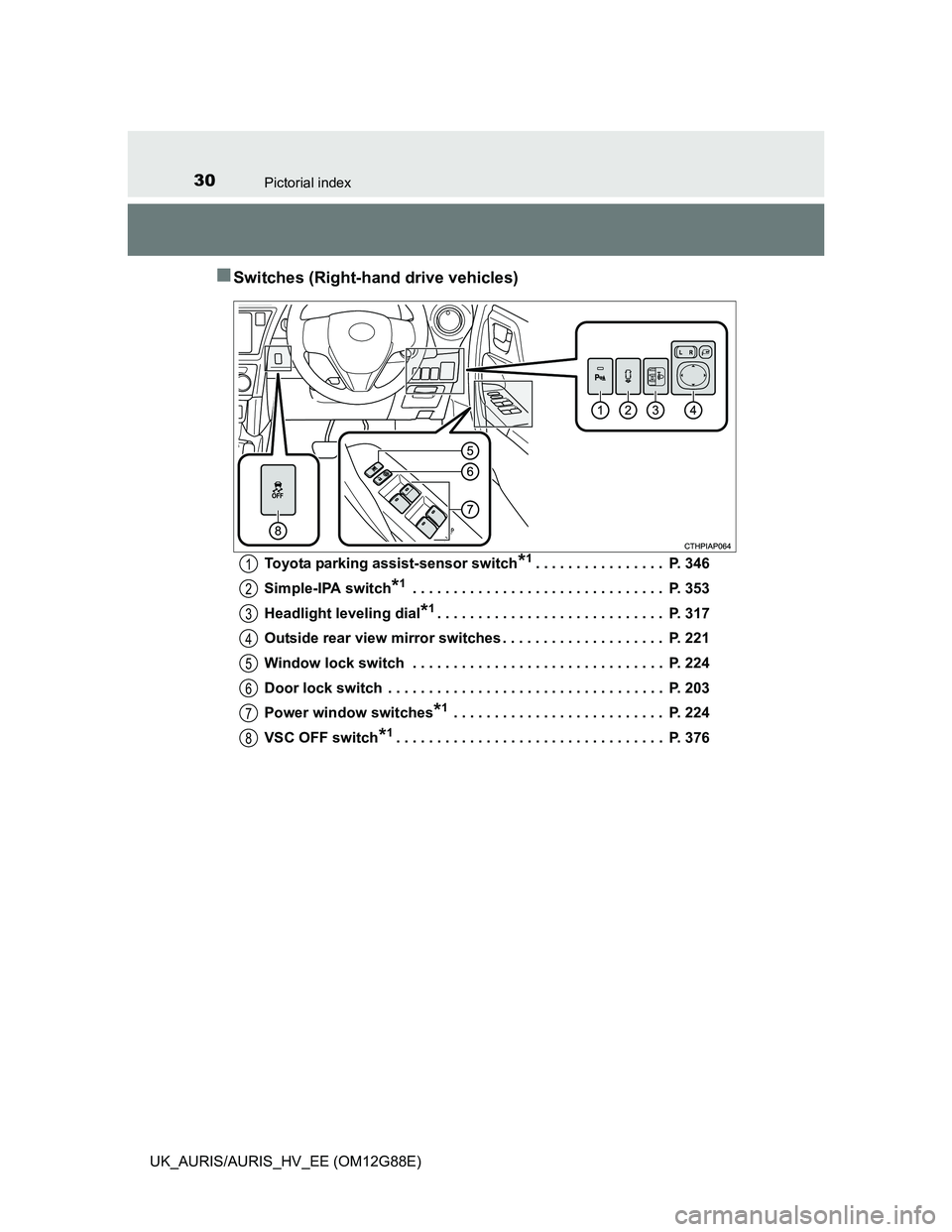

Switches (Right-hand drive vehicles)
Toyota parking assist-sensor switch*1. . . . . . . . . . . . . . . . P. 346
Simple-IPA switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
Headlight leveling dial
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 317
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 221
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 203
Power window switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
VSC OFF switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
1
2
3
4
5
6
7
8

471-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
SRS airbag system components
Airbag manual on-off switch
Front passenger airbag
Front side airbags
Curtain shield airbags
“PASSENGER AIR BAG” indi-
cator
SRS warning light
Side impact sensors (rear)Driver airbag
Side impact sensors (front)
Seat belt pretensioners and
force limiters
Driver’s knee airbag (if
equipped)
Front impact sensors
Airbag sensor assembly1
2
3
4
5
6
7
8
9
10
11
12
13

851-2. Hybrid system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)

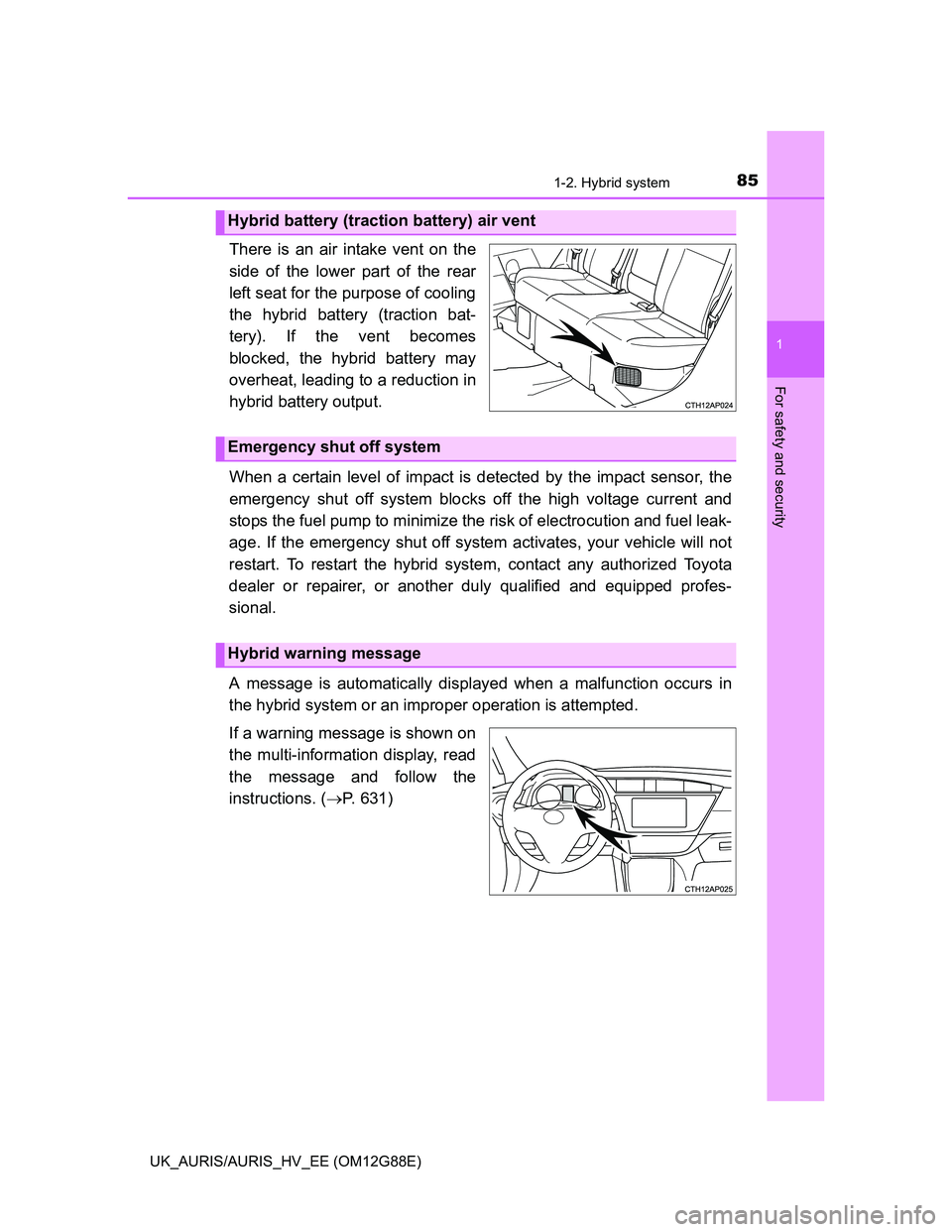

There is an air intake vent on the
side of the lower part of the rear
left seat for the purpose of cooling
the hybrid battery (traction bat-
tery). If the vent becomes
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks off the high voltage current and
stops the fuel pump to minimize the risk of electrocution and fuel leak-
age. If the emergency shut off system activates, your vehicle will not
restart. To restart the hybrid system, contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
A message is automatically displayed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions. (P. 631)
Hybrid battery (traction battery) air vent
Emergency shut off system
Hybrid warning message

1041-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12G88E)

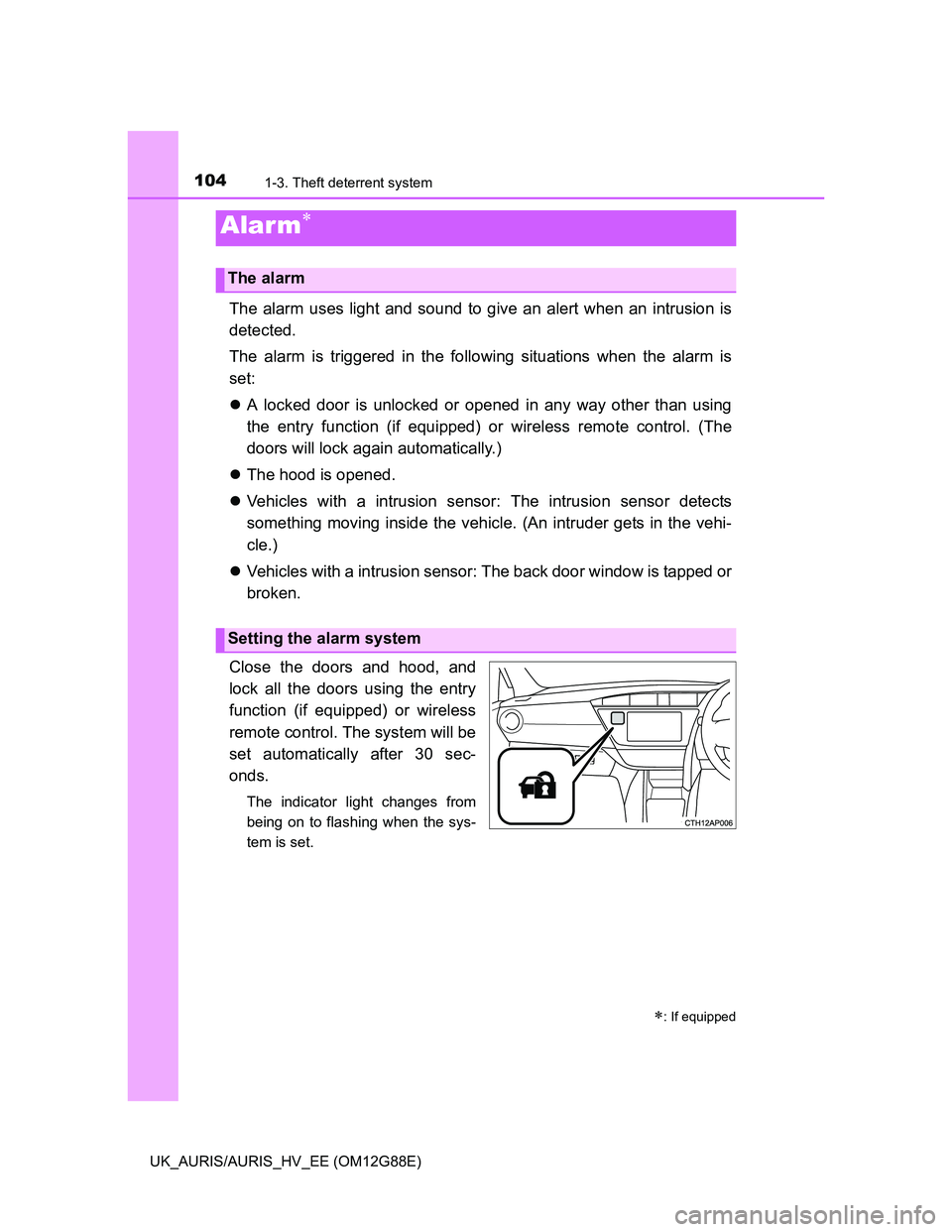

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
A locked door is unlocked or opened in any way other than using
the entry function (if equipped) or wireless remote control. (The
doors will lock again automatically.)
The hood is opened.
Vehicles with a intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the vehi-
cle.)
Vehicles with a intrusion sensor: The back door window is tapped or
broken.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Alarm
: If equipped
The alarm
Setting the alarm system

1081-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12G88E)

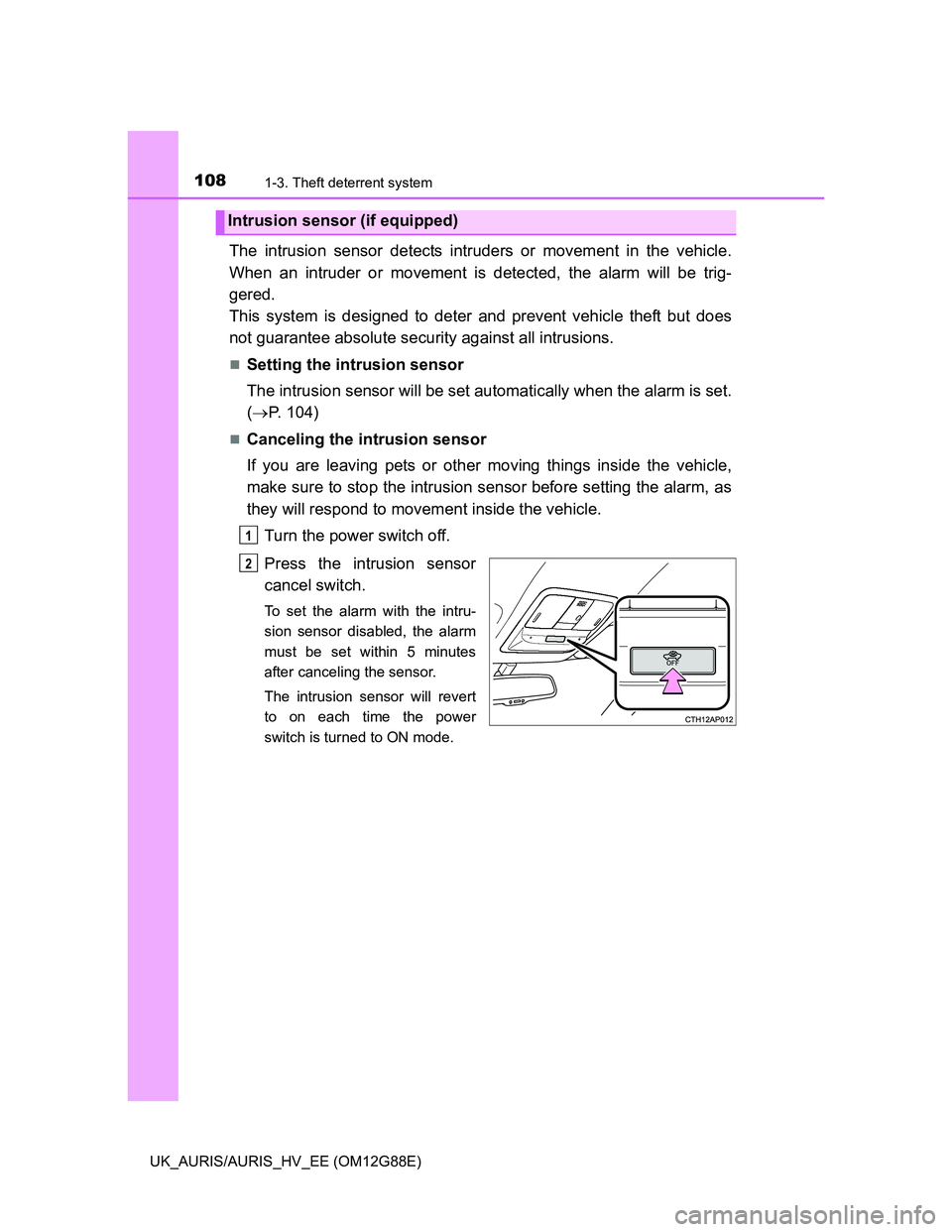

The intrusion sensor detects intruders or movement in the vehicle.
When an intruder or movement is detected, the alarm will be trig-
gered.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
(P. 104)
Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to stop the intrusion sensor before setting the alarm, as
they will respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor
cancel switch.
To set the alarm with the intru-
sion sensor disabled, the alarm
must be set within 5 minutes
after canceling the sensor.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor (if equipped)
1
2

1091-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)

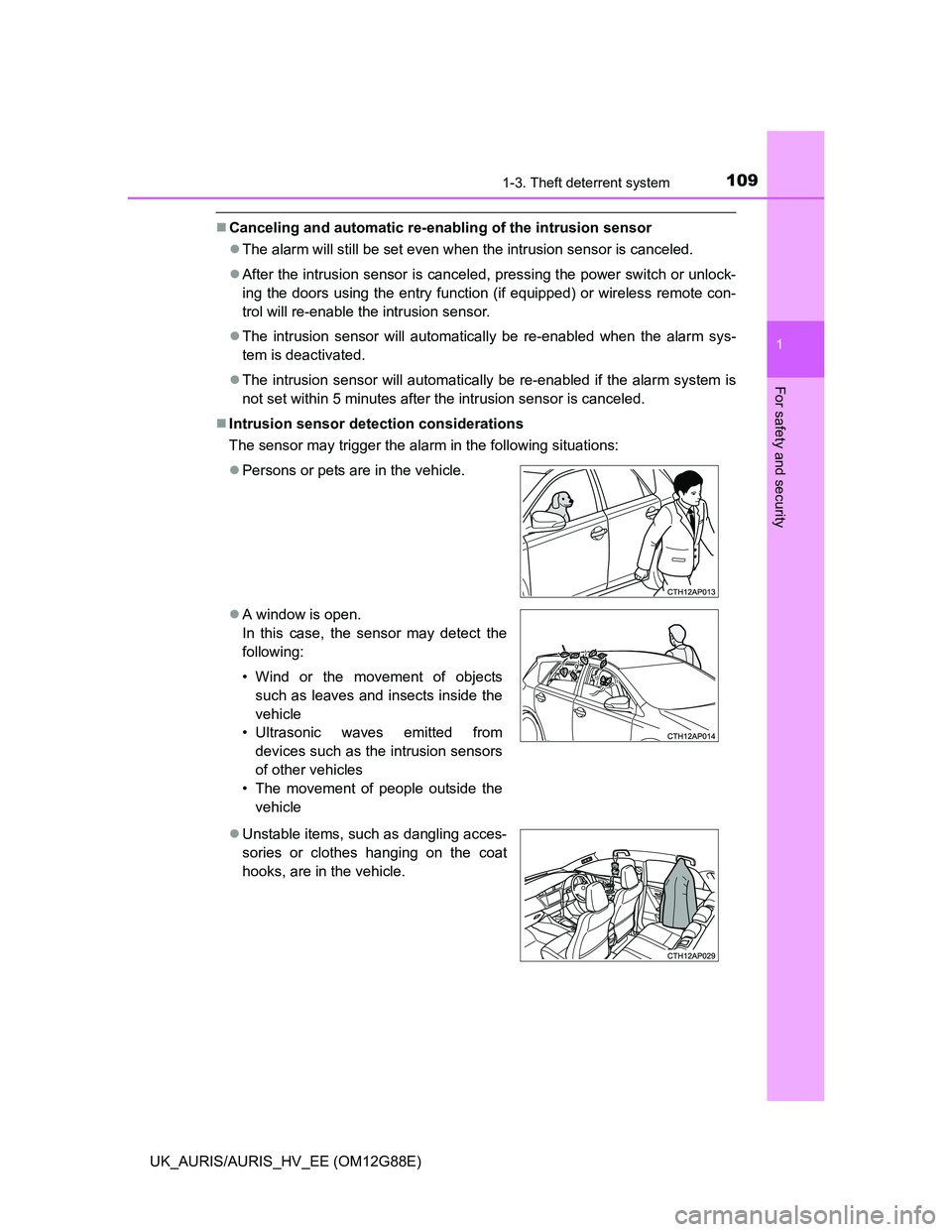

Canceling and automatic re-enabling of the intrusion sensor
The alarm will still be set even when the intrusion sensor is canceled.
After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function (if equipped) or wireless remote con-
trol will re-enable the intrusion sensor.
The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
The intrusion sensor will automatically be re-enabled if the alarm system is
not set within 5 minutes after the intrusion sensor is canceled.
Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
Persons or pets are in the vehicle.
A window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the
vehicle
Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

1101-3. Theft deterrent system

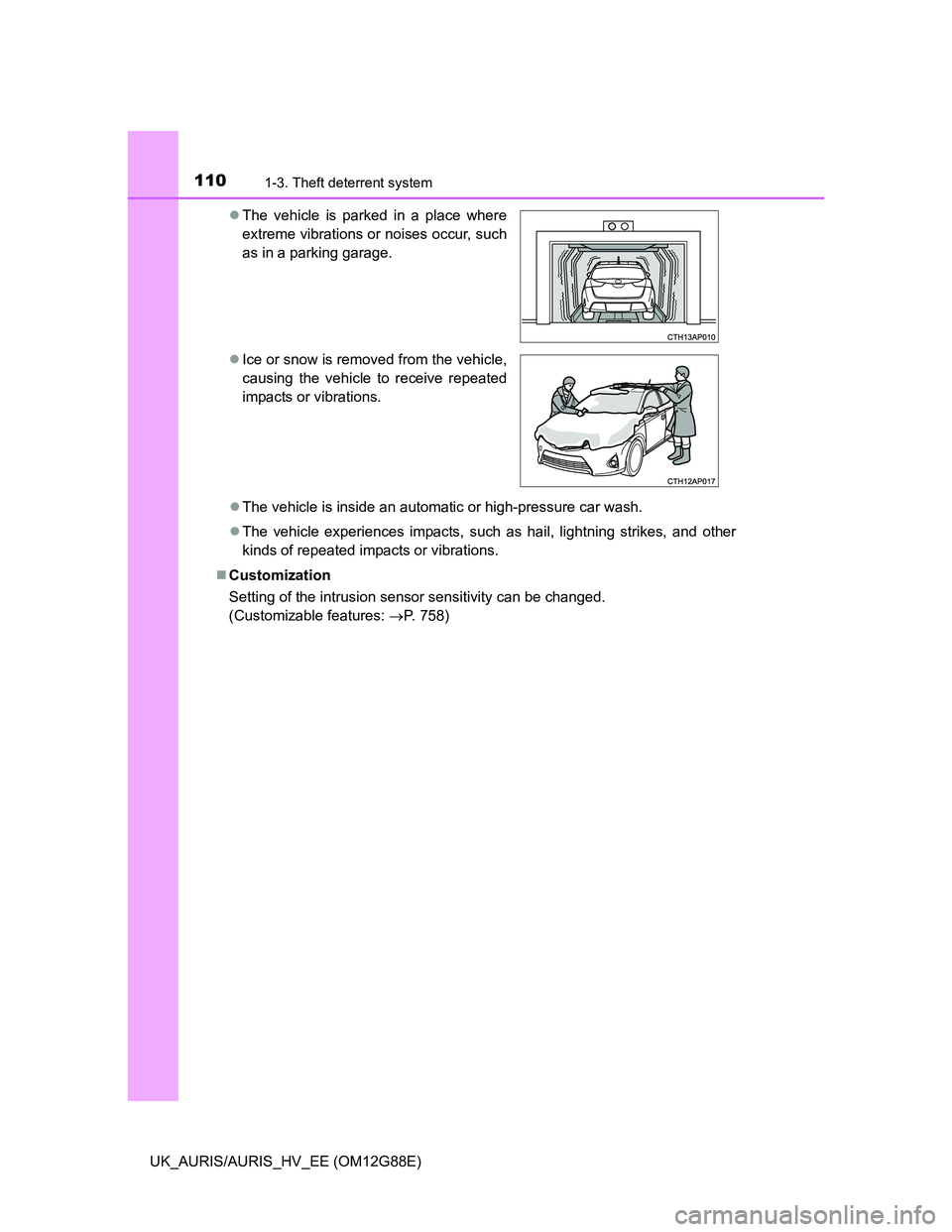

UK_AURIS/AURIS_HV_EE (OM12G88E)The vehicle is inside an automatic or high-pressure car wash.
The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.
Customization
Setting of the intrusion sensor sensitivity can be changed.
(Customizable features: P. 758) The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.

1111-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)

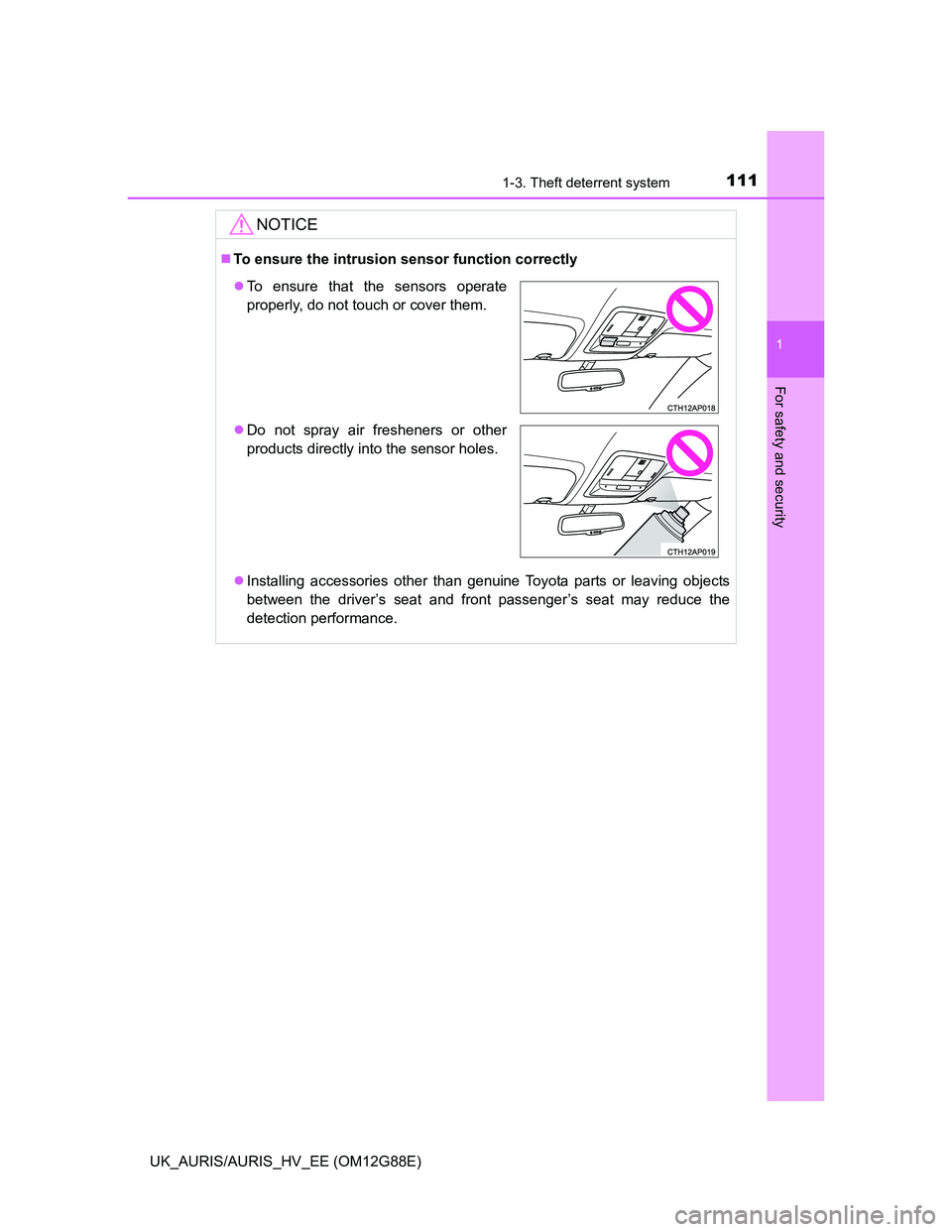

NOTICE
To ensure the intrusion sensor function correctly
Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
To ensure that the sensors operate
properly, do not touch or cover them.
Do not spray air fresheners or other
products directly into the sensor holes.
