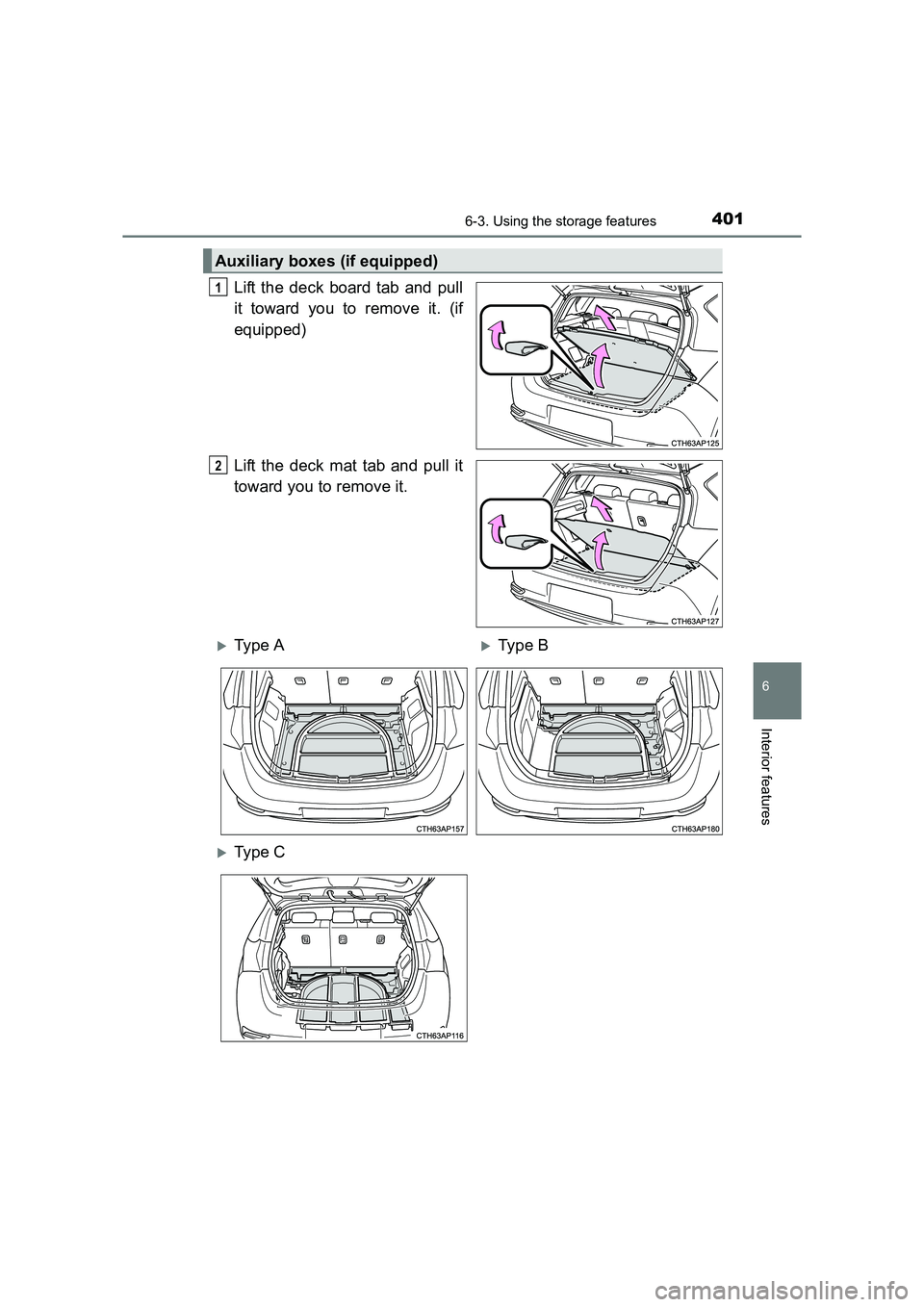

4016-3. Using the storage features
UK AURIS_HV_HB_EE (OM12K47E)
6
Interior features
Lift the deck board tab and pull
it toward you to remove it. (if
equipped)
Lift the deck mat tab and pull it
toward you to remove it.
Auxiliary boxes (if equipped)
1
2
XTy pe AXType B
XTy pe C

4026-3. Using the storage features
UK AURIS_HV_HB_EE (OM12K47E)
The luggage side tray can be
removed when the deck board is
in the lower position.
Side auxiliary boxes (if equipped)

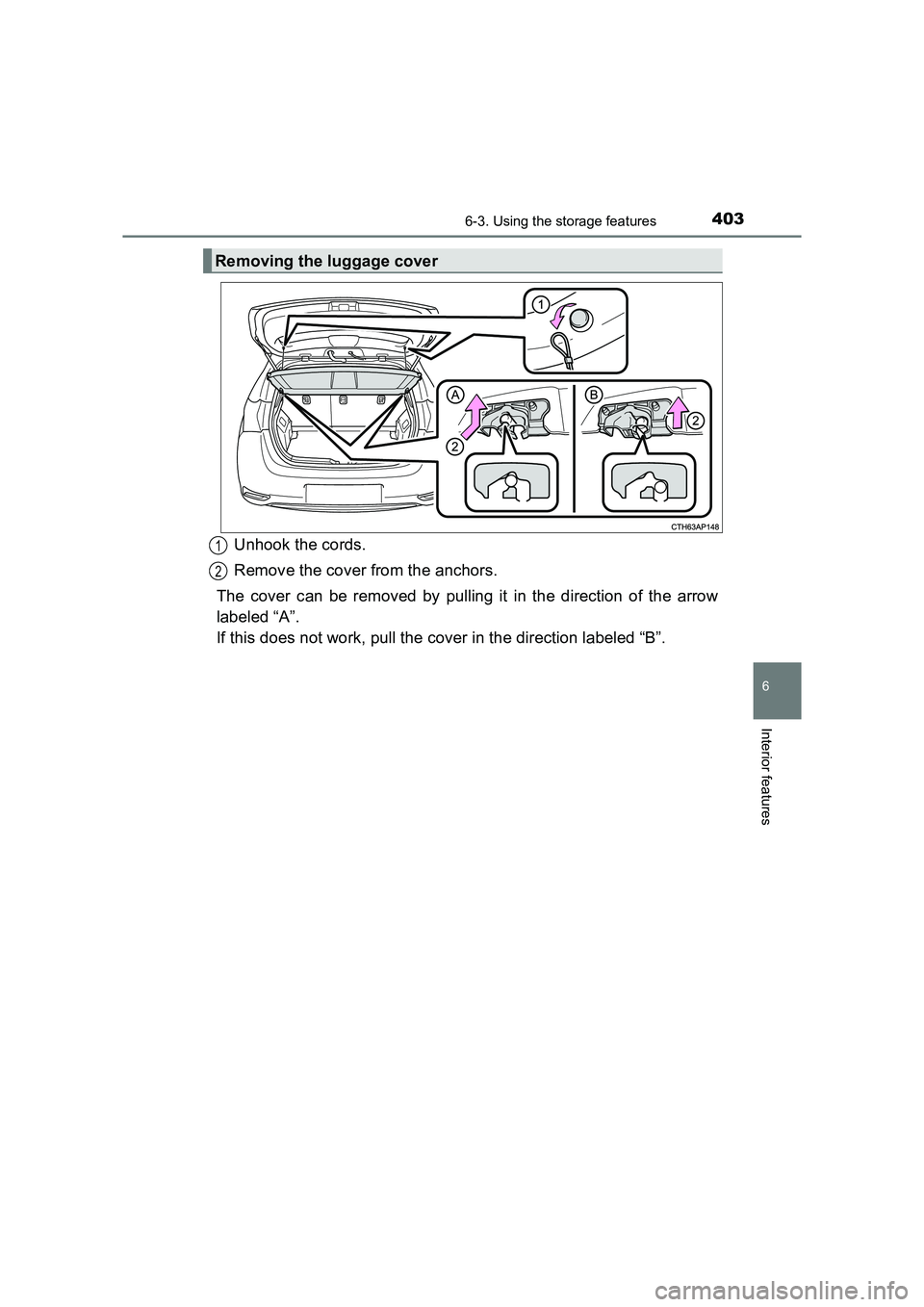

4036-3. Using the storage features
UK AURIS_HV_HB_EE (OM12K47E)
6
Interior features
Unhook the cords.
Remove the cover from the anchors.
The cover can be removed by pulling it in the direction of the arrow
labeled “A”.
If this does not work, pull the cover in the direction labeled “B”.
Removing the luggage cover
1
2

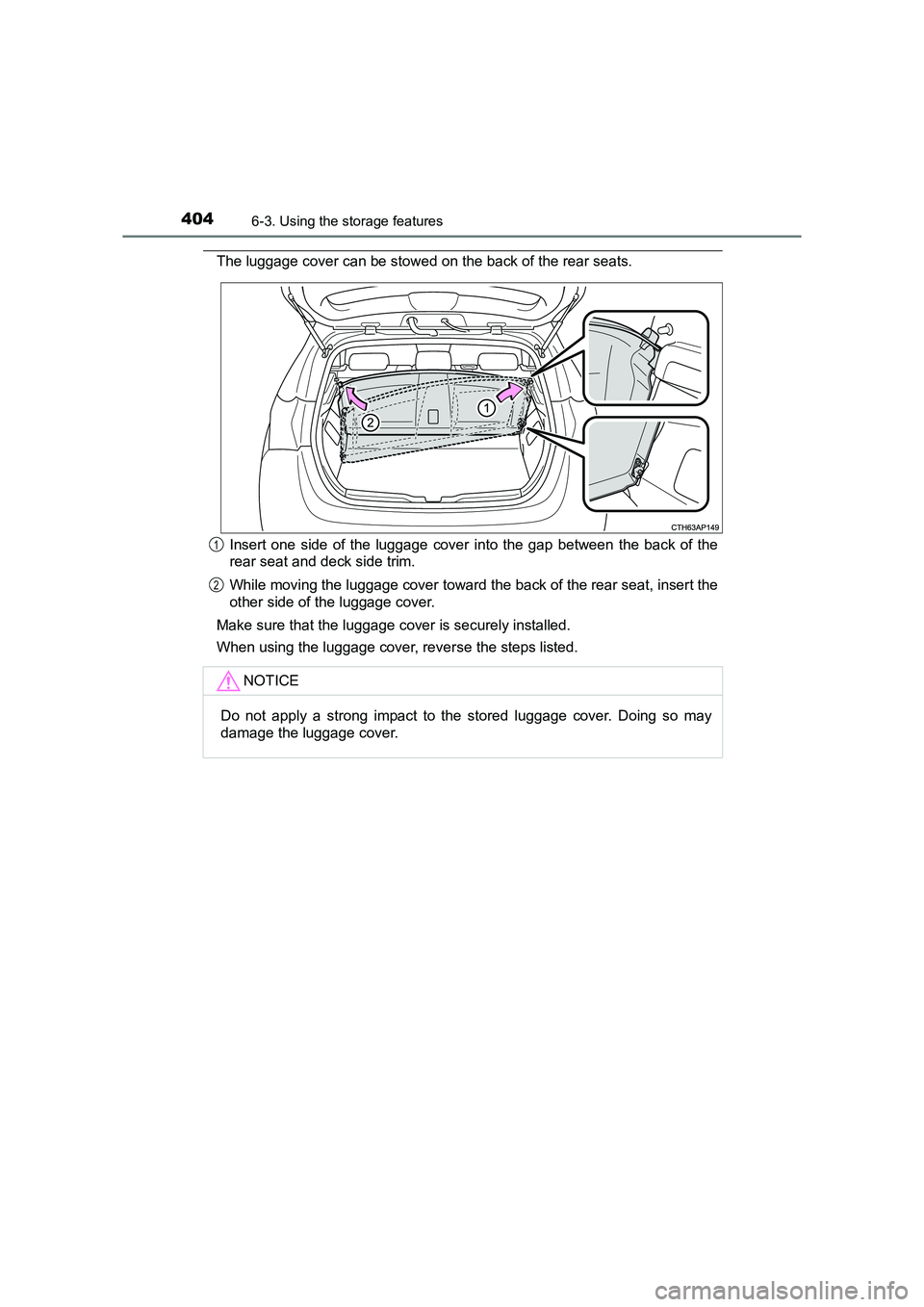

4046-3. Using the storage features
UK AURIS_HV_HB_EE (OM12K47E)
The luggage cover can be stowed on the back of the rear seats.Insert one side of the luggage cover into the gap between the back of the
rear seat and deck side trim.
While moving the luggage cover toward the back of the rear seat, insert the
other side of the luggage cover.
Make sure that the luggage cover is securely installed.
When using the luggage cover, reverse the steps listed.
NOTICE
Do not apply a strong impact to the stored luggage cover. Doing so may
damage the luggage cover.
1
2

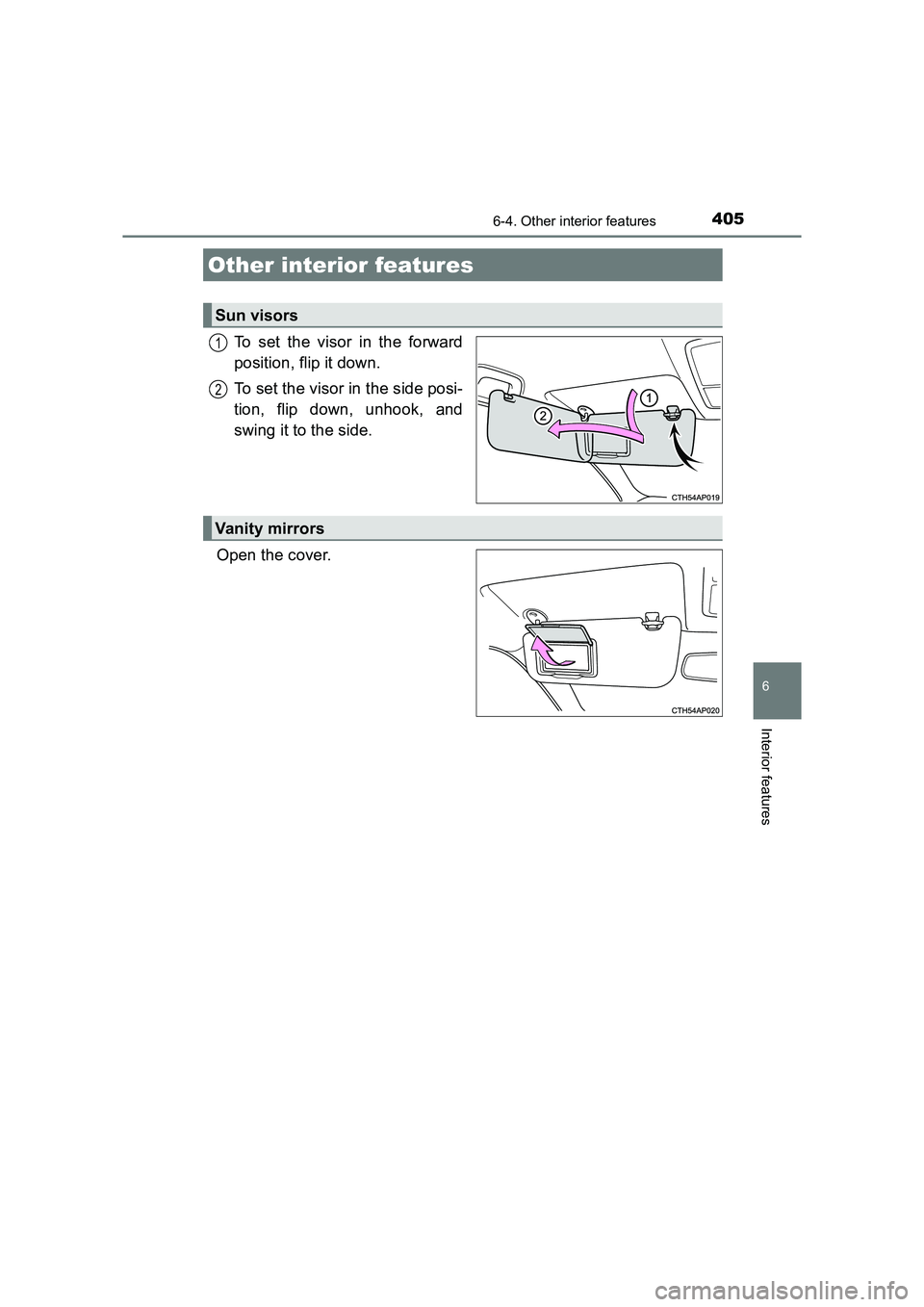

405
UK AURIS_HV_HB_EE (OM12K47E)
6
Interior features
6-4. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover.
Other interior features
Sun visors
1
2
Vanity mirrors

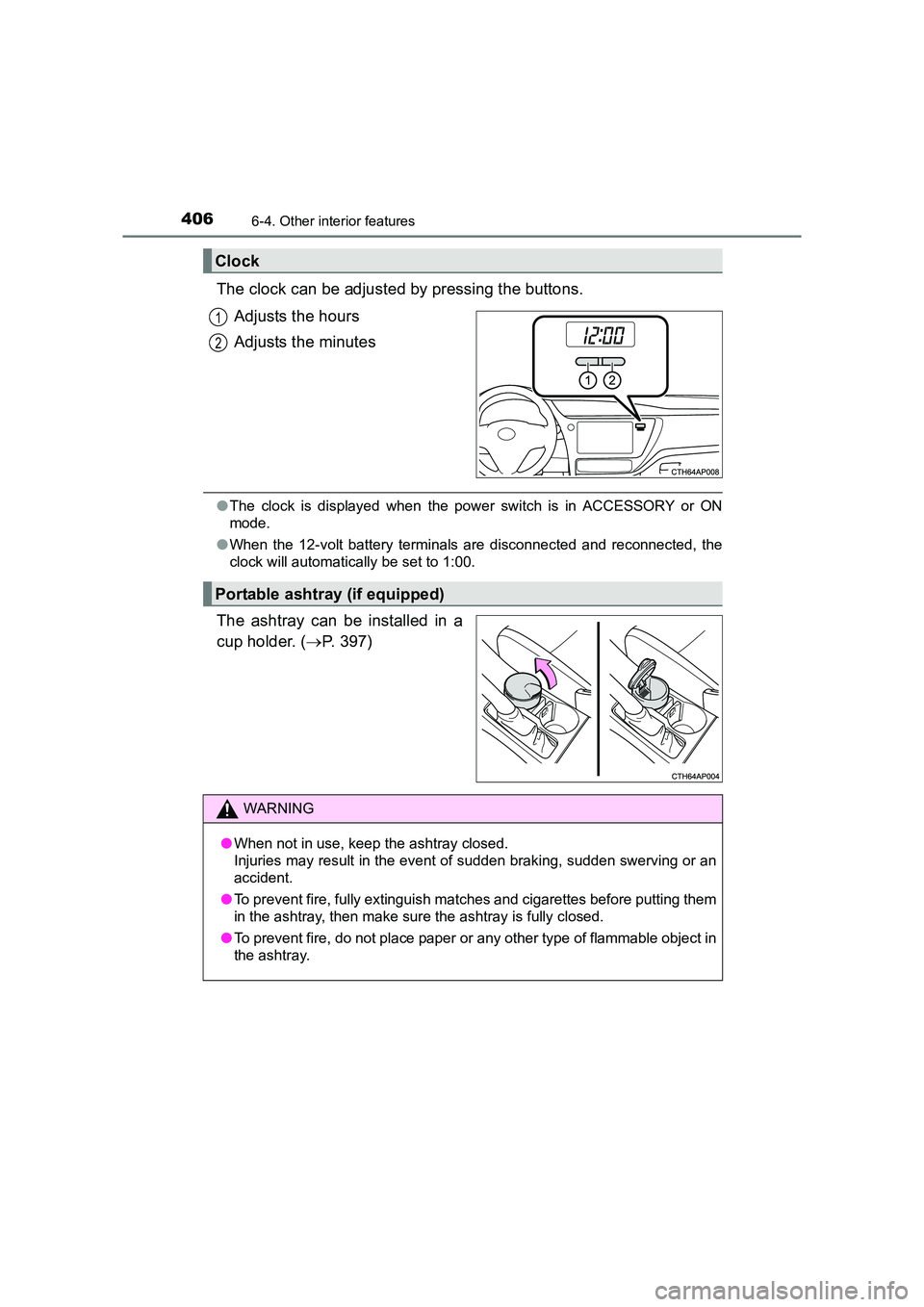

4066-4. Other interior features
UK AURIS_HV_HB_EE (OM12K47E)
The clock can be adjusted by pressing the buttons.Adjusts the hours
Adjusts the minutes
●The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● When the 12-volt battery terminals are disconnected and reconnected, the
clock will automatically be set to 1:00.
The ashtray can be installed in a
cup holder. ( →P. 397)
Clock
1
2
Portable ashtray (if equipped)
WARNING
● When not in use, keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
● To prevent fire, fully extinguish matches and cigarettes before putting them
in the ashtray, then make sure the ashtray is fully closed.
● To prevent fire, do not place paper or any other type of flammable object in
the ashtray.

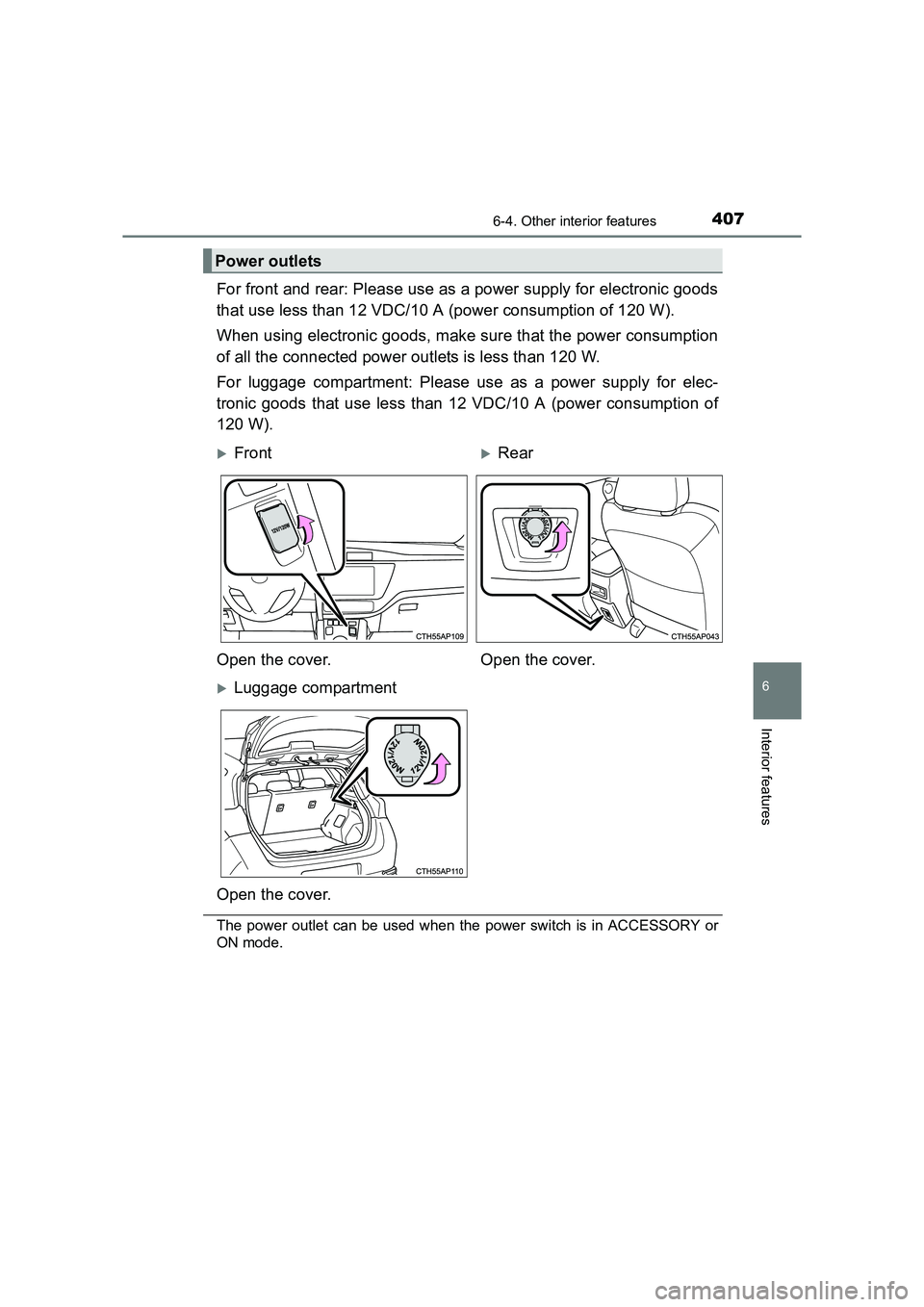

4076-4. Other interior features
UK AURIS_HV_HB_EE (OM12K47E)
6
Interior features
For front and rear: Please use as a power supply for electronic goods
that use less than 12 VDC/10 A (power consumption of 120 W).
When using electronic goods, make sure that the power consumption
of all the connected power outlets is less than 120 W.
For luggage compartment: Please use as a power supply for elec-
tronic goods that use less than 12 VDC/10 A (power consumption of
120 W).
The power outlet can be used when the power switch is in ACCESSORY or
ON mode.
Power outlets
XFrontXRear
Open the cover. Open the cover.
XLuggage compartment
Open the cover.

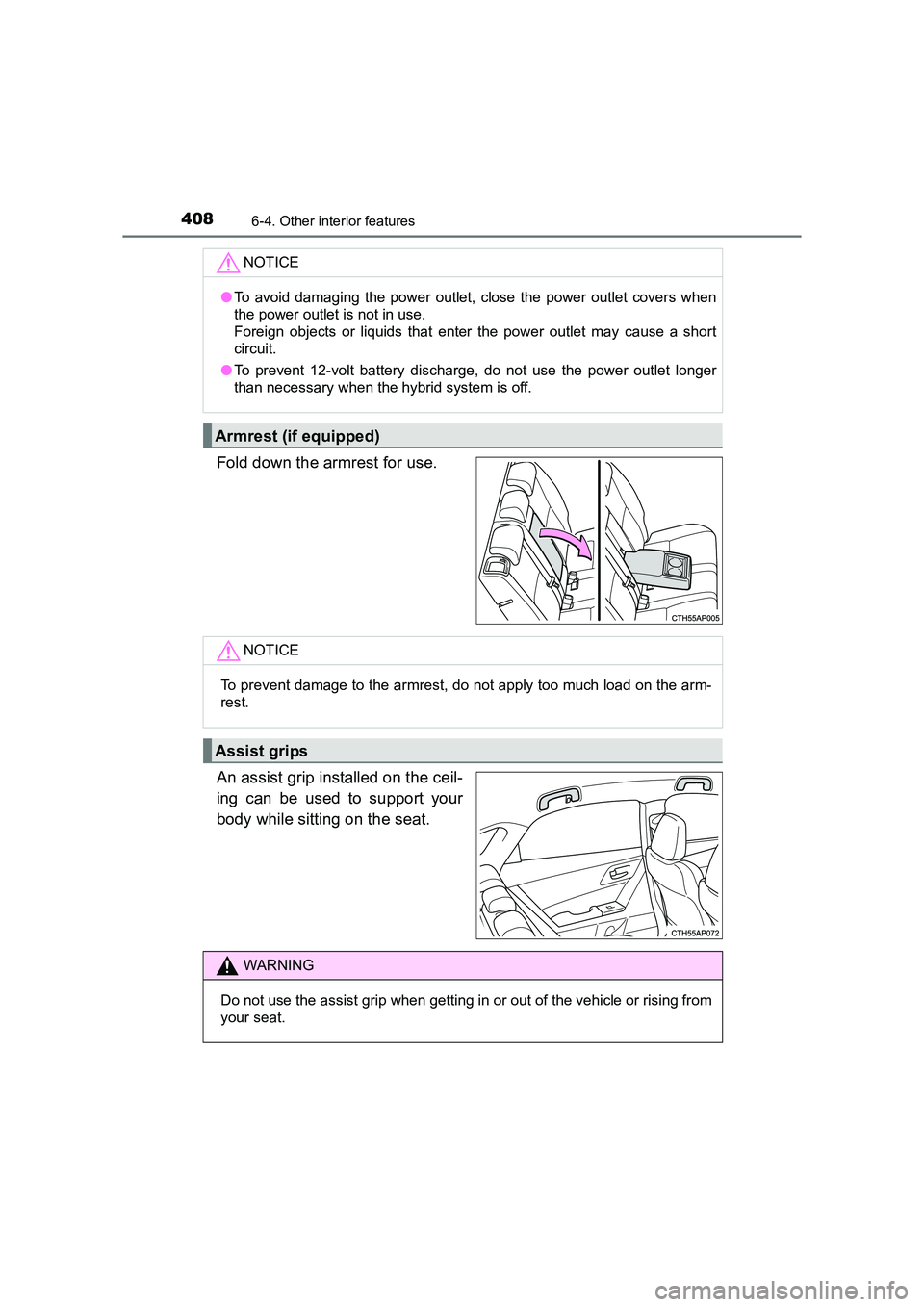

4086-4. Other interior features
UK AURIS_HV_HB_EE (OM12K47E)
Fold down the armrest for use.
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
NOTICE
●To avoid damaging the power outlet, close the power outlet covers when
the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.
Armrest (if equipped)
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.

4096-4. Other interior features
UK AURIS_HV_HB_EE (OM12K47E)
6
Interior features
Coat hooks are provided on the
rear assist grips.
Use the overhead switch to open or close the panoramic roof shade.Closing
Automatic full-closing (press
and hold)
*
Opening
Automatic full-opening (press
and hold)
*
*
: Pressing either side of the switch will stop the panoramic roof shade
travel partway. NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.
Panoramic roof shade (if equipped)
1
2
3
4

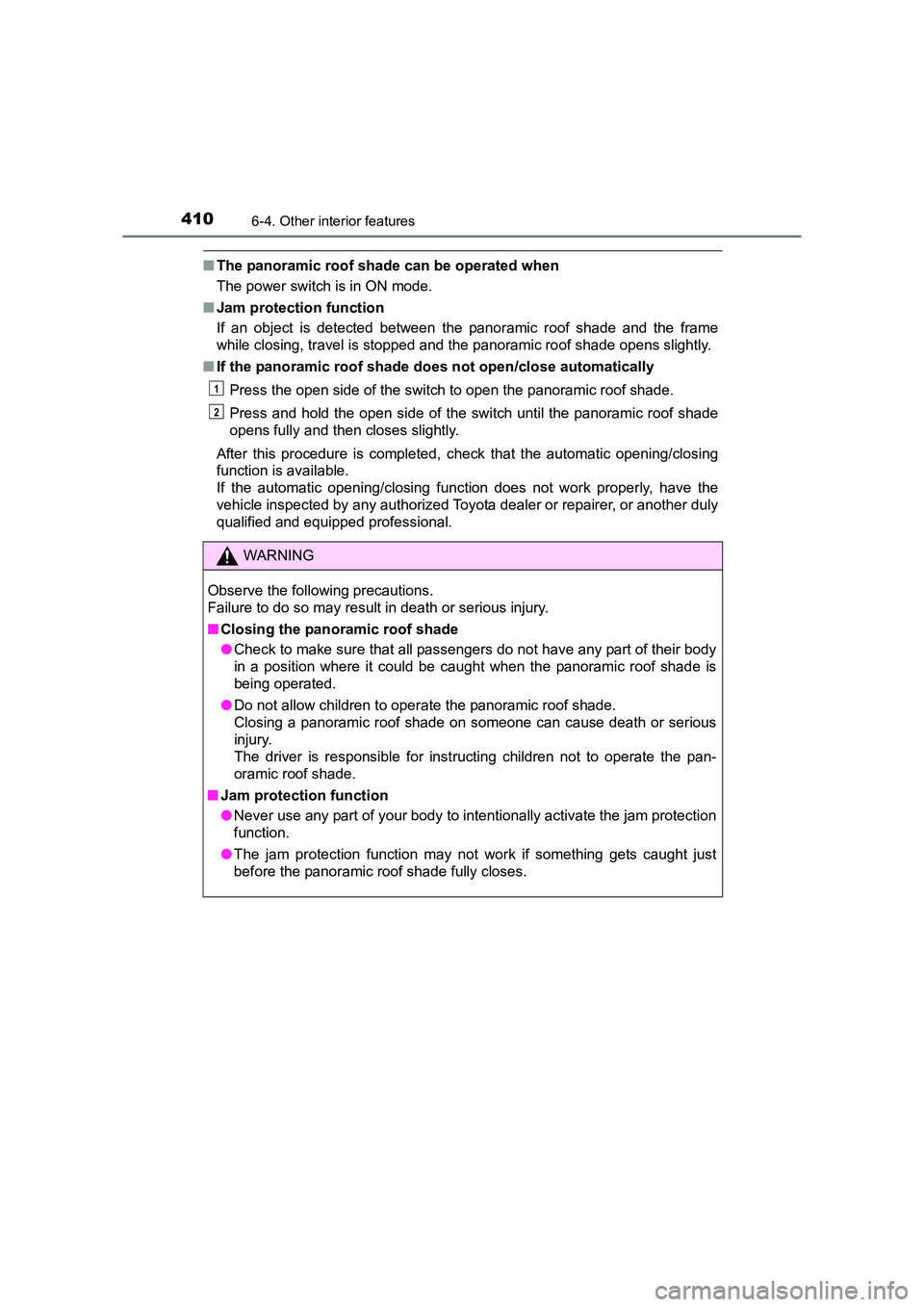

4106-4. Other interior features
UK AURIS_HV_HB_EE (OM12K47E)
■The panoramic roof shade can be operated when
The power switch is in ON mode.
■ Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
■ If the panoramic roof shade does not open/close automatically
Press the open side of the switch to open the panoramic roof shade.
Press and hold the open side of the switch until the panoramic roof shade
opens fully and then closes slightly.
After this procedure is completed, check that the automatic opening/closing
function is available.
If the automatic opening/closing function does not work properly, have the
vehicle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the panoramic roof shade
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the panoramic roof shade is
being operated.
● Do not allow children to operate the panoramic roof shade.
Closing a panoramic roof shade on someone can cause death or serious
injury.
The driver is responsible for instructing children not to operate the pan-
oramic roof shade.
■ Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.
1
2
