TOYOTA AURIS HYBRID 2017 Owners Manual

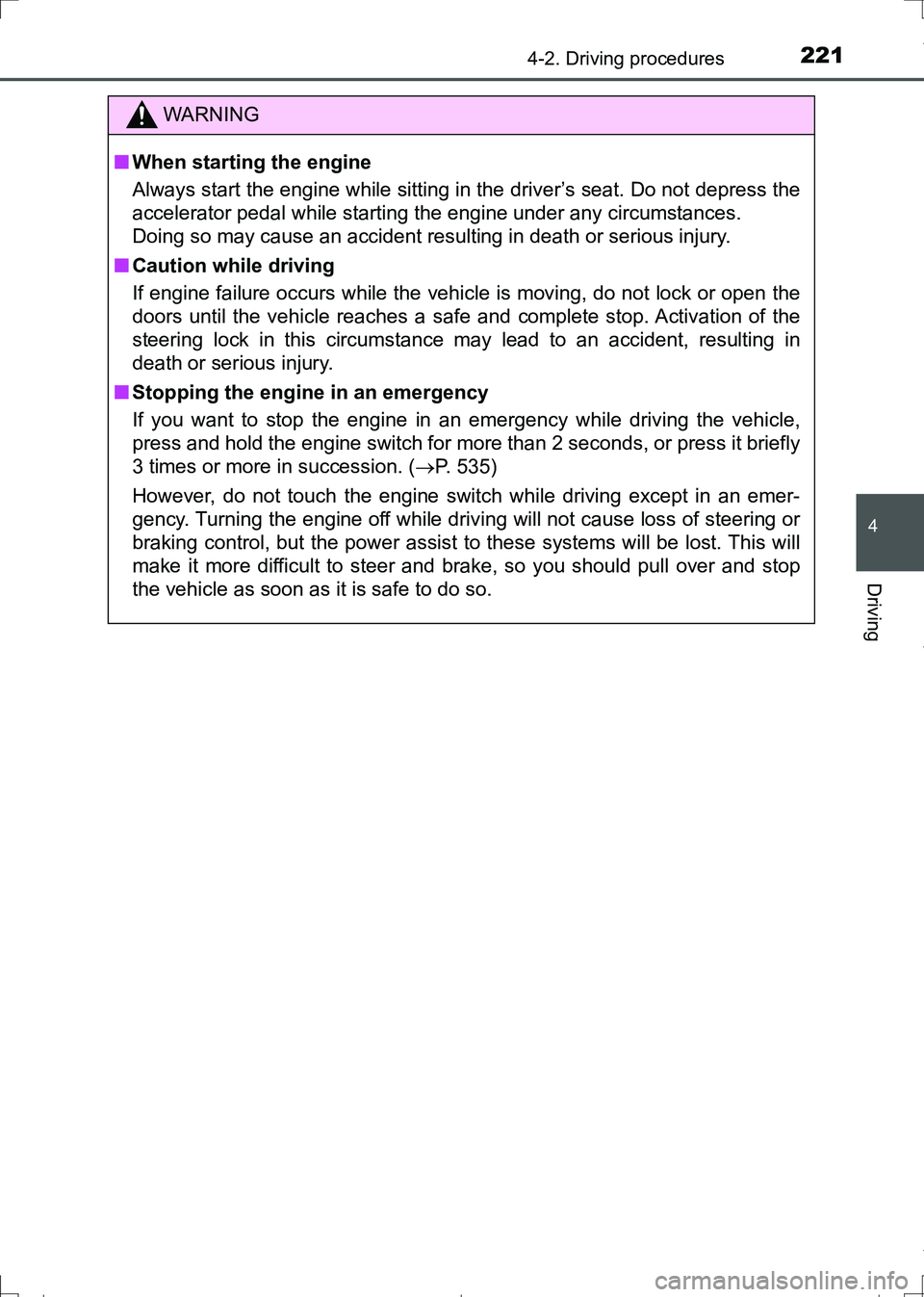

2214-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
WARNING
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the
steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the engine switch for more than 2 seconds, or press it briefly
3 times or more in succession. (P. 535)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.
AURIS Touring Sports_OM_Europe_OM12L13E.book 221 ページ ２０１６年６月２７日　月曜日　午後５時２１分

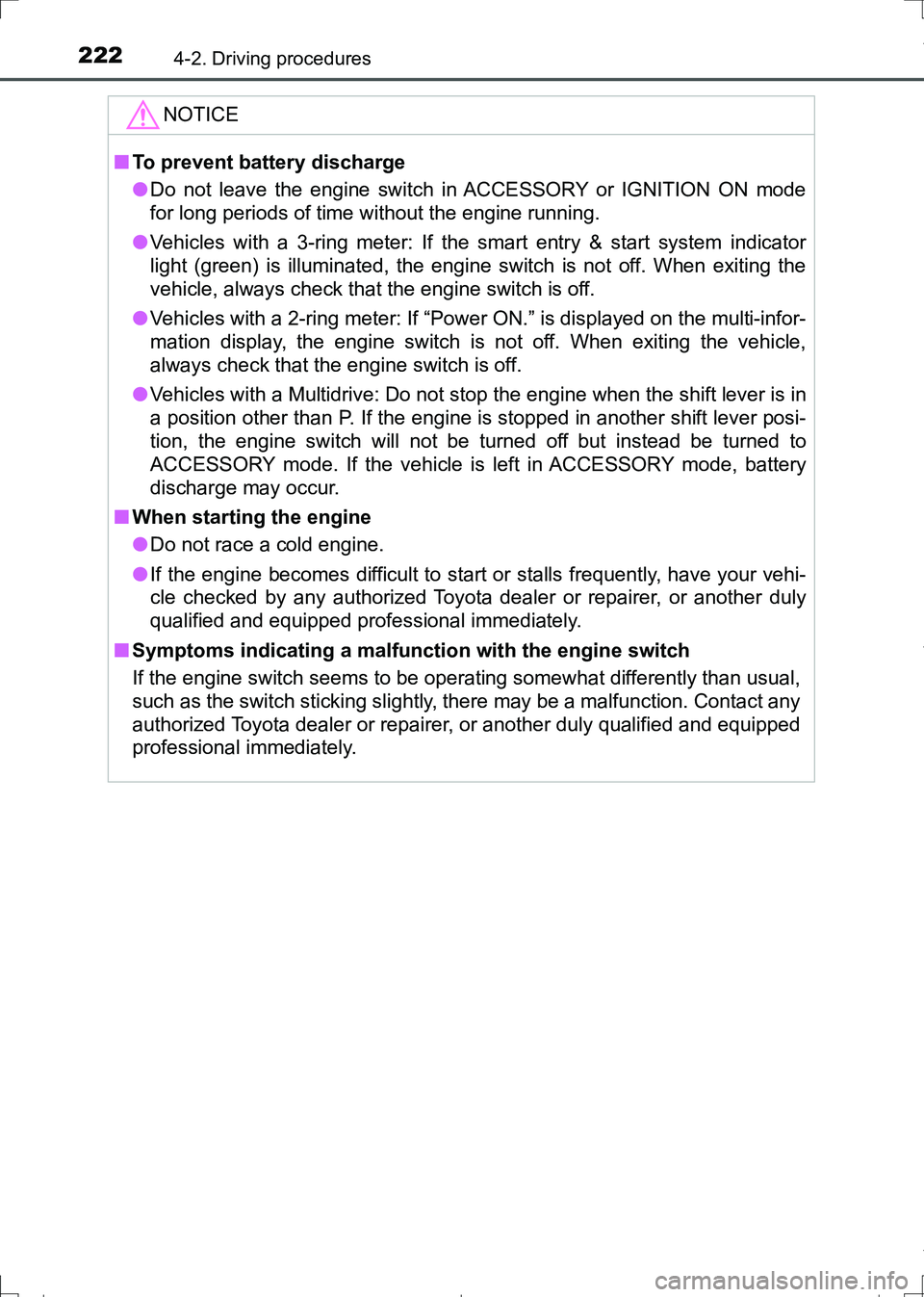

2224-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
NOTICE
■To prevent battery discharge
●Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
●Vehicles with a 3-ring meter: If the smart entry & start system indicator
light (green) is illuminated, the engine switch is not off. When exiting the
vehicle, always check that the engine switch is off.
●Vehicles with a 2-ring meter: If “Power ON.” is displayed on the multi-infor-
mation display, the engine switch is not off. When exiting the vehicle,
always check that the engine switch is off.
●Vehicles with a Multidrive: Do not stop the engine when the shift lever is in
a position other than P. If the engine is stopped in another shift lever posi-
tion, the engine switch will not be turned off but instead be turned to
ACCESSORY mode. If the vehicle is left in ACCESSORY mode, battery
discharge may occur.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
■Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
AURIS Touring Sports_OM_Europe_OM12L13E.book 222 ページ ２０１６年６月２７日　月曜日　午後５時２１分

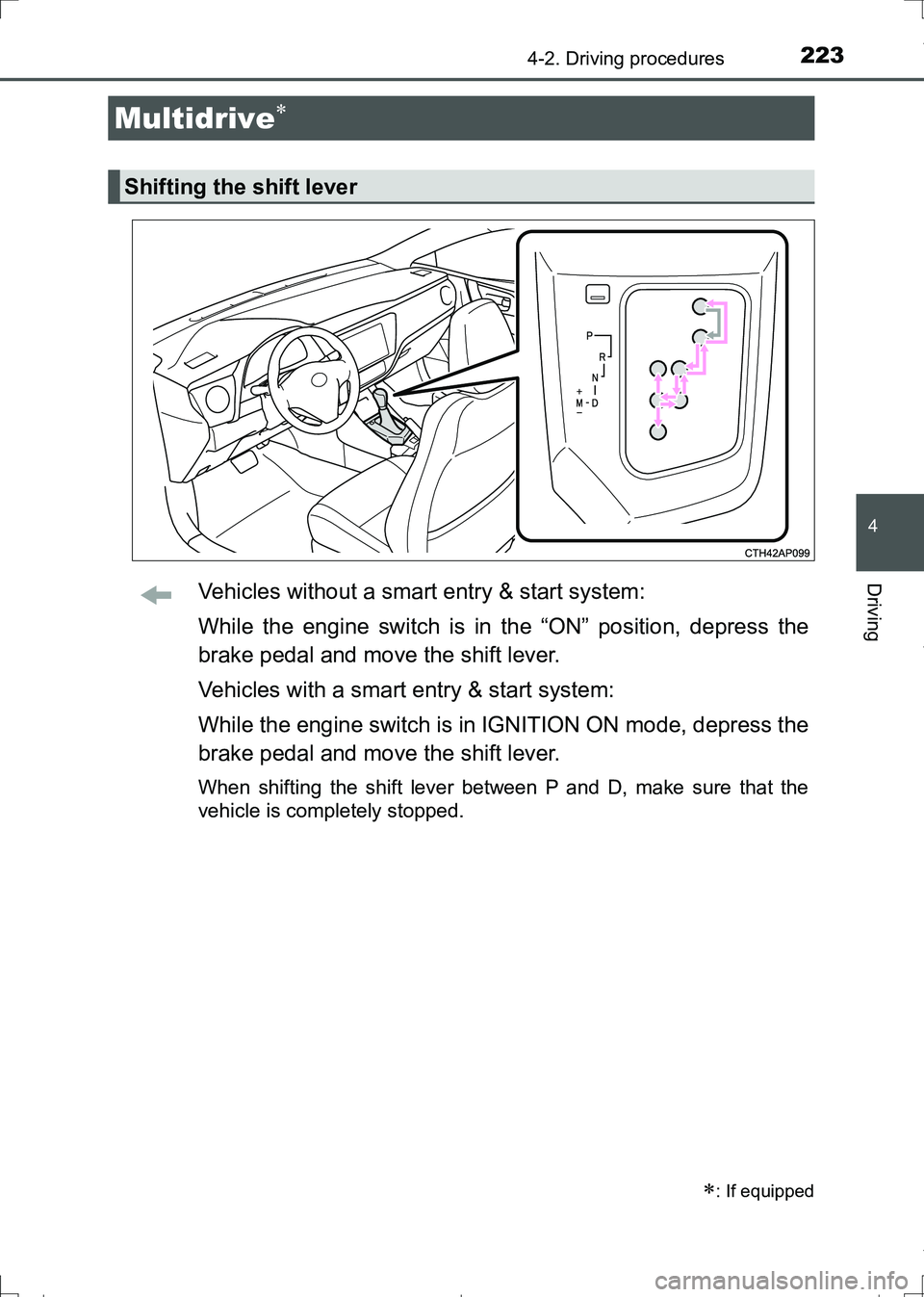

2234-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
DrivingVehicles without a smart entry & start system:
While the engine switch is in the “ON” position, depress the
brake pedal and move the shift lever.
Vehicles with a smart entry & start system:
While the engine switch is in IGNITION ON mode, depress the
brake pedal and move the shift lever.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
Multidrive
: If equipped
Shifting the shift lever
AURIS Touring Sports_OM_Europe_OM12L13E.book 223 ページ ２０１６年６月２７日　月曜日　午後５時２１分

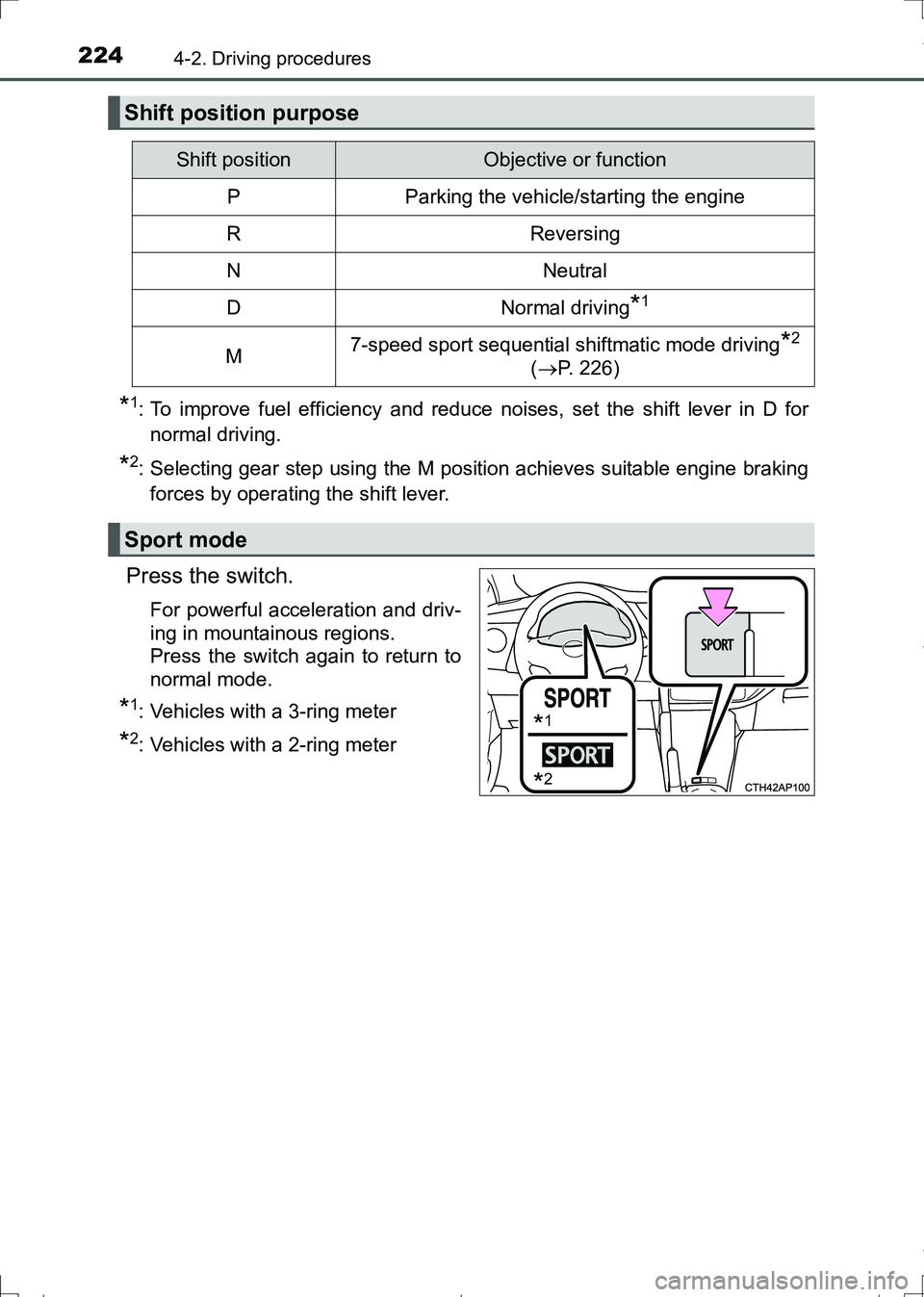

2244-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
*1: To improve fuel efficiency and reduce noises, set the shift lever in D for
normal driving.
*2: Selecting gear step using the M position achieves suitable engine braking
forces by operating the shift lever.
Press the switch.
For powerful acceleration and driv-
ing in mountainous regions.
Press the switch again to return to
normal mode.
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*1
M7-speed sport sequential shiftmatic mode driving*2
(P. 226)
Sport mode
*1
*2
AURIS Touring Sports_OM_Europe_OM12L13E.book 224 ページ ２０１６年６月２７日　月曜日　午後５時２１分

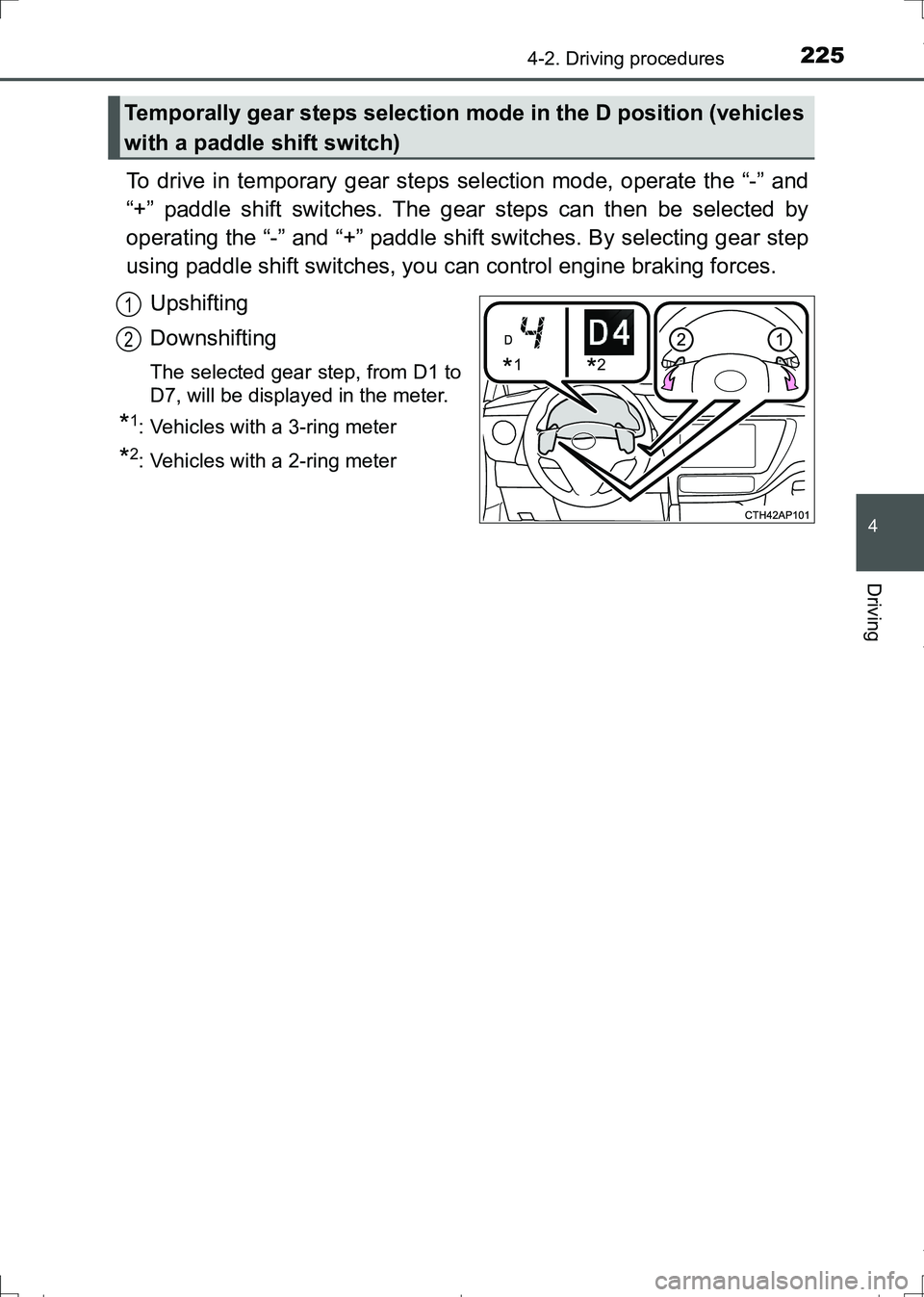

2254-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
To drive in temporary gear steps selection mode, operate the “-” and
“+” paddle shift switches. The gear steps can then be selected by
operating the “-” and “+” paddle shift switches. By selecting gear step
using paddle shift switches, you can control engine braking forces.
Upshifting
Downshifting
The selected gear step, from D1 to
D7, will be displayed in the meter.
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
Temporally gear steps selection mode in the D position (vehicles
with a paddle shift switch)
*1*2
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 225 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2264-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
To enter 7-speed sport sequential shiftmatic mode, shift the shift lever
to M position. Gear steps can then be selected by operating the shift
lever or paddle shift switches (vehicles with a paddle shift switch),
allowing you to drive in the gear step of your choosing.
Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear step, from M1 to
M7, will be displayed in the meter.
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
However, even when in the M position, the gear steps will be automat-
ically changed if the engine speed is too high, or too low.
■Gear step functions
●You can choose from 7 levels of engine braking force.
●A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
■If the 7-speed sport sequential shiftmatic mode indicator does not come
on even after shifting the shift lever to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■When the vehicle comes to a stop with the shift lever in the M position
●The transmission will automatically downshift to M1 once the vehicle is
stopped.
●After a stop, the vehicle will start off in M1.
●When the vehicle is stopped, the transmission is set at M1.
Changing gear steps in the M position
*1*2
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 226 ページ ２０１６年６月２７日　月曜日　午後５時２１分

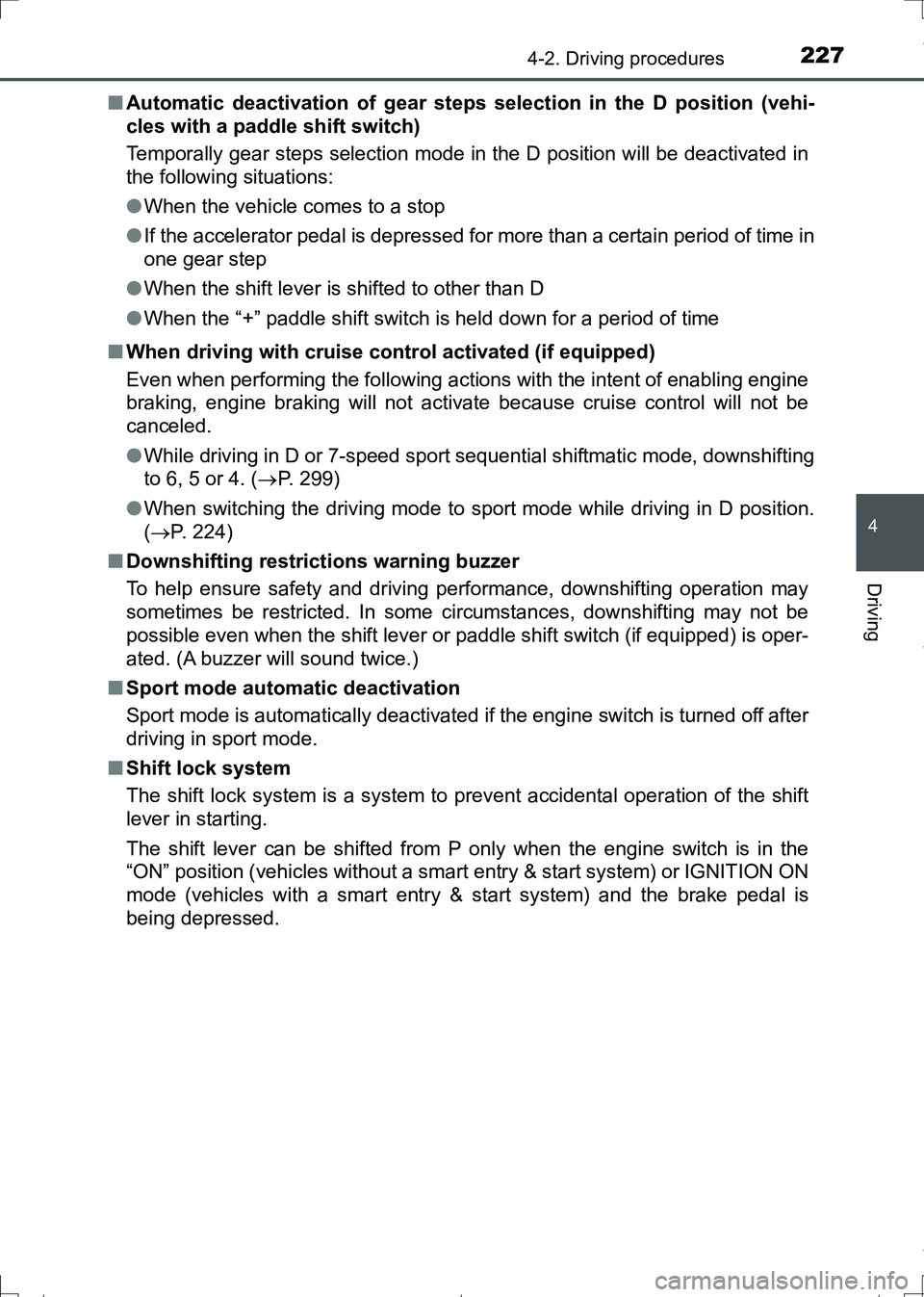

2274-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
■Automatic deactivation of gear steps selection in the D position (vehi-
cles with a paddle shift switch)
Temporally gear steps selection mode in the D position will be deactivated in
the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time in
one gear step
●When the shift lever is shifted to other than D
●When the “+” paddle shift switch is held down for a period of time
■When driving with cruise control activated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control will not be
canceled.
●While driving in D or 7-speed sport sequential shiftmatic mode, downshifting
to 6, 5 or 4. (P. 299)
●When switching the driving mode to sport mode while driving in D position.
(P. 224)
■Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch (if equipped) is oper-
ated. (A buzzer will sound twice.)
■Sport mode automatic deactivation
Sport mode is automatically deactivated if the engine switch is turned off after
driving in sport mode.
■Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position (vehicles without a smart entry & start system) or IGNITION ON
mode (vehicles with a smart entry & start system) and the brake pedal is
being depressed.
AURIS Touring Sports_OM_Europe_OM12L13E.book 227 ページ ２０１６年６月２７日　月曜日　午後５時２１分

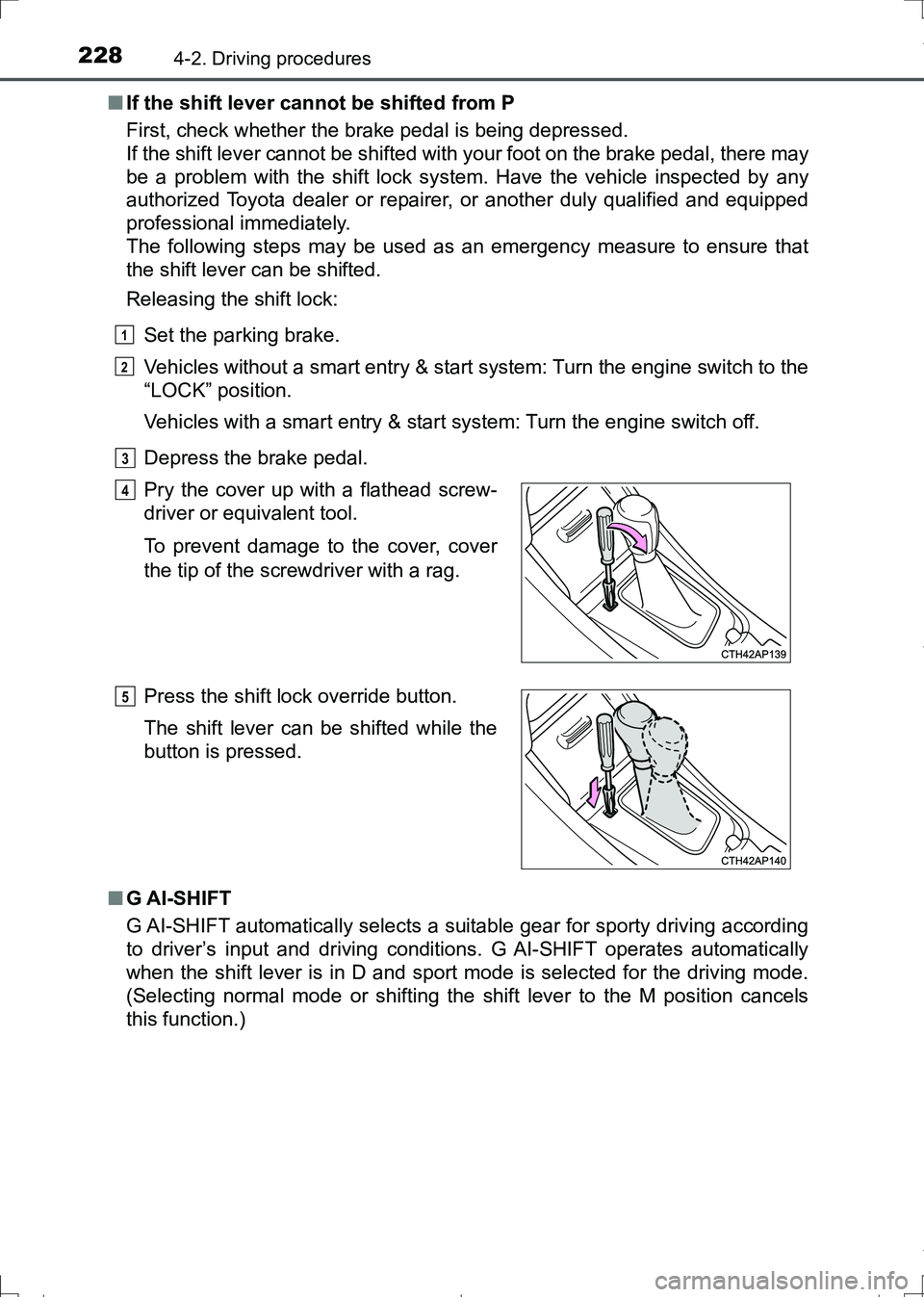

2284-2. Driving procedures
AURIS Touring Sports_EE (12L13E)■If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Vehicles without a smart entry & start system: Turn the engine switch to the
“LOCK” position.
Vehicles with a smart entry & start system: Turn the engine switch off.
Depress the brake pedal.
■G AI-SHIFT
G AI-SHIFT automatically selects a suitable gear for sporty driving according
to driver’s input and driving conditions. G AI-SHIFT operates automatically
when the shift lever is in D and sport mode is selected for the driving mode.
(Selecting normal mode or shifting the shift lever to the M position cancels
this function.)Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
1
2
3
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 228 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2294-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving

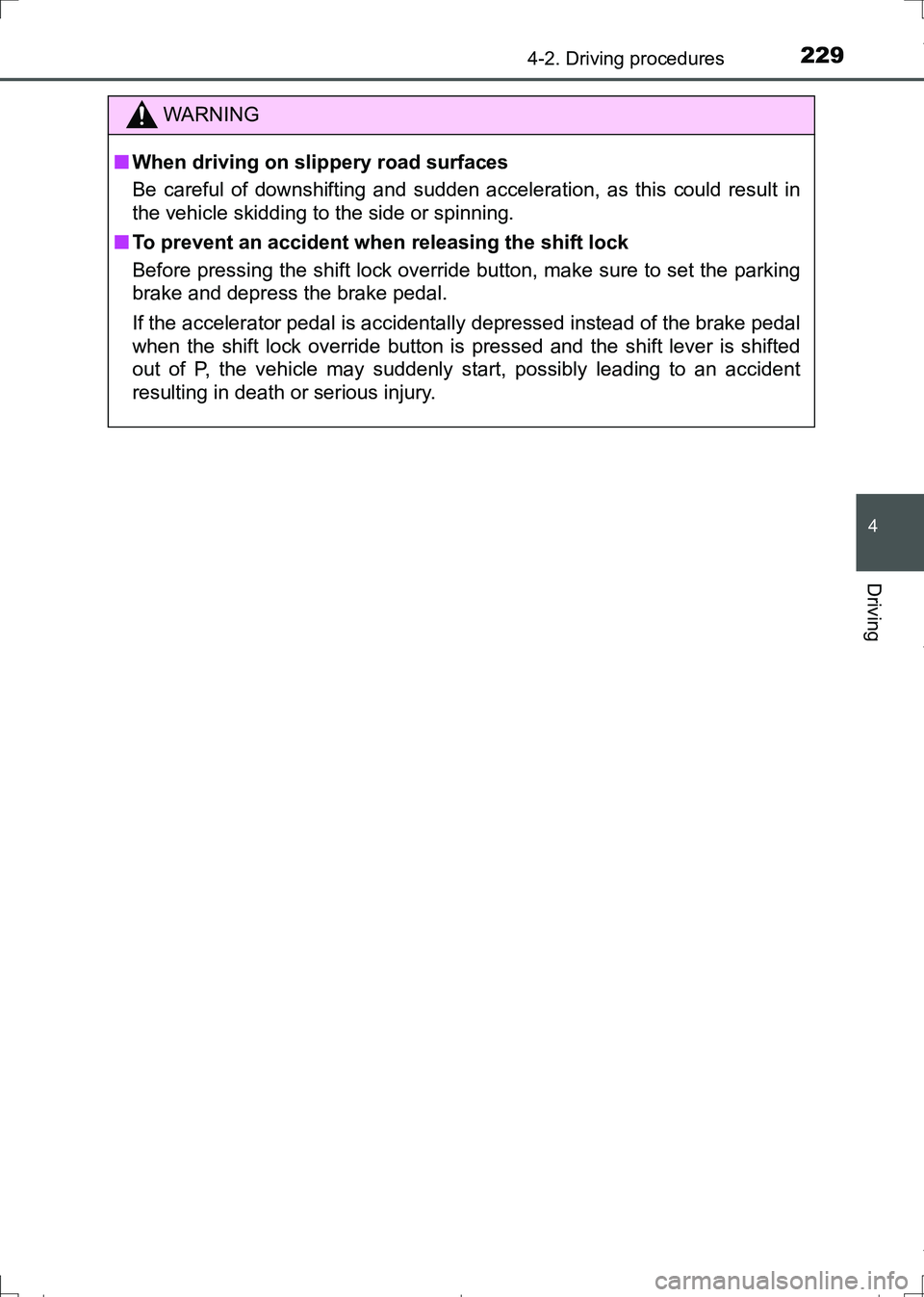

WARNING
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in
the vehicle skidding to the side or spinning.
■To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
AURIS Touring Sports_OM_Europe_OM12L13E.book 229 ページ ２０１６年６月２７日　月曜日　午後５時２１分

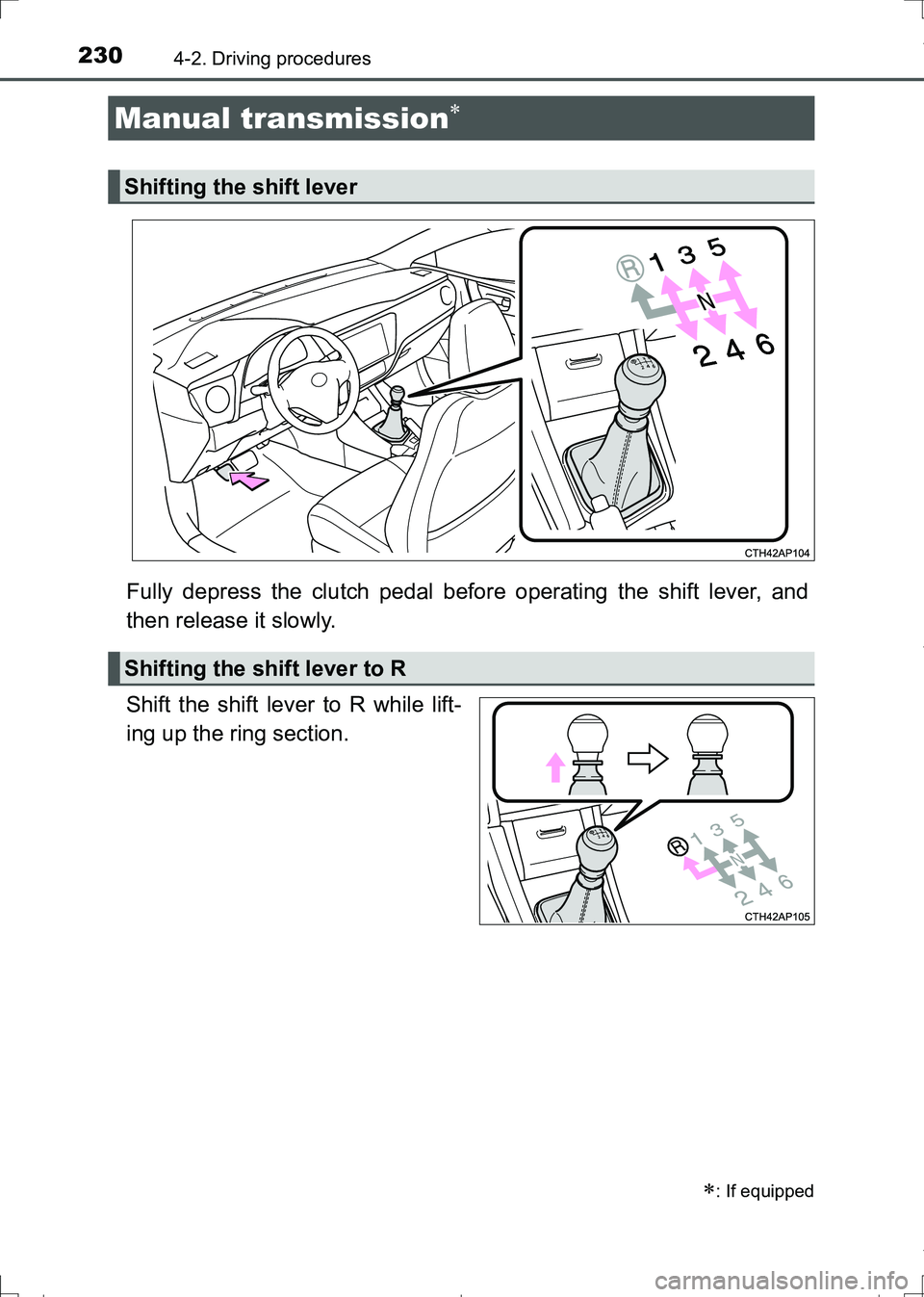

2304-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
Shift the shift lever to R while lift-
ing up the ring section.
Manual transmission
: If equipped
Shifting the shift lever
Shifting the shift lever to R
