611-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12L13E)

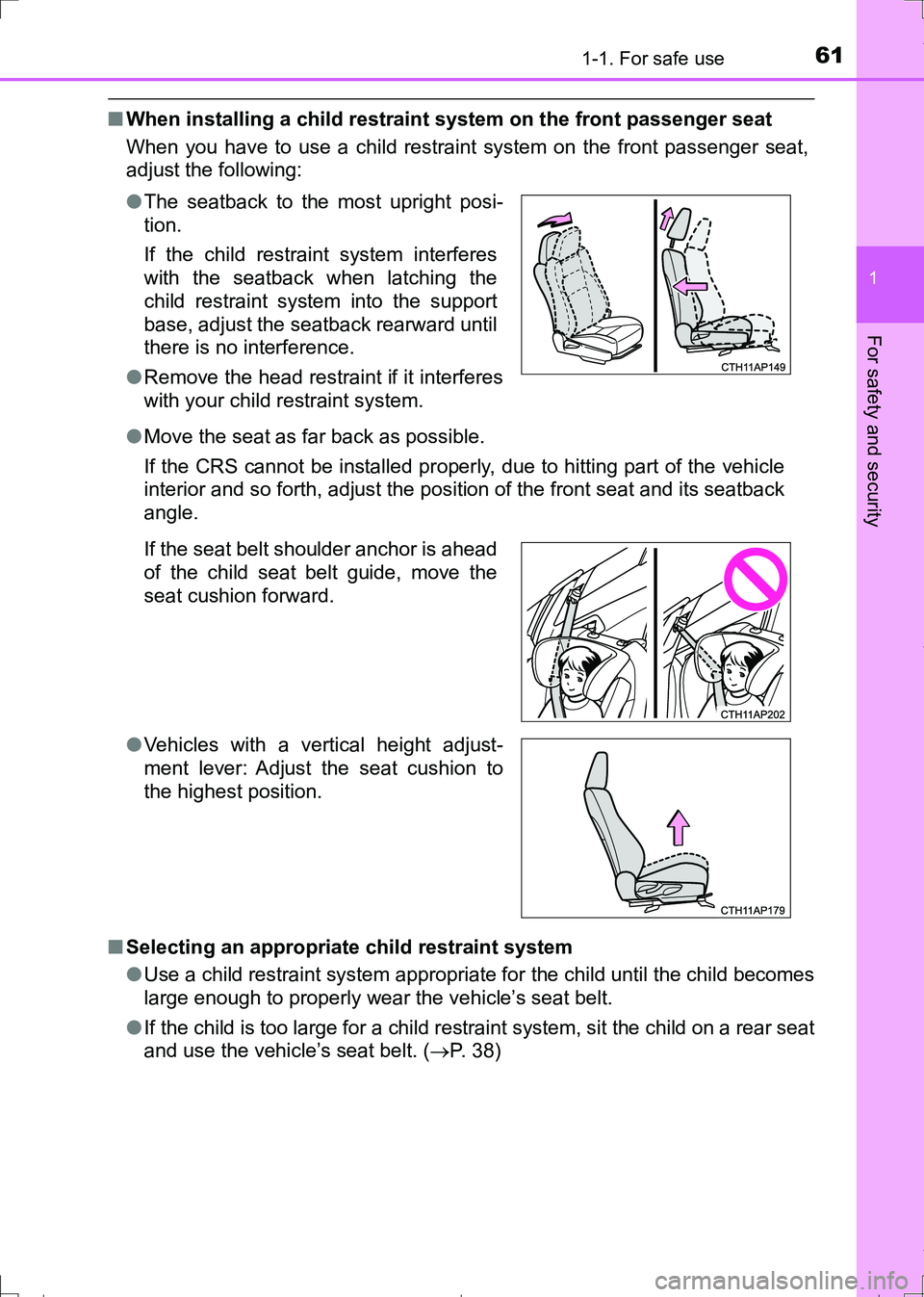

■When installing a child restraint system on the front passenger seat
When you have to use a child restraint system on the front passenger seat,
adjust the following:
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (P. 38) ●The seatback to the most upright posi-
tion.
If the child restraint system interferes
with the seatback when latching the
child restraint system into the support
base, adjust the seatback rearward until
there is no interference.
●Remove the head restraint if it interferes
with your child restraint system.
●Move the seat as far back as possible.
If the CRS cannot be installed properly, due to hitting part of the vehicle
interior and so forth, adjust the position of the front seat and its seatback
angle.
If the seat belt shoulder anchor is ahead
of the child seat belt guide, move the
seat cushion forward.
●Vehicles with a vertical height adjust-
ment lever: Adjust the seat cushion to
the highest position.
AURIS Touring Sports_OM_Europe_OM12L13E.book 61 ページ ２０１６年６月２７日　月曜日　午後５時２１分

621-1. For safe use
AURIS Touring Sports_EE (12L13E)

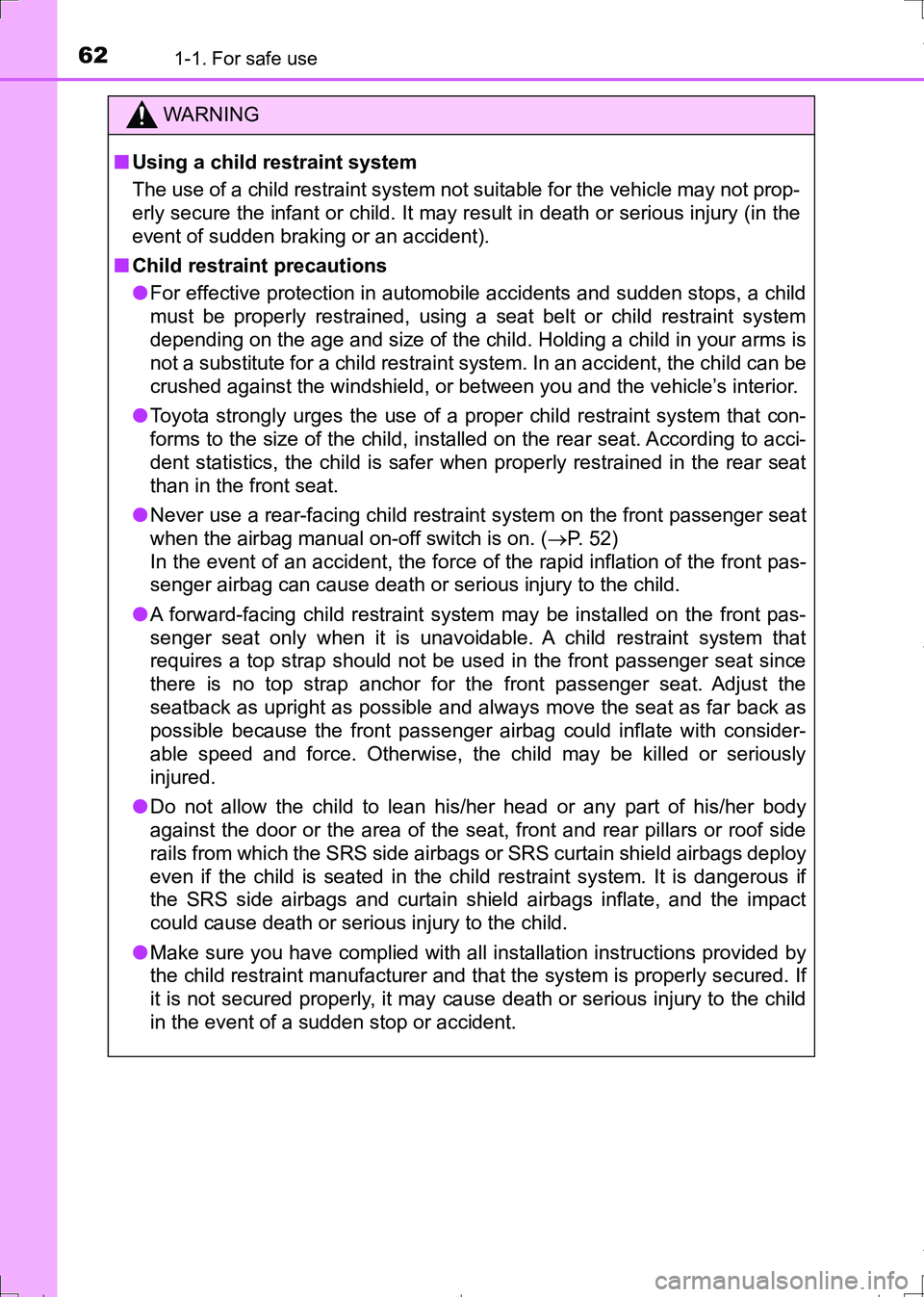

WARNING
■Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
●Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
●Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 52)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
●A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top strap should not be used in the front passenger seat since
there is no top strap anchor for the front passenger seat. Adjust the
seatback as upright as possible and always move the seat as far back as
possible because the front passenger airbag could inflate with consider-
able speed and force. Otherwise, the child may be killed or seriously
injured.
●Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
●Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop or accident.
AURIS Touring Sports_OM_Europe_OM12L13E.book 62 ページ ２０１６年６月２７日　月曜日　午後５時２１分

631-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12L13E)

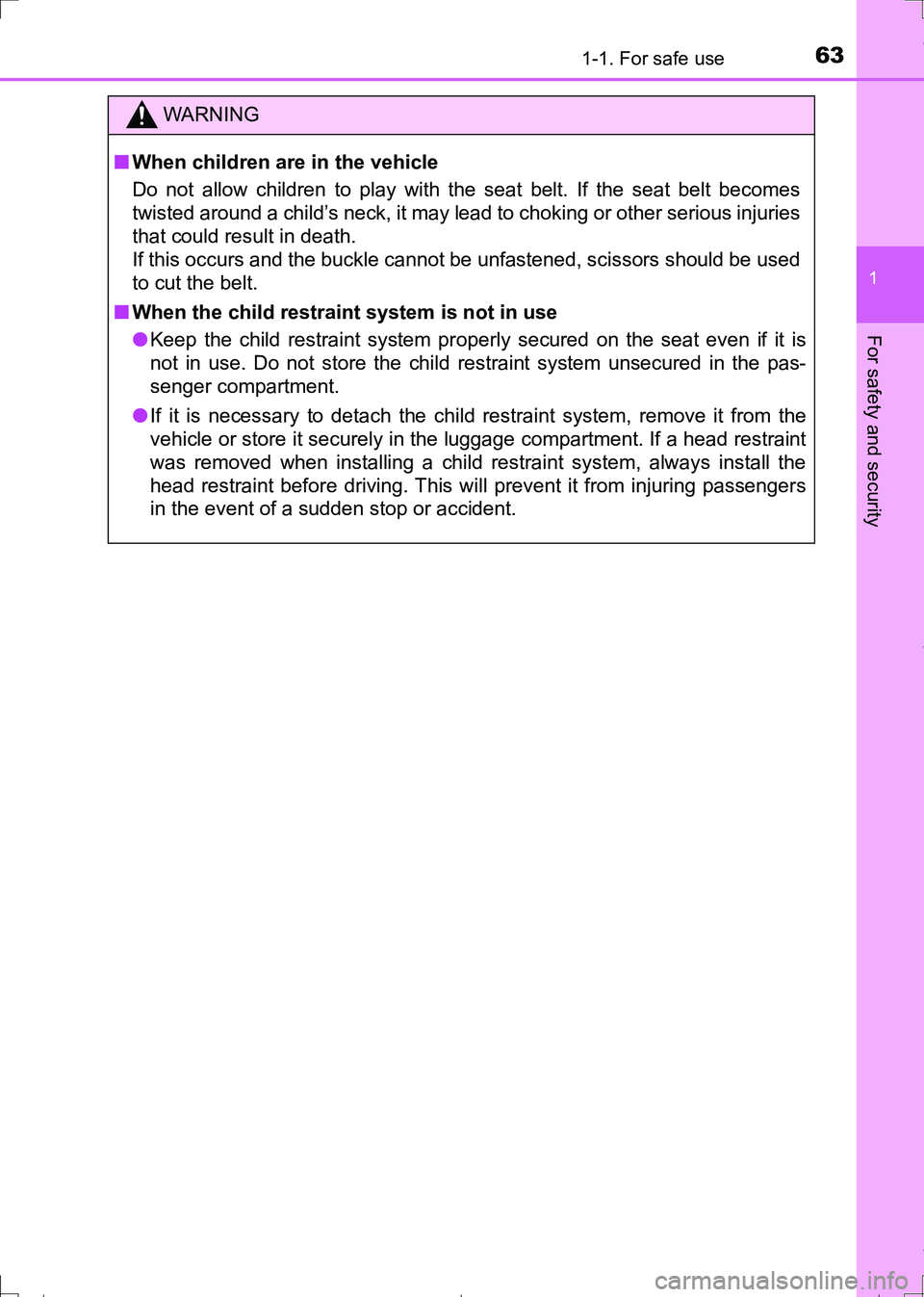

WARNING
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
●If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. If a head restraint
was removed when installing a child restraint system, always install the
head restraint before driving. This will prevent it from injuring passengers
in the event of a sudden stop or accident.
AURIS Touring Sports_OM_Europe_OM12L13E.book 63 ページ ２０１６年６月２７日　月曜日　午後５時２１分

641-1. For safe use
AURIS Touring Sports_EE (12L13E)

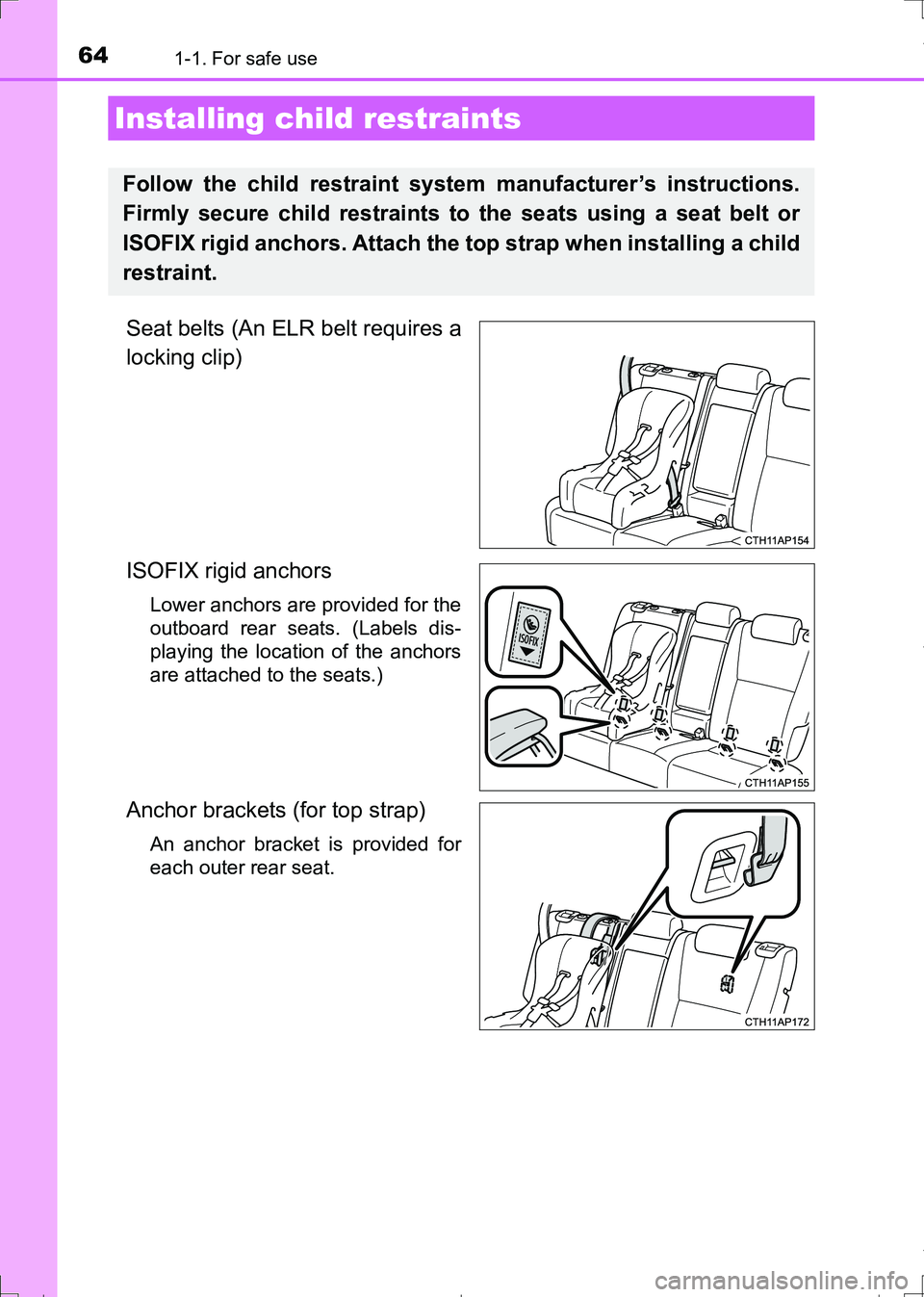

Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors
Lower anchors are provided for the
outboard rear seats. (Labels dis-
playing the location of the anchors
are attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
each outer rear seat.
Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.
AURIS Touring Sports_OM_Europe_OM12L13E.book 64 ページ ２０１６年６月２７日　月曜日　午後５時２１分

651-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12L13E)■

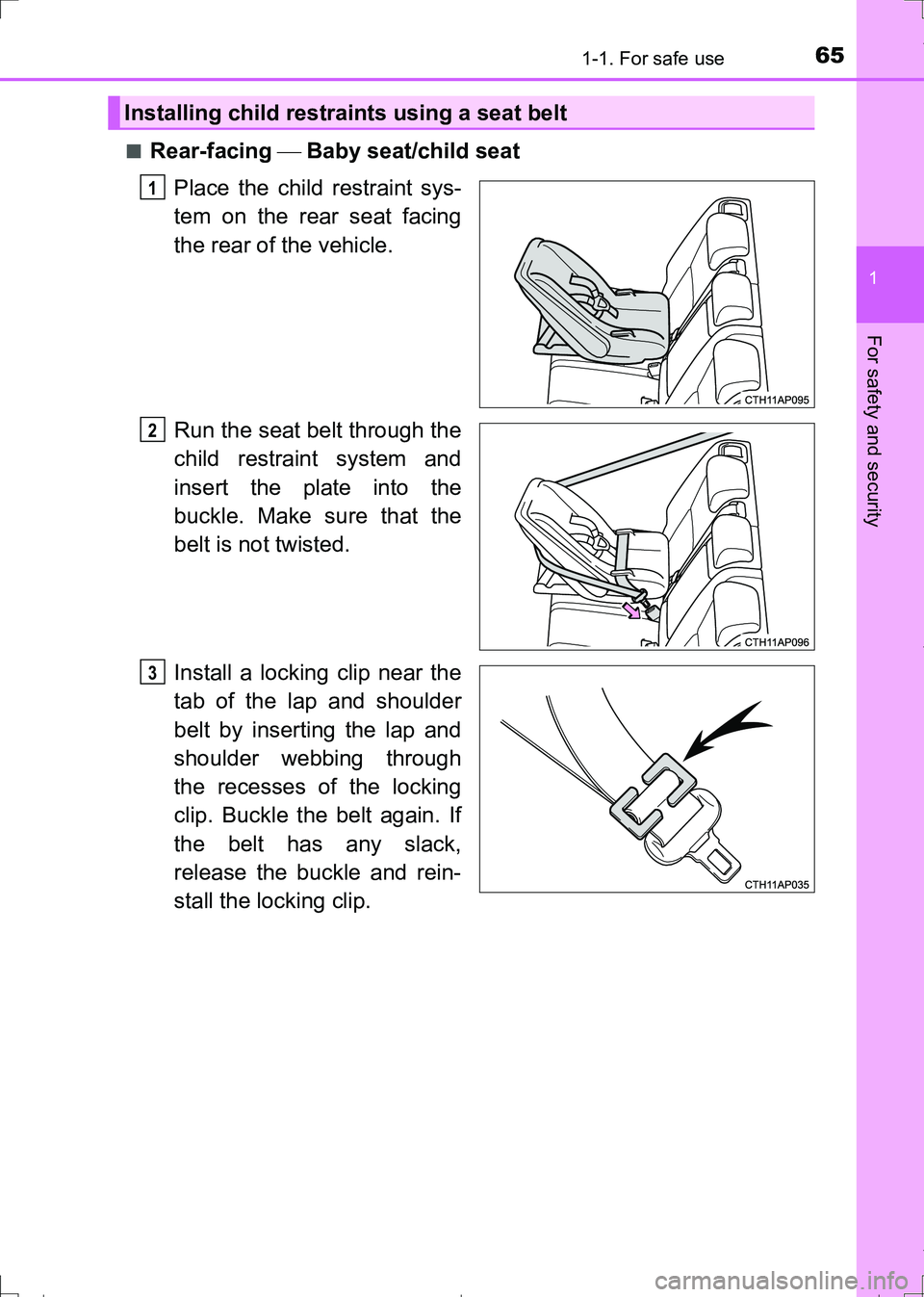

Rear-facing  Baby seat/child seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
Installing child restraints using a seat belt
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 65 ページ ２０１６年６月２７日　月曜日　午後５時２１分

661-1. For safe use
AURIS Touring Sports_EE (12L13E)■

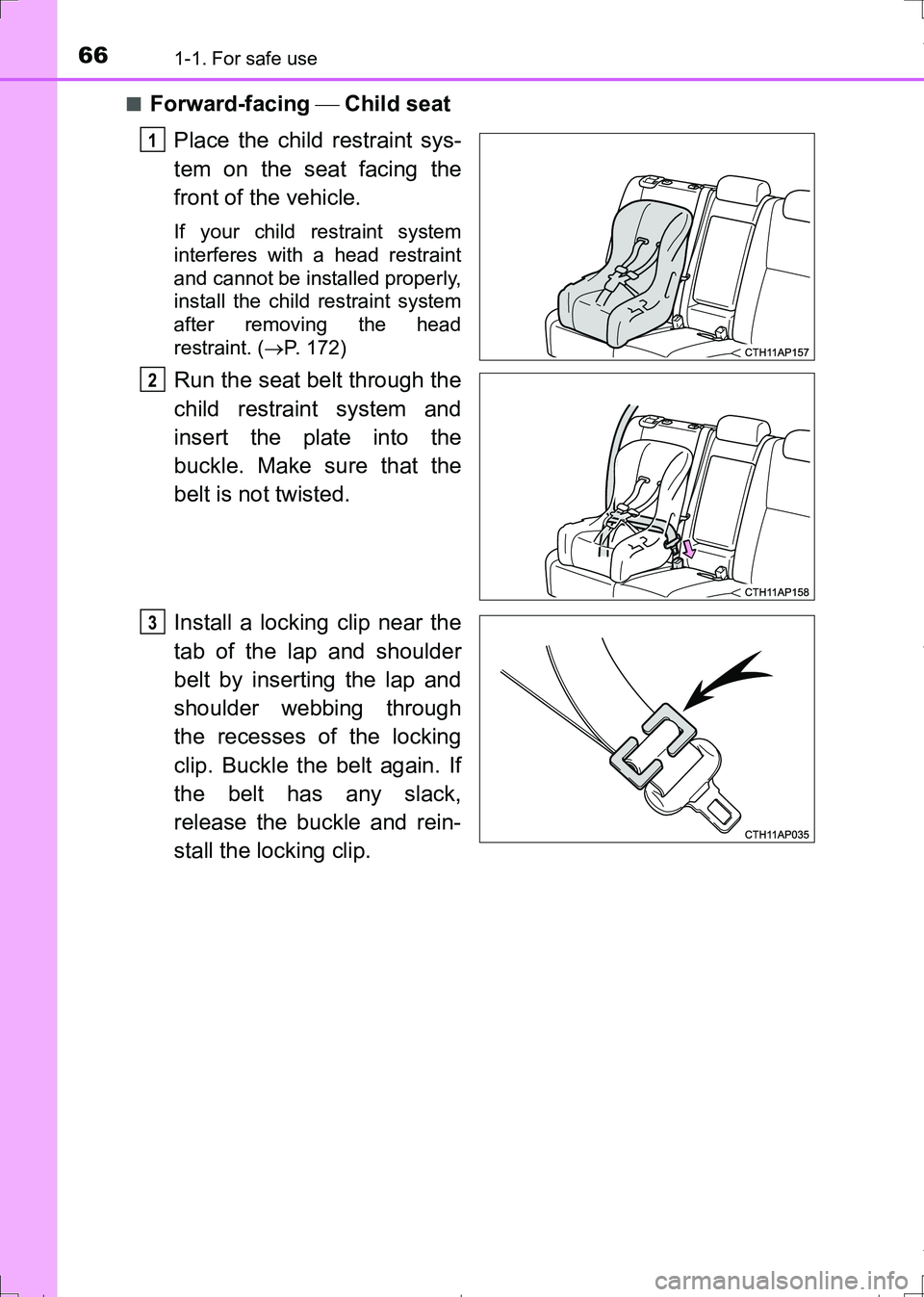

Forward-facing  Child seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
If your child restraint system
interferes with a head restraint
and cannot be installed properly,
install the child restraint system
after removing the head
restraint. (P. 172)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 66 ページ ２０１６年６月２７日　月曜日　午後５時２１分

671-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12L13E)■

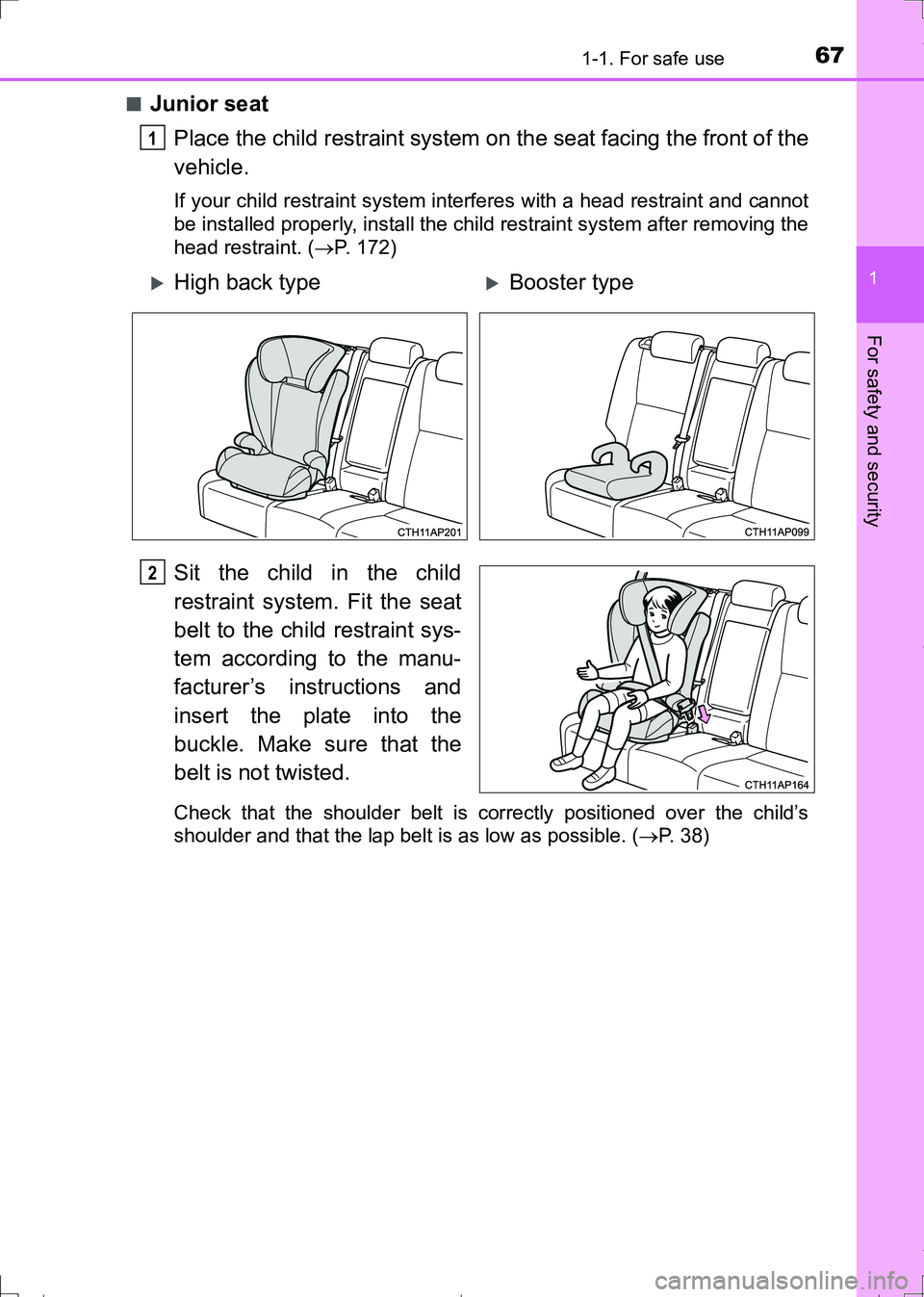

Junior seat
Place the child restraint system on the seat facing the front of the
vehicle.
If your child restraint system interferes with a head restraint and cannot
be installed properly, install the child restraint system after removing the
head restraint. (P. 172)
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (P. 38)
1
High back typeBooster type
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 67 ページ ２０１６年６月２７日　月曜日　午後５時２１分

681-1. For safe use
AURIS Touring Sports_EE (12L13E)

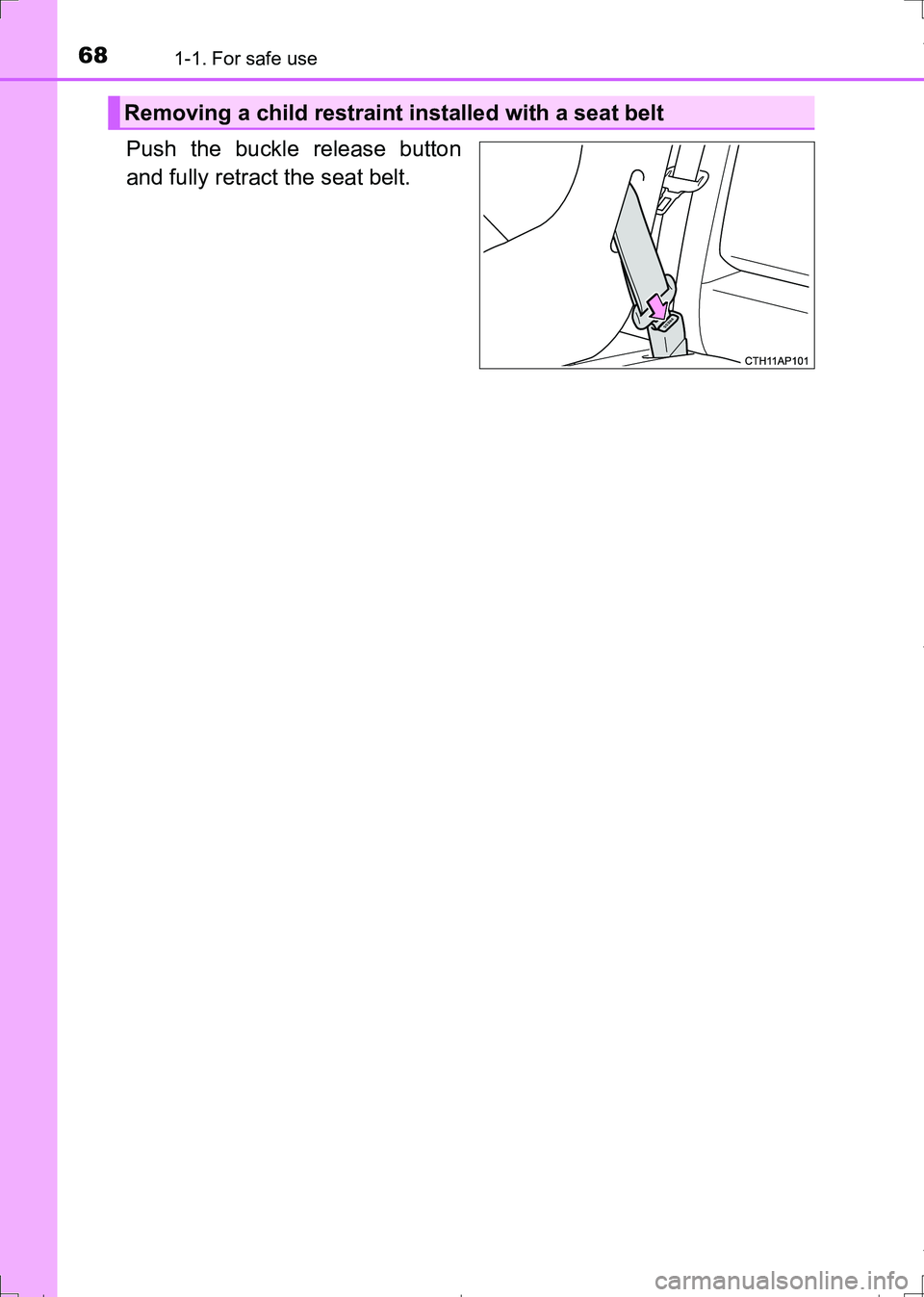

Push the buckle release button
and fully retract the seat belt.
Removing a child restraint installed with a seat belt
AURIS Touring Sports_OM_Europe_OM12L13E.book 68 ページ ２０１６年６月２７日　月曜日　午後５時２１分

691-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12L13E)

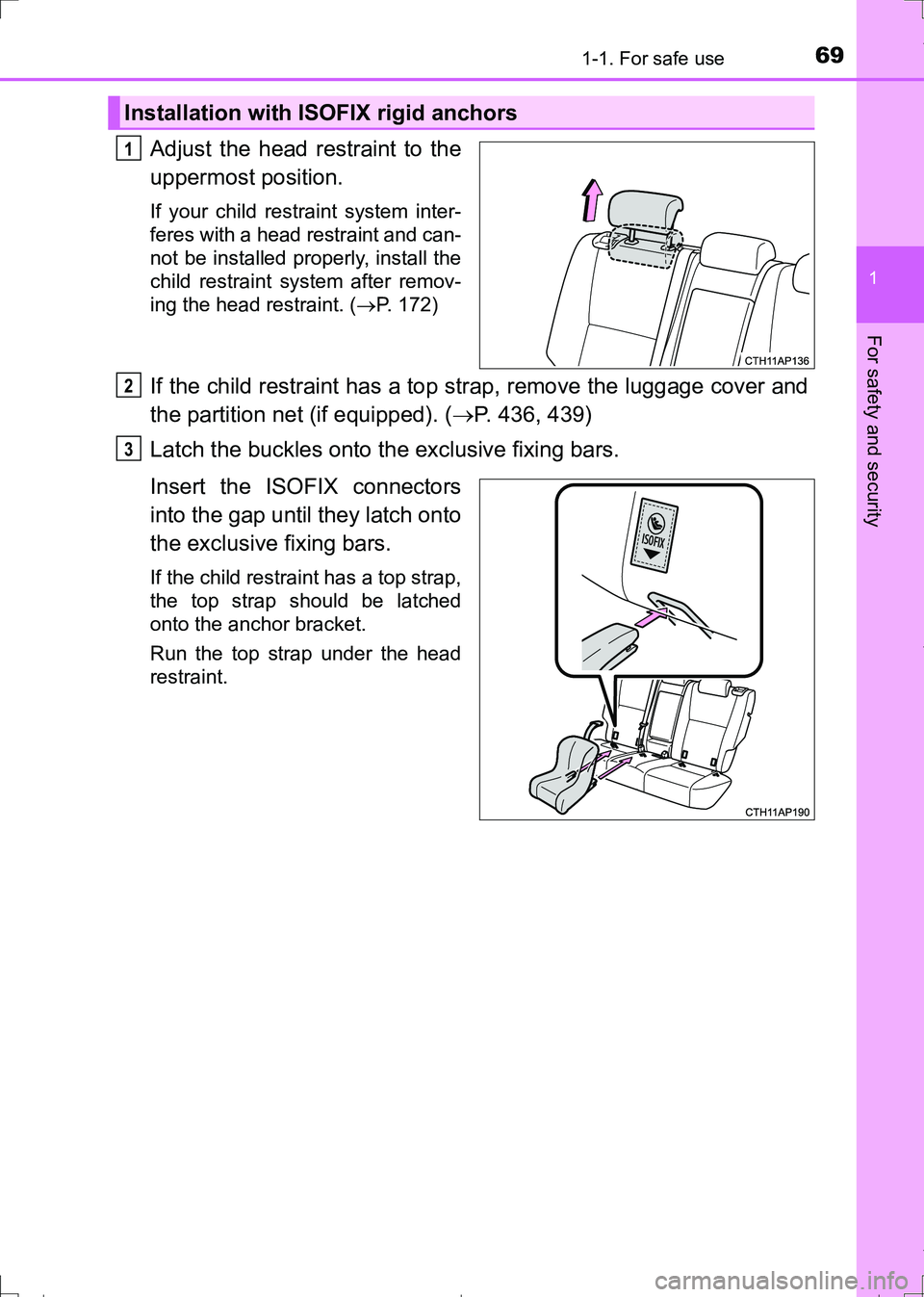

Adjust the head restraint to the
uppermost position.
If your child restraint system inter-
feres with a head restraint and can-
not be installed properly, install the
child restraint system after remov-
ing the head restraint. (P. 172)
If the child restraint has a top strap, remove the luggage cover and
the partition net (if equipped). (P. 436, 439)
Latch the buckles onto the exclusive fixing bars.
Insert the ISOFIX connectors
into the gap until they latch onto
the exclusive fixing bars.
If the child restraint has a top strap,
the top strap should be latched
onto the anchor bracket.
Run the top strap under the head
restraint.
Installation with ISOFIX rigid anchors
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 69 ページ ２０１６年６月２７日　月曜日　午後５時２１分

701-1. For safe use
AURIS Touring Sports_EE (12L13E)

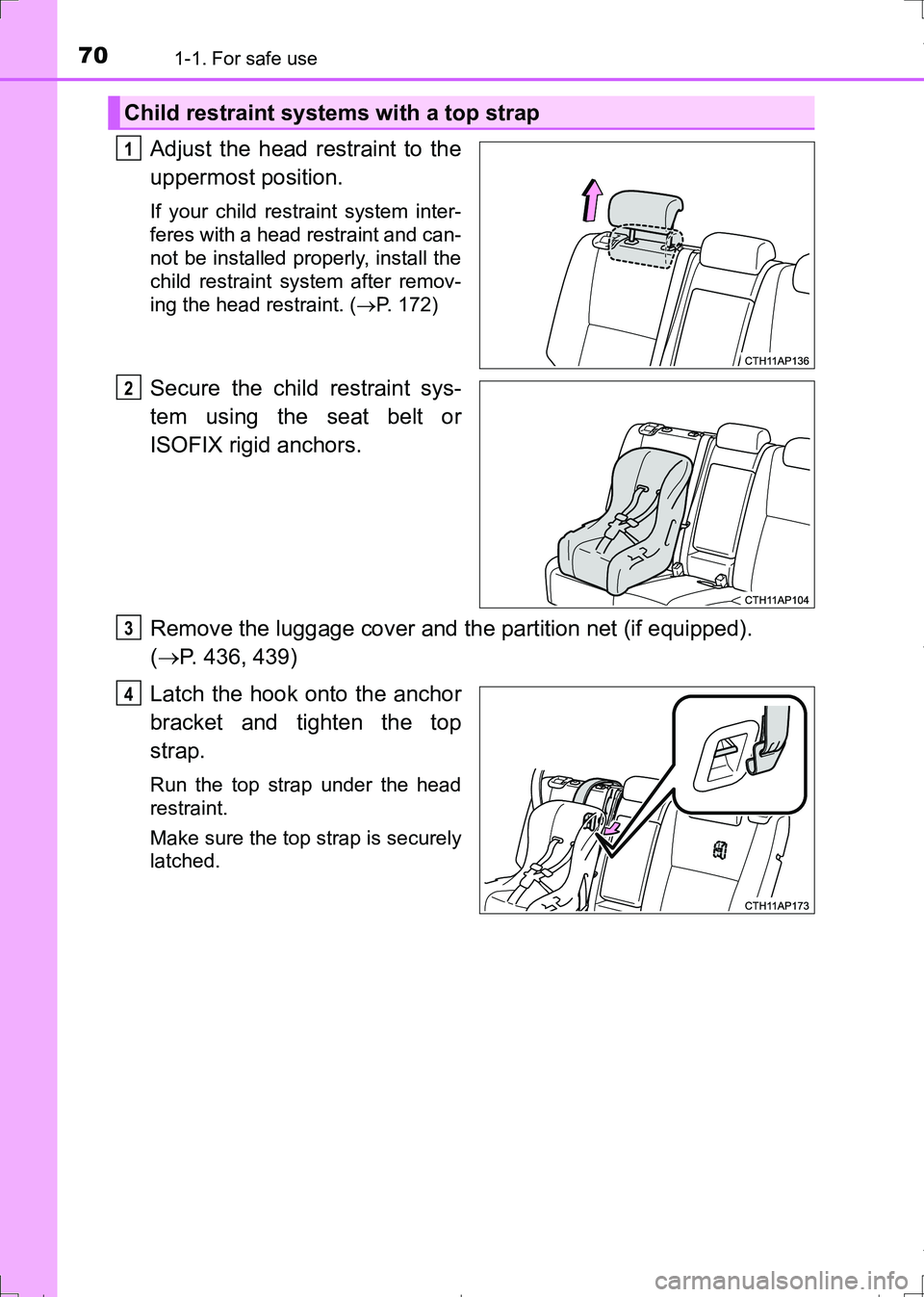

Adjust the head restraint to the
uppermost position.
If your child restraint system inter-
feres with a head restraint and can-
not be installed properly, install the
child restraint system after remov-
ing the head restraint. (P. 172)
Secure the child restraint sys-
tem using the seat belt or
ISOFIX rigid anchors.
Remove the luggage cover and the partition net (if equipped).
(P. 436, 439)
Latch the hook onto the anchor
bracket and tighten the top
strap.
Run the top strap under the head
restraint.
Make sure the top strap is securely
latched.
Child restraint systems with a top strap
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 70 ページ ２０１６年６月２７日　月曜日　午後５時２１分
