4-1. Before driving
Driving the vehicle .............186
Cargo and luggage ............197
Trailer towing .....................200
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a smart
entry & start system)........209
Engine (ignition) switch
(vehicles with a smart
entry & start system)........213
Multidrive ...........................223
Manual transmission ..........230
Turn signal lever ................233
Parking brake.....................234
4-3. Operating the lights
and wipers
Headlight switch.................235
Fog light switch ..................241
Windshield wipers and
washer .............................243
Rear window wiper and
washer .............................247
4-4. Refueling
Opening the fuel tank
cap ...................................2494-5. Toyota Safety Sense
Toyota Safety Sense ......... 252
PCS
(Pre-Crash Safety
system) ........................... 258
LDA
(Lane Departure Alert) .... 271
Automatic High Beam ....... 276
RSA (Road Sign Assist) .... 280
4-6. Using the driving
support systems
Stop & Start system
(Smart Stop).................... 286
Cruise control .................... 299
Speed limiter ..................... 304
Toyota parking
assist-sensor ................... 308
Simple-IPA
(Simple-Intelligent
Parking Assist) ................ 315
Diesel particulate
filter system ..................... 329
Driving assist systems....... 331
4-7. Driving tips
Winter driving tips.............. 337
4Driving
AURIS Touring Sports_OM_Europe_OM12L13E.book 3 ページ ２０１６年６月２７日　月曜日　午後５時２１分

185

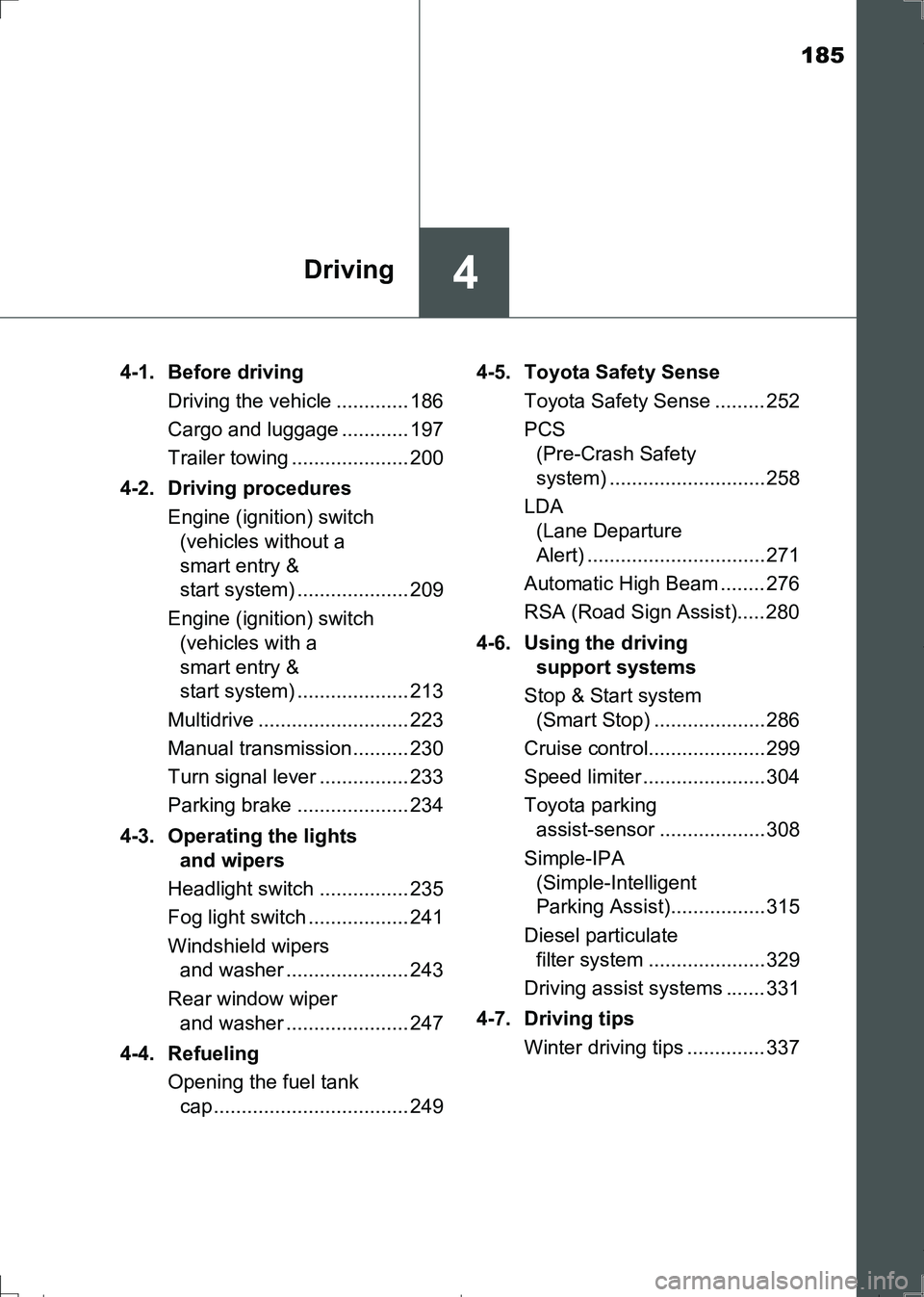

4Driving
AURIS Touring Sports_EE (12L13E)4-1. Before driving
Driving the vehicle ............. 186
Cargo and luggage ............ 197
Trailer towing ..................... 200
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a
smart entry &
start system) .................... 209
Engine (ignition) switch
(vehicles with a
smart entry &
start system) .................... 213
Multidrive ........................... 223
Manual transmission .......... 230
Turn signal lever ................ 233
Parking brake .................... 234
4-3. Operating the lights
and wipers
Headlight switch ................ 235
Fog light switch .................. 241
Windshield wipers
and washer ...................... 243
Rear window wiper
and washer ...................... 247
4-4. Refueling
Opening the fuel tank
cap ................................... 2494-5. Toyota Safety Sense
Toyota Safety Sense ......... 252
PCS
(Pre-Crash Safety
system) ............................ 258
LDA
(Lane Departure
Alert) ................................ 271
Automatic High Beam ........ 276
RSA (Road Sign Assist)..... 280
4-6. Using the driving
support systems
Stop & Start system
(Smart Stop) .................... 286
Cruise control..................... 299
Speed limiter ...................... 304
Toyota parking
assist-sensor ................... 308
Simple-IPA
(Simple-Intelligent
Parking Assist)................. 315
Diesel particulate
filter system ..................... 329
Driving assist systems ....... 331
4-7. Driving tips
Winter driving tips .............. 337
AURIS Touring Sports_OM_Europe_OM12L13E.book 185 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1884-1. Before driving
AURIS Touring Sports_EE (12L13E)

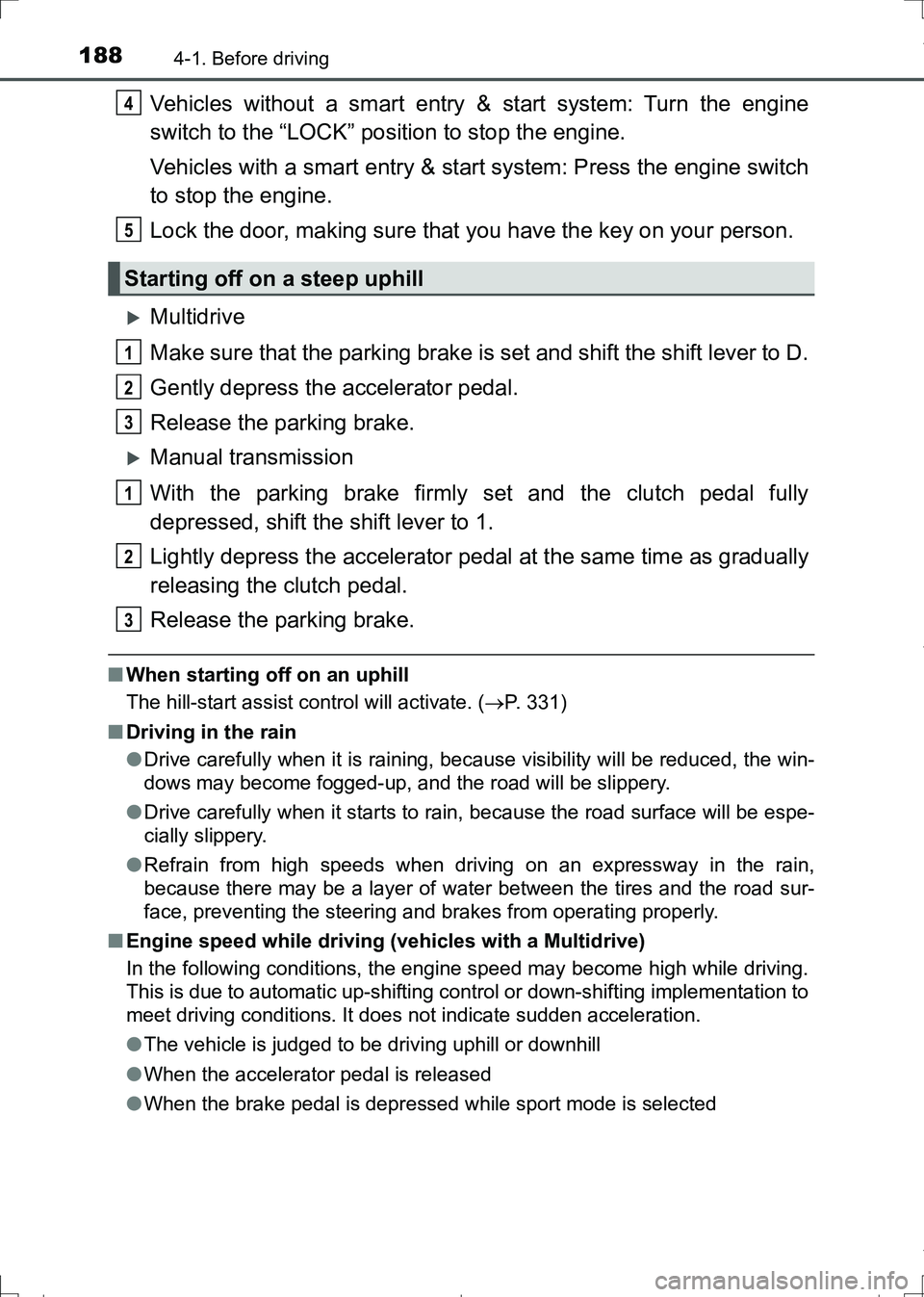

Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
Multidrive
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
■When starting off on an uphill
The hill-start assist control will activate. (P. 331)
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
●Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■Engine speed while driving (vehicles with a Multidrive)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
●When the accelerator pedal is released
●When the brake pedal is depressed while sport mode is selected
Starting off on a steep uphill
4
5
1
2
3
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 188 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2194-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving

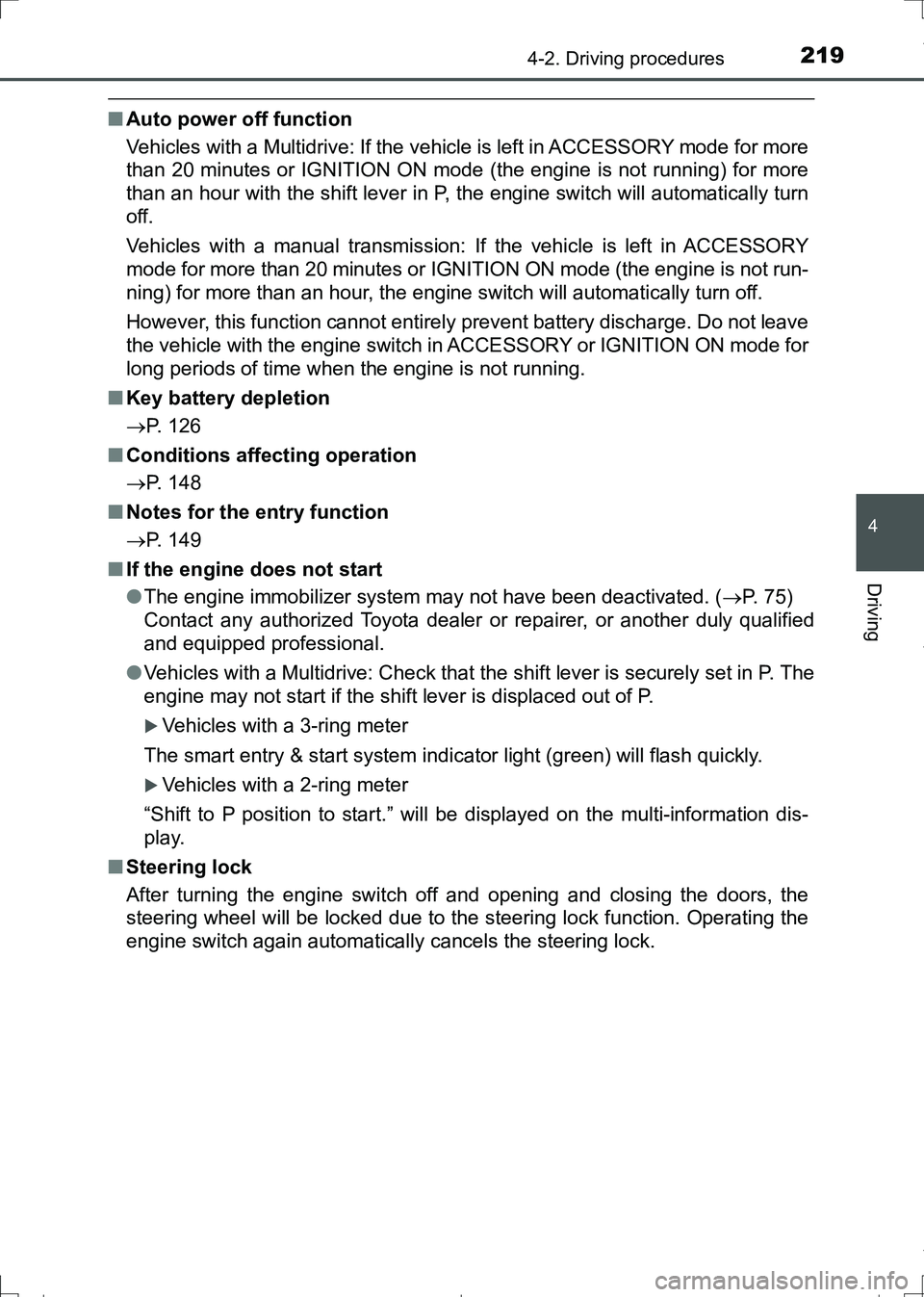

■Auto power off function
Vehicles with a Multidrive: If the vehicle is left in ACCESSORY mode for more
than 20 minutes or IGNITION ON mode (the engine is not running) for more
than an hour with the shift lever in P, the engine switch will automatically turn
off.
Vehicles with a manual transmission: If the vehicle is left in ACCESSORY
mode for more than 20 minutes or IGNITION ON mode (the engine is not run-
ning) for more than an hour, the engine switch will automatically turn off.
However, this function cannot entirely prevent battery discharge. Do not leave
the vehicle with the engine switch in ACCESSORY or IGNITION ON mode for
long periods of time when the engine is not running.
■Key battery depletion
P. 126
■Conditions affecting operation
P. 148
■Notes for the entry function
P. 149
■If the engine does not start
●The engine immobilizer system may not have been deactivated. (P. 75)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●Vehicles with a Multidrive: Check that the shift lever is securely set in P. The
engine may not start if the shift lever is displaced out of P.
Vehicles with a 3-ring meter
The smart entry & start system indicator light (green) will flash quickly.
Vehicles with a 2-ring meter
“Shift to P position to start.” will be displayed on the multi-information dis-
play.
■Steering lock
After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
engine switch again automatically cancels the steering lock.
AURIS Touring Sports_OM_Europe_OM12L13E.book 219 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2264-2. Driving procedures
AURIS Touring Sports_EE (12L13E)

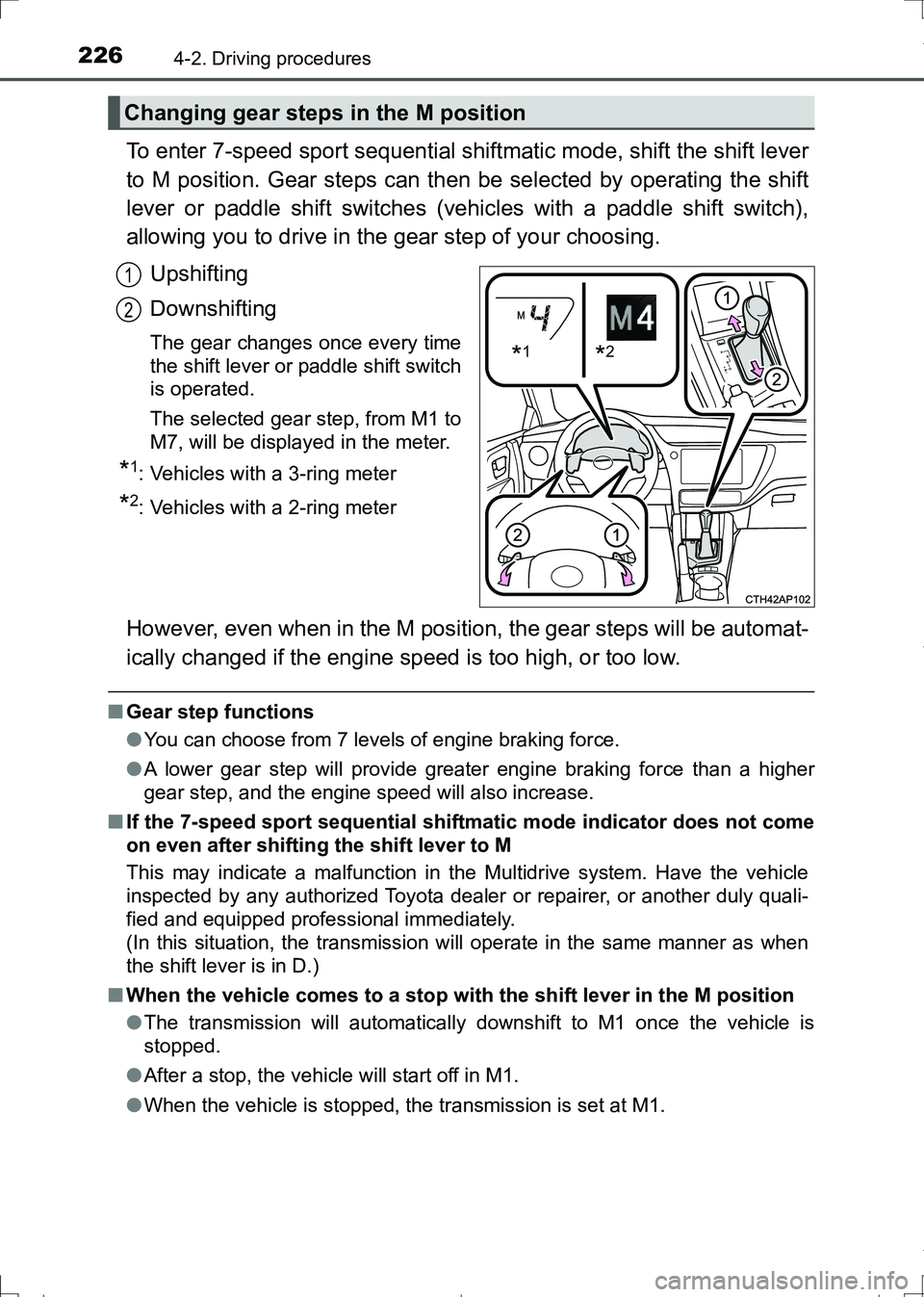

To enter 7-speed sport sequential shiftmatic mode, shift the shift lever
to M position. Gear steps can then be selected by operating the shift
lever or paddle shift switches (vehicles with a paddle shift switch),
allowing you to drive in the gear step of your choosing.
Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear step, from M1 to
M7, will be displayed in the meter.
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
However, even when in the M position, the gear steps will be automat-
ically changed if the engine speed is too high, or too low.
■Gear step functions
●You can choose from 7 levels of engine braking force.
●A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
■If the 7-speed sport sequential shiftmatic mode indicator does not come
on even after shifting the shift lever to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■When the vehicle comes to a stop with the shift lever in the M position
●The transmission will automatically downshift to M1 once the vehicle is
stopped.
●After a stop, the vehicle will start off in M1.
●When the vehicle is stopped, the transmission is set at M1.
Changing gear steps in the M position
*1*2
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 226 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2904-6. Using the driving support systems

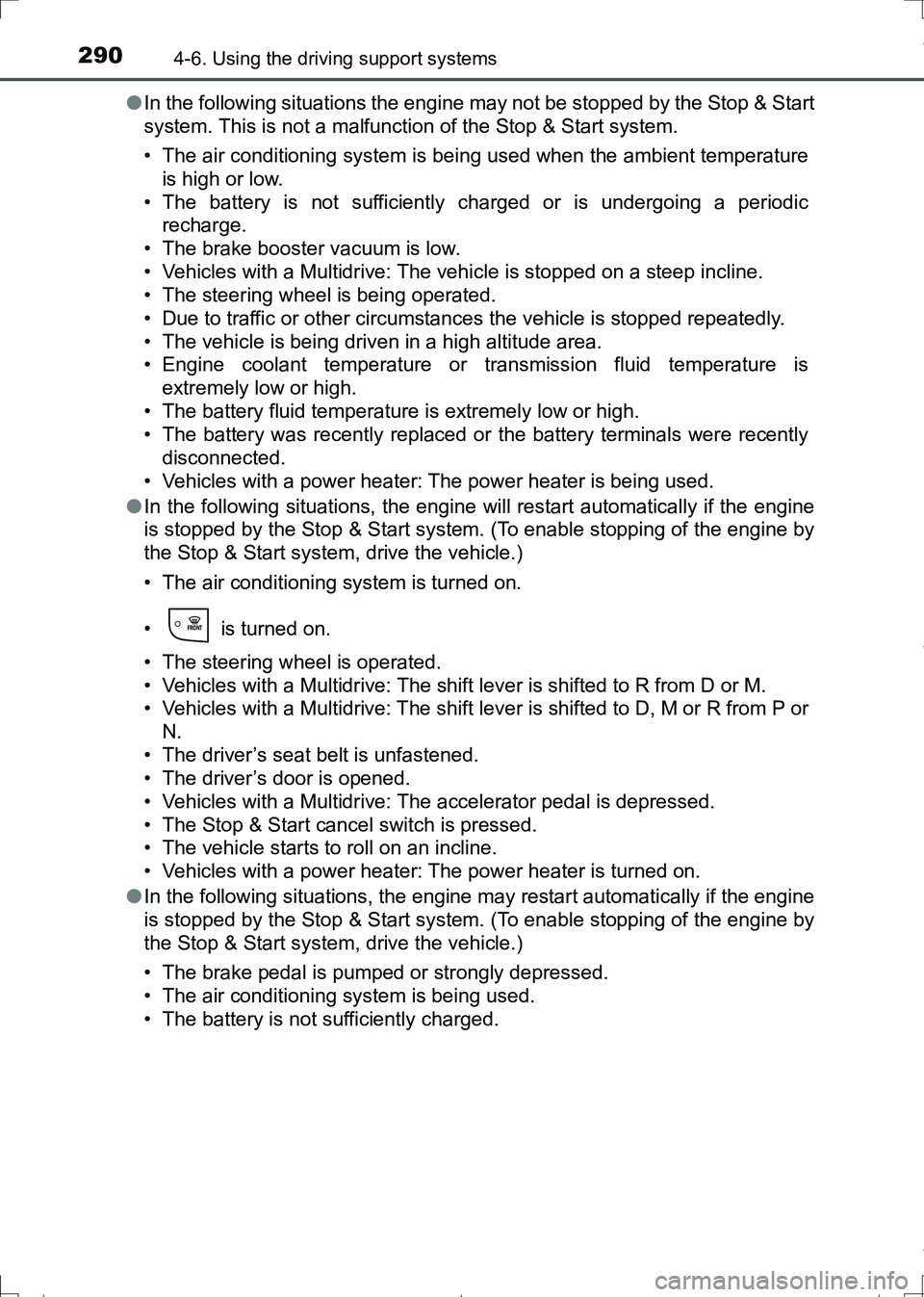

AURIS Touring Sports_EE (12L13E)●In the following situations the engine may not be stopped by the Stop & Start
system. This is not a malfunction of the Stop & Start system.
• The air conditioning system is being used when the ambient temperature
is high or low.
• The battery is not sufficiently charged or is undergoing a periodic
recharge.
• The brake booster vacuum is low.
• Vehicles with a Multidrive: The vehicle is stopped on a steep incline.
• The steering wheel is being operated.
• Due to traffic or other circumstances the vehicle is stopped repeatedly.
• The vehicle is being driven in a high altitude area.
• Engine coolant temperature or transmission fluid temperature is
extremely low or high.
• The battery fluid temperature is extremely low or high.
• The battery was recently replaced or the battery terminals were recently
disconnected.
• Vehicles with a power heater: The power heater is being used.
●In the following situations, the engine will restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The air conditioning system is turned on.
• is turned on.
• The steering wheel is operated.
• Vehicles with a Multidrive: The shift lever is shifted to R from D or M.
• Vehicles with a Multidrive: The shift lever is shifted to D, M or R from P or
N.
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• Vehicles with a Multidrive: The accelerator pedal is depressed.
• The Stop & Start cancel switch is pressed.
• The vehicle starts to roll on an incline.
• Vehicles with a power heater: The power heater is turned on.
●In the following situations, the engine may restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The brake pedal is pumped or strongly depressed.
• The air conditioning system is being used.
• The battery is not sufficiently charged.
AURIS Touring Sports_OM_Europe_OM12L13E.book 290 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2914-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving

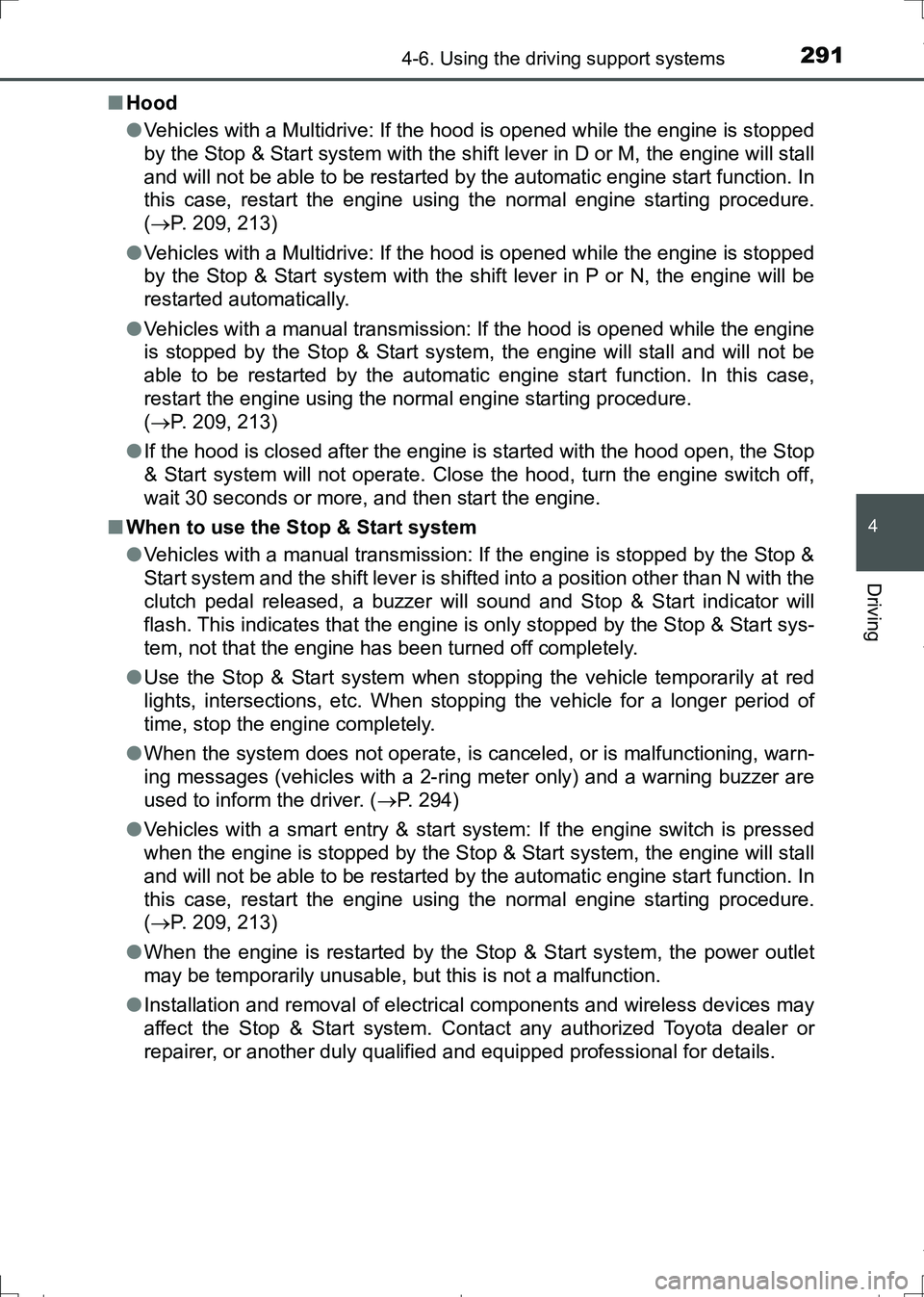

■Hood
●Vehicles with a Multidrive: If the hood is opened while the engine is stopped
by the Stop & Start system with the shift lever in D or M, the engine will stall
and will not be able to be restarted by the automatic engine start function. In
this case, restart the engine using the normal engine starting procedure.
(P. 209, 213)
●Vehicles with a Multidrive: If the hood is opened while the engine is stopped
by the Stop & Start system with the shift lever in P or N, the engine will be
restarted automatically.
●Vehicles with a manual transmission: If the hood is opened while the engine
is stopped by the Stop & Start system, the engine will stall and will not be
able to be restarted by the automatic engine start function. In this case,
restart the engine using the normal engine starting procedure.
(P. 209, 213)
●If the hood is closed after the engine is started with the hood open, the Stop
& Start system will not operate. Close the hood, turn the engine switch off,
wait 30 seconds or more, and then start the engine.
■When to use the Stop & Start system
●Vehicles with a manual transmission: If the engine is stopped by the Stop &
Start system and the shift lever is shifted into a position other than N with the
clutch pedal released, a buzzer will sound and Stop & Start indicator will
flash. This indicates that the engine is only stopped by the Stop & Start sys-
tem, not that the engine has been turned off completely.
●Use the Stop & Start system when stopping the vehicle temporarily at red
lights, intersections, etc. When stopping the vehicle for a longer period of
time, stop the engine completely.
●When the system does not operate, is canceled, or is malfunctioning, warn-
ing messages (vehicles with a 2-ring meter only) and a warning buzzer are
used to inform the driver. (P. 294)
●Vehicles with a smart entry & start system: If the engine switch is pressed
when the engine is stopped by the Stop & Start system, the engine will stall
and will not be able to be restarted by the automatic engine start function. In
this case, restart the engine using the normal engine starting procedure.
(P. 209, 213)
●When the engine is restarted by the Stop & Start system, the power outlet
may be temporarily unusable, but this is not a malfunction.
●Installation and removal of electrical components and wireless devices may
affect the Stop & Start system. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details.
AURIS Touring Sports_OM_Europe_OM12L13E.book 291 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2964-6. Using the driving support systems

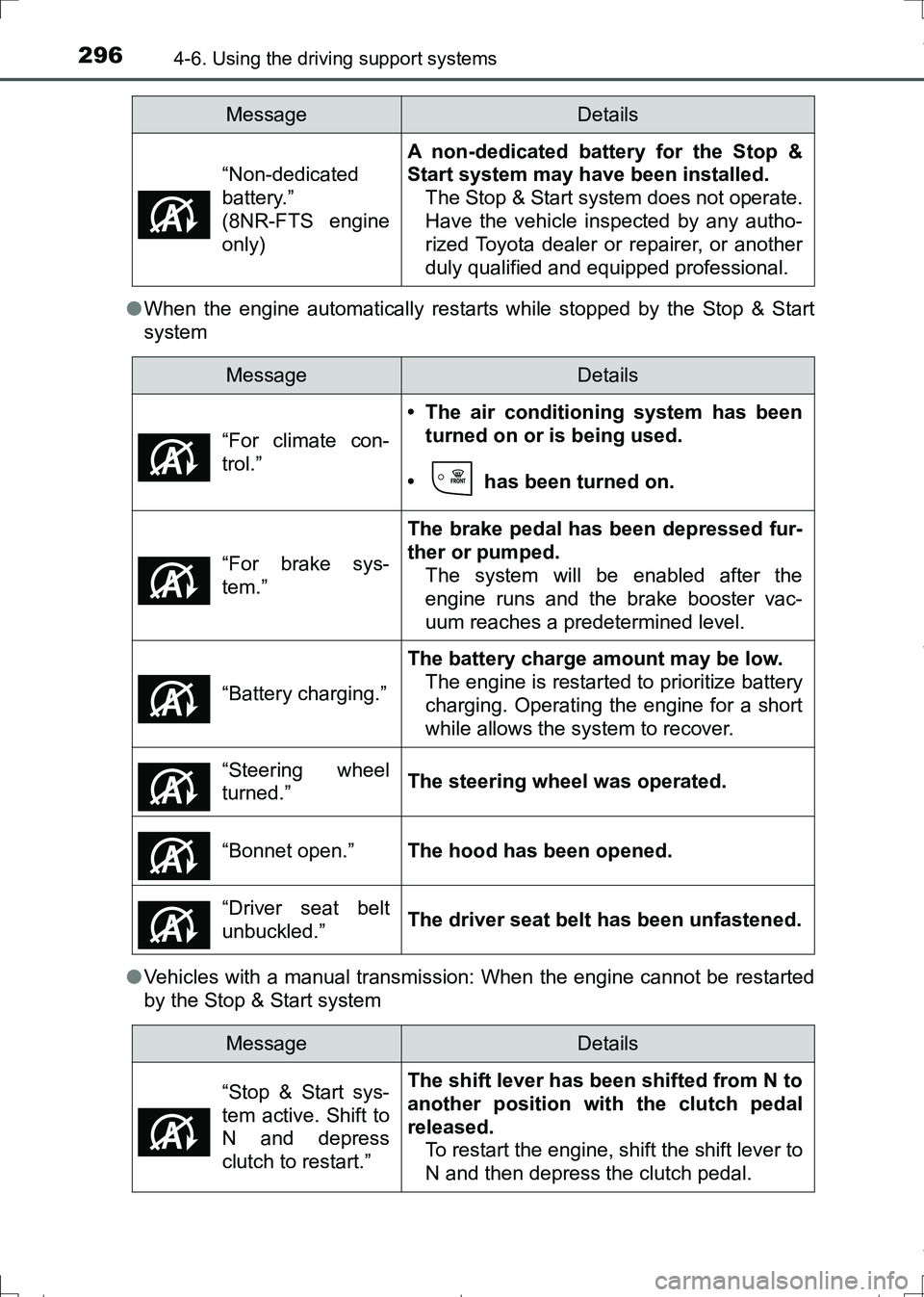

AURIS Touring Sports_EE (12L13E)●When the engine automatically restarts while stopped by the Stop & Start
system
●Vehicles with a manual transmission: When the engine cannot be restarted
by the Stop & Start system“Non-dedicated
battery.”
(8NR-FTS engine
only)
A non-dedicated battery for the Stop &
Start system may have been installed.
The Stop & Start system does not operate.
Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
MessageDetails
MessageDetails
“For climate con-
trol.”
• The air conditioning system has been
turned on or is being used.
• has been turned on.
“For brake sys-
tem.”
The brake pedal has been depressed fur-
ther or pumped.
The system will be enabled after the
engine runs and the brake booster vac-
uum reaches a predetermined level.
“Battery charging.”
The battery charge amount may be low.
The engine is restarted to prioritize battery
charging. Operating the engine for a short
while allows the system to recover.
“Steering wheel
turned.”
The steering wheel was operated.
“Bonnet open.”
The hood has been opened.
“Driver seat belt
unbuckled.”
The driver seat belt has been unfastened.
MessageDetails
“Stop & Start sys-
tem active. Shift to
N and depress
clutch to restart.”
The shift lever has been shifted from N to
another position with the clutch pedal
released.
To restart the engine, shift the shift lever to
N and then depress the clutch pedal.
AURIS Touring Sports_OM_Europe_OM12L13E.book 296 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2974-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving

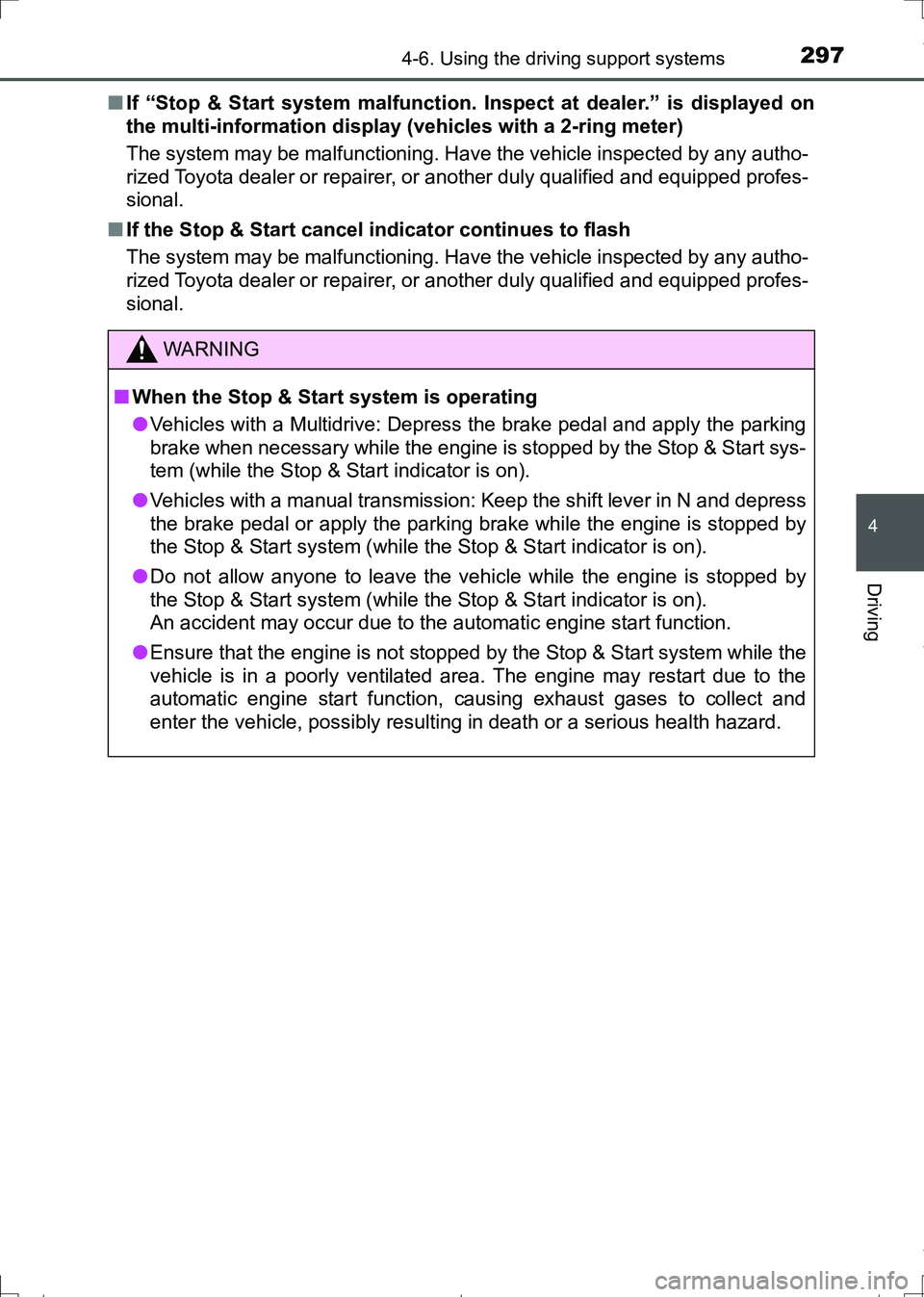

■If “Stop & Start system malfunction. Inspect at dealer.” is displayed on
the multi-information display (vehicles with a 2-ring meter)
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
■If the Stop & Start cancel indicator continues to flash
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■When the Stop & Start system is operating
●Vehicles with a Multidrive: Depress the brake pedal and apply the parking
brake when necessary while the engine is stopped by the Stop & Start sys-
tem (while the Stop & Start indicator is on).
●Vehicles with a manual transmission: Keep the shift lever in N and depress
the brake pedal or apply the parking brake while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
●Do not allow anyone to leave the vehicle while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
●Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.
AURIS Touring Sports_OM_Europe_OM12L13E.book 297 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3024-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)

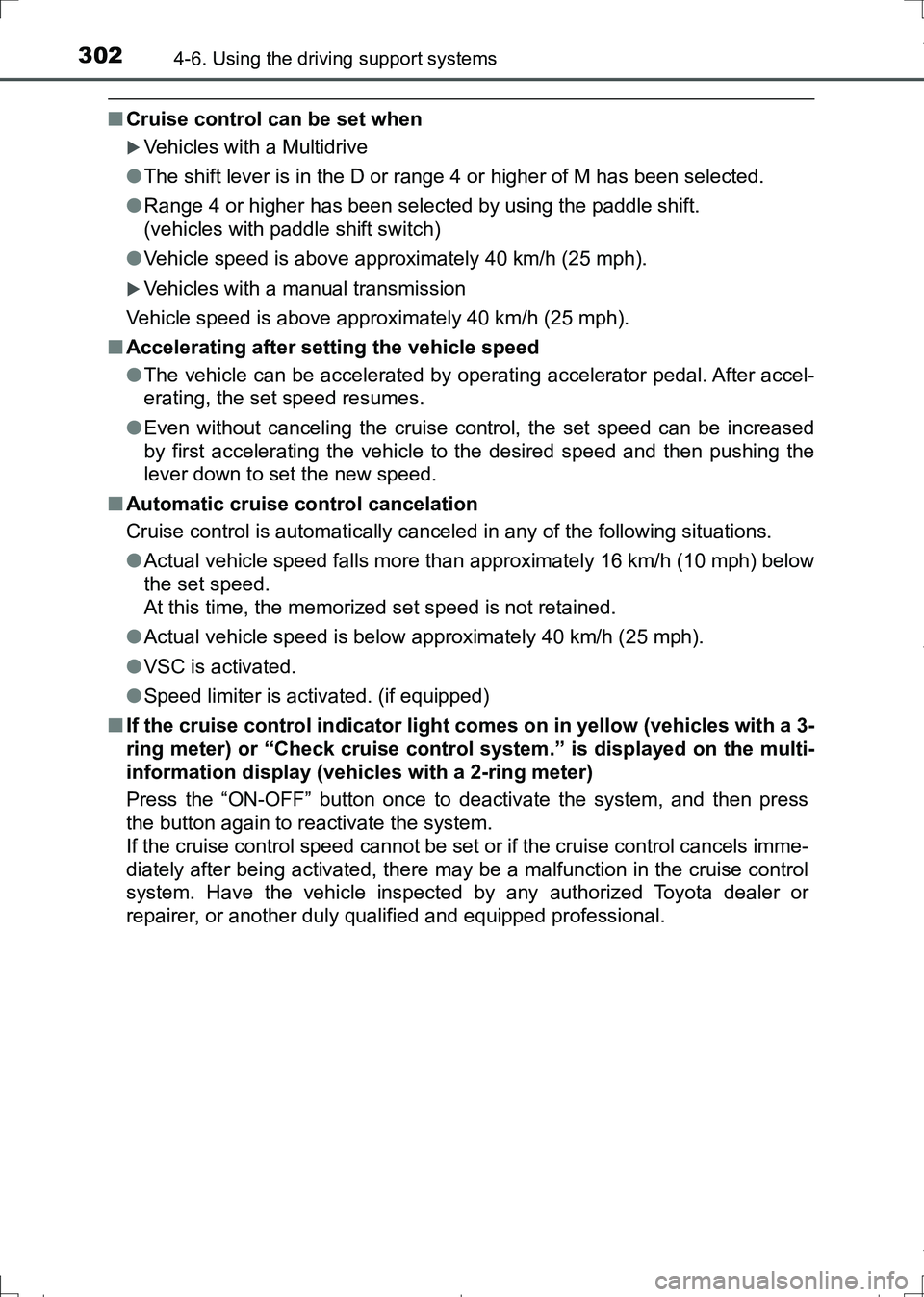

■Cruise control can be set when
Vehicles with a Multidrive
●The shift lever is in the D or range 4 or higher of M has been selected.
●Range 4 or higher has been selected by using the paddle shift.
(vehicles with paddle shift switch)
●Vehicle speed is above approximately 40 km/h (25 mph).
Vehicles with a manual transmission
Vehicle speed is above approximately 40 km/h (25 mph).
■Accelerating after setting the vehicle speed
●The vehicle can be accelerated by operating accelerator pedal. After accel-
erating, the set speed resumes.
●Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■Automatic cruise control cancelation
Cruise control is automatically canceled in any of the following situations.
●Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the set speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed is below approximately 40 km/h (25 mph).
●VSC is activated.
●Speed limiter is activated. (if equipped)
■If the cruise control indicator light comes on in yellow (vehicles with a 3-
ring meter) or “Check cruise control system.” is displayed on the multi-
information display (vehicles with a 2-ring meter)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
AURIS Touring Sports_OM_Europe_OM12L13E.book 302 ページ ２０１６年６月２７日　月曜日　午後５時２１分
