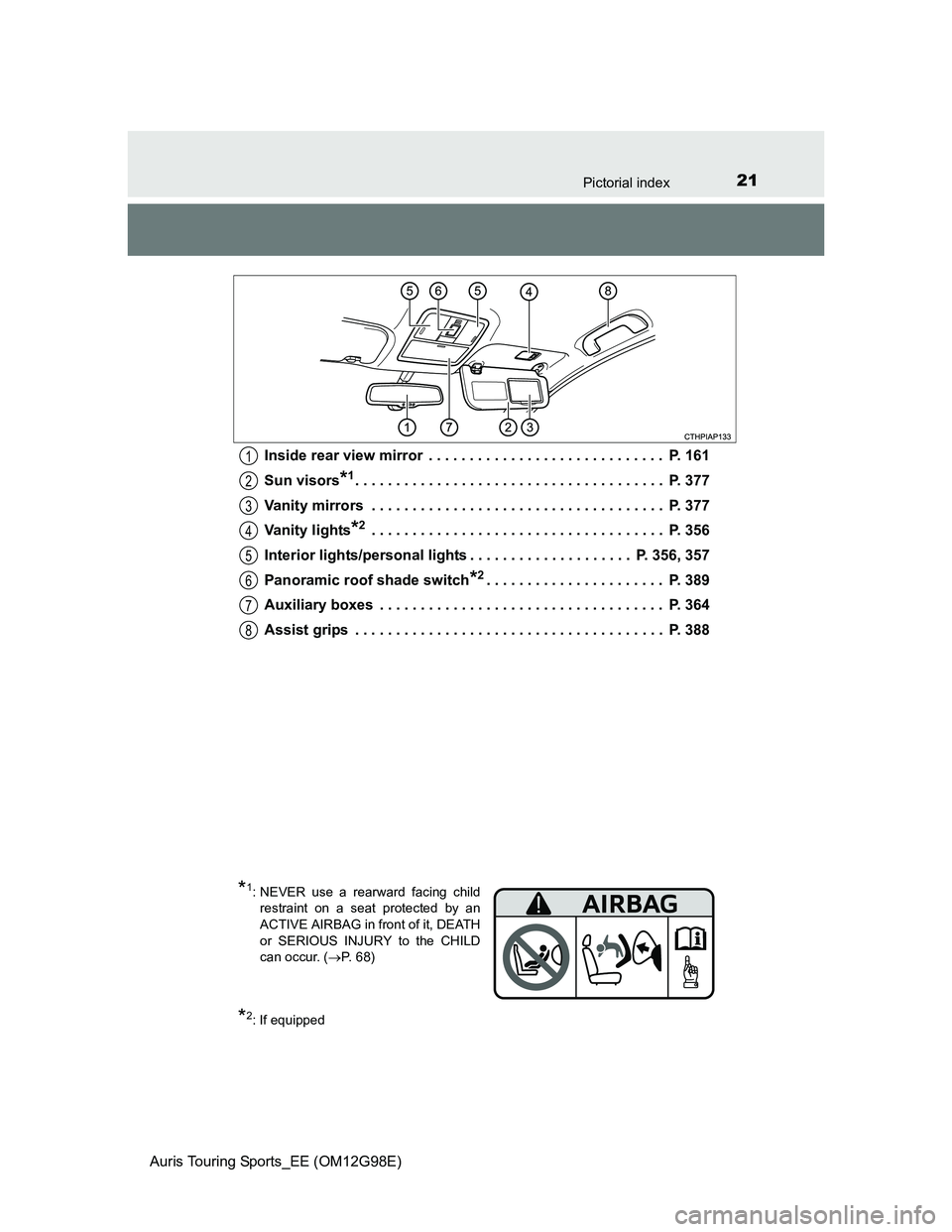

21Pictorial index
Auris Touring Sports_EE (OM12G98E)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Vanity lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 356, 357
Panoramic roof shade switch
*2. . . . . . . . . . . . . . . . . . . . . . P. 389
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
1
2
3
4
5
6
7
8
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. (P. 6 8 )
*2: If equipped
Page 22 of 632
22Pictorial index
Auris Touring Sports_EE (OM12G98E)

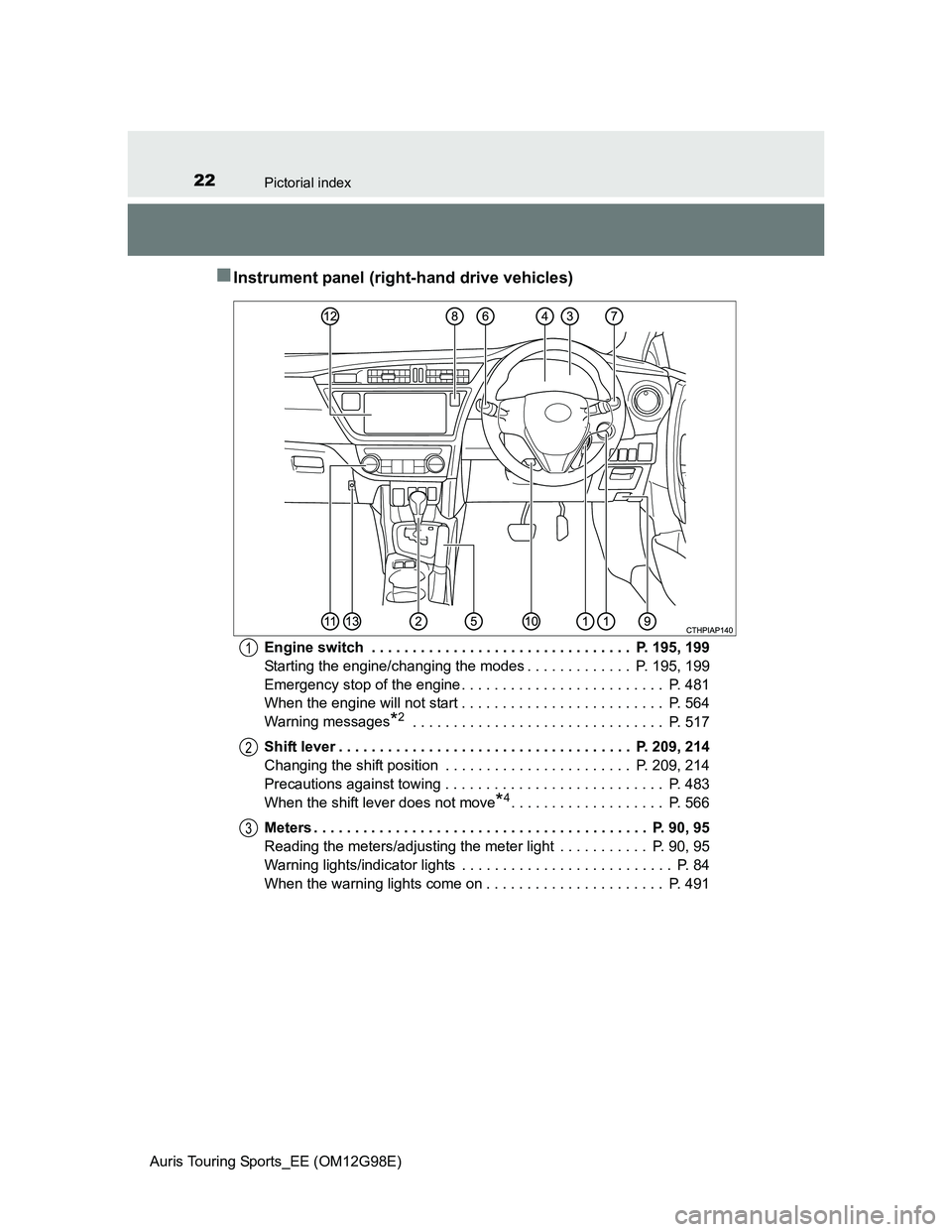

Instrument panel (right-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195, 199
Starting the engine/changing the modes . . . . . . . . . . . . . P. 195, 199
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 564
Warning messages
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 517
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209, 214
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . P. 209, 214
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
When the shift lever does not move
*4. . . . . . . . . . . . . . . . . . . P. 566
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90, 95
Reading the meters/adjusting the meter light . . . . . . . . . . . P. 90, 95
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 84
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 491
1
2
3
Page 23 of 632
23Pictorial index
Auris Touring Sports_EE (OM12G98E)Drive monitor display
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90
Multi-information display
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 95
When a warning message or indicator is displayed . . . . . . . . P. 507
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 286
Warning buzzer/message
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Front fog lights
*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 232
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 423
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 480
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 160
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
Heater system
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Air conditioning system
*1 . . . . . . . . . . . . . . . . . . . . . . P. 295, 304
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 295, 304
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Audio system
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 316
Navigation/multimedia system
*1, 3
Trip information/past record . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 109
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 428
*1: If equipped
*2: Vehicles with a multi-information display
*3: Refer to “Navigation and multimedia system Owner’s manual”.
*4: Vehicles with a Multidrive
4
5
6
7
8
9
10
11
12
13
Page 24 of 632
24Pictorial index
Auris Touring Sports_EE (OM12G98E)

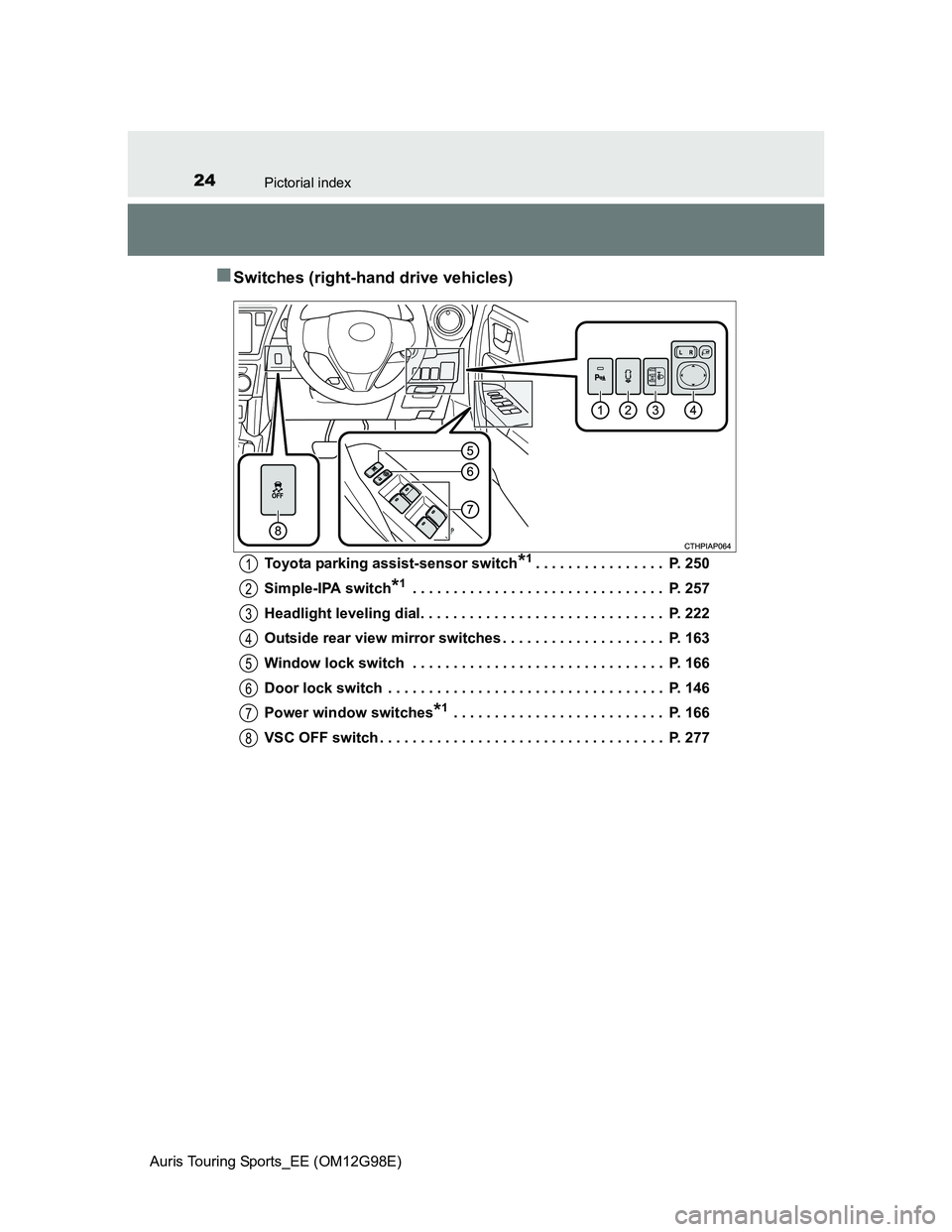

Switches (right-hand drive vehicles)
Toyota parking assist-sensor switch*1. . . . . . . . . . . . . . . . P. 250
Simple-IPA switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 257
Headlight leveling dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 163
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Power window switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
1
2
3
4
5
6
7
8
Page 25 of 632
25Pictorial index

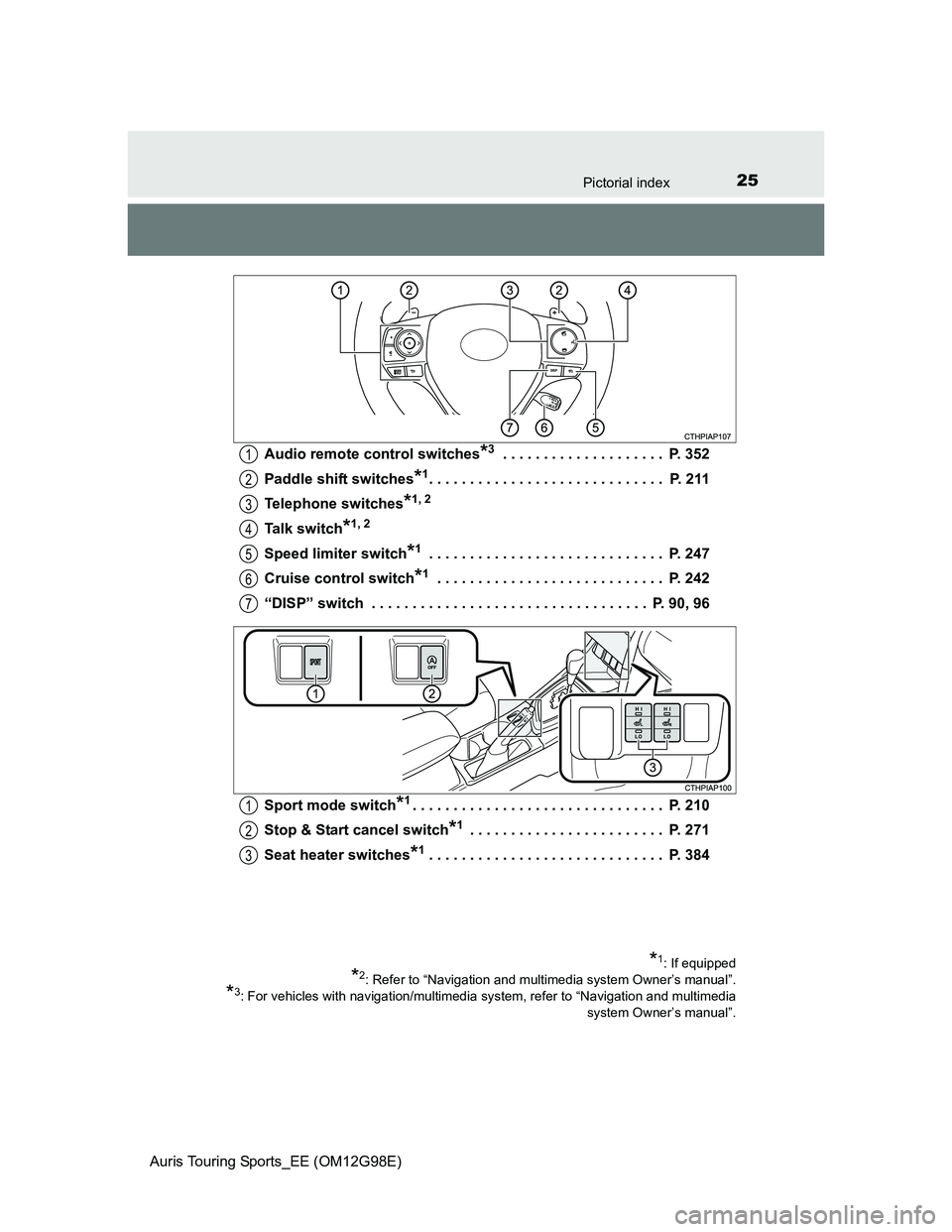

Auris Touring Sports_EE (OM12G98E)Audio remote control switches
*3 . . . . . . . . . . . . . . . . . . . . P. 352
Paddle shift switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Telephone switches
*1, 2
Talk switch*1, 2
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Cruise control switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
“DISP” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90, 96
Sport mode switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Stop & Start cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Seat heater switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
*3: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia
system Owner’s manual”.
1
2
3
4
5
6
7
1
2
3
Page 26 of 632
26Pictorial index
Auris Touring Sports_EE (OM12G98E)

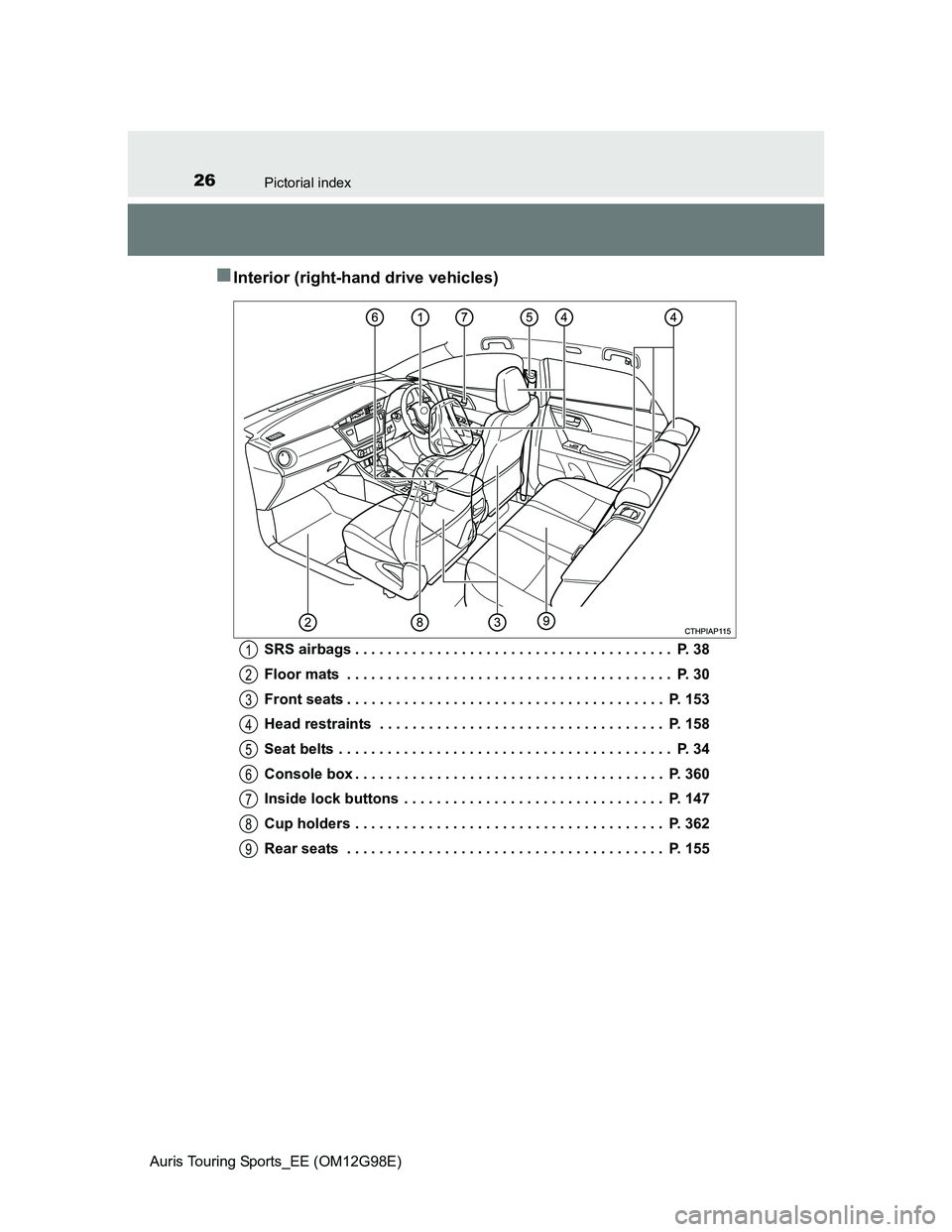

Interior (right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 153
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1551
2
3
4
5
6
7
8
9
Page 27 of 632
27Pictorial index

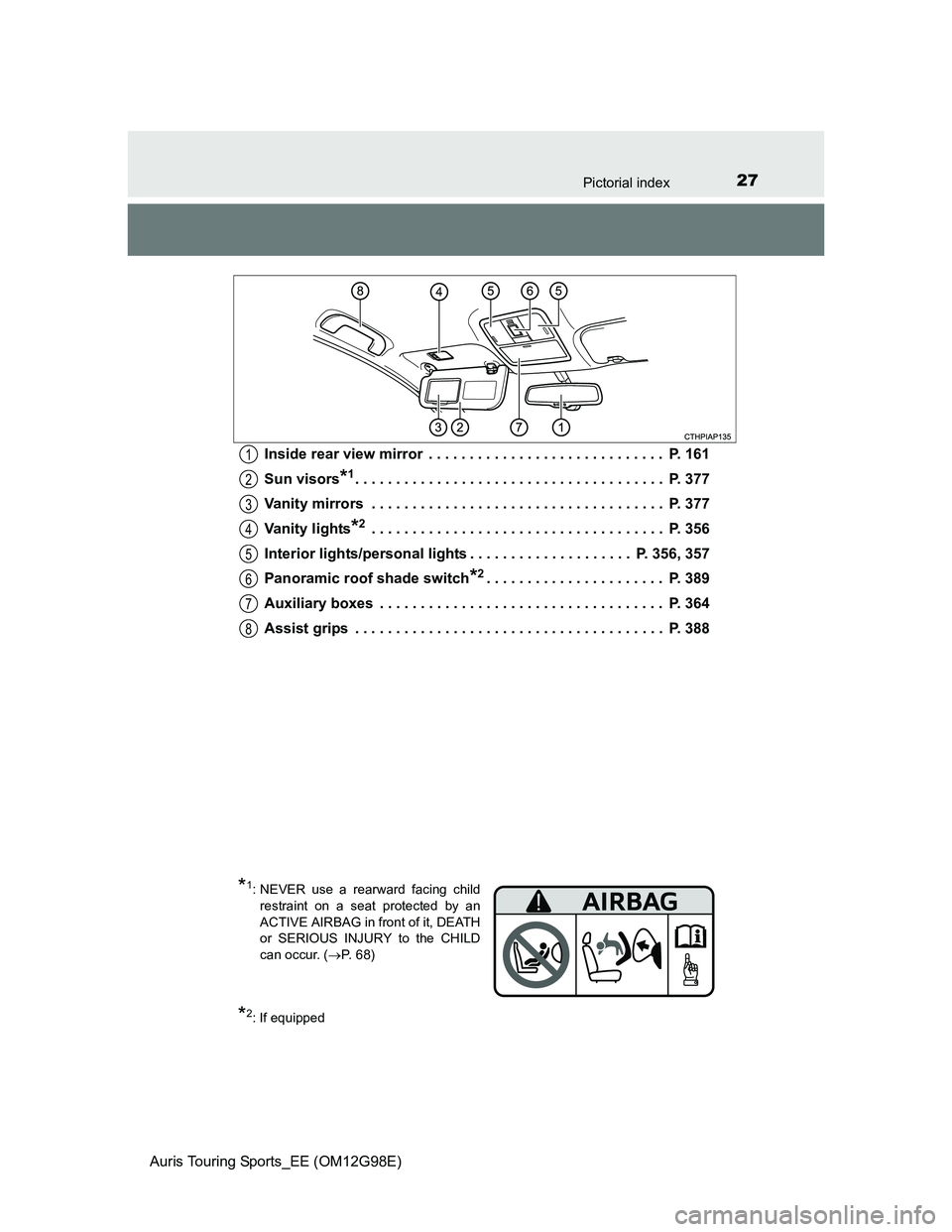

Auris Touring Sports_EE (OM12G98E)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Vanity lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 356, 357
Panoramic roof shade switch
*2. . . . . . . . . . . . . . . . . . . . . . P. 389
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
1
2
3
4
5
6
7
8
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. (P. 6 8 )
*2: If equipped
Page 28 of 632

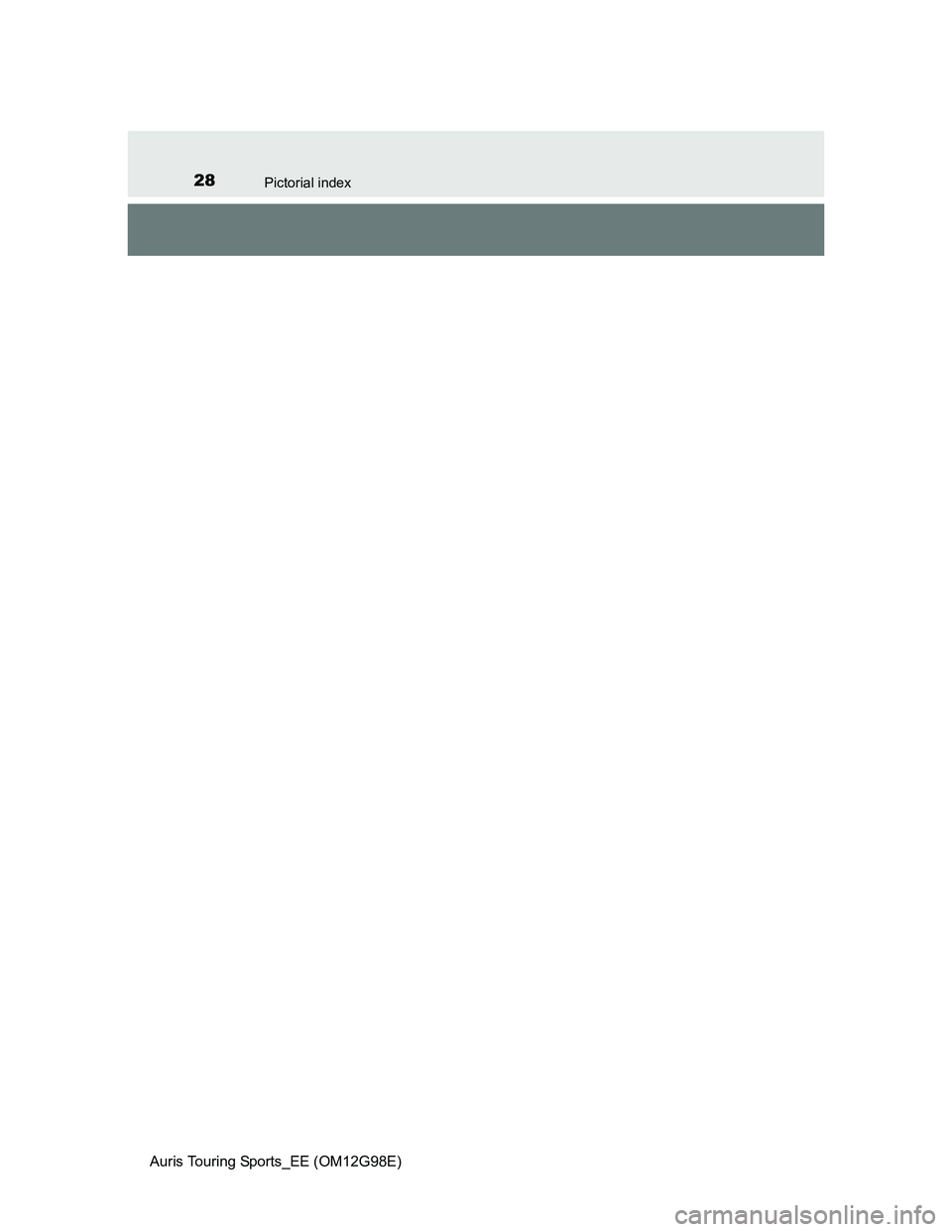

28Pictorial index
Auris Touring Sports_EE (OM12G98E)
Page 29 of 632
29

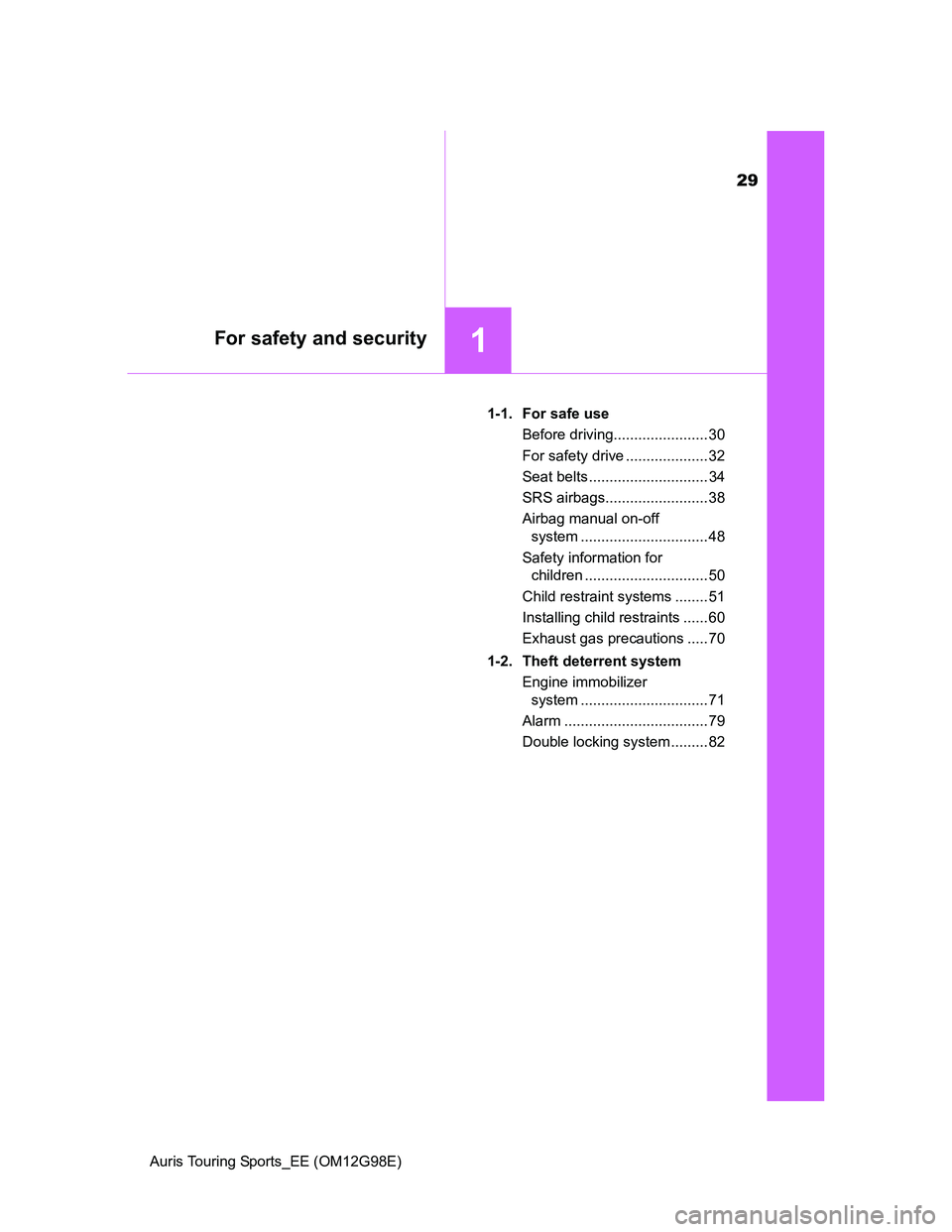

1For safety and security
Auris Touring Sports_EE (OM12G98E)1-1. For safe use
Before driving....................... 30
For safety drive .................... 32
Seat belts ............................. 34
SRS airbags......................... 38
Airbag manual on-off
system ............................... 48
Safety information for
children .............................. 50
Child restraint systems ........ 51
Installing child restraints ...... 60
Exhaust gas precautions ..... 70
1-2. Theft deterrent system
Engine immobilizer
system ............................... 71
Alarm ................................... 79
Double locking system ......... 82
Page 30 of 632
30
Auris Touring Sports_EE (OM12G98E)

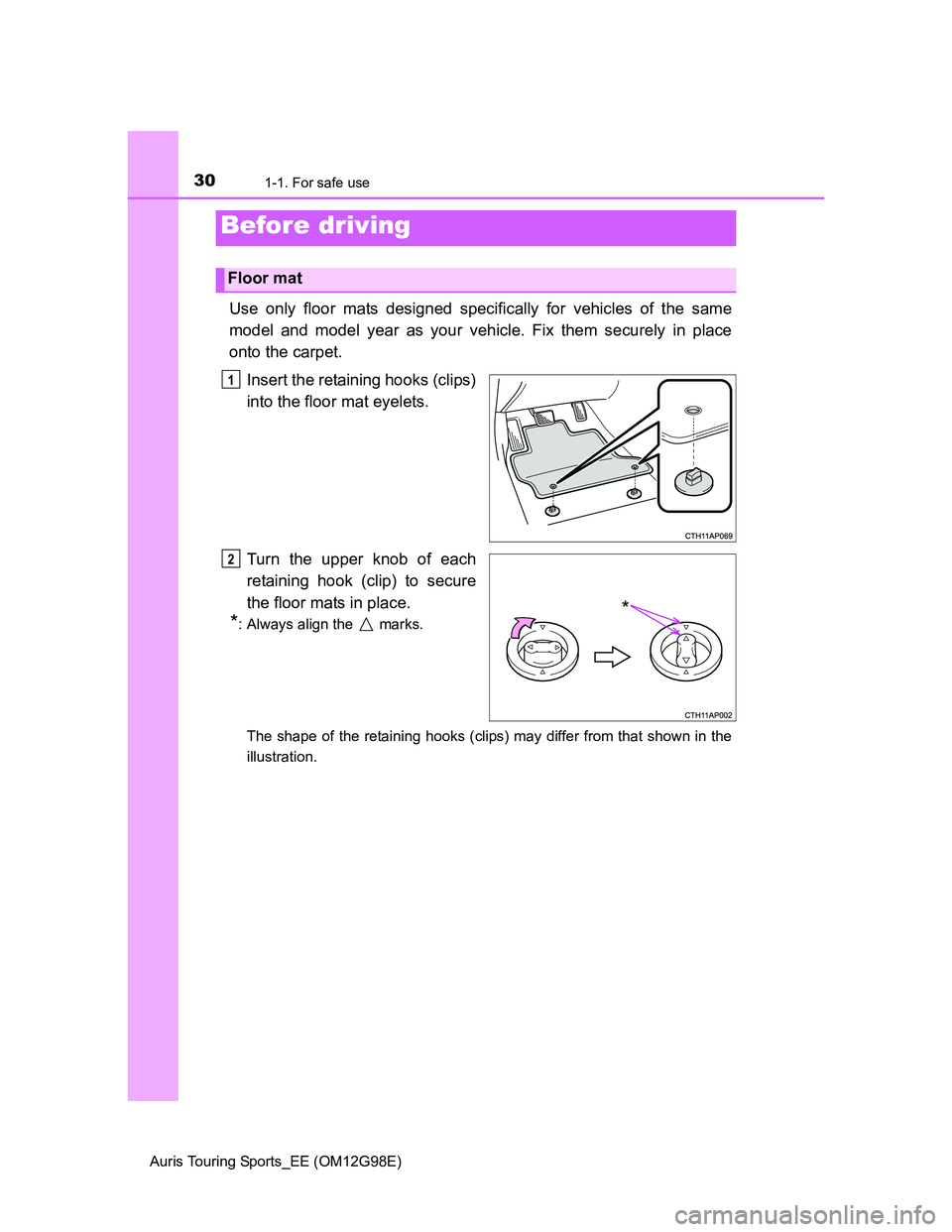

1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2
