TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

181
AURIS Touring Sports_EE (12K53E)
3
Operation of each component

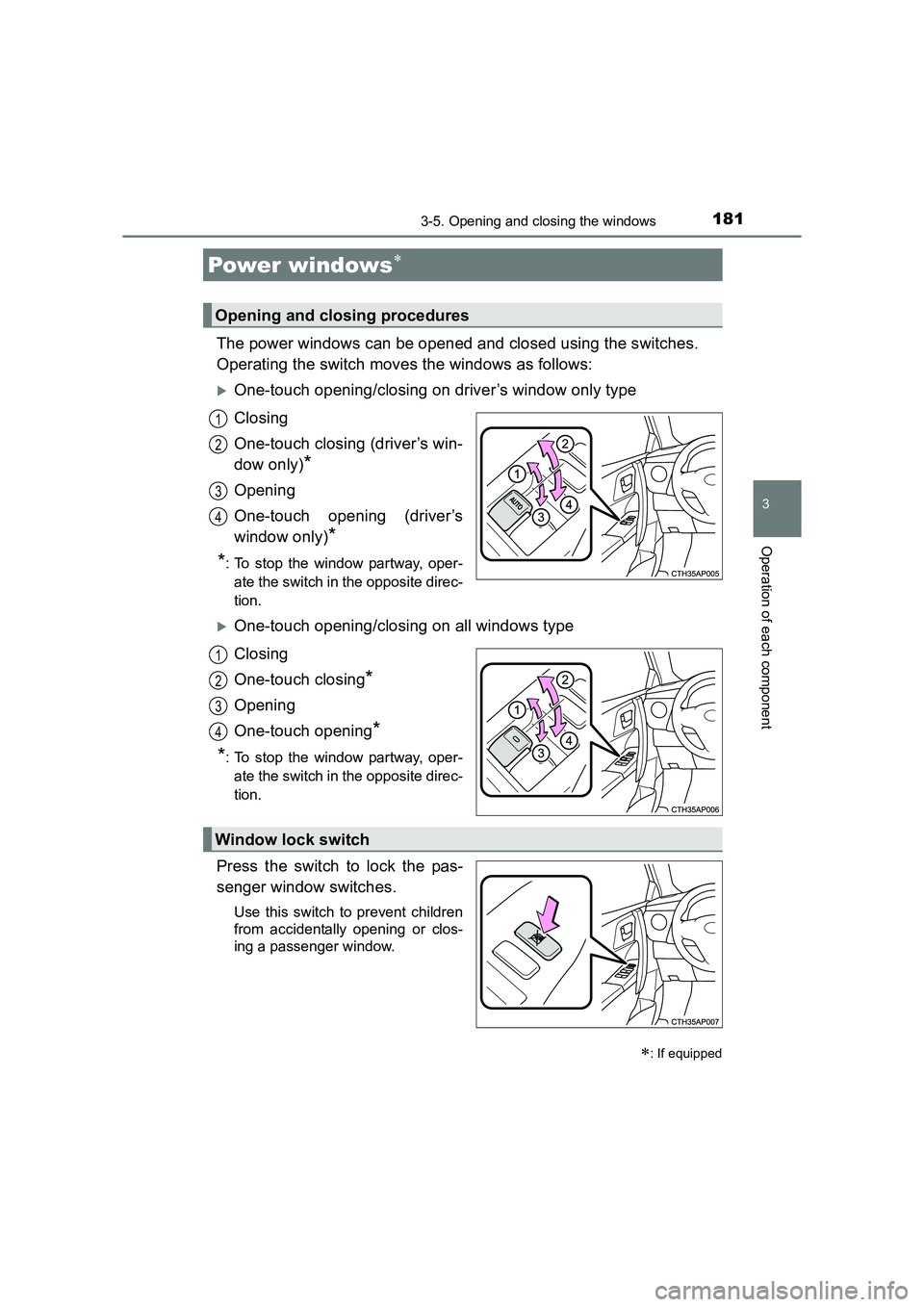

3-5. Opening and closing the windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
XOne-touch opening/closing on driver’s window only type
Closing
One-touch closing (driver’s win-
dow only)
*
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, oper- ate the switch in the opposite direc-
tion.
XOne-touch opening/closing on all windows type
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, oper- ate the switch in the opposite direc-
tion.
Press the switch to lock the pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Power windows∗
∗: If equipped
Opening and closing procedures
1
2
3
4
1
2
3
4
Window lock switch

1823-5. Opening and closing the windows
AURIS Touring Sports_EE (12K53E)

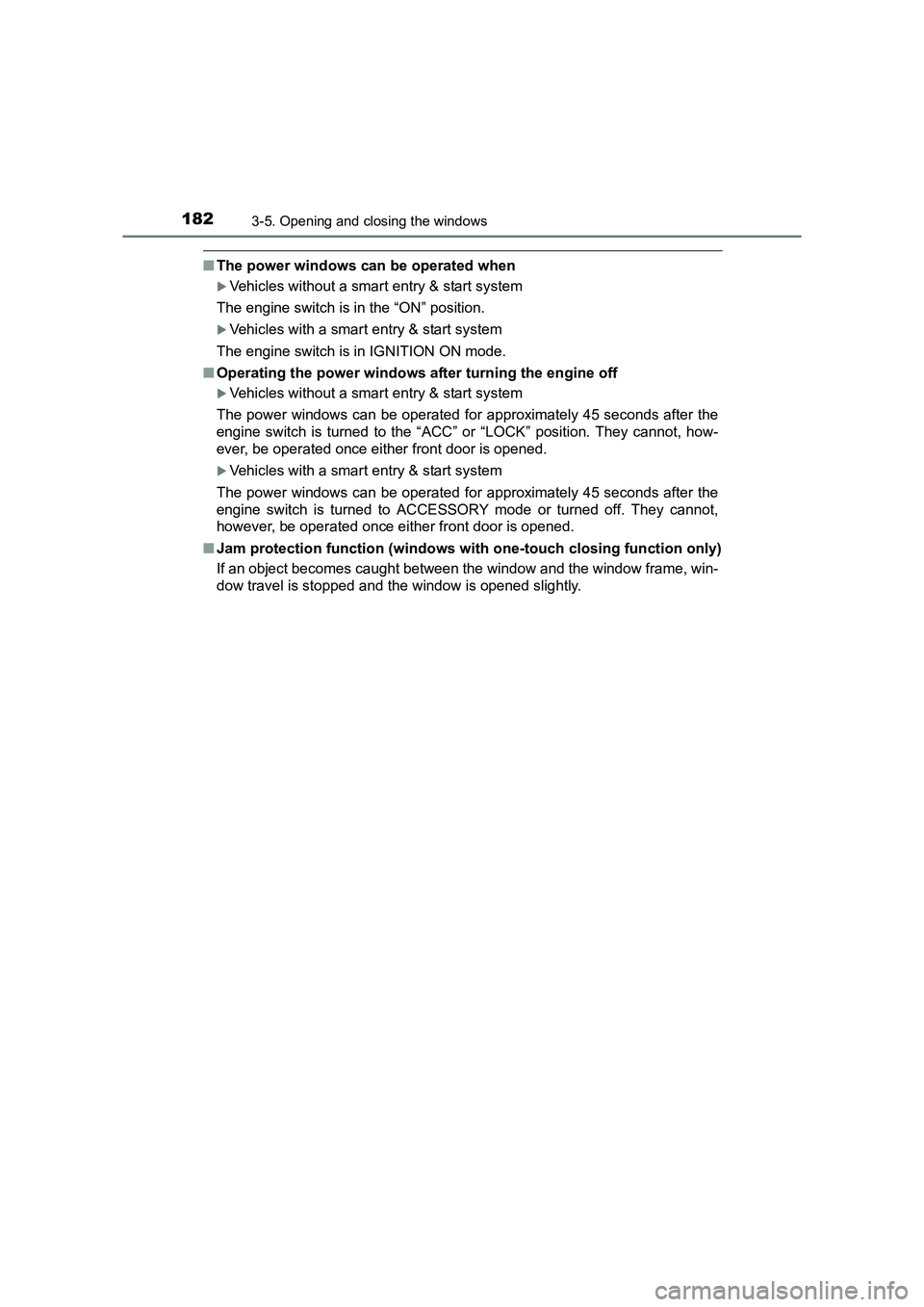

■The power windows can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ Operating the power windows after turning the engine off
XVehicles without a smart entry & start system
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. They cannot, how-
ever, be operated once either front door is opened.
XVehicles with a smart entry & start system
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to ACCESSORY mode or turned off. They cannot,
however, be operated once either front door is opened.
■ Jam protection function (windows with one-touch closing function only)
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.

1833-5. Opening and closing the windows
AURIS Touring Sports_EE (12K53E)
3
Operation of each component

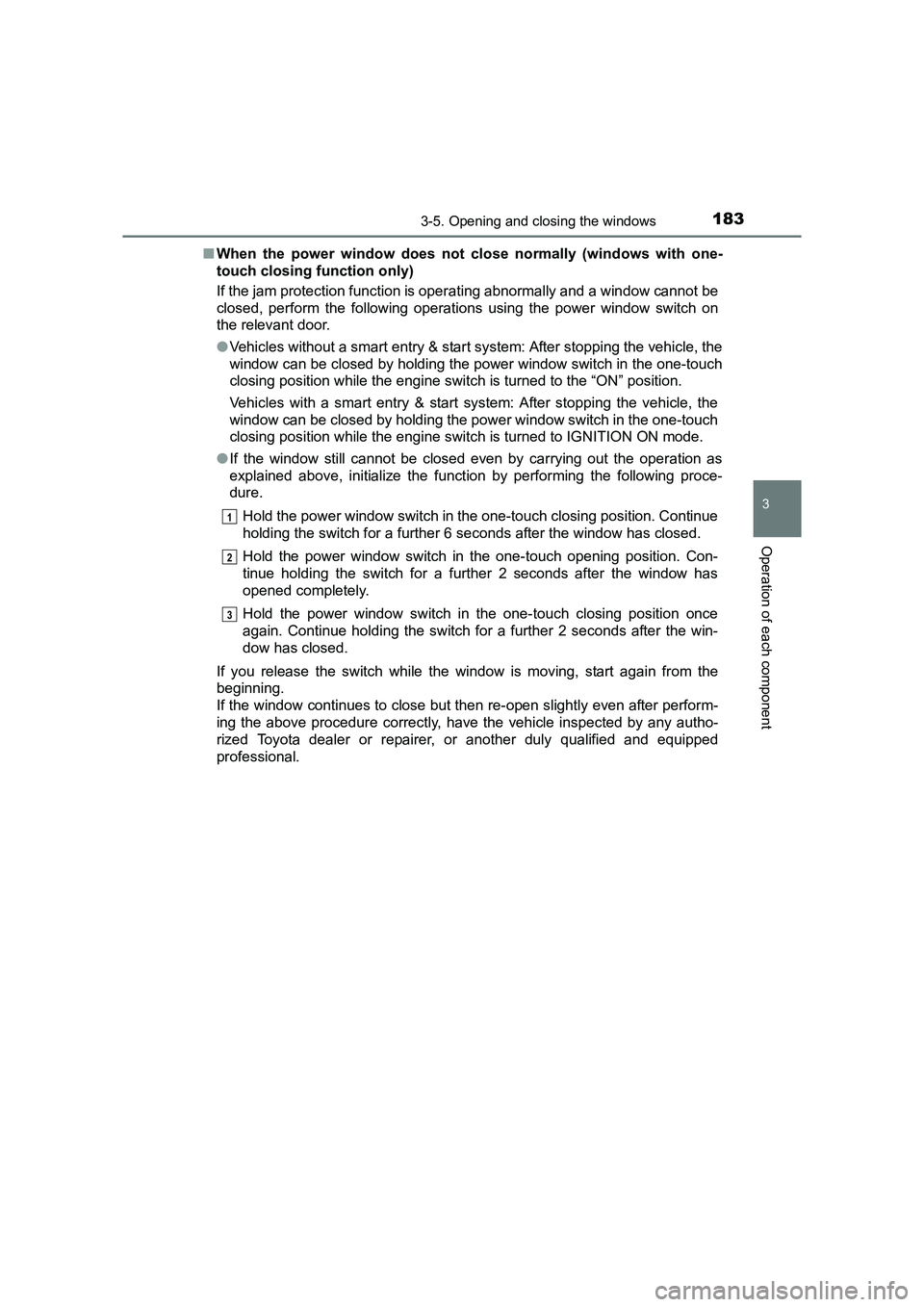

■When the power window does not close normally (windows with one-
touch closing function only)
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the relevant door.
●Vehicles without a smart entry & start system: After stopping the vehicle, the
window can be closed by holding the power window switch in the one-touch
closing position while the engine switch is turned to the “ON” position.
Vehicles with a smart entry & start system: After stopping the vehicle, the
window can be closed by holding the power window switch in the one-touch
closing position while the engine switch is turned to IGNITION ON mode.
● If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
1
2
3

1843-5. Opening and closing the windows
AURIS Touring Sports_EE (12K53E)

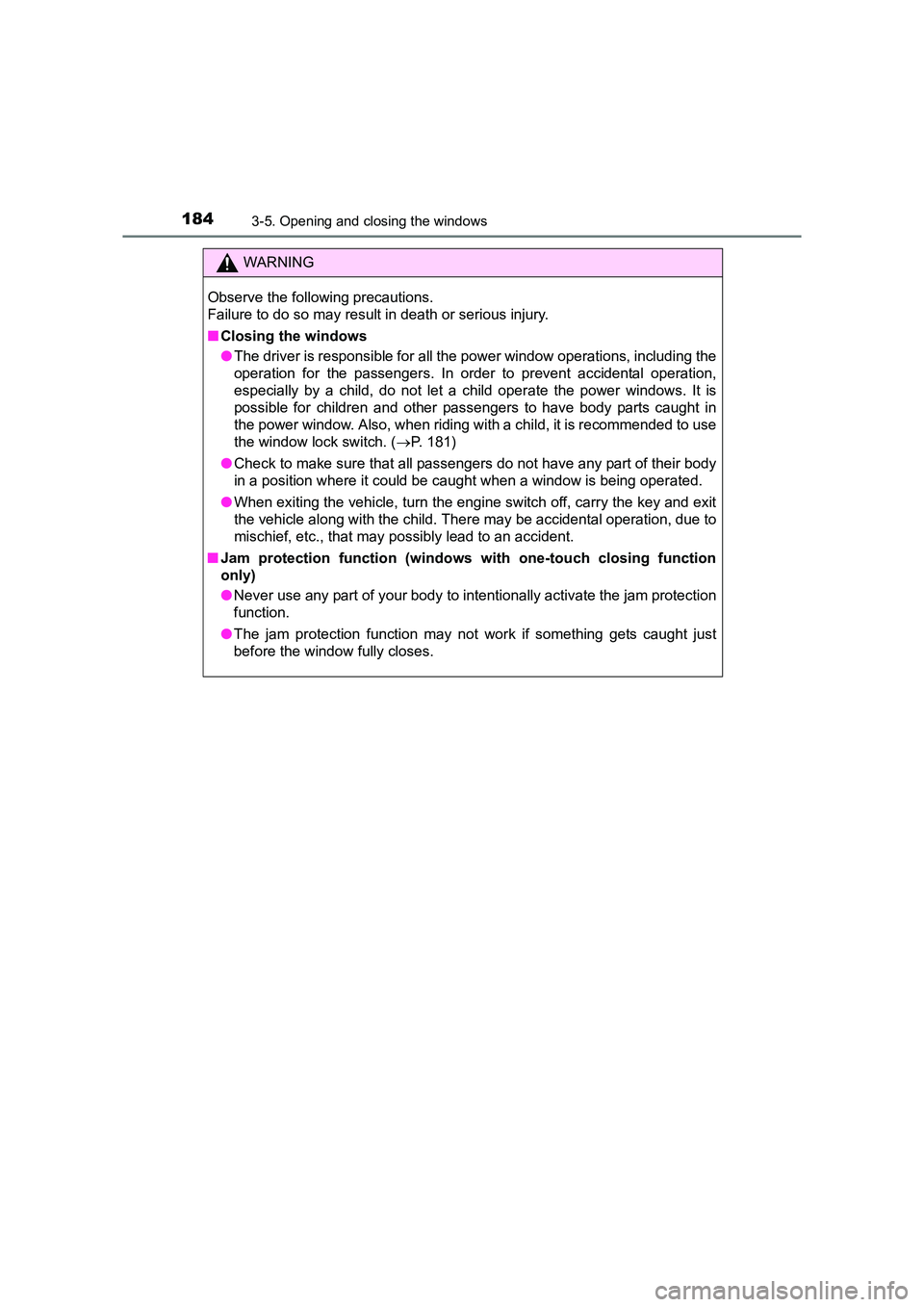

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
●The driver is responsible for all t he power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( →P. 181)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. T here may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function (windows with one-touch closing function
only)
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.

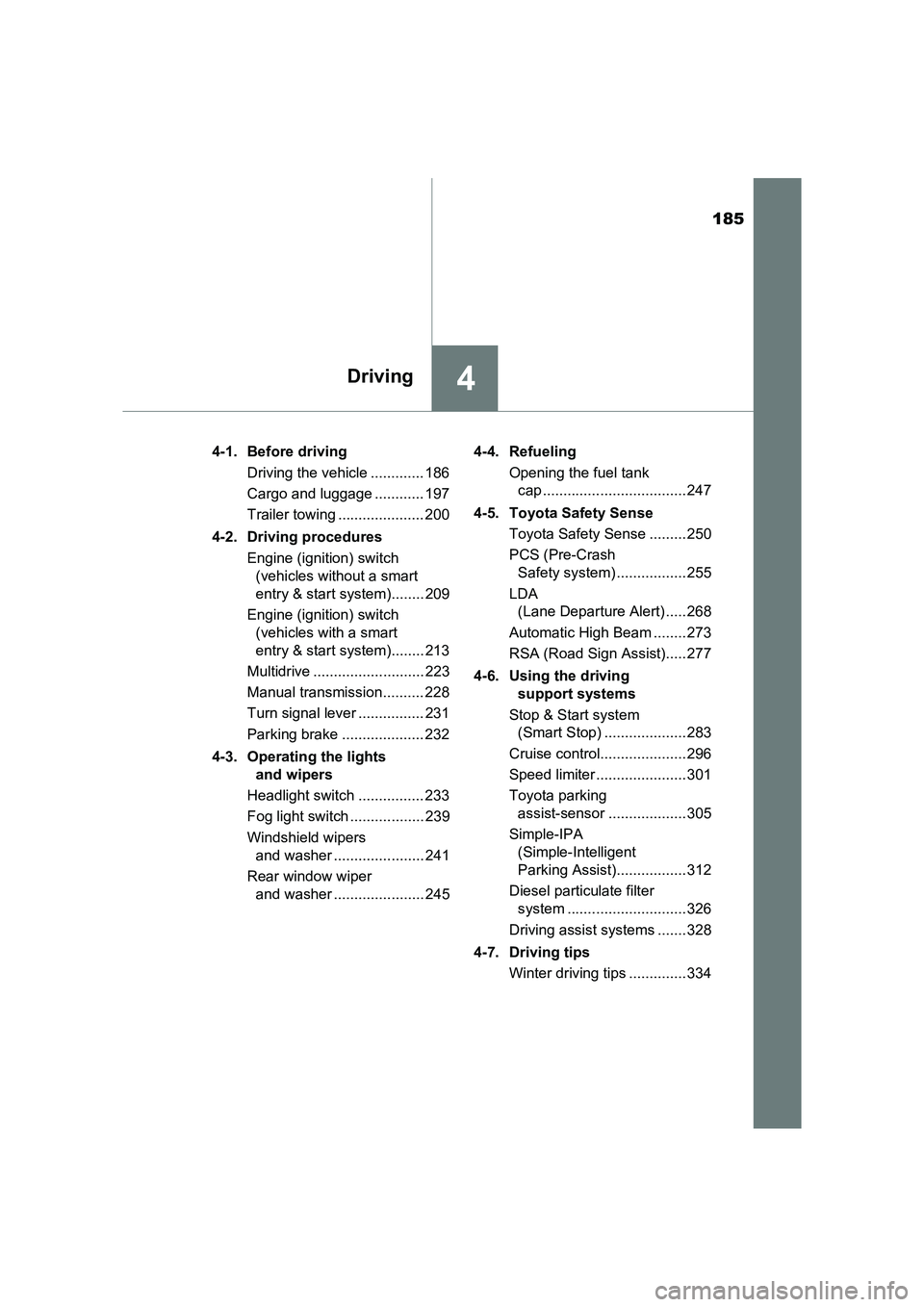

185
4Driving
AURIS Touring Sports_EE (12K53E)4-1. Before driving
Driving the vehicle ............. 186
Cargo and luggage ............ 197
Trailer towing ..................... 200
4-2. Driving procedures Engine (ignition) switch (vehicles without a smart
entry & start system)........ 209
Engine (ignition) switch (vehicles with a smart
entry & start system)........ 213
Multidrive ........................... 223
Manual transmission.......... 228
Turn signal lever ................ 231
Parking brake .................... 232
4-3. Operating the lights and wipers
Headlight switch ................ 233
Fog light switch .................. 239
Windshield wipers and washer ...................... 241
Rear window wiper and washer ...................... 245 4-4. Refueling
Opening the fuel tank cap ................................... 247
4-5. Toyota Safety Sense Toyota Safety Sense ......... 250
PCS (Pre-Crash Safety system) .................255
LDA (Lane Departure Alert) ..... 268
Automatic High Beam ........273
RSA (Road Sign Assist).....277
4-6. Using the driving support systems
Stop & Start system (Smart Stop) .................... 283
Cruise control..................... 296
Speed limiter ......................301
Toyota parking assist-sensor ................... 305
Simple-IPA (Simple-Intelligent
Parking Assist)................. 312
Diesel particulate filter system ............................. 326
Driving assist systems .......328
4-7. Driving tips Winter driving tips ..............334

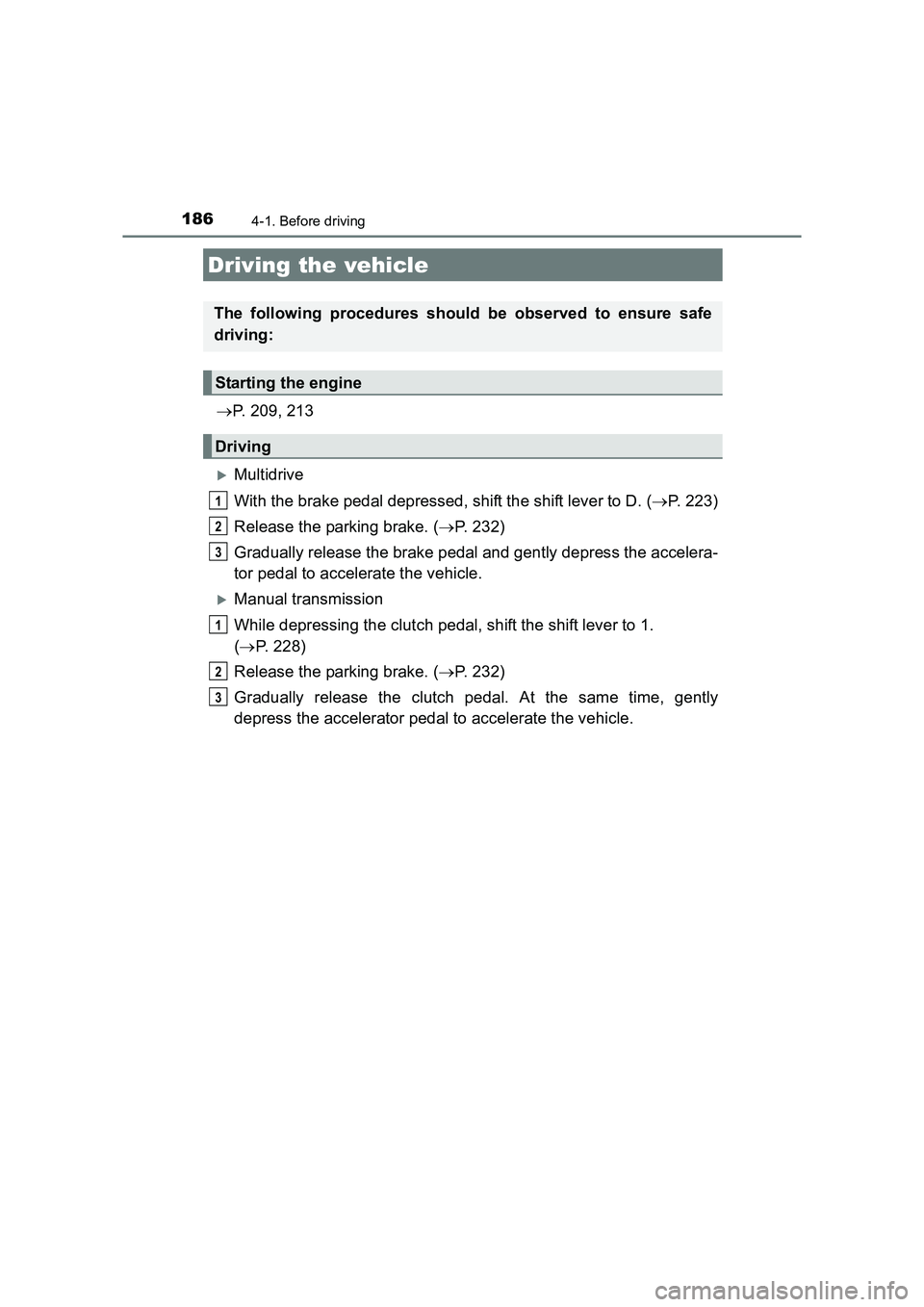

186
AURIS Touring Sports_EE (12K53E)
4-1. Before driving
→P. 209, 213
XMultidrive
With the brake pedal depressed, shift the shift lever to D. ( →P. 223)
Release the parking brake. ( →P. 232)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
XManual transmission
While depressing the clutch pedal, shift the shift lever to 1.
( → P. 228)
Release the parking brake. ( →P. 232)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
1
2
3
1
2
3

1874-1. Before driving
AURIS Touring Sports_EE (12K53E)
4
Driving

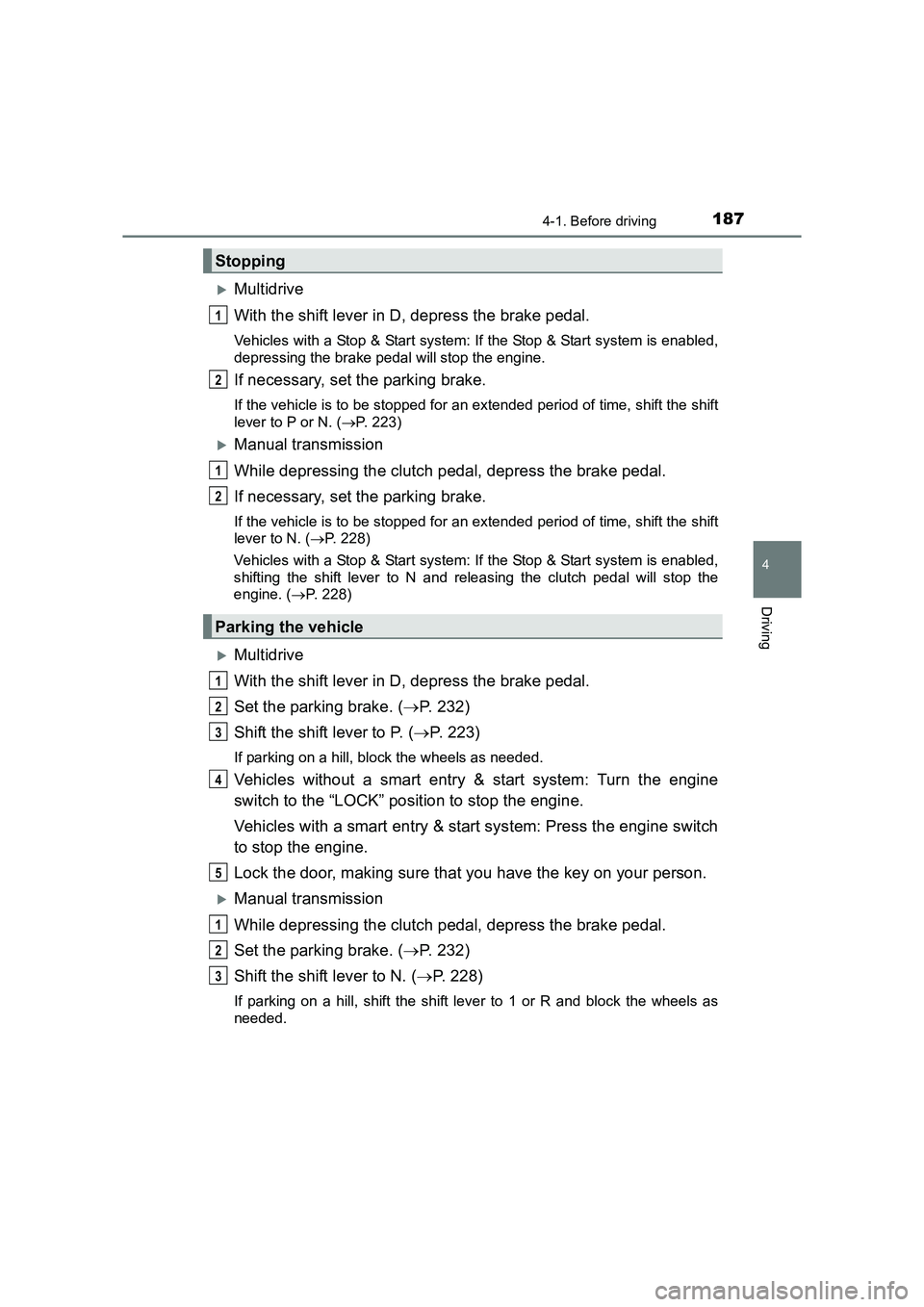

XMultidrive
With the shift lever in D, depress the brake pedal.
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
depressing the brake pedal will stop the engine.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. (→P. 223)
XManual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( →P. 228)
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
shifting the shift lever to N and releasing the clutch pedal will stop the
engine. ( →P. 228)
XMultidrive
With the shift lever in D, depress the brake pedal.
Set the parking brake. ( →P. 232)
Shift the shift lever to P. ( →P. 223)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
XManual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. ( →P. 232)
Shift the shift lever to N. ( →P. 228)
If parking on a hill, shift the shift lever to 1 or R and block the wheels as
needed.
Stopping
Parking the vehicle
1
2
1
2
1
2
3
4
5
1
2
3

1884-1. Before driving
AURIS Touring Sports_EE (12K53E)

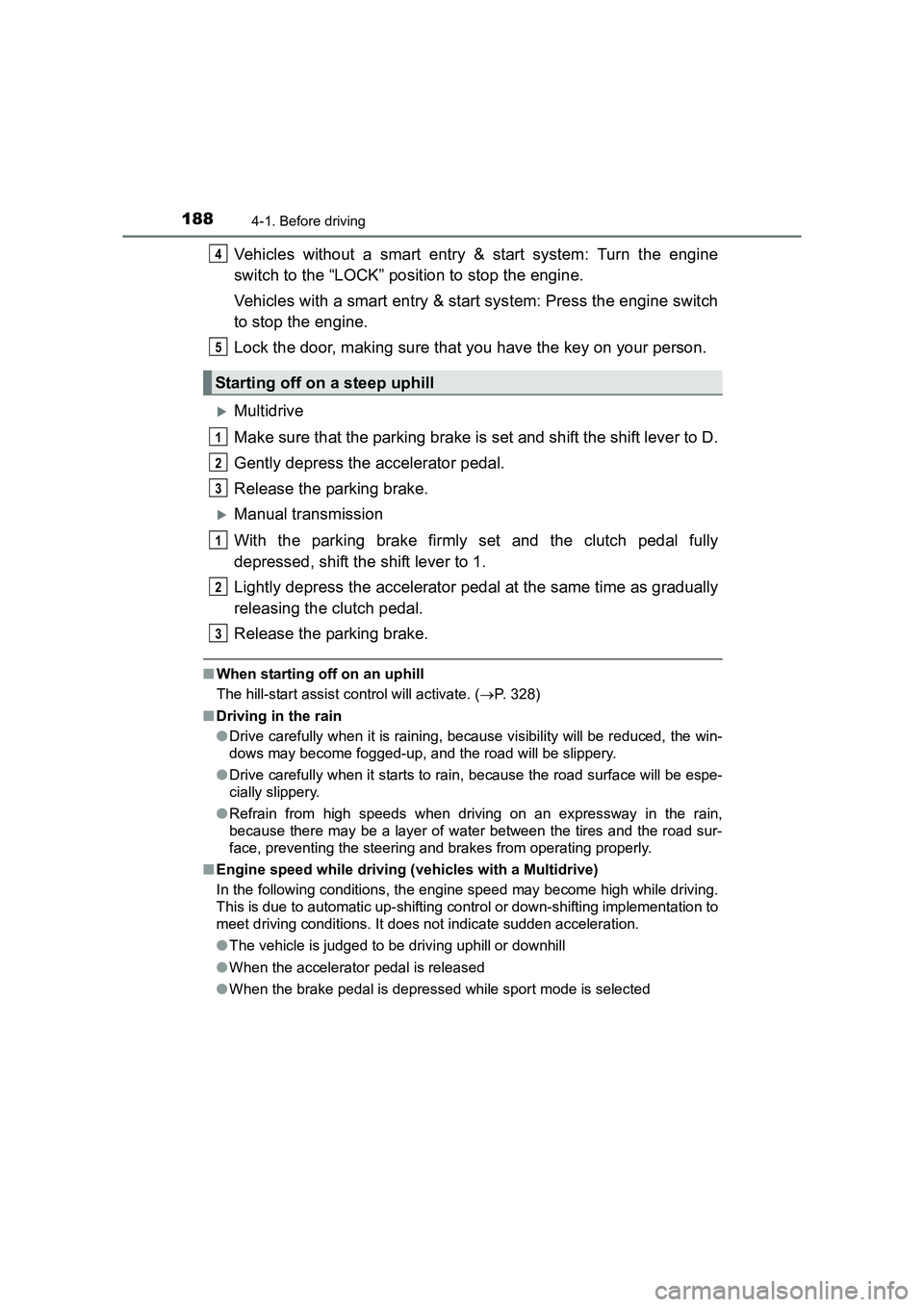

Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
XMultidrive
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
XManual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
■When starting off on an uphill
The hill-start assist control will activate. ( →P. 328)
■ Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Engine speed while driving (vehicles with a Multidrive)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
● The vehicle is judged to be driving uphill or downhill
● When the accelerator pedal is released
● When the brake pedal is depressed while sport mode is selected
Starting off on a steep uphill
4
5
1
2
3
1
2
3

1894-1. Before driving
AURIS Touring Sports_EE (12K53E)
4
Driving

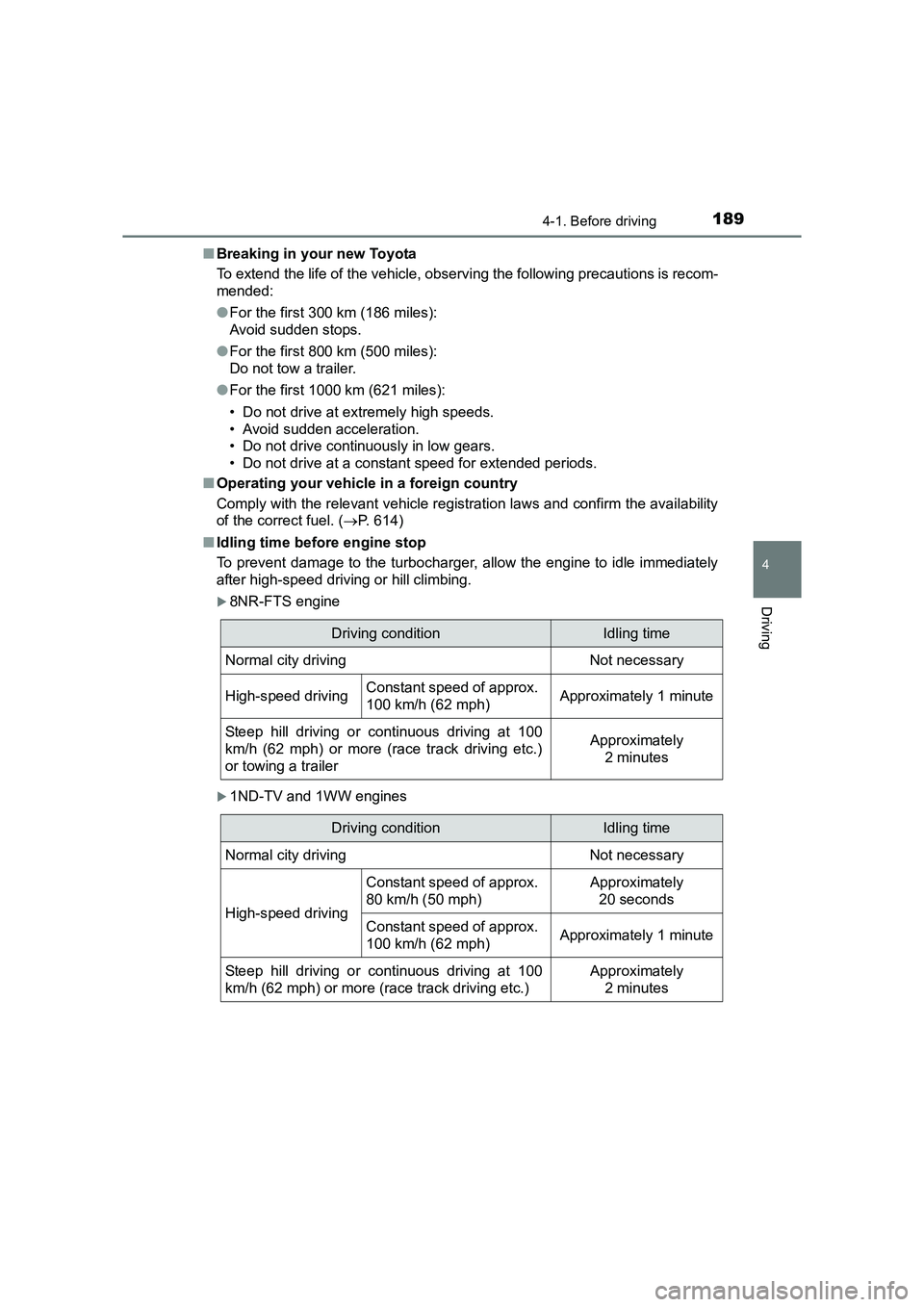

■Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 300 km (186 miles):
Avoid sudden stops.
● For the first 800 km (500 miles):
Do not tow a trailer.
● For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( →P. 614)
■ Idling time before engine stop
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or hill climbing.
X8NR-FTS engine
X1ND-TV and 1WW engines
Driving conditionIdling time
Normal city driving Not necessary
High-speed driving Constant speed of approx.
100 km/h (62 mph) Approximately 1 minute
Steep hill driving or continuous driving at 100
km/h (62 mph) or more (race track driving etc.)
or towing a trailer Approximately
2 minutes
Driving conditionIdling time
Normal city driving Not necessary
High-speed driving Constant speed of approx.
80 km/h (50 mph)
Approximately
20 seconds
Constant speed of approx.
100 km/h (62 mph) Approximately 1 minute
Steep hill driving or continuous driving at 100
km/h (62 mph) or more (race track driving etc.) Approximately
2 minutes

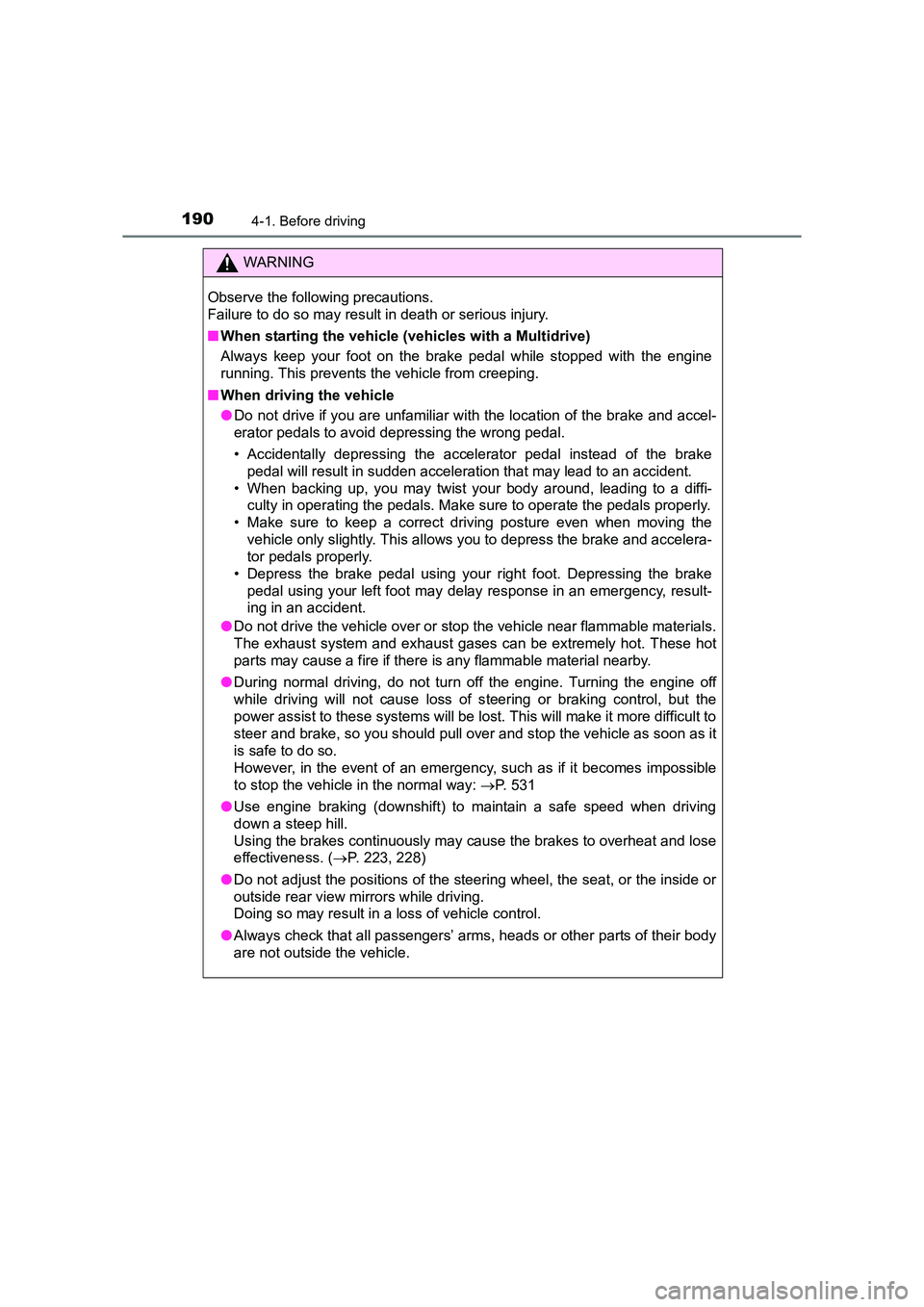

1904-1. Before driving
AURIS Touring Sports_EE (12K53E)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When starting the vehicle (vehicles with a Multidrive)
Always keep your foot on the brake pedal while stopped with the engine
running. This prevents the vehicle from creeping.
■ When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a diffi- culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● Do not drive the vehicle over or st op the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
● During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: →P. 531
● Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( →P. 223, 228)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.
