TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

4617-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

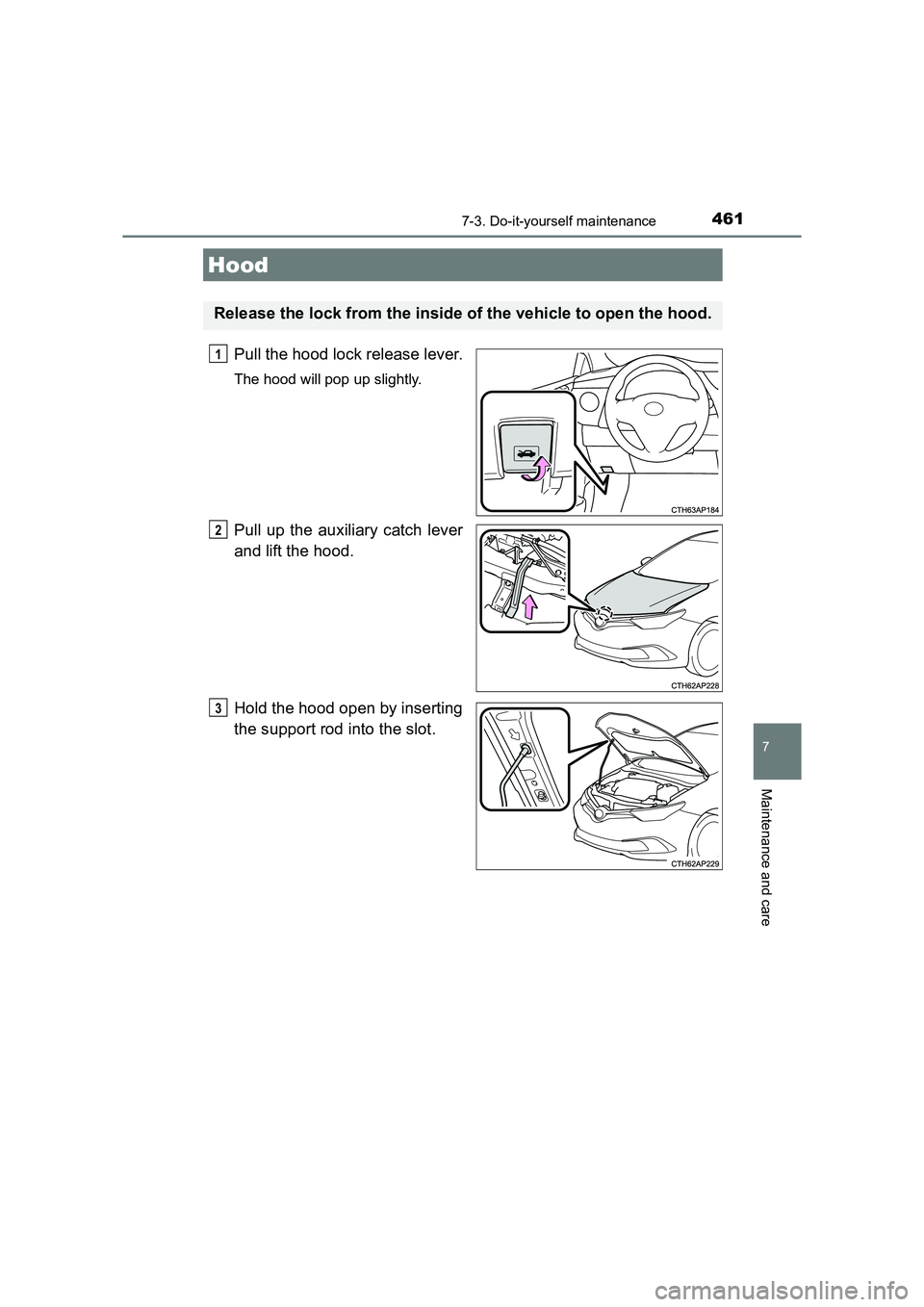

Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the support rod into the slot.
Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
3

4627-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)

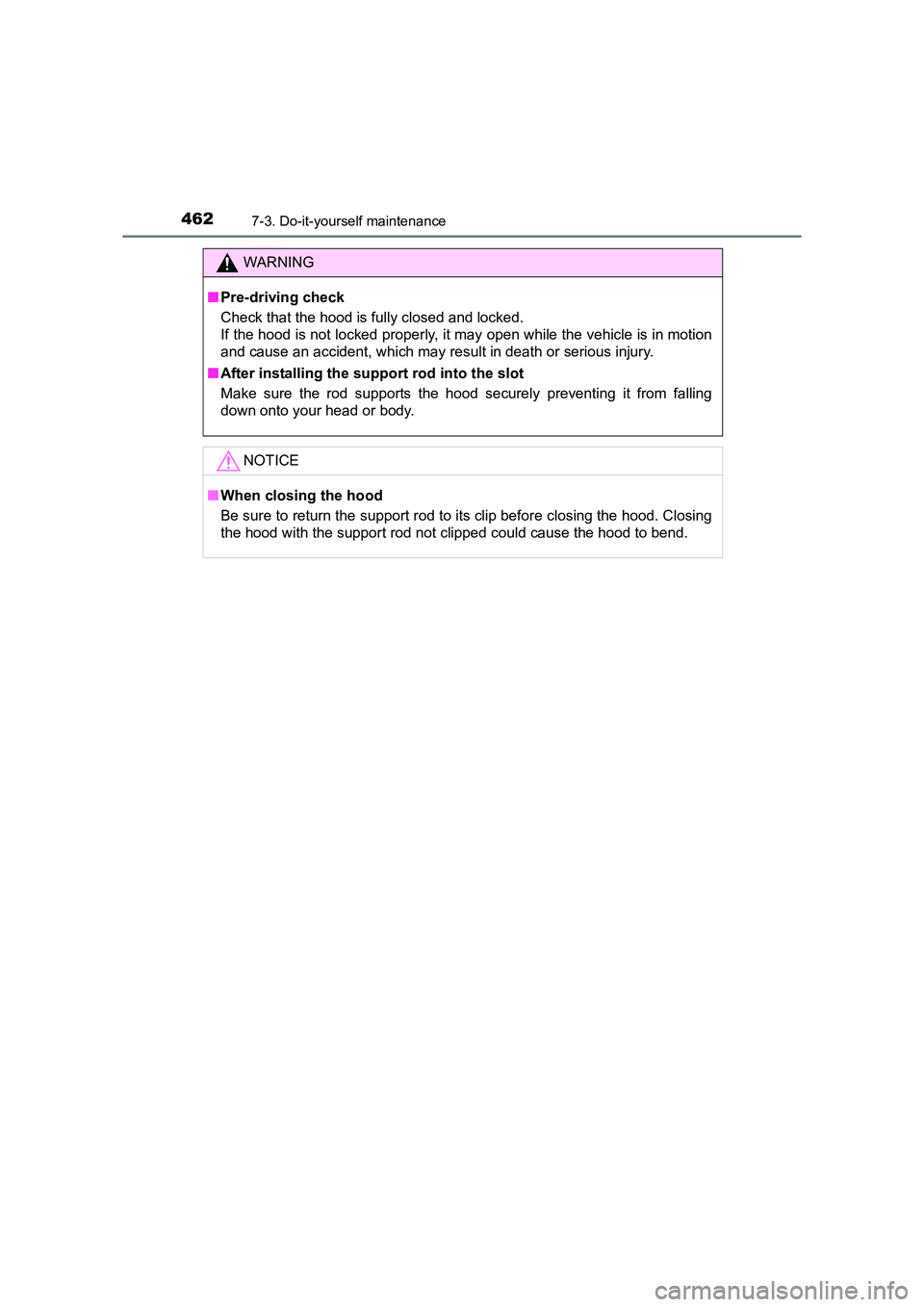

WARNING
â–  Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
â–  After installing the support rod into the slot
Make sure the rod supports the hood se curely preventing it from falling
down onto your head or body.
NOTICE
â– When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod not clipped could cause the hood to bend.

4637-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

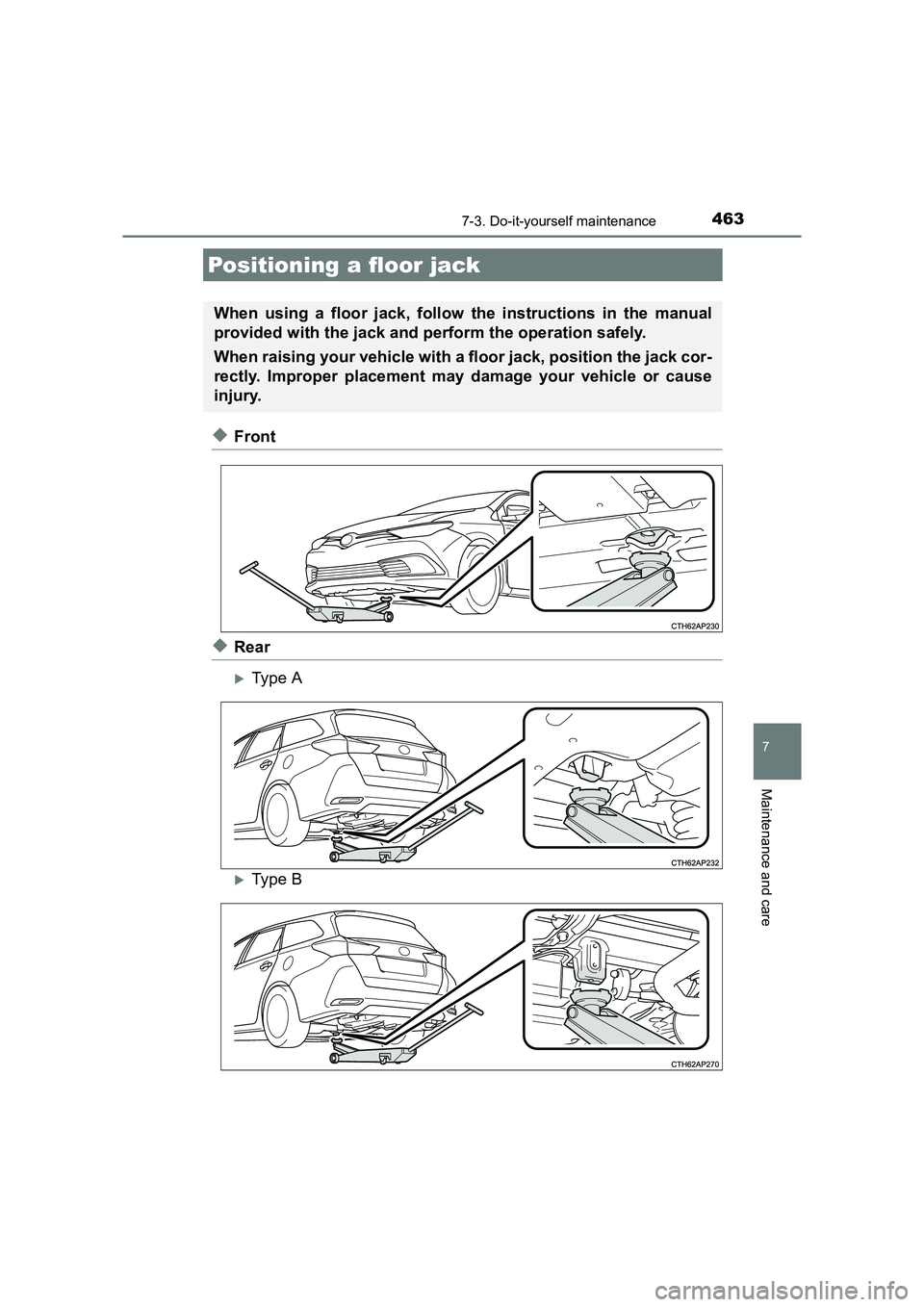

â—†Front
â—†Rear
XType A
XType B
Positioning a floor jack
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

4647-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)â–
1NR-FE engine
Engine compar tment
Washer fluid tank
(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Electric cooling fan
Condenser ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9

4657-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
â– 1ZR-FAE engine
Washer fluid tank(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Electric cooling fan
Condenser ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9

4667-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)â–
8NR-FTS engine
Engine coolant reservoir
(→ P. 477)
Intercooler coolant reservoir (→ P. 478)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Radiator ( →P. 479)
Condenser ( →P. 479)
Electric cooling fans
Intercooler
Washer fluid tank ( →P. 483)1
2
3
4
5
6
7
8
9
10
11

4677-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
â– 1ND-TV engine
Washer fluid tank(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Fuel filter (
→P. 484)
Battery ( →P. 480)
Fuse box ( →P. 510)
Radiator ( →P. 479)
Electric cooling fan
Condenser ( →P. 479)
Intercooler ( →P. 479)1
2
3
4
5
6
7
8
9
10
11

4687-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)â–
1WW engine
Washer fluid tank
(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Fuel filter (
→P. 485)
Fuse box ( →P. 510)
Battery ( →P. 480)
Condenser ( →P. 479)
Electric cooling fans
Intercooler ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9
10
11

4697-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

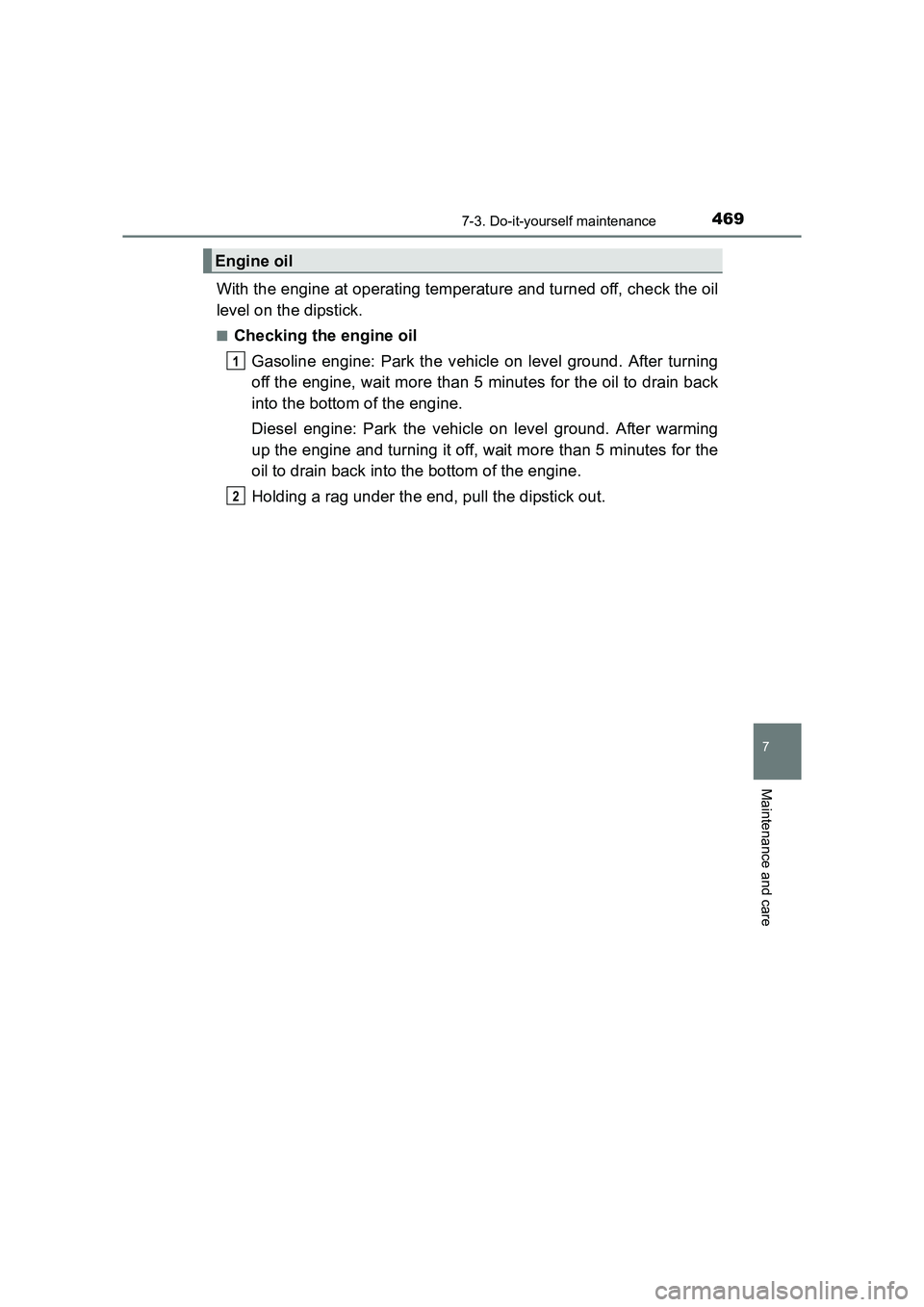

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
â– Checking the engine oilGasoline engine: Park the vehicle on level ground. After turning
off the engine, wait more than 5 minutes for the oil to drain back
into the bottom of the engine.
Diesel engine: Park the vehicle on level ground. After warming
up the engine and turning it off, wait more than 5 minutes for the
oil to drain back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Engine oil
1
2

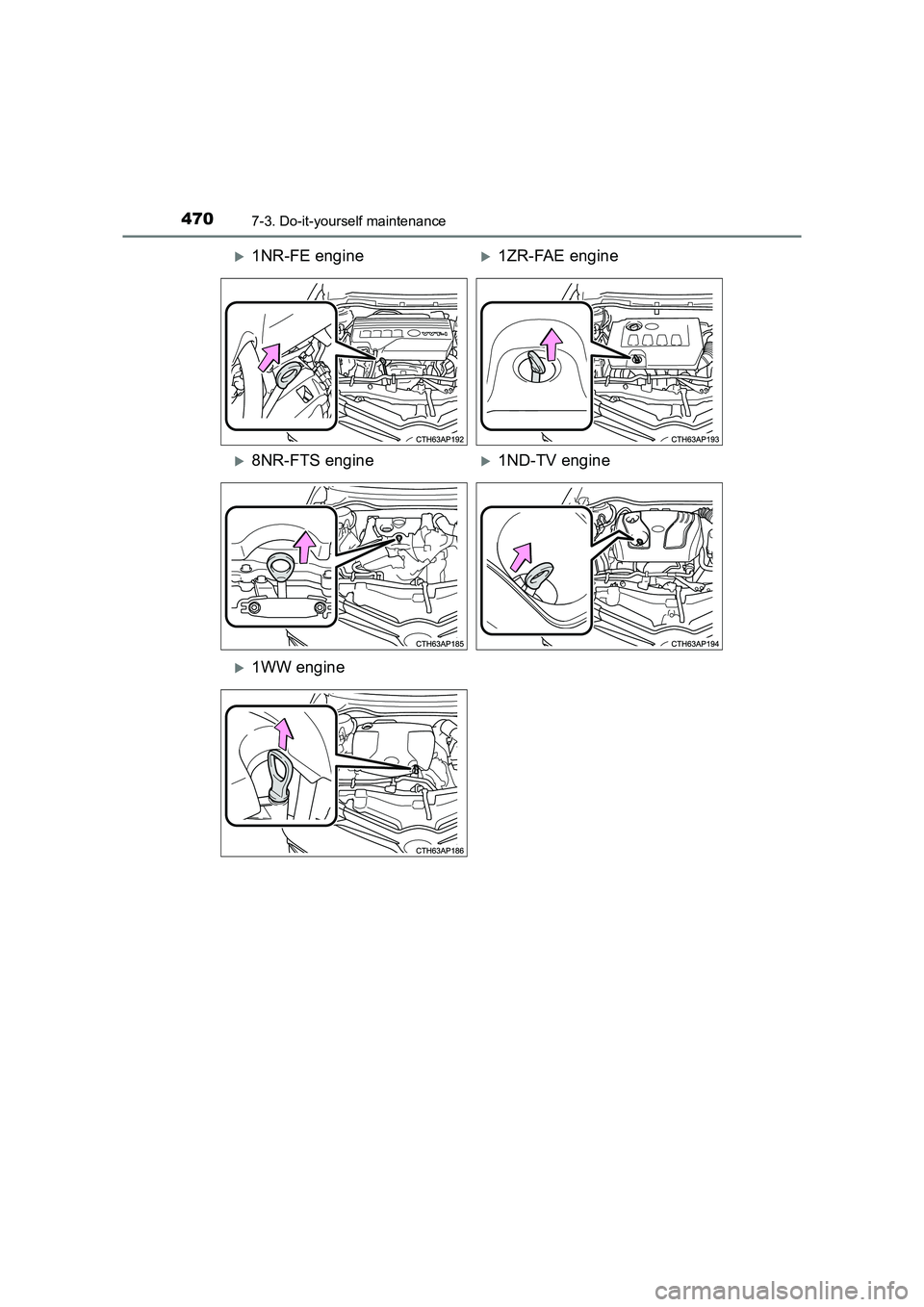

4707-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
X1NR-FE engineX1ZR-FAE engine
X8NR-FTS engineX1ND-TV engine
X1WW engine
