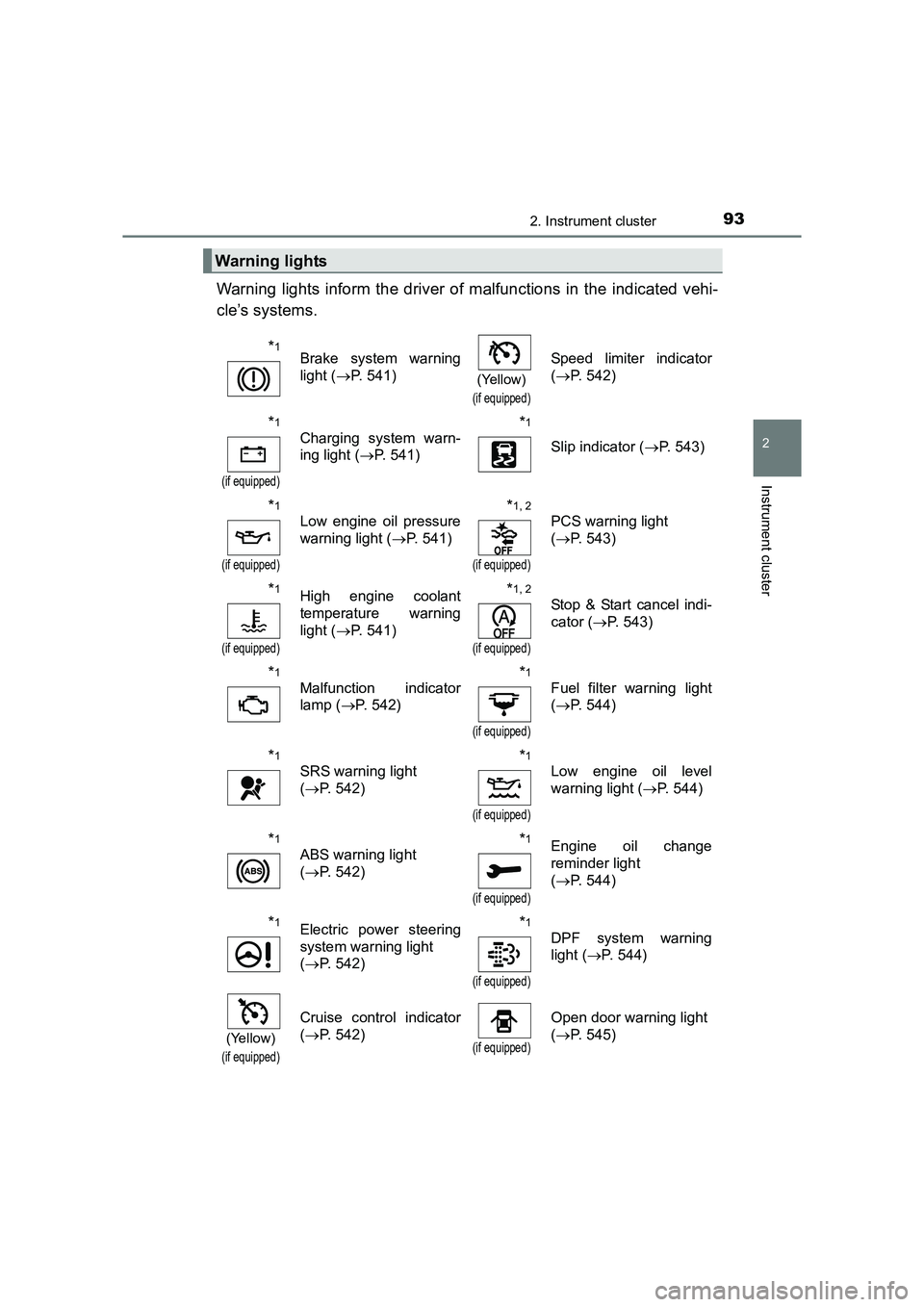

Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light (→P. 541)
(Yellow)
(if equipped)
Speed limiter indicator
(→ P. 542)
*1
(if equipped)
Charging system warn-
ing light ( →P. 541)*1
Slip indicator ( →P. 543)
*1
(if equipped)
Low engine oil pressure
warning light ( →P. 541)*1, 2
(if equipped)
PCS warning light
(→ P. 543)
*1
(if equipped)
High engine coolant
temperature warning
light ( →P. 541)*1, 2
(if equipped)
Stop & Start cancel indi-
cator ( →P. 543)
*1
Malfunction indicator
lamp ( →P. 542)*1
(if equipped)
Fuel filter warning light
(→ P. 544)
*1
SRS warning light
(→ P. 542)*1
(if equipped)
Low engine oil level
warning light ( →P. 544)
*1
ABS warning light
(→ P. 542)*1
(if equipped)
Engine oil change
reminder light
(→ P. 544)
*1Electric power steering
system warning light
(→ P. 542)*1
(if equipped)
DPF system warning
light ( →P. 544)
(Yellow)
(if equipped)
Cruise control indicator
(→ P. 542)
(if equipped)
Open door warning light
(→ P. 545)

4567-2. Maintenance
AURIS Touring Sports_EE (12K53E)

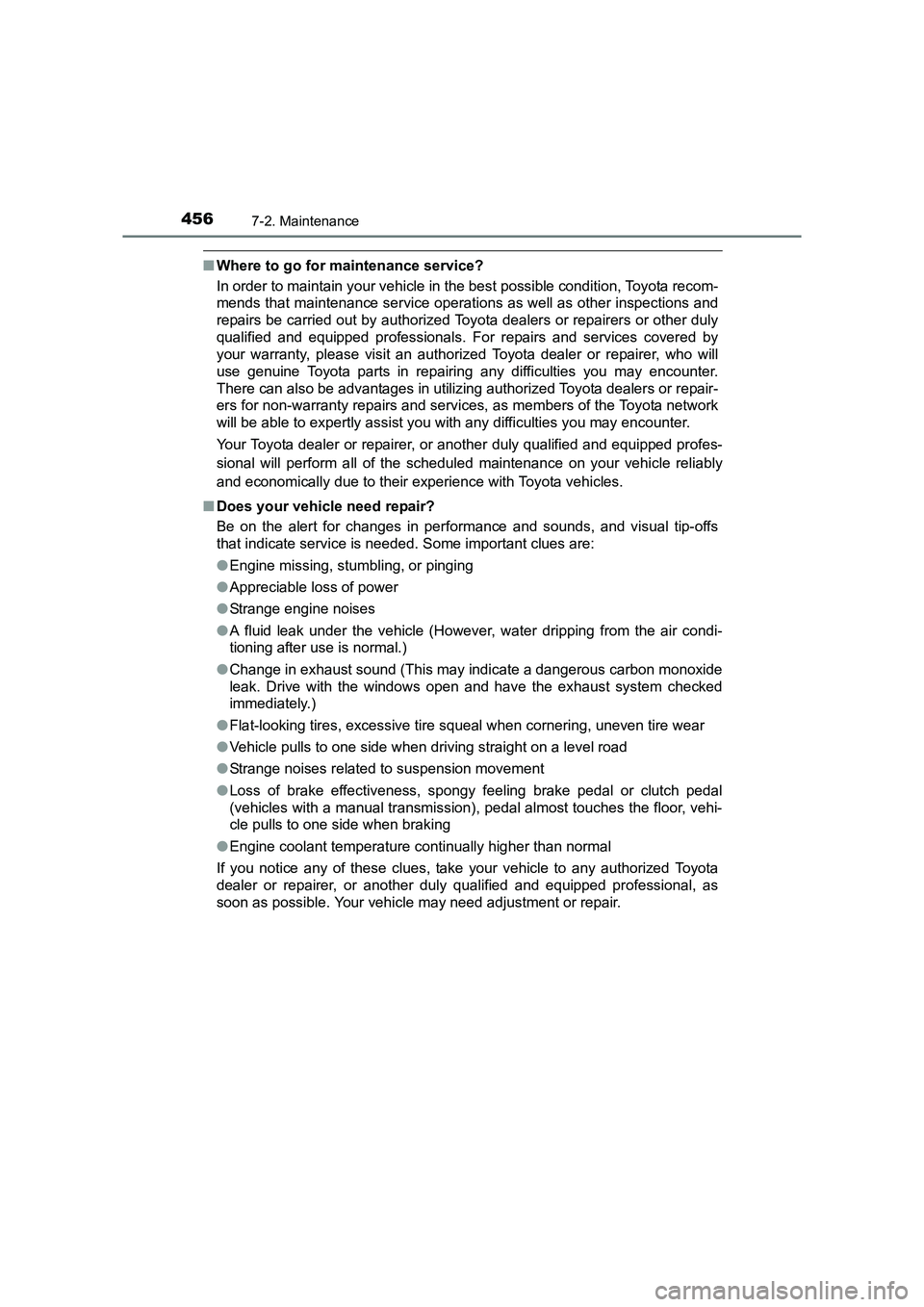

■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Toyota recom-
mends that maintenance service operations as well as other inspections and
repairs be carried out by authorized Toyota dealers or repairers or other duly
qualified and equipped professionals. For repairs and services covered by
your warranty, please visit an authorized Toyota dealer or repairer, who will
use genuine Toyota parts in repairing any difficulties you may encounter.
There can also be advantages in utilizing authorized Toyota dealers or repair-
ers for non-warranty repairs and services, as members of the Toyota network
will be able to expertly assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped profes-
sional will perform all of the scheduled maintenance on your vehicle reliably
and economically due to their experience with Toyota vehicles.
■ Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
●Engine missing, stumbling, or pinging
● Appreciable loss of power
● Strange engine noises
● A fluid leak under the vehicle (However, water dripping from the air condi-
tioning after use is normal.)
● Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked
immediately.)
● Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
● Vehicle pulls to one side when driving straight on a level road
● Strange noises related to suspension movement
● Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal
(vehicles with a manual transmission), pedal almost touches the floor, vehi-
cle pulls to one side when braking
● Engine coolant temperature c ontinually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, as
soon as possible. Your vehicle may need adjustment or repair.

458
AURIS Touring Sports_EE (12K53E)

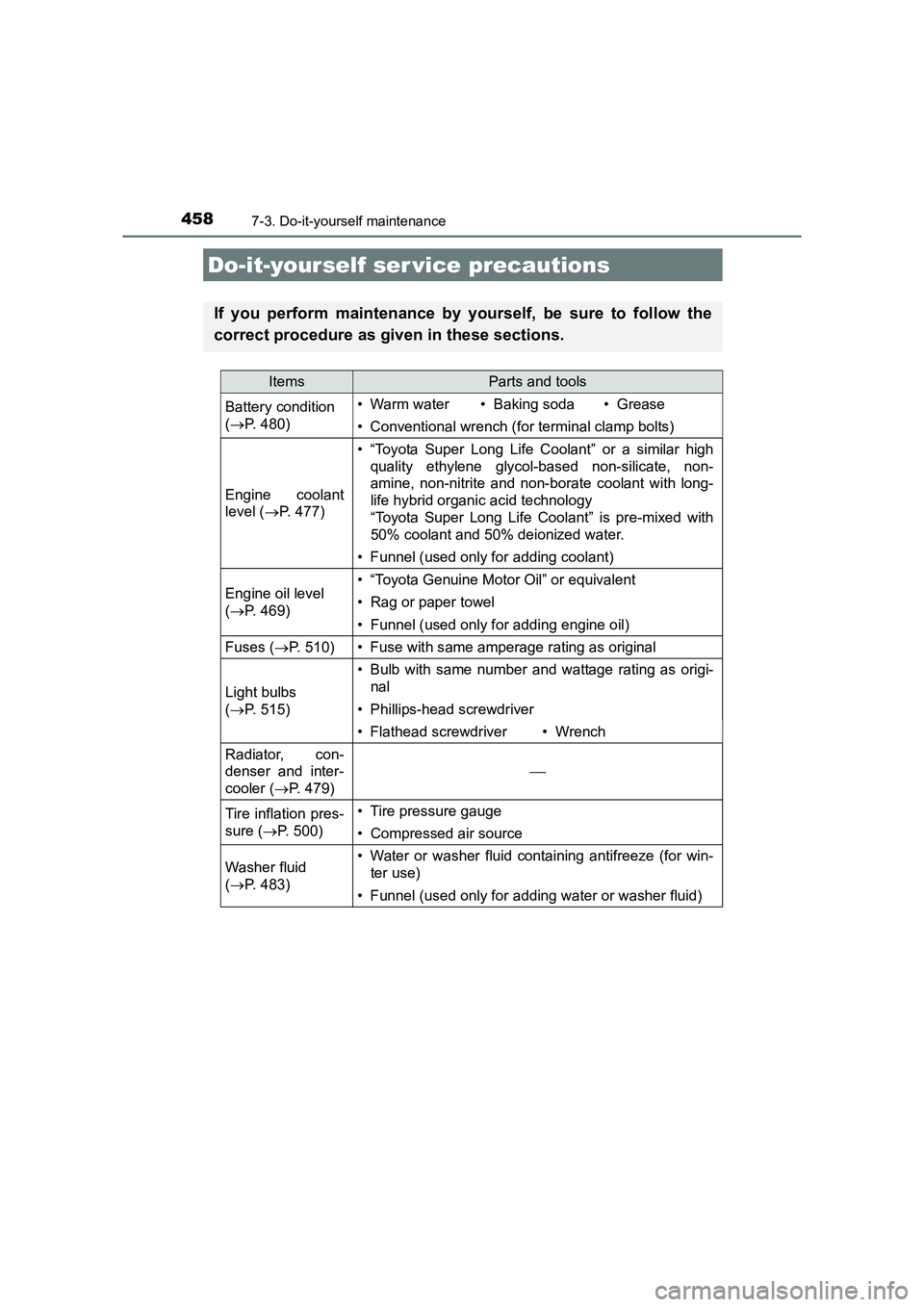

7-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
(→ P. 480)•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
Engine coolant
level ( →P. 477)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(→ P. 469)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( →P. 510)• Fuse with same amperage rating as original
Light bulbs
(→ P. 515)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator, con-
denser and inter-
cooler ( →P. 479)

Tire inflation pres-
sure ( →P. 500)• Tire pressure gauge
• Compressed air source
Washer fluid
(→ P. 483)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

4647-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■

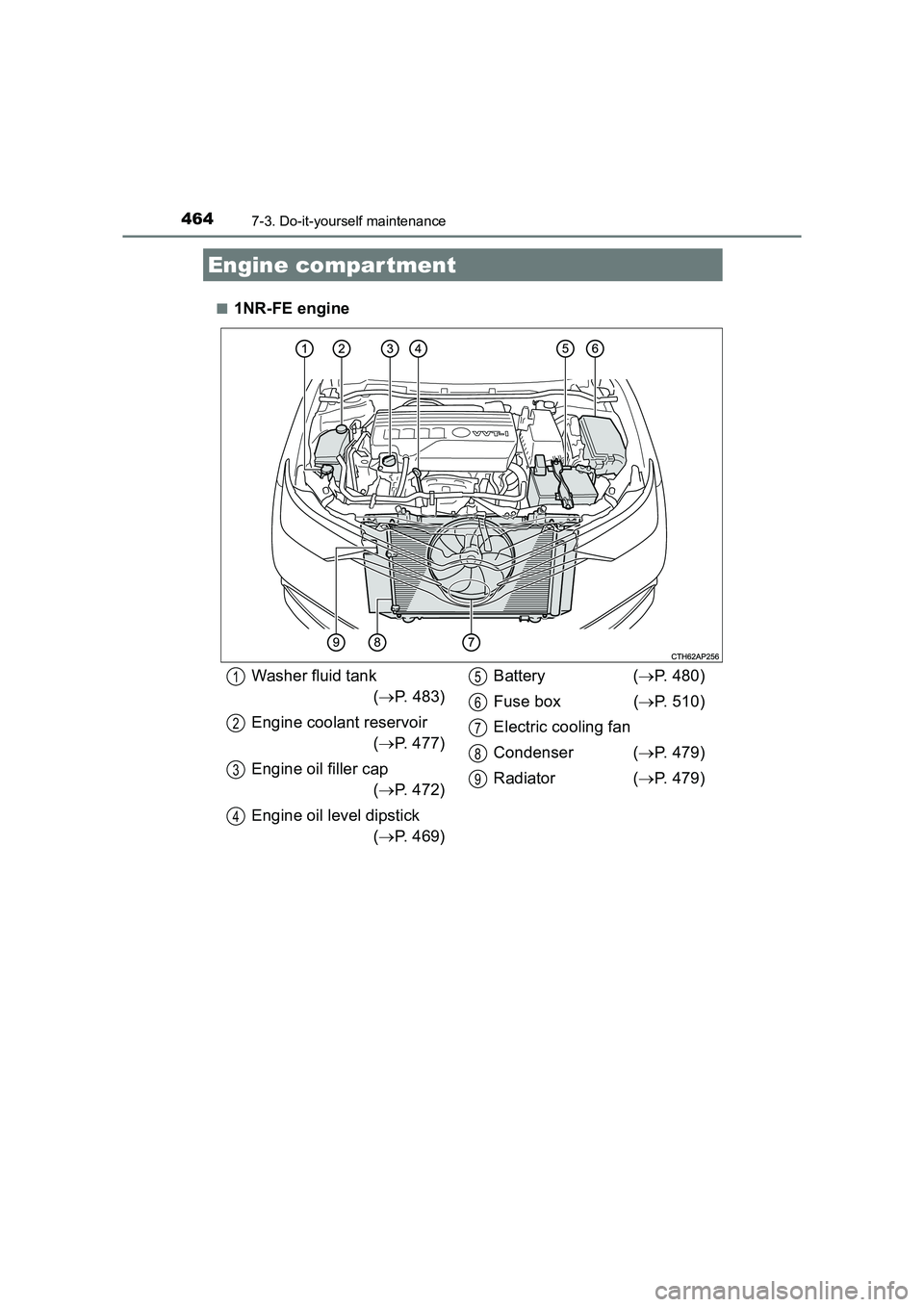

1NR-FE engine
Engine compar tment
Washer fluid tank
(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Electric cooling fan
Condenser ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9

4657-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

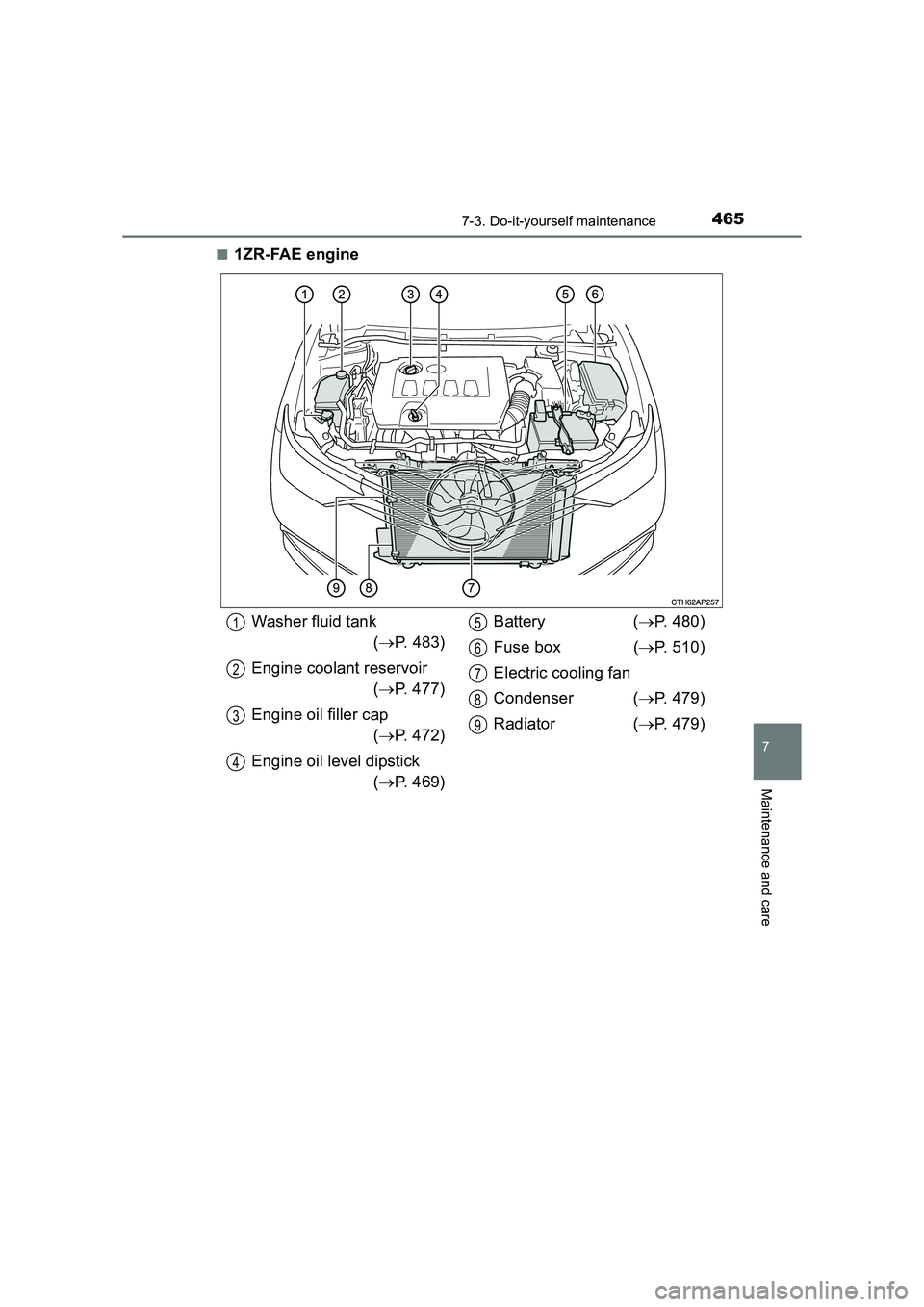

■1ZR-FAE engine
Washer fluid tank(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Electric cooling fan
Condenser ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9

4667-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■

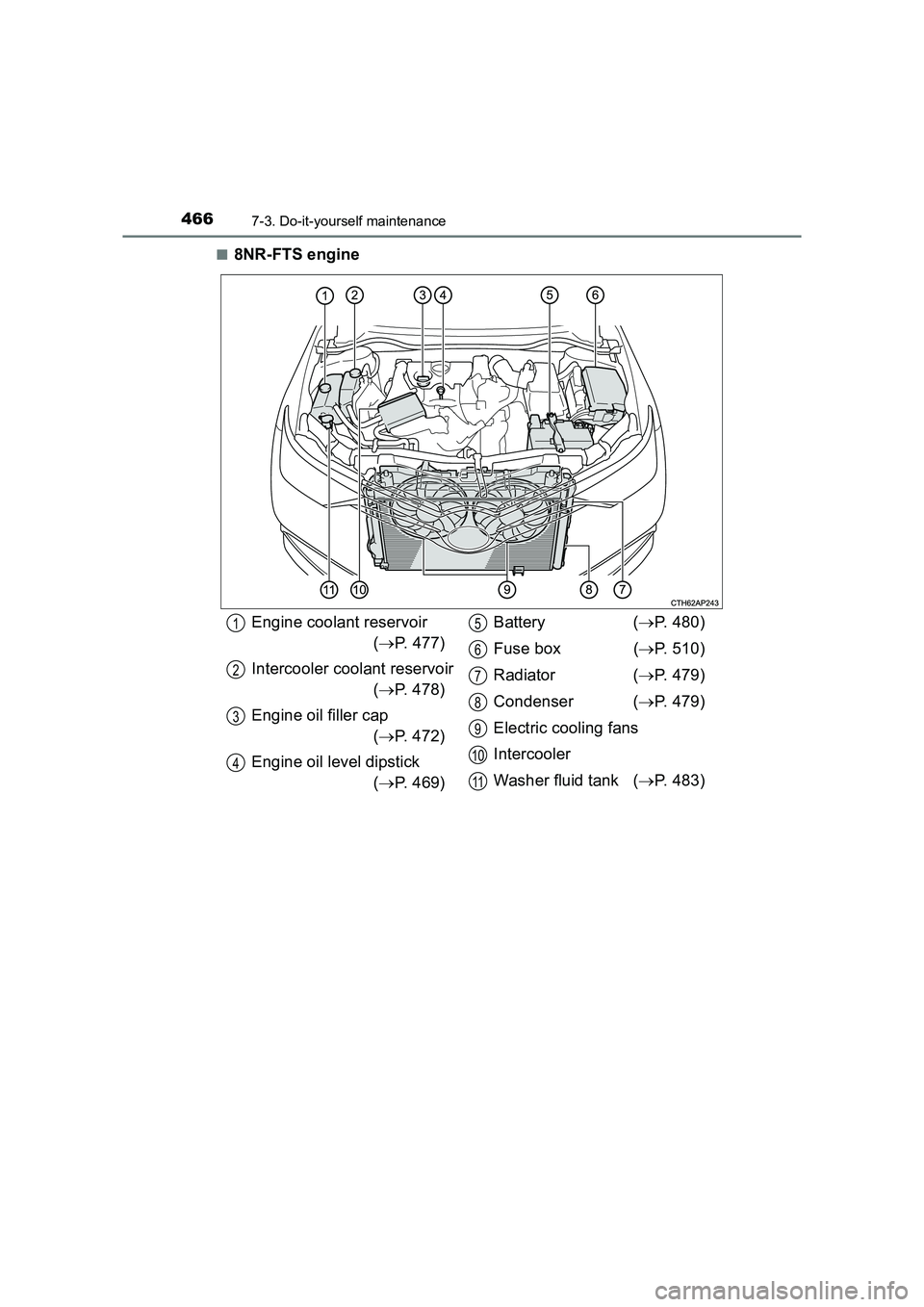

8NR-FTS engine
Engine coolant reservoir
(→ P. 477)
Intercooler coolant reservoir (→ P. 478)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Radiator ( →P. 479)
Condenser ( →P. 479)
Electric cooling fans
Intercooler
Washer fluid tank ( →P. 483)1
2
3
4
5
6
7
8
9
10
11

4677-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

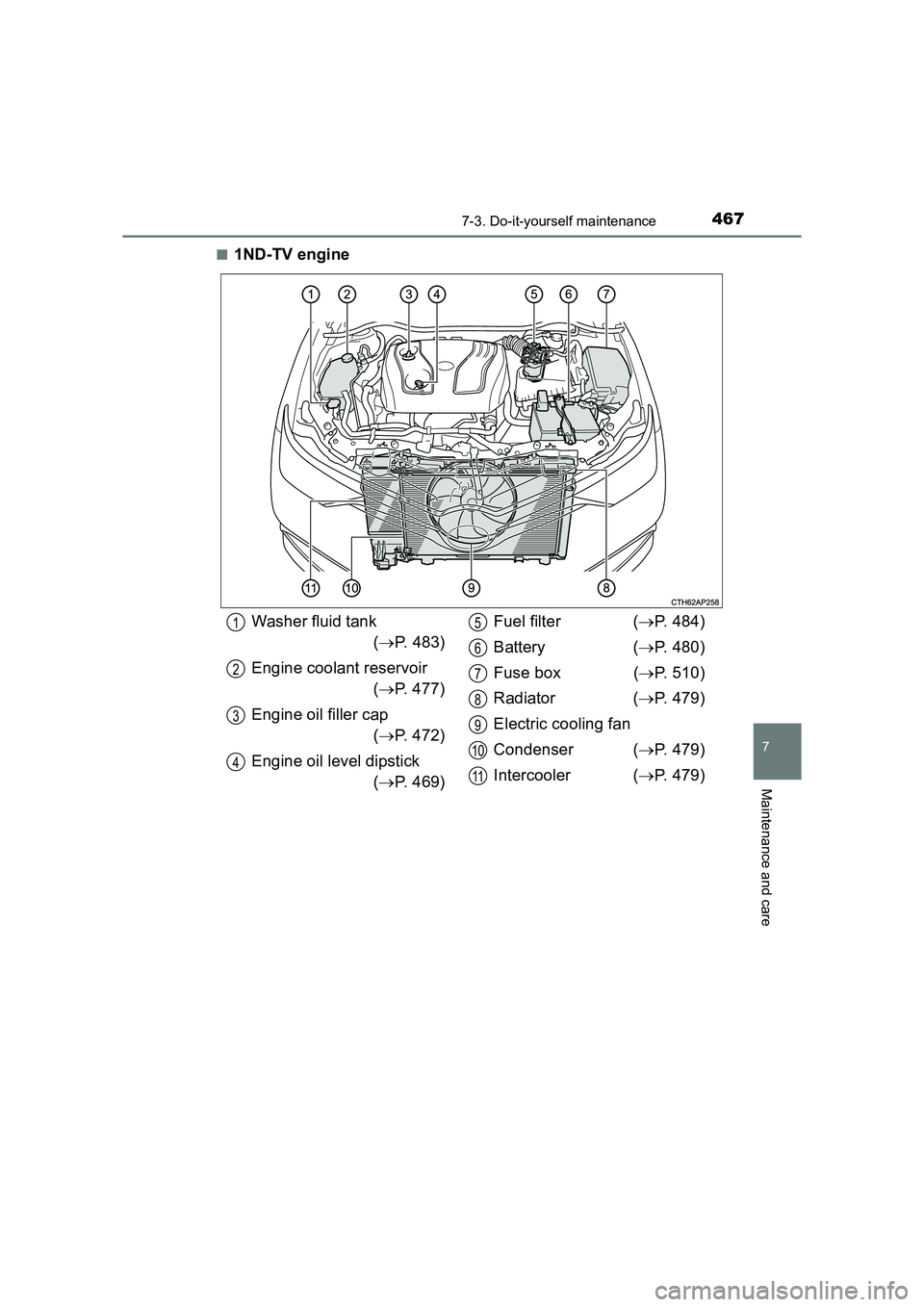

■1ND-TV engine
Washer fluid tank(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Fuel filter (
→P. 484)
Battery ( →P. 480)
Fuse box ( →P. 510)
Radiator ( →P. 479)
Electric cooling fan
Condenser ( →P. 479)
Intercooler ( →P. 479)1
2
3
4
5
6
7
8
9
10
11

4687-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■

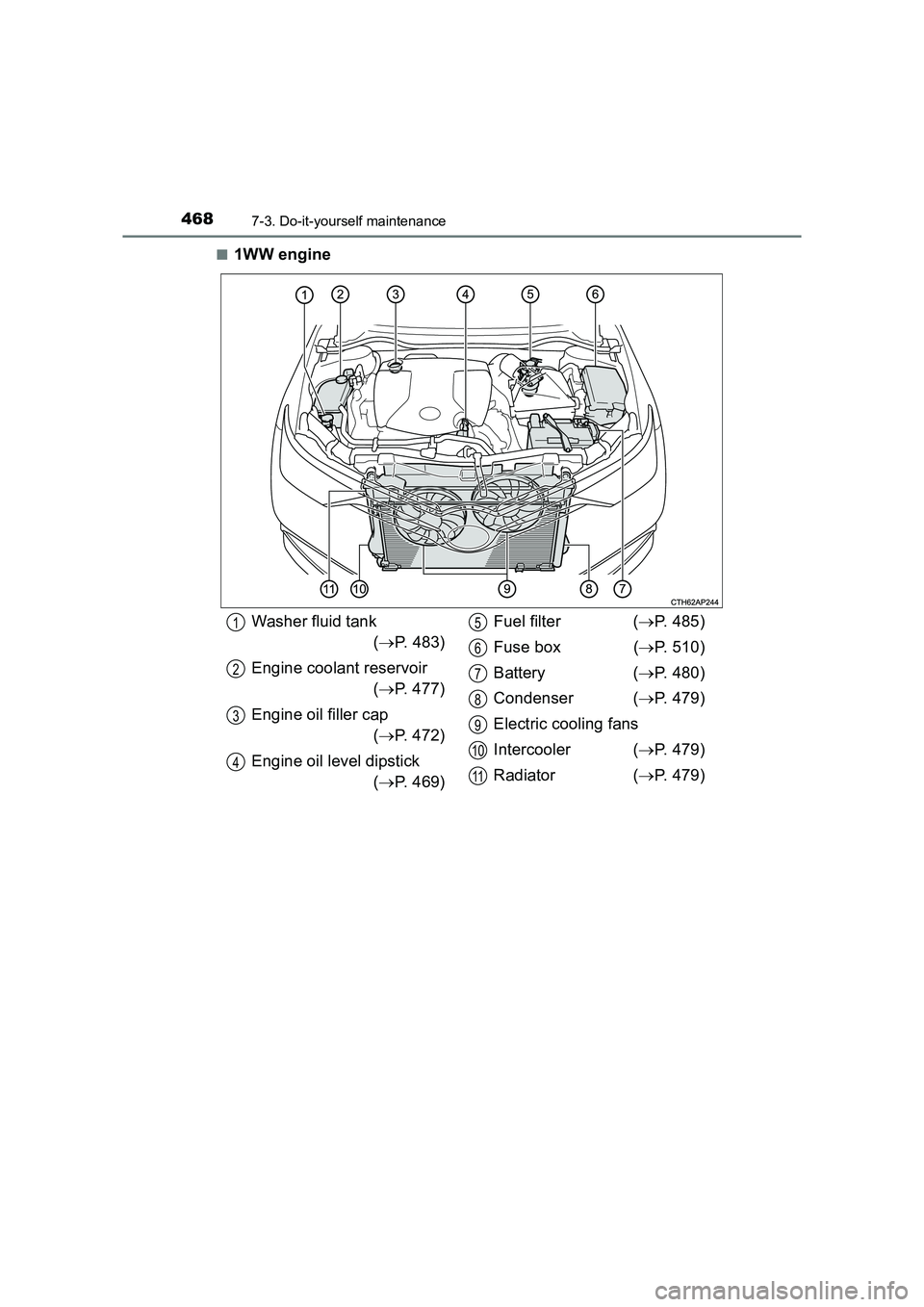

1WW engine
Washer fluid tank
(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Fuel filter (
→P. 485)
Fuse box ( →P. 510)
Battery ( →P. 480)
Condenser ( →P. 479)
Electric cooling fans
Intercooler ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9
10
11

4777-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

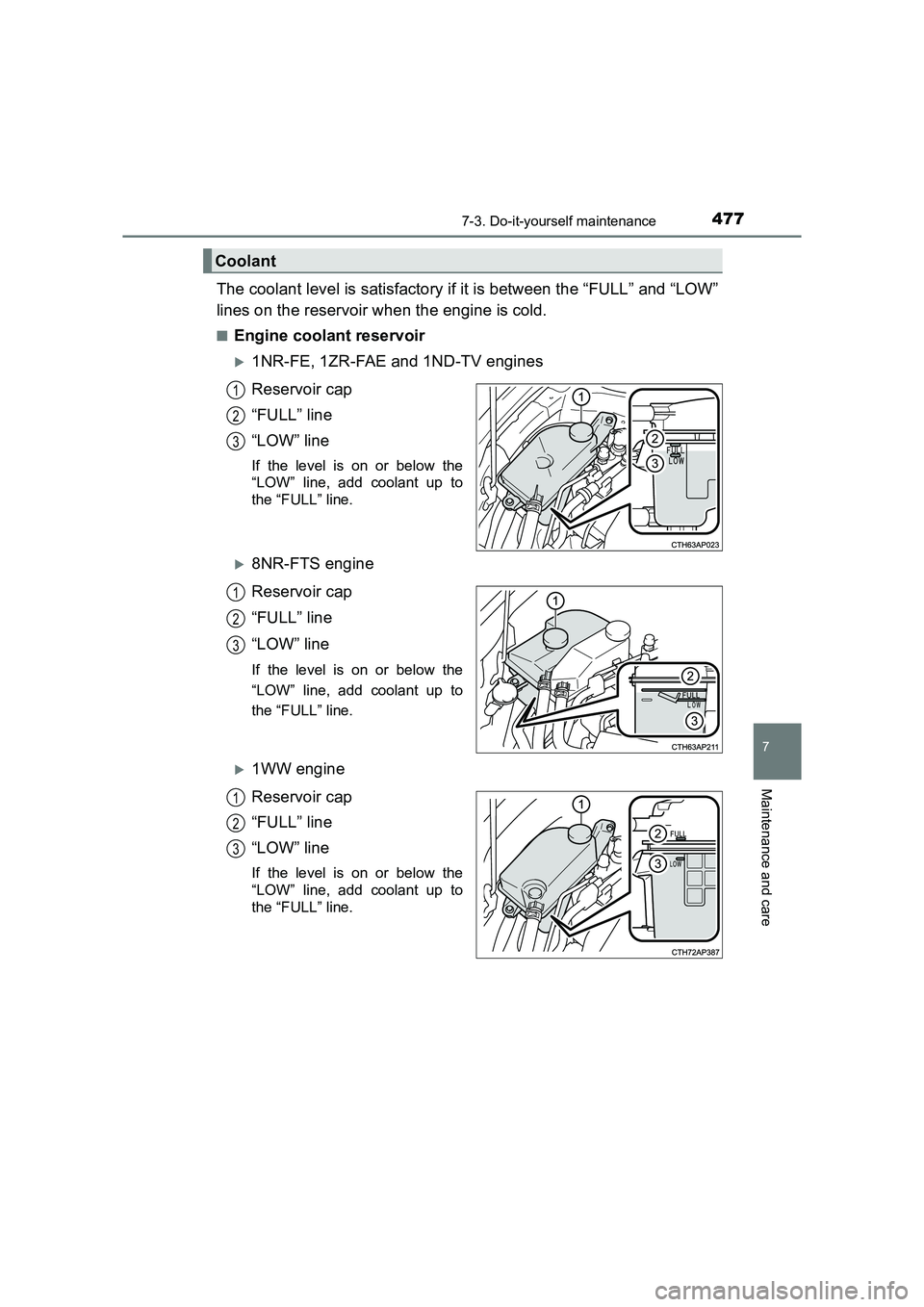

The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
■Engine coolant reservoir
X1NR-FE, 1ZR-FAE and 1ND-TV engines
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
X8NR-FTS engine
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
X1WW engine
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
Coolant
1
2
3
1
2
3
1
2
3

4787-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■

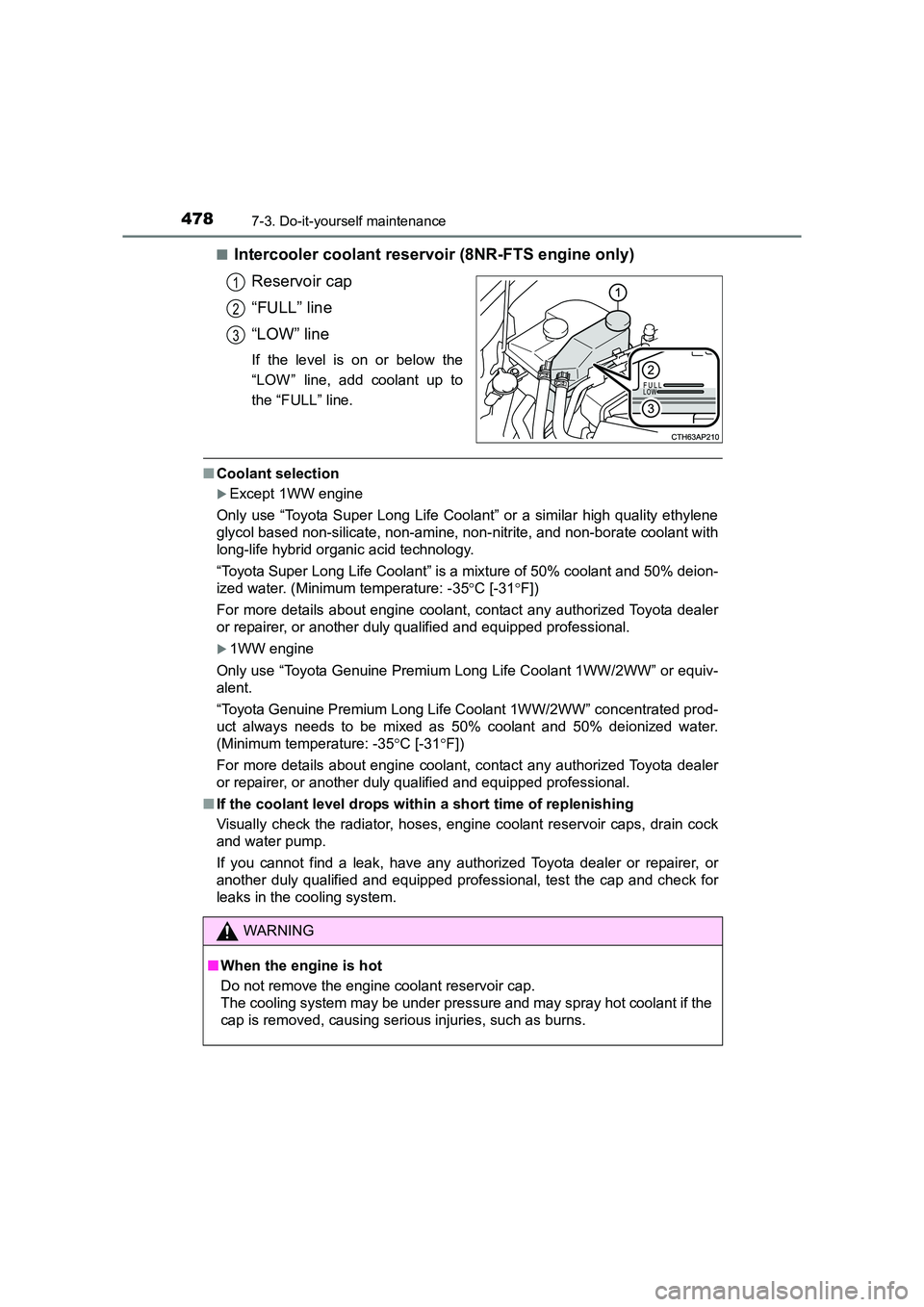

Intercooler coolant reservoir (8NR-FTS engine only)
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
■Coolant selection
XExcept 1WW engine
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35 °C [-31 °F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
X1WW engine
Only use “Toyota Genuine Premium Long Life Coolant 1WW/2WW” or equiv-
alent.
“Toyota Genuine Premium Long Life Coolant 1WW/2WW” concentrated prod-
uct always needs to be mixed as 50% coolant and 50% deionized water.
(Minimum temperature: -35 °C [-31 °F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
1
2
3
WARNING
■ When the engine is hot
Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
