Page 141 of 237
’99 AVALON (USA/CANADA)−U
141
Cigarette lighter and ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, first pull
the ashtray lid, then press in the light-
er. When it becomes heated, it automat-
ically pops out ready for use.
If the engine is not running, the key must
be in the ”ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement. ASHTRAY
To use the ashtray, pull out the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, pull the ashtray lid
and pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always push the ash-
tray back in completely after using.
Glove box
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
ProCarManuals.com
Page 142 of 237
’99 AVALON (USA/CANADA)−U
142
Auxiliary box
To open the auxiliary box, press on the
knob and pull out the box lid.

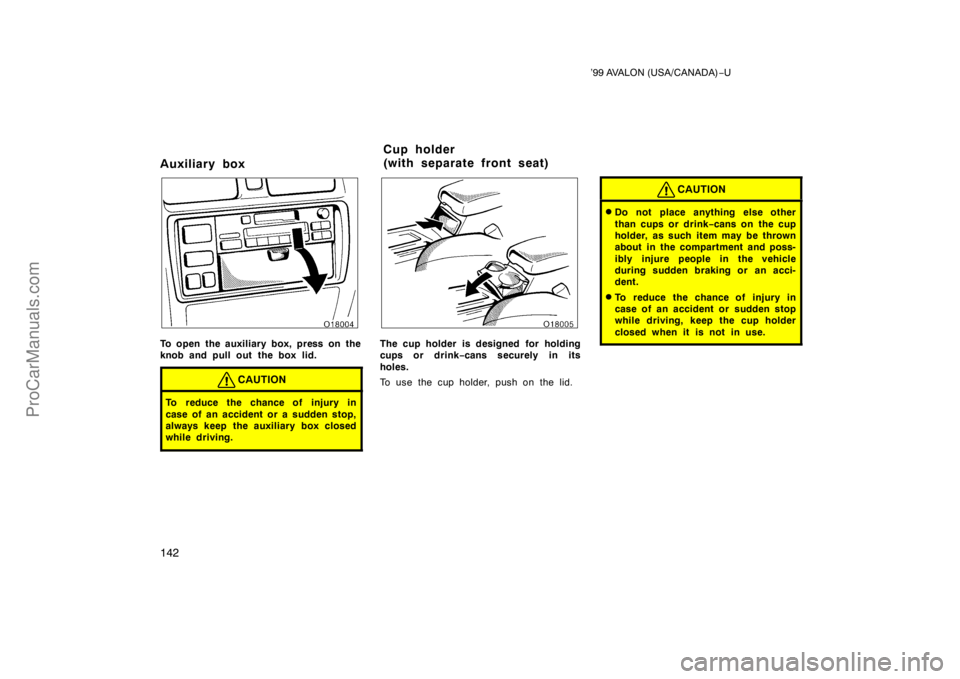

CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
The cup holder is designed for holding
cups or drink −cans securely in its
holes.
To use the cup holder, push on the lid.
CAUTION
Do not place anything else other
than cups or drink −cans on the cup
holder, as such item may be thrown
about in the compartment and poss-
ibly injure people in the vehicle
during sudden braking or an acci-
dent.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
Cup holder
(with separate front seat)
ProCarManuals.com
Page 143 of 237
’99 AVALON (USA/CANADA)−U
143
The cup holder is designed for holding
cups or drink −cans securely in its
holes.
To use the cup holder, open the armrest
lid, pull out the cup holder. Then close the
armrest lid.

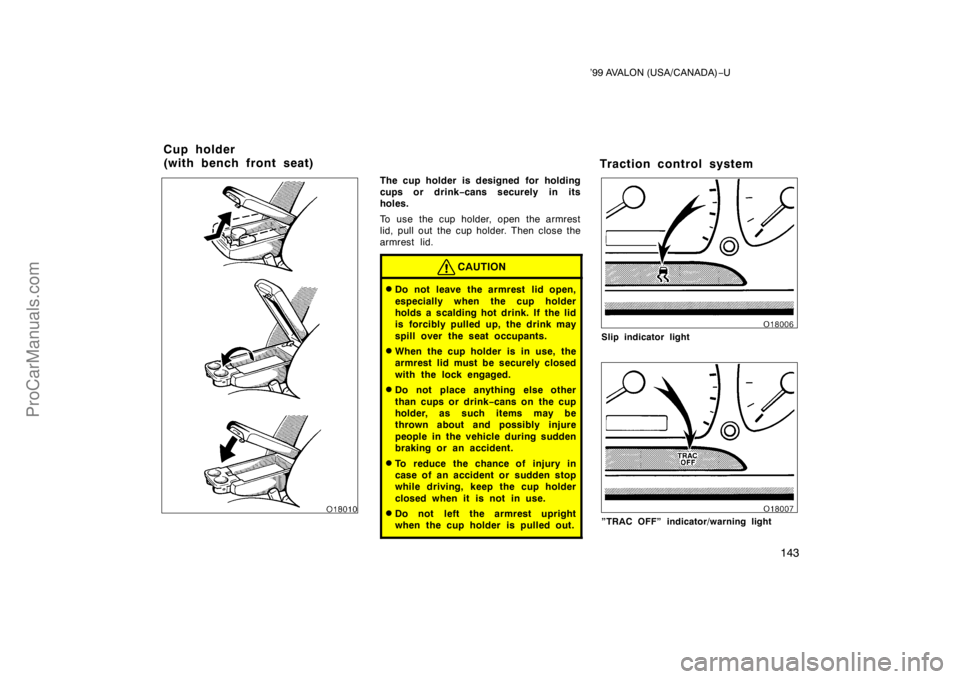

CAUTION
Do not leave the armrest lid open,
especially when the cup holder
holds a scalding hot drink. If the lid
is forcibly pulled up, the drink may
spill over the seat occupants.
When the cup holder is in use, the
armrest lid must be securely closed
with the lock engaged.
Do not place anything else other
than cups or drink −cans on the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
Do not left the armrest upright
when the cup holder is pulled out.
Traction control system
Slip indicator light
”TRAC OFF” indicator/warning light
Cup holder
(with bench front seat)
ProCarManuals.com
Page 144 of 237
’99 AVALON (USA/CANADA)−U
144
AUTOMATIC TRACTION CONTROL SYS-
TEM
The traction control system automatical-
ly helps control the spinning of the
front wheels which may occur when ac-
celerating on slippery road surfaces,
thus assisting driver to control the driv-
ing power of the front wheels. When
you turn the ignition switch on, the
traction control system always turns on
automatically, and the slip indicator
light and ”TRAC OFF” indicator/warning
light will come on. The indicator lights
will go off after a few seconds.
Leave the system on during ordinary
driving so that it can operate when
needed. When traction control is ap-
plied, the slip indicator light blinks.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the traction
control system is in the self −check mode,
and does not indicate malfunction. When
the traction control system is operating,
you may feel vibration or noise of your
vehicle, caused by operation of the
brakes. This indicates the system is func-
tioning properly. When getting the vehicle out of mud or
new snow, etc. the traction control system
will help operate to prevent the wheels
from spinning.
MANUAL OPERATION
You can turn off the traction control
system by pushing the ”TRAC OFF”
switch. The ”TRAC OFF” indicator/warn-
ing light will come on. Pushing the
”TRAC OFF” switch a second time
turns on the traction control system
and the ”TRAC OFF” indicator/warning
light will go off.
ProCarManuals.com
Page 145 of 237
’99 AVALON (USA/CANADA)−U
145

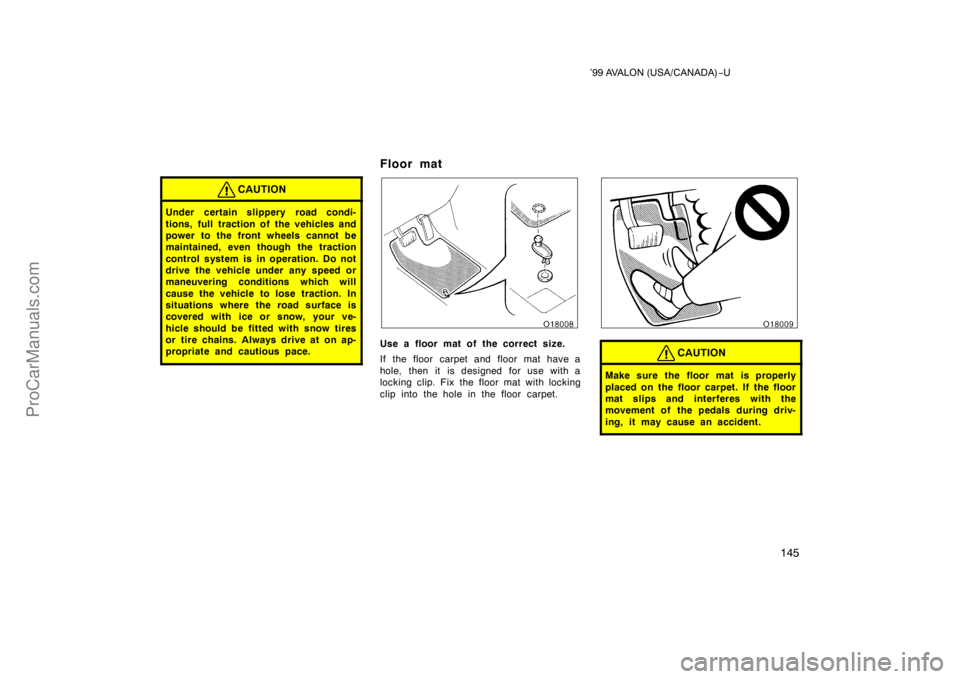

CAUTION
Under certain slippery road condi-
tions, full traction of the vehicles and
power to the front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which will
cause the vehicle to lose traction. In
situations where the road surface is
covered with ice or snow, your ve-
hicle should be fitted with snow tires
or tire chains. Always drive at on ap-
propriate and cautious pace.
Floor mat
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
ProCarManuals.com
Page 146 of 237
’99 AVALON (USA/CANADA)−U
146
Part 2
INFORMATION
BEFORE DRIVING
YOUR TOYOTA
Break −in period
Fuel
Operation in foreign countries
Three −way catalytic converter
Engine exhaust cautions
Facts about engine oil
consumption
Twin ground electrode
platinum −tipped spark plugs
Brake system
Brake pad wear limit indicators
Luggage stowage precautions
Your Toyota’s identification
Theft prevention labels
Suspension and chassis
Types of tires
Break −in period
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break −in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Do not drive over 88 km/h (55 mph).
Run the engine at moderate speed be-
tween 2000 and 4000 rpm.
Avoid full −throttle starts.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first 800
km (500 miles).
Fuel
FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix −ups, your
Toyota has a new smaller fuel tank open-
ing. The special nozzle on pumps with
unleaded fuel will fit it, but the larger
standard nozzle on pumps with leaded gas
will not.
At a minimum, the gasoline you use
should meet specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5 −M93
in Canada.
NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three −
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
ProCarManuals.com
Page 147 of 237
’99 AVALON (USA/CANADA)−U
147
OCTANE RATING
Select Octane Rating 87 (Research Oc-
tane Number 91) or higher. For im-
proved vehicle performance, the use of
premium unleaded gasoline with an Oc-
tane Rating of 91 (Research Octane
Number 96) or higher is recommended.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, now and then, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is no need
of concern.
GASOLINES CONTAINING DETERGENT
ADDITIVES
Toyota recommends use of gasolines
that contain detergent additives to
avoid build −up of engine deposits.
For further details, ask your Toyota dealer
or a local gasoline retailer. IMPROVED GASOLINES
The American Automobile Manufacturers
Association (AAMA) has developed a
specification of improved gasolines. The
AAMA specification offers optimal fuel
information for better vehicle perfor-
mance and better protection of your en-
gine.
Toyota recommends the use of gasolines
that meet the AAMA specification, if avail-
able, for improved driveability and emis-
sion control system.
GASOLINES CONTAINING MTBE
Gasolines that contain MTBE (Methyl
Tertiary
−Butyl Ether) are available in the
market. If you use a gasoline mixed
with MTBE, make certain that it does
not contain more than 15% of MTBE.
GASOLINES CONTAINING MMT
Some gasolines contain an octane −en-
hancing additive called MMT (methylcy-
clopentadienyl manganese tricarbonyl). Toyota does not recommend the use of
gasolines that contain MMT. If fuels con-
taining MMT are used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINES CONTAINING ALCOHOL
If you use gasohol in your Toyota, be
sure that it is unleaded, has an octane
rating no lower than 87 and does not
contain more than 10% ethanol.
Gasohol is a mixture of gasoline and etha-
nol.
Toyota does not recommend the use of
gasolines containing methanol. If you use
gasoline containing methanol, use only
gasoline meeting the requirements above
and also containing less than 5% metha-
nol with cosolvents and corrosion inhibi-
tors for methanol.
GASOLINES QUALITY
In a very few cases, you may experience
driveability problems caused by the partic-
ular gasoline that you are using. If you
continue to have unacceptable driveability,
try changing gasoline brands. If that does
not rectify your problem, then consult your
Toyota dealer.
ProCarManuals.com
Page 148 of 237
’99 AVALON (USA/CANADA)−U
148
NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
If driveab ility problems occur ( poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
70 L (18.5 gal., 15.4 Imp. gal.)
Operation in foreign countries
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
Three −way catalytic converter
Ty p e A
Ty p e B
ProCarManuals.com
Page 149 of 237
’99 AVALON (USA/CANADA)−U
149
The three −way catalytic converter is an
emission control device installed in the
exhaust system.
Its purpose is to reduce pollutants in the
exhaust gas.
CAUTION
Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not drive, idle or park your ve-
hicle over anything that might burn
easily such as grass, leaves, paper
or rags.
NOTICE
A large amount of unburned gases
flowing into the three −way catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three −
way catalytic converter.
Do not allow the engine to run at
idle speed for more than 20 min-
utes.
Avoid racing the engine.
Do not push −start or pull −start your
vehicle.
Do not turn off the ignition while
the vehicle is moving.
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel system could cause an ex-
tremely high three −way catalytic
converter temperature.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a check −up as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
three −way catalytic converter sys-
tem best. To ensure that the three −way cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the separate ”Scheduled
Maintenance Guide” or ”Owner’s
Manual Supplement”.
ProCarManuals.com
Page 150 of 237
’99 AVALON (USA/CANADA)−U
150

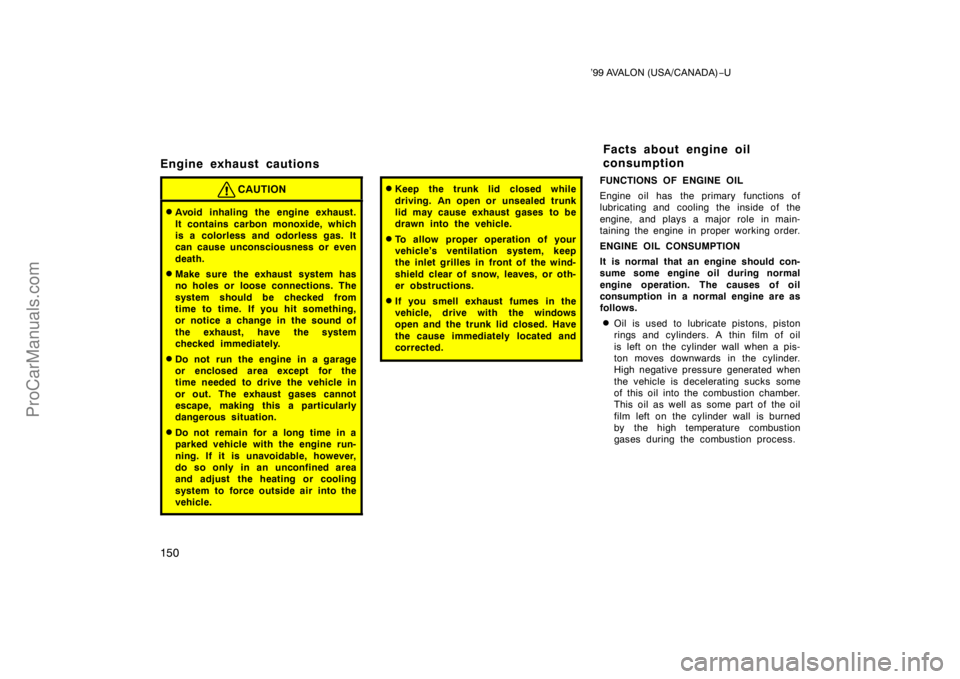

Engine exhaust cautions
CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
Keep the trunk lid closed while
driving. An open or unsealed trunk
lid may cause exhaust gases to be
drawn into the vehicle.
To allow proper operation of your
vehicle’s ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, drive with the windows
open and the trunk lid closed. Have
the cause immediately located and
corrected.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Facts about engine oil
consumption
ProCarManuals.com
