When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal while depressing the brake pedal.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) with your foot off the
accelerator pedal.
Your cruising speed can be maintained
although a slight speed change may occur
when driving up or down gradient, within
the limits of engine performance. On
steeper hills, a greater speed change will
occur so it is better to drive without the
cruise control.
When the cruise control is on, the driving
pattern of the automatic transmission is
fixed in the normal position, regardless of
the position of the selector switch.CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
Cruise control

’03 AVALON U (L/O 0206)
1382003 AVALON (OM41401U)
TURNING ON THE SYSTEM
To operate the cruise control, push “ON/
OFF” button. This turns the system on.
The indicator light in the instrument clus-
ter shows that you can now set your de-
sired cruising speed. Another push will
turn the system completely off.
When the ignition key is turned off, the
system automatically turned off. To use
the cruise control again, push “ON/OFF”
button again to turn it on.
CAUTION
To avoid accidental cruise control en-
gagement, keep the cruise control
system off when not using the cruise
control.
SETTING AT A DESIRED SPEED
The transmission must be in “D” before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push “COAST SET” button and release it.
This sets the vehicle at that speed. If the
speed is not satisfactory, push “RES ACC”
button for a faster speed, or push “SET
COAST” button for a slower speed. Each
push changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.

’03 AVALON U (L/O 0206)
1392003 AVALON (OM41401U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Depressing the brake pedal.
b. Pushing “CANCEL” button and releas-
ing it.
c. Pushing “ON/OFF” button.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will be
automatically cancelled.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will be also automatically cancelled.
If the preset speed automatically cancels
out for any other reasons, have your ve-
hicle checked by your Toyota dealer at the
earliest opportunity.RESETTING TO A FASTER SPEED
Push “RES ACC” button and hold it. Re-
lease the button the desired speed is at-
tained. While the button is pushed, the
vehicle will gradually gain speed.
When the difference between the actual
vehicle speed and the set speed is less
than 5 km/h (3 mph), the set speed can
be increased 1.6 km/h (1 mph) each time
by pushing “RES ACC” button quickly
within 0.6 seconds.
However, a faster way to reset is to ac-
celerate the vehicle and then push
“COAST SET” button.
RESETTING TO A SLOWER SPEED
Push “COAST SET” button and hold it.
Release the button when the desired
speed is attained. While the button is
pushed, the vehicle speed will gradually
decrease.
When the difference is 5 km/h (3 mph) or
more, the vehicle will cruise with its actu-
al speed. When the difference between the
actual vehicle speed and the set speed is
less than 5 km/h (3 mph), the set speed
can be lowered 1.6 km/h (1 mph) each
time by pushing “COAST SET” button
quickly within 0.6 seconds.However, a faster way to reset is to de-
press the brake pedal and then push
“COAST SET” button.
Even if you turn off the overdrive switch
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control button or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.
RESUMING THE PRESET SPEED
If the preset speed is cancelled by push-
ing “CANCEL” button or by depressing the
brake pedal, pushing “RES ACC” button
will restore the speed set prior to can-
cellation. However, once the vehicle speed
falls below about 40 km/h (25 mph), the
preset speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If “CRUISE” indicator light in the instru-
ment cluster flashes when using the
cruise control, push “ON/OFF” button to
turn the system off and then push it again
to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.

’03 AVALON U (L/O 0206)
1402003 AVALON (OM41401U)
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

’03 AVALON U (L/O 0206)
1412003 AVALON (OM41401U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Car audio system
Reference142 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system142 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Car audio system operating hints162 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 7

’03 AVALON U (L/O 0206)
1422003 AVALON (OM41401U)
Type 1: AM·FM ETR radio/cassette player/
compact disc player (with compact disc
auto changer controller)Type 2: AM·FM ETR radio/cassette player/
compact disc auto changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM”, “TAPE” or “CD” to turn
on that function without pushing
“PWR·VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM”, “TAPE” or “CD” if the
system is already on but you want to
switch from one function to another.
ReferenceUsing your audio system—
—Some basics

’03 AVALON U (L/O 0206)
1432003 AVALON (OM41401U)
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange, and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear window.
NOTICE
Attaching the film (especially conduc-
tive or metallic type) on the rear win-
dow will noticeably reduce the sensi-
tivity of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.

’03 AVALON U (L/O 0206)
1442003 AVALON (OM41401U)
YOUR COMPACT DISC AUTO CHANGER
(type 2)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. (The player will auto-
matically eject a disc if the label side is
down.) The compact disc auto changer will
play from track 1 through the end of the
disc. Then it will play from track 1 of the
next disc.
The changer is intended for use with 12
cm (4.7 in.) discs only.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc auto changer. In-
sert only one compact disc into slot
at a time.
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.

’03 AVALON U (L/O 0206)
1452003 AVALON (OM41401U)
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
—Controls and features
Ty p e 1

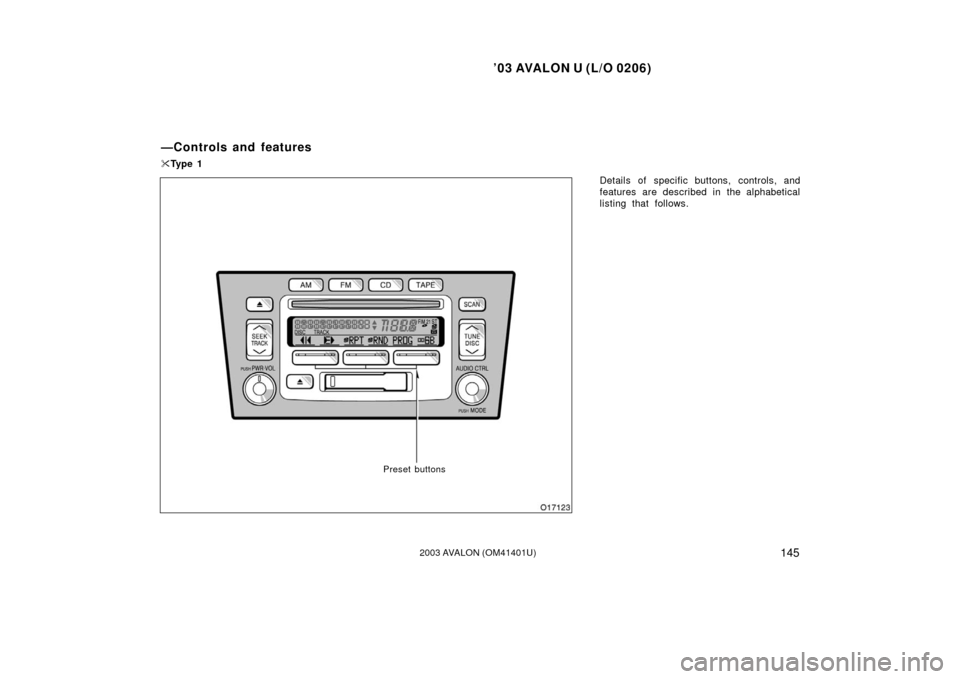

Preset buttons

’03 AVALON U (L/O 0206)
1462003 AVALON (OM41401U)
Preset buttons
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK” button.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM” “FM”.)
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to “LOCK”, you
will be able to eject a cassette or disc,
but you will not be able to reinsert it.
(Reverse/Fast forward button)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. “
” will appear
on the display. Push the reverse button to
rewind a tape. “
” will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
“TAPE”; to stop the tape while it is re-
winding, push the reverse button or
“TAPE”.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the autore-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.AM
Push “AM” to turn on the radio and select
the AM band. “AM” will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing “AM”. Also, push
“AM” to switch from cassette or compact
disc operation to radio operation.
AUDIO CTRL / MODE (Audio control
and mode adjustment)
Manual tone adjustment function—
This knob is used to adjust the tone
manually.
For lowpitch tone adjustment, push
“AUDIO CTRL / MODE” repeatedly until
“BASS” appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
“BASS 5” to “BASS 5”.
For middlepitch tone adjustment, push
“AUDIO CTRL / MODE” repeatedly until
“MID” appears on the display. Then turn
the knob to suit your preference.
The display will show the range from “MID
5” to “MID 5”.
