In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars, rear
pillars or roof side rail garnishes (pad-
ding) containing the curtain shield air-
bags inside (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Your vehicle is equipped with a front
passenger occupant classification sys-
tem. This system detects the conditions
1—4 in the table on page 96 and based
on these conditions activates or deacti-
vates front passenger airbags. The sys-
tem monitors the weight and load on
the front passenger seat, and the seat
belt buckle switch to determine condi-
tions 1—4.
In order for the system to detect the
conditions correctly, do not do any of
the following:
Apply a heavy load to the front pas-
senger seat or equipment (e.g. seat-
back pocket).
Attach a commercial seatback table,
etc. to the front passenger seatback.
Put weight on the front passenger seat
by putting your hands or feet on the
seatback from the rear passenger seat.
—Front passenger occupant
classification system

’05 AVALON_U (L/O 0501)
94
2005 AVALON from Jan. ’05 Prod. (OM41408U)
The “AIRBAG ON” and “AIRBAG OFF”
indicator lights indicate the actuation of
the front passenger airbag, side airbag
on the front passenger seat and front
passenger ’s seat belt pretensioner.
The “AIRBAG OFF” indicator light will be
illuminated when the ignition switch is set
at ON with the condition 2 in the table
shown below.If the front passenger occupant classifica-
tion system determines that a person of
adult size sits in the front passenger seat
but the “AIRBAG OFF” indicator light is
illuminated, one of the following is likely
to have occurred:
A rear passenger lifts the front passen-
ger seat cushion with their legs.
Objects are placed under the front pas-
senger seat.
The front passenger seatback is in
contact with the rear seat.
To ensure the system correctly detects an
adult sitting in the front passenger seat,
make sure the above do not occur.
Make sure that the “AIRBAG ON” indicator
light is illuminated when an adult is
seated in the front passenger seat. If the
“AIRBAG OFF” indicator light is illumina-
ted, ask the passenger to sit up straight,
well back in the seat, and with the seat
belt worn correctly. If the “AIRBAG OFF”
indicator light still remains illuminated, ei-
ther ask the passenger to move to the
rear seat, or if that is not possible, move
the front passenger seat fully rearward. The “AIRBAG ON” and “AIRBAG OFF”
indicator lights will be illuminated ini-
tially when the ignition switch is set at
ON. After about four seconds, they will
go off. After that, the front passenger
occupant classification system operates
and judges which indicator light be illu-
minated.

’05 AVALON_U (L/O 0501)
95
2005 AVALON from Jan. ’05 Prod. (OM41408U)
The SRS warning light and “AIRBAG
OFF” indicator light will come on if
there is a malfunction in the front pas-
senger occupant classification system.

’05 AVALON_U (L/O 0501)
96
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Condition and operation in the front passenger occupant classification systemCondition detected by the front
passenger occupant
classification system
Indicator/warning lightDevices
“AIRBAG ON” and “AIRBAG OFF”indicator lightsSRS warning light
Front
passenger ’s seat belt
reminder lightFront
passenger airbagSide airbag
on the front passenger seatCurtain shieldairbag in the front
passenger sideFront
passenger ’s seat belt
pretensioner
1. Adult∗ 1“AIRBAG ON”OffFlashing∗4Activated
2. Child∗2 or child
restraint system∗ 3“AIRBAG OFF”OffFlashing∗4Deactivated
Activated
Activated
3. UnoccupiedNot illuminatedOffOffDeactivatedDeactivated
4. There is a
malfunction in the
system
“AIRBAG OFF”OnOffDeactivatedActivated
∗1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.
∗ 3: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” on page 98 in this Section as for installi ng the
child restraint system.)
∗ 4:
In the event that the front passenger does not wear a seat belt.

’05 AVALON_U (L/O 0501)
97
2005 AVALON from Jan. ’05 Prod. (OM41408U)
CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Do not recline the front passenger
seat seatback so that it interferes
with a rear seat as it may cause the
“AIRBAG OFF” indicator light be il-
luminated. If the seatback interferes
with the rear seat, return the seat-
back to a position where it does
not interfere with the rear seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.

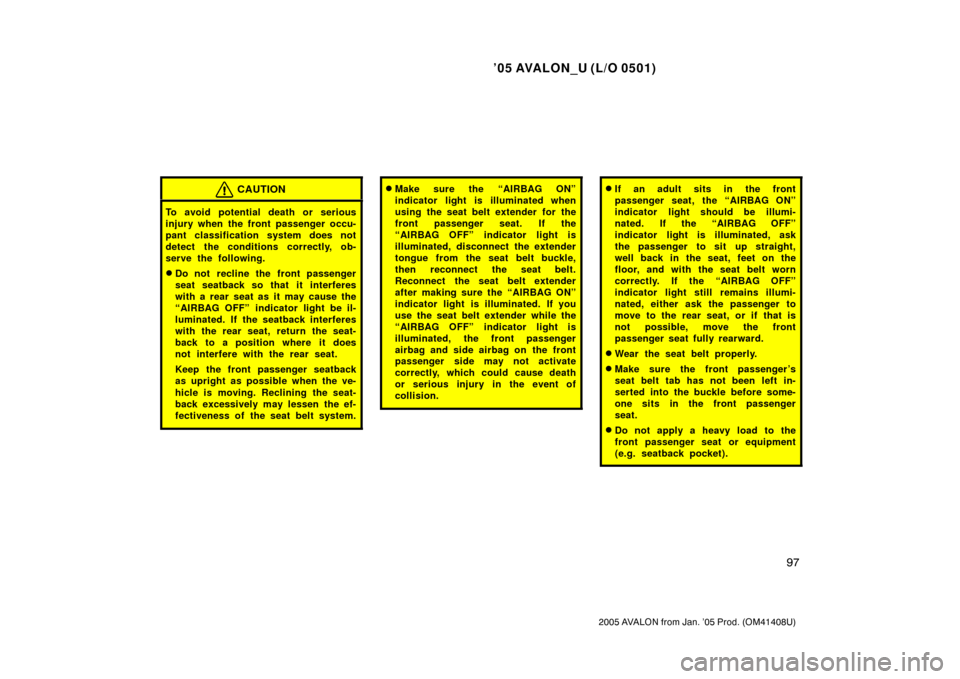

Make sure the “AIRBAG ON”
indicator light is illuminated when
using the seat belt extender for the
front passenger seat. If the
“AIRBAG OFF” indicator light is
illuminated, disconnect the extender
tongue from the seat belt buckle,
then reconnect the seat belt.
Reconnect the seat belt extender
after making sure the “AIRBAG ON”
indicator light is illuminated. If you
use the seat belt extender while the
“AIRBAG OFF” indicator light is
illuminated, the front passenger
airbag and side airbag on the front
passenger side may not activate
correctly, which could cause death
or serious injury in the event of
collision.If an adult sits in the front
passenger seat, the “AIRBAG ON”
indicator light should be illumi-
nated. If the “AIRBAG OFF”
indicator light is illuminated, ask
the passenger to sit up straight,
well back in the seat, feet on the
floor, and with the seat belt worn
correctly. If the “AIRBAG OFF”
indicator light still remains illumi-
nated, either ask the passenger to
move to the rear seat, or if that is
not possible, move the front
passenger seat fully rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted into the buckle before some-
one sits in the front passenger
seat.
Do not apply a heavy load to the
front passenger seat or equipment
(e.g. seatback pocket).

’05 AVALON_U (L/O 0501)
98
2005 AVALON from Jan. ’05 Prod. (OM41408U)

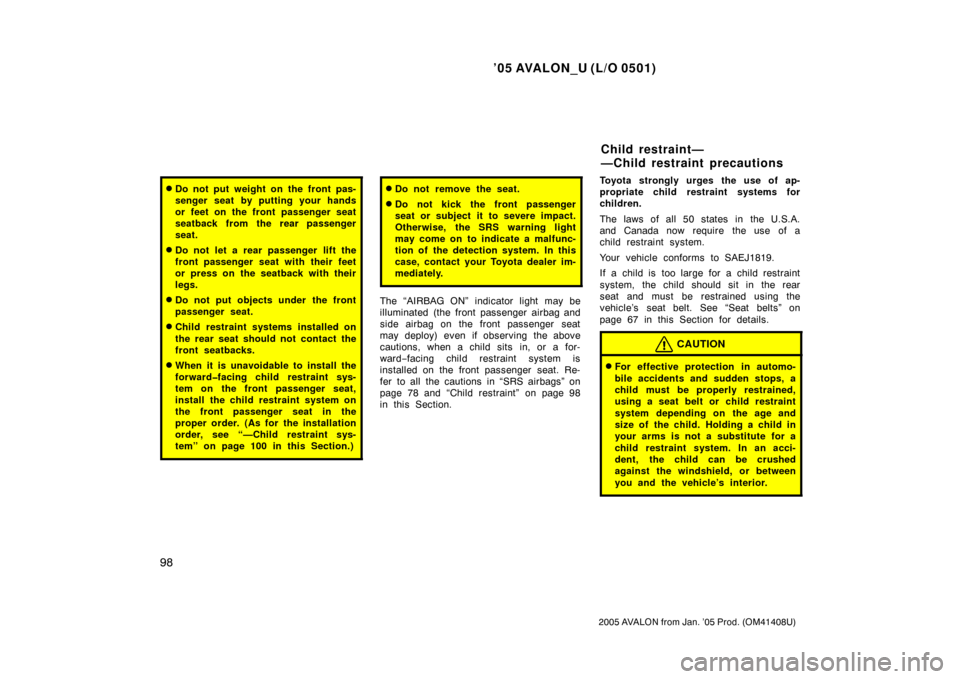

Do not put weight on the front pas-
senger seat by putting your hands
or feet on the front passenger seat
seatback from the rear passenger
seat.
Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Child restraint sys-
tem” on page 100 in this Section.)
Do not remove the seat.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The “AIRBAG ON” indicator light may be
illuminated (the front passenger airbag and
side airbag on the front passenger seat
may deploy) even if observing the above
cautions, when a child sits in, or a for-
ward−facing child restraint system is
installed on the front passenger seat. Re-
fer to all the cautions in “SRS airbags” on
page 78 and “Child restraint” on page 98
in this Section. Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s
hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 67 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Child restraint—
—Child restraint precautions

’05 AVALON_U (L/O 0501)
99
2005 AVALON from Jan. ’05 Prod. (OM41408U)

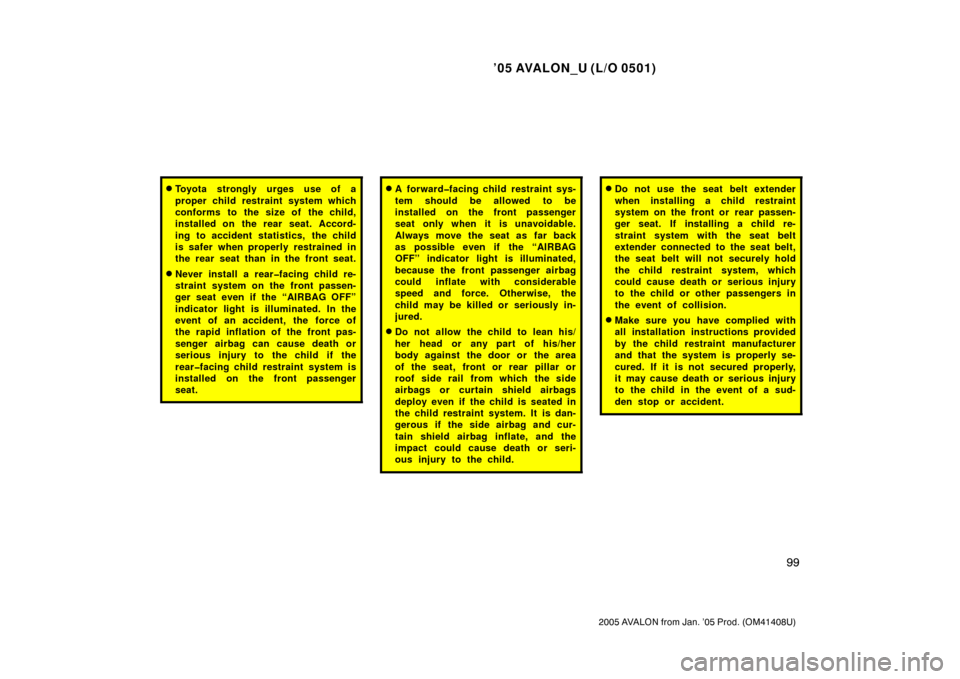

Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.

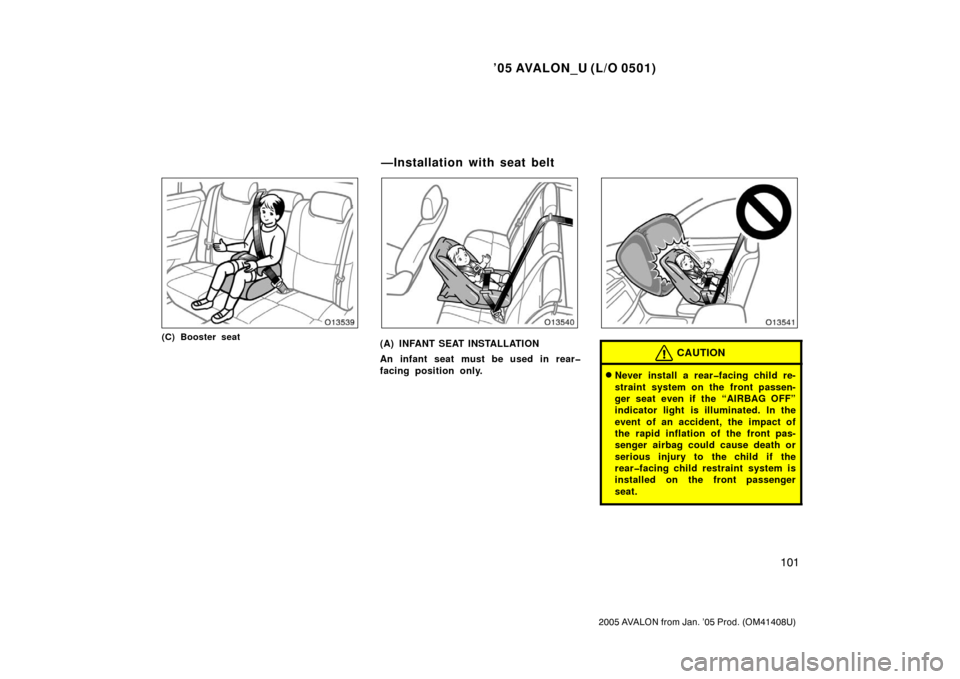

Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag can cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.

’05 AVALON_U (L/O 0501)
100
2005 AVALON from Jan. ’05 Prod. (OM41408U)
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following instructions.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it in the trunk or somewhere other than
the passenger compartment. This will pre-
vent it from injuring passengers in the
event of a sudden stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.

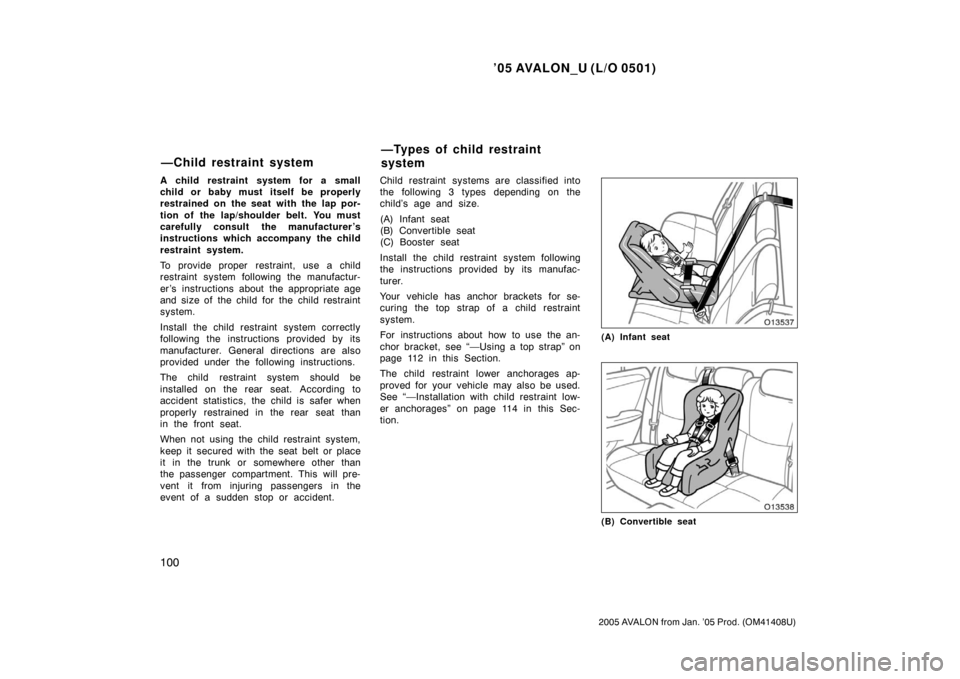

(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 112 in this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” on page 114 in this Sec-
tion.
(A) Infant seat
(B) Convertible seat
—Child restraint system
—Types of child restraint
system

’05 AVALON_U (L/O 0501)
101
2005 AVALON from Jan. ’05 Prod. (OM41408U)
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the impact of
the rapid inflation of the front pas-
senger airbag could cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
—Installation with seat belt

’05 AVALON_U (L/O 0501)
102
2005 AVALON from Jan. ’05 Prod. (OM41408U)

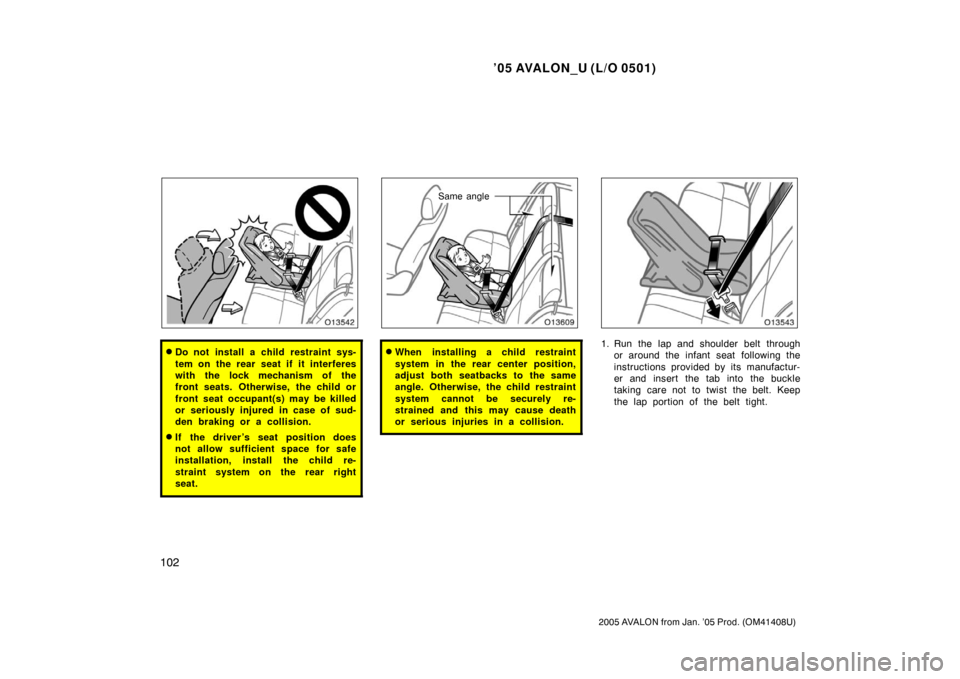

Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
Same angle
When installing a child restraint
system in the rear center position,
adjust both seatbacks to the same
angle. Otherwise, the child restraint
system cannot be securely re-
strained and this may cause death
or serious injuries in a collision.1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
