’05 AVALON_U (L/O 0501)
3
2005 AVALON from Jan. ’05 Prod. (OM41408U)
1. Instrument panel light control knob
2. Headlight, turn signal and front foglight switches
3. Audio remote control switches
4. Speech command switch (See the separate “Navigation System Owner ’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls 11. Cigarette lighter and ashtray, auxiliary box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner ’s Manual.”)
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Telescopic steering lock release lever
16. Glass breakage sensor
17. Trunk opener switch
View B (with key cylinder type ignition switch)
Page 12 of 396
’05 AVALON_U (L/O 0501)
4
2005 AVALON from Jan. ’05 Prod. (OM41408U)
18. Fuel filler door opener switch
19. Power rear view mirror control switches
Page 13 of 396
’05 AVALON_U (L/O 0501)
5
2005 AVALON from Jan. ’05 Prod. (OM41408U)
1. Instrument panel light control knob
2. Headlight, turn signal and front foglight switches
3. Audio remote control switches
4. Speech command switch (See the separate “Navigation System Owner ’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls 11. Cigarette lighter and ashtray, auxiliary box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner ’s Manual.”)
12. Ignition switch (engine switch)
13. Cruise control switch
14. Distance switch
15. Tilt steering lock release lever
16. Telescopic steering lock release lever
17. Glass breakage sensor
View B (with smart key system)
Page 14 of 396
’05 AVALON_U (L/O 0501)
6
2005 AVALON from Jan. ’05 Prod. (OM41408U)
18. Rear electric sunshade switch
19. Trunk opener switch
20. Fuel filler door opener switch
21. Power rear view mirror control switches
Page 15 of 396
’05 AVALON_U (L/O 0501)
7
2005 AVALON from Jan. ’05 Prod. (OM41408U)

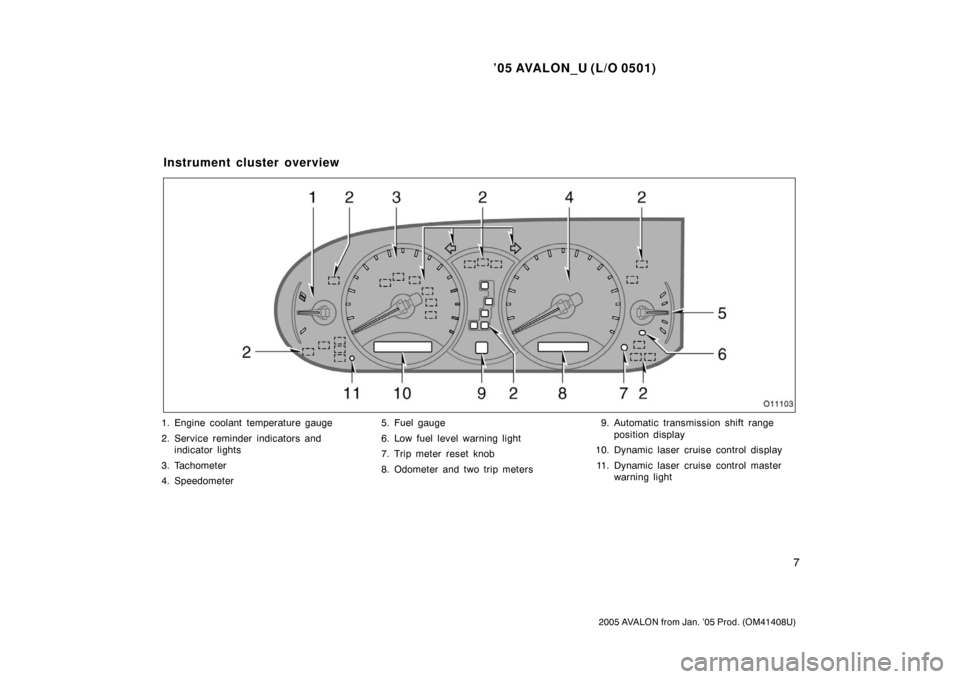

1. Engine coolant temperature gauge
2. Service reminder indicators andindicator lights
3. Tachometer
4. Speedometer 5. Fuel gauge
6. Low fuel level warning light
7. Trip meter reset knob
8. Odometer and two trip meters
9. Automatic transmission shift range
position display
10. Dynamic laser cruise control display
11. Dynamic laser cruise control master warning light
Instrument cluster overview
Page 16 of 396
’05 AVALON_U (L/O 0501)
8
2005 AVALON from Jan. ’05 Prod. (OM41408U)

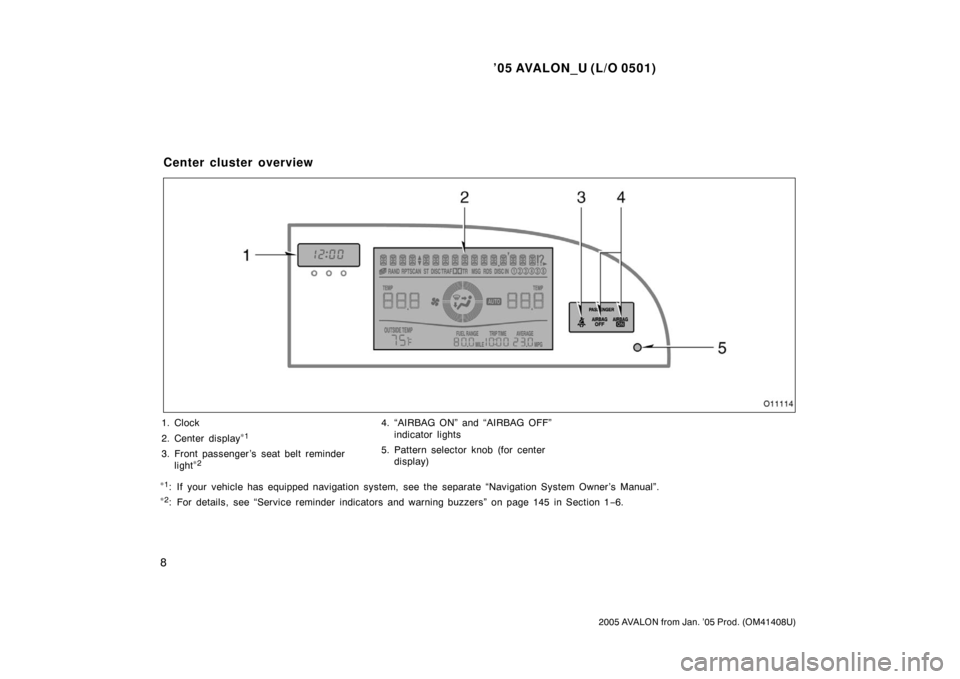

1. Clock
2. Center display
∗1
3. Front passenger ’s seat belt reminder
light∗2
4. “AIRBAG ON” and “AIRBAG OFF”
indicator lights
5. Pattern selector knob (for center display)
∗1: If your vehicle has equipped navigation system, see the separate “Navigation System Owner ’s Manual”.
∗2: For details, see “Service reminder indicators and warning buzzers” on page 145 in Section 1 −6.
Center cluster overview
Page 17 of 396
’05 AVALON_U (L/O 0501)
9
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
or
Anti −lock brake system warning light∗
1or
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Vehicle stability control system and traction
control system warning light∗1
or
Automatic headlight leveling system warning
light∗1
Engine oil replacement reminder light∗1
Engine immobilizer/theft deterrent system
indicator light
Smart key system warning light∗1
Headlight low beam indicator light
Indicator symbols on the instrument panel
Page 18 of 396
’05 AVALON_U (L/O 0501)
10
2005 AVALON from Jan. ’05 Prod. (OM41408U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 145 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 169 in
Section 1 −7.
∗
3: If this light flashes, see “Dynamic laser cruise control” on
page 172 in Section 1 −7.
Turn signal indicator lights
Slip indicator/traction control system off light
Cruise control indicator light∗
2 or dynamic laser
cruise control indicator light∗ 3
Automatic transmission indicator lights Headlight high beam indicator light
Tail light indicator light
Dynamic laser cruise control ready mode
indicator light
Conventional cruise control mode indicator light
Page 19 of 396
’05 AVALON_U (L/O 0501)
11
2005 AVALON from Jan. ’05 Prod. (OM41408U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Smart key system 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Side doors 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 20 of 396
’05 AVALON_U (L/O 0501)
12
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Your vehicle is supplied with two kinds
of keys.1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key will not work in the glove box and armrest door in
the rear seat.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine. To protect items locked in the trunk or
glove box when using valet parking, leave
the sub key with the attendant.NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys (with key cylinder type
ignition switch)
