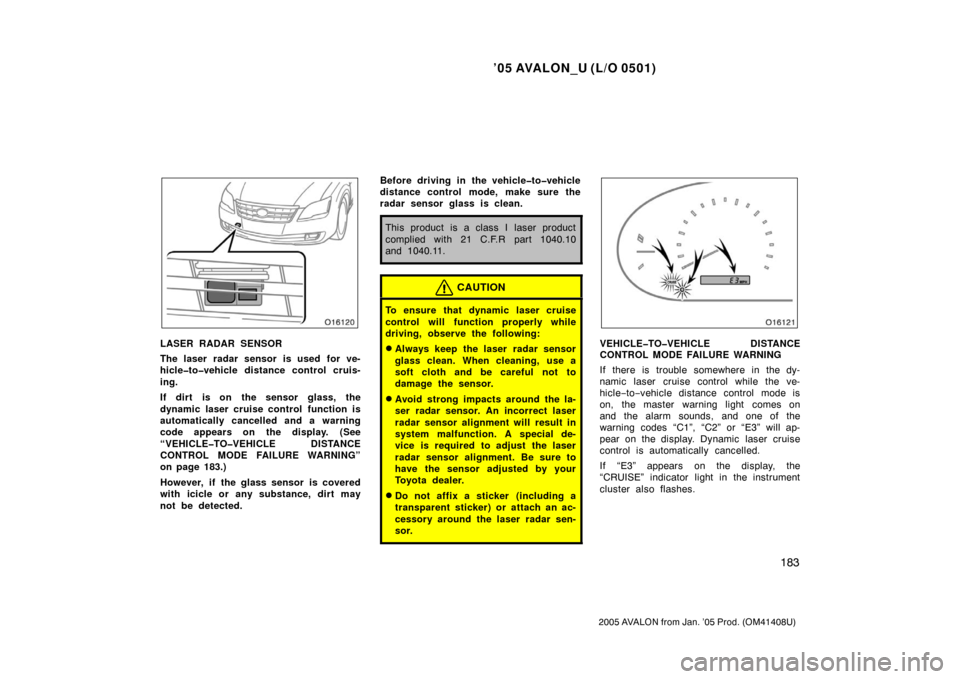

LASER RADAR SENSOR
The laser radar sensor is used for ve-
hicletovehicle distance control cruis-
ing.
If dirt is on the sensor glass, the
dynamic laser cruise control function is
automatically cancelled and a warning
code appears on the display. (See
“VEHICLETOVEHICLE DISTANCE
CONTROL MODE FAILURE WARNING”
on page 183.)
However, if the glass sensor is covered
with icicle or any substance, dirt may
not be detected.Before driving in the vehicletovehicle
distance control mode, make sure the
radar sensor glass is clean.
This product is a class I laser product
complied with 21 C.F.R part 1040.10
and 1040.11.
CAUTION
To ensure that dynamic laser cruise
control will function properly while
driving, observe the following:
Always keep the laser radar sensor
glass clean. When cleaning, use a
soft cloth and be careful not to
damage the sensor.
Avoid strong impacts around the la-
ser radar sensor. An incorrect laser
radar sensor alignment will result in
system malfunction. A special de-
vice is required to adjust the laser
radar sensor alignment. Be sure to
have the sensor adjusted by your
Toyota dealer.
Do not affix a sticker (including a
transparent sticker) or attach an ac-
cessory around the laser radar sen-
sor.
VEHICLETOVEHICLE DISTANCE
CONTROL MODE FAILURE WARNING
If there is trouble somewhere in the dy-
namic laser cruise control while the ve-
hicle−
to−vehicle distance control mode is
on, the master warning light comes on
and the alarm sounds, and one of the
warning codes “C1”, “C2” or “E3” will ap-
pear on the display. Dynamic laser cruise
control is automatically cancelled.
If “E3” appears on the display, the
“CRUISE” indicator light in the instrument
cluster also flashes.

’05 AVALON_U (L/O 0501)
184
2005 AVALON from Jan. ’05 Prod. (OM41408U)
If “C1” appears on the display, the sys-
tem cannot easily measure the vehicle −to −
vehicle distance because of a dirty laser
radar sensor glass while the dynamic la-
ser cruise control is on.
If this code appears, clean the sensor
glass with a soft cloth and try setting the
preset speed again. If the dirt is removed
without cleaning, the system will automati-
cally enter the ready mode.
If the system does not enter the ready
mode even after cleaning or the code re-
mains on the display, the system might be
malfunctioning. Although there is no prob-
lem to continue driving, please contact
your Toyota dealer.
CAUTION
Always keep the sensor glass and
never allow it to be covered with
icicle or any substance, so it can de-
tect the vehicle in front.
If “C2” appears on the display, the sys-
tem cannot easily measure the vehicle −to −
vehicle distance because of the following
conditions:
The wipers are operating at high or low
speeds
Direct sunlight from the front
It is difficult to make a measurement
because of bad weather (such as rainy,
foggy, or snowy weather)
In the following cases, dynamic laser
cruise control switches to the ready mode:
The wipers are stopped or are
switched to intermittent operation.
No direct sunlight from the front
In the above conditions, push the lever up
in the “+ RES” direction and release it.
Dynamic laser cruise control will be re-
stored. If the setting operation cannot be
performed or if the warning code still ap-
pears even after the weather clears, the
system might have malfuncti oned. Al-
though there is no problem to continue
driving, please contact your Toyota dealer. If “E3” appears on the display,
a system
malfunction has been detected.
If this code appears, stop your vehicle in
a safe place, turn the ignition off, and
then restart it to reset the system. If the
setting still cannot be made or the same
code appears again, the system might
have malfunctioned. Although there is no
problem to continue driving, please con-
tact your Toyota dealer.

’05 AVALON_U (L/O 0501)
185
2005 AVALON from Jan. ’05 Prod. (OM41408U)
This mode allows you to cruise at a
desired speed over about 45 km/h (28
mph) with your foot off the accelerator
pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
In the conventional (fixed speed)
cruise control mode, the approach
warning does not activate and no
alarm will sound even if you are
too close to the vehicle ahead, as
neither the presence of the vehicle
ahead nor the vehicletovehicle
distance is detected. Pay special
attention to the distance between
your vehicle and the vehicle ahead.
Always confirm the setting in the
display.
Do not use the conventional (fixed
speed) mode in the following condi-
tions, or serious injury or death
could result:
To help maintain maximum control
of your vehicle, do not use conven-
tional cruise control mode when us-
ing dynamic laser cruise control
while driving in heavy or varying
traffic, or on slippery (rainy, icy or
snowcovered) or winding roads.
Avoid vehicle speed increasing
when driving downhill. If the vehicle
speed is too fast in relation to the
preset speed in the conventional
cruise control mode, cancel the
conventional cruise control mode
and then downshift the transmis-
sion to use engine braking to slow
down.
TURNING THE SYSTEM ON
To operate conventional cruise control
mode, press the “ON−OFF” button. This
turns the system on. The “CRUISE” and
“READY” indicator lights in the instrument
cluster comes on. Push the lever in the
“MODE” direction for longer than 1 second
to change to conventional cruise control
mode. The indicator in the instrument
cluster is as shown. You can now set
your desired cruising speed. Pressing the
“ON −OFF” button again will turn the sys-
tem completely off.
—Conventional (fixed speed)
cruise control mode

’05 AVALON_U (L/O 0501)
186
2005 AVALON from Jan. ’05 Prod. (OM41408U)
However, once the vehicle−to −vehicle dis-
tance control mode activates and is used,
it cannot be changed to the conventional
cruise control mode using the above op-
eration. To change the mode, press the
“ON −OFF” button to turn the system off
and then press it again to turn it on. Next
push the lever in the “MODE” direction for
longer than about 1 second.
To change to the vehicle −to −vehicle dis-
tance control mode from the conventional
cruise control mode, push the lever in the
“MODE” direction for longer than about 1
second.
CAUTION
To avoid accidentally engaging cruise
control, keep the “ONOFF” button
off when not using dynamic laser
cruise control.
SETTING THE DESIRED SPEED
The transmission must be in the “D” posi-
tion, “5” (fifth range) or “4” (fourth range)
in sequential mode before you set the
cruise control speed in the conventional
cruise control mode.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed and the display shows the
preset speed. You can now take your foot
off the accelerator pedal. If you need to accelerate—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the preset speed. When you release the
accelerator pedal, the vehicle will return to
the speed set prior to acceleration.
You cannot set a desired speed if the
master warning light comes on, the alarm
sounds and the display indicates the
warning code “E3”. If this code appears
on the display, see
“VEHICLE
−TO −VEHICLE DISTANCE
CONTROL MODE FAILURE WARNING” on
page 183.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by doing
any of the following:
a. Pulling the lever in the “CANCEL” direction.
b. Depressing the brake pedal. c. Pressing the “ON −OFF” button.

’05 AVALON_U (L/O 0501)
187
2005 AVALON from Jan. ’05 Prod. (OM41408U)
In the following cases, the preset speed
automatically cancels out:a. The vehicle speed falls below about 40km/h (25 mph).
b. If the vehicle speed drops 16 km/h (10 mph) below the preset speed, the pre-
set speed will also automatically be
cancelled.
c. The slip indicator light blinks and an alarm sounds. (This occurs when the
vehicle is about to skid.)
If cancelled by a. or b., the preset speed
data is cleared and you must set the
speed from the beginning.
If the preset speed automatically cancels
out for other than the above reasons, do
not operate the cruise control. Although it
is no problem to continue driving, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity. RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
When the difference between the actual
vehicle speed and the set speed is less
than 5 km/h (3 mph), the set speed can
be increased 1.6 km/h (1 mph) each time
by pushing the lever up in the “+ RES”
direction quickly within 0.6 seconds.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
When the difference between the actual
vehicle speed and the set speed is less
than 5 km/h (3 mph), the set speed can
be lowered 1.6 km/h (1 mph) each time
by pushing the lever down in the “ − SET”
direction quickly within 0.6 seconds. However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
Even if you downshift from “D” position or
“5” (fifth range) to “4” (fourth range) in
sequential mode in the conventional cruise
control mode, engine braking will not be
enabled because this mode is not cancel-
led. To decrease the vehicle’s speed, re-
set to a slower speed with the cruise
control lever or depress the brake pedal.
If you use the brake pedal, cruise control
is cancelled.
RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the lever, by depressing the brake pedal
or by activating the vehicle stability con-
trol system, pushing the lever up in the
“+ RES” direction will restore the speed
set prior to cancellation.

’05 AVALON_U (L/O 0501)
188
2005 AVALON from Jan. ’05 Prod. (OM41408U)
CONVENTIONAL CRUISE CONTROL
MODE FAILURE WARNING
If there is trouble in the conventional
cruise control mode, the “CRUISE” indica-
tor light in the instrument cluster flashes,
the master warning light comes on and
the alarm sounds, the warning code “E3”
will appear on the display.
If a system malfunction is detected when
the conventional cruise control mode is in
the ready mode or operating, the master
warning light comes on, an alarm sounds
and the above code appears.
If this code appears, press the “ON−OFF”
button to turn the system off and then
push it again to turn it on. If the setting
still cannot be made or the same code
appears again, the system might have
malfunctioned. Although there is no prob-
lem to continue driving, please contact
your Toyota dealer.

’05 AVALON_U (L/O 0501)
189
2005 AVALON from Jan. ’05 Prod. (OM41408U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference190
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Audio system operating hints 216
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For information about the speech command system of a vehicle
equipped with navigation system, please refer to the separate
“Navigation System Owner’s Manual”.
SECTION 1 8

’05 AVALON_U (L/O 0501)
190
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Type 1: AM·FM radio/compact disc player
(with cassette player controller)Type 2: AM·FM radio/compact disc player
with changer (with cassette player con-
troller)Type 3: AM·FM radio/compact disc player
with changer (with cassette player and XM
satellite radio
∗ controller)
∗: Use of satellite radio requires XM tunerand service. Contact your Toyota deal-
er for details.
Reference

’05 AVALON_U (L/O 0501)
191
2005 AVALON from Jan. ’05 Prod. (OM41408U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
switch is set at ACC or ON.
OPENING THE AUDIO COVER
Push the button to open the audio cover.TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “AM/SAT”
∗, “FM”, “TAPE” or
“DISC” to turn on that function without
pushing “PWR·VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the other function was pre-
viously playing, it will come on again.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “AM/SAT”
∗, “FM”, “TAPE” or
“DISC” if the system is already on but you
want to switch from one function to anoth-
er.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
Using your audio system—
—Some basics

’05 AVALON_U (L/O 0501)
192
2005 AVALON from Jan. ’05 Prod. (OM41408U)
LISTENING TO THE XM SATELLITE
RADIO BROADCAST∗ (type 3)
To listen to a satellite radio br oadcast in
your vehicle, an additional genuine Toyota
satellite receiver and ant enna (or equiva-
lents) must be purchased and installed. A
subscription to the XM satellite radio ser-
vice is also necessary.
How to subscribe to an XM satellite
radio
An XM satellite radio is a t uner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states. How to subscribe:
You must enter into a separate service
agreement with the XM radio in order to
receive satellite broadcast programming in
the vehicle. Additional activation and ser-
vice subscription fees apply that are not
included in the purchase price of the ve-
hicle and optional digital satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to the
XM radio, visit XM on the web at
www.xmradio.com
or call an XM’s Listener
Care at (800) 852 −9696. The XM radio is
solely responsible for the quality, availabil-
ity and content of the satellite radio ser-
vices provided, which are subject to the
terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
All fees and programming are the respon-
sibility of the XM satellite radio and are
subject to change. Satellite tuner technology notice:
Toyota’s satellite radio tuners are awarded
Type Approval Certificates from XM Satel-
lite Radio Inc. on “October 14, 2004” as
proof of compatibility with the services of-
fered by the XM satellite radio.
Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE” knob, the ID code of 8 alphanu-
meric characters appears. If you select
another channel, display of the ID code is
canceled. The channel (000) alternates the
display between the radio ID and the spe-
cific radio ID code.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
