The air conditioning filter information
label is placed as shown and indicates
that a filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.This air conditioning system has a high
efficient air refiner filter which helps
eliminate dust and pollen, thereby in-
creasing your driving comfort.
The air conditioning filter is set behind
the glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioner and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
Air conditioning filter—
—Checking and replacing the
air conditioning filter

’05 AVALON_U (L/O 0501)
234
2005 AVALON from Jan. ’05 Prod. (OM41408U)
1. Open the glove box. Remove thescrew with a Phillipshead screw-
driver and slide off the damper as
shown.2. Push in each side of the glove boxto disconnect the claws.3. Remove the filter cover while push-ing in both ends of the cover.

’05 AVALON_U (L/O 0501)
235
2005 AVALON from Jan. ’05 Prod. (OM41408U)
4. Pull the filter out of the filter outlet.Inspect the filter on the surface.
If it is dirty, it should be replaced.When inserting the filter in the filter
outlet, keep the arrow pointing up.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

’05 AVALON_U (L/O 0501)
236
2005 AVALON from Jan. ’05 Prod. (OM41408U)

’05 AVALON_U (L/O 0501)
237
2005 AVALON from Jan. ’05 Prod. (OM41408U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Center display238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Clock 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Compass 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Cigarette lighter and ashtrays 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Garage door opener 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Glove box 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 253
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 253
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Rear electric sunshade 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Floor mat 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

’05 AVALON_U (L/O 0501)
238
2005 AVALON from Jan. ’05 Prod. (OM41408U)

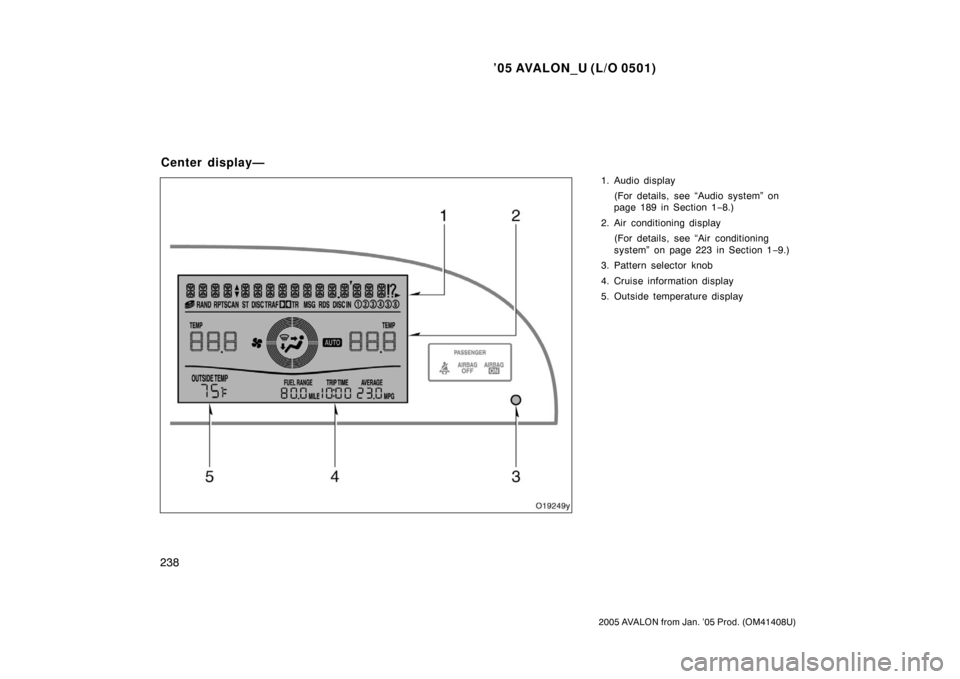

1. Audio display(For details, see “Audio system” on
page 189 in Section 1 −8.)
2. Air conditioning display (For details, see “Air conditioning
system” on page 223 in Section 1 −9.)
3. Pattern selector knob
4. Cruise information display
5. Outside temperature display
Center display—

’05 AVALON_U (L/O 0501)
239
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Operate the center display with the
ignition switch on.
When the ignition switch is set at ON, the
last previously used mode displayed just
before the ignition switch is turned off will
appear.
If the electrical power source has been
disconnected from the center display, the
display will automatically be set to the
initial mode.
When the instrument panel lights are
turned on, the brightness of the display
may be reduced.Pattern selector knob
This knob is used to select the pattern
of the display.
Every time you push the pattern selector
knob, the display in the following order.1. All the display
2. Audio display and air conditioning dis- play
3. Display off
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
—Before using the center
display

’05 AVALON_U (L/O 0501)
240
2005 AVALON from Jan. ’05 Prod. (OM41408U)
The outside temperature value is updated
every 1 second.
The displayed temperature ranges from
−30 C ( −22 F) up to 50 C (122 F).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −−”, “F” or “E” will appear on the display.
If “ −−”, “F” or “E” appears on the display,
contact your Toyota dealer.
There may be a case that “−−”, “F” or “E”
appears momentarily when the ignition
switch is quickly set to ON. It is normal
if it goes out soon.1. Driving range (“FUEL RANGE”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the
driving range calculation is automatically
reset. The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
2. Elapsed time (“TRIP TIME”)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 99:59 (99
hours, 59 minutes) can be displayed.
When the driving time exceeds 99:59, the
counter returns to 0:00.
The calculation is reset when the ignition
switch is turned off. 3. Average fuel consumption after re- fueling
(“AVERAGE”)
Average fuel consumption after refuel-
ing is calculated and displayed based
on total driving distance and total fuel
consumption with the engine running.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the av-
erage fuel consumption after refueling cal-
culation is automatically reset.
—Outside temperature display —Cruise information display

’05 AVALON_U (L/O 0501)
241
2005 AVALON from Jan. ’05 Prod. (OM41408U)
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
The ignition switch must be set at ON.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).When the instrument panel lights are
turned on, the brightness of the time in-
dication may be reduced.The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “
” switch to turn the com-
pass system on and off.
Clock Compass

’05 AVALON_U (L/O 0501)
242
2005 AVALON from Jan. ’05 Prod. (OM41408U)
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
