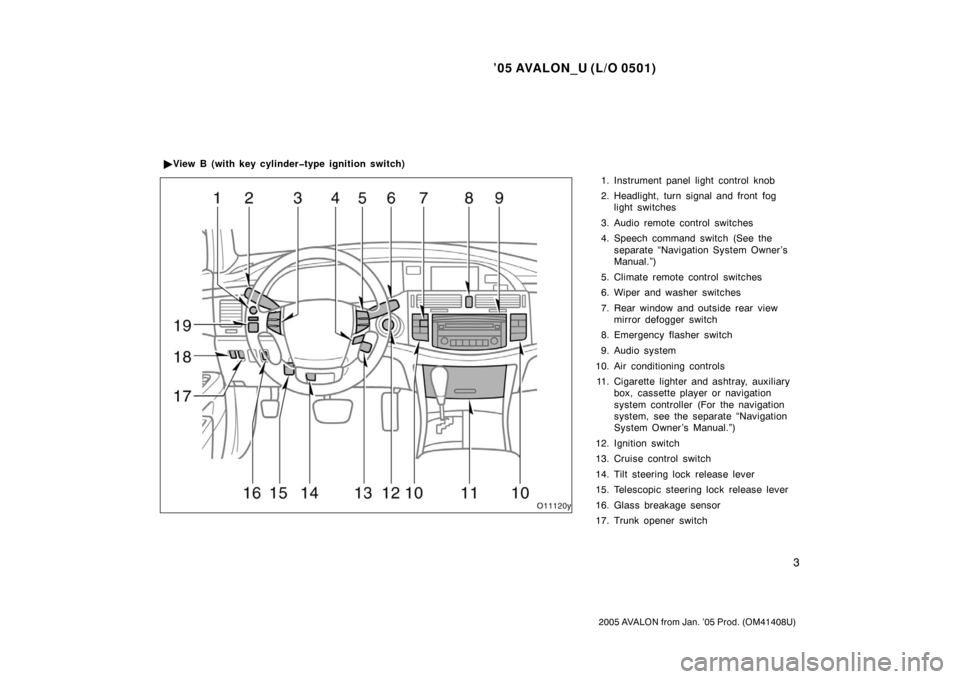

1. Instrument panel light control knob
2. Headlight, turn signal and front foglight switches
3. Audio remote control switches
4. Speech command switch (See the separate “Navigation System Owner ’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls 11. Cigarette lighter and ashtray, auxiliary box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner ’s Manual.”)
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Telescopic steering lock release lever
16. Glass breakage sensor
17. Trunk opener switch

View B (with key cylindertype ignition switch)

’05 AVALON_U (L/O 0501)
5
2005 AVALON from Jan. ’05 Prod. (OM41408U)
1. Instrument panel light control knob
2. Headlight, turn signal and front foglight switches
3. Audio remote control switches
4. Speech command switch (See the separate “Navigation System Owner ’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls 11. Cigarette lighter and ashtray, auxiliary box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner ’s Manual.”)
12. Ignition switch (engine switch)
13. Cruise control switch
14. Distance switch
15. Tilt steering lock release lever
16. Telescopic steering lock release lever
17. Glass breakage sensor

View B (with smart key system)

’05 AVALON_U (L/O 0501)
9
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
or
Anti −lock brake system warning light∗
1or
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Vehicle stability control system and traction
control system warning light∗1
or
Automatic headlight leveling system warning
light∗1
Engine oil replacement reminder light∗1
Engine immobilizer/theft deterrent system
indicator light
Smart key system warning light∗1
Headlight low beam indicator light
Indicator symbols on the instrument panel

’05 AVALON_U (L/O 0501)
11
2005 AVALON from Jan. ’05 Prod. (OM41408U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Smart key system 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Side doors 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’05 AVALON_U (L/O 0501)
12
2005 AVALON from Jan. ’05 Prod. (OM41408U)

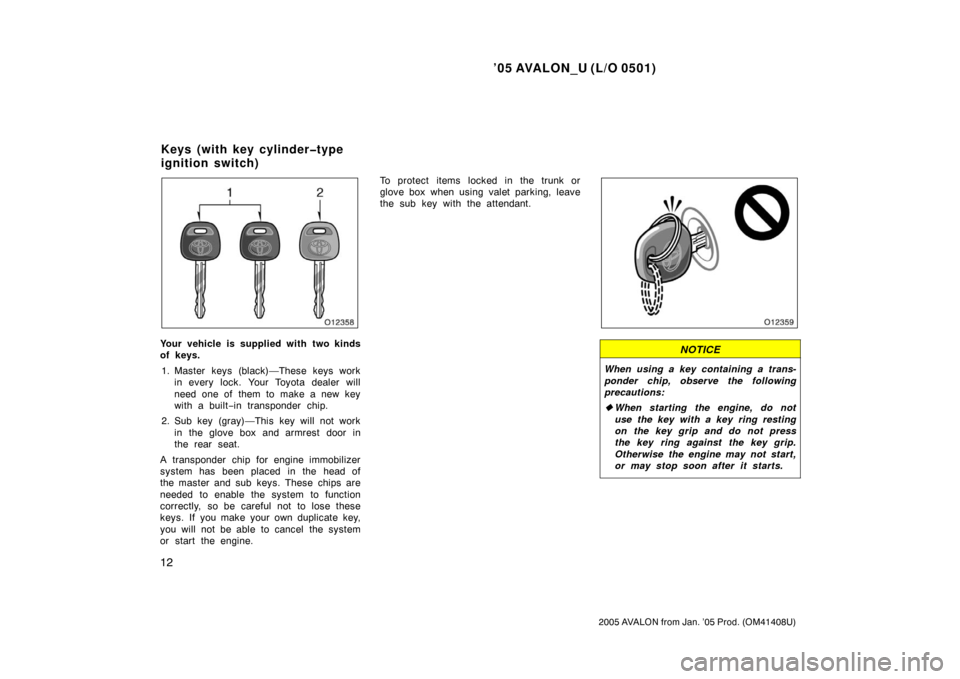

Your vehicle is supplied with two kinds
of keys.1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key will not work in the glove box and armrest door in
the rear seat.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine. To protect items locked in the trunk or
glove box when using valet parking, leave
the sub key with the attendant.NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys (with key cylindertype
ignition switch)

’05 AVALON_U (L/O 0501)
13
2005 AVALON from Jan. ’05 Prod. (OM41408U)
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.

’05 AVALON_U (L/O 0501)
14
2005 AVALON from Jan. ’05 Prod. (OM41408U)
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.The key consists of an electronic key
and a mechanical key. The mechanical
key is for emergency use. If the elec-
tronic key does not operate, you can
open the driver ’s door using the me-

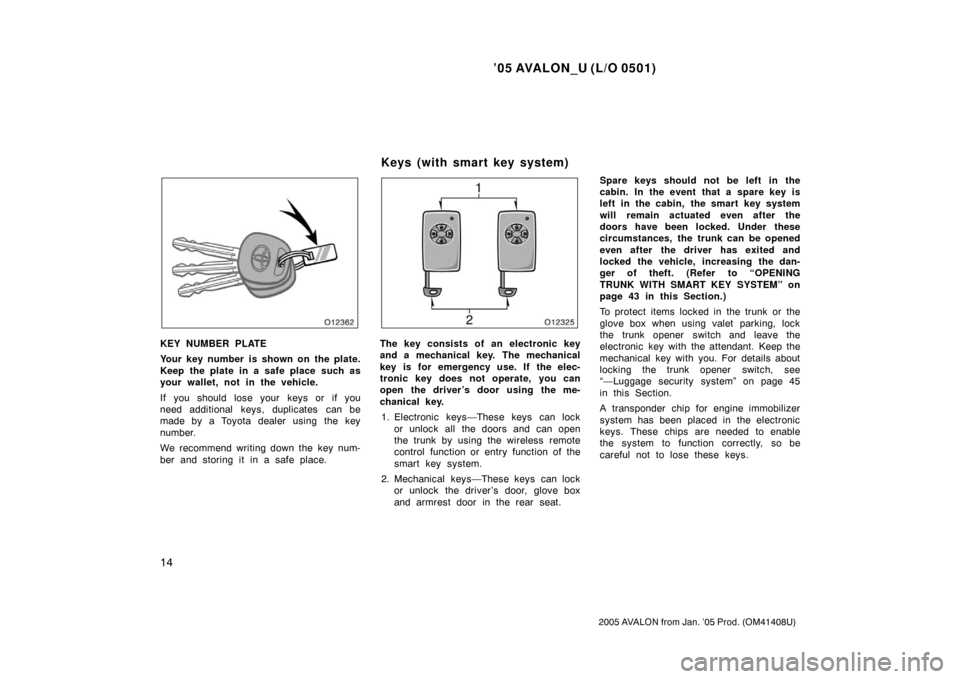

chanical key.1. Electronic keys—These keys can lock or unlock all the doors and can open
the trunk by using the wireless remote
control function or entry function of the
smart key system.
2. Mechanical keys—These keys can lock or unlock the driver’s door, glove box
and armrest door in the rear seat. Spare keys should not be left in the
cabin. In the event that a spare key is
left in the cabin, the smart key system
will remain actuated even after the
doors have been locked. Under these
circumstances, the trunk can be opened
even after the driver has exited and
locked the vehicle, increasing the dan-
ger of theft. (Refer to “OPENING
TRUNK WITH SMART KEY SYSTEM” on
page 43 in this Section.)
To protect items locked in the trunk or the
glove box when using valet parking, lock
the trunk opener switch and leave the
electronic key with the attendant. Keep the
mechanical key with you. For details about
locking the trunk opener switch, see
“—Luggage security system” on page 45
in this Section.
A transponder chip for engine immobilizer
system has been placed in the electronic
keys. These chips are needed to enable
the system to function correctly, so be
careful not to lose these keys.
Keys (with smart key system)

’05 AVALON_U (L/O 0501)
15
2005 AVALON from Jan. ’05 Prod. (OM41408U)
NOTICE
When using a electronic key contain-
ing a transponder chip, observe the
following precautions:
Do not affix any material that cuts
off electromagnetic waves (such as
a metal seal) on the electronic key.
 Do not knock the electronic key
hard against other objects.
 Do not leave the electronic key ex-
posed to high temperatures for a
long period, such as on the dash-
board or hood under direct sun-
light.
 Do not put the electronic key in
water or wash it in an ultrasonic
washer.
 Do not keep the electronic key to-
gether with the products emitting
electromagnetic waves such as a
cellular phone.

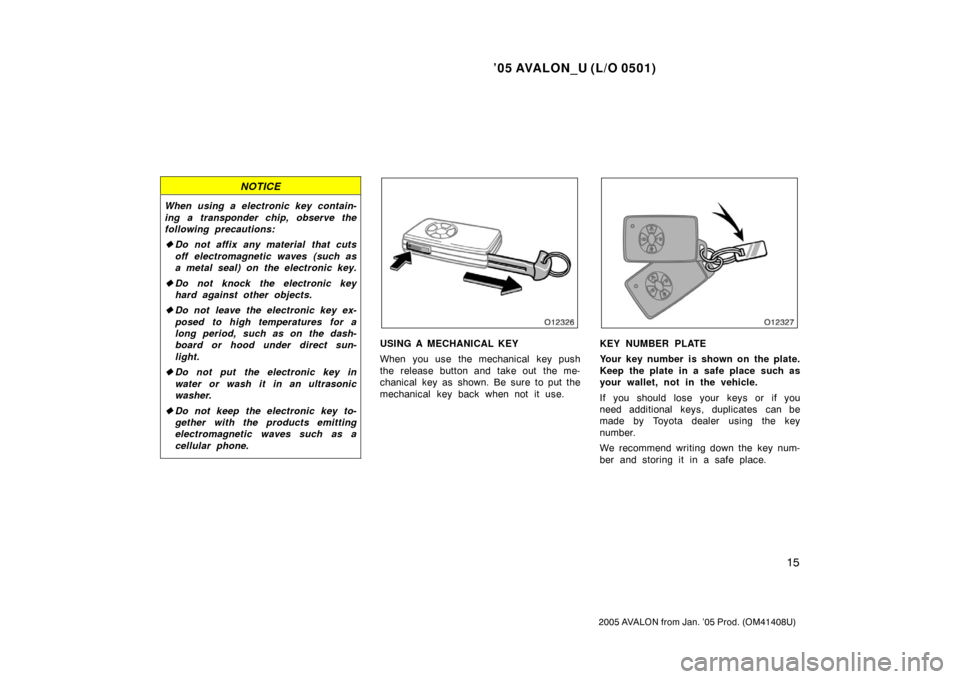

USING A MECHANICAL KEY
When you use the mechanical key push
the release button and take out the me-
chanical key as shown. Be sure to put the
mechanical key back when not it use.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’05 AVALON_U (L/O 0501)
16
2005 AVALON from Jan. ’05 Prod. (OM41408U)
The engine immobilizer system is a
theft prevention system using an elec-
tronic code. The transponder chip in
the key has an electronic code and
transmits the code to the vehicle. Only
when the electronic code in the chip
corresponds to the register ID code for
the vehicle, the engine immobilizer sys-
tem will be canceled and the engine
will start.
The engine immobilizer system is automat-
ically set when:
Vehicles with key cylinder−type ignition
switch—The key is removed from the igni-
tion switch.
Vehicles with smart key system—The igni-
tion switch is turned off.
The indicator light will start flashing to
show that the system is set. If any of the following indicator conditions
occur, contact your Toyota dealer.
The indicator light remains on.
The indicator light does not start flash-
ing under the following situations.
Vehicles with key cylinder
−type ignition
switch—When the key is removed from
the ignition switch.
Vehicles with smart key system—When
the ignition switch is turned off.
The indicator light flashes inconsistent-
ly.
The engine immobilizer system is automat-
ically canceled when:
Vehicles with key cylinder −type ignition
switch—
You insert the key to the ignition switch.
Vehicles with smart key system—
You enter the vehicle carrying a key with
smart key system and press the “ENGINE
START STOP” switch (engine switch). For
further information, see “Smart key sys-
tem” on page 27 in this Section.
If the key battery is dead, you should hold
the electronic key up to the “ENGINE
START STOP” switch.
When the system is canceled, the indica-
tor light will go off.
Engine immobilizer system

’05 AVALON_U (L/O 0501)
17
2005 AVALON from Jan. ’05 Prod. (OM41408U)
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key (vehicles with key cylin-
der −type ignition switch) or electronic key
(vehicles with smart key system). Howev-
er, there is a limit to the number of addi-
tional keys your Toyota dealer can make
for you.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
For vehicles sold in U.S.A.
FCC ID: MOZRI21BTY
FCC ID: NI4TMIMB1
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
