To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.To turn on the interior light, push the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any
door is opened. The light goes off when
all the doors are closed. For details, see
“Illuminated entry system” on page 135 in
this Section.
Interior light and rear personal
lights—The rear personal lights can be
turned on or off by the interior light
switch.To turn on the front personal light,
push the switch. To turn the light off,
push the switch once again.
Front fog lights Interior lightFront personal lights

’06 AVALON_U (L/O 0508)
134
Personal light switch
Interior light switch
To turn on the rear personal lights, op-
erate the interior light switch. The
lights can be turned on or off by push-
ing on each button when the interior
light switch is in the “OFF” or “DOOR”
position.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turn the lights on only when you
pushing on each button.
“DOOR”—Turns the light on when any
door is opened or unlock a door with all
the doors are locked. For details, see “Il-
luminated entry system” on page 135 in
this Section.
Rear personal lights

’06 AVALON_U (L/O 0508)
135
The following lights except the center
console illumination and exterior foot
lights will come on when any of the
doors are opened. After all the doors
are closed, the lights remain on for
about 15 seconds before fading out.
The interior light, front and rear personal
light, and the ignition switch light (vehicles
with key cylinder−type ignition switch)
come on when the interior light switch is
in the “DOOR” position.

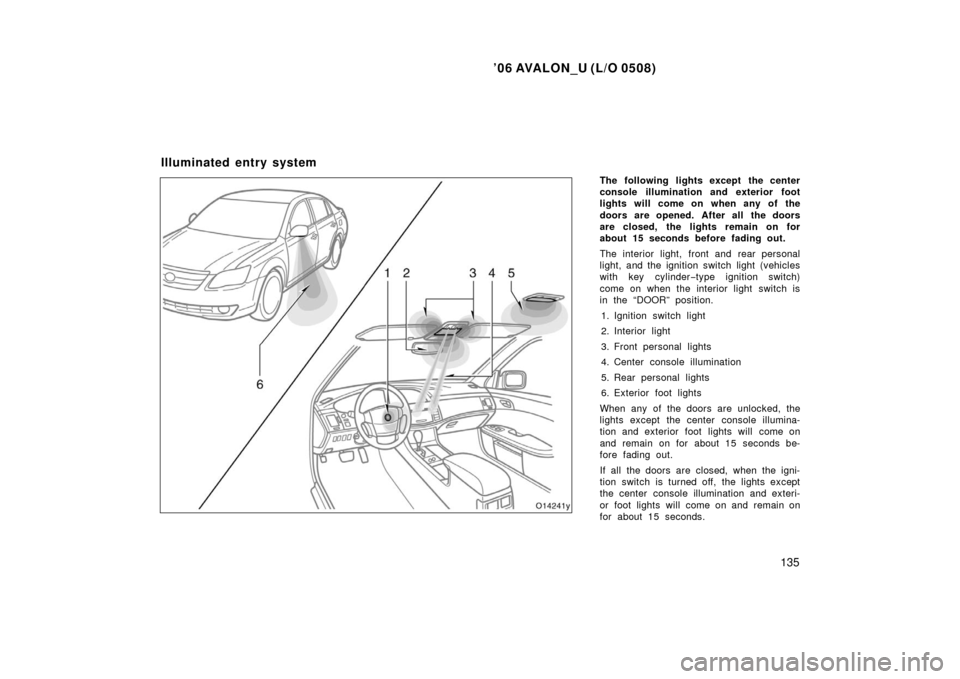

1. Ignition switch light
2. Interior light
3. Front personal lights
4. Center console illumination
5. Rear personal lights
6. Exterior foot lights
When any of the doors are unlocked, the
lights except the center console illumina-
tion and exterior foot lights will come on
and remain on for about 15 seconds be-
fore fading out.
If all the doors are closed, when the igni-
tion switch is turned off, the lights except
the center console illumination and exteri-
or foot lights will come on and remain on
for about 15 seconds.
Illuminated entry system

’06 AVALON_U (L/O 0508)
136
If all the doors are closed and the ignition
switch is set at ACC, the ignition switch
light and interior light will fade out.
If all the doors are locked, all the lights
will fade out.
When the transmission selector lever is
placed out of the “P” position with the
ignition switch is set at ON, the exterior
foot lights will fade out.
To prevent the battery being discharged,
all of the lights will automatically turn off
the key removed (vehicles with key cylin-
der−type ignition switch) or the ignition is
turned off (vehicles with smart key sys-
tem), and the door is left opened for
about 20 minutes.
CENTER CONSOLE ILLUMINATION
The center console illumination comes on
when the ignition switch is set at ACC or
ON.
ILLUMINATIONS OF ENTRY FUNCTION
(vehicles with smart key system)
The interior light and exterior foot lights
come on and remain on for about 15 sec-
onds when you carry the registered key
into the entry function actuation area. For
further information of entry function actua-
tion area, see “Smart key system” on
page 27 in Section 1 −2.
To turn on the windshield wipers, move
the lever to the desired setting.
The ignition switch must be set at ON.
Lever position
Operation
Position 1Intermittent operation
Position 2Low speed operation
Position 3High speed operation
Position 4Single sweep operation
Position 5Washer on
Rotating the band on the lever lets you
adjust the wiper time interval when the
wiper lever is in the intermittent position
(position 1). Twist the band upward to
increase the time between sweeps, and
downward to decrease it.
When the lever is set to the intermittent
position (position 1), the wipers move ac-
cording to the vehicle speed. The higher
the vehicle speed is, the shorter the inter-
mittent time becomes.
When the lever is in the position 2, the
wipers operate at low speed while the
vehicle is moving and, when it stops, they
switch to intermittent operation. If the le-
ver is shifted “LO” position while the ve-
hicle is stopped, the wiper will begin to
work in intermittent operation after a cou-
ple of wipes at low speed.
This feature can be deactivated. For de-
tails, ask your Toyota dealer.
As soon as the vehicle starts to move,
the wiper will operate once to clear the
driver’s front view if it is set to “INT”.
Windshield wipers and washer
(intermittent operation type)

’06 AVALON_U (L/O 0508)
137
To squirt washer fluid, pull the lever
toward you (position 5).
After the washer operates, the wipers op-
erate three times in low operation, pause
for several seconds, and then operate
once more. This occurs only if the wiper
switch is in the “OFF” or “INT” position.
The interval between the 3 wipes and the
final wipe depends on the vehicle speed.
The final sweep does not occur if the
vehicle speed exceeds 170 km/h (106
mph).
The final wipe (after a pause of several
seconds) prevents the washer fluid from
dripping. The final wipe can be set to
occur after a three second pause, or can
be deactivated. For details, ask your
Toyota dealer.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 369 in
Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the glass
or may damage wiper blades.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
Automatic control adjuster
To turn on the windshield wipers, move
the lever to the desired setting.
The ignition switch must be set at ON.
Lever position
Operation
Position 1Automatic operation
Position 2Low speed operation
Position 3High speed operation
Position 4Single sweep operation
Position 5Washer on
Windshield wipers and washer
(raindrop detection type)

’06 AVALON_U (L/O 0508)
138
Automatic operation (position 1)
The wiper speed is determined by the
amount of raindrops and sunlight detected
by the automatic wiper control sensor.
The automatic wiper control sensor is on
the inside of the windshield as shown
above.
If you feel that the operation of the auto-
matic wiper control is too fast or too slow,
twist the automatic control adjuster in the
“− ” direction to lower sensitivity, and “+”
direction to boost the sensitivity. Even if the wiper lever is in the position
1, the system will switch to intermittent
operations in the following conditions:
When the windshield gets extremely
cold (at less than
−10 C [14 F])
When the system malfunctions
However, when the windshield gets ex-
tremely hot (at more than 90 C [194 F]),
the wipers do not operate even if the
wiper lever is in the position 1.
As soon as the vehicle starts to move,
the wiper will operate once to clear the
driver’s front view if it is set to “INT”.
CAUTION
Be careful not to get your fingers
caught between the wipers and wind-
shield.
When the wiper lever is in the posi-
tion 1 with the ignition switch on, the
wipers could operate automatically in
the following cases:
If you touch the upper center of the
windshield adjacent to the sensor.
If you wipe the upper center of the
windshield (adjacent to which the
sensor is located) with a towel or
other object.
If the windshield vibrates.
If you touch the sensor.
NOTICE
Do not apply detergent to or wet the
automatic wiper control sensor when
cleaning the inside of the windshield.

’06 AVALON_U (L/O 0508)
139
To squirt washer fluid, pull the lever
toward you (position 5).
After the washer operates, the wipers op-
erate three times in low operation, pause
for several seconds, and then operate
once more. This occurs only if the wiper
switch is in the “OFF” or “INT” position.
The interval between the 3 wipes and the
final wipe depends on the vehicle speed.
The final sweep does not occur if the
vehicle speed exceeds 170 km/h (106
mph).
The final wipe (after a pause of several
seconds) prevents the washer fluid from
dripping. The final wipe can be set to
occur after a three second pause, or can
be deactivated. For details, ask your
Toyota dealer.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 369 in
Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the glass
or may damage wiper blades.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.Ty p e A
Ty p e B
Rear window and outside rear
view mirror defoggers

’06 AVALON_U (L/O 0508)
140

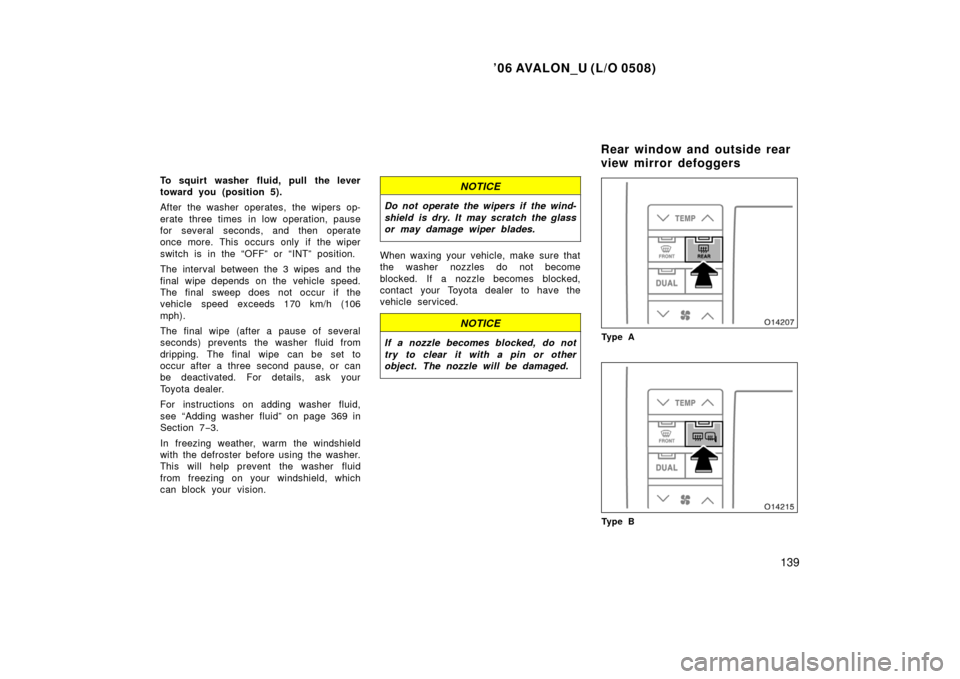

To defog or defrost the rear window,
push the switch.
The ignition switch must be set at ON.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Type B only—The heater panels in the
outside rear view mirrors will also quickly
clear the surfaces. Keep your hands off
the mirror faces when the switch is on.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
CAUTION
Type B only—Since the mirror sur-
faces can get hot, do not touch them
when the defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop−and− go driving. The defoggers are
not designed for drying rain water or for
melting snow.
Type B only—If the outside rear view mir-
rors are heavily coated with ice, use a
spray de −icer before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.

’06 AVALON_U (L/O 0508)
141
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 142
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 145
. . . . . . . . . . . . . .
SECTION 1 6

’06 AVALON_U (L/O 0508)
142

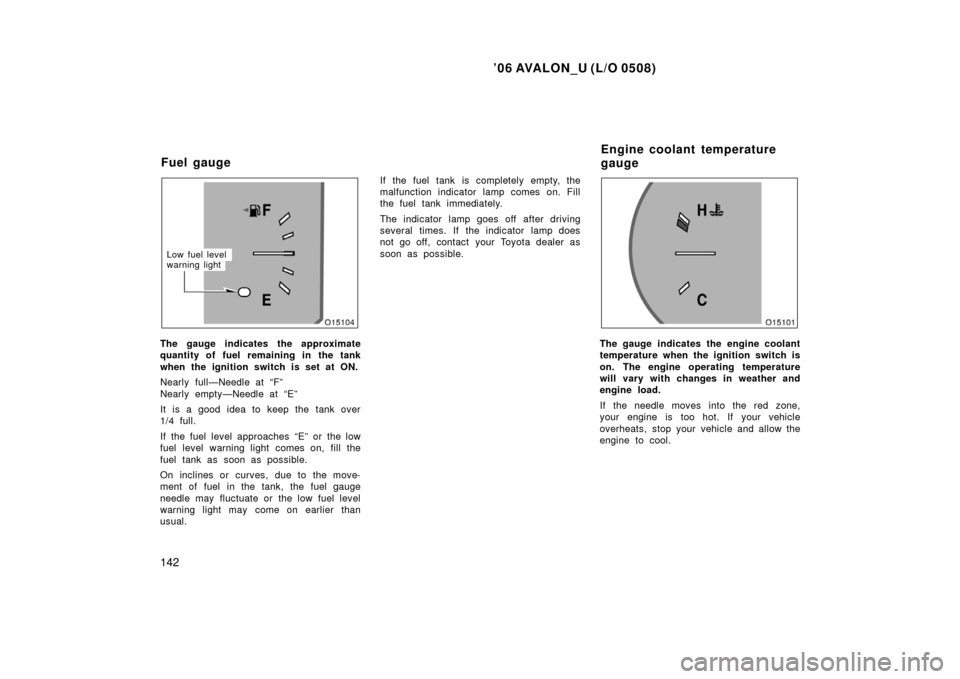

Low fuel level
warning light
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is set at ON.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Fuel gauge
Engine coolant temperature
gauge
