TOYOTA AVALON 2006 XX30 / 3.G Owners Manual

’06 AVALON_U (L/O 0508)
283
Vehicle load limits include total load
capacity, seating capacity, towing ca-
pacity and cargo capacity. Follow the
load limits shown below. Total load ca-
pacity and seating capacity are also
described on the tire and loading in-
formation label. For location of the tire
and loading information label, see
“Checking tire infl
at ion pr es s ur e” on
page 355.
Total load capacity:
397 kg (875 lb.)
Total load capacity means combined
weight of occupants, cargo and lug-
gage. Tongue load is included when
trailer towing. Seating capacity:
Total 5 (Front 2, Rear 3)
Seating capacity means the maximum
number of occupants whose esti-
mated average weight is 68 kg (150
lb.) per person. Depending on the
weight of each person, the seating ca-
pacity given may exceed the total
load capacity.
NOTICE
Even if the number of occupants
are within the seating capacity,
do not exceed the total load ca-
pacity.
Towing capacity: 454 kg (1000 lb.)
Towing capacity means the maxi-
mum gross trailer weight (trailer
weight plus its cargo weight) that
your vehicle is able to tow.
Cargo capacity
Cargo capacity may increase or de-
crease depending on the size (weight)
and the number of occupants. For de-
tails, see “—Capacity and distribu-
tion” that follows.
CAUTION
Do not apply the load more than
each load limit. That may cause
not only damage to the tires, but
also deterioration to the steering
ability and braking ability, which
may cause an accident.
Veh icle lo ad limit s

’06 AVALON_U (L/O 0508)
284 When stowing cargo and luggage in
the vehicle, observe the following: Put cargo and luggage in the trunk
when at all possible. Be sure all
items are secured in place.
 Be careful to keep the vehicle bal-
anced. Locating the weight as far
forward as possible helps maintain
balance.
 For better fuel economy, do not
carry unneeded weight.
CAUTION
Do not place anything on the
package tray behind the rear
seatback. Such items may be
thrown about and possibly in-
jure people in the vehicle dur-
ing sudden braking or an acci-
dent.
Do not drive with objects left
on top of the instrument panel.
They may interfere with the
driver’s field of view. Or they
may move during sharp vehicle
acceleration or turning, and im-
pair the driver’s control of the
vehicle. In an accident they
may injure the vehicle occu-
pants.Cargo capacity depends on the to-
tal weight of the occupants.
(Cargo capacity) = (Total load capac-
ity) – (Total weight of occupants)
STEPS FOR DETERMINING
CORRECT LOAD LIMIT
1. Locate the statement “The com- bined weight of occupants and
cargo should never exceed XXX
pounds” on your vehicle’s placard.
2. Determine the combined weight of the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from
XXX kilograms or XXX pounds.
Cargo and luggage—
—Stowage precautions —Capacity and distribution

’06 AVALON_U (L/O 0508)
285
4. The resulting figure equals the
available amount of cargo and lug-
gage load capacity. For example,
if the “XXX” am ount equals 1400
lbs. and there will be five 150 lb.
passengers in your vehicle, the
amount of available cargo and lug-
gage load capacity is 650 lbs.
(1400–750 (5x150)=650 lbs).
5. Determine the combined weight of luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity
calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available car-
go and luggage load capacity of
your vehicle. For the U.S.A.—Toyota does not rec-
ommend towing a trailer with your ve-
hicle. Your vehicle is not designed for
trailer towing.
For Canada—For details about trailer
towing, see page 299.

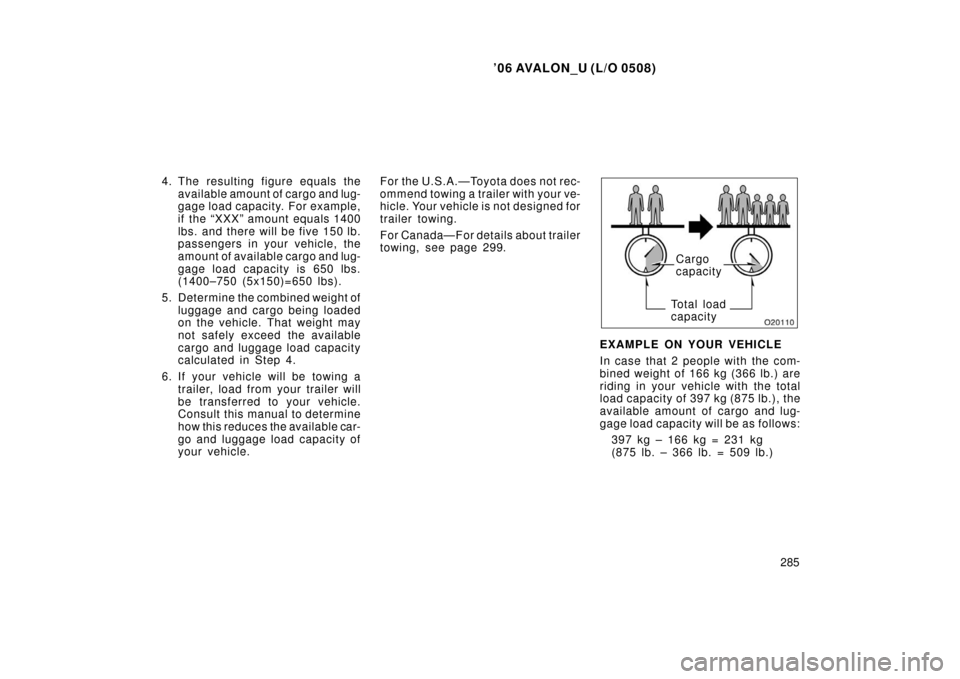

Cargo
capacity
Total load
capacity
EXAMPLE ON YOUR VEHICLE
In case that 2 people with the com-
bined weight of 166 kg (366 lb.) are
riding in your vehicle with the total
load capacity of 397 kg (875 lb.), the
available amount of cargo and lug-
gage load capacity will be as follows: 397 kg – 166 kg = 231 kg
( 875 lb. – 366 lb. = 509 lb. )

’06 AVALON_U (L/O 0508)
286 From this condition, if 3 more passen-
gers with the combined weight of 176
kg (388 lb.) get on, the av ailable car-
go and luggage load will be reduced
as follows:
231 kg – 176 kg = 55 kg
( 509 lb. – 388 lb. = 121 lb. )
As shown in the above example, if the
number of occupants increases, the
cargo and luggage load equaling the
combined weight of occupants who
got on later must be reduced. In other
words, if the incr ease in the number
of occupants causes the excess of
the total load capacity (combined
weight of occupants plus cargo and
luggage load), you have to reduce the
cargo and luggage on your vehicle.
For details about total load capacity,
see “Vehicle load limits” on page 283.
CAUTION
Even if the total load of occu-
pant’s weight and the cargo load
is less than the total load capac-
ity, do not apply the load uneven-
ly. That may cause not only dam-
age to the tire but also deteriora-
tion to the steering ability due to
unbalance of the vehicle, causing
an accident.
Determine what kind of tires your
vehicle is originally equipped with.
1. Summer tires
Summer tires are high −speed capabil-
ity tires best suited to highway driving
under dry conditions.
Since summer tires do not have the
same traction performance as snow
tires, summer tires are inadequate for
driving on snow −covered or icy roads.
For driving on snow −covered or icy
roads, we recommend using snow
tires. If installing snow tires, be sure
to replace all four tires.
2. All season tires
All season tires are designed to pro-
vide better traction in snow and to be
adequate for driving in most winter
conditions, as well as for use all year
round.
Types of tires

’06 AVALON_U (L/O 0508)
287
All season tires, however, do not have
adequate traction performance
compared with snow tires in heavy or
loose snow. Also, all season tires fall
short in acceleration and handling
performance compared with summer
tires in highway driving.
The details about how to distinguish
summer tires from all season tires are
described on page 273 in this Section.
CAUTION

Do not mix summer and all sea-
son tires on your vehicle as
this can cause dangerous han-
dling characteristics, resulting
in loss of control.
 Do not use tires other than the
manufacturer’s designated
tires, and never mix tires or
wheels of the sizes different
from the originals.

’06 AVALON_U (L/O 0508)
288

’06 AVALON_U (L/O 0508)
289
STARTING AND DRIVING
Starting and driving
Before starting the engine290
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 290
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Driving and parking using smart key system 293
. . . . . . . . . . . . . . . . . . .
Tips for driving in various conditions 297
. . . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips 298
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Dinghy towing 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trailer towing 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
How to save fuel and make your vehicle last longer 305
. . . . . . . . . . . . .
SECTION 3

’06 AVALON_U (L/O 0508)
290
1. Check the area around the vehicle be-fore entering it.
2. Adjust seat position, seatback angle, seat cushion angle, seat cushion
length, head restraint height, steering
wheel angle and length.
3. Adjust the inside and outside rear view mirrors.
4. Lock all the doors.
5. Fasten seat belts. With smart key system only—
Once you press “ENGINE START STOP”
switch (engine switch) and release it, the
cranking hold function continues to crank
the engine until it starts.
The function stops cranking the engine
after about 25 seconds maximum if the
engine has not started yet. When you
crank the engine again, wait a few sec-
onds and restart it.
If you press and hold the “ENGINE
START STOP” switch, the function will
keep cranking for about 30 seconds maxi-
mum. 1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3. Put the selector lever in “P”. If you need to restart the engine while the
vehicle is moving, put the selector le-
ver in “N”. A starter safety device will
prevent the starter from operating if the
selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving off.
Before starting the engine How to start the engine—
—Cranking hold function
(a) Before cranking

’06 AVALON_U (L/O 0508)
291
Before starting the engine, be sure to fol-
low the instructions in “(a) Before crank-
ing”.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
air−fuel mixture for starting. You can start
a cold or hot engine as follows:
With your foot off the accelerator pedal,
crank the engine by turning the key to
“START” position. Release it when the en-
gine starts.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
See “If your vehicle will not start” on page
308 in Section 4.NOTICE
 Do not crank for more than 30 se-
conds at a time. This may overheat
the starter and wiring systems.
 Do not race a cold engine.
 If the engine becomes difficult to
start or stalls frequently, have the
engine checked immediately.
PUSH BUTTON START FUNCTION
The engine can be started by pressing the
“ENGINE START STOP” switch.
Before starting the engine, be sure to fol-
low the instructions in “(a) Before crank-
ing”.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
air −fuel mixture for starting. You can start
a cold or hot engine as follows:
(b) Starting the engine
(with key cylindertype
ignition switch) (b) Starting the engine
(with smart key system)

’06 AVALON_U (L/O 0508)
292
When the key is in the vehicle (on your
person), it is possible to start the engine.
With the brake pedal firmly depressed, the
indicator light on the “ENGINE START
STOP” switch will turn green. Check that
the automatic transmission selector lever
is in the “P” position. Pressing the “EN-
GINE START STOP” switch once starts
the engine.
Press the “ENGINE START STOP” switch
slowly and firmly.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
In the following cases, the engine will not
start.
If a buzzer sounds from the vehicle
and the smart key system warning light
comes on when pressing the “ENGINE
START STOP” switch, this indicates
that the key is not in the vehicle.
If the key is placed in the trunk, the
engine cannot be started.
There are instances in which the en-
gine will not start, even if the key is
in the vehicle (e.g. on the floor, in the
cup holder or glove box).When the push button start function
does not operate properly, the following
may be causes:
The key battery may be discharged if
the electronic key does not work.
You can start the engine by touching
the Toyota logo side of the electronic
key to the “ENGINE START STOP”
switch. For derails, see “Smart key
system” on page 27 in Section 1
−2.
Replace the key battery as soon as
possible. (See “—Replacing battery” on
page 25 in Section 1 −2.)
The engine was repeatedly turned on
and off over a short period.
Wait 10 seconds and then start the
engine.
If the green indicator light on the
“ENGINE START STOP” switch flashes
and the smart key system warning light
on the instrument cluster comes on,
the steering wheel is locked.
To free it, rock the steering wheel
slightly while pressing the “ENGINE
START STOP” switch.
