1-1. Key information .................. 22Keys ..................................... 22
1-2. Opening, closing and

locking the doors and 
trunk .................................. 24
Smart key system................. 24
Wireless remote control ....... 35
Doors.................................... 39
Trunk .................................... 44
1-3. Adjustable components 
(seats, s teering wheel, 
mirrors) ............................. 46
Front seats ........................... 46
Rear seats ............................ 48
Driving position memory 
system ................................ 50
Head restraints ..................... 53
Seat belts ............................. 54
Steering wheel ..................... 61
Inside rear view mirror.......... 62
Outside rear view mirrors ..... 64
1-4. Opening a nd closing the
windo ws and moon roof .. 66
Power windows .................... 66
Moon roof ............................. 69
1-5. Refueling ............................. 72 Opening the fuel tank cap .... 72 1-6. Theft deterrent system ....... 75
Engine immobilizer system ... 75
Alarm .................................... 77
Theft prevention labels 
(U.S.A.) ............................... 79
1-7. Safety information .............. 80 Correct driving posture ......... 80
SRS airbags ......................... 82
Front passenger occupant 
classification system ........... 93
Child restraint systems ......... 99
Installing child restraints ..... 102
2-1. Driving procedures........... 114 Driving the vehicle .............. 114
Engine (ignition) switch 
(with smart key system) .... 122
Engine (ignition) switch 
(without smart key 
system) ............................. 126
Automatic transmission ...... 129
Turn signal lever ................. 133
Parking brake ..................... 134
2-2. Instrument cluster ............ 135 Gauges and meters ............ 135
Indicators and warning 
lights ................................. 138
Center display..................... 141
1Before driving
2When driving

1
2
3
4
5
6
7
5
AVALON_U_(L/O_0802)
5-2. Steps to take in an 
emergency ....................... 370
If a warning light turns on 
or a warning buzzer 
sounds... ........................... 370
If you have a flat tire............ 382
If the engine will not start .... 391
If the shift lever cannot be 
shifted from P.................... 393
If you lose your keys ........... 394
If the electronic key does 
not operate properly 
(with smart key system) .... 395
If the vehicle battery is 
discharged ........................ 397
If your vehicle overheats ..... 401
If the vehicle becomes  stuck ................................. 404
6-1. Specifications.................... 406 Maintenance data (fuel, 
oil level, etc.) ..................... 406
Fuel information .................. 414
Tire information ................... 417
6-2. Customization ................... 429 Customizable features ........ 429
6-3. Initialization ....................... 433 Items to initialize ................. 433 Reporting safety defects for

U.S. owners...................... 436
Seat belt instructions for  Canadian owners 
(in French) ........................ 437
Abbreviation list ............... 442
Alphabetical index............ 443
What to do if...................... 450
6Vehicle specifications
7For owners
Index

12
AVALON_U_(L/O_0802)
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 143
P. 133
P. 145
Gauges and meters P. 135
Windshield wipers and 
washer switch
P. 146
Trunk opener main switch P. 44
Glove box P. 256
Telescopic lock release 
lever
P. 61
Parking brake pedal
P. 134
Tilt lock release lever
P. 61
Driving position 
memory switches
 
P. 50
Tire pressure warning
system
P. 323

19
AVALON_U_(L/O_0802)

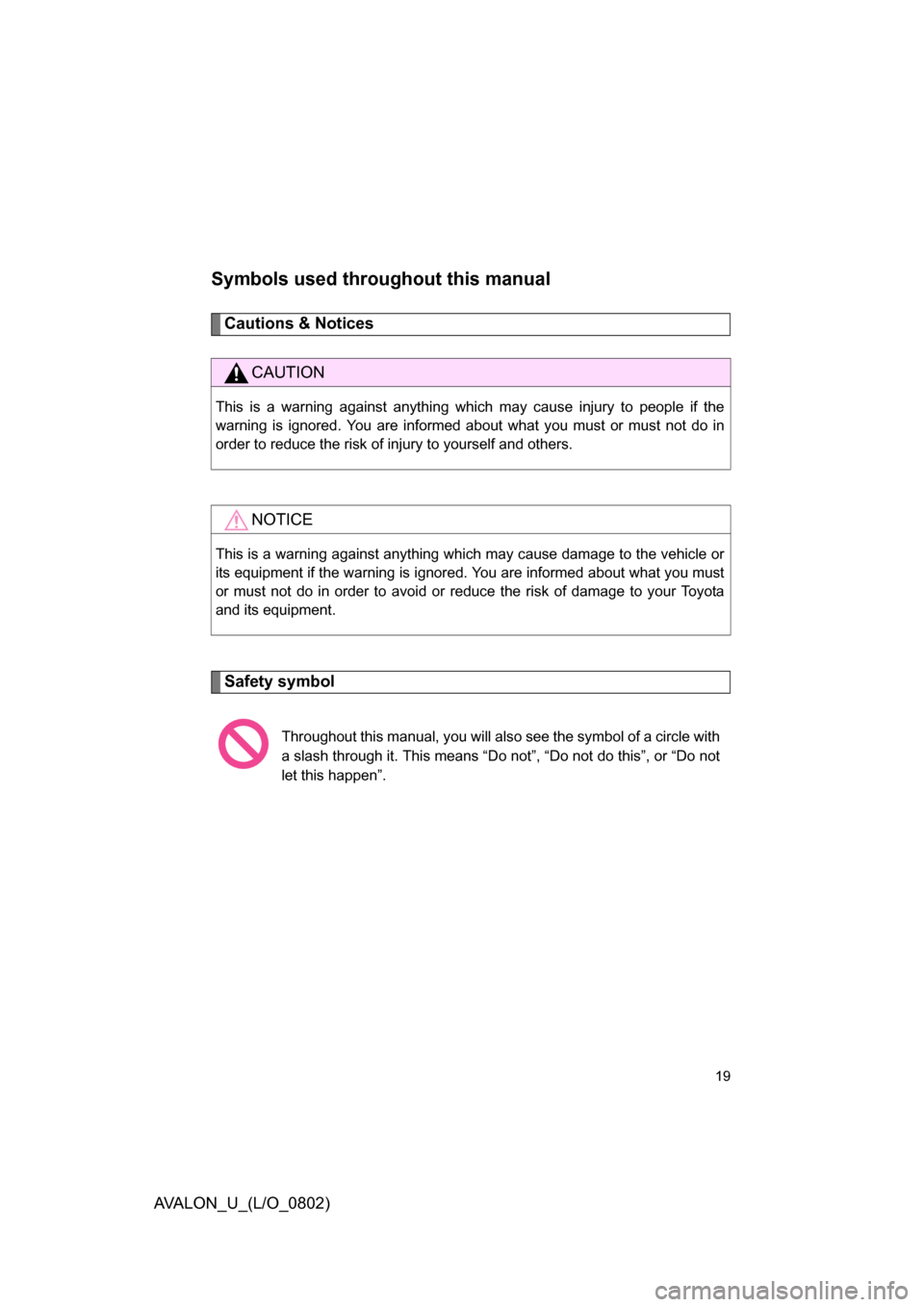

Symbols used throughout this manual
Cautions & Notices
Safety symbol
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.Throughout this manual, you will also see the symbol of a circle with
a slash through it. This means “Do not”, “Do not do this”, or “Do not
let this happen”.

32 1-2. Opening, closing and locking the doors and trunk
AVALON_U_(L/O_0802)
■Alarms and warning indicators
A combination of exterior and interior alarms are used to prevent theft of the
vehicle and unforeseeable accidents resulting from erroneous operation.
Take appropriate measures according to which warning light comes on. 
( P. 370)
The following table describes circumstances and correction procedures
when only alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
2 seconds Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartment
Retrieve the elec-
tronic key from the
passenger compart-
ment and lock the
doors again.
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the “ENGINE
START STOP” switch off Turn the “ENGINE
START STOP” switch
off and lock the doors
again.
Closed the trunk while the
electronic key is still inside
and all doors are locked Retrieve the elec-
tronic key from the
trunk and close the
trunk lid.
Exterior alarm
sounds once for
10 seconds Tried to lock the vehicle
using the entry function
while a door is open Close all of the doors
and lock the doors
again.
Interior alarm
sounds once The electronic key battery
is low. Replace the battery.
(
 P. 340)
Interior alarm
sounds continu-
ously Tried to open the door and
exit the vehicle without
shifting the shift lever to
“P”
Shift the shift lever to
“P”.

33
1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U_(L/O_0802)
■
If the smart key system does not operate properly
● Locking and unlocking the doors: Use the mechanical key. ( P. 395)
● Starting the engine: P. 395
■ When the electronic key battery is fully depleted
 P. 340
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. smart key system) can be changed. 
(Customizable features P. 429)
■ Certification for the smart key system
For vehicles sold in the U.S.A.
NOTE: 
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING: 
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
AlarmSituationCorrection procedure
Interior alarm
rings continu-
ously Switched to ACC mode
while the driver’s door is
open (Opened the driver’s
door when the “ENGINE
START STOP” switch is in
ACC mode.)
Turn the “ENGINE
START STOP” switch
off and close the
driver’s door.
Turned the “ENGINE
START STOP” switch off
while the driver’s door is
open Close the driver’s
door.
FCC ID: NI4TMLF-1

37
1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U_(L/O_0802)
■
Customization that can be co nfigured at Toyota dealer
Settings (e.g. 2-step unlocking function, trunk unlocking function) can be
changed. 
(Customizable features P. 429)
■ Certification for wireless remote control
For vehicles sold in the U.S.A.
NOTE: 
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE: 
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING: 
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

83
1-7. Safety information
1
Before driving
AVALON_U_(L/O_0802)
Airbag system components
Front airbag sensor
Front passenger airbag
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Side airbag
Curtain shield airbag
Side and curtain shield airbag
sensor
SRS warning light
Curtain shield airbag sensor Driver’s seat position sensor
Knee airbag
Airbag sensor assembly
Occupant detection system
(ECU and sensors)
Front passenger’s seat belt
buckle switch
Driver airbag
Driver’s seat belt buckle
switch

93
1
1-7. Safety information
Before driving
AVALON_U_(L/O_0802)
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classifica-
tion system. This system detects the conditions of the front passen-
ger seat and activates or deactivates the devices for front passenger.
SRS warning light
Front passenger’s seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

94 1-7. Safety information
AVALON_U_(L/O_0802)
Condition and operation in the front passenger occupant classi-
fication system■ Adult
*1
■Child*3 or child restraint system*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
Devices Front passenger airbag
Activated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger side
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
Devices Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger side Activated
Front passenger’s seat belt pretensioner Activated
