TABLE OF CONTENTSIndex
2
AVALON_U_(L/O_0802)
1-1. Key information .................. 22Keys ..................................... 22
1-2. Opening, closing and
locking the doors and
trunk .................................. 24
Smart key system................. 24
Wireless remote control ....... 35
Doors.................................... 39
Trunk .................................... 44
1-3. Adjustable components
(seats, s teering wheel,
mirrors) ............................. 46
Front seats ........................... 46
Rear seats ............................ 48
Driving position memory
system ................................ 50
Head restraints ..................... 53
Seat belts ............................. 54
Steering wheel ..................... 61
Inside rear view mirror.......... 62
Outside rear view mirrors ..... 64
1-4. Opening a nd closing the
windo ws and moon roof .. 66
Power windows .................... 66
Moon roof ............................. 69
1-5. Refueling ............................. 72 Opening the fuel tank cap .... 72 1-6. Theft deterrent system ....... 75
Engine immobilizer system ... 75
Alarm .................................... 77
Theft prevention labels
(U.S.A.) ............................... 79
1-7. Safety information .............. 80 Correct driving posture ......... 80
SRS airbags ......................... 82
Front passenger occupant
classification system ........... 93
Child restraint systems ......... 99
Installing child restraints ..... 102
2-1. Driving procedures........... 114 Driving the vehicle .............. 114
Engine (ignition) switch
(with smart key system) .... 122
Engine (ignition) switch
(without smart key
system) ............................. 126
Automatic transmission ...... 129
Turn signal lever ................. 133
Parking brake ..................... 134
2-2. Instrument cluster ............ 135 Gauges and meters ............ 135
Indicators and warning
lights ................................. 138
Center display..................... 141
1Before driving
2When driving
Page 5 of 452
1
2
3
4
5
6
7
5
AVALON_U_(L/O_0802)
5-2. Steps to take in an
emergency ....................... 370
If a warning light turns on
or a warning buzzer
sounds... ........................... 370
If you have a flat tire............ 382
If the engine will not start .... 391
If the shift lever cannot be
shifted from P.................... 393
If you lose your keys ........... 394
If the electronic key does
not operate properly
(with smart key system) .... 395
If the vehicle battery is
discharged ........................ 397
If your vehicle overheats ..... 401
If the vehicle becomes stuck ................................. 404
6-1. Specifications.................... 406 Maintenance data (fuel,
oil level, etc.) ..................... 406
Fuel information .................. 414
Tire information ................... 417
6-2. Customization ................... 429 Customizable features ........ 429
6-3. Initialization ....................... 433 Items to initialize ................. 433 Reporting safety defects for
U.S. owners...................... 436
Seat belt instructions for Canadian owners
(in French) ........................ 437
Abbreviation list ............... 442
Alphabetical index............ 443
What to do if...................... 450
6Vehicle specifications
7For owners
Index
Page 12 of 452
12
AVALON_U_(L/O_0802)

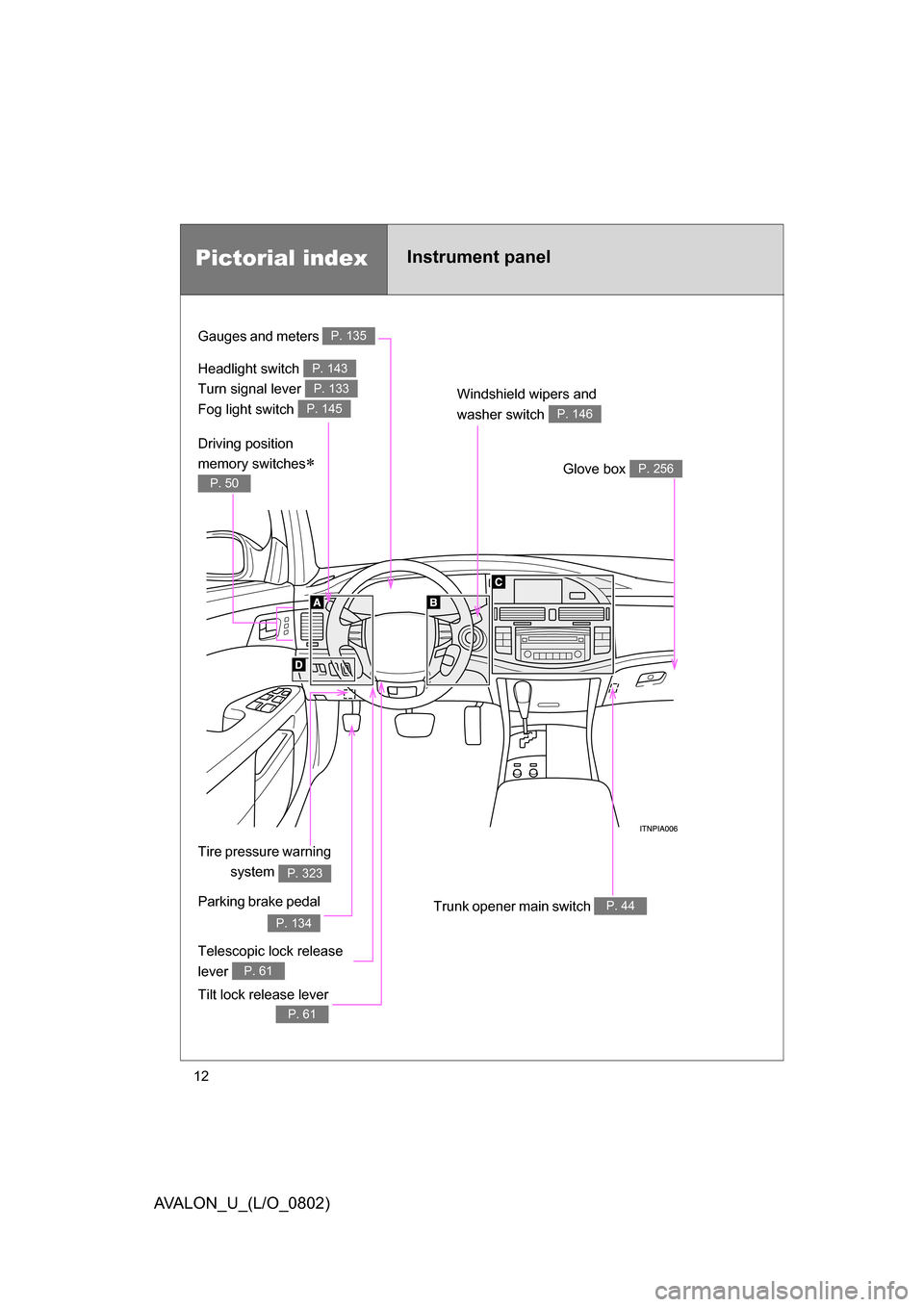

Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 143
P. 133
P. 145
Gauges and meters P. 135
Windshield wipers and
washer switch
P. 146
Trunk opener main switch P. 44
Glove box P. 256
Telescopic lock release
lever
P. 61
Parking brake pedal
P. 134
Tilt lock release lever
P. 61
Driving position
memory switches
P. 50
Tire pressure warning
system
P. 323
Page 32 of 452
32 1-2. Opening, closing and locking the doors and trunk
AVALON_U_(L/O_0802)

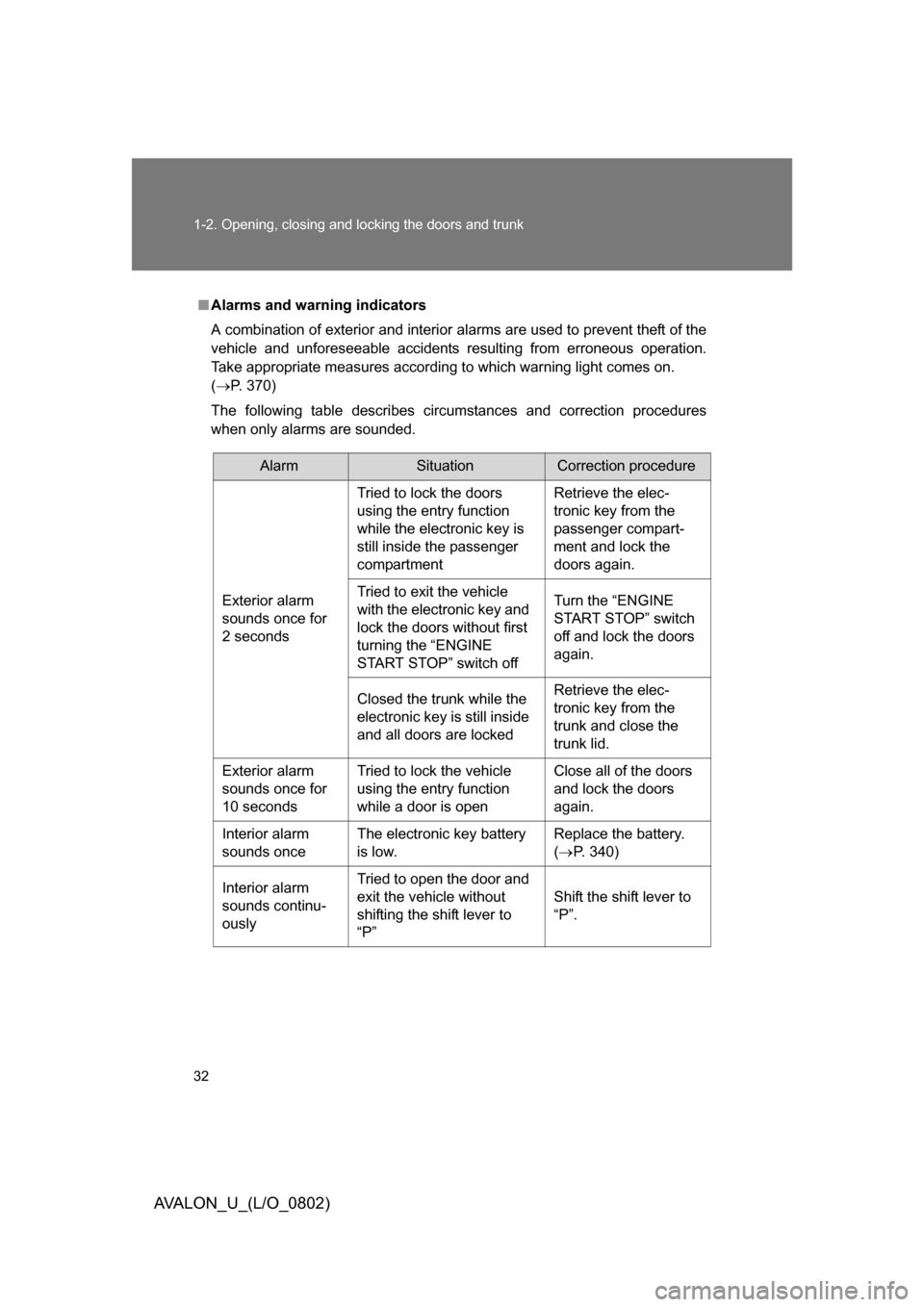

■Alarms and warning indicators
A combination of exterior and interior alarms are used to prevent theft of the
vehicle and unforeseeable accidents resulting from erroneous operation.
Take appropriate measures according to which warning light comes on.
( P. 370)
The following table describes circumstances and correction procedures
when only alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
2 seconds Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartment
Retrieve the elec-
tronic key from the
passenger compart-
ment and lock the
doors again.
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the “ENGINE
START STOP” switch off Turn the “ENGINE
START STOP” switch
off and lock the doors
again.
Closed the trunk while the
electronic key is still inside
and all doors are locked Retrieve the elec-
tronic key from the
trunk and close the
trunk lid.
Exterior alarm
sounds once for
10 seconds Tried to lock the vehicle
using the entry function
while a door is open Close all of the doors
and lock the doors
again.
Interior alarm
sounds once The electronic key battery
is low. Replace the battery.
(
P. 340)
Interior alarm
sounds continu-
ously Tried to open the door and
exit the vehicle without
shifting the shift lever to
“P”
Shift the shift lever to
“P”.
Page 83 of 452
83
1-7. Safety information
1
Before driving
AVALON_U_(L/O_0802)
Airbag system components
Front airbag sensor
Front passenger airbag
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Side airbag
Curtain shield airbag
Side and curtain shield airbag
sensor
SRS warning light
Curtain shield airbag sensor Driver’s seat position sensor
Knee airbag
Airbag sensor assembly
Occupant detection system
(ECU and sensors)
Front passenger’s seat belt
buckle switch
Driver airbag
Driver’s seat belt buckle
switch
Page 93 of 452
93
1
1-7. Safety information
Before driving
AVALON_U_(L/O_0802)

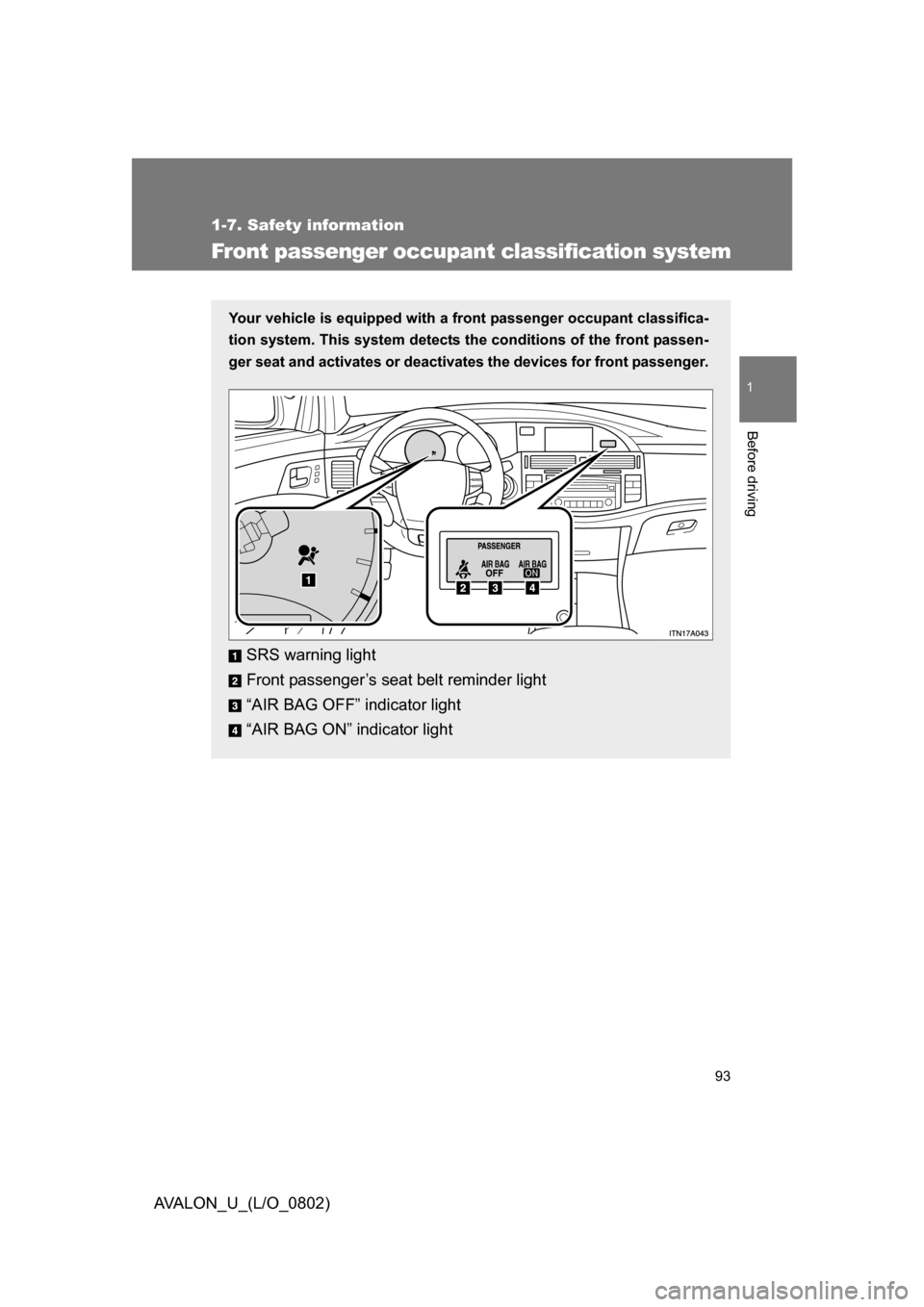

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classifica-
tion system. This system detects the conditions of the front passen-
ger seat and activates or deactivates the devices for front passenger.
SRS warning light
Front passenger’s seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Page 94 of 452
94 1-7. Safety information
AVALON_U_(L/O_0802)

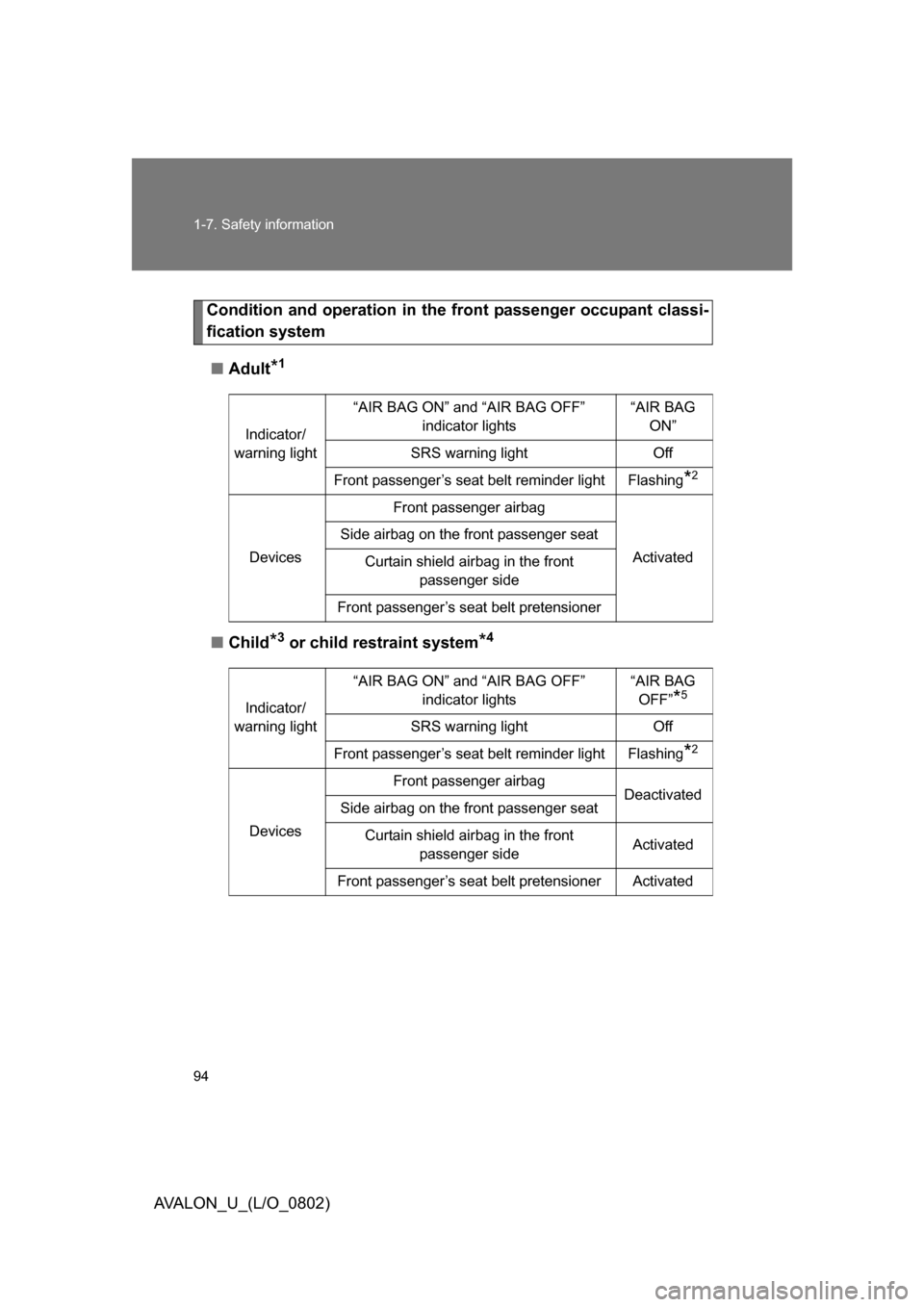

Condition and operation in the front passenger occupant classi-
fication system■ Adult
*1
■Child*3 or child restraint system*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
Devices Front passenger airbag
Activated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger side
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
Devices Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger side Activated
Front passenger’s seat belt pretensioner Activated
Page 95 of 452
95
1-7. Safety information
1
Before driving
AVALON_U_(L/O_0802)
■

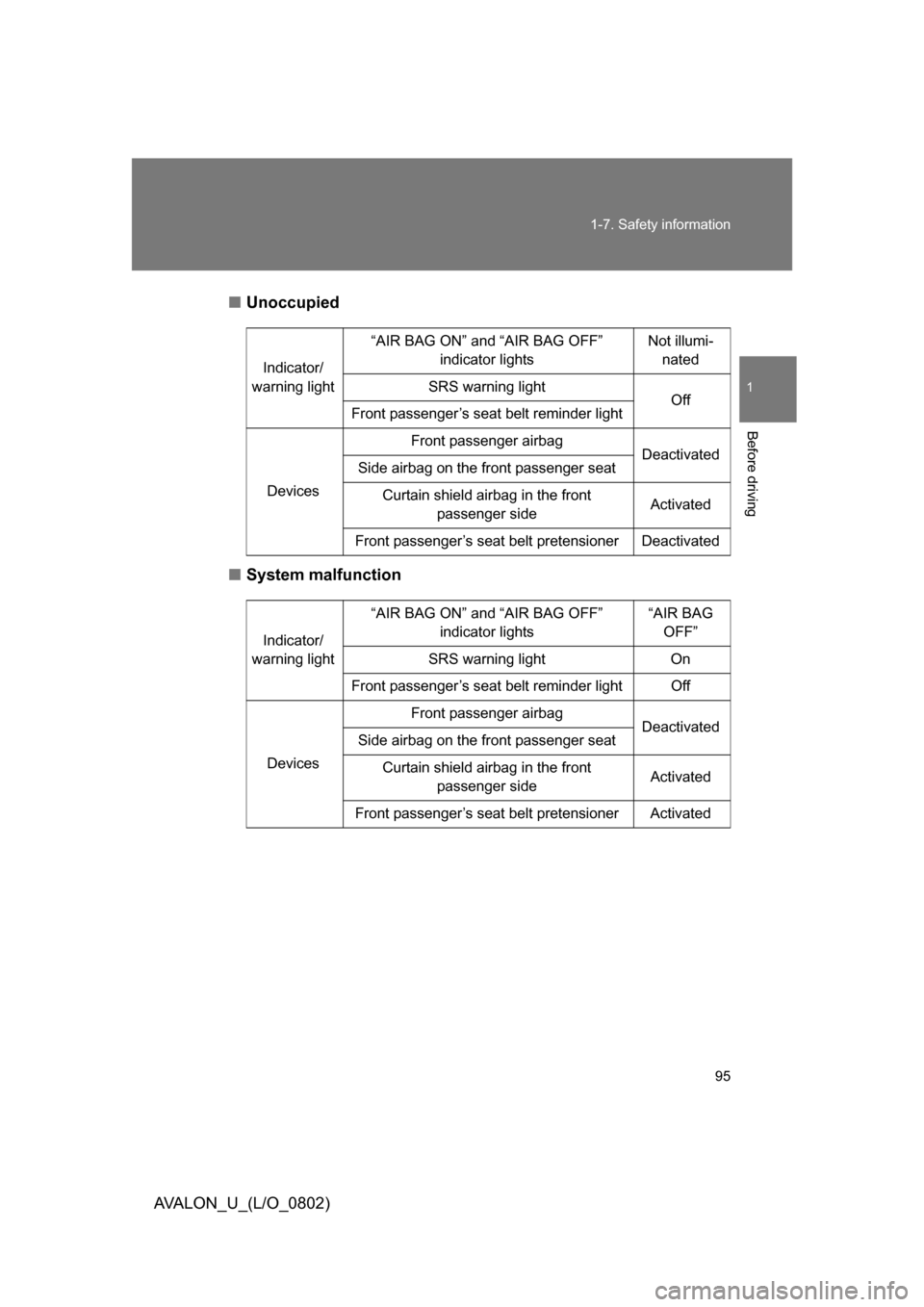

Unoccupied
■ System malfunction
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illumi-
nated
SRS warning light Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger side Activated
Front passenger’s seat belt pretensioner Deactivated
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger side Activated
Front passenger’s seat belt pretensioner Activated
Page 98 of 452
98 1-7. Safety information
AVALON_U_(L/O_0802)

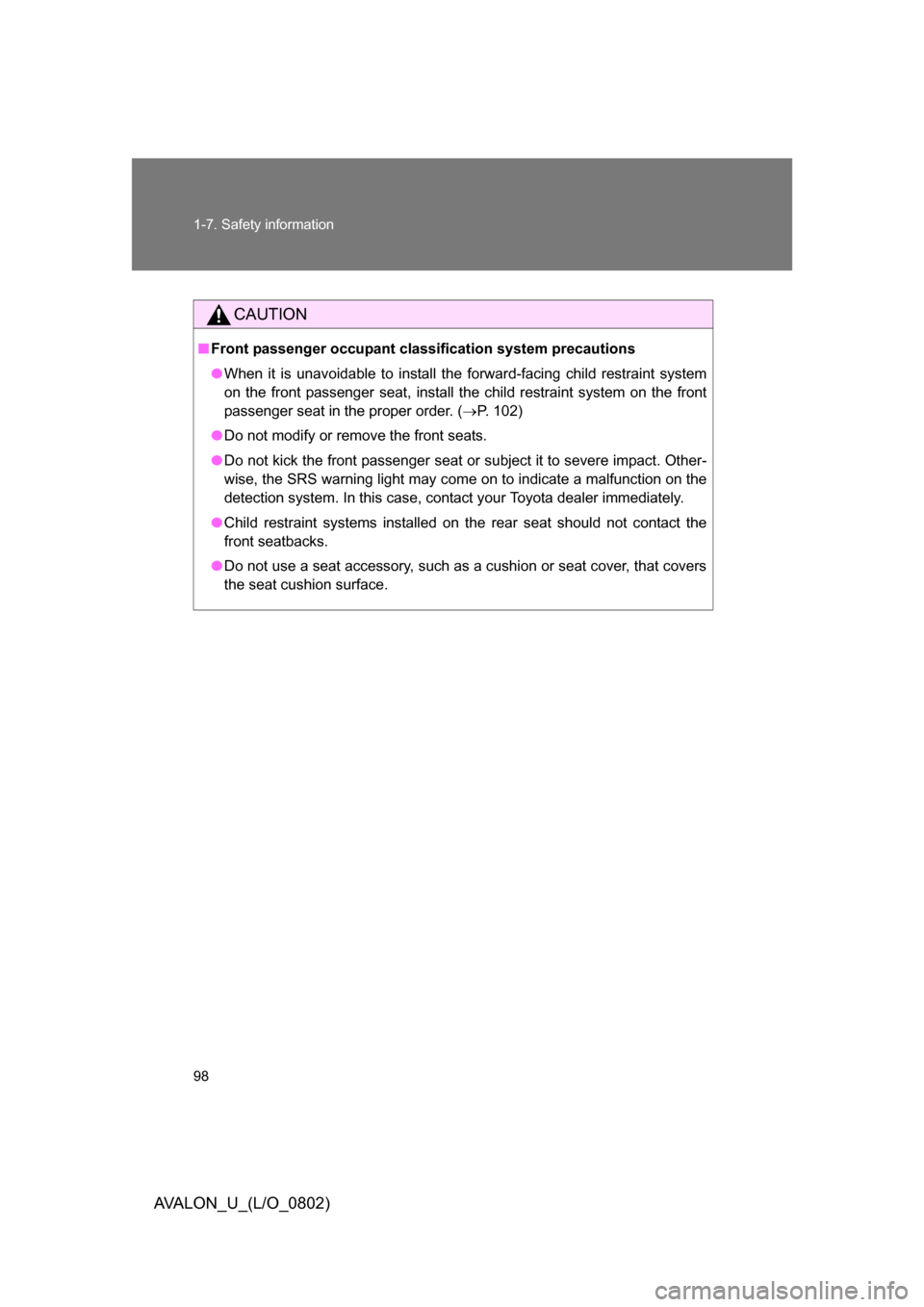

CAUTION
■Front passenger occupant cl assification system precautions
● When it is unavoidable to install the forward-facing child restraint system
on the front passenger seat, install the child restraint system on the front
passenger seat in the proper order. ( P. 102)
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction on the
detection system. In this case, contact your Toyota dealer immediately.
● Child restraint systems installed on the rear seat should not contact the
front seatbacks.
● Do not use a seat accessory, such as a cushion or seat cover, that covers
the seat cushion surface.
Page 113 of 452

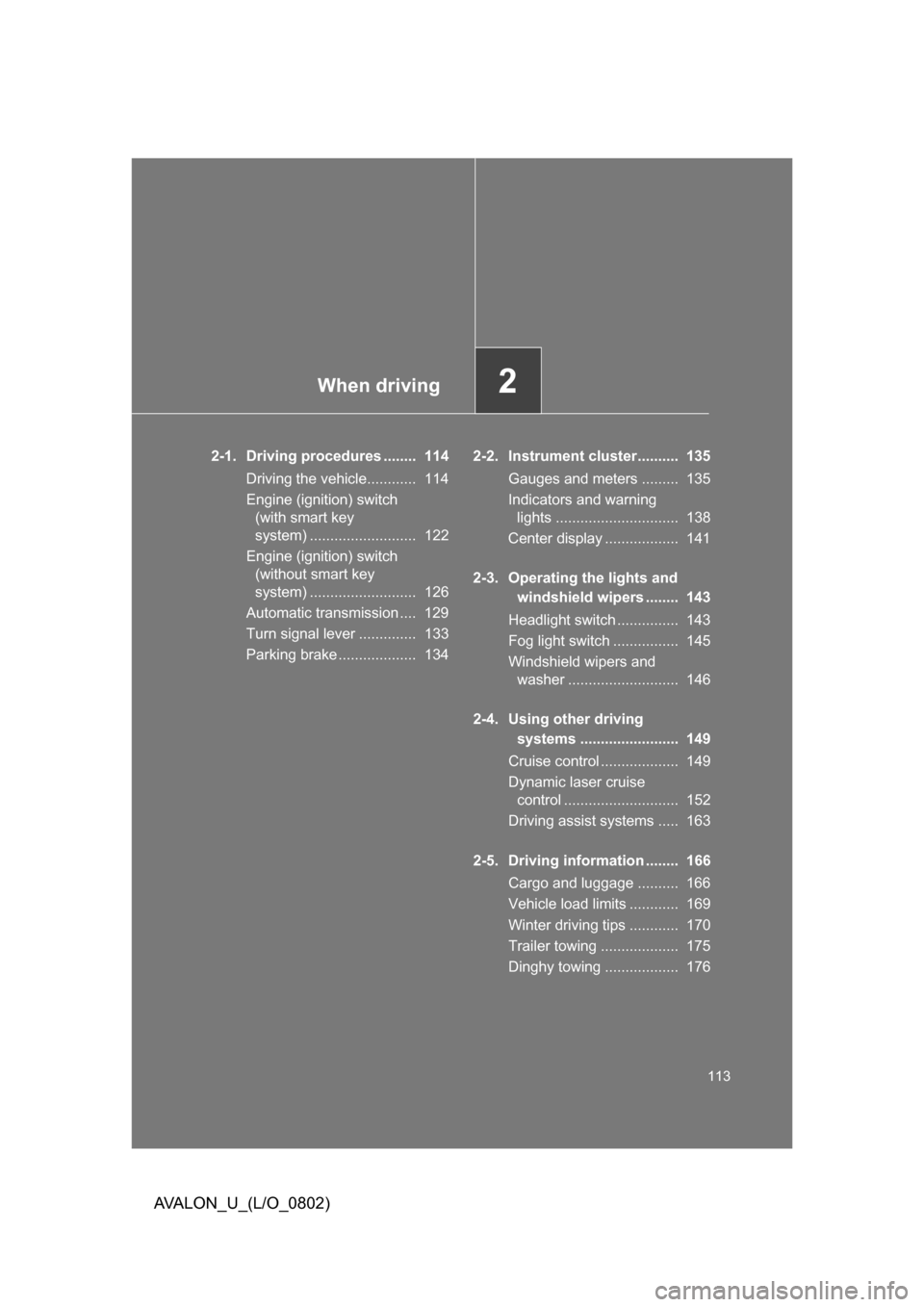

When driving2
113
AVALON_U_(L/O_0802)
2-1. Driving procedures ........ 114Driving the vehicle............ 114
Engine (ignition) switch
(with smart key
system) .......................... 122
Engine (ignition) switch
(without smart key
system) .......................... 126
Automatic transmission .... 129
Turn signal lever .............. 133
Parking brake ................... 134 2-2. Instrument cluster.......... 135
Gauges and meters ......... 135
Indicators and warning
lights .............................. 138
Center display .................. 141
2-3. Operating the lights and
windshield wipers ........ 143
Headlight switch ............... 143
Fog light switch ................ 145
Windshield wipers and
washer ........................... 146
2-4. Using other driving
systems ........................ 149
Cruise control ................... 149
Dynamic laser cruise
control ............................ 152
Driving assist systems ..... 163
2-5. Driving information ........ 166 Cargo and luggage .......... 166
Vehicle load limits ............ 169
Winter driving tips ............ 170
Trailer towing ................... 175
Dinghy towing .................. 176
