TOYOTA AVALON 2008 XX30 / 3.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

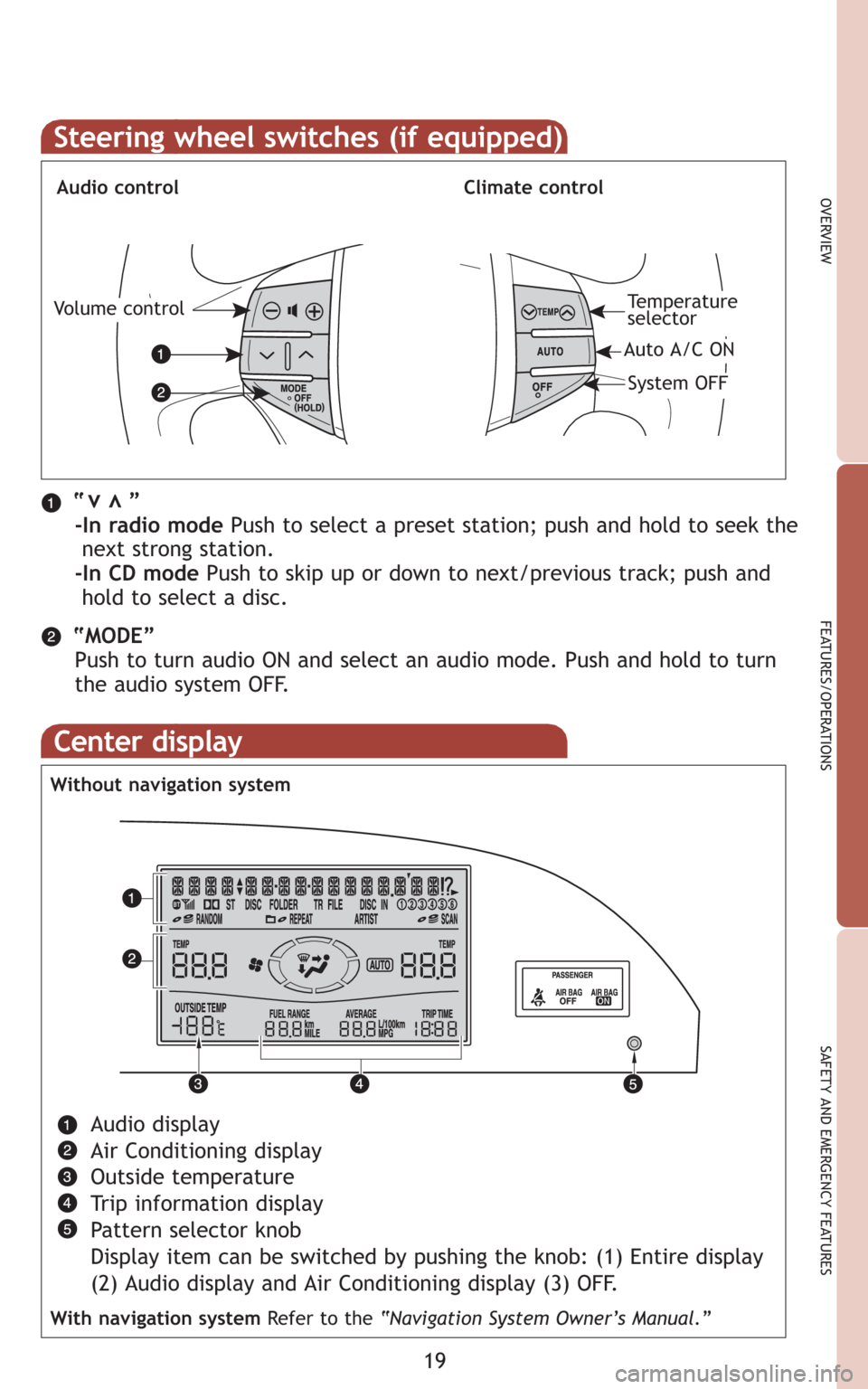

Center display
Without navigation system
Audio display
Air Conditioning display
Outside temperature
Trip information display
Pattern selector knob
Display item can be switched by pushing the knob: (1) Entire display
(2) Audio display and Air Conditioning display (3) OFF.
With navigation systemRefer to the “Navigation System Owner’s Manual.”
Steering wheel switches (if equipped)
Audio controlClimate control
vv
Volume controlTemperature
selector
Auto A/C ON
System OFF
“ ”
-In radio modePush to select a preset station; push and hold to seek the
next strong station.
-In CD modePush to skip up or down to next/previous track; push and
hold to select a disc.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.

20
FEATURES/OPERATIONS

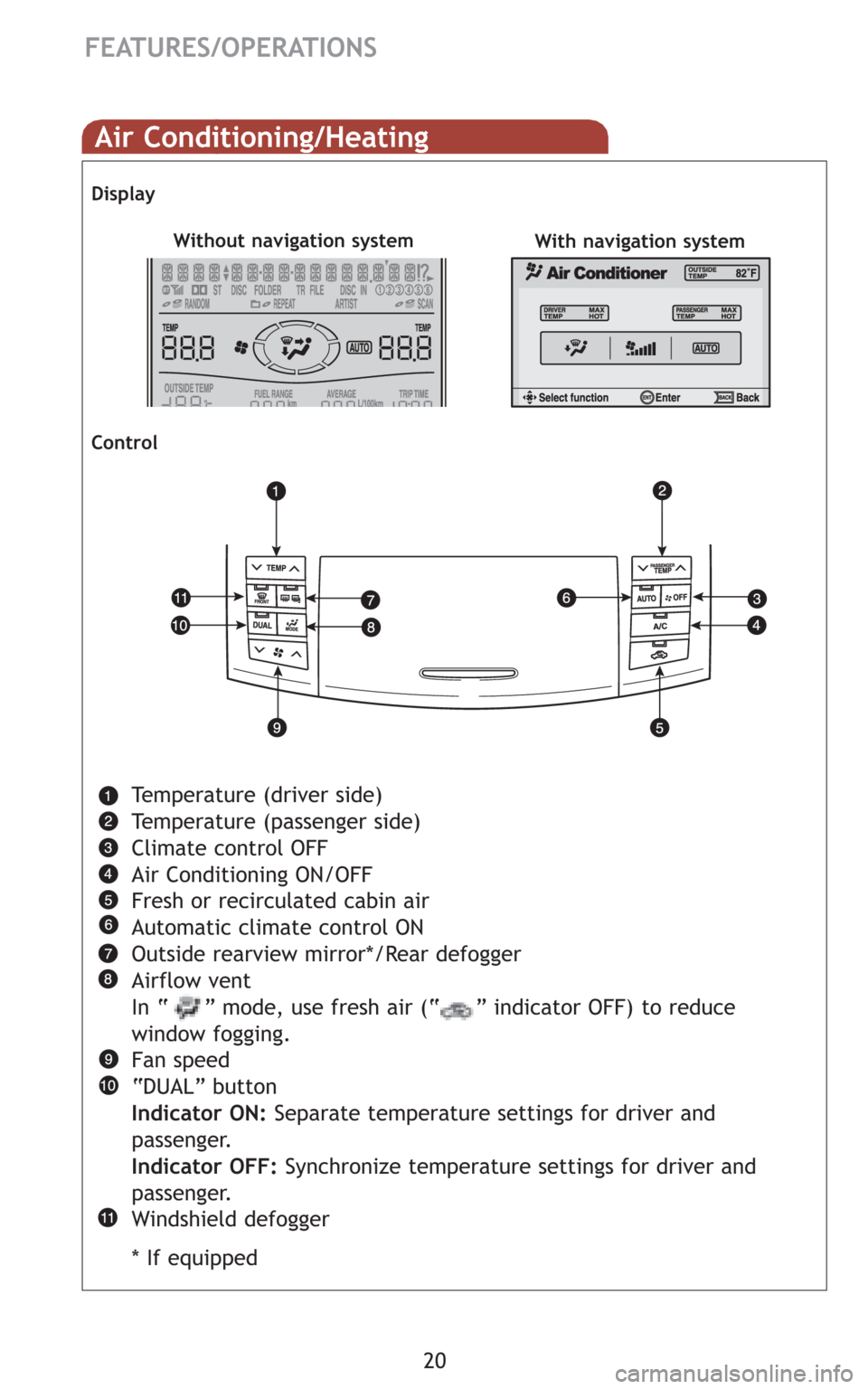

Air Conditioning/Heating
Temperature (driver side)
Temperature (passenger side)
Climate control OFF
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Automatic climate control ON
Outside rearview mirror*/Rear defogger
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging.
Fan speed
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF:Synchronize temperature settings for driver and
passenger.
Windshield defogger
* If equipped
Display
Control
Without navigation systemWith navigation system

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

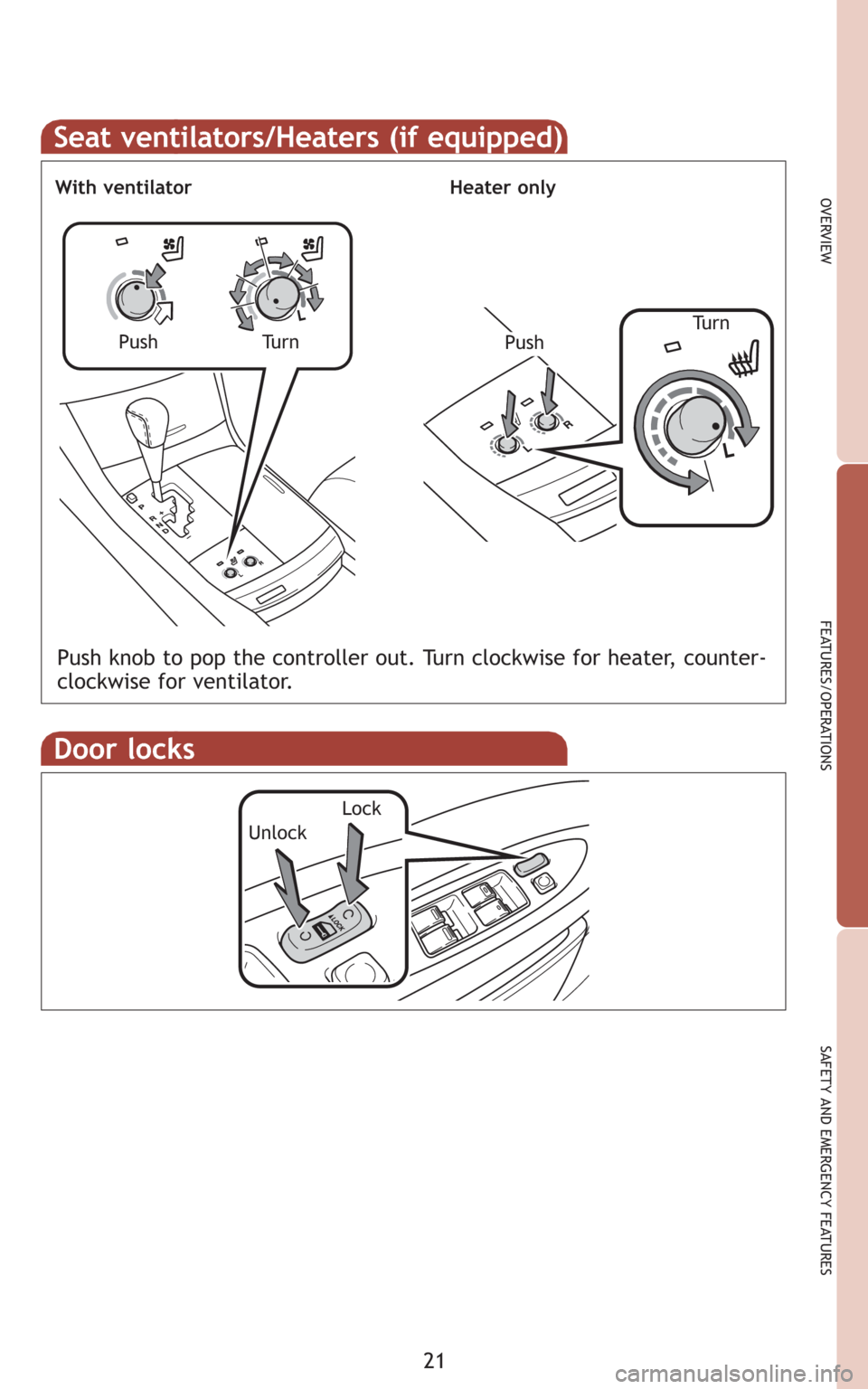

Door locks
Lock
Unlock
Seat ventilators/Heaters (if equipped)
Push knob to pop the controller out. Turn clockwise for heater, counter-
clockwise for ventilator.
PushTu r n
With ventilatorHeater only
PushTu r n

22
FEATURES/OPERATIONS

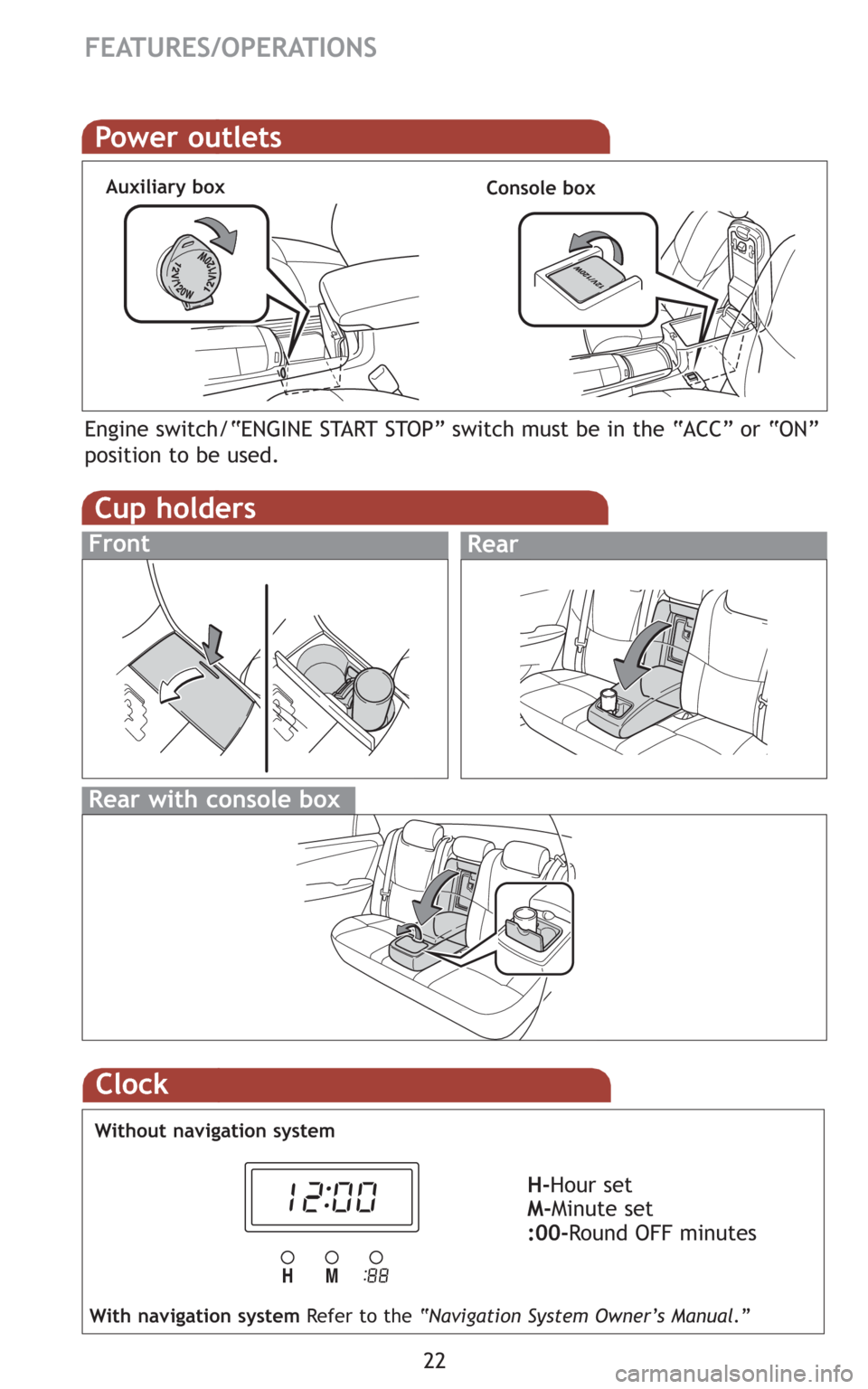

Cup holders
Rear with console box
FrontRear
Power outlets
Auxiliary box
Console box
Engine switch/“ENGINE START STOP” switch must be in the “ACC” or “ON”
position to be used.
Clock
H-Hour set
M-Minute set
:00-Round OFF minutes
Without navigation system
With navigation systemRefer to the “Navigation System Owner’s Manual.”

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
SAFETY AND
EMERGENCY FEATURES

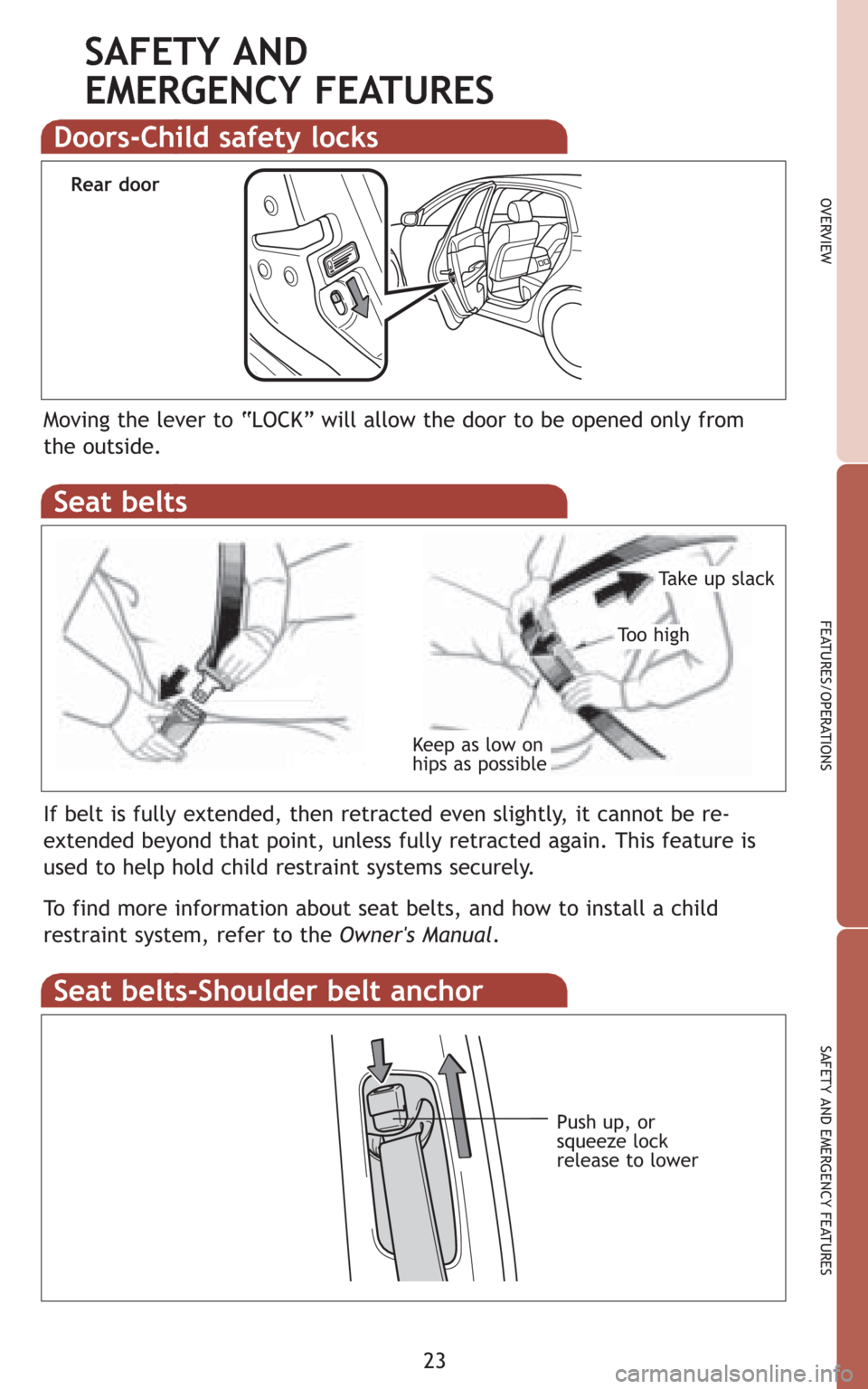

Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be re-
extended beyond that point, unless fully retracted again. This feature is
used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or
squeeze lock
release to lower
Seat belts-Shoulder belt anchor

24
SAFETY AND EMERGENCY FEATURES
Tire Pressure Warning System reset
If tire pressure becomes critically low on any of the tires (including spare),
indicator comes on. Pushing “ SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the light after a few minutes.
After replacing/rotating tire or wheels, the system must be initialized.
Refer to the Owner’s Manualfor more details.
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Seat belt comfort guide
Rear seat outside position guides provide added comfort for children who
have outgrown child restraints.

25

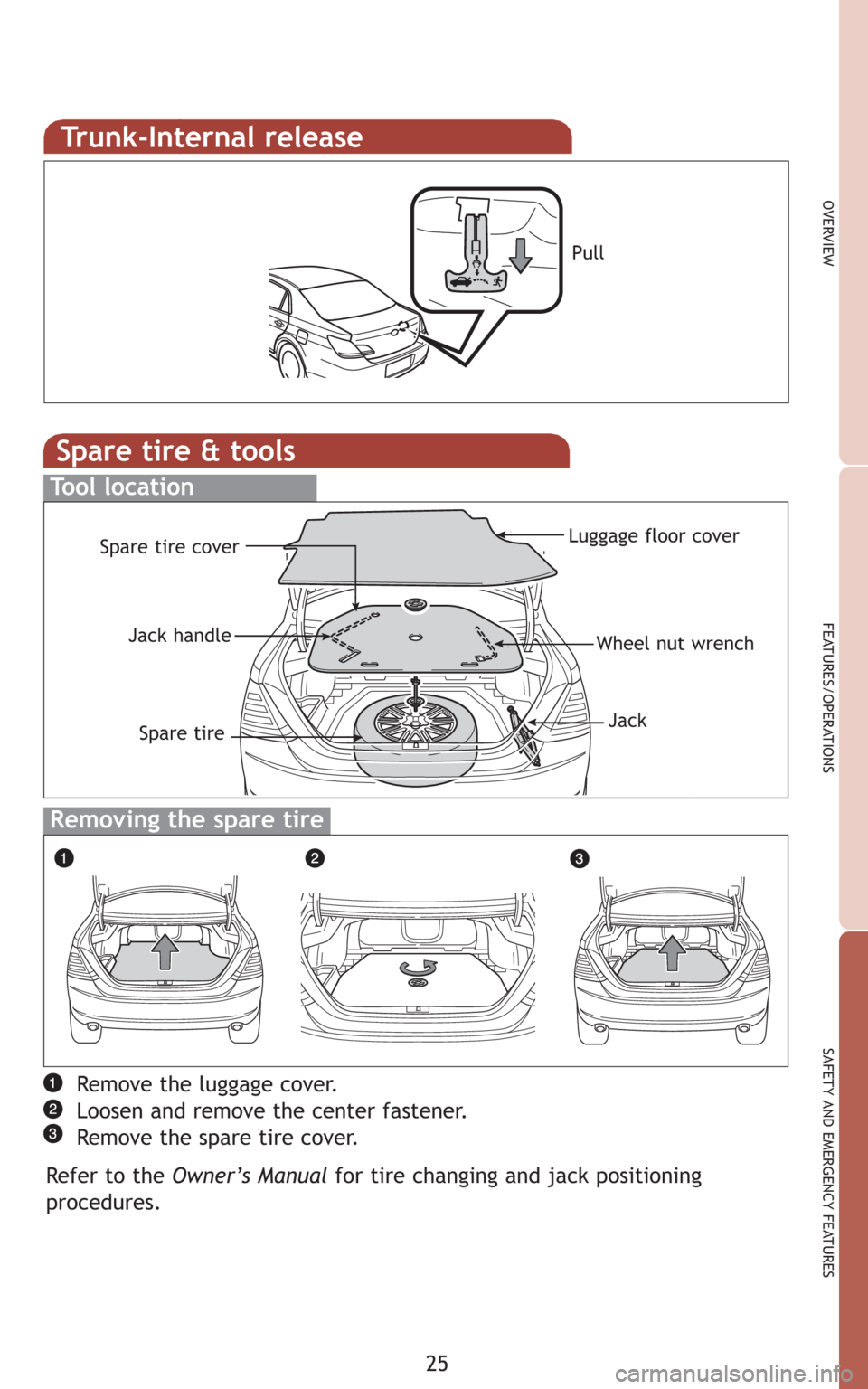

Spare tire & tools
Tool location
Removing the spare tire
Remove the luggage cover.
Loosen and remove the center fastener.
Remove the spare tire cover.
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Spare tire Jack handle
Luggage floor cover
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Jack
Spare tire cover
Wheel nut wrench
Trunk-Internal release
Pull

MN 00505-QRG08-AVA
Printed in the USA 7/07
Customer Experience Center
1-800-331-4331
