TOYOTA AVALON 2009 XX30 / 3.G Owners Manual

141
2
When driving
AVALON_U_OM41430U

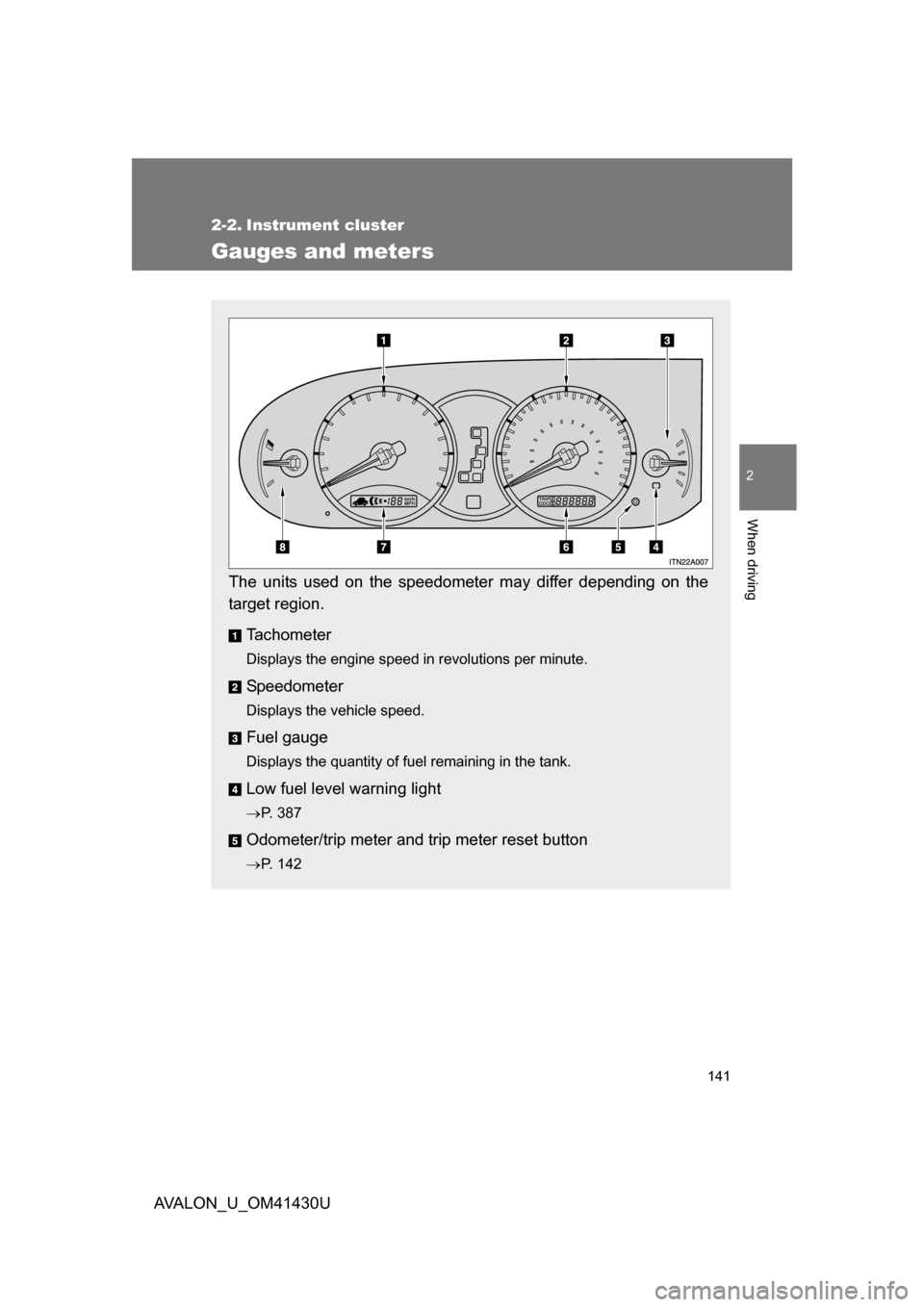

2-2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the
target region.Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Low fuel level warning light
P. 387
Odometer/trip meter and trip meter reset button
P. 142

142 2-2. Instrument cluster
AVALON_U_OM41430U

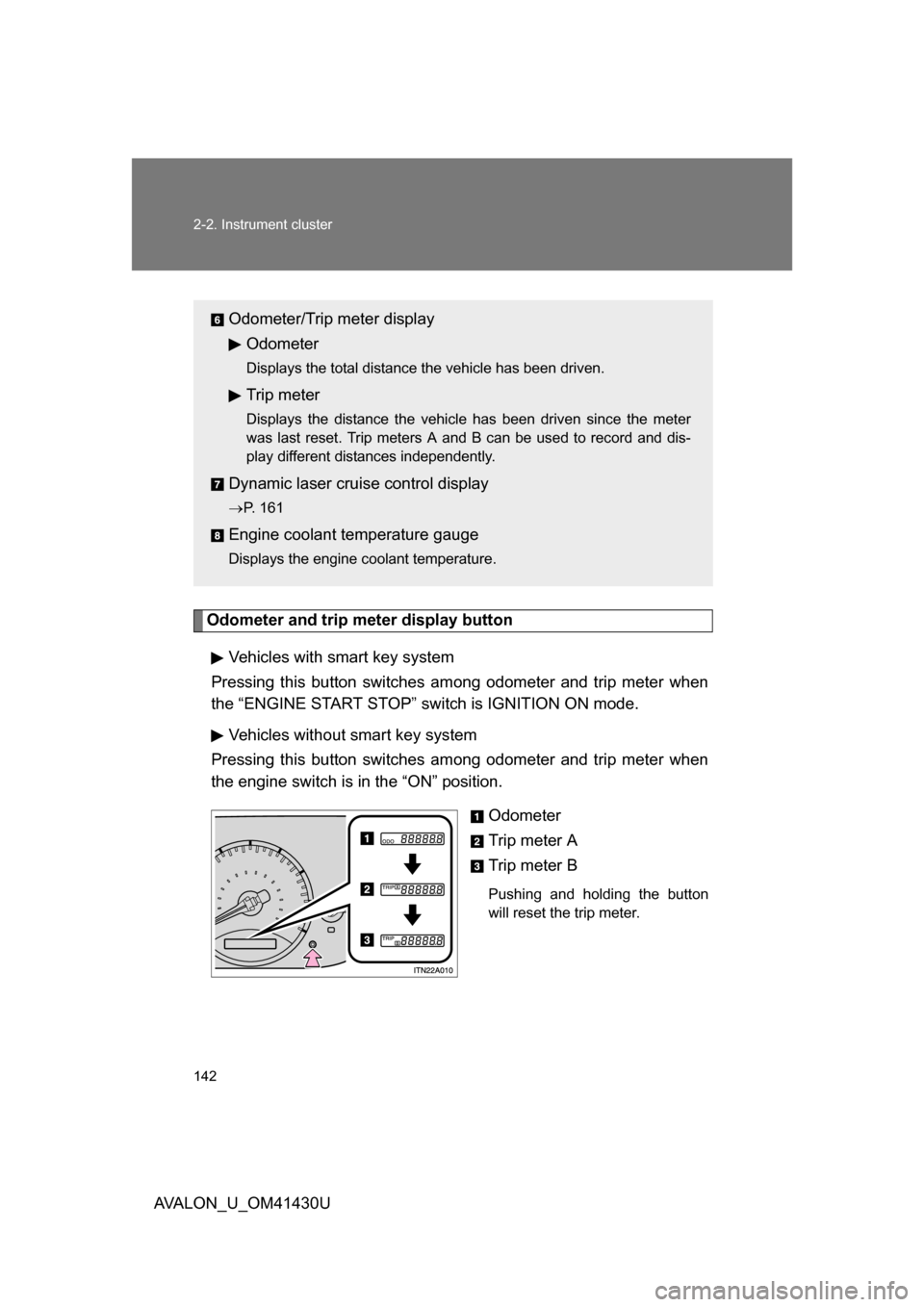

Odometer and trip meter display buttonVehicles with smart key system
Pressing this button switches am ong odometer and trip meter when
the “ENGINE START STOP” switch is IGNITION ON mode.
Vehicles without smart key system
Pressing this button switches am ong odometer and trip meter when
the engine switch is in the “ON” position.
Odometer
Trip meter A
Trip meter B
Pushing and holding the button
will reset the trip meter.
Odometer/Trip meter displayOdometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Dynamic laser cruise control display
P. 161
Engine coolant temperature gauge
Displays the engine coolant temperature.

143
2-2. Instrument cluster
2
When driving
AVALON_U_OM41430U

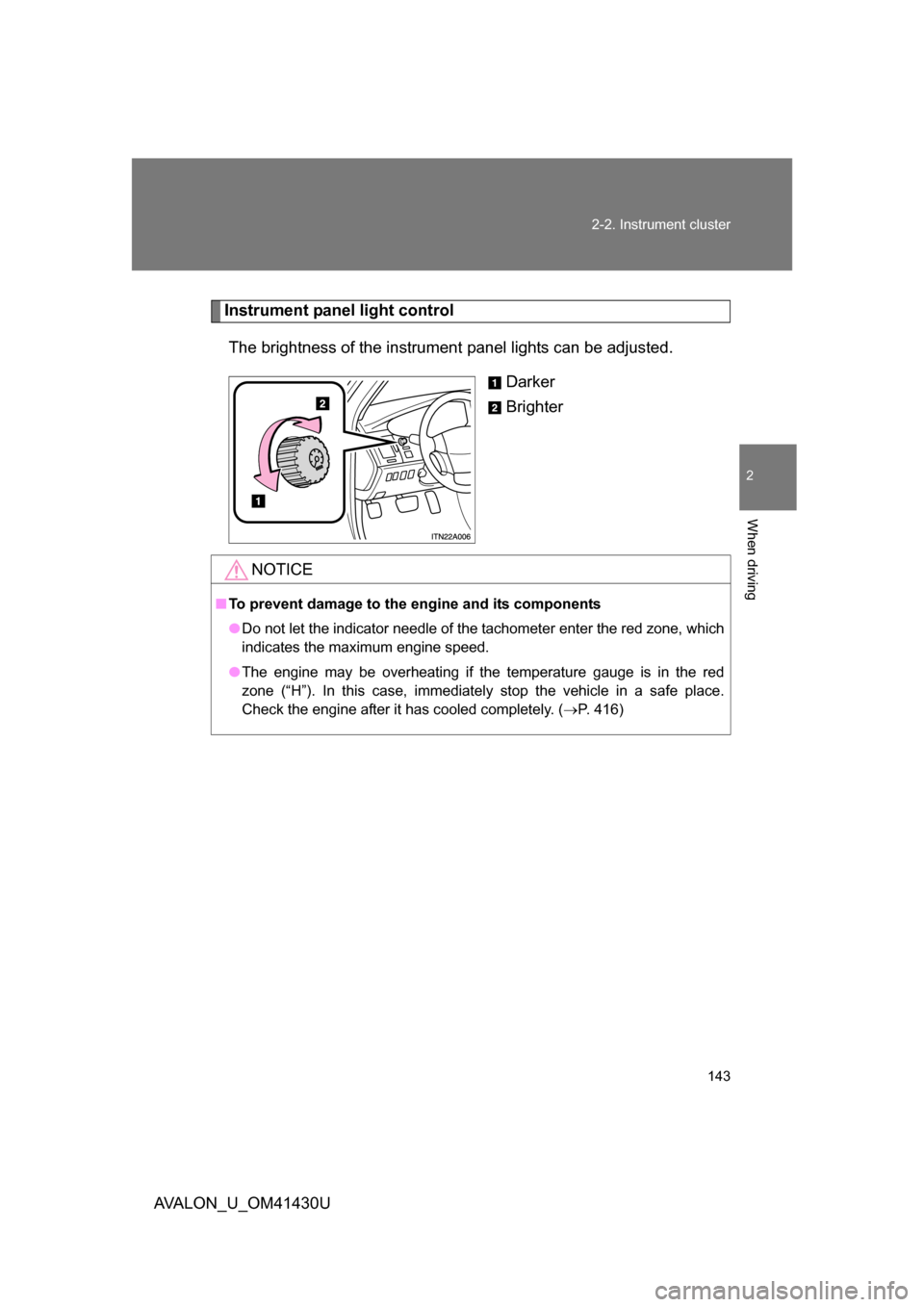

Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the temperature gauge is in the red
zone (“H”). In this case, immediately stop the vehicle in a safe place.
Check the engine after it has cooled completely. ( P. 416)

144
2-2. Instrument cluster
AVALON_U_OM41430U

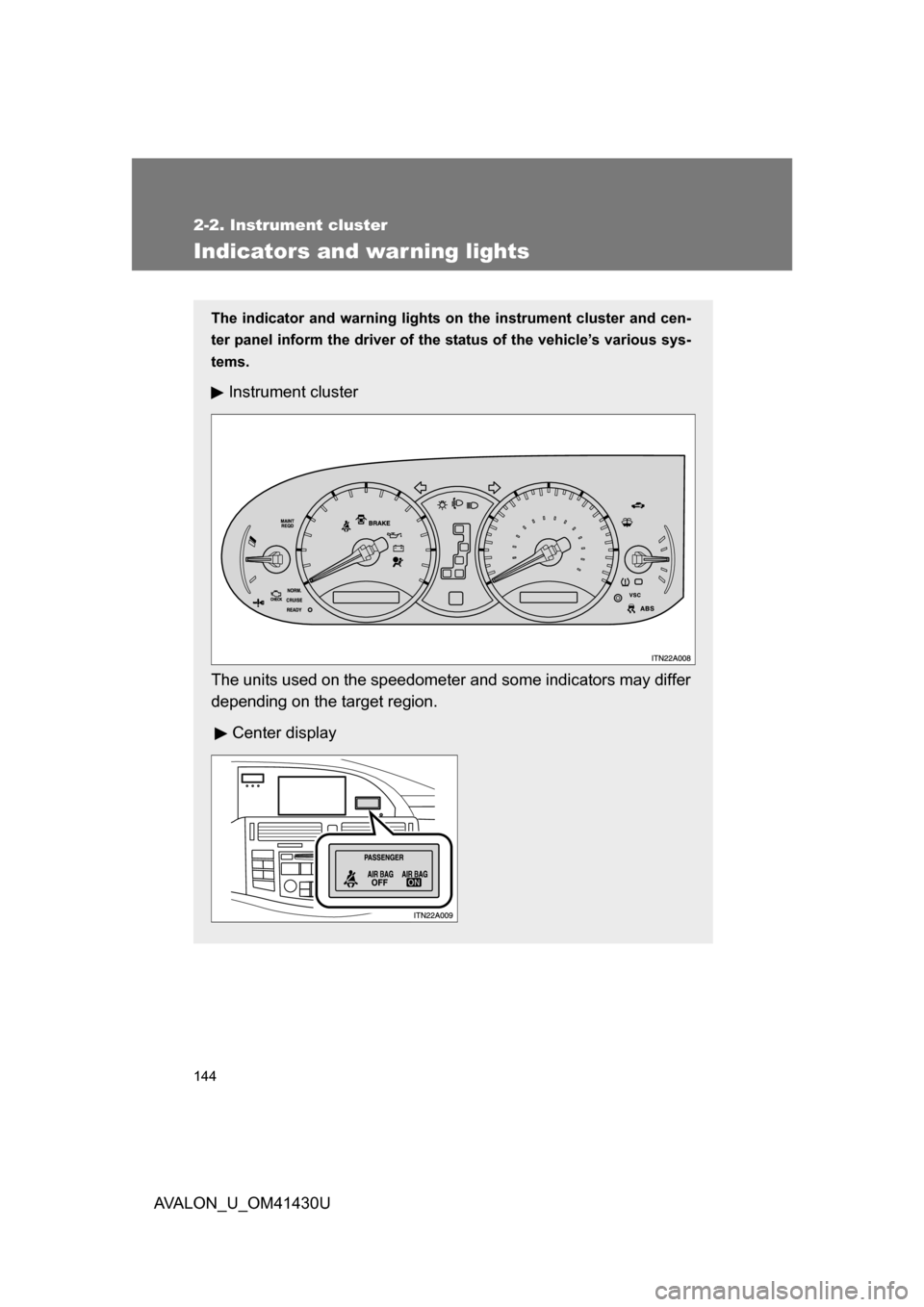

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
The units used on the speedometer and some indicators may differ
depending on the target region.
Center display

145
2-2. Instrument cluster
2
When driving
AVALON_U_OM41430U
■

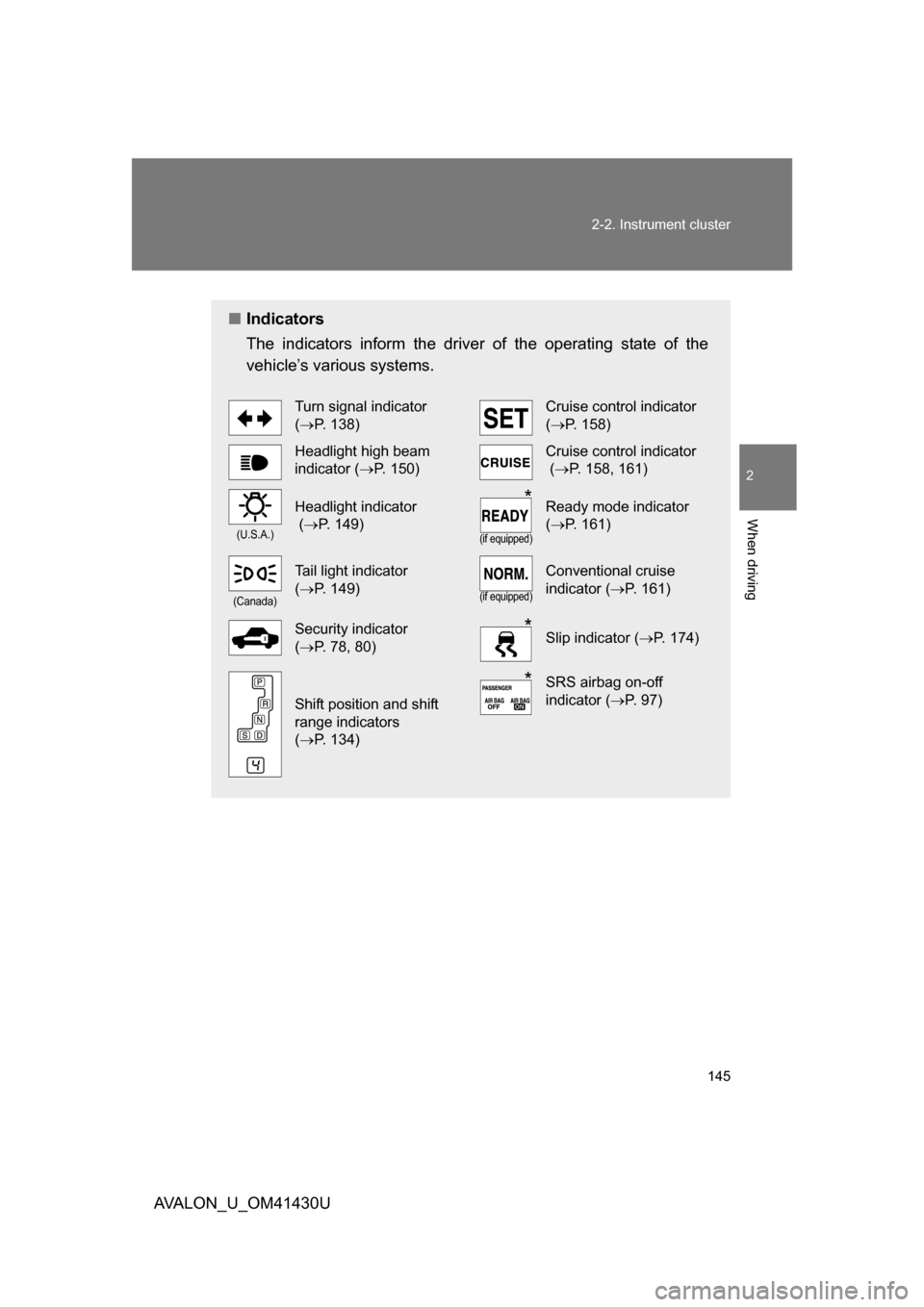

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 138)Cruise control indicator
(P. 158)
Headlight high beam
indicator ( P. 150)Cruise control indicator
(P. 158, 161)
(U.S.A.)
Headlight indicator
(P. 149)
(if equipped)
Ready mode indicator
(P. 161)
(Canada)
Tail light indicator
(P. 149)
(if equipped)
Conventional cruise
indicator ( P. 161)
Security indicator
(P. 78, 80)Slip indicator ( P. 174)
Shift position and shift
range indicators
(P. 134)
SRS airbag on-off
indicator ( P. 97)
*
*
*

146 2-2. Instrument cluster
AVALON_U_OM41430U
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

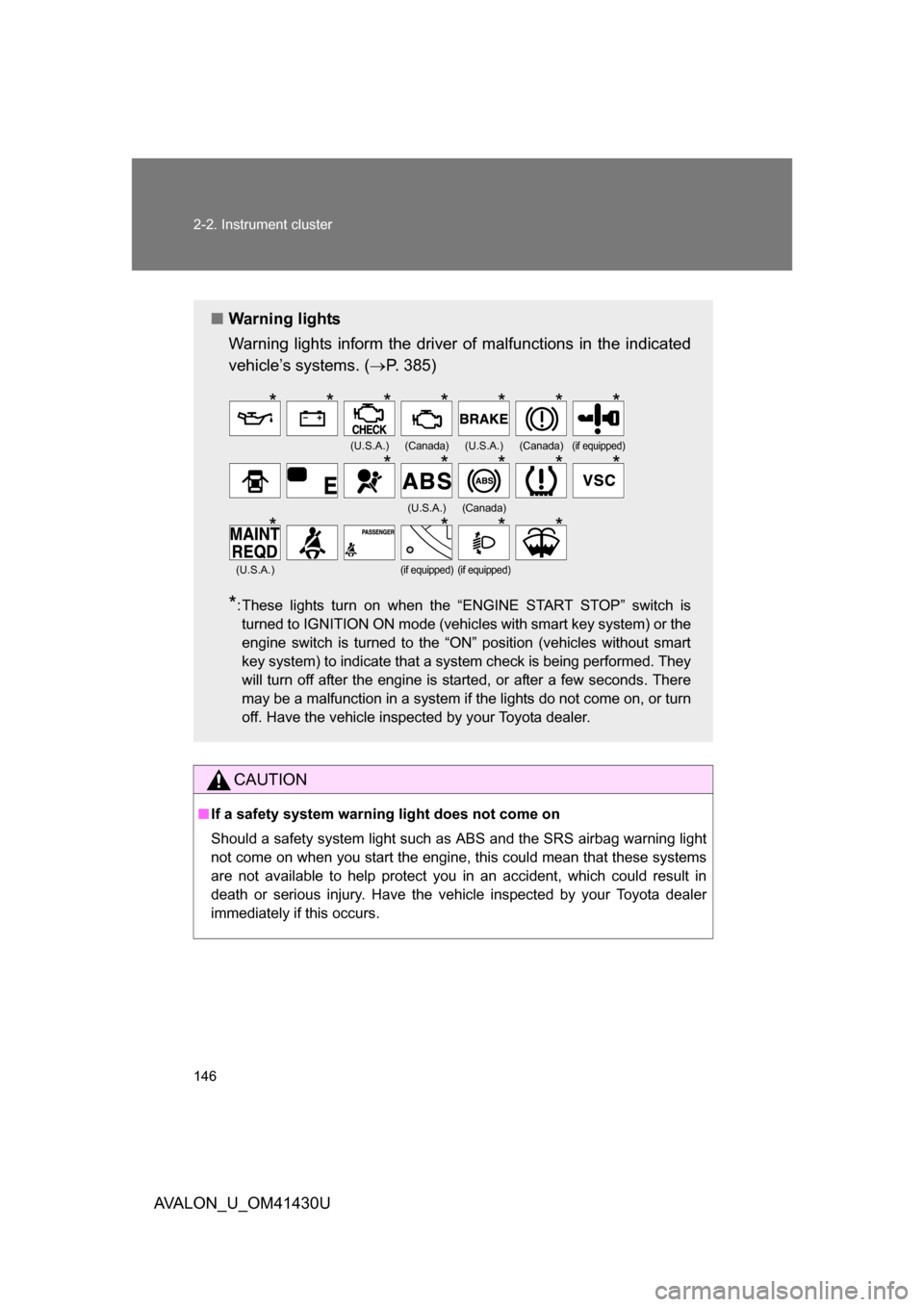

■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 385)
*: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with smart key system) or the
engine switch is turned to the “ON” position (vehicles without smart
key system) to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)(if equipped)
(U.S.A.)(Canada)
(U.S.A.)(if equipped)(if equipped)
*******
*****
****

147
2-2. Instrument cluster
2
When driving
AVALON_U_OM41430U

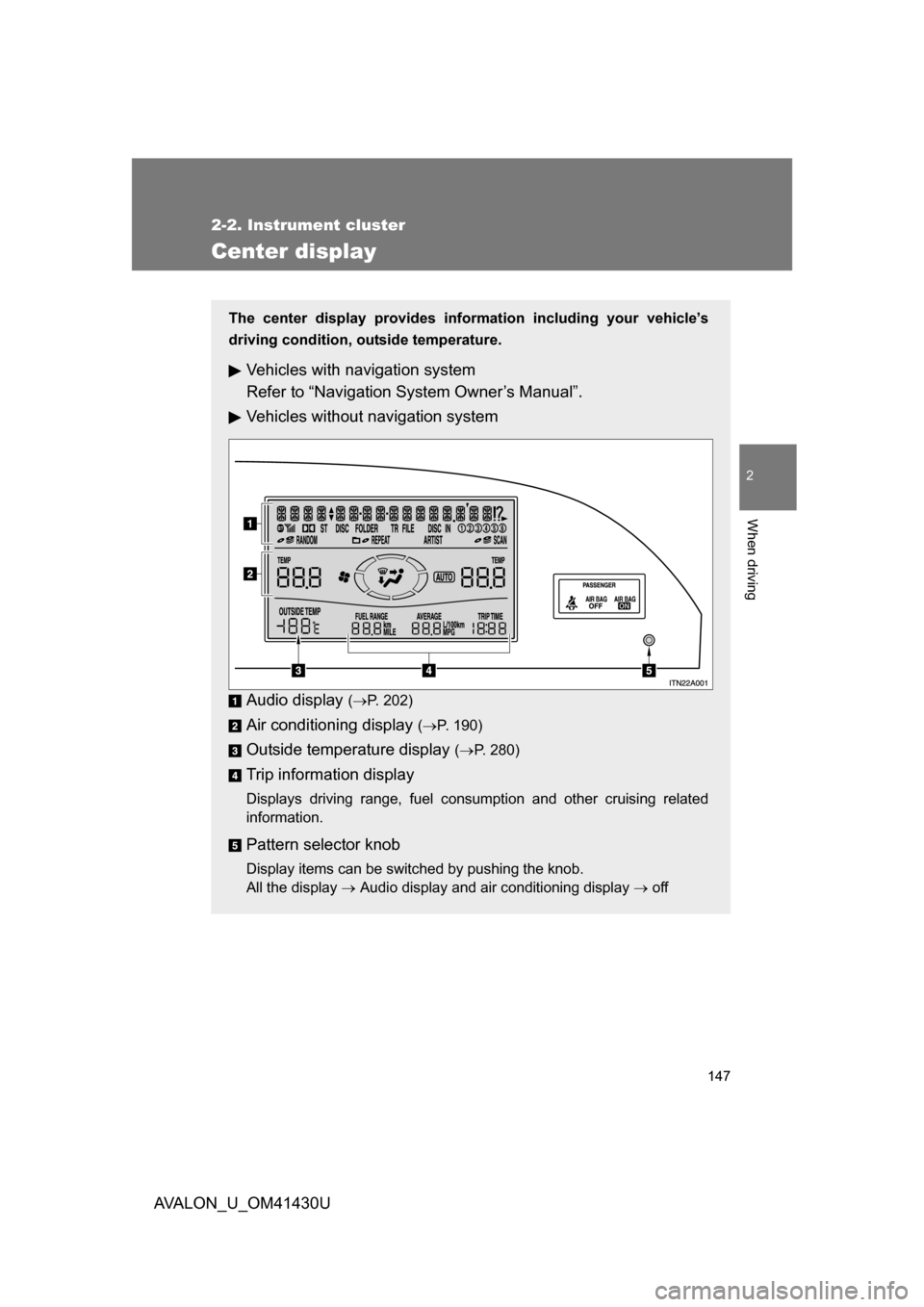

Center display
The center display provides information including your vehicle’s
driving condition, outside temperature.
Vehicles with navigation system
Refer to “Navigation System Owner’s Manual”.
Vehicles without navigation system
Audio display
(P. 202)
Air conditioning display ( P. 190)
Outside temperature display ( P. 280)
Trip information display
Displays driving range, fuel consumption and other cruising related
information.
Pattern selector knob
Display items can be switched by pushing the knob.
All the display  Audio display and air conditioning display  off

148 2-2. Instrument cluster
AVALON_U_OM41430U

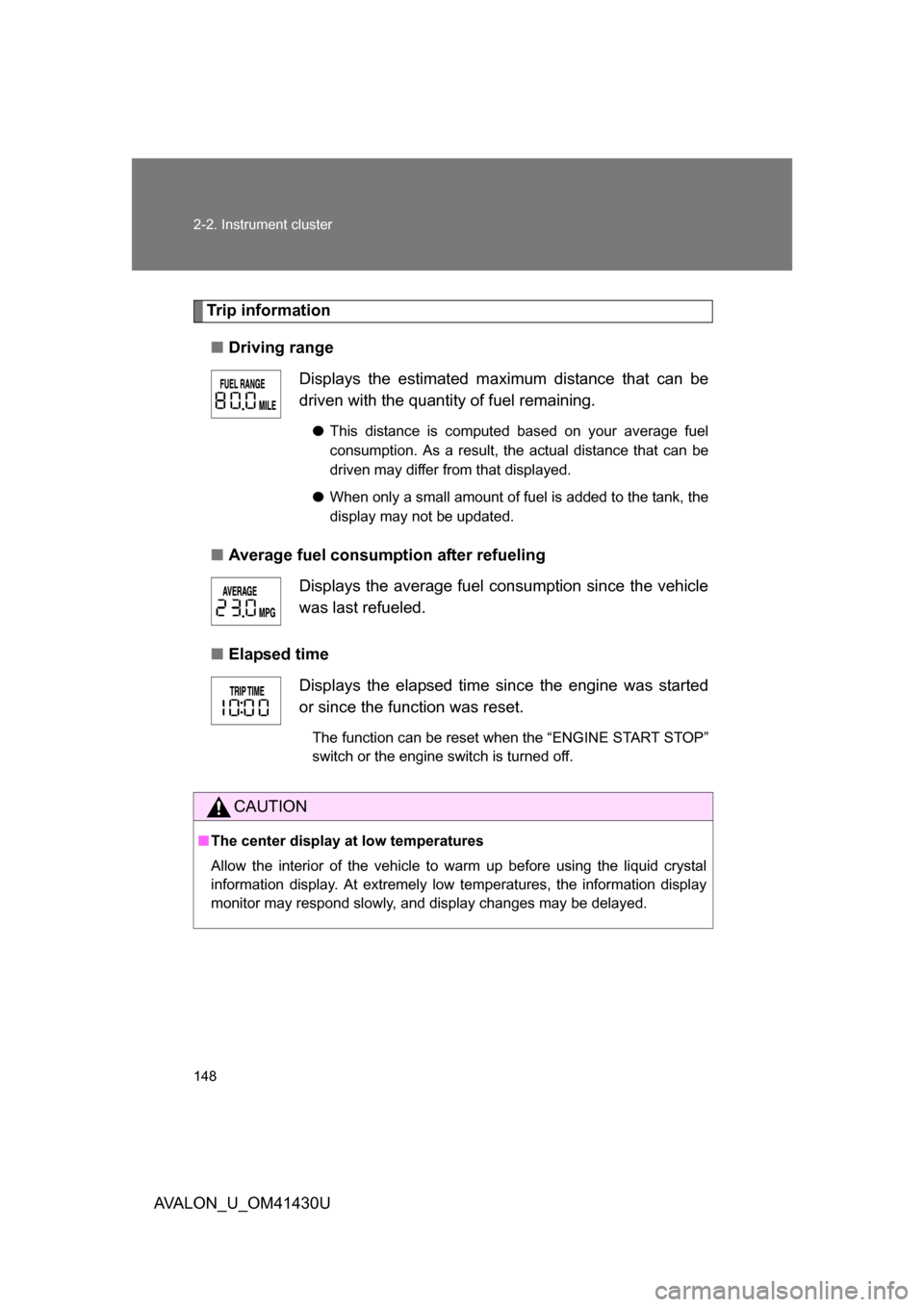

Trip information■ Driving range
■ Average fuel consumption after refueling
■ Elapsed time Displays the estimated ma
ximum distance that can be
driven with the quantity of fuel remaining.
● This distance is computed based on your average fuel
consumption. As a result, the actual distance that can be
driven may differ from that displayed.
● When only a small amount of fuel is added to the tank, the
display may not be updated.
Displays the average fuel consumption since the vehicle
was last refueled.
Displays the elapsed time since the engine was started
or since the function was reset.
The function can be reset when the “ENGINE START STOP”
switch or the engine switch is turned off.
CAUTION
■The center display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

149
2
When driving
AVALON_U_OM41430U
2-3. Operating the lights and windshield wipers

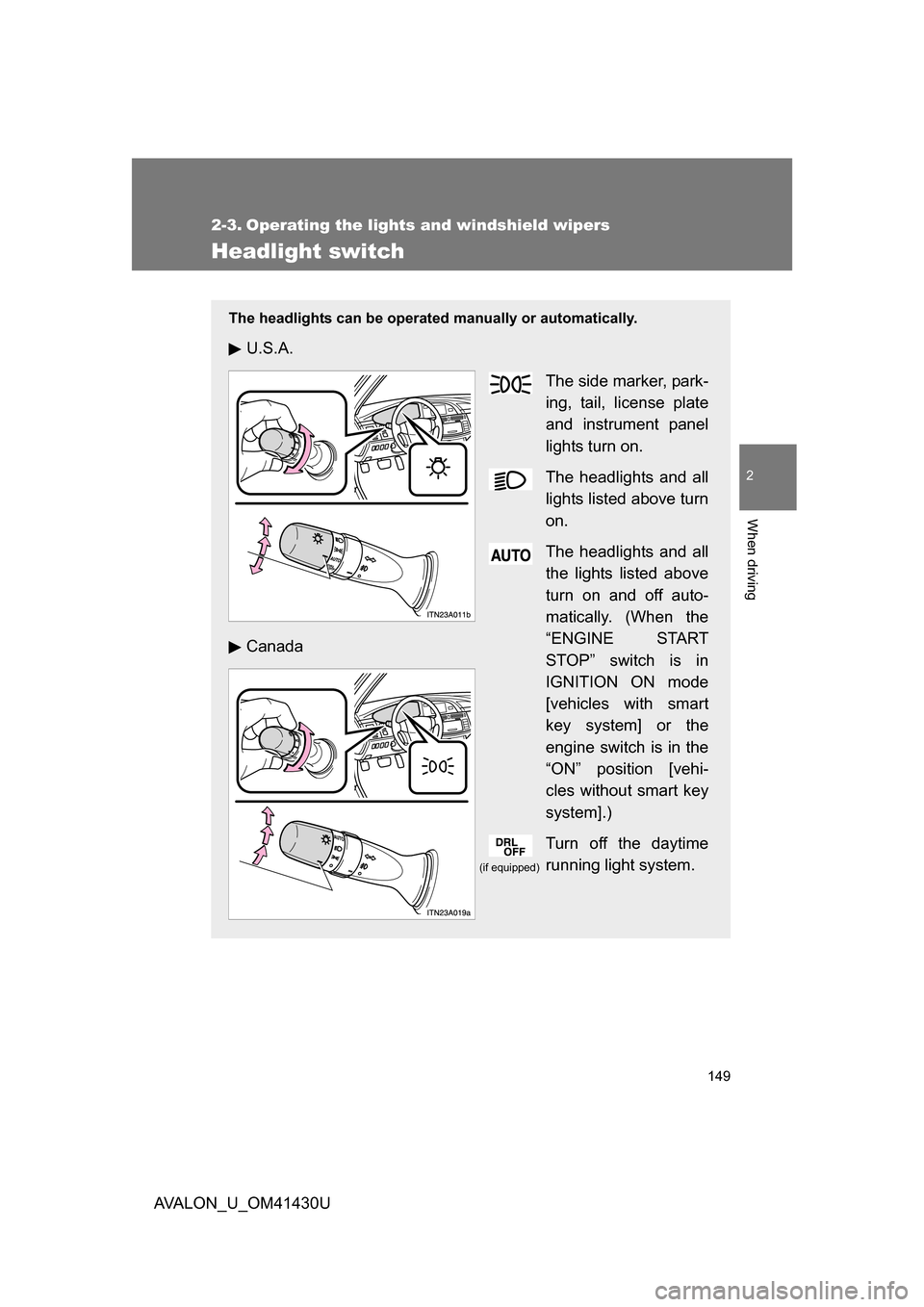

Headlight switch
The headlights can be operated manually or automatically.
U.S.A.
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
the lights listed above
turn on and off auto-
matically. (When the
“ENGINE START
STOP” switch is in
IGNITION ON mode
[vehicles with smart
key system] or the
engine switch is in the
“ON” position [vehi-
cles without smart key
system].)
Turn off the daytime
running light system.
Canada
(if equipped)

150 2-3. Operating the lights and windshield wipers
AVALON_U_OM41430U

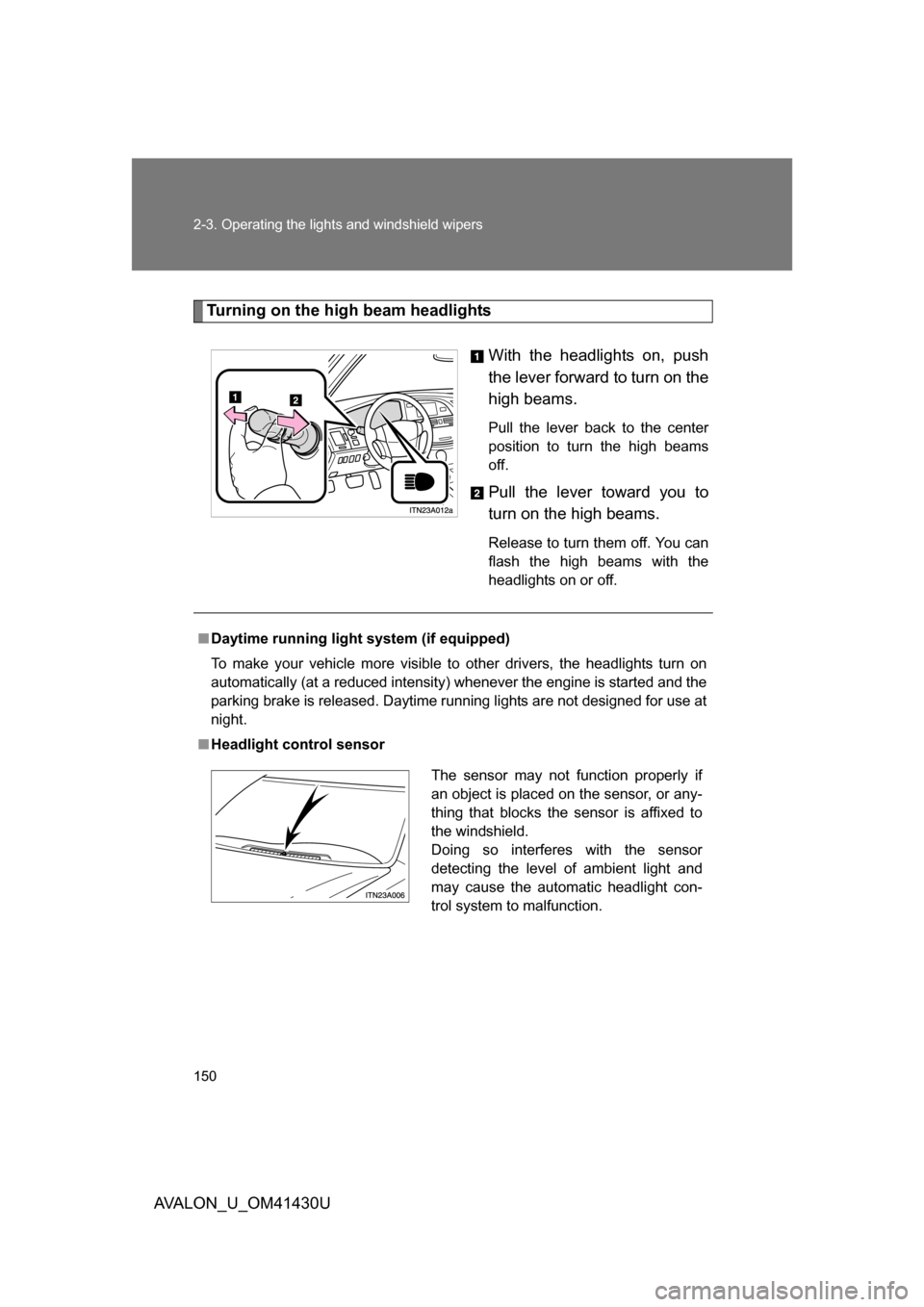

Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release to turn them off. You can
flash the high beams with the
headlights on or off.
■Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
■ Headlight control sensor
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight con-
trol system to malfunction.
