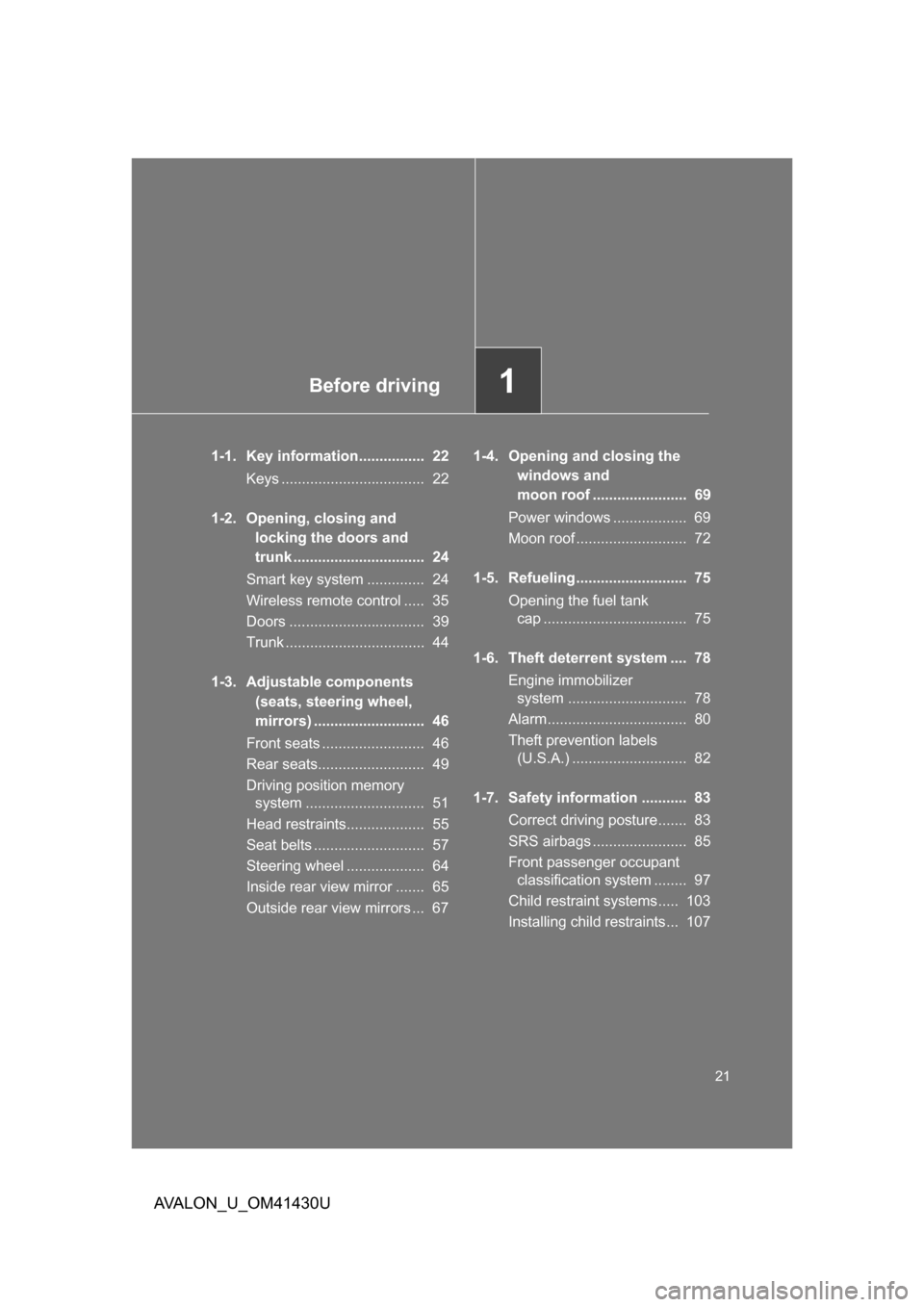

1-1. Key information................ 22Keys ................................... 22
1-2. Opening, closing and locking the doors and
trunk ................................ 24
Smart key system .............. 24
Wireless remote control ..... 35
Doors ................................. 39
Trunk .................................. 44
1-3. Adjustable components (seats, steering wheel,
mirrors) ........................... 46
Front seats ......................... 46
Rear seats.......................... 49
Driving position memory system ............................. 51
Head restraints................... 55
Seat belts ........................... 57
Steering wheel ................... 64
Inside rear view mirror ....... 65
Outside rear view mirrors ... 67 1-4. Opening and closing the
windows and
moon roof ....................... 69
Power windows .................. 69
Moon roof ........................... 72
1-5. Refueling........................... 75 Opening the fuel tank cap ................................... 75
1-6. Theft deterrent system .... 78 Engine immobilizer system ............................. 78
Alarm.................................. 80
Theft prevention labels (U.S.A.) ............................ 82
1-7. Safety information ........... 83 Correct driving posture....... 83
SRS airbags ....................... 85
Front passenger occupant classification system ........ 97
Child restraint systems..... 103
Installing child restraints... 107

22
AVALON_U_OM41430U
1-1. Key information

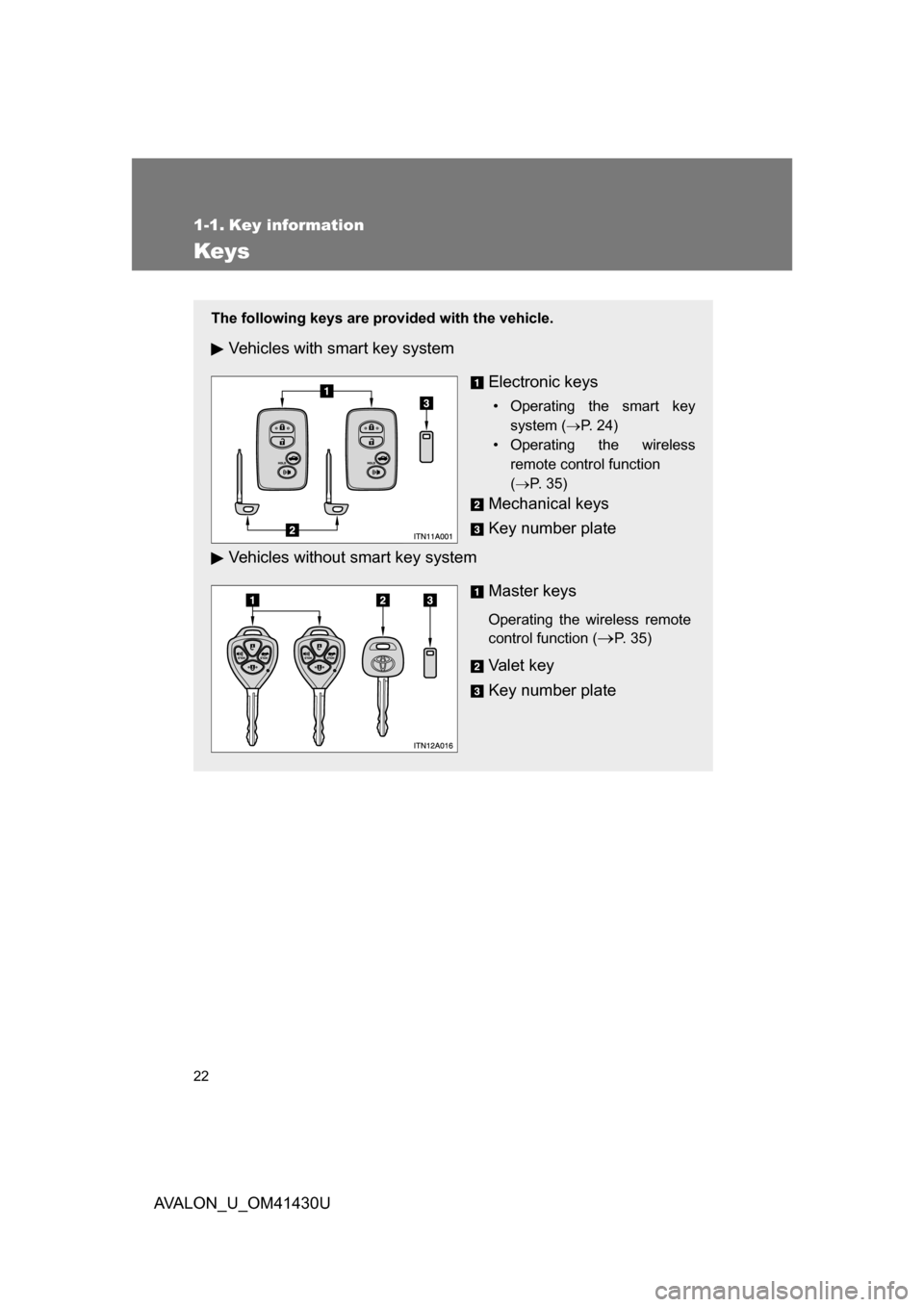

Keys
The following keys are provided with the vehicle.
Vehicles with smart key system
Electronic keys
• Operating the smart keysystem ( P. 24)
• Operating the wireless
remote control function
(P. 35)
Mechanical keys
Key number plate
Vehicles without smart key system
Master keys
Operating the wireless remote
control function (
P. 35)
Va l e t k e y
Key number plate

23
1-1. Key information
1
Before driving
AVALON_U_OM41430U

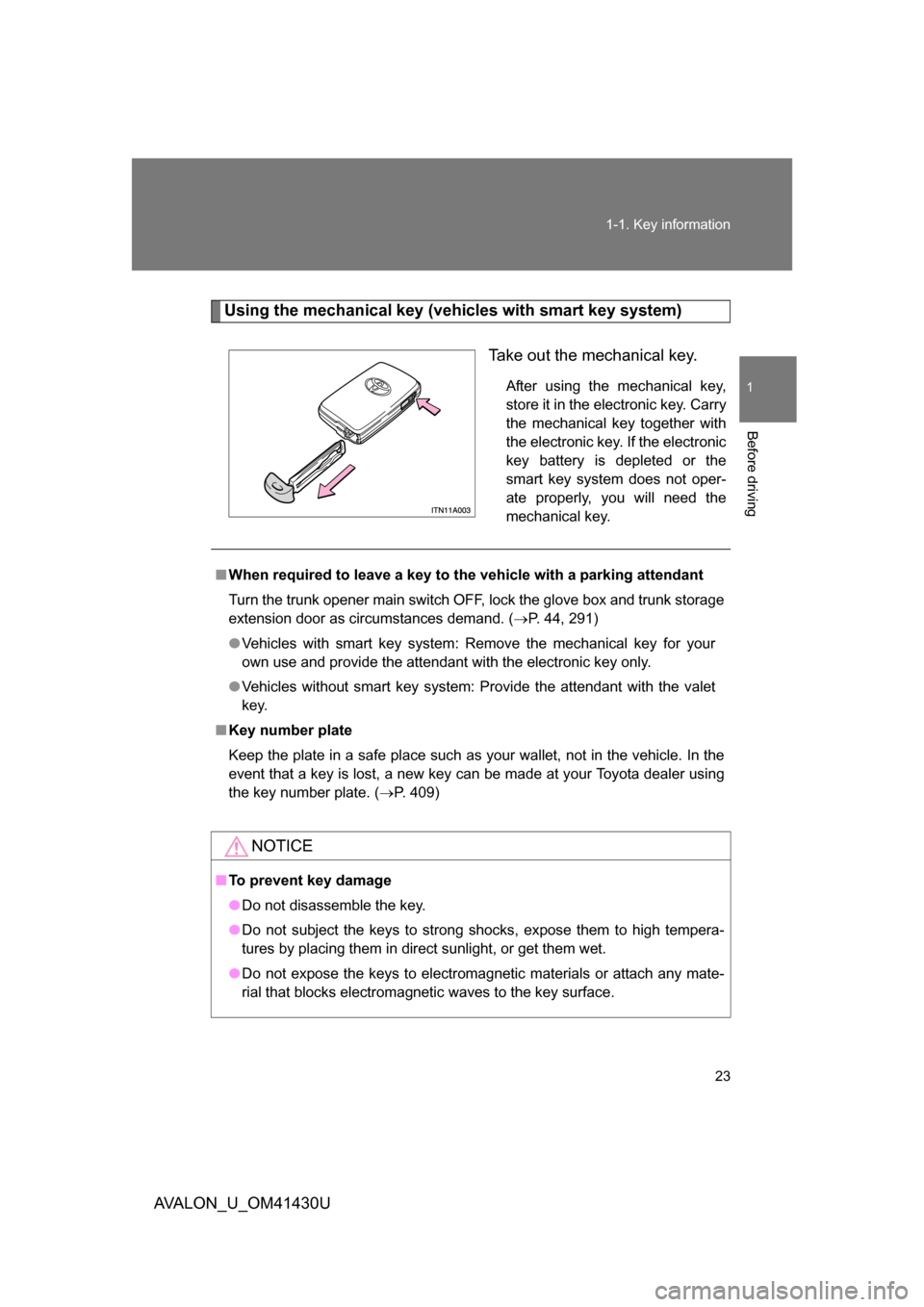

Using the mechanical key (vehicles with smart key system)
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
smart key system does not oper-
ate properly, you will need the
mechanical key.
■When required to leave a key to th e vehicle with a parking attendant
Turn the trunk opener main switch OFF, lock the glove box and trunk storage
extension door as circumstances demand. ( P. 44, 291)
● Vehicles with smart key system: Remove the mechanical key for your
own use and provide the attendant with the electronic key only.
● Vehicles without smart key system: Provide the attendant with the valet
key.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made at your Toyota dealer using
the key number plate. ( P. 409)
NOTICE
■To prevent key damage
● Do not disassemble the key.
● Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.

24
AVALON_U_OM41430U
1-2. Opening, closing and locking the doors and trunk

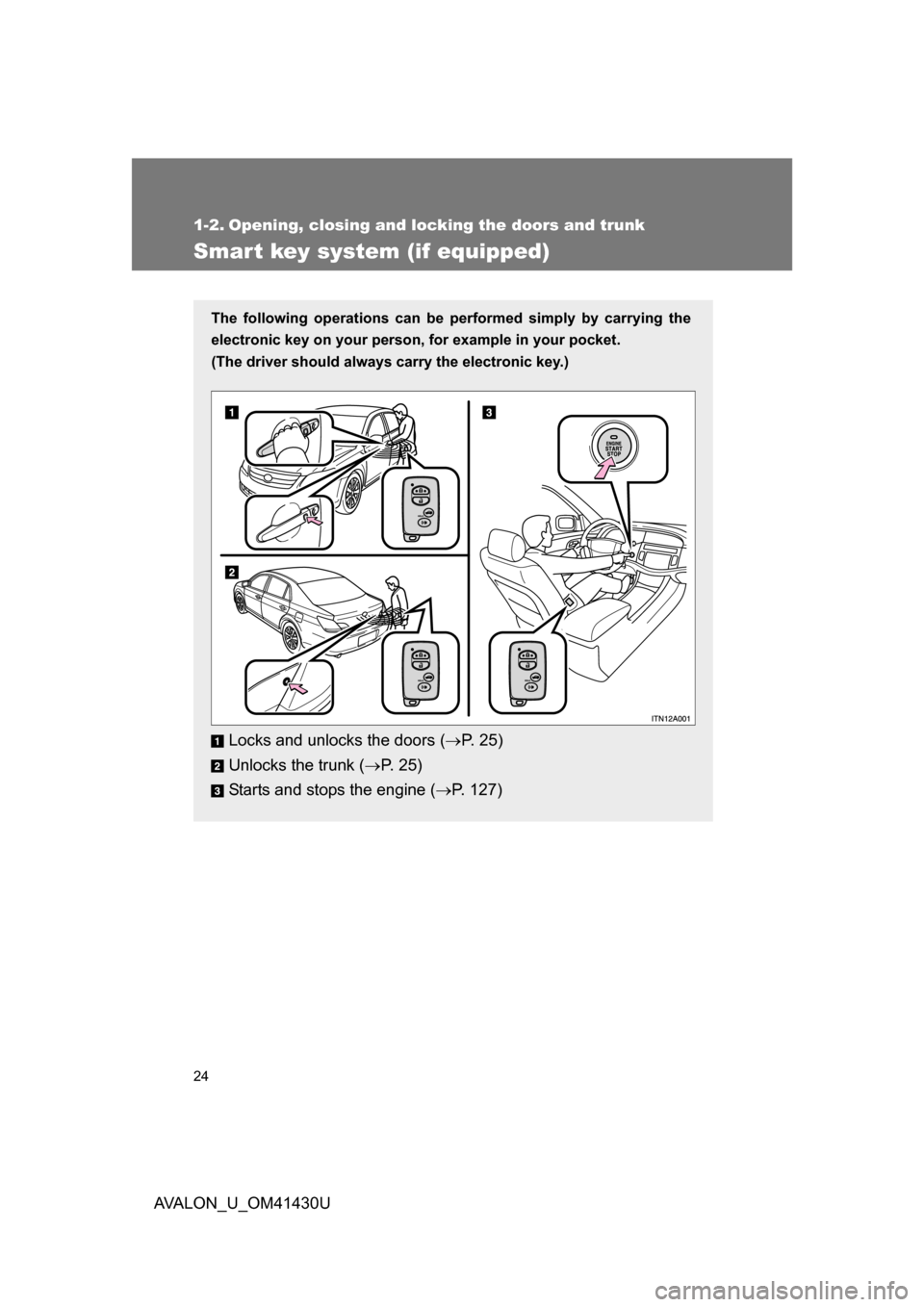

Smart key system (if equipped)
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors ( P. 2 5 )
Unlocks the trunk ( P. 2 5 )
Starts and stops the engine ( P. 127)

25
1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U_OM41430U

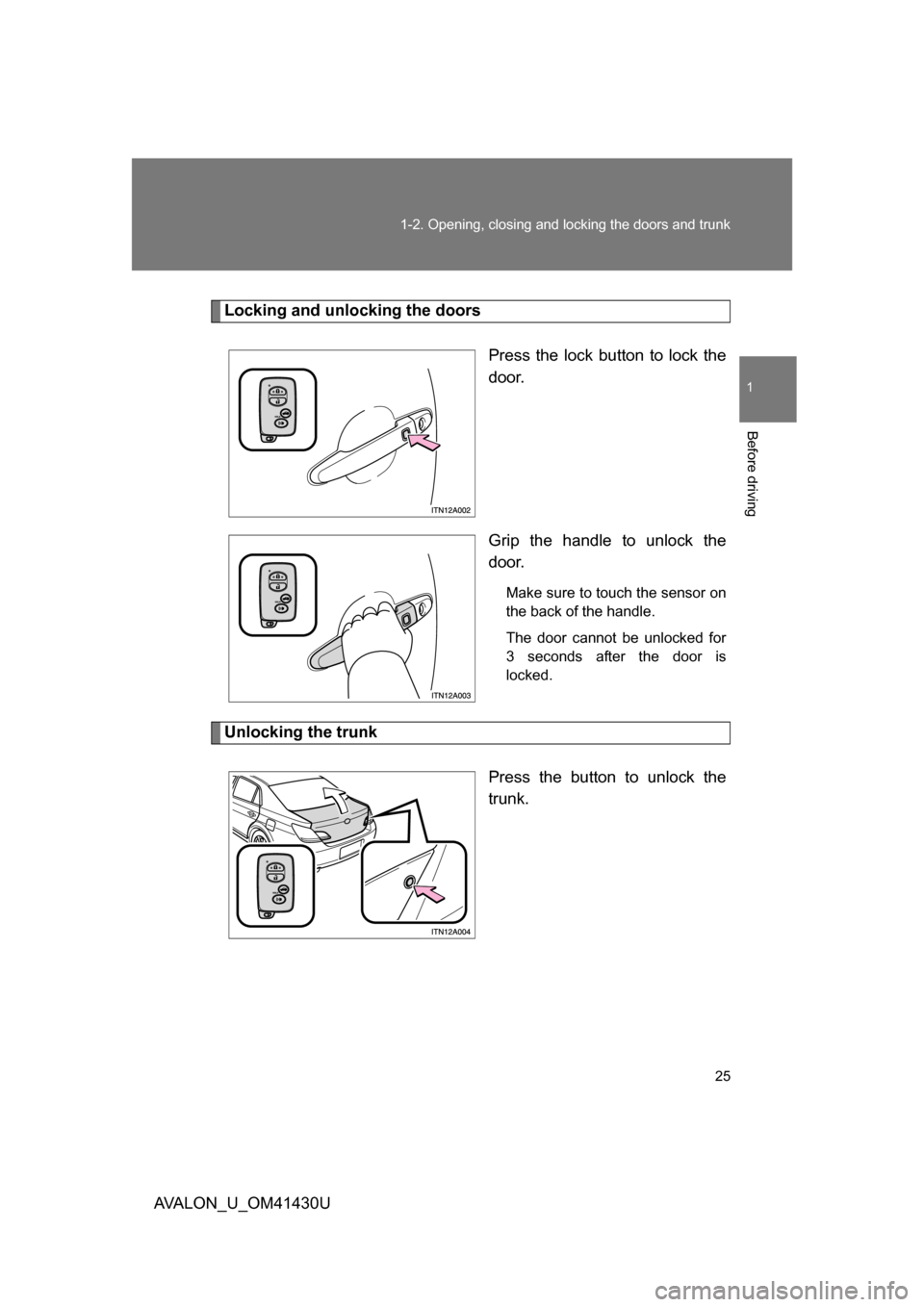

Locking and unlocking the doors
Press the lock button to lock the
door.
Grip the handle to unlock the
door.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for
3 seconds after the door is
locked.
Unlocking the trunkPress the button to unlock the
trunk.

26 1-2. Opening, closing and locking the doors and trunk
AVALON_U_OM41430U

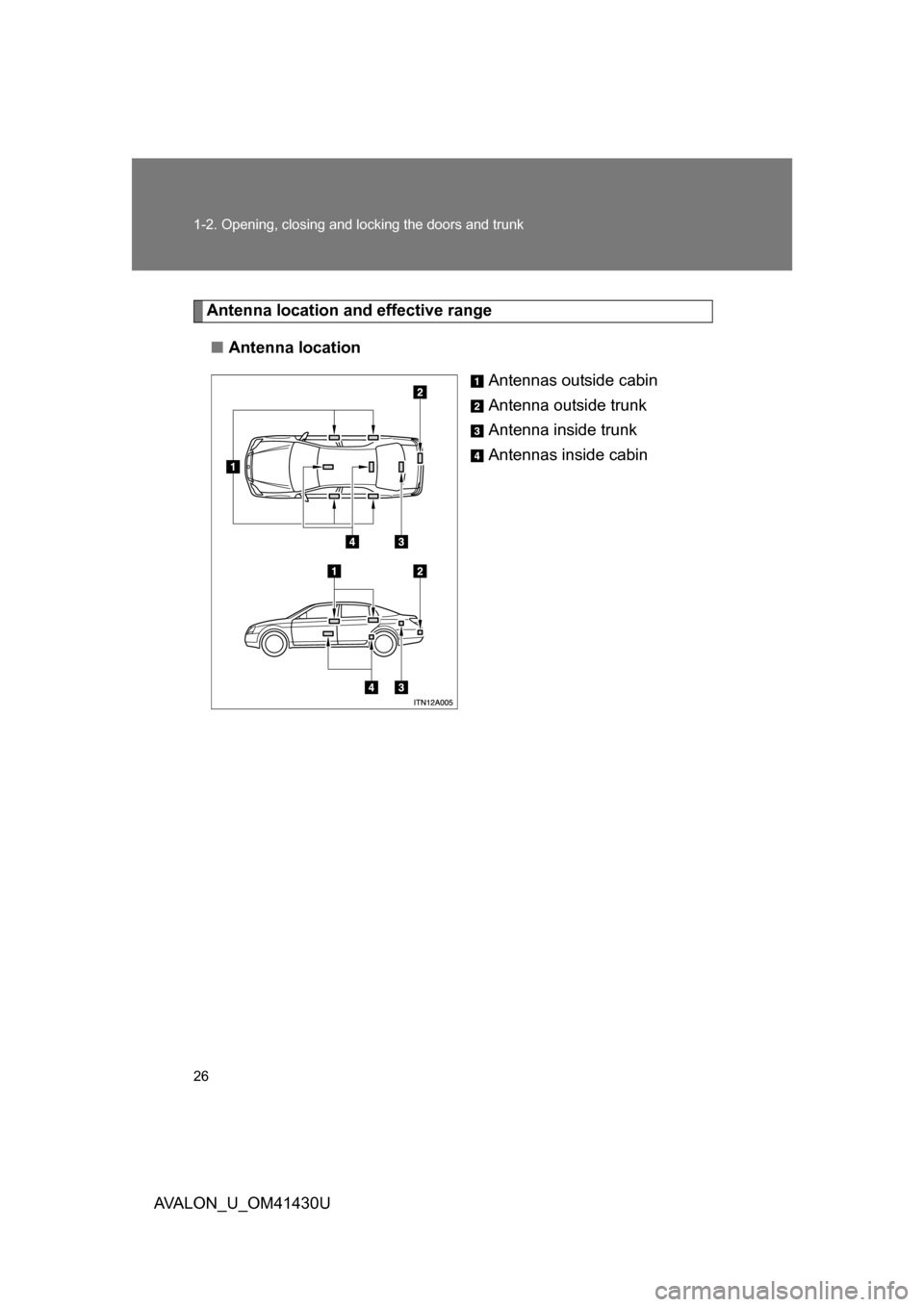

Antenna location and effective range
■ Antenna location
Antennas outside cabin
Antenna outside trunk
Antenna inside trunk
Antennas inside cabin

27
1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U_OM41430U
■

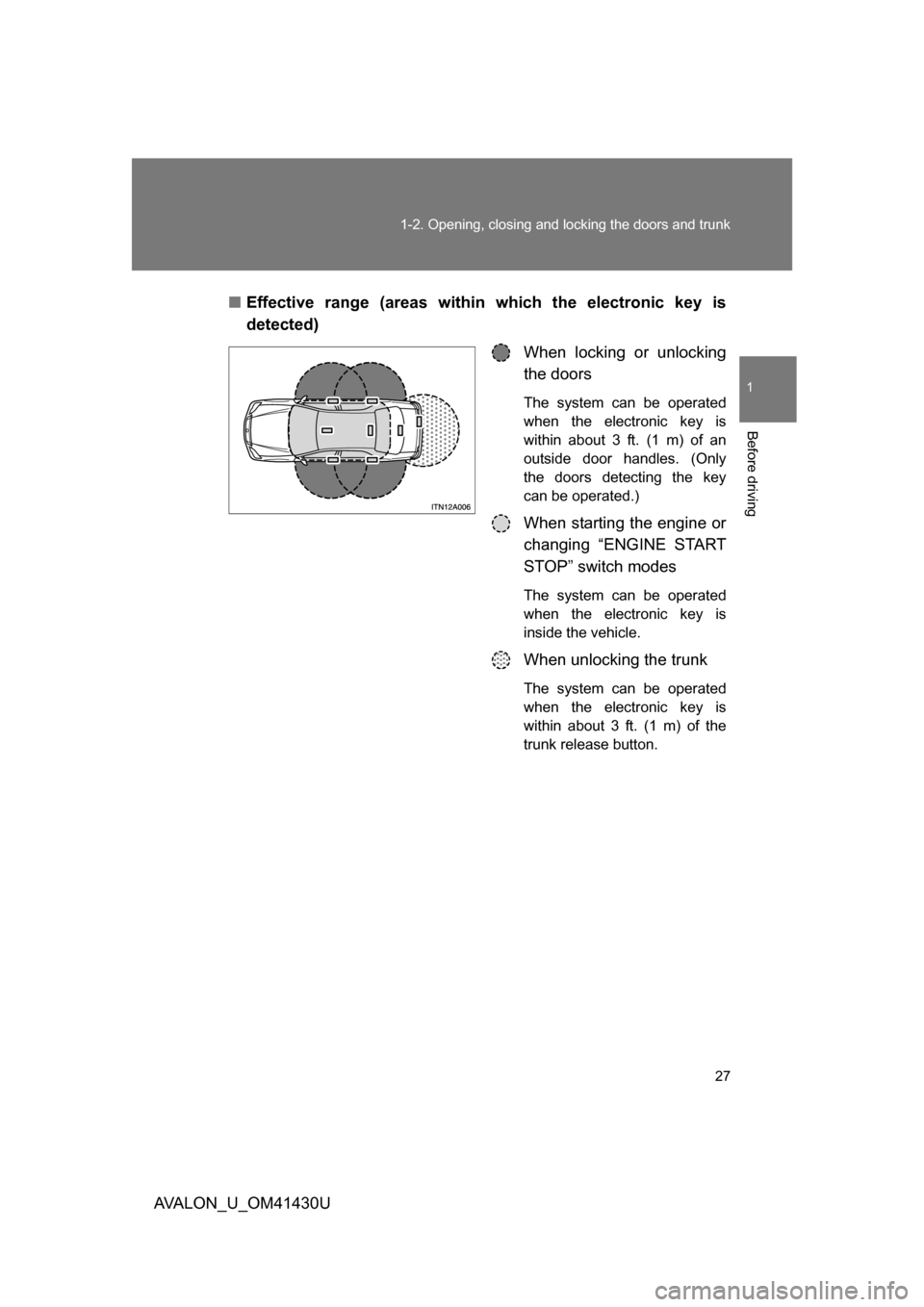

Effective range (areas within which the electronic key is
detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 3 ft. (1 m) of an
outside door handles. (Only
the doors detecting the key
can be operated.)
When starting the engine or
changing “ENGINE START
STOP” switch modes
The system can be operated
when the electronic key is
inside the vehicle.
When unlocking the trunk
The system can be operated
when the electronic key is
within about 3 ft. (1 m) of the
trunk release button.

28 1-2. Opening, closing and locking the doors and trunk
AVALON_U_OM41430U

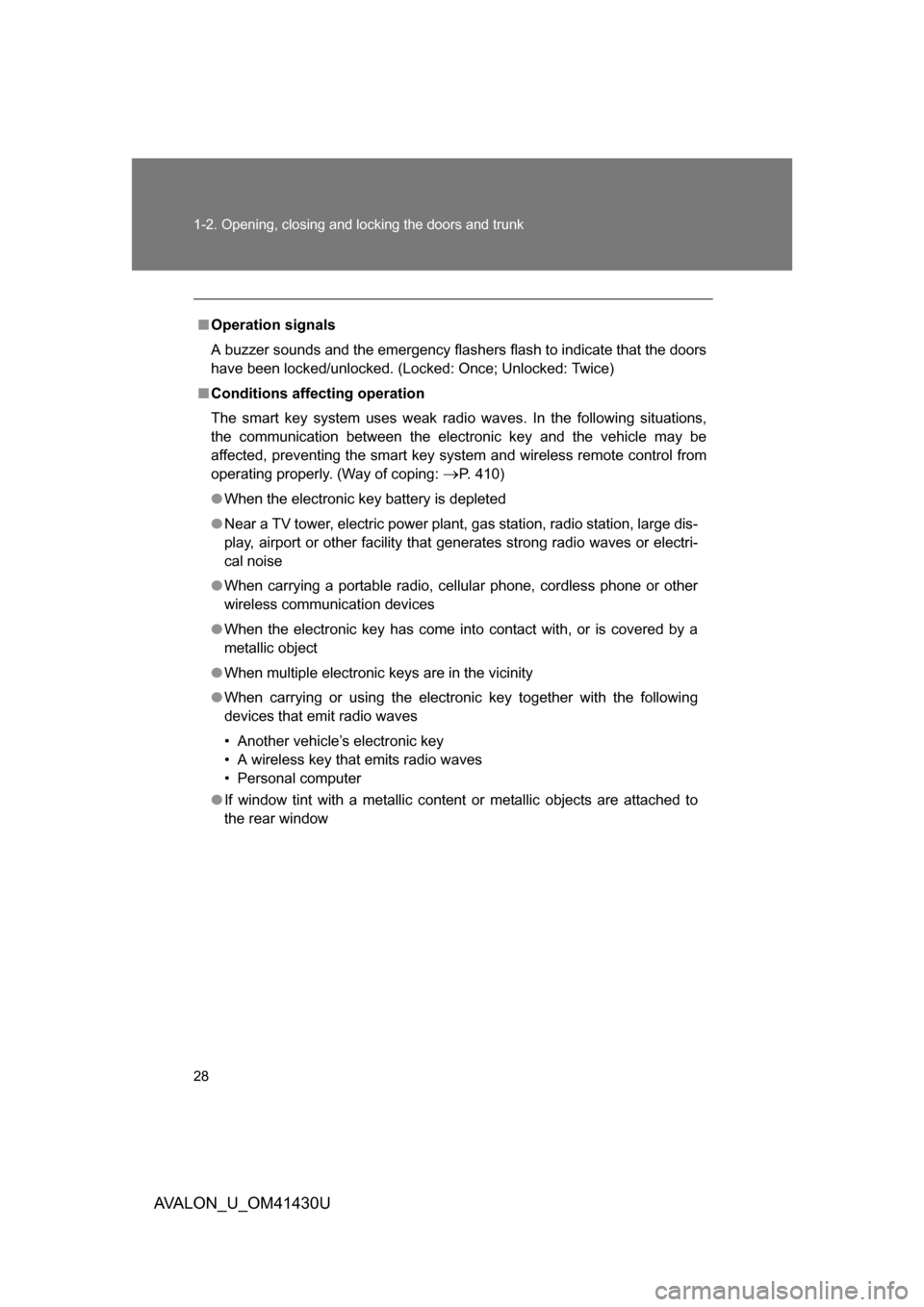

■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Way of coping:
P. 410)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
● When the electronic key has come into contact with, or is covered by a
metallic object
● When multiple electronic keys are in the vicinity
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
● If window tint with a metallic content or metallic objects are attached to
the rear window

29
1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U_OM41430U
■

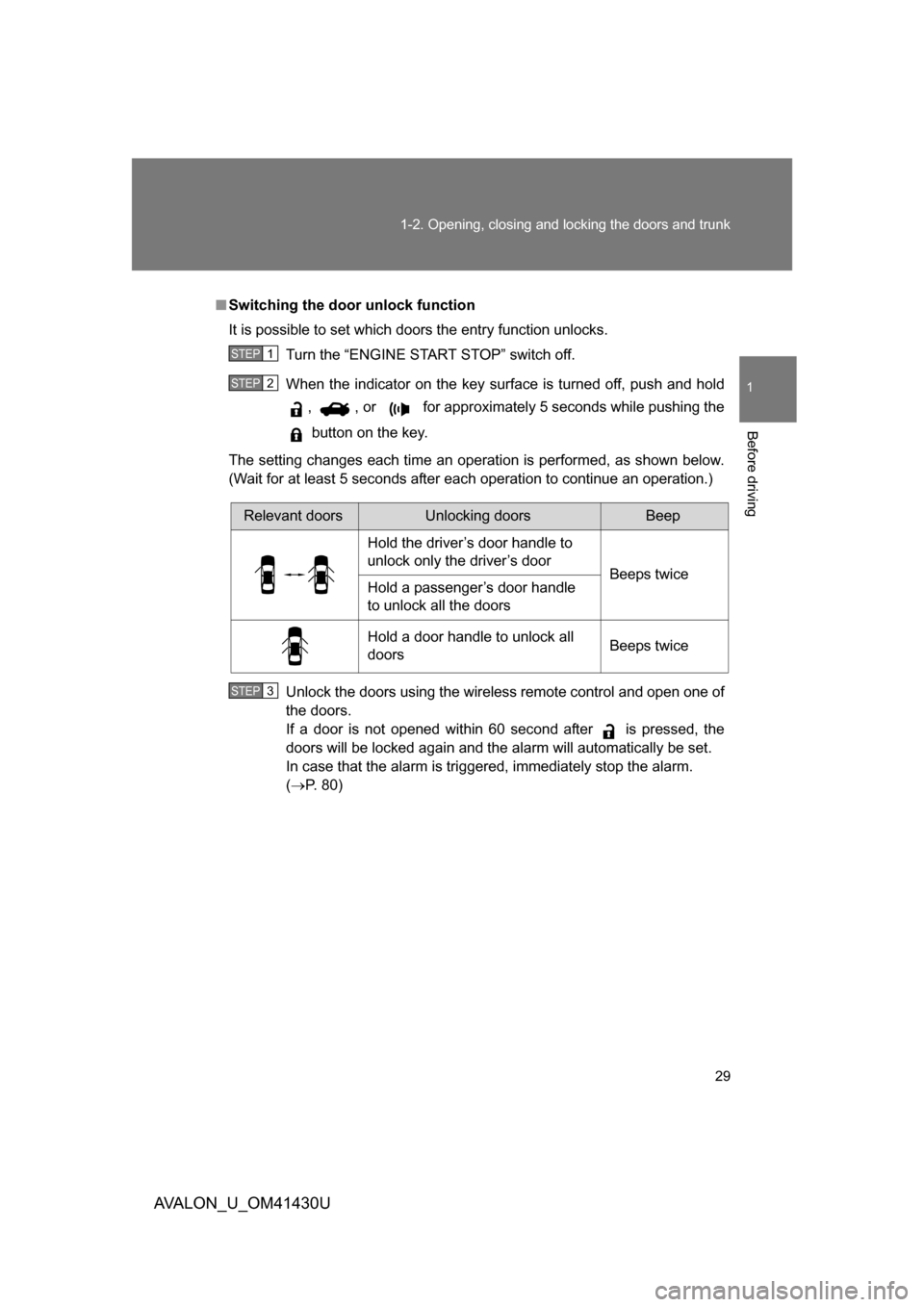

Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the “ENGINE START STOP” switch off.
When the indicator on the key surface is turned off, push and hold, , or for approximately 5 seconds while pushing the
button on the key.
The setting changes each time an operation is performed, as shown below.
(Wait for at least 5 seconds after each operation to continue an operation.)
Unlock the doors using the wireless remote control and open one of
the doors.
If a door is not opened within 60 second after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(P. 80)
STEP1
STEP2
Relevant doorsUnlocking doorsBeep
Hold the driver’s door handle to
unlock only the driver’s door Beeps twice
Hold a passenger’s door handle
to unlock all the doors
Hold a door handle to unlock all
doors Beeps twice
STEP3

30 1-2. Opening, closing and locking the doors and trunk
AVALON_U_OM41430U

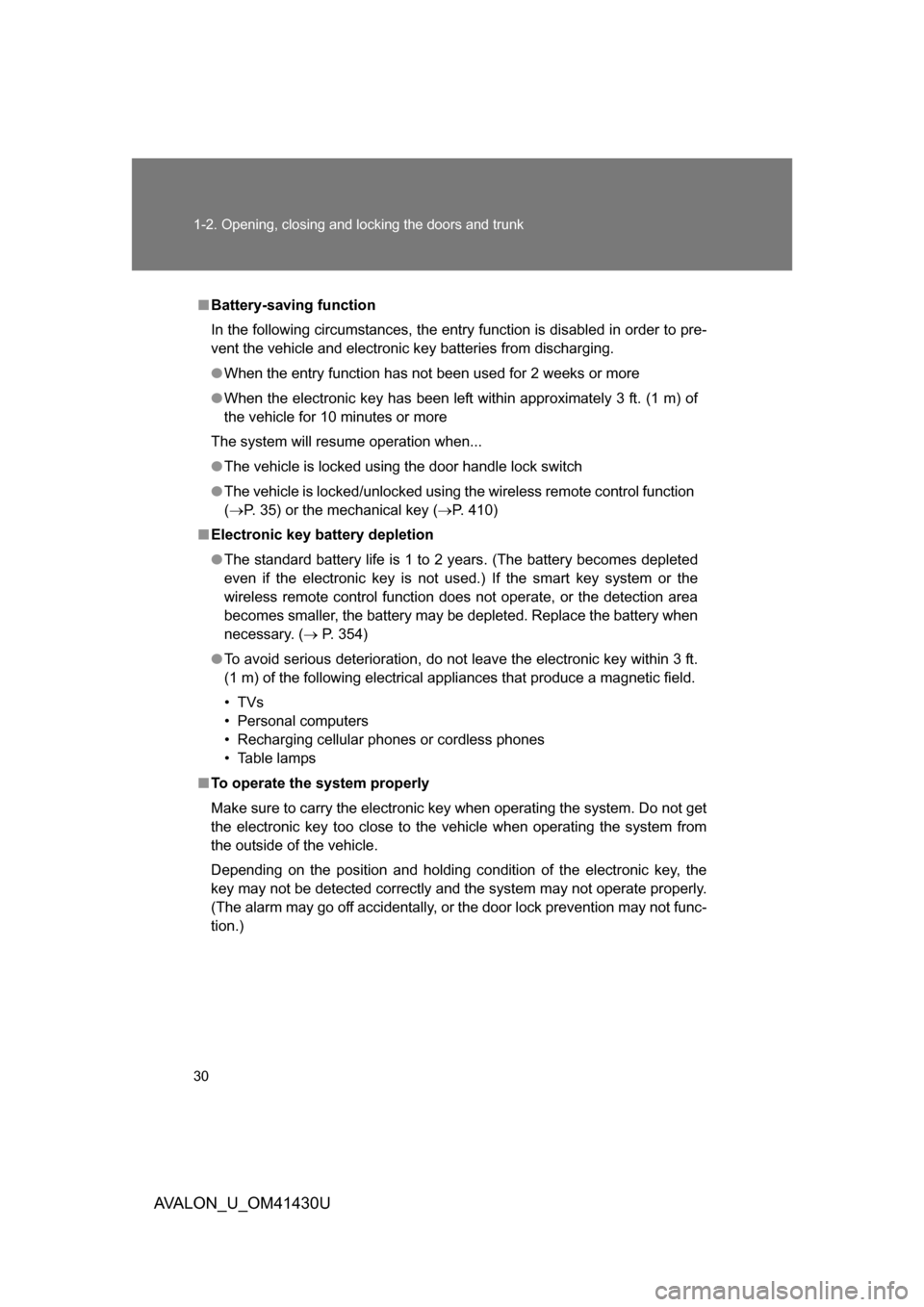

■Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the vehicle and electronic key batteries from discharging.
● When the entry function has not been used for 2 weeks or more
● When the electronic key has been left within approximately 3 ft. (1 m) of
the vehicle for 10 minutes or more
The system will resume operation when...
● The vehicle is locked using the door handle lock switch
● The vehicle is locked/unlocked using the wireless remote control function
(P. 35) or the mechanical key ( P. 410)
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the electronic key is not used.) If the smart key system or the
wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when
necessary. (  P. 354)
● To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not func-
tion.)
