clock TOYOTA AVALON 2009 XX30 / 3.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel8Smart Key system27
Trunk release 8
Air Conditioning/Heating20Audio 18Auto lock functions210Automatic Transmission10Center display19Clock 22Cruise control16Cup holders22Door locks 21Dynamic Laser Cruise Control17Garage door opener (HomeLink®)316Lights1& turn signals13Moonroof 14Parking brake11Power outlets 22Seat adjustments-Front12Seat adjustments-Rear12Seat ventilators/Heaters 21Seats-Head restraints 11Steering lock release10Steering wheel switches19Sunshade-Rear114Te l e p h o n e controls (Bluetooth®)15Tilt and telescopic steering wheel 11Windows-Power 14
Windshield wipers & washers112
Doors-Child safety locks 23Seat belt comfort guide24Seat belts23Seat belts-Shoulder belt anchor23Spare tire & tools25Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
09_Avalon_i.qxd 7/22/08 3:28 PM Page 1

Steering wheel controls
2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1
Steering wheel climate controls
Voice command button1,2
Distance button1
Driving position memory switches1
Headlight, turn signal and front fog light1 controls
Engine (ignition) switch (standard key)1
Wiper and washer controls
“ENGINE START STOP” button (Smart Key)1
Clock
Center display1/Navigation system1,2
Emergency flasher button
“AIR BAG ON” and “AIR BAG OFF” indicator and front passenger\
seat
belt reminder lights
Air Conditioning controls
09_Avalon_i.qxd 7/22/08 3:28 PM Page 2

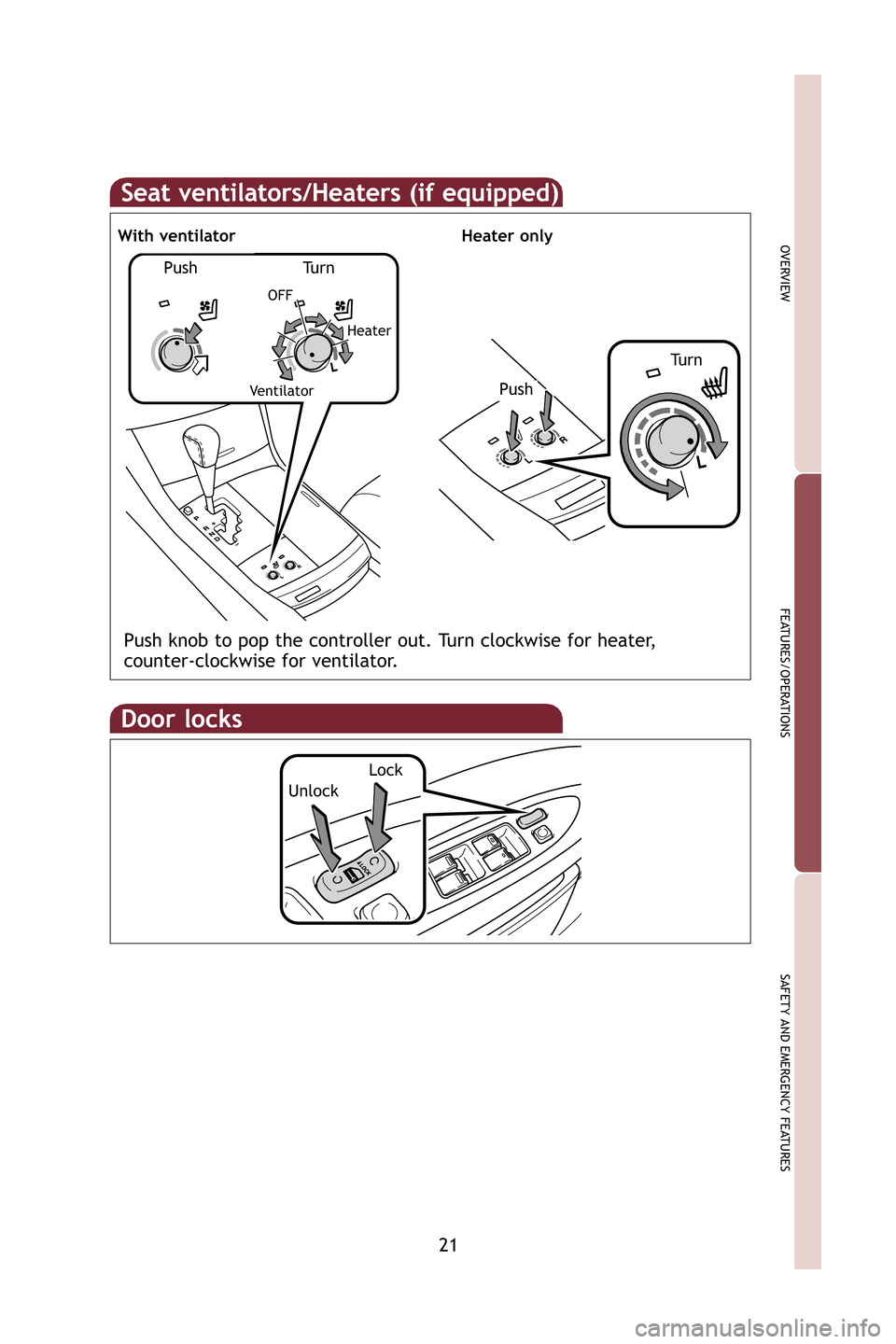

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Door locks
Lock
Unlock
Seat ventilators/Heaters (if equipped)
Push knob to pop the controller out. Turn clockwise for heater,
counter-clockwise for ventilator.
PushTurn
With ventilatorHeater only
Push
Tu r n
Heater
OFF
Ventilator
09_Avalon_i.qxd 7/22/08 3:29 PM Page 21

22
FEATURES/OPERATIONS
Cup holders
Rear (type B)
FrontRear (type A)
Power outlets
Auxiliary box
Console box
The “ENGINE START STOP” switch/engine switch must be in the “ACC” or
“ON” position to be used.
Clock
H-Hour set
M-Minute set
:00-Round off minutes
Without navigation system
With navigation system Refer to the “Navigation System Owner’s Manual.”
412714M2_r1.qxd 7/23/08 5:12 PM Page 22
