display TOYOTA AVALON 2009 XX30 / 3.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel8Smart Key system27
Trunk release 8
Air Conditioning/Heating20Audio 18Auto lock functions210Automatic Transmission10Center display19Clock 22Cruise control16Cup holders22Door locks 21Dynamic Laser Cruise Control17Garage door opener (HomeLink®)316Lights1& turn signals13Moonroof 14Parking brake11Power outlets 22Seat adjustments-Front12Seat adjustments-Rear12Seat ventilators/Heaters 21Seats-Head restraints 11Steering lock release10Steering wheel switches19Sunshade-Rear114Te l e p h o n e controls (Bluetooth®)15Tilt and telescopic steering wheel 11Windows-Power 14
Windshield wipers & washers112
Doors-Child safety locks 23Seat belt comfort guide24Seat belts23Seat belts-Shoulder belt anchor23Spare tire & tools25Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
09_Avalon_i.qxd 7/22/08 3:28 PM Page 1

Steering wheel controls
2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1
Steering wheel climate controls
Voice command button1,2
Distance button1
Driving position memory switches1
Headlight, turn signal and front fog light1 controls
Engine (ignition) switch (standard key)1
Wiper and washer controls
“ENGINE START STOP” button (Smart Key)1
Clock
Center display1/Navigation system1,2
Emergency flasher button
“AIR BAG ON” and “AIR BAG OFF” indicator and front passenger\
seat
belt reminder lights
Air Conditioning controls
09_Avalon_i.qxd 7/22/08 3:28 PM Page 2

4
OVERVIEW
Indicator symbols
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset button
Odometer and two trip meters
Automatic Transmission shift range display
Automatic Transmission shift position indicator
Dynamic laser cruise control display
Charging system warning1,2
Brake system warning1,2
SRS airbag on-off indicator1
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Driver seat belt reminder2
(alarm will sound if speed is over 9 mph)
Front passenger seat belt reminder2
(alarm will sound if speed is over 9 mph)
Low engine oil pressure warning1,2
Malfunction/Check Engine indicator1,2
09_Avalon_i.qxd 7/22/08 3:28 PM Page 4

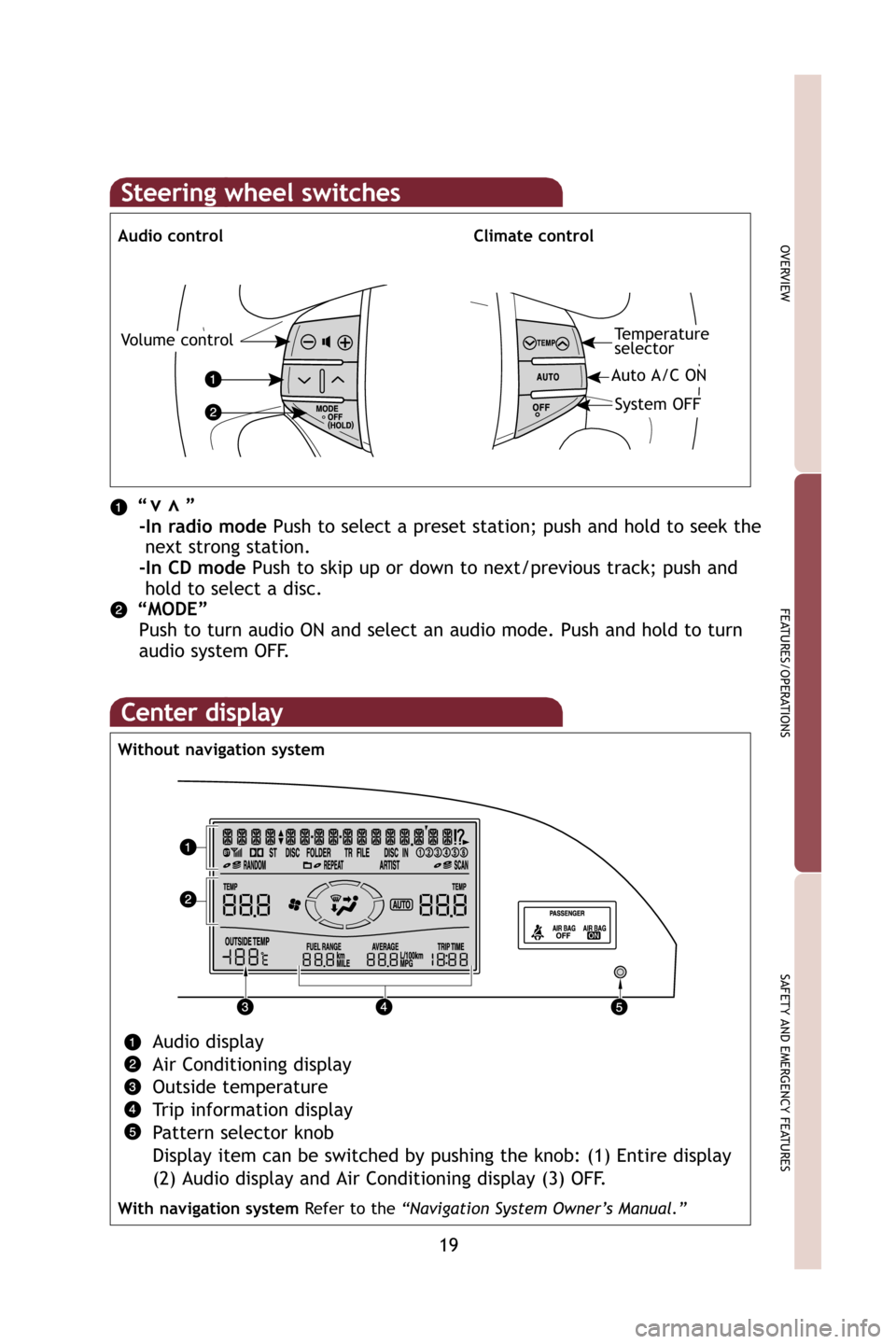

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Center display
Without navigation system
Audio display
Air Conditioning display
Outside temperature
Trip information display
Pattern selector knob
Display item can be switched by pushing the knob: (1) Entire display
(2) Audio display and Air Conditioning display (3) OFF.
With navigation systemRefer to the “Navigation System Owner’s Manual.”
Steering wheel switches
Audio controlClimate control
vv
Volume controlTemperature
selector
Auto A/C ON
System OFF
“ ”
-In radio mode Push to select a preset station; push and hold to seek the
next strong station.
-In CD mode Push to skip up or down to next/previous track; push and
hold to select a disc.
“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
09_Avalon_i.qxd 7/22/08 3:29 PM Page 19

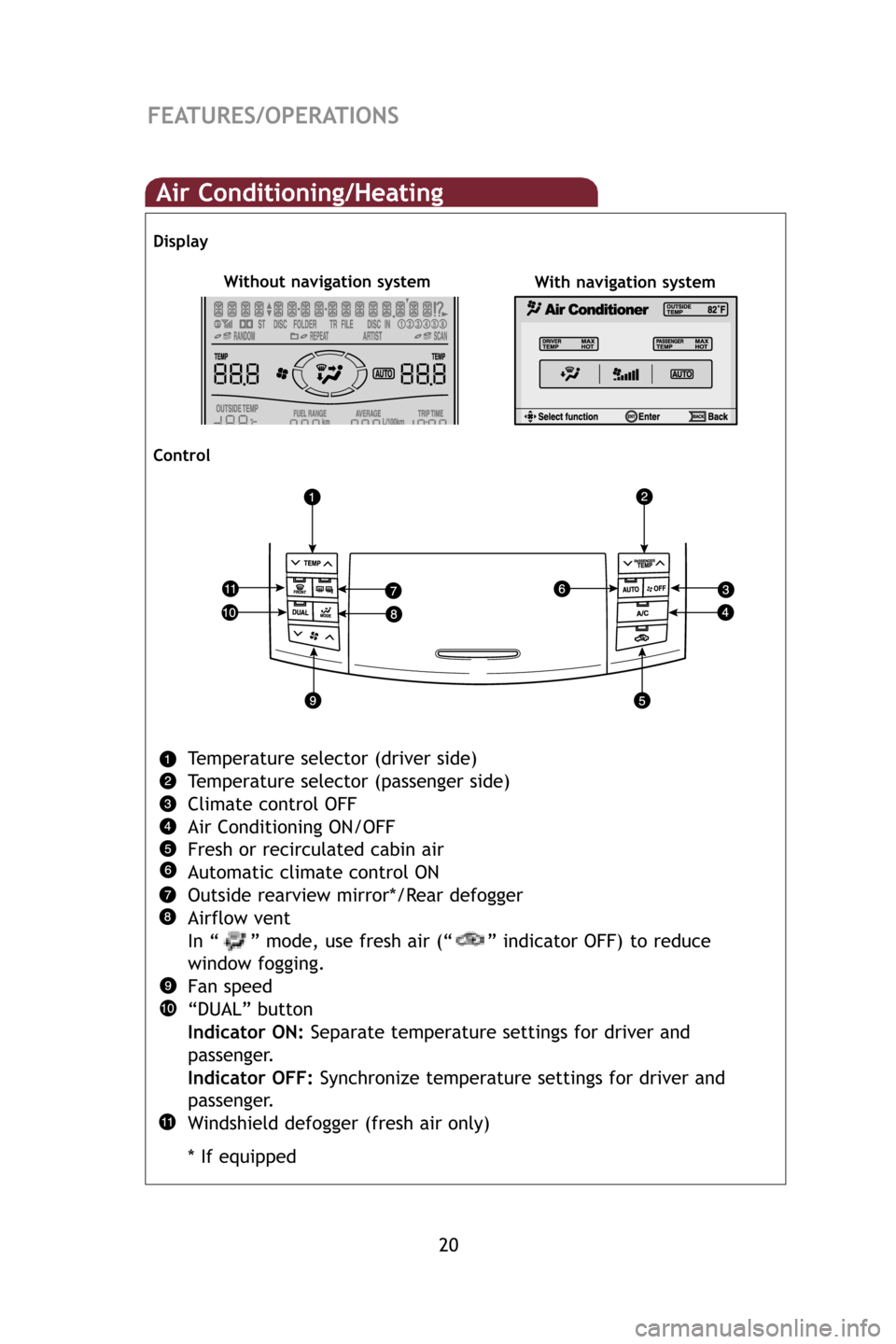

20
FEATURES/OPERATIONS
Air Conditioning/Heating
Temperature selector (driver side)
Temperature selector (passenger side)
Climate control OFF
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Automatic climate control ON
Outside rearview mirror*/Rear defogger
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging.
Fan speed
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF: Synchronize temperature settings for driver and
passenger.
Windshield defogger (fresh air only)
* If equipped
Display
Control
Without navigation systemWith navigation system
09_Avalon_i.qxd 7/22/08 3:29 PM Page 20
