light TOYOTA AVALON 2009 XX30 / 3.G Quick Reference Guide

2009
Avalon
!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Avalon.
This Quick Reference Guide is not a full description of Avalon
operations. Every Avalon owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
412714M1.qxd 7/22/08 3:33 PM Page 2

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel8Smart Key system27
Trunk release 8
Air Conditioning/Heating20Audio 18Auto lock functions210Automatic Transmission10Center display19Clock 22Cruise control16Cup holders22Door locks 21Dynamic Laser Cruise Control17Garage door opener (HomeLink®)316Lights1& turn signals13Moonroof 14Parking brake11Power outlets 22Seat adjustments-Front12Seat adjustments-Rear12Seat ventilators/Heaters 21Seats-Head restraints 11Steering lock release10Steering wheel switches19Sunshade-Rear114Te l e p h o n e controls (Bluetooth®)15Tilt and telescopic steering wheel 11Windows-Power 14
Windshield wipers & washers112
Doors-Child safety locks 23Seat belt comfort guide24Seat belts23Seat belts-Shoulder belt anchor23Spare tire & tools25Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
09_Avalon_i.qxd 7/22/08 3:28 PM Page 1

Steering wheel controls
2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1
Steering wheel climate controls
Voice command button1,2
Distance button1
Driving position memory switches1
Headlight, turn signal and front fog light1 controls
Engine (ignition) switch (standard key)1
Wiper and washer controls
“ENGINE START STOP” button (Smart Key)1
Clock
Center display1/Navigation system1,2
Emergency flasher button
“AIR BAG ON” and “AIR BAG OFF” indicator and front passenger\
seat
belt reminder lights
Air Conditioning controls
09_Avalon_i.qxd 7/22/08 3:28 PM Page 2

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009 Owner’s Manual.3If this light flashes, refer to “Cruise control,” Section 2-4, 200\
9 Owner’s Manual.
Anti-lock Brake System warning1,2
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Vehicle Stability Control system warning1,2
Cruise control indicator3
Tire Pressure Warning1,2
Security indicator
Open door warning2
Airbag SRS warning1,2
Low windshield washer fluid level warning1,2
Engine oil replacement reminder1,2
Low fuel level warning2
Automatic headlight leveling system warning1,2
Dynamic Laser Cruise Control master warning light1,2
Ready mode indicator1
Conventional cruise
Smart Key system warning
1,2
09_Avalon_i.qxd 7/22/08 3:29 PM Page 5

8
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Push Tu r n
Store
Light control-Instrument panel
Brightness
control
-
+
Trunk release
ON
Push
Trunk opener Main switch
OFF
OVERVIEW
09_Avalon_i.qxd 7/22/08 3:29 PM Page 8

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL)
Automatically turns
on the headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Lane change
Lane change Left turn
High beam
Auto
DRL OFF
Tu r n
09_Avalon_i.qxd 7/22/08 3:29 PM Page 13

14
FEATURES/OPERATIONS
Windows-Power
Window lock switch
Automatic operation (front windows only) Push the switch completely
down or pull it completely up and release to fully open or close. To stop
window midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
NOTE: If battery is disconnected, the window needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Up
Down
Driver side
Moonroof (if equipped)
Sliding operationTilting operation
Open
TiltClose
Close
Recommended driving
position to minimize
wind noise.
NOTE:If battery is disconnected, the moonroof needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Sunshade-Rear (if equipped)
Push When shifting to
reverse, sunshade
retracts automatically,
and then rises again
when driving forward.
Push once to open
partway; again to
open completely.
09_Avalon_i.qxd 7/22/08 3:29 PM Page 14

16
FEATURES/OPERATIONS
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, \
etc.
Refer to “Garage door opener,” Section 3-6 in the Owner’s Manualfor
more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
* HomeLink ®
is a registered trademark of Johnson Controls, Inc.
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
09_Avalon_i.qxd 7/22/08 3:29 PM Page 16

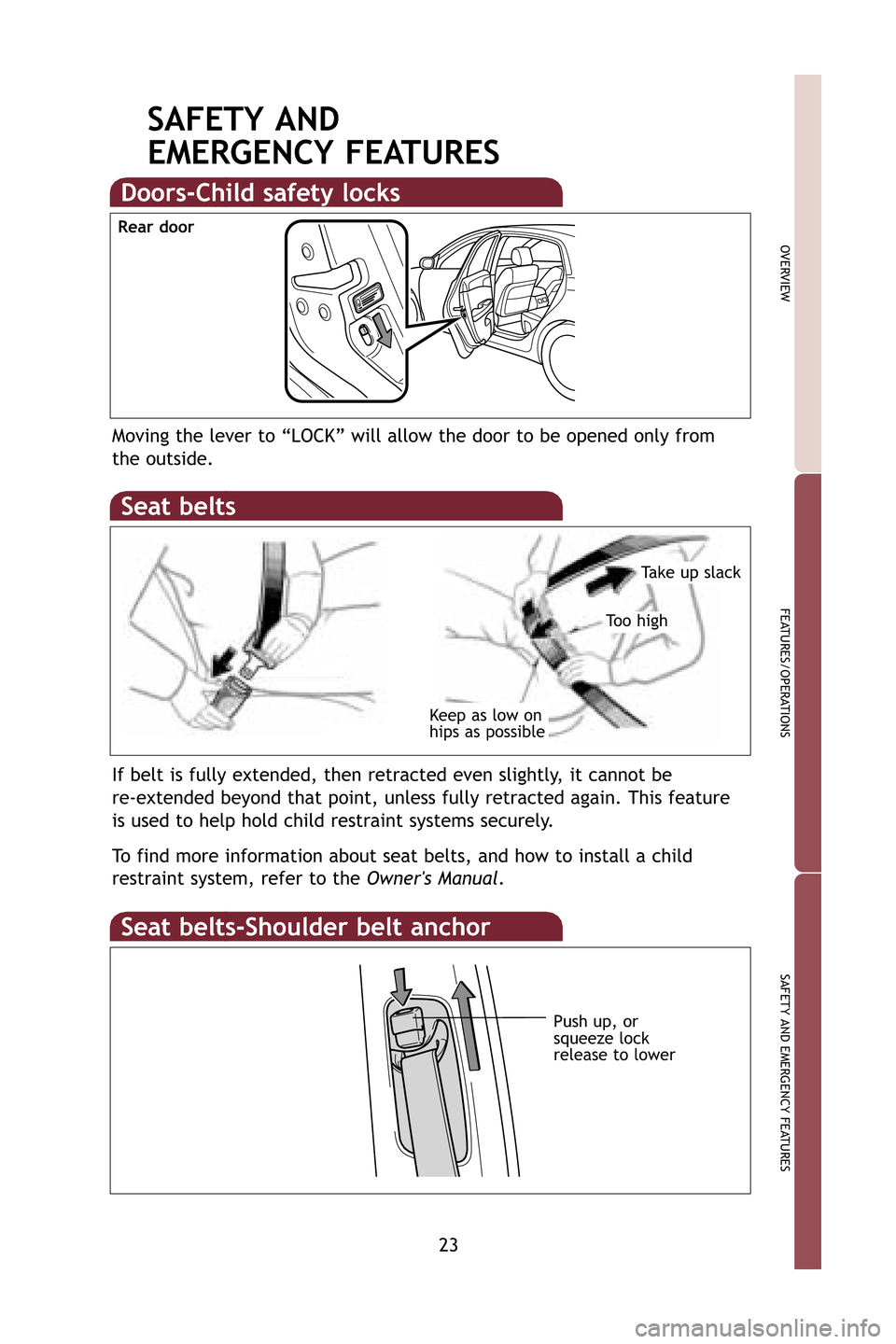

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
SAFETY AND
EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only f\
rom
the outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or
squeeze lock
release to lower
Seat belts-Shoulder belt anchor
09_Avalon_i.qxd 7/22/08 3:29 PM Page 23

24
SAFETY AND EMERGENCY FEATURES
System reset initiali zation
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Seat belt comfort guide
Rear seat outside position guides provide added comfort for children who
have outgrown child restraints.
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner
’s Manual for tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local To y o t a dealer.
Note :The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently

, setting the tire pressures to factory
specifications should turn off the light.
Tire Pressure Monitoring (warning)
System
412714M2_r1.qxd 7/23/08 5:13 PM Page 24
