TOYOTA AVALON 2010 XX30 / 3.G Owners Manual

251
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U (OM41437U)
First menuSecond
menuThird menuOperation detail
Setup Security
Set PIN Setting a PIN code
Phonebook Lock Locking the phone book
Phonebook
Unlock
Unlocking the phone book
Phone
Setup Pair Phone
Registering a cellular phone
to be used
Change Name Changing a registered name
of a cellular phone
Delete Deleting a registered cellular
phone
List phones Listing the registered cellular
phones
Select phone Selecting a cellular phone to
be used
Set Passkey Changing the passkey
System
Setup Guidance
Vo l u m e
(Guidance Vol)
Setting voice guidance
volume
Initialize Initialization

252 3-3. Using the hands-free system (for cellular phone)
AVALON_U (OM41437U)■
Using a short cut key
First menuSecond
menuOperation detail
Dial “XXX (name)”
Dialing a number registered
in the phone book
Phone book add
entry
Adding a new number
Phone book change
name
Changing a name of a phone
number in the phone book
Phone book delete
entry
Deleting phone book data
Phone book set
speed dial
Registering speed dial
Phone book delete
speed dial
Deleting speed dial
Phonebook Phonebook Unlock Unlocking the phone book
Phonebook Lock Locking the phone book

253
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U (OM41437U)
■Automatic adjustment of volume
When vehicle speed is 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
■ When using a voice command
● For numbers, say a combination of single digits from zero to nine, #
(pound),  (star), and + (plus).
● Say a command correctly and clearly.
■ The system may not recognize your voice in the following situations:
● When driving on unsealed roads
● When driving at high speeds
● If the window is open
● If the air conditioning is blowing directly on the microphone
● If the air conditioning is set too high
■ The following cannot be performed while driving:
● Operating the system with
● Registering a cellular phone to the system
■ Changing the passkey
 P. 263

254
3-3. Using the hands-free system (for cellular phone)
AVALON_U (OM41437U)

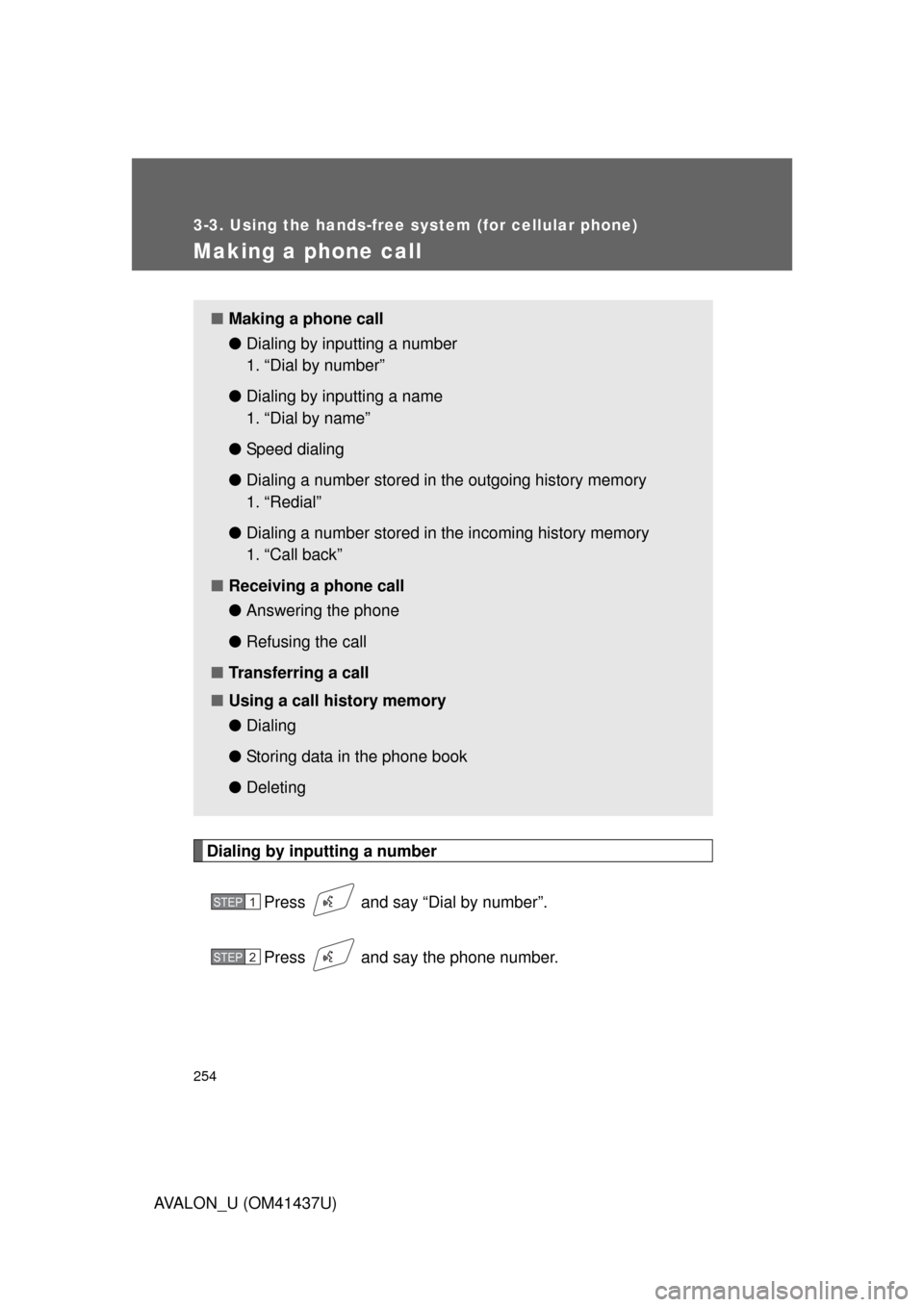

Making a phone call
Dialing by inputting a numberPress and say “Dial by number”.
Press and say the phone number.
■Making a phone call
●Dialing by inputting a number
1. “Dial by number”
● Dialing by inputting a name
1. “Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory
1. “Redial”
● Dialing a number stored in the incoming history memory
1. “Call back”
■ Receiving a phone call
●Answering the phone
● Refusing the call
■ Transferring a call
■ Using a call history memory
●Dialing
● Storing data in the phone book
● Deleting
STEP1
STEP2

255
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U (OM41437U)Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” by using .
Dialing by inputting a name
Press and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press and say a registered name.
b. Press and say “List names”. Press while thedesired name is being read aloud.
Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” by using .
STEP3
STEP1
STEP2
STEP3

256 3-3. Using the hands-free system (for cellular phone)
AVALON_U (OM41437U)
Speed dialingPress .
Press the preset button in which the desired number is regis-
tered.
Press .
When receiving a phone call■ Answering the phone
Press .
■ Refusing the call
Press .
STEP1
STEP2
STEP3

257
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U (OM41437U)
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press *1.
c. Press and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from the cellular phone to the system during a call.
*2: While the vehicle is in motion, a call cannot be transferred fromthe system to the cellular phone.
Using a call history memory
Follow the procedure below to use number stored in call history
memory:
Press and say “Redial” (when using a number stored in
the outgoing history memory) or “Callback” (when using a
number stored in the incoming history memory).
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number isdisplayed.
b. Select the desired number by using .
STEP1
STEP2

258 3-3. Using the hands-free system (for cellular phone)
AVALON_U (OM41437U)The following operations can be performed:
Dialing: Press or select “Dial” by using a voice command
or .
Storing the number in the phone book: Select “Store” by using a
voice command or .
Deleting: Select “Delete” by using a voice command or .
■Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history
memories.
■ When talking on the phone
● Do not talk simultaneously with the other party.
● Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.

259
3-3. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U (OM41437U)

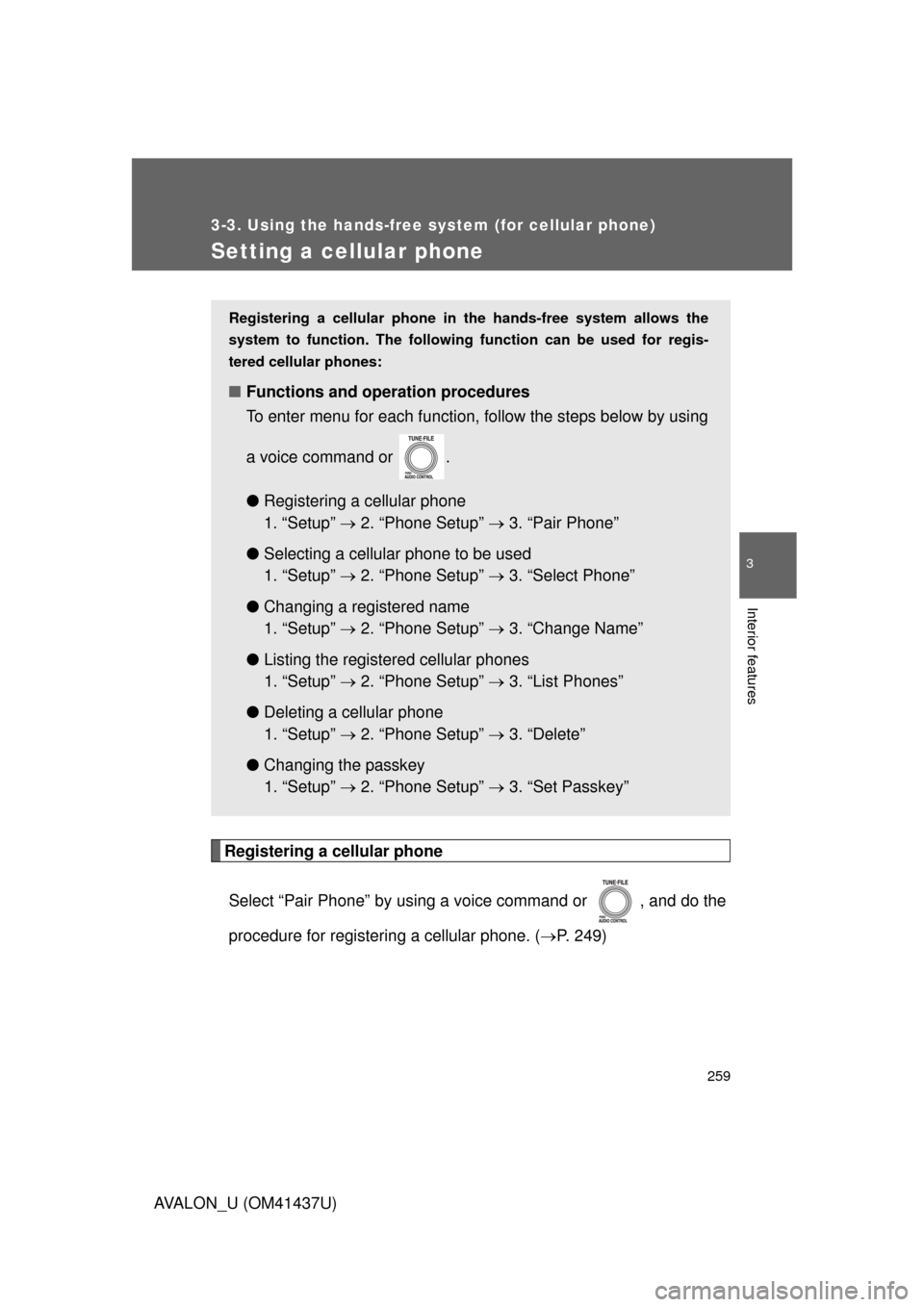

Setting a cellular phone
Registering a cellular phoneSelect “Pair Phone” by using a voice command or , and do the
procedure for registering a cellular phone. ( P. 249)
Registering a cellular phone in the hands-free system allows the
system to function. The following function can be used for regis-
tered cellular phones:
■ Functions and operation procedures
To enter menu for each function, follow the steps below by using
a voice command or .
●Registering a cellular phone
1. “Setup”  2. “Phone Setup”  3. “Pair Phone”
● Selecting a cellular phone to be used
1. “Setup”  2. “Phone Setup”  3. “Select Phone”
● Changing a registered name
1. “Setup”  2. “Phone Setup”  3. “Change Name”
● Listing the registered cellular phones
1. “Setup”  2. “Phone Setup”  3. “List Phones”
● Deleting a cellular phone
1. “Setup”  2. “Phone Setup”  3. “Delete”
● Changing the passkey
1. “Setup”  2. “Phone Setup”  3. “Set Passkey”

260 3-3. Using the hands-free system (for cellular phone)
AVALON_U (OM41437U)
Selecting a cellular phone to be used
Select “Select Phone” by using a voice command or .
Pattern A Select a cellular phone to be used by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press and say the desired phone name.
b. Press and say “List pho nes”. While the name of the
desired cellular phone is being read aloud, press .
Pattern B
Select a cellular phone to be used by using .
STEP1
STEP2
STEP2
