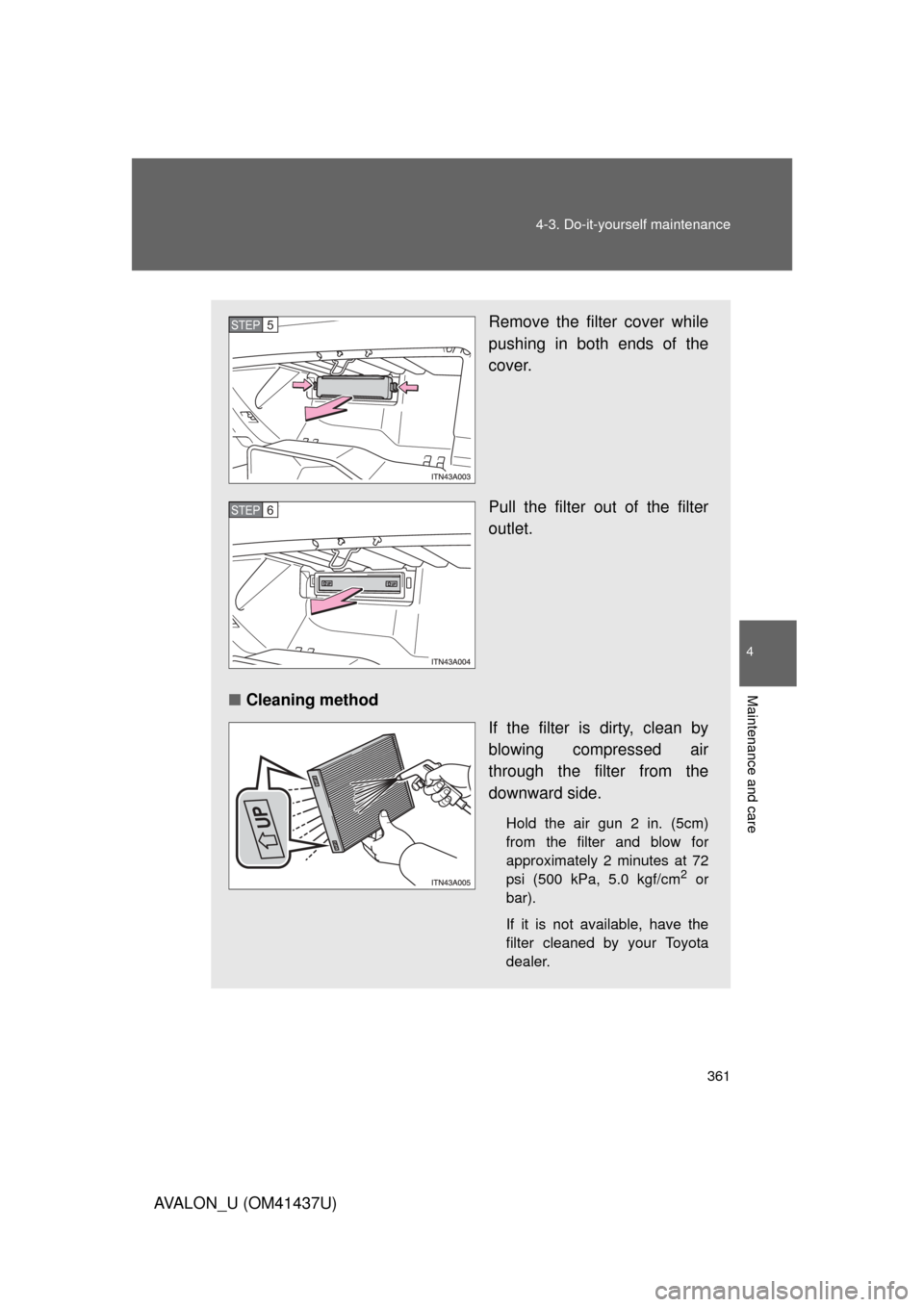

TOYOTA AVALON 2010 XX30 / 3.G Owners Manual

4
Maintenance and care
361
4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
Remove the filter cover while
pushing in both ends of the
cover.
Pull the filter out of the filter
outlet.
■ Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
downward side.
Hold the air gun 2 in. (5cm)
from the filter and blow for
approximately 2 minutes at 72
psi (500 kPa, 5.0 kgf/cm
2 or
bar).
If it is not available, have the
filter cleaned by your Toyota
dealer.
STEP5
STEP6

362 4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■To prevent damage to the system
● When using the air conditioning system, make sure that a filter is always
installed.
● When cleaning the filter, do not clean the with water.
■ Replacement method
Remove the air conditioning
filter from the filter case and
replace it with a new one.
The “UP” marks shown on
the filter and the filter case
should be pointing up.

363
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVALON_U (OM41437U)
Key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with rag.)
● Small Phillips-hea d screwdriver
● Lithium battery CR1632 (vehicles with smart key system),
CR2016 (vehicles withou t smart key system)
■ Replacing the battery (vehicles with smart key system)
Take out the mechanical key.
Remove the cover.
STEP1
STEP2

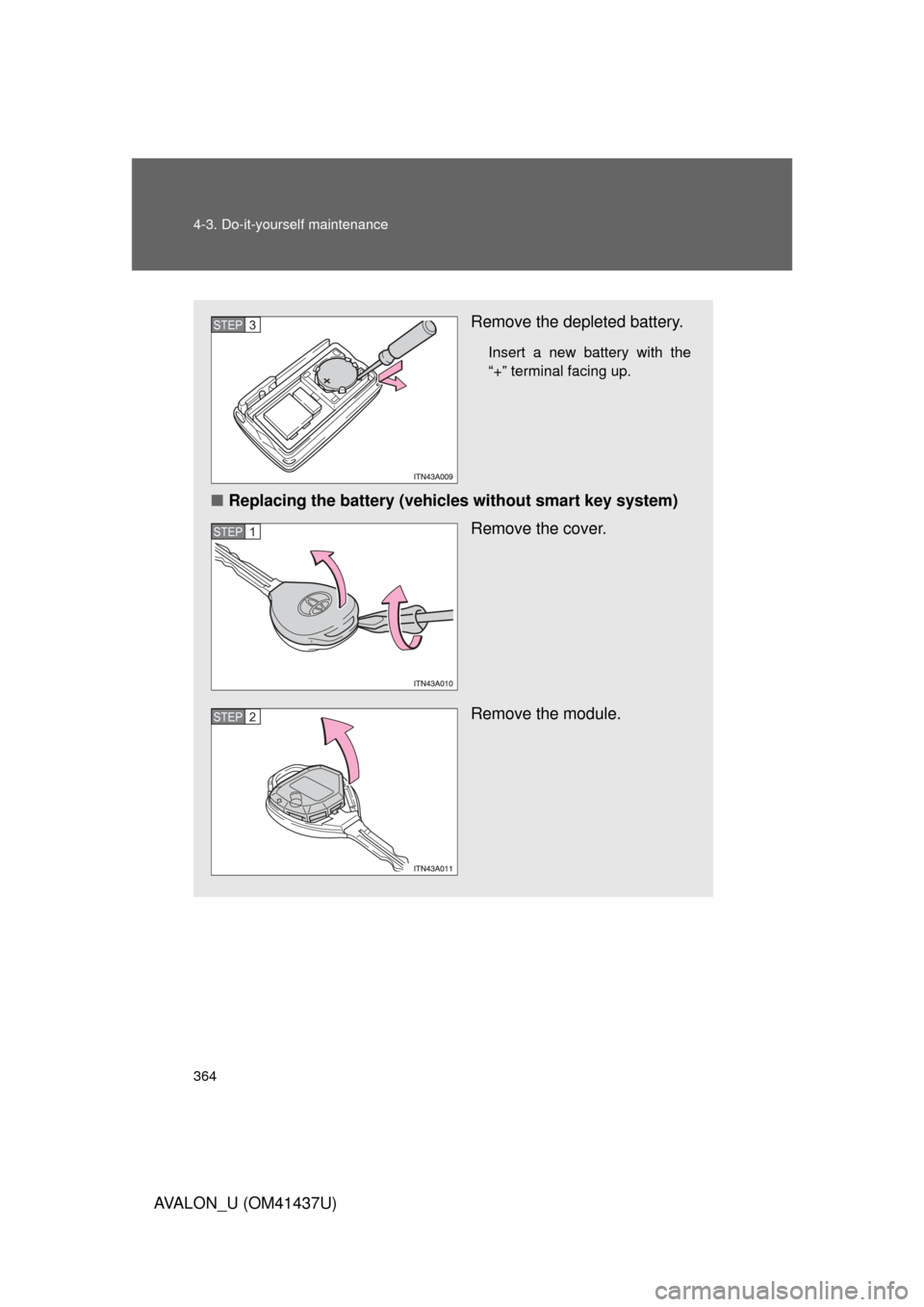

364 4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
■Replacing the battery (vehicles without smart key system)
Remove the cover.
Remove the module.
STEP3
STEP1
STEP2

4
Maintenance and care
365
4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
■
If the key battery is discharged
The following symptoms may occur.
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR1632 (vehicles with smar t key system), or CR2016 (vehicles
without smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by a Toy-
ota dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery.
Insert a new battery with the
“+” terminal facing up.
STEP3

366 4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend the battery terminals.

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVALON_U (OM41437U)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch or the engine
switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 369) for details about which fuse to check.STEP1
STEP2
STEP3

368 4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5

4
Maintenance and care
369
4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1 RR DEF 50 A Rear window defogger, outside
rear view mirror defogger
2 ABS/VSC No.2 30 A Anti-lock brake system, vehicle
stability control system
3 RDI FAN 50 A Electric cooling fan
4 ABS/VSC No.1 50 A Anti-lock brake system, vehicle
stability control system
5 HEATER 50 A Air conditioning system
6 ST/AM2 30 A Starter system
7 MAIN 40 A Headlights

370 4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
FuseAmpereCircuit
8ALT 140 A
(Limited
grade)120 A
(XL, XLS grade) Charging system, RR DEF, ABS/
VSC No.2, HEATER, ABS/VSC
No.1, RDI FAN, WASHER,
S-HORN
9 STOP No.3 7.5 A Electronic controlled transmission
system, multiport fuel injection
system/sequential multiport fuel
injection system
10 INJ 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
11 AM2 7.5 A Starter system
12 DOOR No.1 25 A Multiplex communication system
13 ALT-S 7.5 A Charging system
14 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
15 IG2 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, electronic controlled
transmission system
16 TURN/HAZ 15 A Turn signal lights
17 AMP 30 A Audio system
18 EFI No.3 7.5 A Smart key system, electronic con-
trolled transmission system
