AVALON_U (OM41437U)
2-3. Operating the lights and windshield wipers
Headlight switch .................. 156
Fog light switch ................... 159
Windshield wipers and washer .............................. 160
2-4. Using other driving systems Cruise control ...................... 165
Dynamic laser cruise control ............................... 168
Driving assist systems ........ 181
2-5. Driving information Cargo and luggage ............. 184
Vehicle load limits ............... 188
Winter driving tips ............... 189
Trailer towing ...................... 194
Dinghy towing ..................... 195
3-1. Using the air conditioning system and defogger
Automatic air conditioning system .............................. 198
Using the steering wheel climate control
switches ............................ 206
Rear window and outside rear view mirror
defoggers .......................... 208 3-2. Using the audio system
Audio system type .............. 210
Audio cover ........................ 212
Using the radio ................... 213
Using the CD player ........... 220
Playing MP3 and WMA discs ....................... 228
Optimal use of the audio system .............................. 236
Using the AUX adapter....... 238
Using the steering wheel audio switches.................. 239
3-3. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone) ........... 242
Using the hands-free system .............................. 246
Making a phone call ........... 254
Setting a cellular phone ...... 259
Security and system setup ................................ 264
Using the phone book ........ 267
3-4. Using the interior lights Interior lights list ................. 275
3-5. Using the storage features List of storage features ....... 278
3Interior features

12
AVALON_U (OM41437U)
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 156
P. 145
P. 159
Gauges and meters P. 148
Windshield wipers and
washer switch
P. 160
Trunk opener main switch P. 46
Glove box P. 279
Telescopic lock release
lever
P. 68
Parking brake pedal
P. 146
Tilt lock release lever
P. 68
Driving position
memory switches

P. 55
Tire pressure warning reset switch
(hidden under panel)
P. 346
Horn P. 147

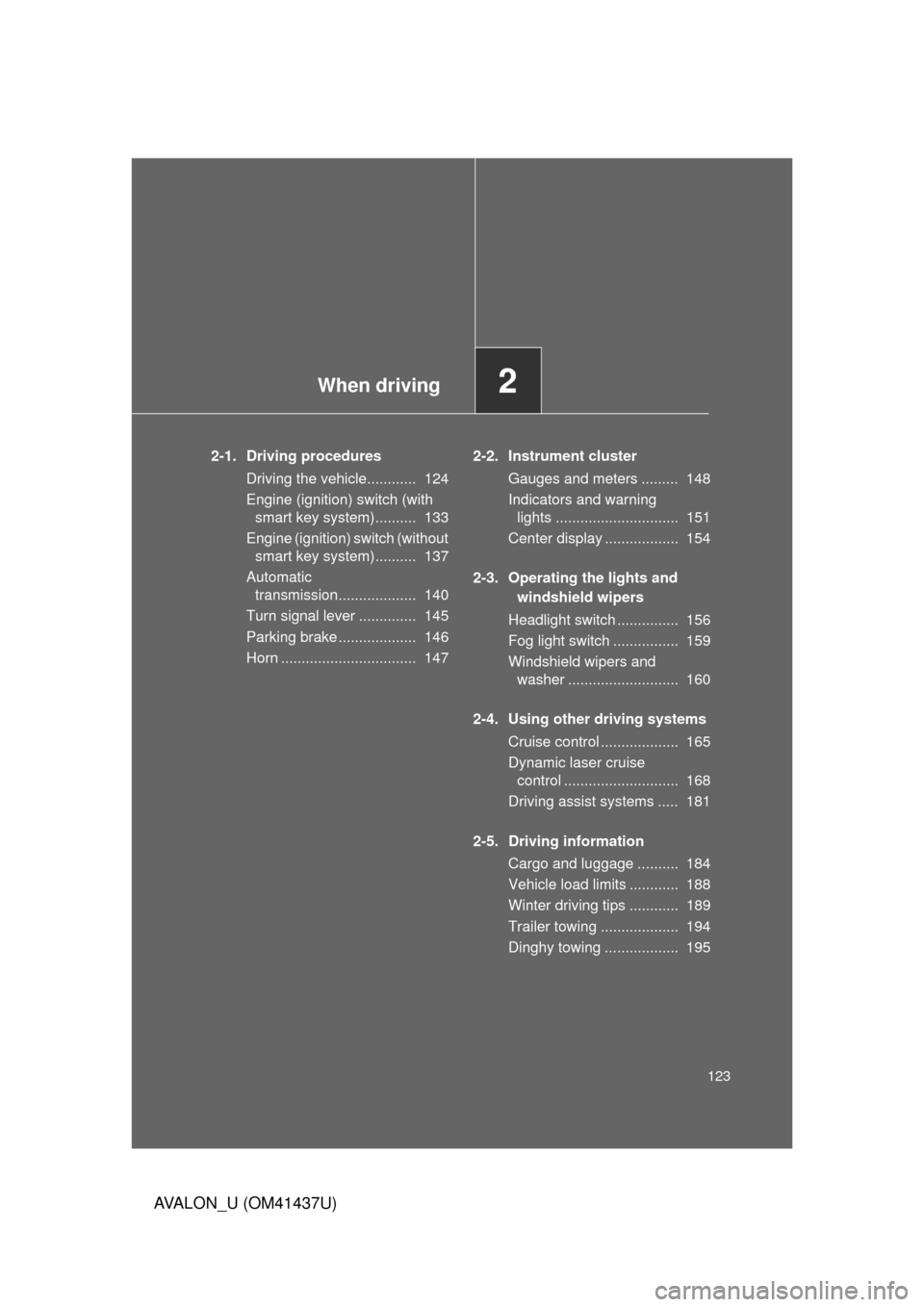

When driving2
123
AVALON_U (OM41437U)
2-1. Driving proceduresDriving the vehicle............ 124
Engine (ignition) switch (with smart key system).......... 133
Engine (ignition) switch (without smart key system).......... 137
Automatic transmission................... 140
Turn signal lever .............. 145
Parking brake ................... 146
Horn ................................. 147 2-2. Instrument cluster
Gauges and meters ......... 148
Indicators and warning lights .............................. 151
Center display .................. 154
2-3. Operating the lights and windshield wipers
Headlight switch ............... 156
Fog light switch ................ 159
Windshield wipers and washer ........................... 160
2-4. Using other driving systems Cruise control ................... 165
Dynamic laser cruise control ............................ 168
Driving assist systems ..... 181
2-5. Driving information Cargo and luggage .......... 184
Vehicle load limits ............ 188
Winter driving tips ............ 189
Trailer towing ................... 194
Dinghy towing .................. 195

156
AVALON_U (OM41437U)
2-3. Operating the lights and windshield wipers

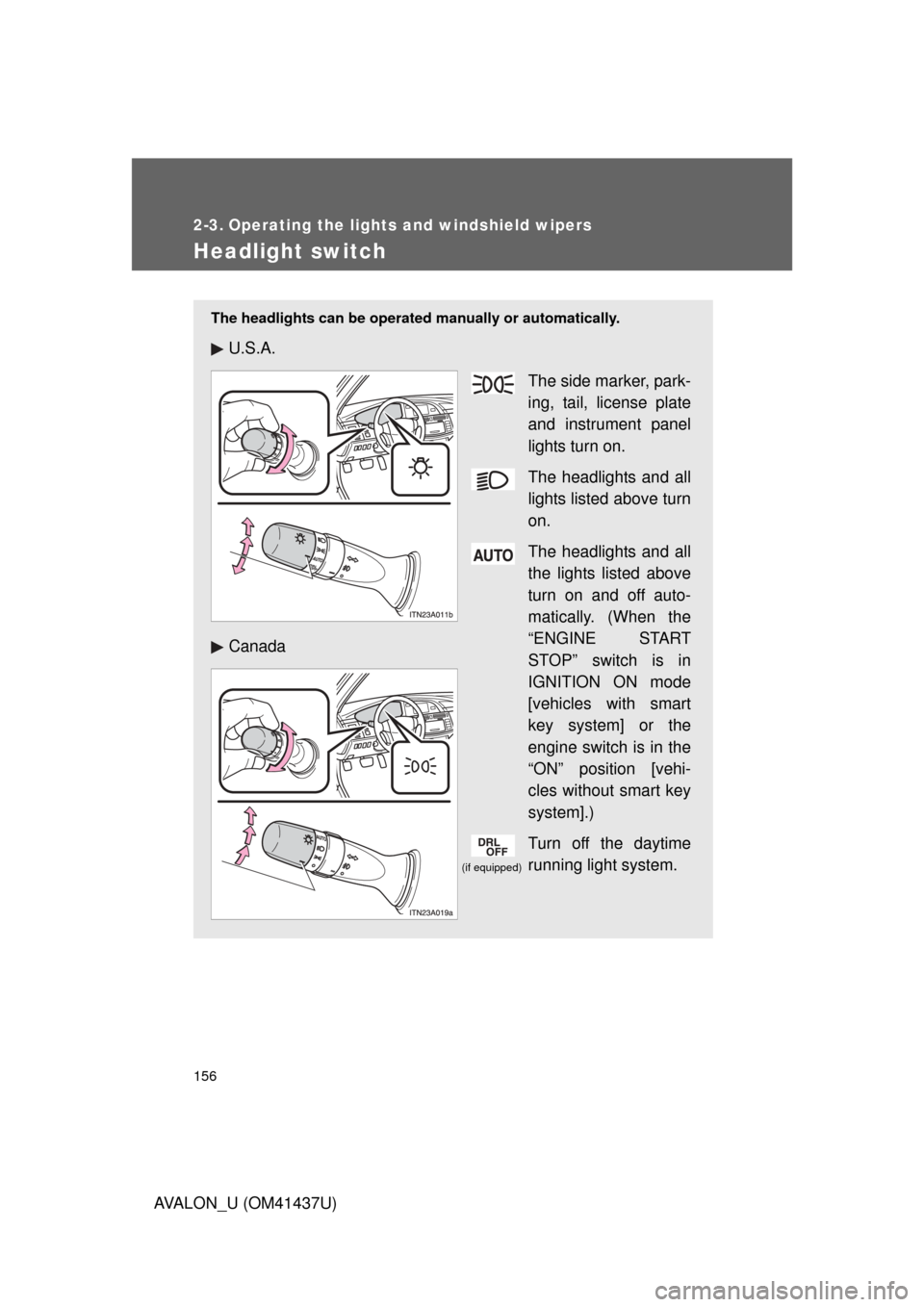

Headlight switch
The headlights can be operated manually or automatically.
U.S.A.
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
the lights listed above
turn on and off auto-
matically. (When the
“ENGINE START
STOP” switch is in
IGNITION ON mode
[vehicles with smart
key system] or the
engine switch is in the
“ON” position [vehi-
cles without smart key
system].)
Turn off the daytime
running light system.
Canada
(if equipped)

157
2-3. Operating the lights and windshield wipers
2
When driving
AVALON_U (OM41437U)
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release to turn them off. You can
flash the high beams with the
headlights on or off.
■Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
■ Headlight control sensor
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight con-
trol system to malfunction.

158 2-3. Operating the lights and windshield wipers
AVALON_U (OM41437U)
■Automatic light off system
Vehicles with smart key system
The headlights and tail lights turn off 30 seconds after a door is opened or
closed if the “ENGINE START STOP” switch has been turned to ACCES-
SORY or turned OFF while the headlights are turned on. (The lights turn off
immediately if the button on the key is pressed after all doors are
locked.)
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch OFF once and then back to the or position.
Vehicles without smart key system
The headlights and tail lights turn off 30 seconds after a door is opened or
closed if the engine switch has been turned to the “ACC” or “LOCK” position
while the headlights are turned on. (The lights turn off immediately if the
button on the key is pressed after all doors are locked.)
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch OFF once and then back to the or position.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 454)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary if the engine is not running.

159
2-3. Operating the lights and windshield wipers
2
When driving
AVALON_U (OM41437U)

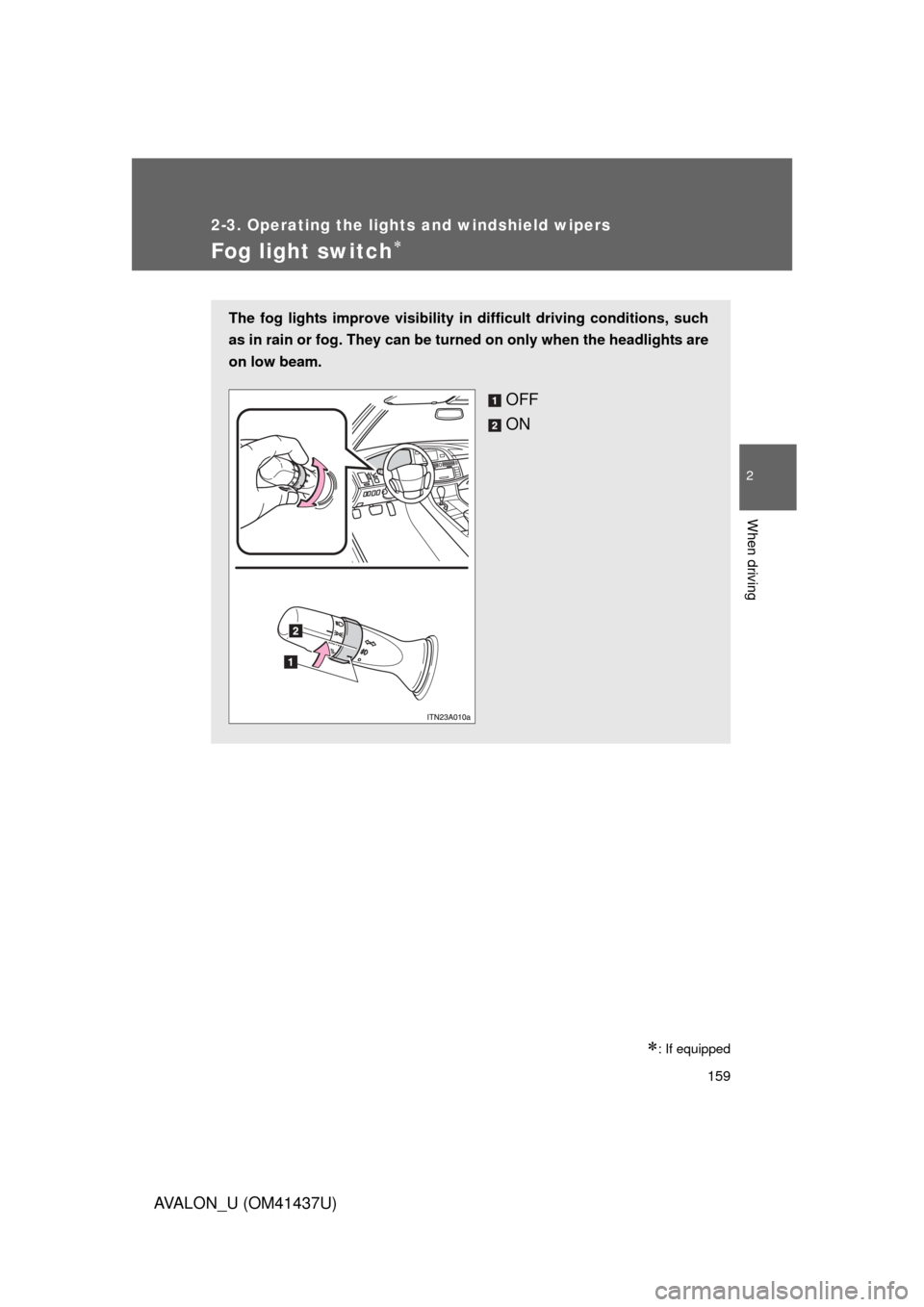

Fog light switch
: If equipped
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. They can be turned on only when the headlights are
on low beam.
OFF
ON

160
2-3. Operating the lights and windshield wipers
AVALON_U (OM41437U)

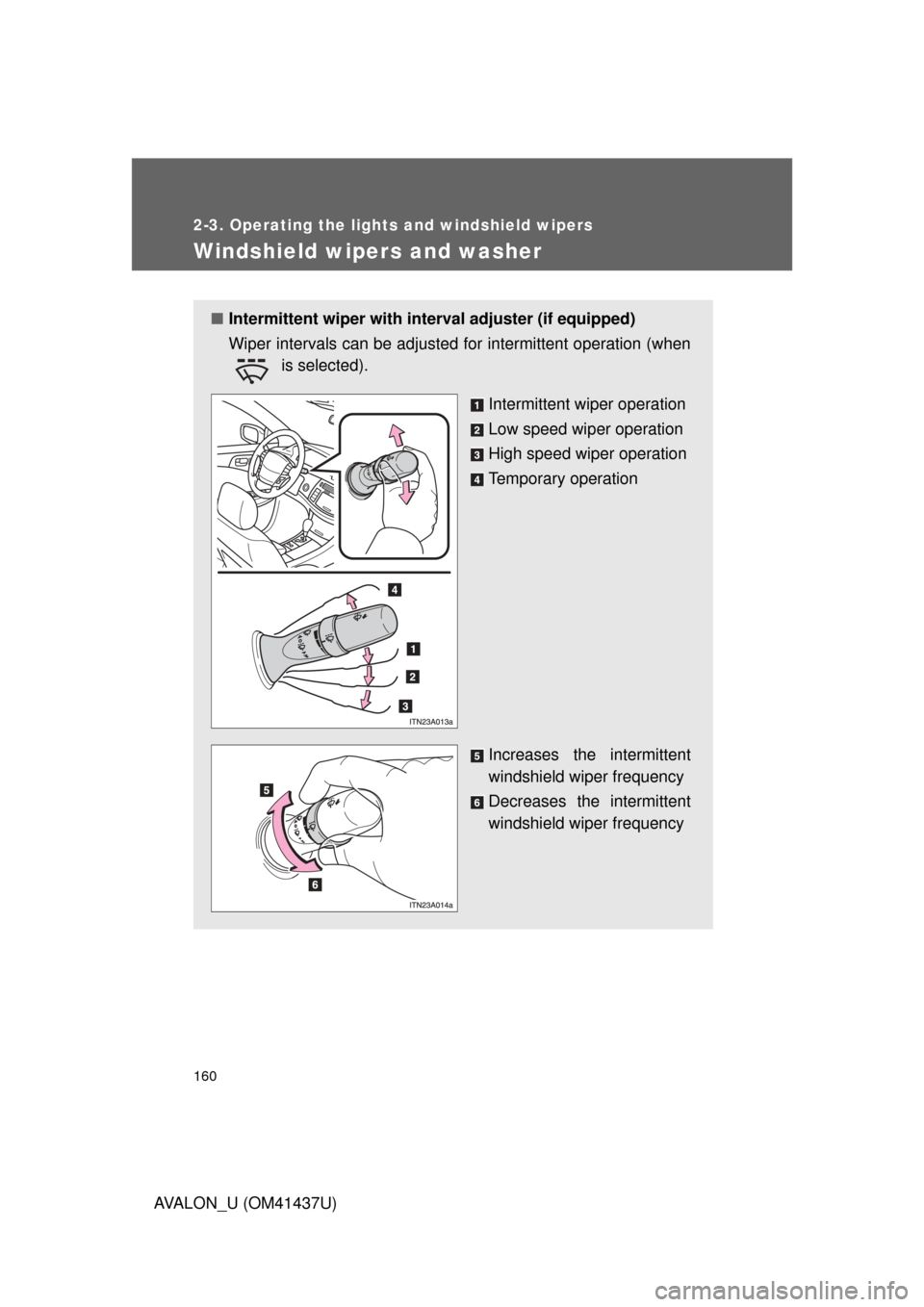

Windshield wipers and washer
■Intermittent wiper with inte rval adjuster (if equipped)
Wiper intervals can be adjusted for intermittent operation (when is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

161
2-3. Operating the lights and windshield wipers
2
When driving
AVALON_U (OM41437U)

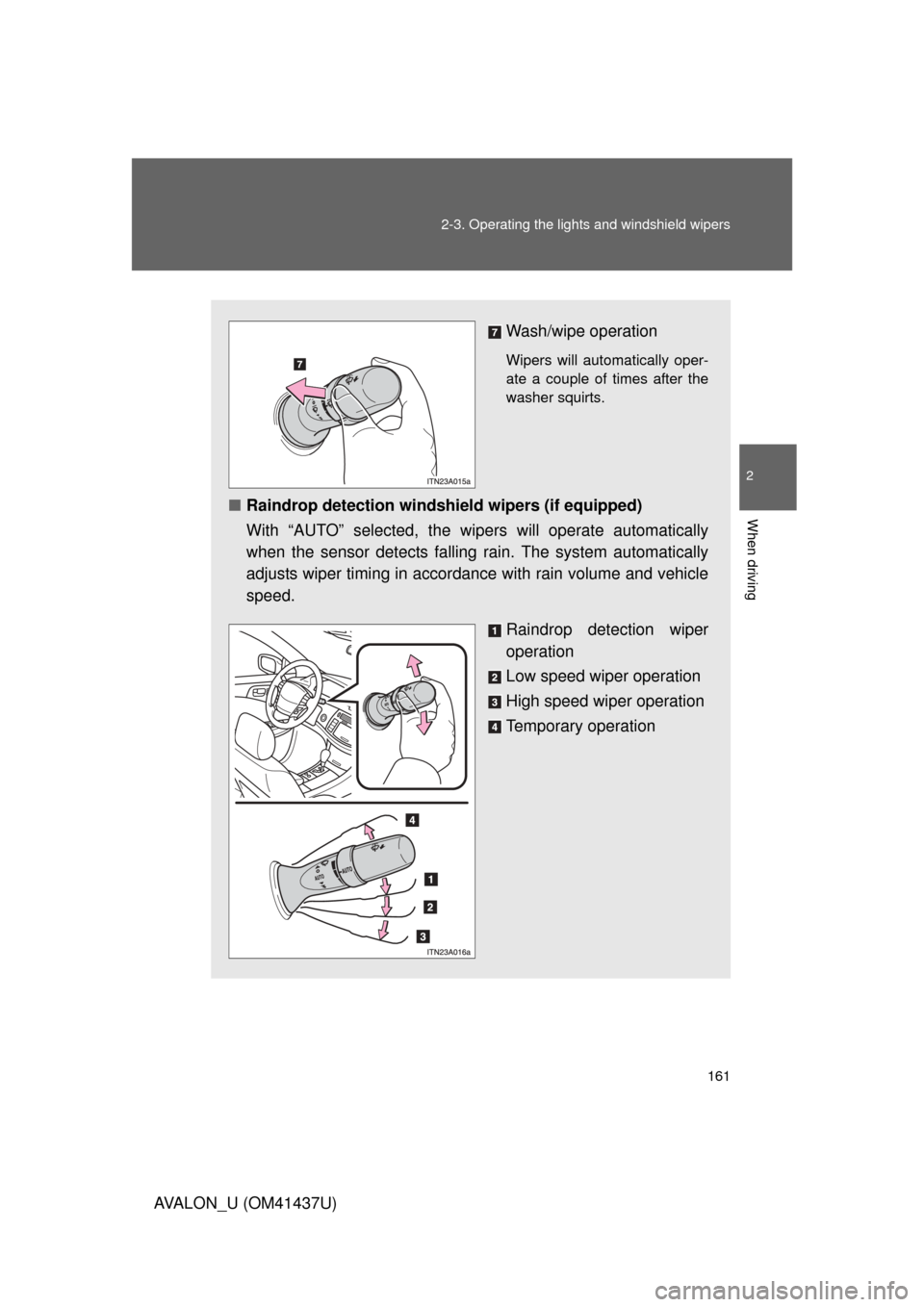

Wash/wipe operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.
■
Raindrop detection windshield wipers (if equipped)
With “AUTO” selected, the wi pers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.
Raindrop detection wiper
operation
Low speed wiper operation
High speed wiper operation
Temporary operation

162 2-3. Operating the lights and windshield wipers
AVALON_U (OM41437U)

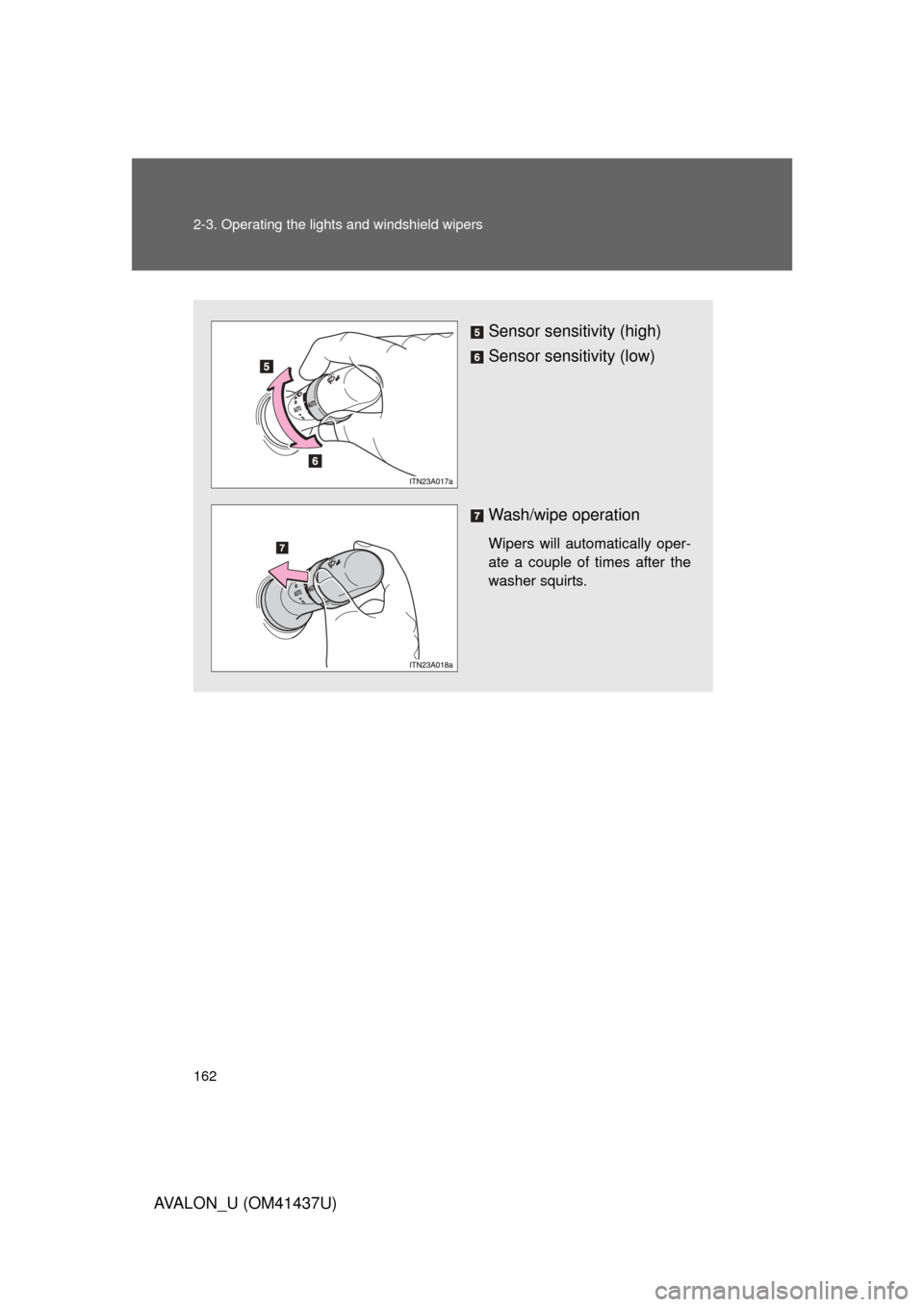

Sensor sensitivity (high)
Sensor sensitivity (low)
Wash/wipe operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.
