SETUP
266

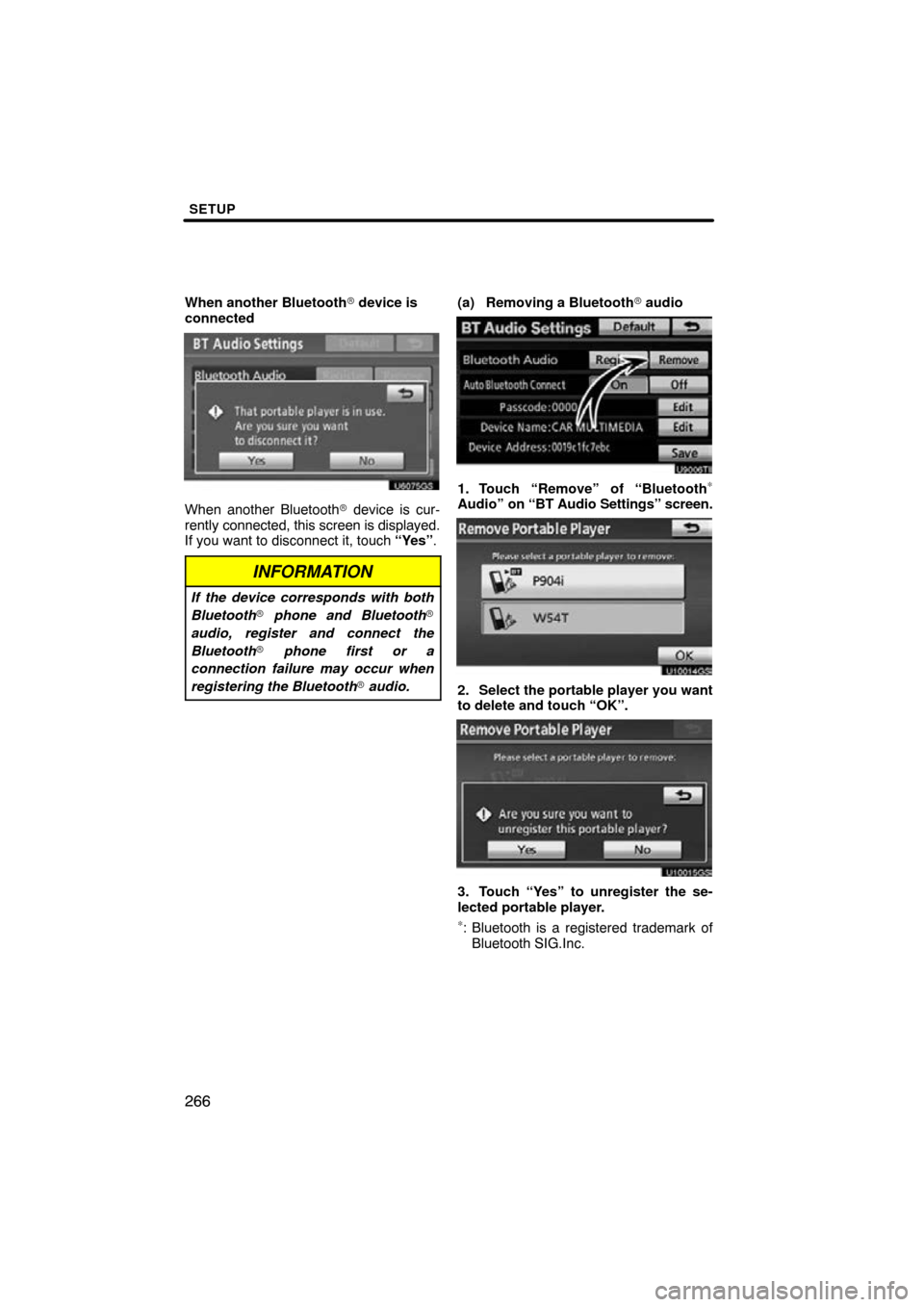

When another Bluetooth device is
connected
When another Bluetooth  device is cur-
rently connected, this screen is displayed.
If you want to disconnect it, touch “Yes”.
INFORMATION
If the device corresponds with both
Bluetooth  phone and Bluetooth
audio, register and connect the
Bluetooth  phone first or a
connection failure may occur when
registering the Bluetooth  audio.
(a) Removing a Bluetooth audio
1. Touch “Remove” of “Bluetooth∗
Audio” on “BT Audio Settings” screen.
U10014GS
2. Select the portable player you want
to delete and touch “OK”.
U10015GS
3. Touch “Yes” to unregister the se-
lected portable player.
∗: Bluetooth is a registered trademark of
Bluetooth SIG.Inc.

SETUP
267
U10016GS

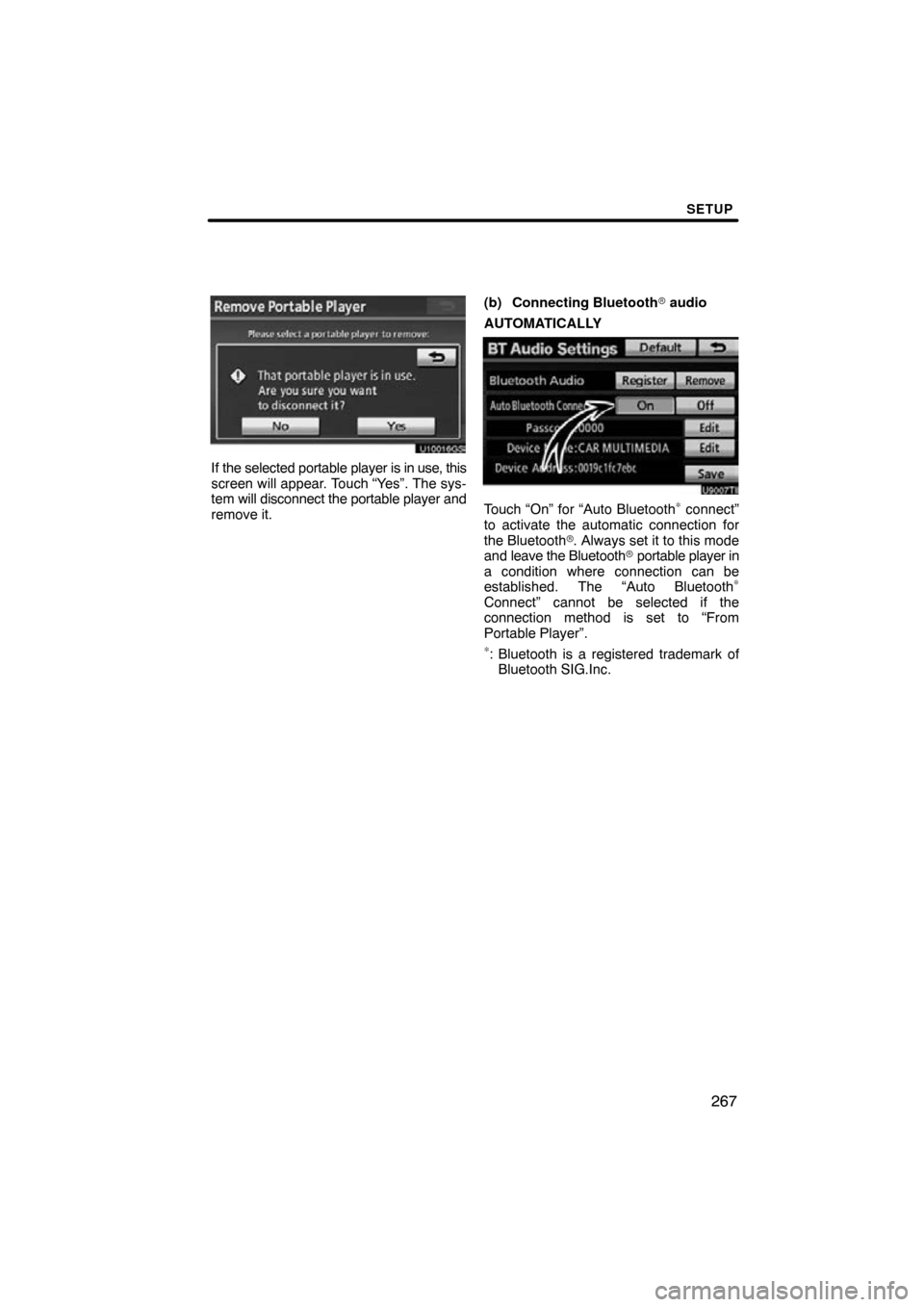

If the selected portable player is in use, this
screen will appear. Touch “Yes”. The sys-
tem will disconnect the portable player and
remove it. (b) Connecting Bluetooth
audio
AUTOMATICALLY
Touch “On” for “Auto Bluetooth∗ connect”
to activate the automatic connection for
the Bluetooth . Always set it to this mode
and leave the Bluetooth  portable player in
a condition where connection can be
established. The “Auto Bluetooth
∗
Connect” cannot be selected if the
connection method is set to “From
Portable Player”.
∗: Bluetooth is a registered trademark of Bluetooth SIG.Inc.

SETUP
268
U10018GS

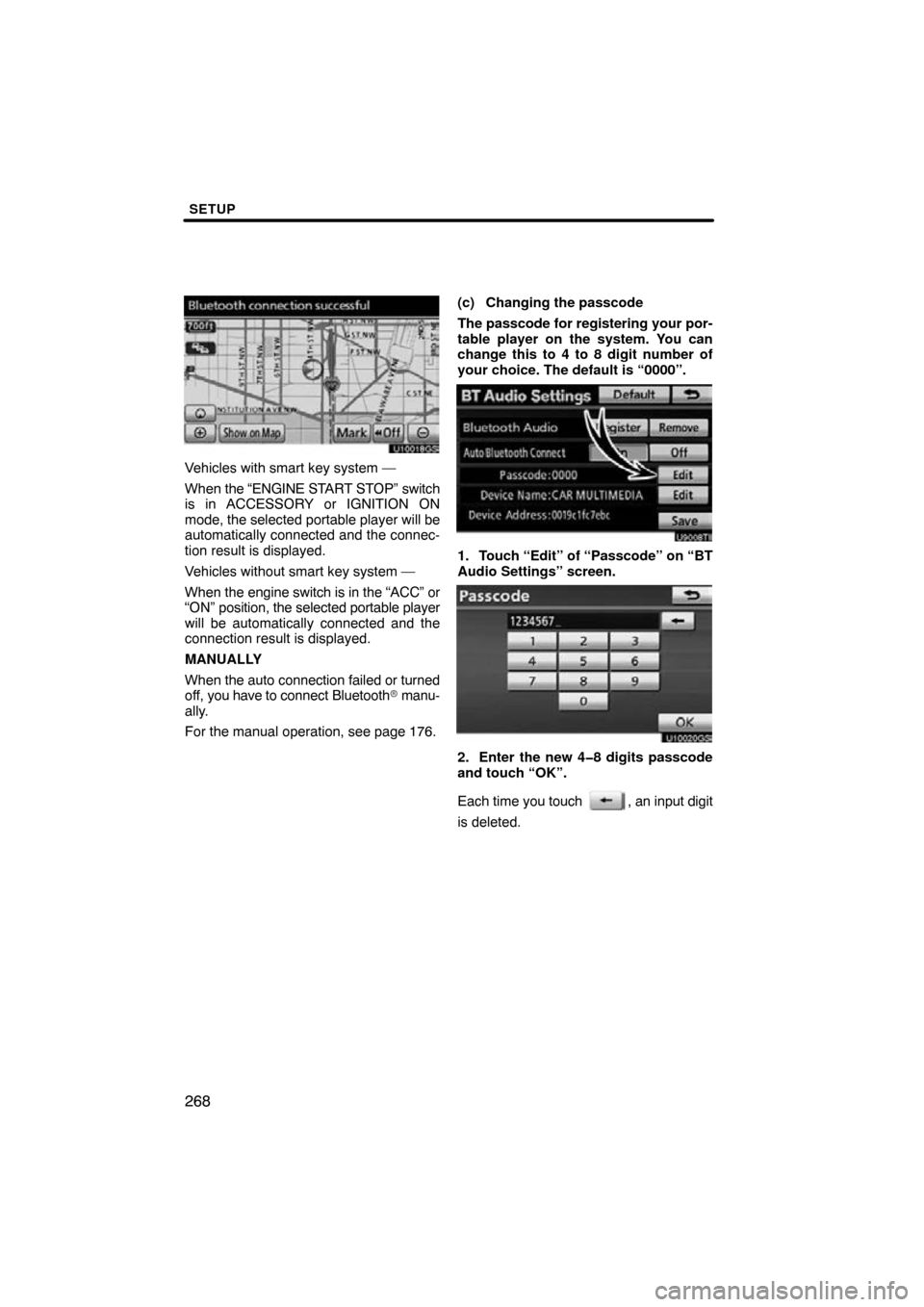

Vehicles with smart key system —
When the “ENGINE START STOP” switch
is in ACCESSORY or IGNITION ON
mode, the selected portable player will be
automatically connected and the connec-
tion result is displayed.
Vehicles without smart key system —
When the engine switch is in the “ACC” or
“ON” position, the selected portable player
will be automatically connected and the
connection result is displayed.
MANUALLY
When the auto connection failed or turned
off, you have to connect Bluetooth  manu-
ally.
For the manual operation, see page 176. (c) Changing the passcode
The passcode for registering your por-
table player on the system. You can
change this to 4 to 8 digit number of
your choice. The default is “0000”.
1. Touch “Edit” of “Passcode” on “BT
Audio Settings” screen.
U10020GS
2. Enter the new 48 digits passcode
and touch “OK”.
Each time
you touch
, an input digit
is deleted.

SETUP
269

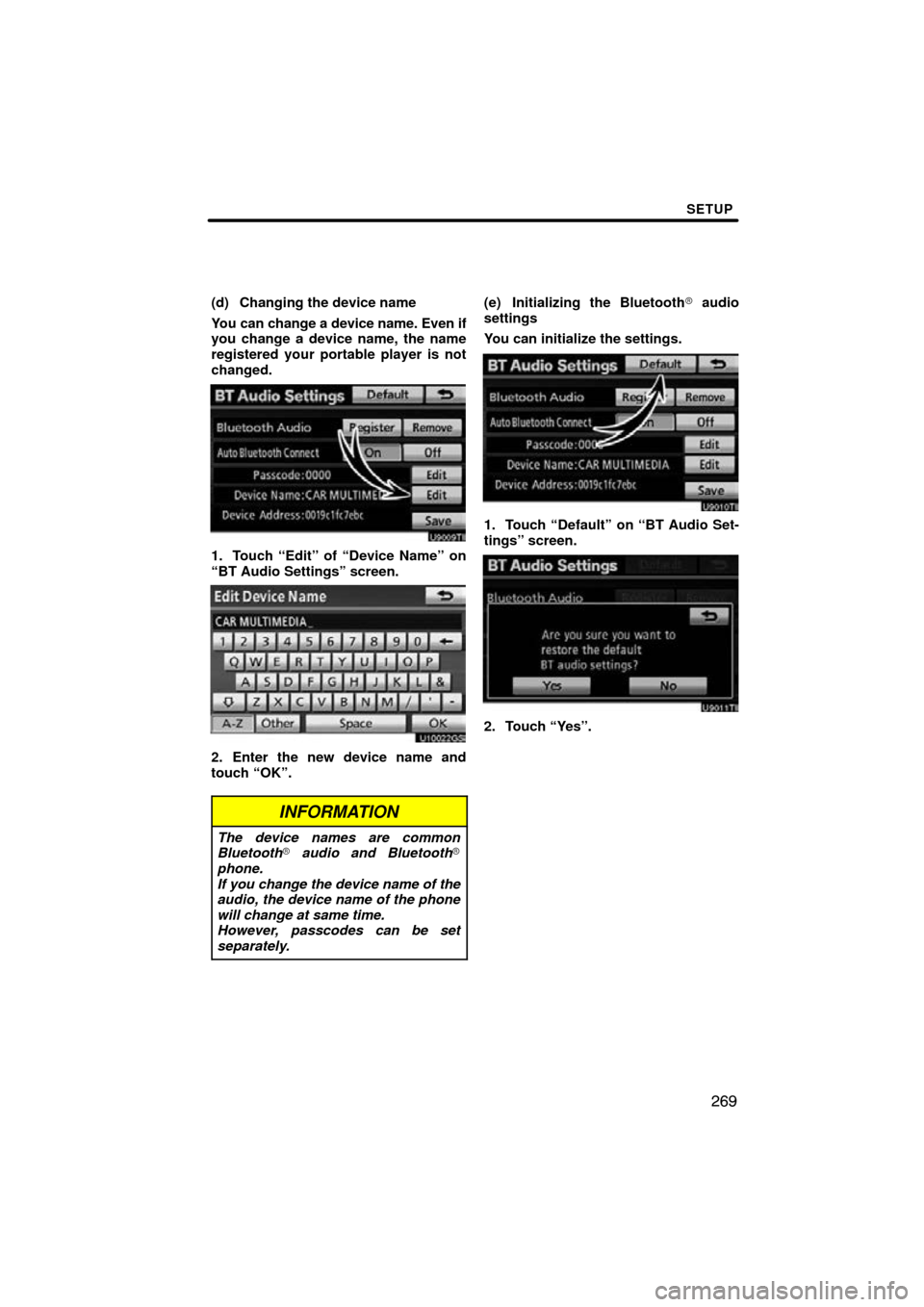

(d) Changing the device name
You can change a device name. Even if
you change a device name, the name
registered your portable player is not
changed.
1. Touch “Edit” of “Device Name” on
“BT Audio Settings” screen.
U10022GS
2. Enter the new device name and
touch “OK”.
INFORMATION
The device names are common
Bluetooth audio and Bluetooth
phone.
If you change the device name of the
audio, the device name of the phone
will change at same time.
However, passcodes can be set
separately.
(e) Initializing the Bluetooth  audio
settings
You can initialize the settings.
1. Touch “Default” on “BT Audio Set-
tings” screen.
2. Touch “Yes”.
