TOYOTA AVALON 2011 XX30 / 3.G Owners Manual

281 3-3. Using the Bluetooth
® audio system
3
Interior features
AVALON_U (OM41428U)

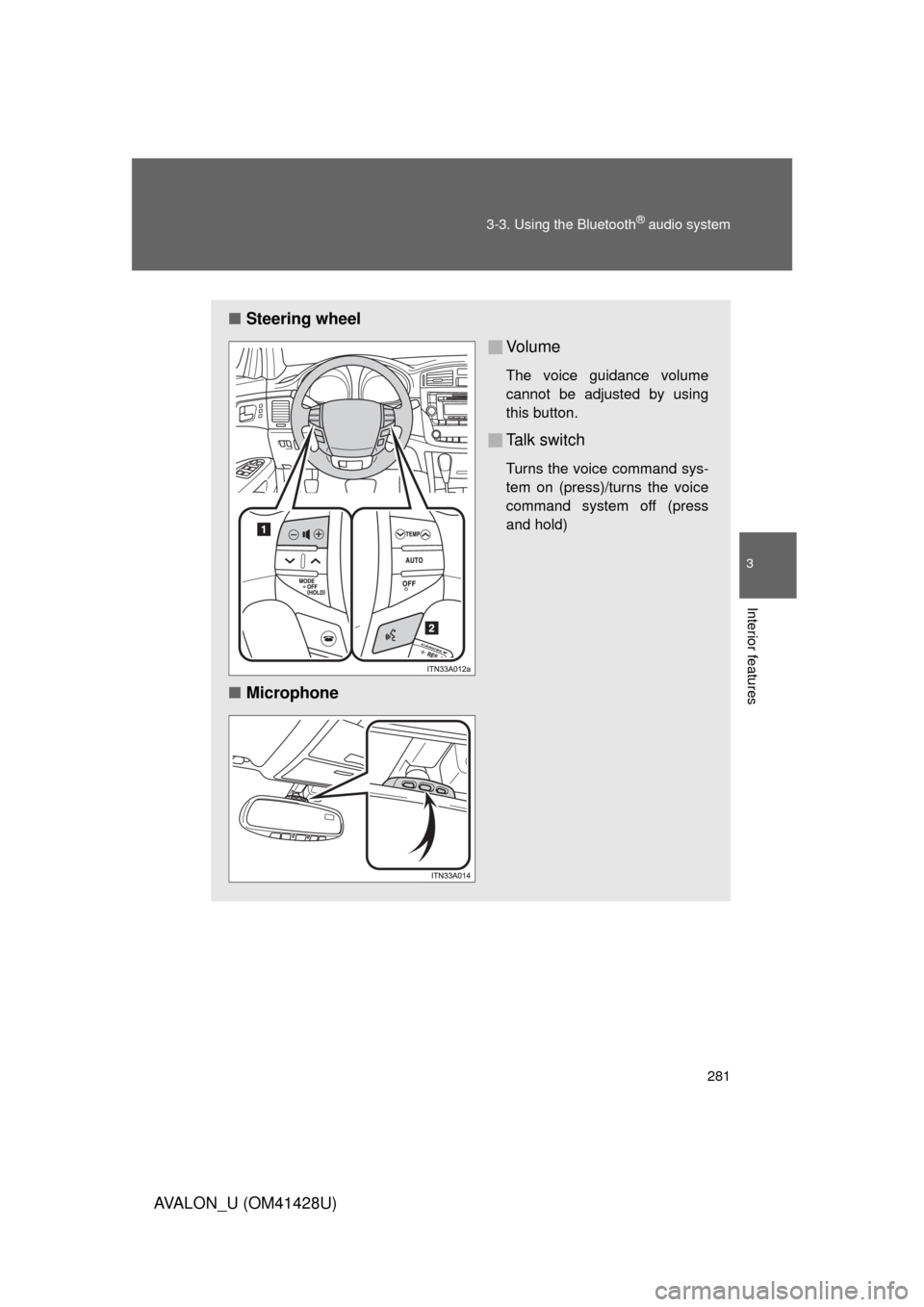

■Steering wheel
Vo l u m e
The voice guidance volume
cannot be adjusted by using
this button.
Talk switch
Turns the voice command sys-
tem on (press)/turns the voice
command system off (press
and hold)
■Microphone

282 3-3. Using the Bluetooth
® audio system
AVALON_U (OM41428U)
Operating the system using voice commands
By following voice guidance instructions output from the speaker,
voice commands enable to the operation of the Bluetooth
® audio sys-
tem without the need to check the display or operate .
■Operation procedure when using voice commands
Press the talk switch and follow voice guidance instructions.
■Auxiliary commands when using voice commands
The following auxiliary commands can be used when operating the
system using a voice command:
“Cancel”: Exits the Bluetooth
® audio system
“Repeat”: Repeats the previous voice guidance instruction
“Go back”: Returns to the previous procedure
“Help”: Reads aloud the function summary if a help comment is
registered for the selected function

283 3-3. Using the Bluetooth
® audio system
3
Interior features
AVALON_U (OM41428U)
Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register
a Bluetooth
® enabled portable player in the system. Follow the proce-
dure below to register (pair) a portable player:
Press until “BT AUDIO” is displayed.
Press that corresponds to “SETUP”.
The introductory guidance and portable player name registration
instructions are heard.
Select “Pair Audio Player” using a voice command or .
Register a portable player name by either of the following
methods:
a. Select “Record Name” using , and say the name to
be registered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard.

284 3-3. Using the Bluetooth
® audio system
AVALON_U (OM41428U)Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the portable player is heard.
Input the passkey into the portable player.
Refer to the manual that comes with the portable player for the oper-
ation of the portable player.
Guidance for registration completion is heard.
If the portable player has a Bluetooth
® phone, the phone can be reg-
istered at the same time. (P. 302)

285 3-3. Using the Bluetooth
® audio system
3
Interior features
AVALON_U (OM41428U)

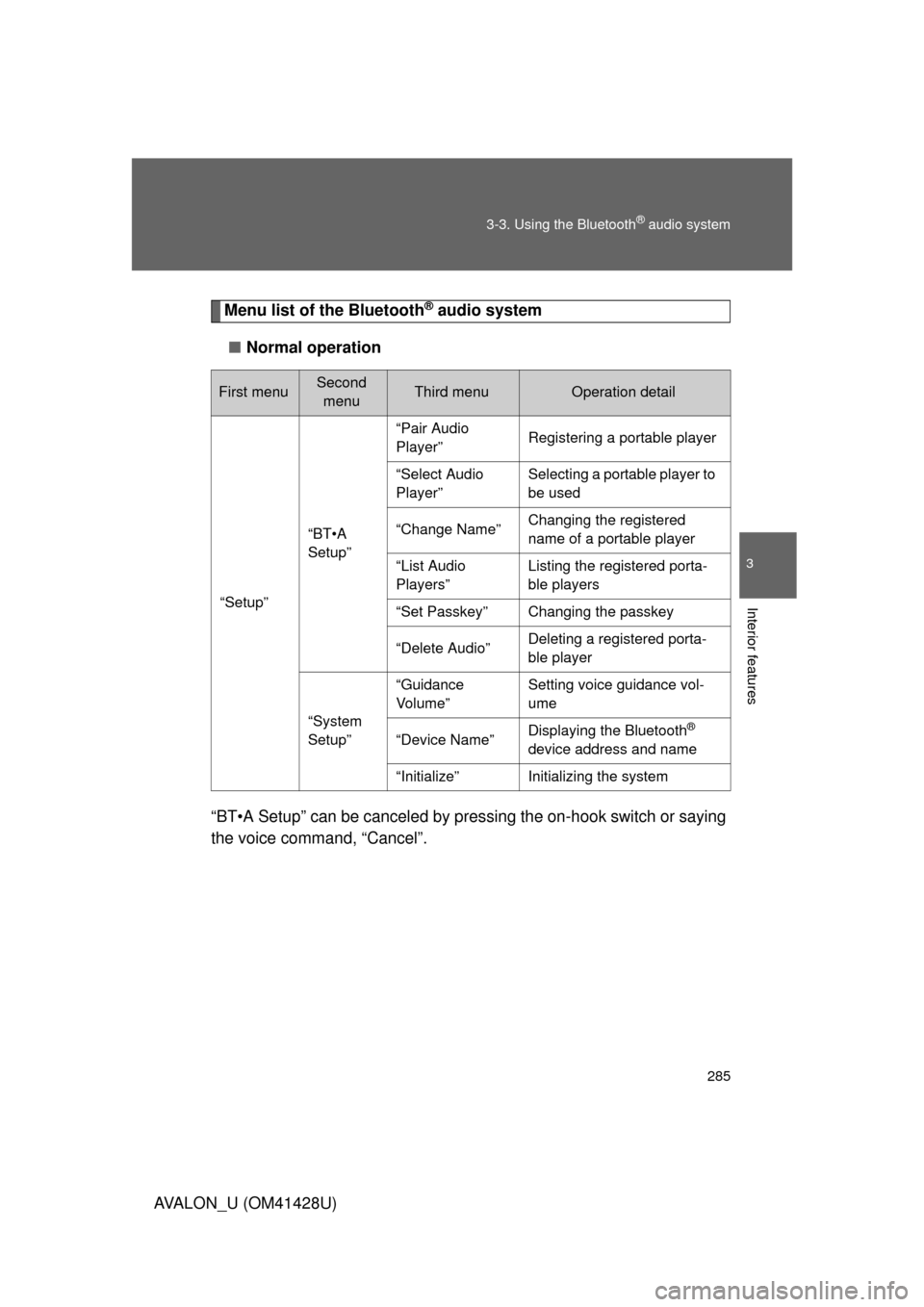

Menu list of the Bluetooth® audio system
■Normal operation
“BT•A Setup” can be canceled by pressing the on-hook switch or saying
the voice command, “Cancel”.
First menuSecond
menuThird menuOperation detail
“Setup”
“BT•A
Setup”
“Pair Audio
Player”Registering a portable player
“Select Audio
Player”Selecting a portable player to
be used
“Change Name”Changing the registered
name of a portable player
“List Audio
Players”Listing the registered porta-
ble players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered porta-
ble player
“System
Setup”
“Guidance
Vo l u m e ”Setting voice guidance vol-
ume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system

286 3-3. Using the Bluetooth
® audio system
AVALON_U (OM41428U)
■When using a voice command
For numbers, say a combination of single digits from zero to nine.
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a portable player to the system
■Changing the passkey
P. 293

287
3-3. Using the Bluetooth® audio system
3
Interior features
AVALON_U (OM41428U)

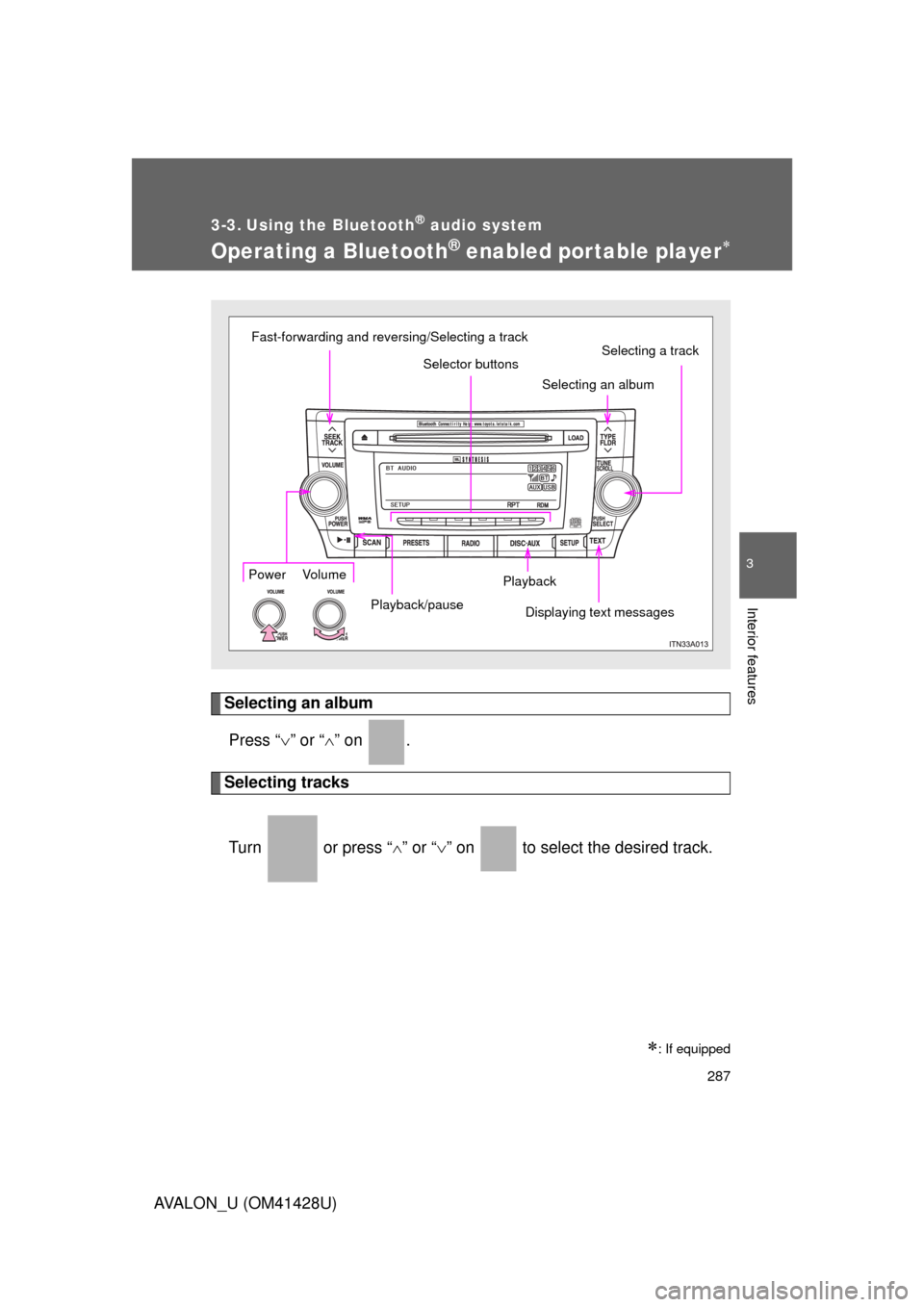

Operating a Bluetooth® enabled portable player
Selecting an album
Press “” or “” on .
Selecting tracks
Turn or press “” or “” on to select the desired track.
: If equipped
Playback/pause
Displaying text messages PlaybackSelecting an album Selector buttons Fast-forwarding and reversing/Selecting a track
Selecting a track
Power Volume

288 3-3. Using the Bluetooth
® audio system
AVALON_U (OM41428U)
Playing and pausing tracks
Press .
Fast-forwarding and rewinding tracks
Press and hold “
” or “” on .
Switching the display
Press .
Each time the button is pressed, the display changes in the following
order: Track title  Track title/Artist name  Track title/Album name 
Track title/Elapsed time.
Using the steering switches
P. 2 7 4
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■Error messages
“BT Audio Error”: This indicates a problem in the system.

289
3-3. Using the Bluetooth® audio system
3
Interior features
AVALON_U (OM41428U)
Setting up a Bluetooth® enabled por table player
: If equipped
Registering a portable player in the Bluetooth® audio system allows
the system to function. The following functions can be used for reg-
istered portable players:
■Functions and operation procedures
Press
until “BT AUDIO” is displayed.
Press
that corresponds to “SETUP”.
Select one of the following functions using a voice com-
mand or .
●Registering a portable player
“Pair Audio Player”
●Selecting a portable player to be used
“Select Audio Player”
●Changing the registered name
“Change Name”
●Listing the registered portable players
“List Audio Players”
●Changing the passkey
“Set Passkey”
●Deleting a registered portable player
“Delete Audio Player (Delete Audio)”

290 3-3. Using the Bluetooth
® audio system
AVALON_U (OM41428U)
Registering a portable player
Select “Pair Audio Player” using a voice command or , and
perform the procedure for registering a portable player. (P. 283)
Selecting a portable player to be used
Select “Select Audio Player” using a voice command or
.
Select the portable player to be used by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press the talk switch and say the name of the desired por-
table player.
b. Press the talk switch and say “List Audio Players”. When
the name of the desired portable player is read aloud, press
the talk switch.
