Page 21 of 28
19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
RADIO
To preset stations Tune in the desired station and hold down a preset
button until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
AUX or USB/AUX audio jack
Steering wheel switches
Audio controlClimate control
Volume controlTemperature
selector
Auto A/C ON
System OFF
vv“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
Page 22 of 28
20
FEATURES/OPERATIONS
Air Conditioning/Heating
Automatic climate control ON
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF:Synchronize temperature settings for driver and
passenger.
Temperature selector (passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging.
Fan speed
Outside rearview mirror/Rear window defogger
Windshield defogger
Climate control OFF
Temperature selector (driver side)
Page 23 of 28
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat ventilators/Heaters (if equipped)
Push knob to pop the controller out. Turn clockwise for heater,
counter-clockwise for ventilator.
PushTu r n With ventilator
Heater only
Push
Tu r n
Heater OFF
Ventilator
Clock
H-Hour set
M-Minute set
:00-Round off minutes
Page 24 of 28
22
FEATURES/OPERATIONS
Cup holders
Rear (type B)
Front
Rear (type A)
Power outlets
Auxiliary box
Console box
The “ENGINE START STOP” switch/engine switch must be in the “ACC” or
“ON” position to be used.
Page 25 of 28
23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
Page 26 of 28

24
SAFETY AND EMERGENCY FEATURES
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Seat belt comfort guide
Rear seat outside position guides provide added comfort for children who
have outgrown child restraints.
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the
Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Tire Pressure Monitoring (warning)
System
Page 27 of 28
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the luggage cover.
(2) Loosen and remove the center fastener.
(3) Remove the spare tire cover.
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Spare tire Jack handle
Luggage floor cover
Jack
Spare tire cover
Wheel nut wrench
Trunk-Internal release
Pull
(1)(2)(3)

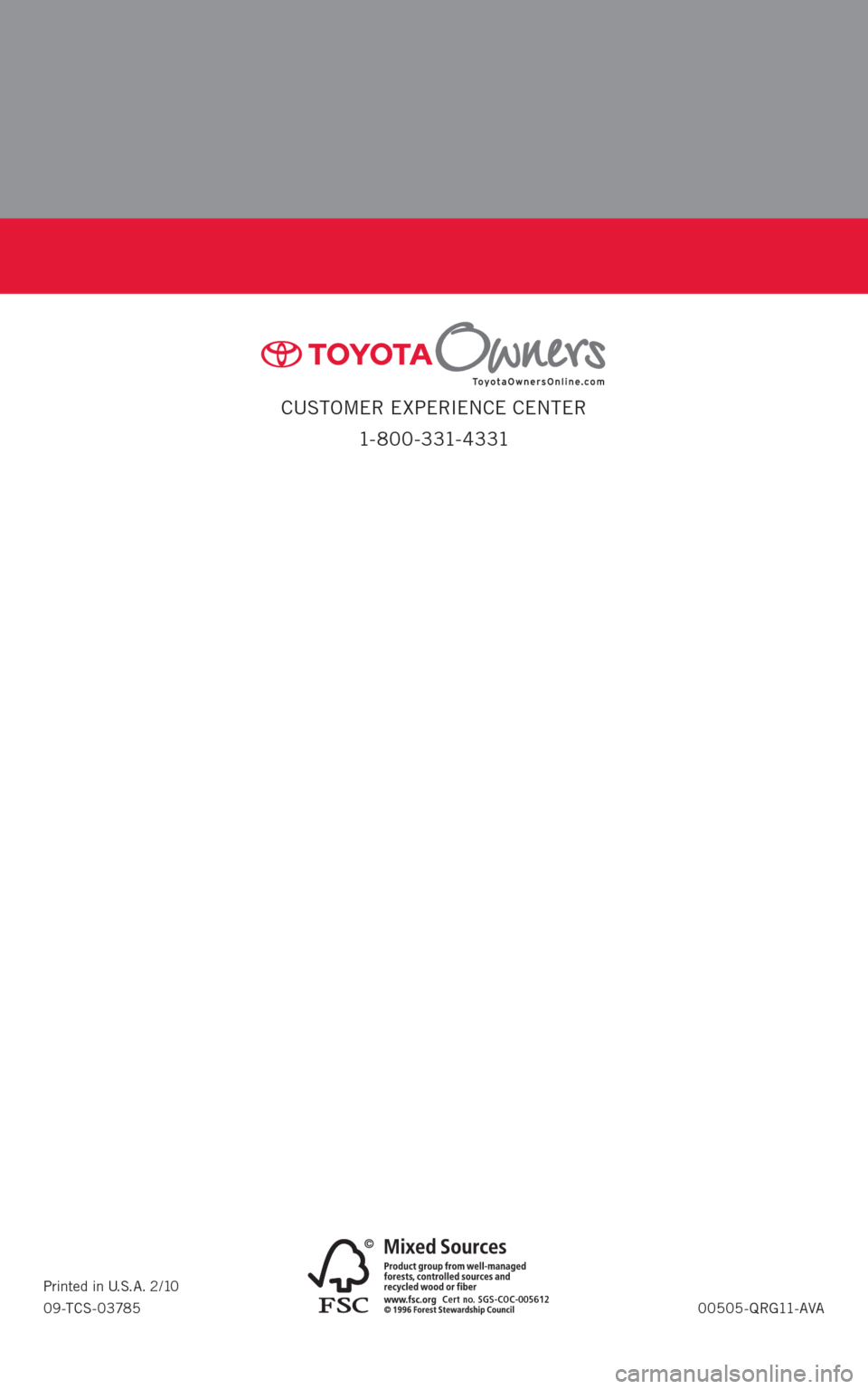

Page 28 of 28
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
0 0505 - QRG11-AVA Printed in U.S.A. 2/10
09-TCS-03785
10%
Cert no. SGS-COC-005612
414590M1 22/11/10 5:48 PM
