Page 5 of 496
5
1
8 7
6
5
4
3
2
9
AVALON (U)_(OM41440U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 302
Cleaning and protecting the vehicle interior ........... 306
6-2. Maintenance Maintenance requirements ................... 309
General maintenance ........ 311
Emission inspection and maintenance (I/M)
programs ......................... 315
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 316
Hood.................................. 319
Positioning a floor jack ...... 320
Engine compartment ......... 322
Tires .................................. 334
Tire inflation pressure........ 342
Wheels .............................. 345
Air conditioning filter .......... 348
Electronic key battery ........ 350
Checking and replacing fuses ............................... 352
Light bulbs ......................... 361 7-1. Essential information
Emergency flashers ........... 380
If your vehicle has to be stopped in an
emergency....................... 381
7-2. Steps to take in an emergency
If your vehicle needs to be towed .......................... 382
If you think something is wrong ........................... 385
Fuel pump shut off system ............................. 386
If a warning light turns on or a warning buzzer
sounds ............................. 387
If a warning message is displayed ......................... 398
If you have a flat tire .......... 399
If the engine will not start ................................. 412
If the shift lever cannot be shifted from P ............. 414
If the electronic key does not operate properly ........ 415
If the vehicle battery is discharged ....................... 418
If your vehicle overheats......................... 422
If the vehicle becomes stuck ................................ 425
6Maintenance and care7When trouble arises
Page 15 of 496
15Pictorial index
AVALON (U)_(OM41440U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 232
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 304
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 435
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Checking/rotation/tire pressure warning system . . . . . . . . . P. 334
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 399
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 319
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 319
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Headlights/parking lights/side marker lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 361, Wattages: P. 436)
*: If equipped
8
9
10
11
12
13
Page 65 of 496
651-1. For safe use
1
For safety and security
AVALON (U)_(OM41440U)
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhale.
CAUTION
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■Important points while driving
●Keep the trunk lid closed.
● If you smell exhaust gases in the vehicle even when the trunk lid is closed,
open the windows and have the vehicle inspected at your Toyota dealer as
soon as possible.
■ When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
● Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.
Page 74 of 496
742. Instrument cluster
AVALON (U)_(OM41440U)
*1: These lights turn on when the engine switch is turned to IGNITION ONmode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if the lights do not come on, or do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*1
Tire pressure warning
light ( P. 391)*2
(if equipped)
Automatic high beam
indicator ( P. 172)
Page 76 of 496
762. Instrument cluster
AVALON (U)_(OM41440U)
*1: These lights turn on when the engine switch is turned to IGNITION ONmode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if the lights do not come on, or do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes fasterthan usual to indicate that the system is operating.
CAUTION
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
Page 79 of 496
792. Instrument cluster
2
Instrument cluster
AVALON (U)_(OM41440U)
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■ The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■ The brightness of the in strument panel lights
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control dial is turned fully clockwise.
When the knob is turned fully clockwise, the display audio/navigation system
screen will always be in day mode regardless of the headlight switch position.
The instrument panel light auto dimmer control can be changed.
(Customizable feature: P. 453)
Instrument panel light control
1
2
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 422)
Page 84 of 496
842. Instrument cluster
AVALON (U)_(OM41440U)
Press and hold the “DISP” but-
ton to select the desired setting.
Press and hold the “DISP” but-
ton after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
■System check display
After turning the engine switch to IGNITION ON mode, “SYSTEM CHECK” is
displayed while system operation is checked.
■ Trip summary display
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can b\
e
changed through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
4
5
1
When the engine is turned off, drive infor-
mation data since the engine was started
is displayed for 3 seconds.
Page 160 of 496
1604-2. Driving procedures
AVALON (U)_(OM41440U)
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the
steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the engine switch for more than 2 seconds, or press it briefly
3 times or more in succession. ( P. 381)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.
NOTICE
■ To prevent battery discharge
●Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● Do not stop the engine when the shift lever is in a position other than P. If
the engine is stopped in another shift lever position, the engine switch will
not be turned off but instead be turned to ACCESSORY mode. If the vehi-
cle is left in ACCESSORY mode, battery discharge may occur.
■ When starting the engine
●Do not race a cold engine.
● If the engine becomes difficult to star t or stalls frequently, have your vehi-
cle checked by your Toyota dealer immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact
your Toyota dealer immediately.

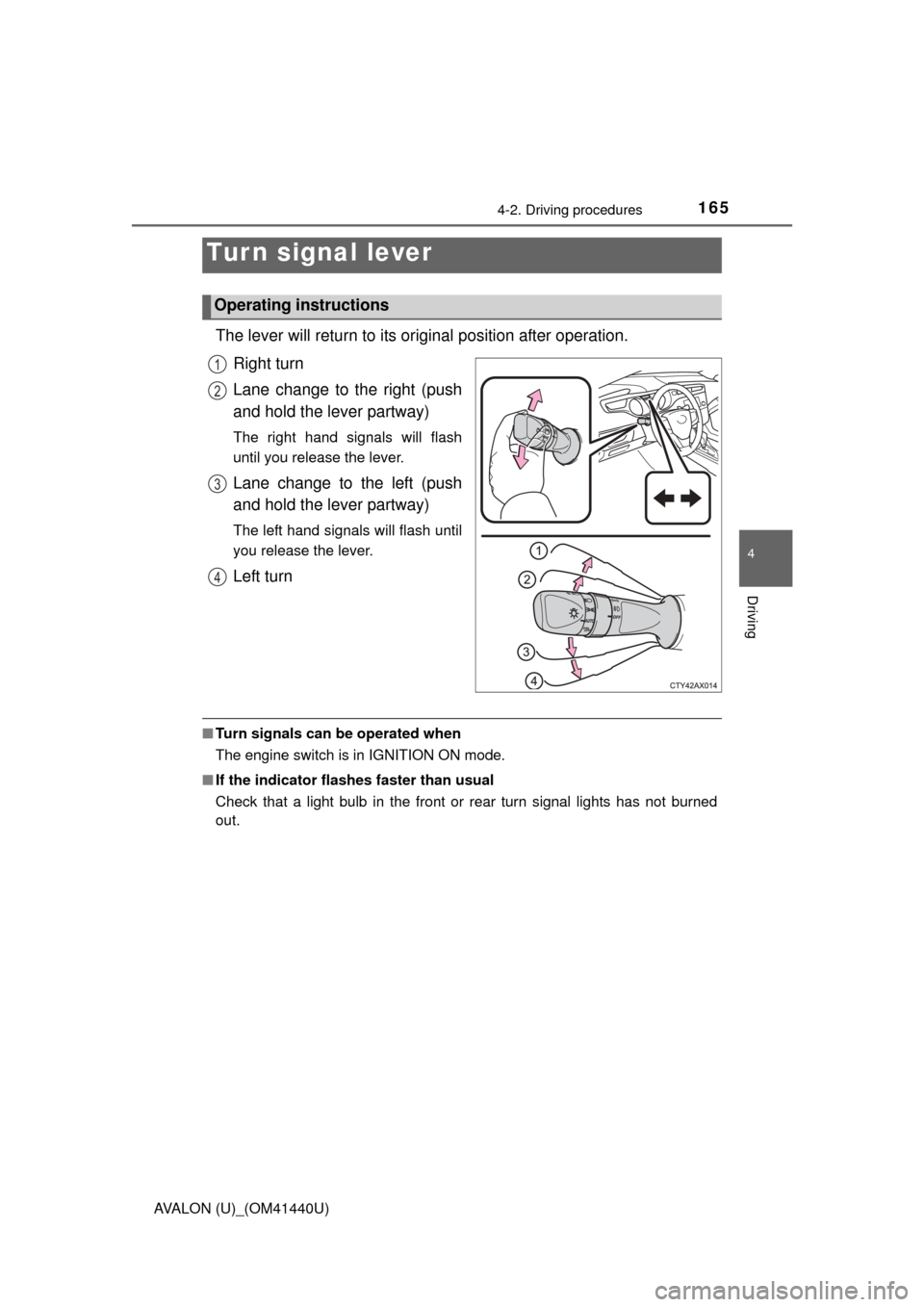

Page 165 of 496
1654-2. Driving procedures
4
Driving
AVALON (U)_(OM41440U)
The lever will return to its original position after operation.
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■ Turn signals can be operated when
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Tur n signal lever
Operating instructions
1
2
3
4
Page 183 of 496
1834-3. Operating the lights and wipers
4
Driving
AVALON (U)_(OM41440U)
■The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■ Effects of vehicle speed on wiper operation (vehicles with rain-sensing
windshield wipers)
With low speed windshield wiper operat ion selected, wiper operation will be
switched from low speed to intermittent wiper operation only when the vehicle
is stationary.
■ Raindrop sensor (vehicles with ra in-sensing windshield wipers)
● If the wiper is turned to AUTO mode while the engine switch is in IGNITION
ON mode, the wipers will operate once to show that AUTO mode is acti-
vated.
● If the temperature of the raindrop sensor is 194°F (90°C) or higher, or
14°F (-10°C) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than AUTO mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir. ●The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
