engine TOYOTA AVALON 2013 XX40 / 4.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Avalon
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel 8
Smart Key system
1,2 7
Air Conditioning/Heating 18-19
Audio 20
Auto lock/unlock
2 10
Automatic Transmission 10
BSM (Blind Spot Monitor) 21
Clock 20
Cruise control 16
Cup holders 22
Driving mode select 11
Dynamic radar cruise control 17
Garage door opener (HomeLink
®)3 16
iPod®/USB/AUX port 21
Lights1 & turn signals 15
Moonroof 12
Multi-Information Display 13
Parking brake 10
Power outlets-12V DC 14
Seat adjustments-Front 13
Seat ventilators/Heaters 19
Seats-Head restraints 12
Steering lock release 11
Steering wheel switches 20
Tilt and telescopic steering wheel 11
Windows-Power 12
Windshield wipers & washers 14
Wireless charger 22
Door locks 23
Doors-Child safety locks 23
Floor mat installation 27
Seat belts 23
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety System
TM 26-27
Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
2013Avalon.indd 110/11/12 10:38 PM

2
OVERVIEW
Instrument panel
Driving position memory switches1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Navigation system
1,2/Display audio system1,3
“ENGINE START STOP” button
Tilt and telescopic steering lock release
Steering wheel audio controls
2,3
Paddle shift switches1
Telephone controls2,3
Voice command button2,3
Vehicle-to-vehicle distance button1
Cruise control1/Dynamic radar cruise control1
Air Conditioning controls
Clock
Outside rearview mirror/Rear window defogger button
“PCS” off switch1
Tire Pressure Monitoring (warning) System reset
Trunk opener main switch
12V DC Power outlet
12V DC power outlet
1/Wireless charger switch1
USB/AUX port
Trunk opener
TRAC/VSC OFF switch
BSM (Blind Spot Monitor) main switch
1
Rear sunshade switch1
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.
Steering wheel controlsAutomatic Air Conditioning
(Type A)
2013Avalon.indd 210/11/12 10:39 PM

4
OVERVIEW
Instrument cluster
Tachometer
Service indicators and reminders
Speedometer
Fuel gauge
Trip meter reset knob/Instrument panel light control knob
Odometer/trip meter
Shift position/shift range display
Multi-Information Display
Engine coolant temperature gauge
3 If this light flashes, refer to “Dynamic radar cruise control,” Section 4-5, 2013 Owner’s Manual.4 The indicator flashes to indicate a malfunction.5 The indicator flashes faster than usual to indicate that the system is operating.
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Indicator symbols
Brake system warning1
For details, refer to “Indicators and warning lights,” Section 2, 2013 Owner’s
Manual .
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer. 2 If this light flashes, refer to “Cruise control,” Section 4-5, 2013 Owner’s Manual.
Charging system warning1
SRS AIR BAG ON/OFF indicator
Master warning light
1
Electric power steering system warning1
2013Avalon.indd 410/11/12 10:39 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
Tachometer
Service indicators and reminders
Speedometer
Fuel gauge
Trip meter reset knob/Instrument panel light control knob
Odometer/trip meter
Shift position/shift range display
Multi-Information Display
Engine coolant temperature gauge
3 If this light flashes, refer to “Dynamic radar cruise control,” Section 4-5, 2013 Owner’s Manual.4 The indicator flashes to indicate a malfunction.5 The indicator flashes faster than usual to indicate that the system is operating.
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Low fuel level warning
Front fog light indicator
ECO drive mode indicator
Anti-lock Brake System warning1For details, refer to “Indicators and warning lights,” Section 2, 2013 Owner’s
Manual .
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer. 2 If this light flashes, refer to “Cruise control,” Section 4-5, 2013 Owner’s Manual.
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
SPORT mode indicator
Eco Driving Indicator Light
1
Pre-Collision System indicator1,5
Automatic high beam indicator4
Radar cruise control indicator3,4
SRS AIR BAG ON/OFF indicator
Master warning light
1
2013Avalon.indd 510/11/12 10:39 PM

6
OVERVIEW
Keyless entry
Push ONCE: Driver door
TWICE: All doors
Locking operationUnlocking operation
Smart Key system
Start function
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. In some models, grasping front passenger door handle will
unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Panic button
Push and hold
NOTE: If a door is not opened within 60
seconds of unlocking, all doors will relock
for safety.
Trunk lid
Trunk unlock
Locking operation
Carry remote to lock
Front door lock
Carry remote to unlock
Push
Push and hold
2013Avalon.indd 610/11/12 10:39 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Push ONCE: Driver door
TWICE: All doors
Unlocking operation
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. In some models, grasping front passenger door handle will
unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)NOTE: If a door is not opened within 60
seconds of unlocking, all doors will relock
for safety.
Trunk unlock
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lock
Carry remote to unlock
Front door unlock*
Touch
Grasp
2013Avalon.indd 710/11/12 10:39 PM

8
Hood releaseFuel tank door release and cap
NOTE: To close, tighten until one click is heard. If the cap is not tightened
enough, Check Engine “
” indicator may illuminate.
Press
Turn to open
Store
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Light control-Instrument panel
Engine maintenance
OVERVIEW
Brightness control+ -
The fuel tank door locks/unlocks with the vehicle’s doors.
2013Avalon.indd 810/11/12 10:39 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
Hood release
NOTE: To close, tighten until one click is heard. If the cap is not tightened
enough, Check Engine “
” indicator may illuminate.
Turn to open
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Pull up latch and
raise hood
Pull
The fuel tank door locks/unlocks with the vehicle’s doors.
2013Avalon.indd 910/11/12 10:39 PM

10
FEATURES/OPERATIONS

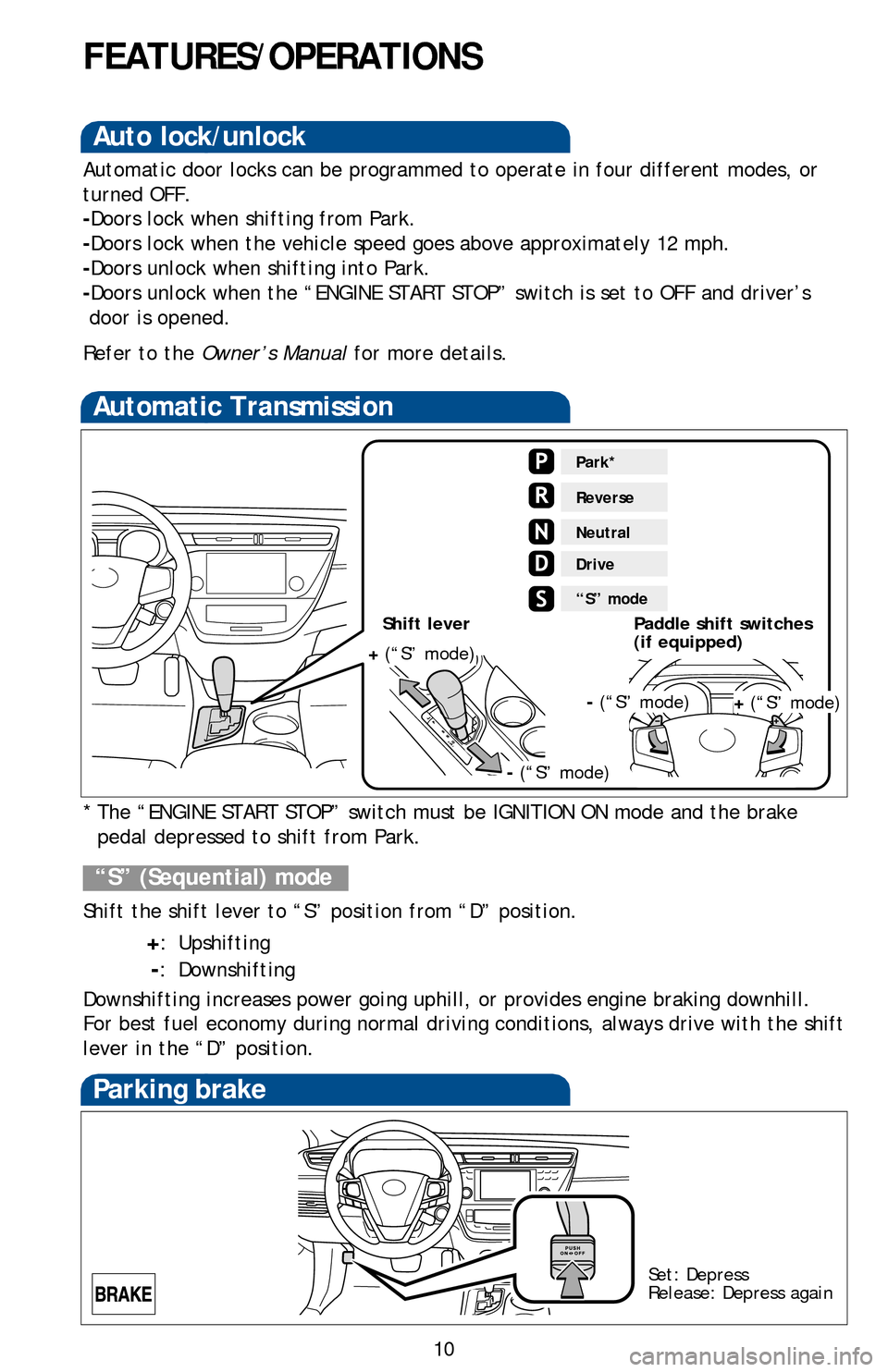

Automatic Transmission
* The “ENGINE START STOP” switch must be IGNITION ON mode and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Steering lock release
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Gently turn steering wheel while pressing the “ENGINE START STOP” switch. If
the lock does not release, a message informing the driver that the steering wheel
is locked will be displayed on the Multi-Information Display.
N
Park*
Reverse
Neutral
Drive
“S” mode
+ (“S” mode)
- (“S” mode)
+ (“S” mode)- (“S” mode)
Paddle shift switches
(if equipped)
Shift lever
Driving mode select (if equipped)
Normal mode
Use for normal driving.
ECO drive mode
Use ECO drive mode to help achieve low fuel consumption during trips that
involve frequent accelerating.
SPORT mode
Use SPORT mode when increased acceleration response and precise handling is
desired, such as when driving on mountain roads.
Parking brake
Set: Depress
Release: Depress again
2013Avalon.indd 1010/11/12 10:39 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
* The “ENGINE START STOP” switch must be IGNITION ON mode and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Steering lock release
Turn
Push
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Gently turn steering wheel while pressing the “ENGINE START STOP” switch. If
the lock does not release, a message informing the driver that the steering wheel
is locked will be displayed on the Multi-Information Display.
Angle
Length
+ (“S” mode)
Paddle shift switches
(if equipped)
Driving mode select (if equipped)
Normal mode
Use for normal driving.
ECO drive mode
Use ECO drive mode to help achieve low fuel consumption during trips that
involve frequent accelerating.
SPORT mode
Use SPORT mode when increased acceleration response and precise handling is
desired, such as when driving on mountain roads.
Set: Depress
Release: Depress again
2013Avalon.indd 1110/11/12 10:39 PM
