oil change TOYOTA AVALON 2013 XX40 / 4.G Quick Reference Guide

8
Hood releaseFuel tank door release and cap
NOTE: To close, tighten until one click is heard. If the cap is not tightened
enough, Check Engine “
” indicator may illuminate.
Press
Turn to open
Store
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Light control-Instrument panel
Engine maintenance
OVERVIEW
Brightness control+ -
The fuel tank door locks/unlocks with the vehicle’s doors.
2013Avalon.indd 810/11/12 10:39 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9

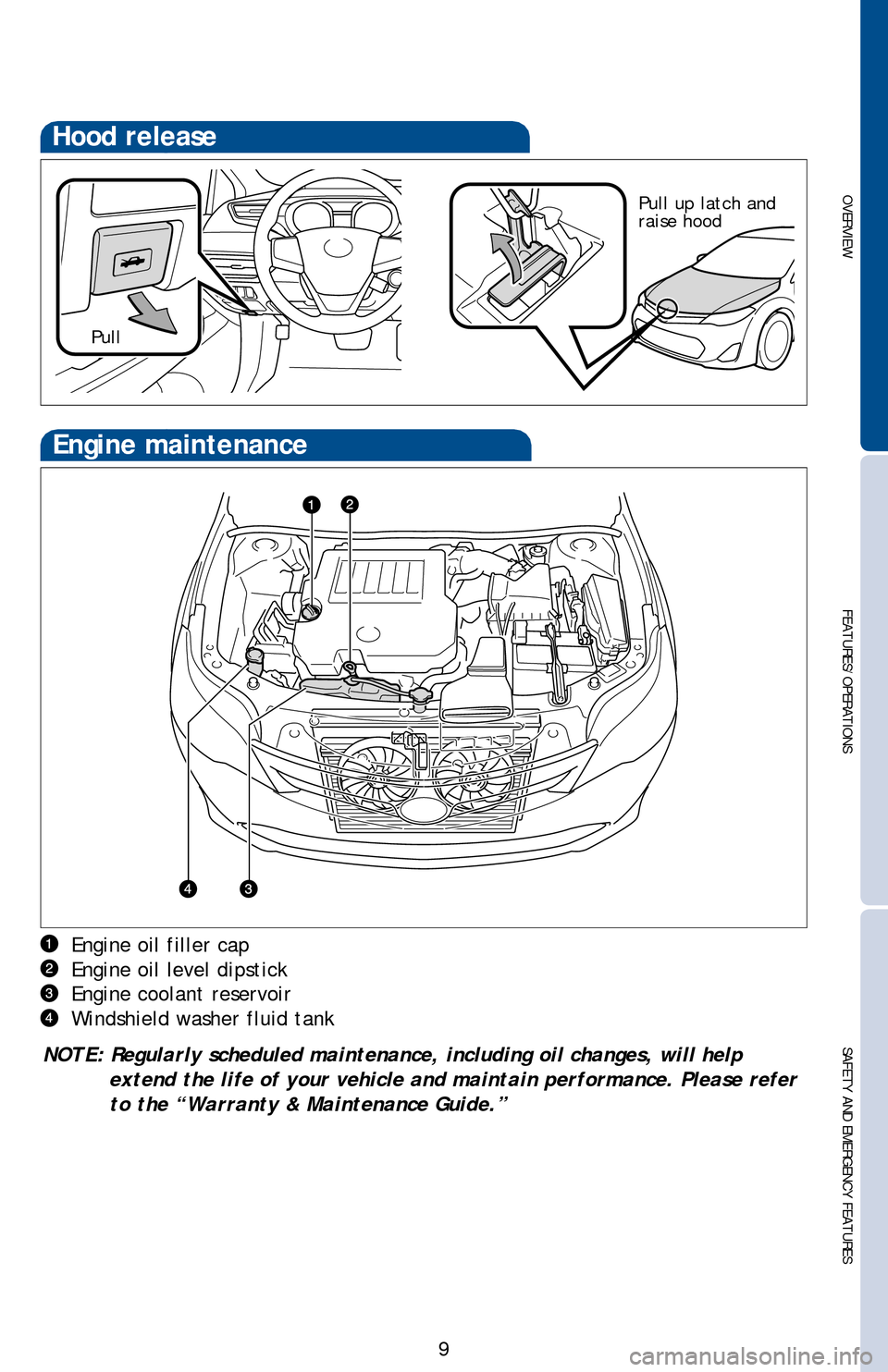

Hood release
NOTE: To close, tighten until one click is heard. If the cap is not tightened
enough, Check Engine “
” indicator may illuminate.
Turn to open
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Pull up latch and
raise hood
Pull
The fuel tank door locks/unlocks with the vehicle’s doors.
2013Avalon.indd 910/11/12 10:39 PM
