set clock TOYOTA AVALON 2015 XX40 / 4.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
OVERVIEW

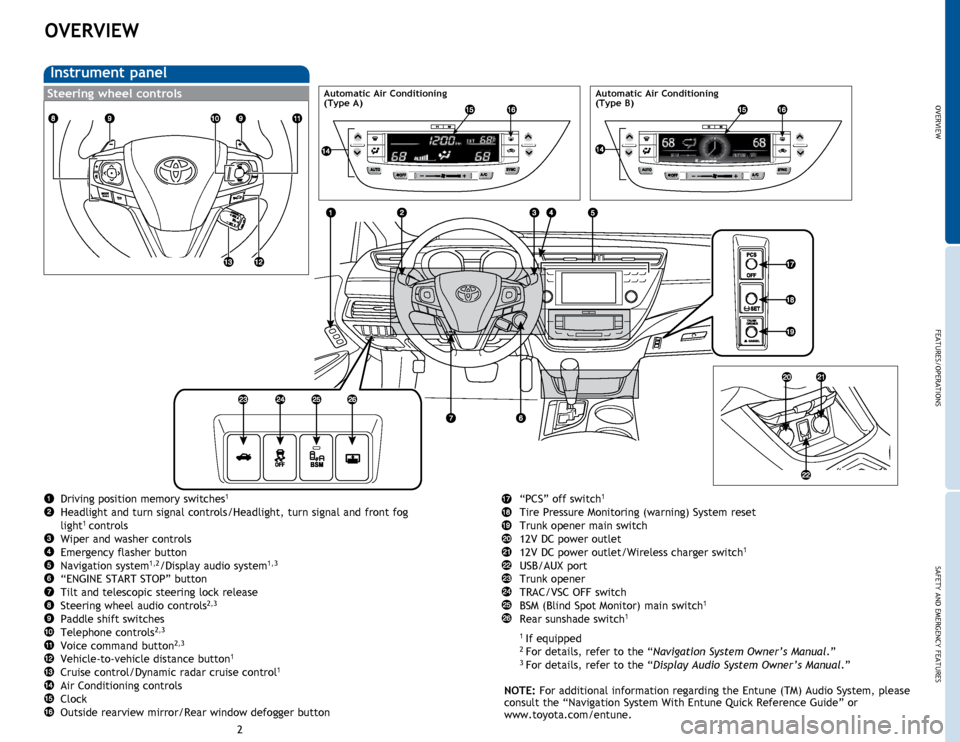

Instrument panel
Driving position memory switches1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Navigation system
1,2/Display audio system1,3
“ENGINE START STOP” button
Tilt and telescopic steering lock release
Steering wheel audio controls
2,3
Paddle shift switches
Telephone controls2,3
Voice command button2,3
Vehicle-to-vehicle distance button1
Cruise control/Dynamic radar cruise control1
Air Conditioning controls
Clock
Outside rearview mirror/Rear window defogger button “PCS” off switch
1
Tire Pressure Monitoring (warning) System reset
Trunk opener main switch
12V DC power outlet
12V DC power outlet/Wireless charger switch
1
USB/AUX port
Trunk opener
TRAC/VSC OFF switch
BSM (Blind Spot Monitor) main switch
1
Rear sunshade switch1
1
If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “Display Audio System Owner’s Manual .”
NOTE: For additional information regarding the Entune (TM) Audio System, please
consult the “Navigation System With Entune Quick Reference Guide” or

www.toyota.com/entune.
Steering wheel controlsAutomatic Air Conditioning
(Type A)Automatic Air Conditioning
(Type B)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
18
Front control panel
Temperature selector (driver side)
Windshield airflow/defogger
Outside rearview mirror/Rear defogger
Temperature selector (passenger side)
Recirculate cabin air (fresh air when OFF)
“SYNC” button
Indicator ON: Synchronized temperature settings for driver, passengers and
rear seat (if equipped).
Indicator OFF: Separate temperature settings for driver and passengers.
Air Conditioning ON/OFF
Fan speed
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Airflow vent


In “
/” mode, use fresh air (“” indicator ON) to reduce
window
fogging.
FEATURES/OPERATIONS
Air Conditioning/HeatingRear control panel (if equipped)
Rear control switch
Rear passenger’s temperature control
Seat ventilators/Heaters (if equipped)
Push knob to pop the controller out.
Turn clockwise for heater, counter-clockwise for ventilator.
Push Turn
With ventilator
Heater only
Push
TurnHeater
OFFVentilator
Type A
Type B

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
20
Steering wheel switches
“ ”
Use to search within a selected audio medium (radio, CD, iPod, etc.), or to
perform certain telephone operations.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Back switch
Returns to the previous screen.vvvv
Volume control
iPod®/USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
FEATURES/OPERATIONS
Audio*1
Touch screen displayPush to display
audio screen
Push to turn
ON/OFFEject CD
Turn to tune
radio stations
manually or
select tracks
or files
Seek station/
CD track select*2*3
*
1 Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
*
2 Display Audio system
*3 Premium Display Audio system
iPod®/USB/AUX port
Open
Clock
H-Hour set
M-Minute set
Type A Type B
BSM (Blind Spot Monitor)(if equipped)
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system uses radar sensors to detect vehicles that are traveling in the area
that is not reflected in the outside rearview mirror (the blind spot), and advises
the driver of the vehicles’ existence via the outside rearview mirror indicator.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
System ON/OFF
