TOYOTA AVALON 2016 XX40 / 4.G Navigation Manual

251
AVA L O N _ N a v i _ U
3. ROUTE GUIDANCE
NAVIGATION SYSTEM
8

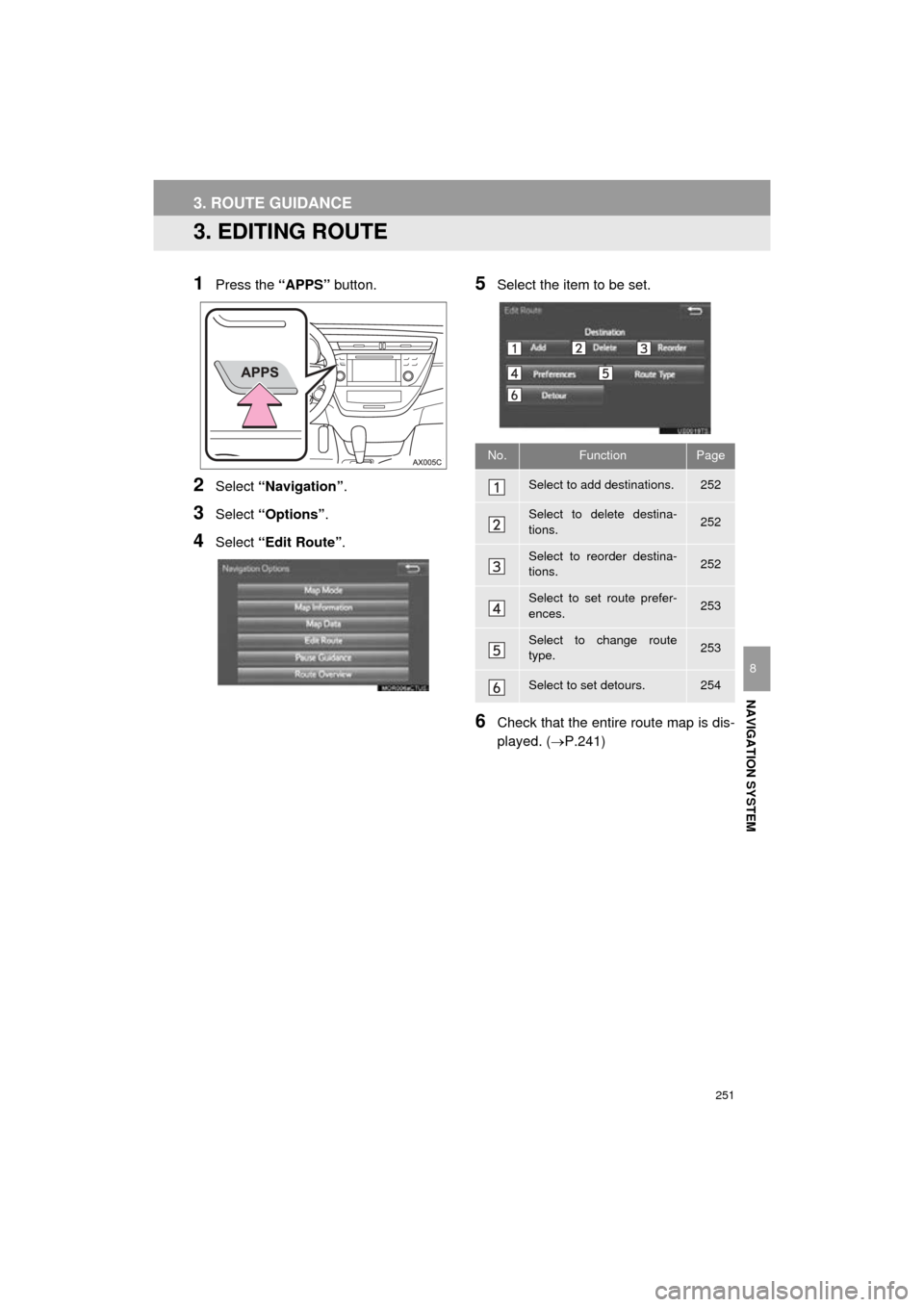

3. EDITING ROUTE
1Press the “APPS” button.
2Select “Navigation” .
3Select “Options” .
4Select “Edit Route” .
5Select the item to be set.
6Check that the entire route map is dis-
played. (P.241)
No.FunctionPage
Select to add destinations.252
Select to delete destina-
tions.252
Select to reorder destina-
tions.252
Select to set route prefer-
ences.253
Select to change route
type.253
Select to set detours.254

252
3. ROUTE GUIDANCE
AVA L O N _ N a v i _ U
1Display the “Edit Route” screen.
(P.251)
2Select “Add”.
3Search for an additional destination in
the same way as a destination search.
(P.229)
4Select “Add Destination Here” to in-
sert the new destination into the route.
1Display the “Edit Route” screen.
(P.251)
2Select “Reorder” .
3Select the desired destination and se-
lect “Move Up” or “Move Down” to
change the arrival order. Then select
“OK” .
1Display the “Edit Route” screen.
(P.251)
2Select “Delete” .
3Select “Yes” when the confirmation
screen appears.
 When more than 1 destination has been
set, a list will be displayed on the screen.
Select the item(s) to be deleted.
“Delete All” : Select to delete all destina-
tions on the list.
 If more than 1 destination has been set,
the system will recalculate the route(s) to
the set destination(s) as necessary.
ADDING DESTINATIONS
REORDERING
DESTINATIONS
When more than 1 destination has
been set, the arrival order of the desti-
nations can be changed.
DELETING DESTINATIONS

253
3. ROUTE GUIDANCE
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
1Display the “Edit Route” screen.
(P.251)
2Select “Preferences” .
3Select the desired route preferences
and select “OK”.
When set to on, the indicator will illumi-
nate.
1Display the “Edit Route” screen.
(P.251)
2Select “Route Type” .
3Select the desired route type.
During driving, the route guidance starts
after selecting the desired route type.
4The entire route from the starting point
to the destination is displayed.
For details about this screen:  P.241
SETTING ROUTE
PREFERENCES
The conditions to determine the route
can be selected from various choices
such as freeways, toll roads, ferries,
etc.
SELECTING ROUTE TYPE

254
3. ROUTE GUIDANCE
AVA L O N _ N a v i _ U
1Display the “Edit Route” screen.
(P.251)
2Select “Detour” .

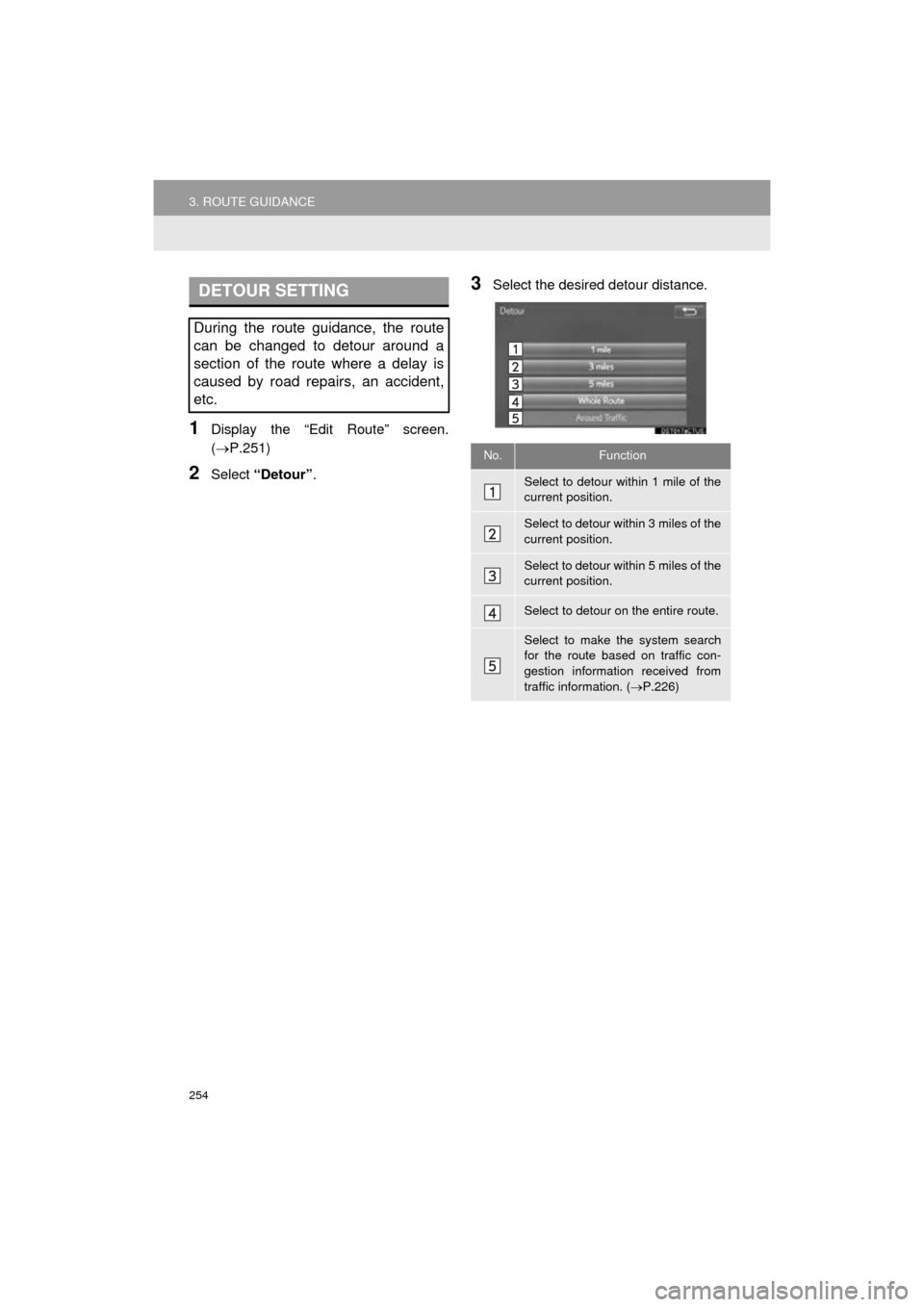

3Select the desired detour distance.DETOUR SETTING
During the route guidance, the route
can be changed to detour around a
section of the route where a delay is
caused by road repairs, an accident,
etc.
No.Function
Select to detour within 1 mile of the
current position.
Select to detour within 3 miles of the
current position.
Select to detour within 5 miles of the
current position.
Select to detour on the entire route.
Select to make the system search
for the route based on traffic con-
gestion information received from
traffic information. ( P.226)

255
3. ROUTE GUIDANCE
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
INFORMATION
●This picture shows an example of how
the system would guide around a delay
caused by a traffic jam.
This position indicates the location of a
traffic jam caused by road repairs, an
accident, etc.
This route indicates the detour sug-
gested by the system.
● When the vehicle is on a freeway, the
detour distance selections are 5, 15 and
25 miles (or 5, 15 and 25 km if units are
in km).
● The system may not be able to calculate
a detour route depending on the
selected distance and surrounding road
conditions.

256
AVA L O N _ N a v i _ U
4. MEMORY POINTS

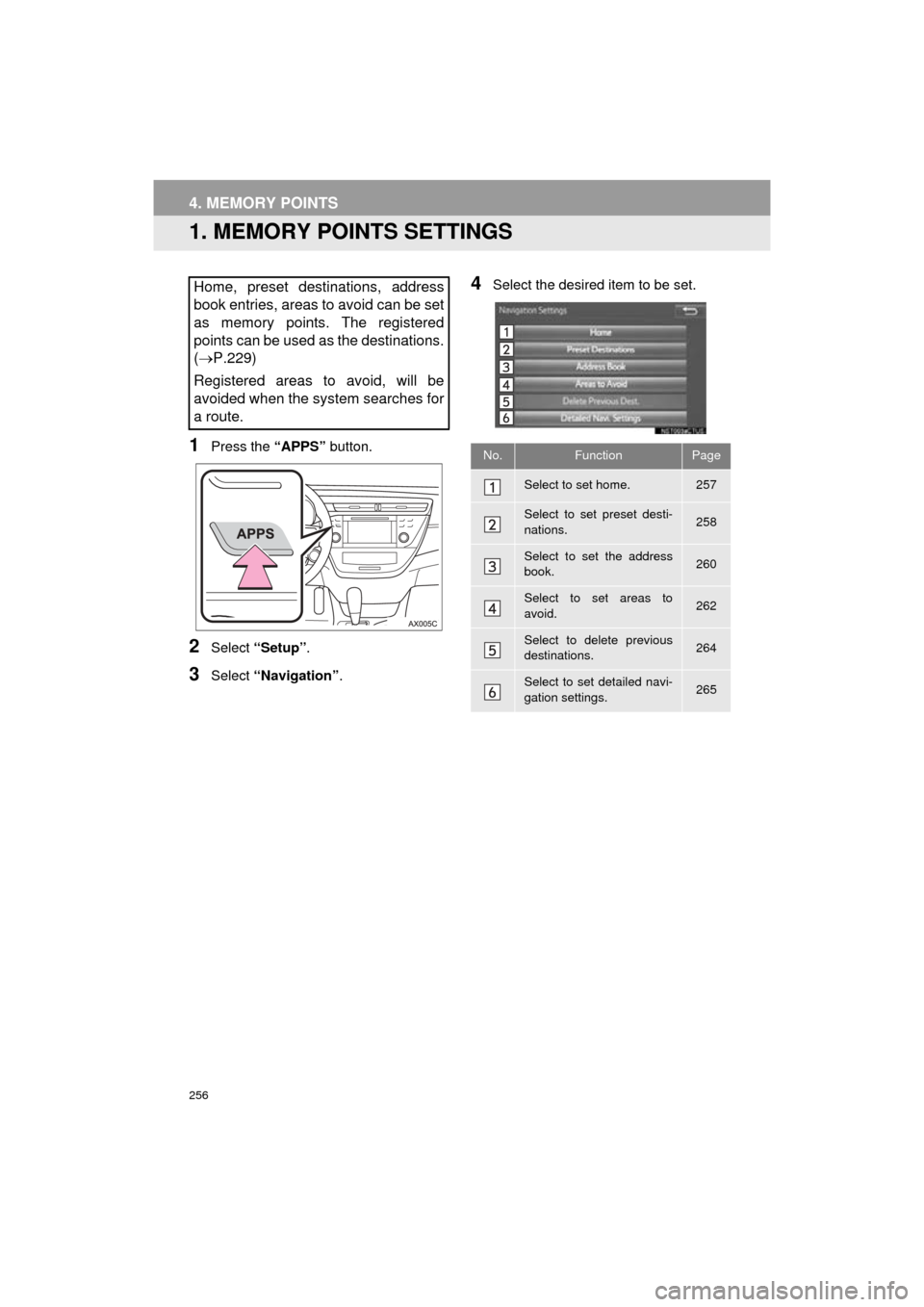

1. MEMORY POINTS SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Navigation” .
4Select the desired item to be set.Home, preset destinations, address
book entries, areas to avoid can be set
as memory points. The registered
points can be used as the destinations.
(P.229)
Registered areas to avoid, will be
avoided when the system searches for
a route.
No.FunctionPage
Select to set home.257
Select to set preset desti-
nations.258
Select to set the address
book.260
Select to set areas to
avoid.262
Select to delete previous
destinations.264
Select to set detailed navi-
gation settings.265

257
4. MEMORY POINTS
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
1Display the “Navigation Settings”
screen. (P.256)
2Select “Home” .
3Select the desired item to be set.
1Select “Set Home” .
2Select the desired item to search for
the location. ( P.229)
3Select “OK” when the editing home
screen appears.
1Select “Edit”.
2Select the desired item to be edited.
3Select “OK”.
1Select “Delete” .
2Select “Yes” when the confirmation
screen appears.

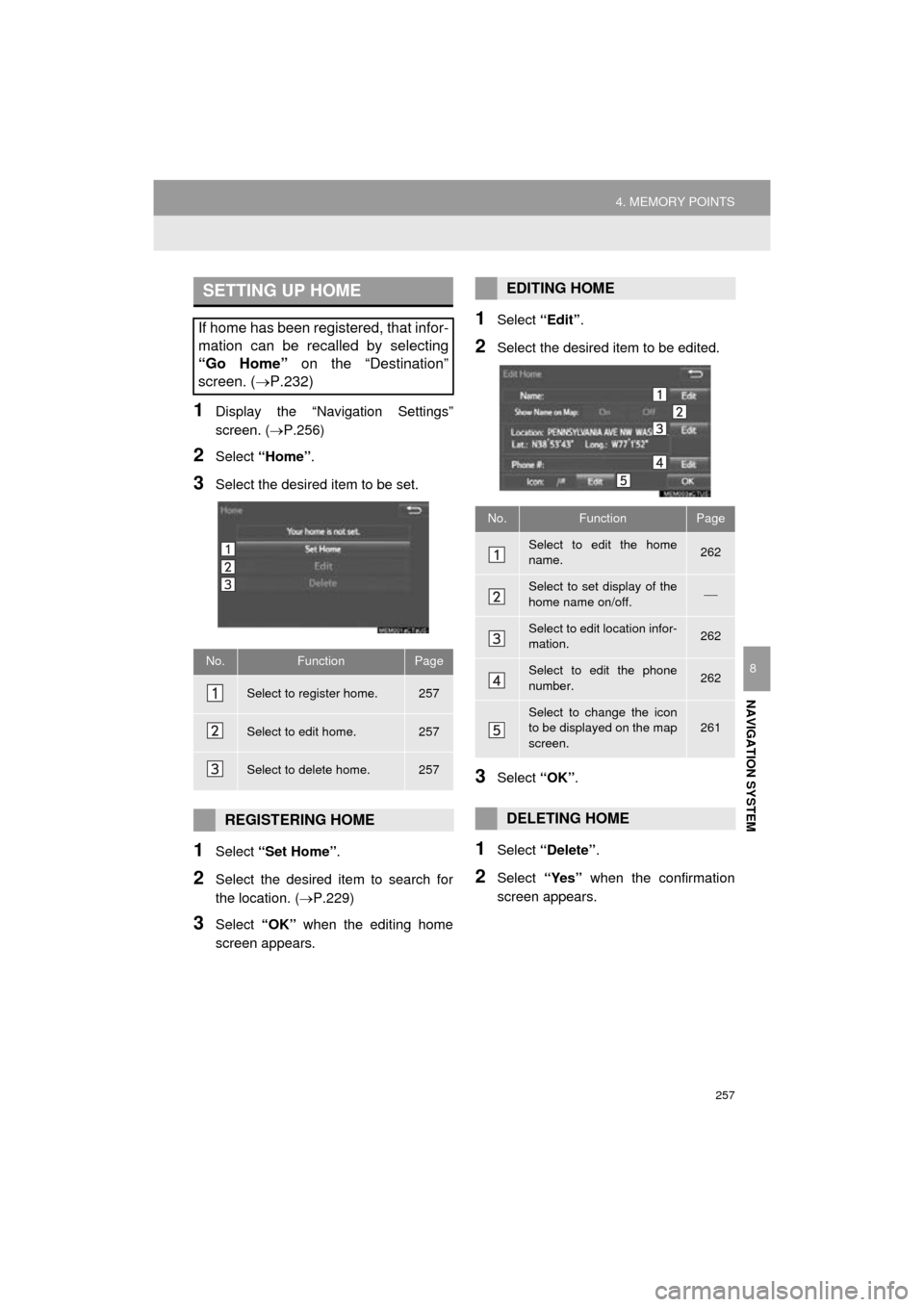

SETTING UP HOME
If home has been registered, that infor-
mation can be recalled by selecting
“Go Home” on the “Destination”
screen. ( P.232)
No.FunctionPage
Select to register home.257
Select to edit home.257
Select to delete home.257
REGISTERING HOME
EDITING HOME
No.FunctionPage
Select to edit the home
name.262
Select to set display of the
home name on/off.
Select to edit location infor-
mation.262
Select to edit the phone
number.262
Select to change the icon
to be displayed on the map
screen.261
DELETING HOME

258
4. MEMORY POINTS
AVA L O N _ N a v i _ U
1Display the “Navigation Settings”
screen. (P.256)
2Select “Preset Destinations” .
3Select the desired item.
1Select “Set”.
2Select the desired item to search for
the location. ( P.229)
3Select a position for this preset desti-
nation.
4Select “OK” when the editing preset
destination screen appears. ( P.259)

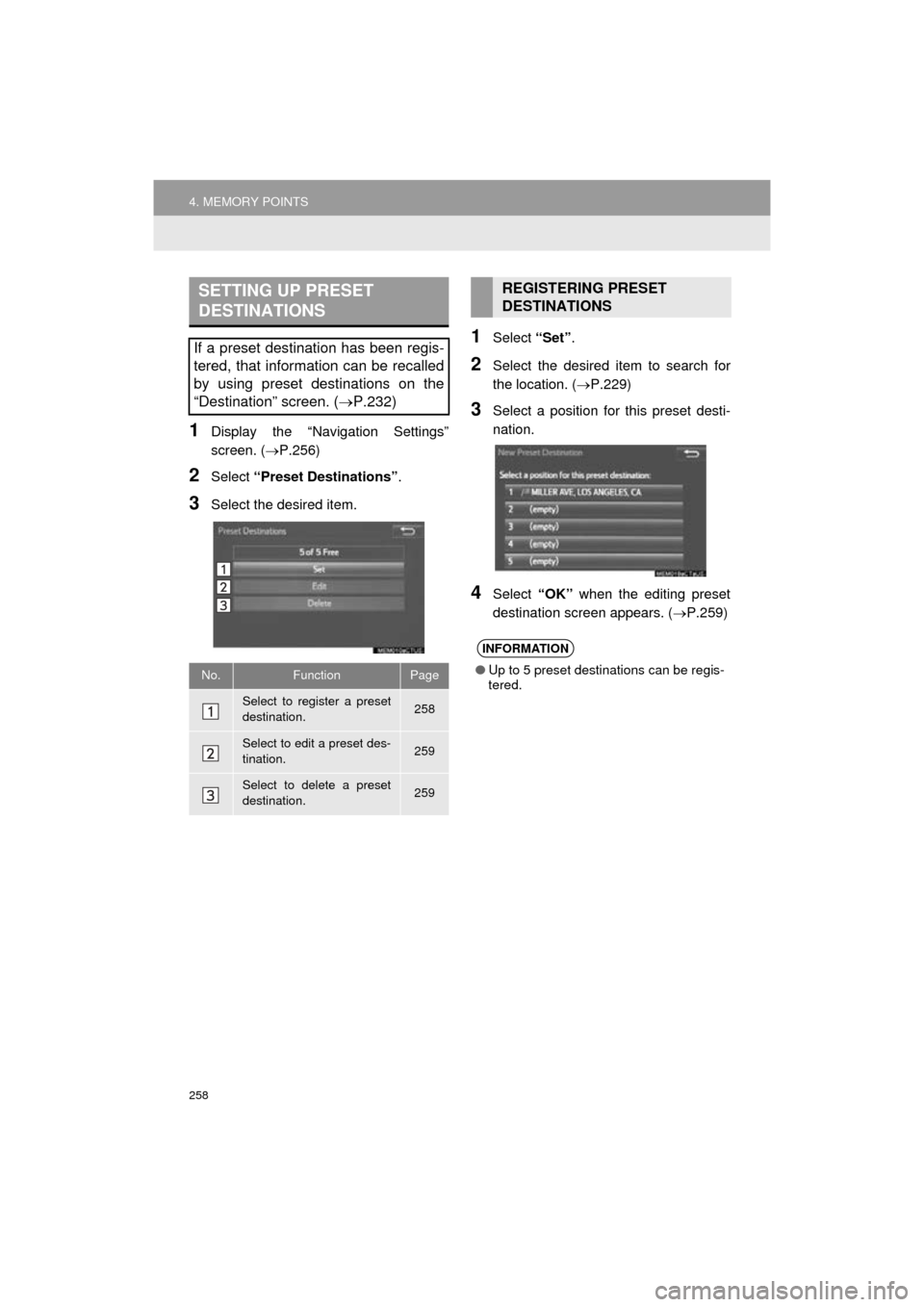

SETTING UP PRESET
DESTINATIONS
If a preset destination has been regis-
tered, that information can be recalled
by using preset destinations on the
“Destination” screen. (P.232)
No.FunctionPage
Select to register a preset
destination.258
Select to edit a preset des-
tination.259
Select to delete a preset
destination.259
REGISTERING PRESET
DESTINATIONS
INFORMATION
●Up to 5 preset destinations can be regis-
tered.

259
4. MEMORY POINTS
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
1Select “Edit”.
2Select the desired preset destination.
3Select the item to be edited.
4Select “OK”.
1Select “Delete” .
2Select the preset destination to be de-
leted and select “Delete”.
3Select “Yes” when the confirmation
screen appears.

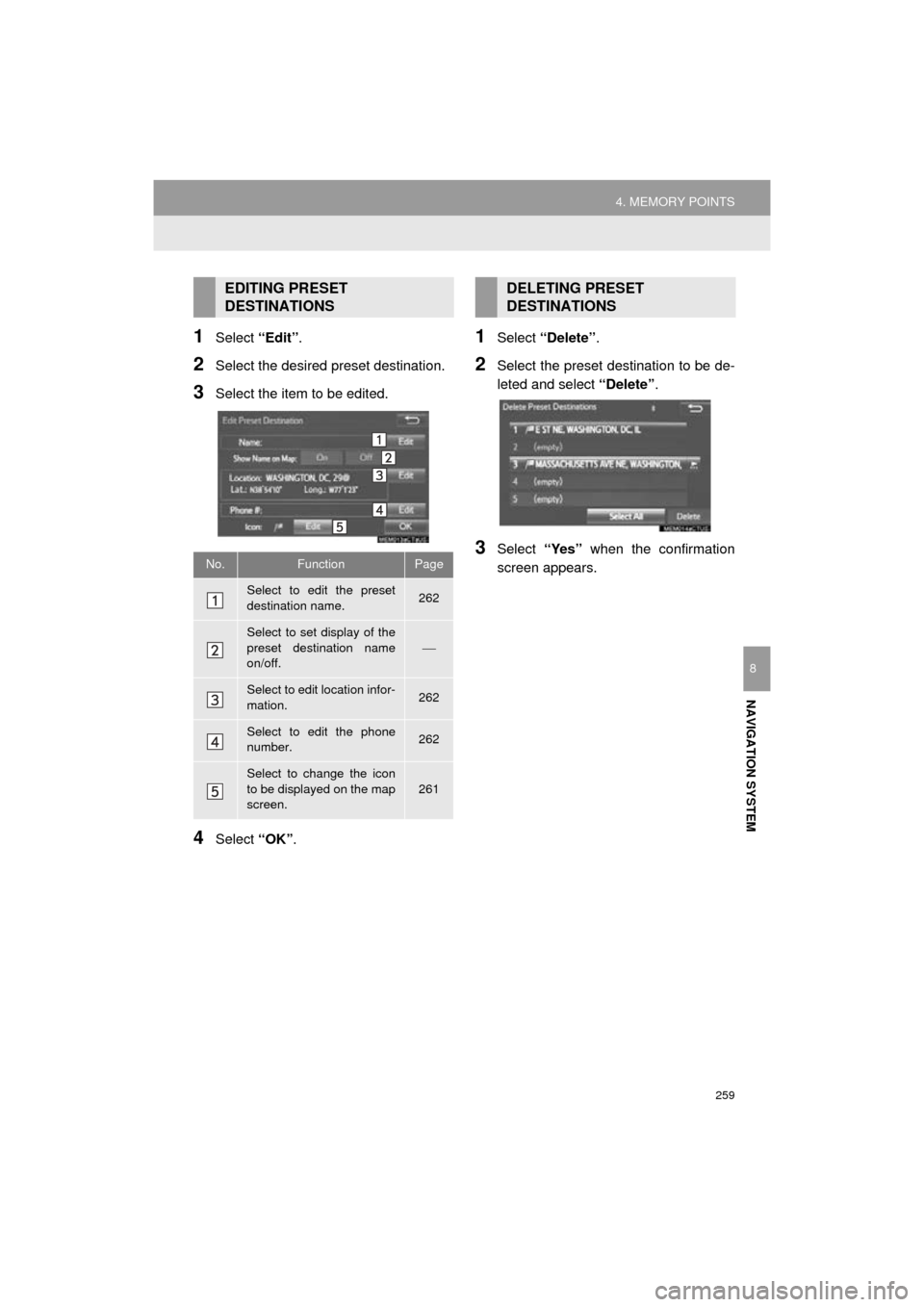

EDITING PRESET
DESTINATIONS
No.FunctionPage
Select to edit the preset
destination name.262
Select to set display of the
preset destination name
on/off.

Select to edit location infor-
mation.262
Select to edit the phone
number.262
Select to change the icon
to be displayed on the map
screen.
261
DELETING PRESET
DESTINATIONS

260
4. MEMORY POINTS
AVA L O N _ N a v i _ U
1Display the “Navigation Settings”
screen. (P.256)
2Select “Address Book” .
3Select the desired item.
1Select “New”.
2Select the desired item to search for
the location. ( P.229)
3Select “OK” when the editing address
book entry screen appears. ( P.260)
1Select “Edit”.
2Select the desired address book entry.
3Select the item to be edited.
4Select “OK”.

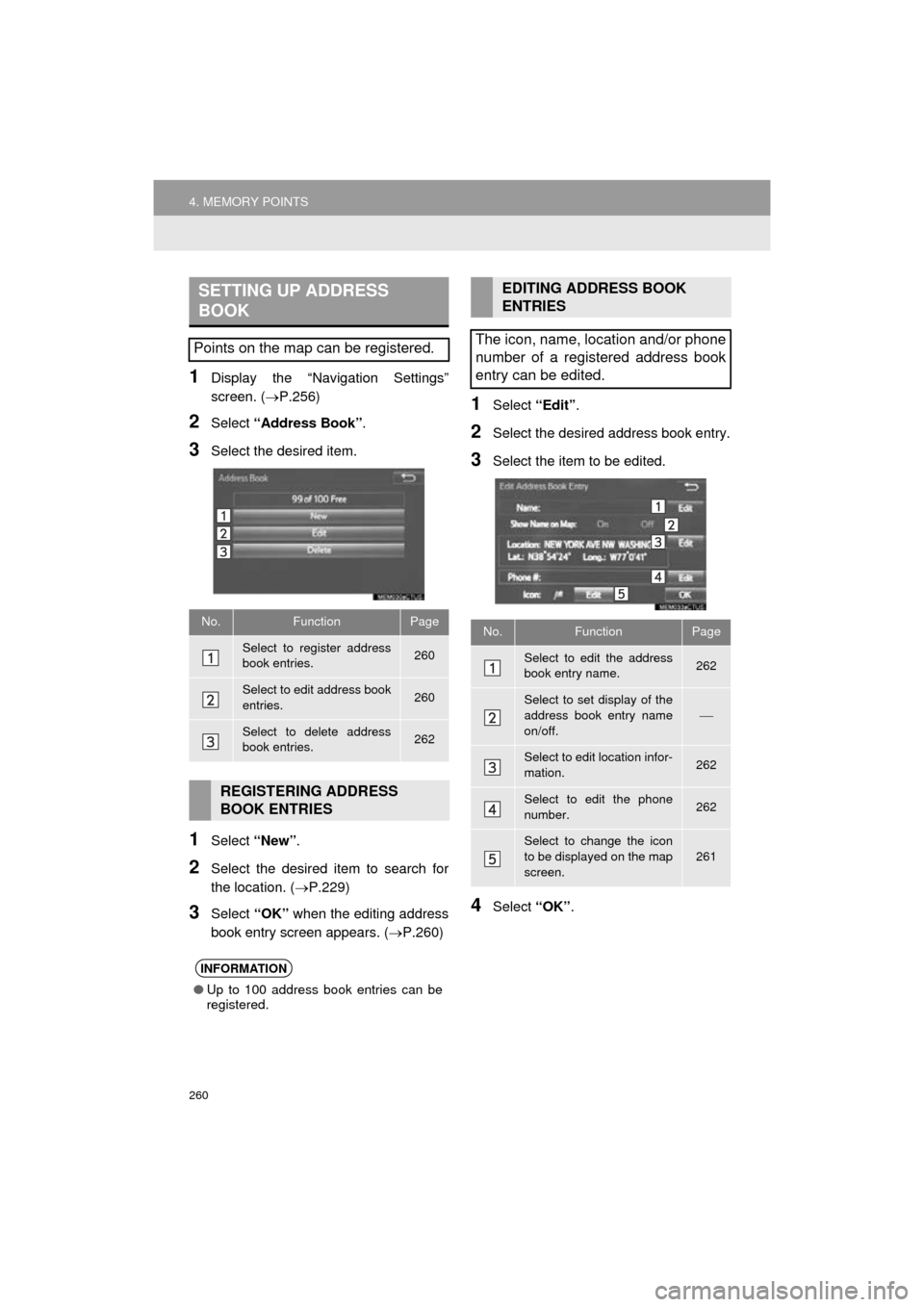

SETTING UP ADDRESS
BOOK
Points on the map can be registered.
No.FunctionPage
Select to register address
book entries.260
Select to edit address book
entries.260
Select to delete address
book entries.262
REGISTERING ADDRESS
BOOK ENTRIES
INFORMATION
●Up to 100 address book entries can be
registered.
EDITING ADDRESS BOOK
ENTRIES
The icon, name, location and/or phone
number of a registered address book
entry can be edited.
No.FunctionPage
Select to edit the address
book entry name.262
Select to set display of the
address book entry name
on/off.

Select to edit location infor-
mation.262
Select to edit the phone
number.262
Select to change the icon
to be displayed on the map
screen.
261
