21Pictorial index
AVALON (U)_(01999-07001)Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 286
Power outlet
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 286
Wireless charger switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 278
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
Air conditioning controls
*1. . . . . . . . . . . . . . . . . . . . . . . . . . P. 258
Rear seat heater switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 274
Driving mode select switches . . . . . . . . . . . . . . . . . . . . . . . P. 246
Seat heater/ven tilator switches
*1. . . . . . . . . . . . . . . . . . . . . P. 267
AUX/USB port
*2
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9

22Pictorial index
AVALON (U)_(01999-07001)Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 138
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 299

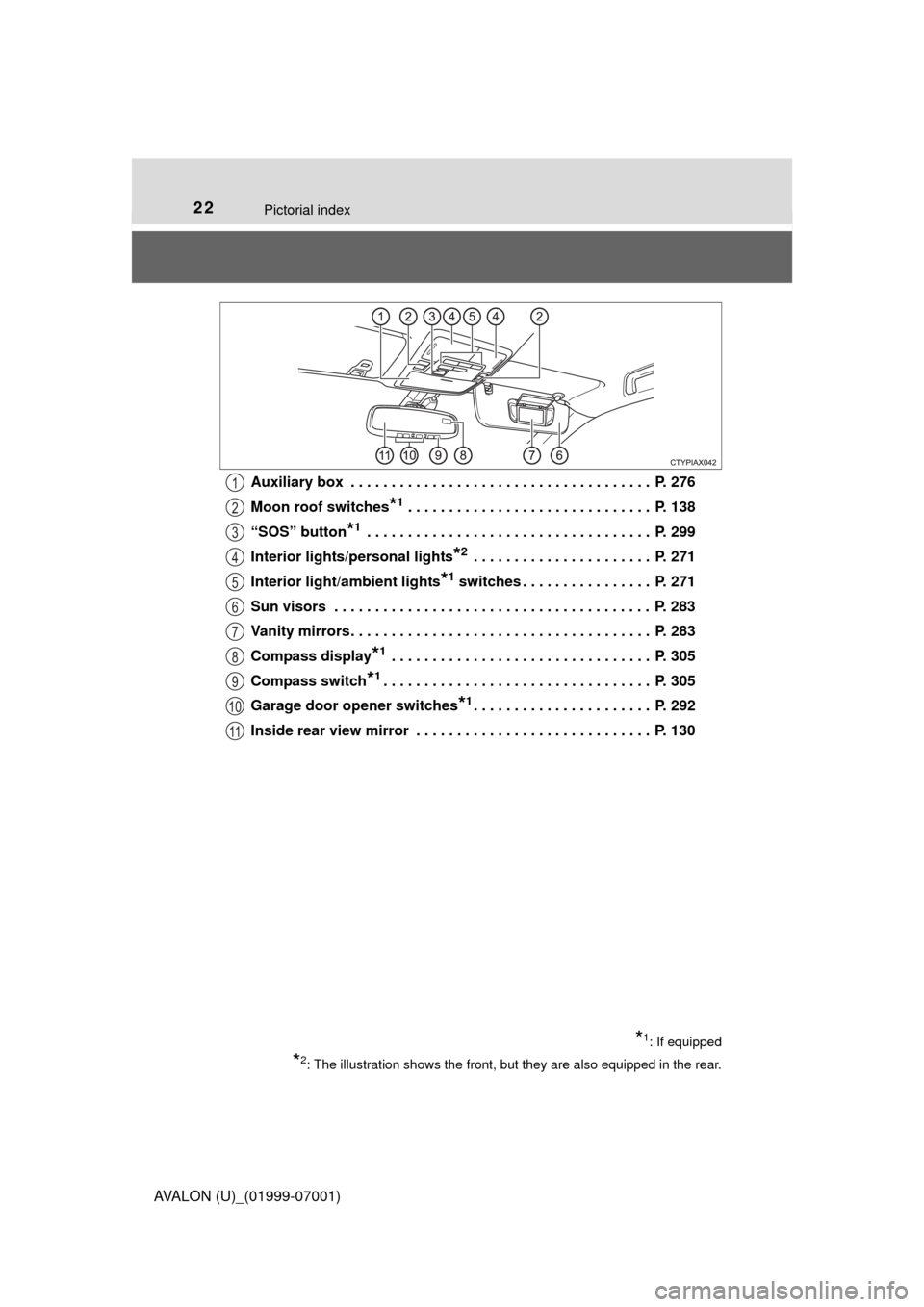

Interior lights/personal lights
*2 . . . . . . . . . . . . . . . . . . . . . . P. 271
Interior light/ambient lights
*1 switches . . . . . . . . . . . . . . . . P. 271
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
Compass display
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
Compass switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 292
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
1
2
3
4
5
6
7
8
9
10
11
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.

23
For safety and security1
AVALON (U)_(01999-07001)1-1. For safe use
Before driving ...................... 24
For safety drive ................... 26
Seat belts ............................ 28
SRS airbags ........................ 34
Front passenger occupant classification system ......... 46
Safety information for children ........................ 52
Child restraint systems........ 53
Installing child restraints...... 57
Exhaust gas precautions ....................... 67
1-2. Theft deterrent system Engine immobilizer system .............................. 68
Alarm................................... 70
Theft prevention labels (U.S.A.) ............................. 72

24
AVALON (U)_(01999-07001)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.

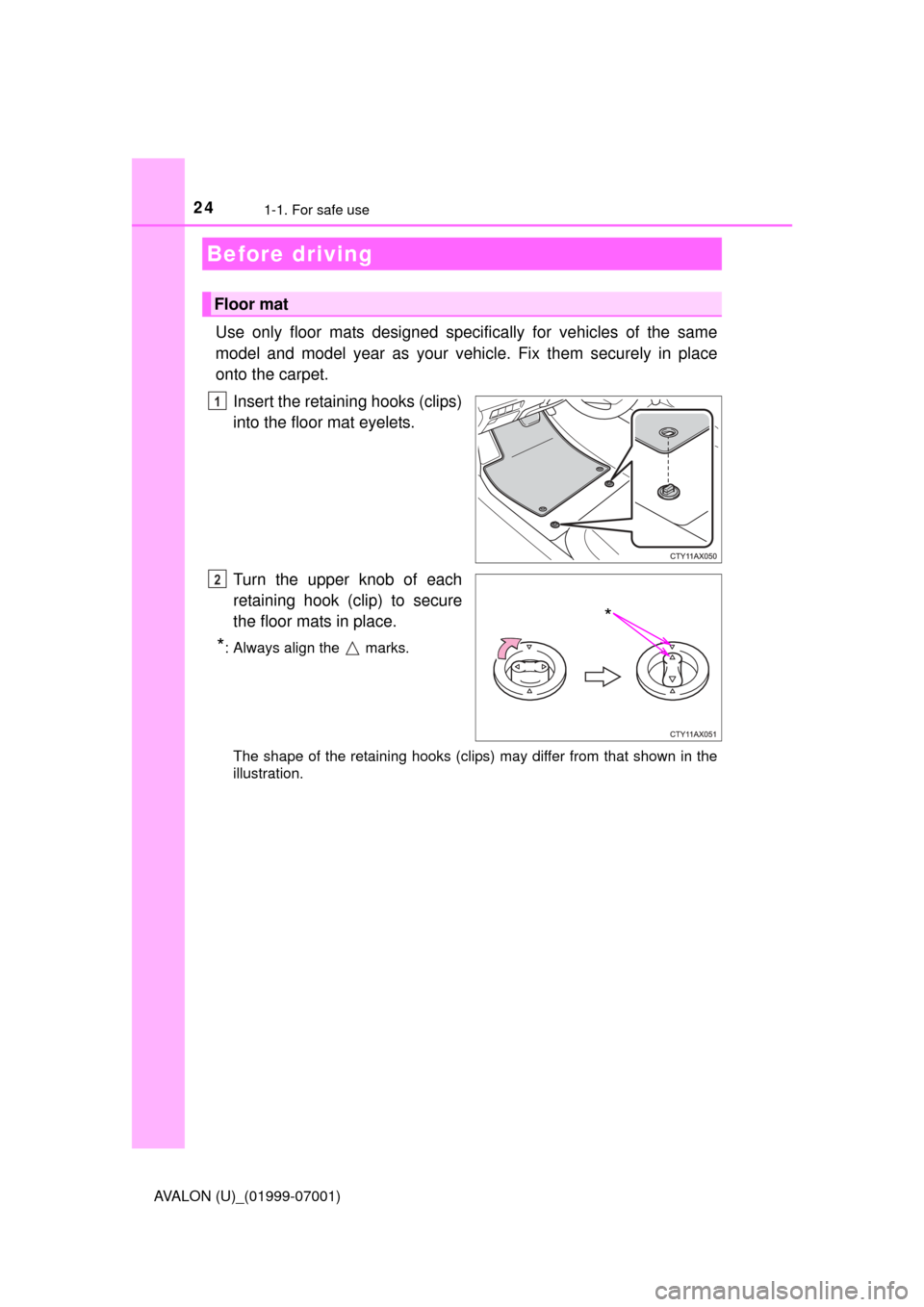

Before driving
Floor mat
1
*
2

251-1. For safe use
1
For safety and security
AVALON (U)_(01999-07001)
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.
CTY11AX052

261-1. For safe use
AVALON (U)_(01999-07001)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 119)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 11 9 )
Adjust the tilt and telescopic positions of the steering wheel down-
ward so the airbag is facing your chest. (P. 128)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 126)
Wear the seat belt correctly. ( P. 2 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 2 8 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(  P. 53)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
5

271-1. For safe use
1
For safety and security
AVALON (U)_(01999-07001)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 130, 132)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

281-1. For safe use
AVALON (U)_(01999-07001)
●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.

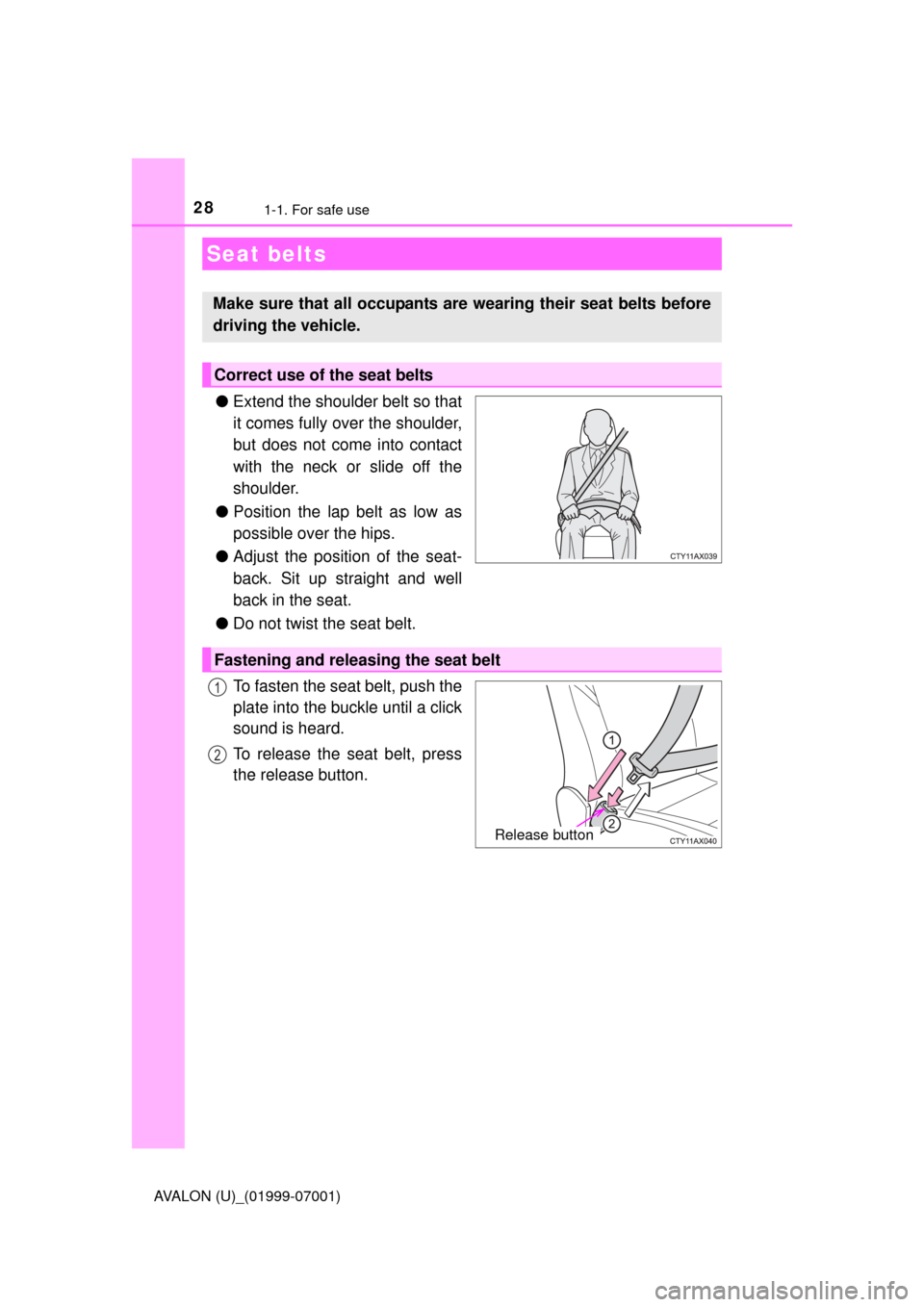

Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2

291-1. For safe use
1
For safety and security
AVALON (U)_(01999-07001)
Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision or a vehicle rollover.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact or a
rear impact.

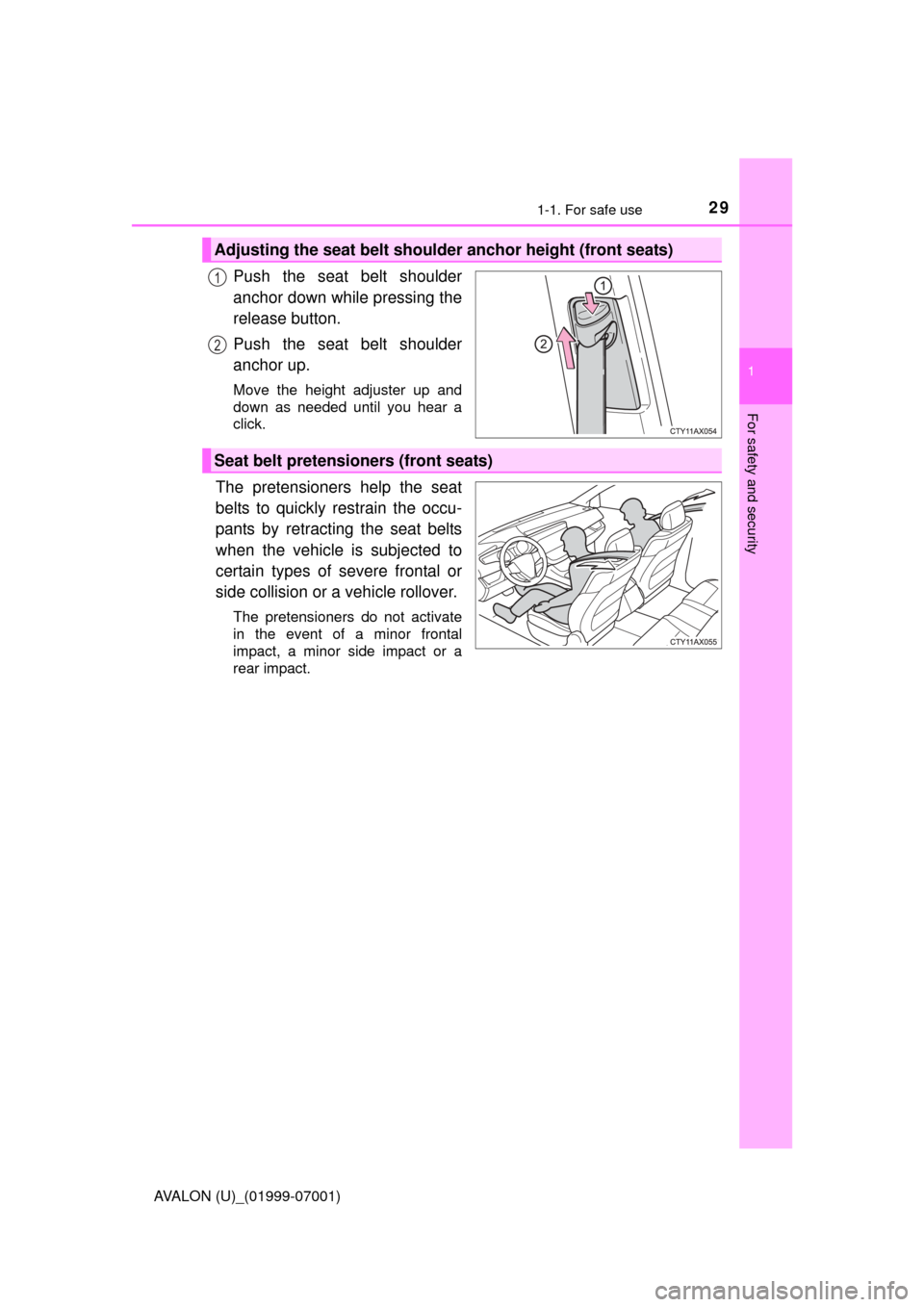

Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt pretensioners (front seats)

301-1. For safe use
AVALON (U)_(01999-07001)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. ( P. 57)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( P. 53)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( P. 28)
■ Replacing the belt after the pr etensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.

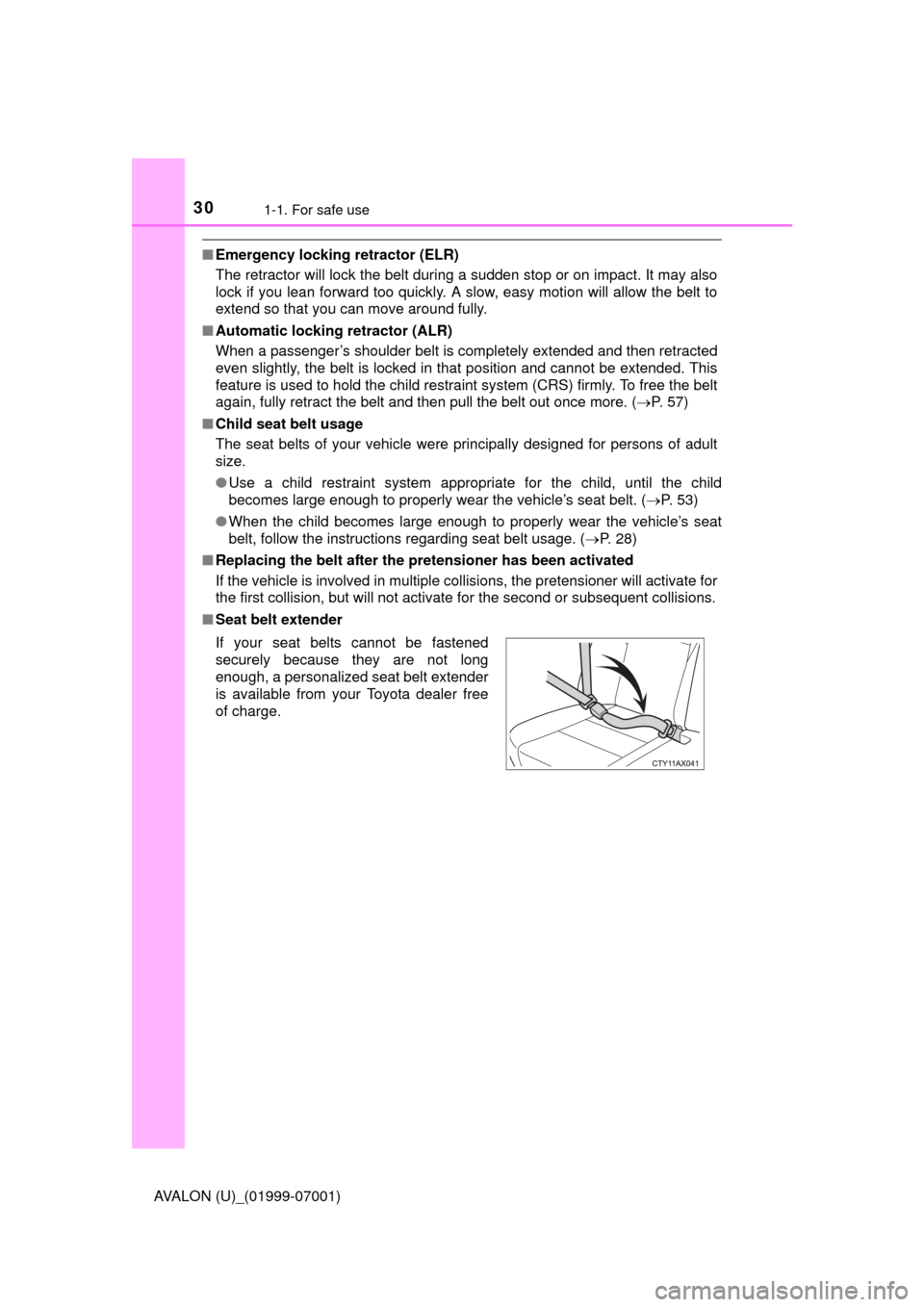

■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt extender
is available from your Toyota dealer free
of charge.
