display TOYOTA AVALON 2016 XX40 / 4.G Quick Reference Guide

27
OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
The LDA function displays when the Multi-Information Display (MID) is
switched to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane
markers on the road are detected. A side flashes orange to alert the driver when
the vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on the
road are not detected or the function is temporarily cancelled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.(2)
Functions
(1)Lane Departure Alert (LDA) indicator
(flashes orange when operating)
LDA function display
Lane

28
TOYOTA SAFETY SENSE
Adjusting Lane Departure Alert (LDA) sensitivity
The driver can adjust the sensitivity of
the LDA (warning) function from the MID
customization screen.
High: Warns before the front tire crosses the
lane marker.
Standard: Warns when the front tire crosses
the lane marker.
The sway warning function can detect swaying based on the vehicle location in
the lane and the driver’s steering wheel operation. To help prevent swaying, the
system alerts the driver using a buzzer sound and a warning displays in the MID.
Sway control function
LDA function
When the system determines that the vehicle might
depart from its lane, a warning is displayed on the MID
and the warning buzzer sounds to alert the driver.
Steering Assist function
When the system determines that the vehicle might
depart from its lane, the system provides assistance
as necessary by operating the steering wheel in small
amounts for a short period of time to keep the vehicle
in its lane.
Vehicle sway warning
When the vehicle is swaying or appears as if it may
depart from its lane multiple times, the warning
buzzer sounds and a message is displayed on the
MID to alert the driver.
When the system determines that the vehicle might depart
from its lane, the system provides assitance as necessary by
operating the steering wheel in small amounts for a short
period of time to keep the vehicle in its lane.
If the system detects that the steering wheel has not been
operated for a fixed amount of time or the steering wheel
is not being firmly gripped, a warning is displayed on the
MID and the warning buzzer sounds.
Steering Assist function

29

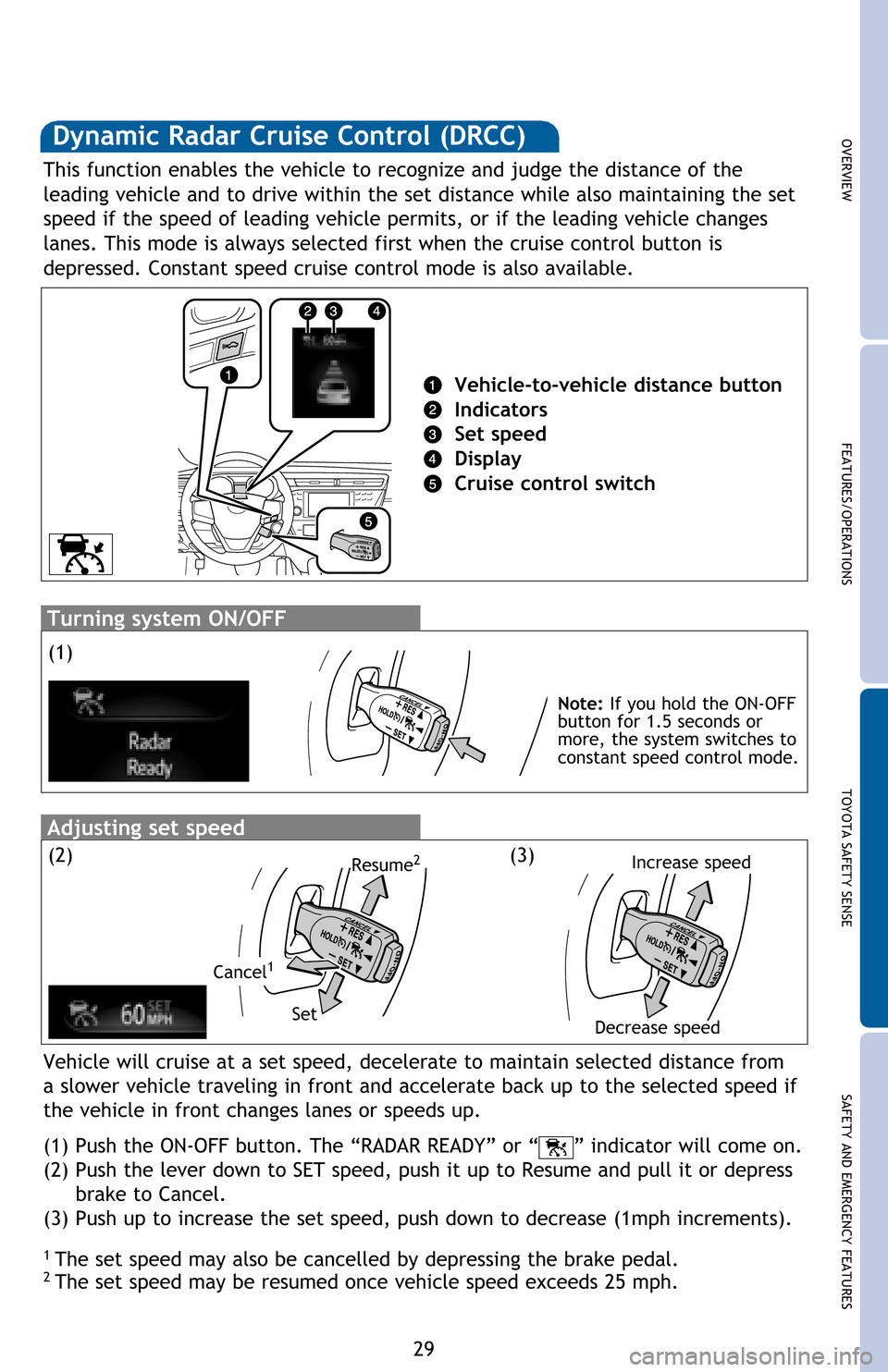

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURESDynamic Radar Cruise Control (DRCC)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
This function enables the vehicle to recognize and judge the distance of the
leading vehicle and to drive within the set distance while also maintaining the set
speed if the speed of leading vehicle permits, or if the leading vehicle changes
lanes. This mode is always selected first when the cruise control button is
depressed. Constant speed cruise control mode is also available.
Increase speed
Decrease speed
Cancel1
Resume2
Set
Vehicle will cruise at a set speed, decelerate to maintain selected distance from
a slower vehicle traveling in front and accelerate back up to the selected speed if
the vehicle in front changes lanes or speeds up.

(1) Push the ON-OFF button. The “RADAR READY” or “
” indicator will come on.
(2) Push the lever down to SET speed, push it up to Resume and pull it or depress
brake to Cancel.
(3) Push up to increase the set speed, push down to decrease (1mph increments).
Adjusting set speed
(2) (3)
Turning system ON/OFF
(1)
Note: If you hold the ON-OFF
button for 1.5 seconds or
more, the system switches to
constant speed control mode.
Vehicle-to-vehicle distance button
Indicators
Set speed
Display
Cruise control switch

31

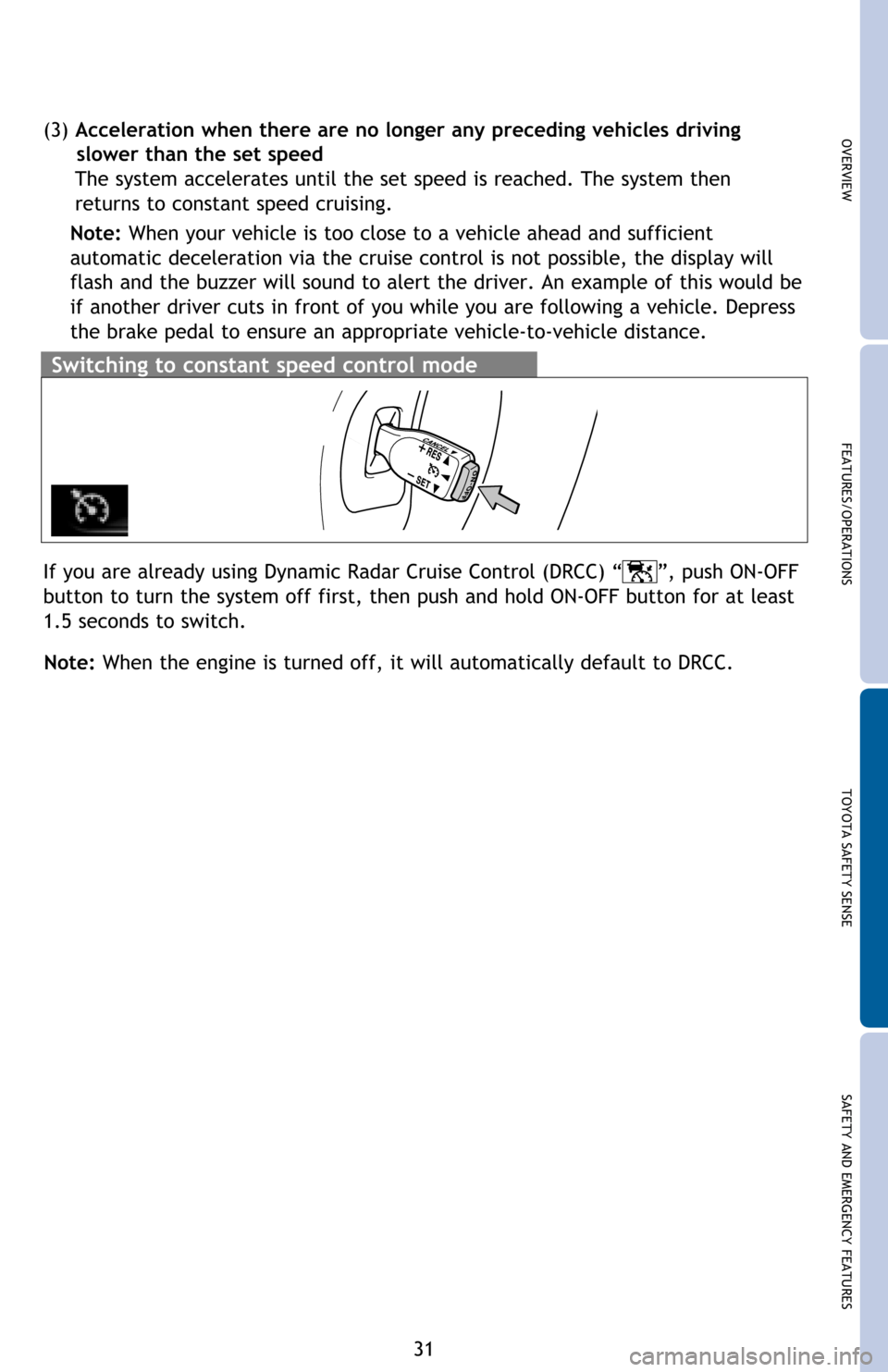

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
Switching to constant speed control mode
(3) Acceleration when there are no longer any preceding vehicles driving
slower than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Note: When your vehicle is too close to a vehicle ahead and sufficient
automatic deceleration via the cruise control is not possible, the display will
flash and the buzzer will sound to alert the driver. An example of this would be
if another driver cuts in front of you while you are following a vehicle. Depress
the brake pedal to ensure an appropriate vehicle-to-vehicle distance.
Note: When the engine is turned off, it will automatically default to DRCC. If you are already using Dynamic Radar Cruise Control (DRCC) “
”, push ON-OFF
button to turn the system off first, then push and hold ON-OFF button for at least
1.5 seconds to switch.

34
SAFETY AND EMERGENCY FEATURES
Push up, or squeeze
lock release to lower
System reset initialization
1. Push and hold “
SET” button until
the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete. The tire pressure detected by the
tire pressure warning system can
be displayed on the Multi-Information
Display.
Seat belts-Shoulder belt anchor
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the “ENGINE START STOP” switch to IGNITION ON mode and press and hold the
“
SET” button until indicator blinks three times. Let the vehicle sit for a few
minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the light.
