Page 3 of 52

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Ownerâs Manual for instructions and more
information.
3 HomeLinkÂŽ is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel/
Change trip meter display 8
Smart Key system
1,2 7
OVERVIEW
FEATURES/OPERATIONS
TOYOTA SAFETY SENSE
SAFETY AND EMERGENCY FEATURES
Air conditioning/heating 18-19
Audio 20
Auto lock/unlock
2 10
Automatic transmission 10
Blind Spot Monitor (BSM) with
Rear Cross Traffic Alert function 21
Bluetooth
ÂŽ device
pairing section 39-48
Clock 20
Cruise control 16
Cup holders 22
Driving mode select 11
Garage door opener (HomeLink
ÂŽ)3 16
Lights1 & turn signals 15
Moon roof 12
Multi-Information Display (MID)
2 13
Parking brake 10
Power outlets-12V DC 17
Seat adjustments-Front 13
Seat ventilators/heaters 19
Seats-Head restraints 12
Steering lock release 11
Steering wheel switches 20
Tilt and telescopic steering wheel 11
Traction control (TRAC) OFF 16
USB/AUX port 21
Windows-Power 12
Windshield wipers & washers 14
Wireless charger 22
Auto High Beams (AHB) 32
Dynamic Radar Cruise Control
(DRCC) 29-31
Lane Departure Alert (LDA)
with Steering Assist function 26-28
Pedestrian Detection Function 25
Pre-Collision System (PCS) 24-25
Quick overview-
Toyota Safety Sense P 23
Sensors 23
Door locks 33
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 34
Spare tire & tools 35
Star Safety System
TM 36-37
Tire Pressure Monitoring
(warning) System (TPMS) 34
Trunk-Internal release 35
Page 16 of 52

14

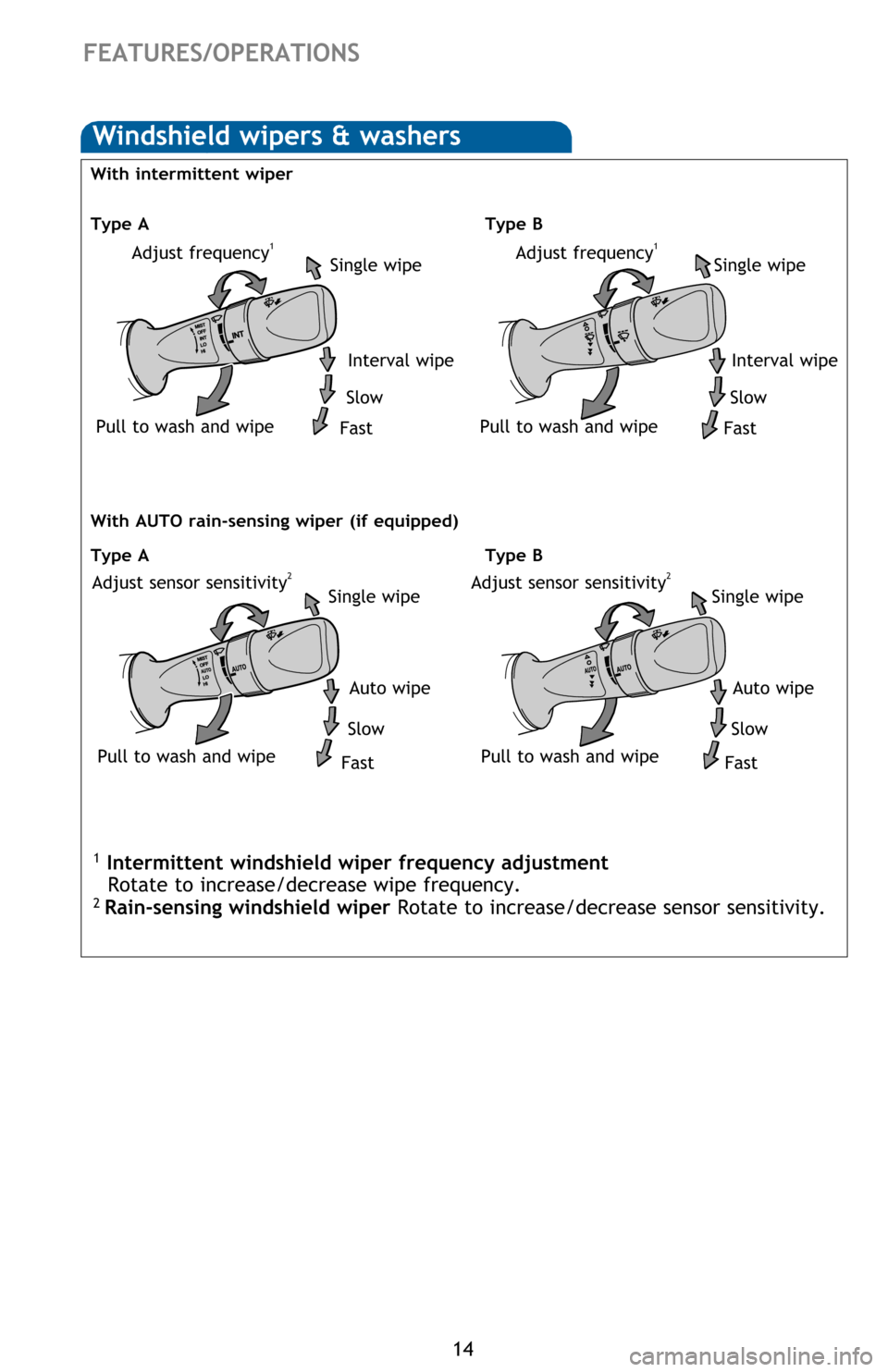

Windshield wipers & washers
Adjust sensor sensitivity2Adjust sensor sensitivity2
Pull to wash and wipe Pull to wash and wipe
Single wipeSingle wipe
Auto wipeAuto wipe
SlowSlow
FastFast
FEATURES/OPERATIONS
1 Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
With intermittent wiper
Type A
Type AType B
Type B With AUTO rain-sensing wiper (if equipped)
Pull to wash and wipe Pull to wash and wipe
Single wipeSingle wipe
Interval wipeInterval wipe
SlowSlow
FastFast Adjust frequency
1Adjust frequency1
Page 23 of 52

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
21 USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicleâs speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicleâs speaker system while in AUX mode.
USB/AUX port
Open
Blind Spot Monitor (BSM) with Rear Cross
Traffic Alert function (if equipped)
System ON/OFF
The Blind Spot Monitor is a system that has two functions:
⢠The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
⢠The Rear Cross Traffic Alert function (assists the driver when backing up)
The system uses radar sensors to detect vehicles that are traveling in certain areas
that are not reflected in the outside rearview mirror (the blind spot), and advises
the driver of the vehiclesâ presence via the outside rearview mirror indicator.
Refer to the Ownerâs Manual for more details on this system before attempting
to use it.
Page 25 of 52

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
23
Quick overview-Toyota Safety Sense P
(If equipped)
Toyota Safety Sense (TSS) P is a set of active safety technologies designed to
help prevent or mitigate collisions across a wide range of traffic situations. TSS
is designed to help support the driverâs awareness, decision making and vehicle
operation contributing to a safe and comfortable driving experience.
TOYOTA SAFETY SENSE
Pre-Collision System (PCS)
Provides collision avoidance or damage mitigation support in
speed ranges where rear end collisions are likely to occur.
Lane Departure Alert (LDA)
Provides notification regarding the risk of unintended
lane departure.
Auto High Beams (AHB)
Vehicle detects lights of leading or opposing vehicles and
automatically changes between high and low beam headlight
settings.
Pedestrian Detection Function
Advanced sensor system helps to recognize pedestrians and
provide collision avoidance support and/or damage mitigation.
Dynamic Radar Cruise Control (DRCC)
The distance control mode will cruise at a set speed, decelerate
to maintain a selected distance from a slower vehicle traveling in
front of you and accelerate back up to the selected speed if the
vehicle in front changes lanes or speeds up.
Refer to the Ownerâs Manual for more details to understand these functions
and complete safety precautions before attempting to use any of TOYOTA
SAFETY SENSE P functions.
Sensors
Two types of sensors, located behind the front grille and windshield, detect
information necessary to operate the drive assist systems. The single-lens camera
in front of inside rear view mirror detects and recognizes shapes and white or
yellow lane markings.
Radar sensor
Camera sensor
Page 26 of 52

24
TOYOTA SAFETY SENSE
Pre-Collision System (PCS)
The Pre-Collision System uses a radar sensor and camera sensor to help detect
vehicles and pedestrians in front of your vehicle. If the system determines that
the possibility of a frontal collision with a vehicle or pedestrian is high, the system
warns the driver to take evasive action while the potential brake pressure is
increased to help the driver avoid collision or reduce the impact to the vehicle and
itâs occupants.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The
system can be disabled/enabled and the warning timing of the system can be
changed.
Pre-collision warning
When the system determines that the possibility of a frontal collision is high,
a buzzer will sound and a warning message will be displayed on the Multi-
Information Display (MID) to urge the driver to take evasive action.
Pre-collision brake assist
When the system determines that the possibility of a frontal collision is high, the
system applies greater braking force in relation to how strongly the brake pedal is
depressed.
Pre-collision braking
When the system determines that the possibility of a frontal collision is high, the
system warns the driver. If the system determines that the possibility of a collision
is extremely high, the brakes are automatically applied to help avoid the collision
or reduce the collision speed.
Changing the pre-collision warning timing
Each time the PCS switch is pressed,
the response to the warning distance
changes as follows:
Far
Middle
Near
Page 27 of 52

25
OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
Disabling the Pre-Collision System (PCS)
To disable the system
Press the PCS switch for 3 seconds or more.
The PCS warning light will turn on and a message will be displayed on the Multi-
Information Display (MID).
To enable the system
Press the PCS switch again.
The system is enabled each time the engine switch is turned to IGNITION ON mode.
Monocular camera sensor
Millimeter wave radar
As part of PCS, this function is also designed to first provide an alert and then
automatic braking if needed.
Pedestrian Detection Function
The Pre-Collision System also features a pedestrian detection function. Using
a millimeter wave radar and monocular camera sensor, this advanced sensor
system can recognize pedestrians in some circumstances. It may provide detection
capability while driving at low as well as higher speeds.
Page 28 of 52

26
TOYOTA SAFETY SENSE
The Lane Departure Alert system recognizes visible white or yellow lane markers
via a camera sensor. The system alerts the driver with a warning buzzer sound
and message in the Multi-Information Display (MID) when it detects the vehicle
deviating from or swaying multiple times within its lane.
Lane Departure Alert (LDA) with Steering
Assist function
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF)
when the engine is started again.
Turning on the LDA system
Page 32 of 52

30
TOYOTA SAFETY SENSE
(1) (2) (3) To change the vehicle-to-
vehicle distance
Push the â
â button on
steering wheel to cycle through
the settings, which will change
progressively from:
LONG (default setting)
MIDDLE
SHORT.
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 400ft (120m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a suitable following distance from the
vehicle ahead.
Preceding
vehicle markSteering wheel
switch
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle distance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead in
order to maintain the vehicle-to-vehicle distance set by the driver. A warning
tone warns you when the system cannot decelerate sufficiently to prevent your
vehicle from closing in on the vehicle ahead. Note: Vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
Adjusting distance
Page 38 of 52

36
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyotaâs VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by âpulsingâ brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyotaâs ABS sensors detect which wheels are locking up and limits wheel lockup
by âpulsingâ each wheelâs brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or âpanicâ braking, and then add braking
pressure to help decrease the vehicleâs stopping distance. When thereâs only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyotaâs TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyotaâs ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
SAFETY AND EMERGENCY FEATURES
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
