wheel TOYOTA AVALON 2016 XX40 / 4.G Quick Reference Guide

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel/
Change trip meter display 8
Smart Key system
1,2 7
OVERVIEW
FEATURES/OPERATIONS
TOYOTA SAFETY SENSE
SAFETY AND EMERGENCY FEATURES
Air conditioning/heating 18-19
Audio 20
Auto lock/unlock
2 10
Automatic transmission 10
Blind Spot Monitor (BSM) with
Rear Cross Traffic Alert function 21
Bluetooth
® device
pairing section 39-48
Clock 20
Cruise control 16
Cup holders 22
Driving mode select 11
Garage door opener (HomeLink
®)3 16
Lights1 & turn signals 15
Moon roof 12
Multi-Information Display (MID)
2 13
Parking brake 10
Power outlets-12V DC 17
Seat adjustments-Front 13
Seat ventilators/heaters 19
Seats-Head restraints 12
Steering lock release 11
Steering wheel switches 20
Tilt and telescopic steering wheel 11
Traction control (TRAC) OFF 16
USB/AUX port 21
Windows-Power 12
Windshield wipers & washers 14
Wireless charger 22
Auto High Beams (AHB) 32
Dynamic Radar Cruise Control
(DRCC) 29-31
Lane Departure Alert (LDA)
with Steering Assist function 26-28
Pedestrian Detection Function 25
Pre-Collision System (PCS) 24-25
Quick overview-
Toyota Safety Sense P 23
Sensors 23
Door locks 33
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 34
Spare tire & tools 35
Star Safety System
TM 36-37
Tire Pressure Monitoring
(warning) System (TPMS) 34
Trunk-Internal release 35

2
OVERVIEW
Instrument panel
Steering wheel audio controls2
Paddle shift switches
Telephone controls2
Voice command button2
Trip information DISP button
Dynamic Radar Cruise Control (DRCC) vehicle-to-vehicle distance button1
Dynamic Radar Cruise Control (DRCC) or Cruise control switch
Air conditioning controls
Clock
Outside rearview mirror/Rear window defogger button
Driving position memory switches
1
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Entune navigation system
2 or Entune audio system2
Tire Pressure Monitoring (warning) System reset button
Steering wheel controlsAutomatic Air Conditioning
(Type A)

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
11
Steering lock release
Turn
Push
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Gently turn steering wheel while pressing the “ENGINE START STOP” switch. If
the lock does not release, a message informing the driver that the steering wheel
is locked will be displayed on the Multi-Information Display (MID).
Angle
Length

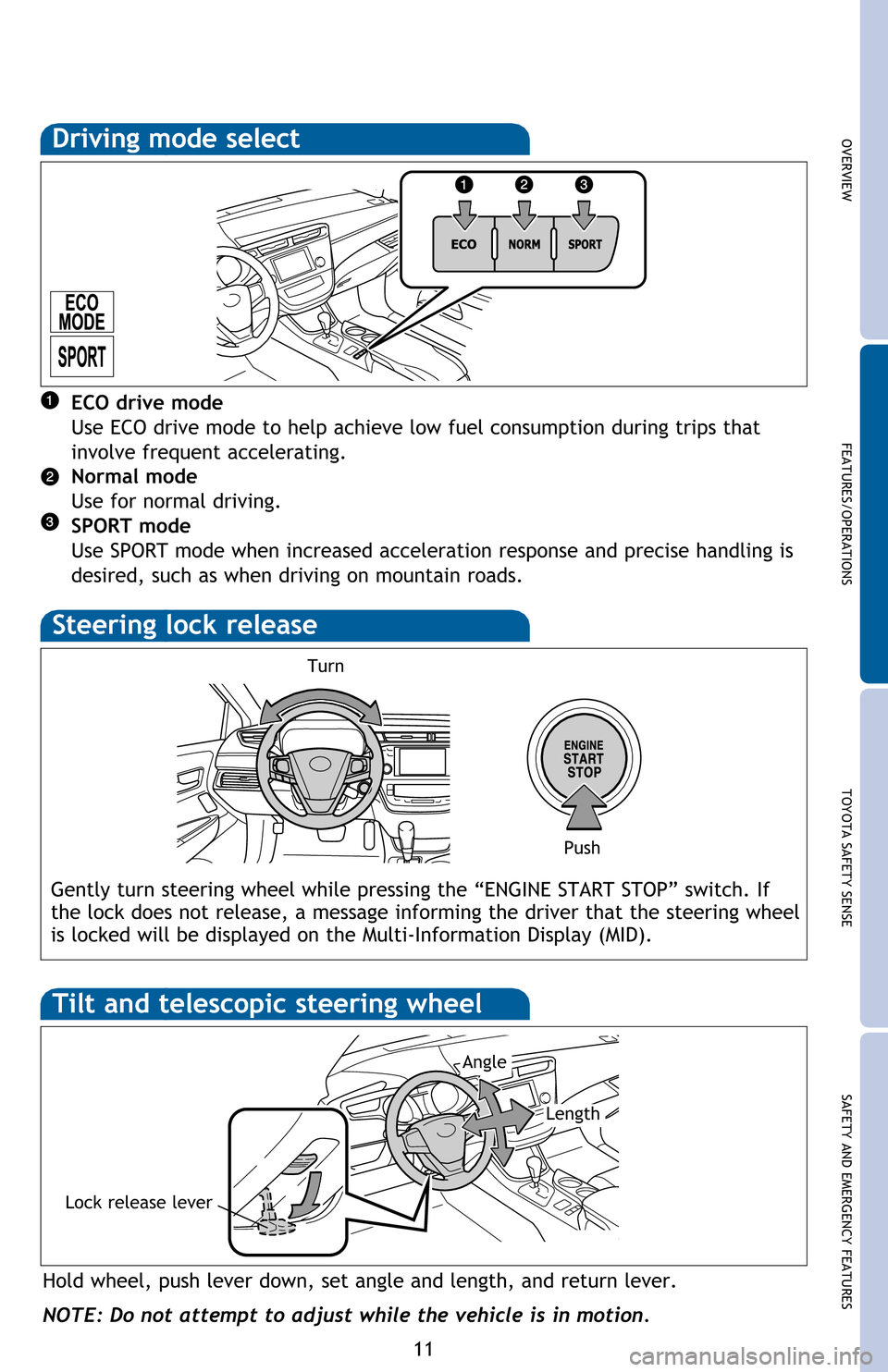

Driving mode select
ECO drive mode
Use ECO drive mode to help achieve low fuel consumption during trips that
involve frequent accelerating.
Normal mode
Use for normal driving.
SPORT mode
Use SPORT mode when increased acceleration response and precise handling is
desired, such as when driving on mountain roads.

20
Steering wheel switches
“ ”
Use to search within a selected audio medium (radio, CD, etc.), or to perform
certain telephone operations.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Back switch
Returns to the previous screen.vvvv
Volume control
FEATURES/OPERATIONS
Audio*
Touch screen displayPush to access
audio screen
Push to turn
ON/OFFEject CD
Turn to tune radio stations
manually or select tracks
or files Only available for
Entune™ Premium
(JBL®) AudioPush to access
Bluetooth hands-free system
Seek
station/
CD track
select Push to access
HOME screen
Push to access
APP screen
* For details, refer to the “Navigation System Owner’s Manual” and “2016
Entune™ Audio Quick Reference Guide.”
Clock
H-Hour set
M-Minute set
Type A
Type B
Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
Entune™ Audio Plus with Connected Navigation App

28
TOYOTA SAFETY SENSE
Adjusting Lane Departure Alert (LDA) sensitivity
The driver can adjust the sensitivity of
the LDA (warning) function from the MID
customization screen.
High: Warns before the front tire crosses the
lane marker.
Standard: Warns when the front tire crosses
the lane marker.
The sway warning function can detect swaying based on the vehicle location in
the lane and the driver’s steering wheel operation. To help prevent swaying, the
system alerts the driver using a buzzer sound and a warning displays in the MID.
Sway control function
LDA function
When the system determines that the vehicle might
depart from its lane, a warning is displayed on the MID
and the warning buzzer sounds to alert the driver.
Steering Assist function
When the system determines that the vehicle might
depart from its lane, the system provides assistance
as necessary by operating the steering wheel in small
amounts for a short period of time to keep the vehicle
in its lane.
Vehicle sway warning
When the vehicle is swaying or appears as if it may
depart from its lane multiple times, the warning
buzzer sounds and a message is displayed on the
MID to alert the driver.
When the system determines that the vehicle might depart
from its lane, the system provides assitance as necessary by
operating the steering wheel in small amounts for a short
period of time to keep the vehicle in its lane.
If the system detects that the steering wheel has not been
operated for a fixed amount of time or the steering wheel
is not being firmly gripped, a warning is displayed on the
MID and the warning buzzer sounds.
Steering Assist function

30
TOYOTA SAFETY SENSE

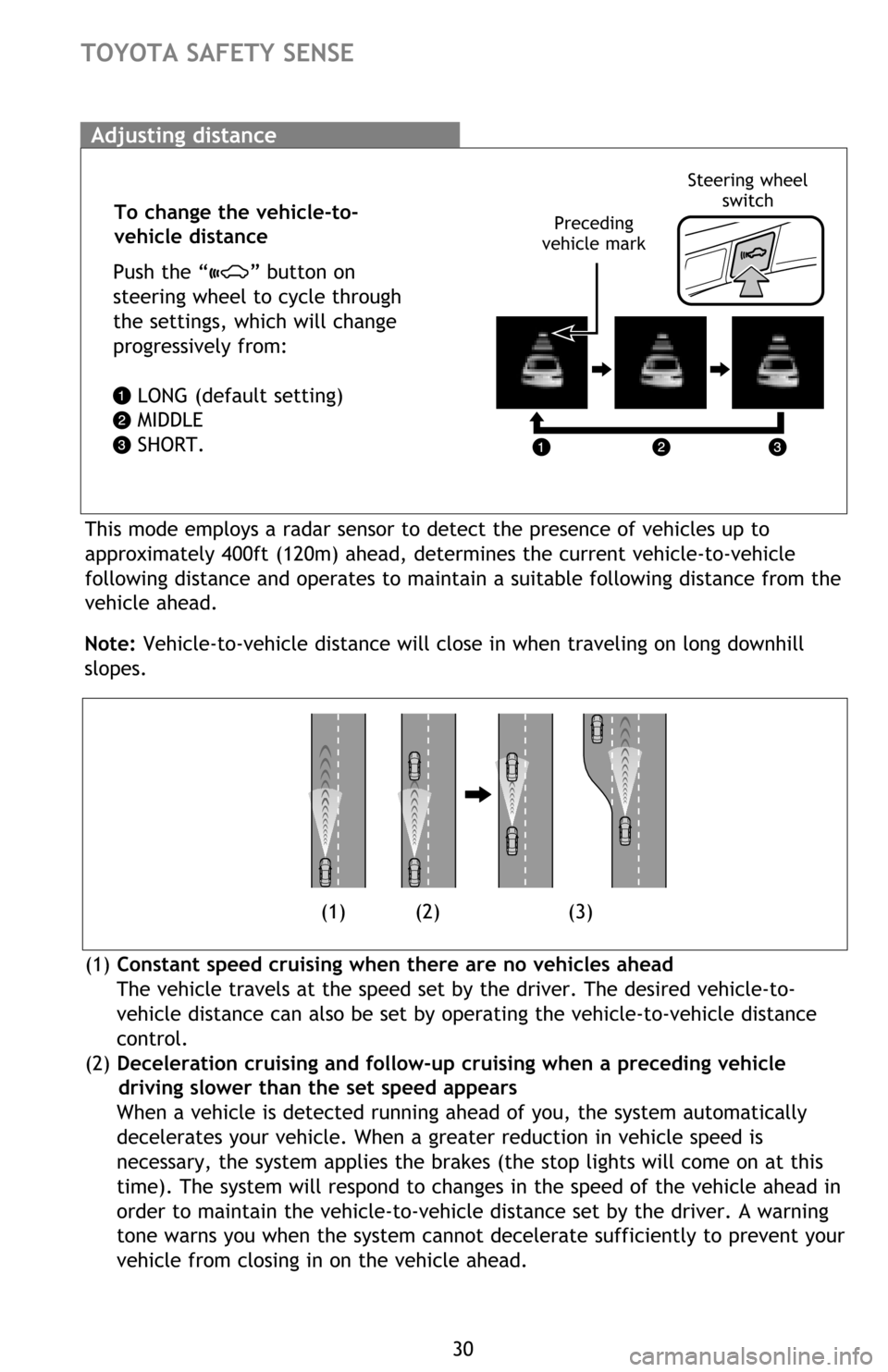

(1) (2) (3) To change the vehicle-to-
vehicle distance

Push the “
” button on
steering wheel to cycle through
the settings, which will change
progressively from:
LONG (default setting)
MIDDLE
SHORT.
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 400ft (120m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a suitable following distance from the
vehicle ahead.
Preceding
vehicle markSteering wheel
switch
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle distance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead in
order to maintain the vehicle-to-vehicle distance set by the driver. A warning
tone warns you when the system cannot decelerate sufficiently to prevent your
vehicle from closing in on the vehicle ahead. Note: Vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
Adjusting distance

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
35

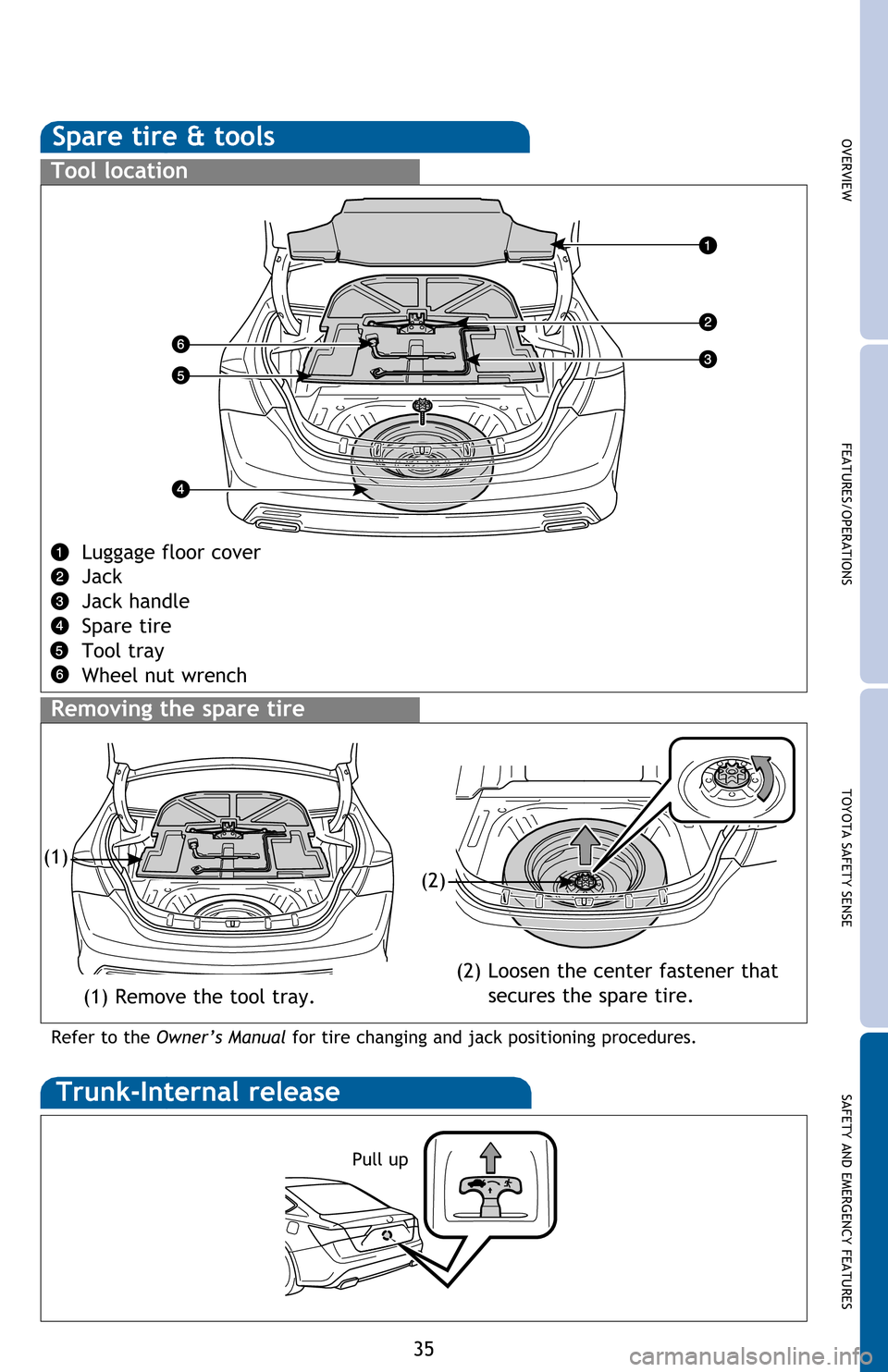

Spare tire & tools
Tool location
Luggage floor cover
Jack
Jack handle
Spare tire
Tool tray
Wheel nut wrench
Removing the spare tire
Trunk-Internal release
Pull up Refer to the Owner’s Manual for tire changing and jack positioning procedures.
(1)
(2)
(2) Loosen the center fastener that
secures the spare tire.
(1) Remove the tool tray.

36
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
SAFETY AND EMERGENCY FEATURES

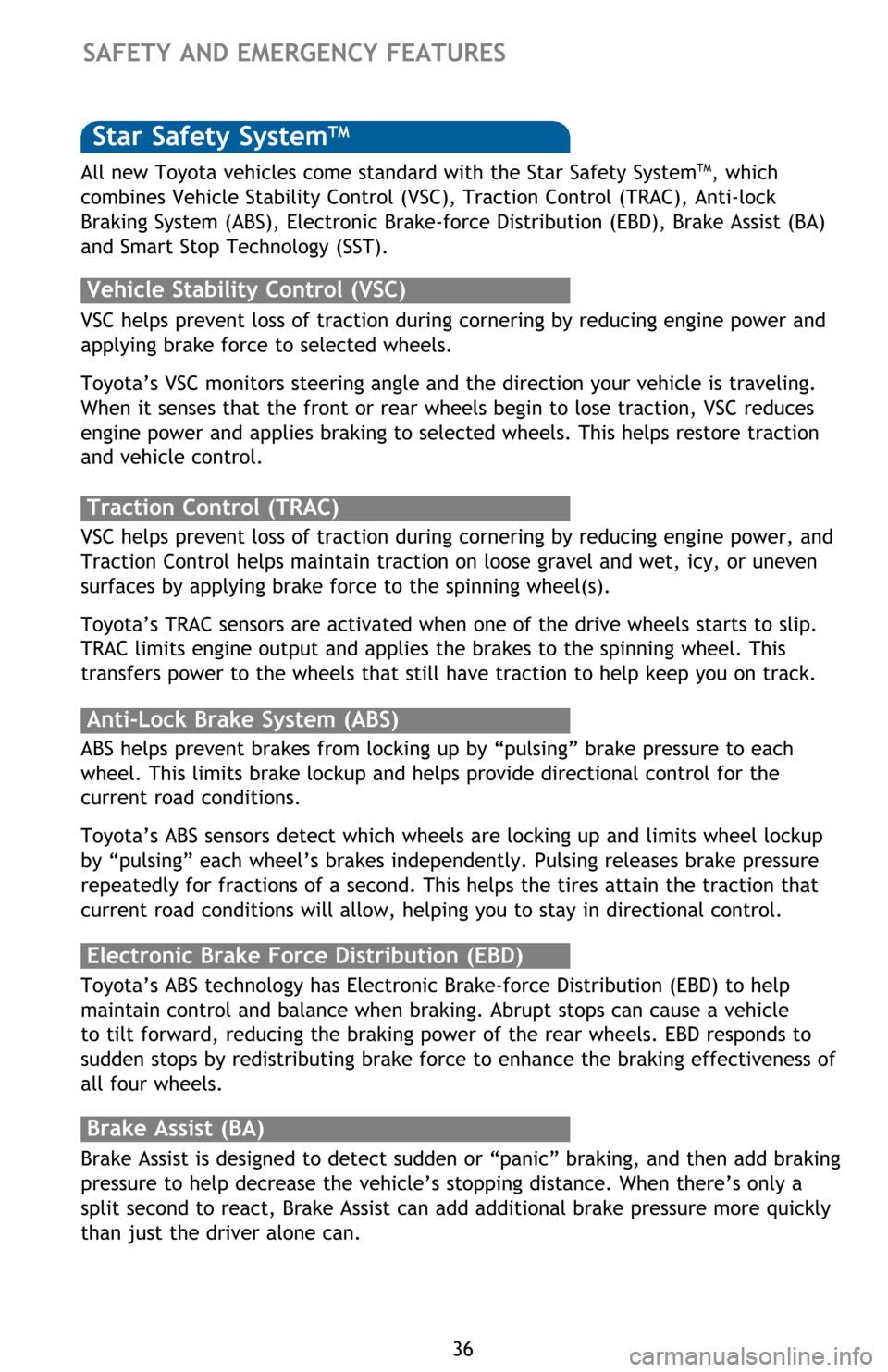

All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
